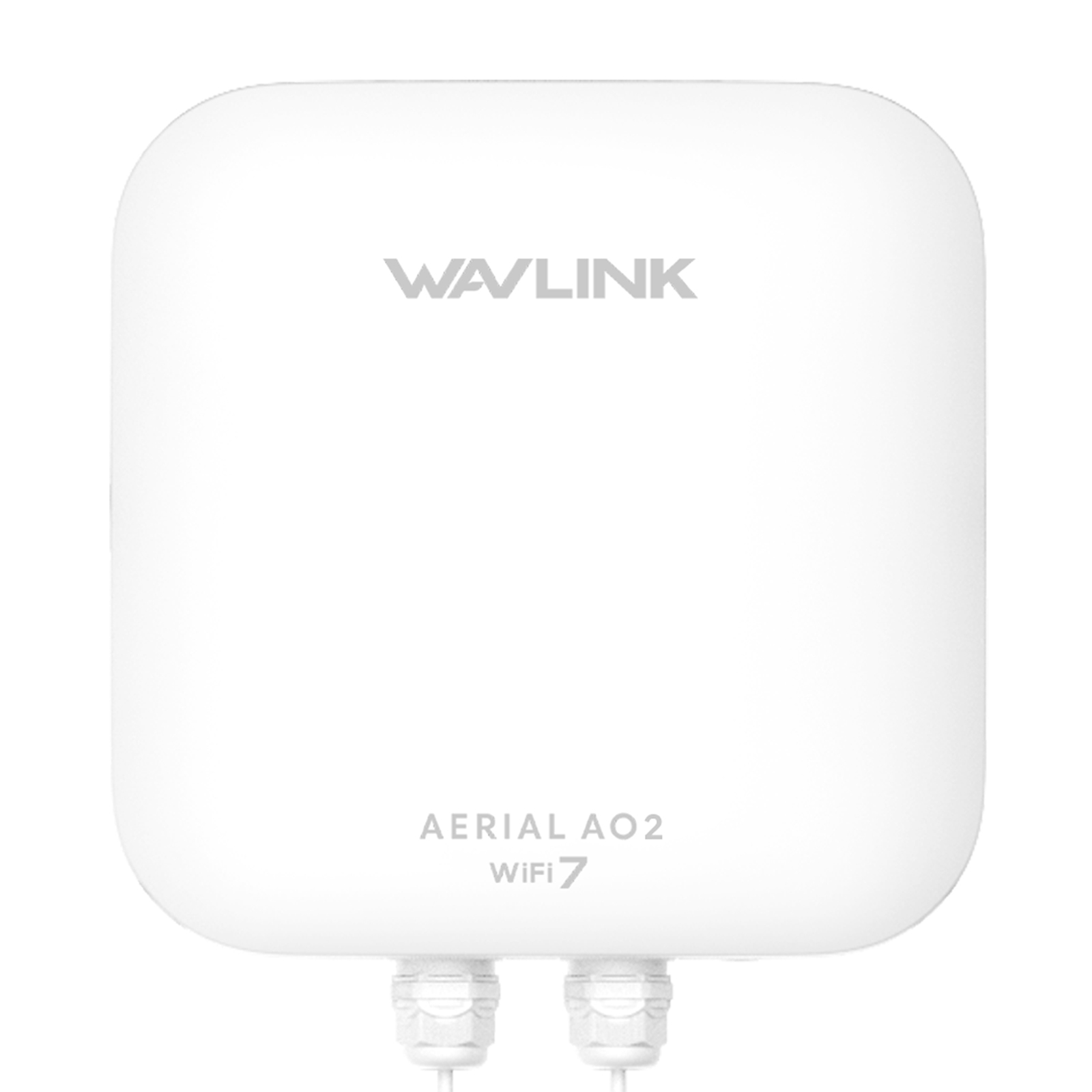

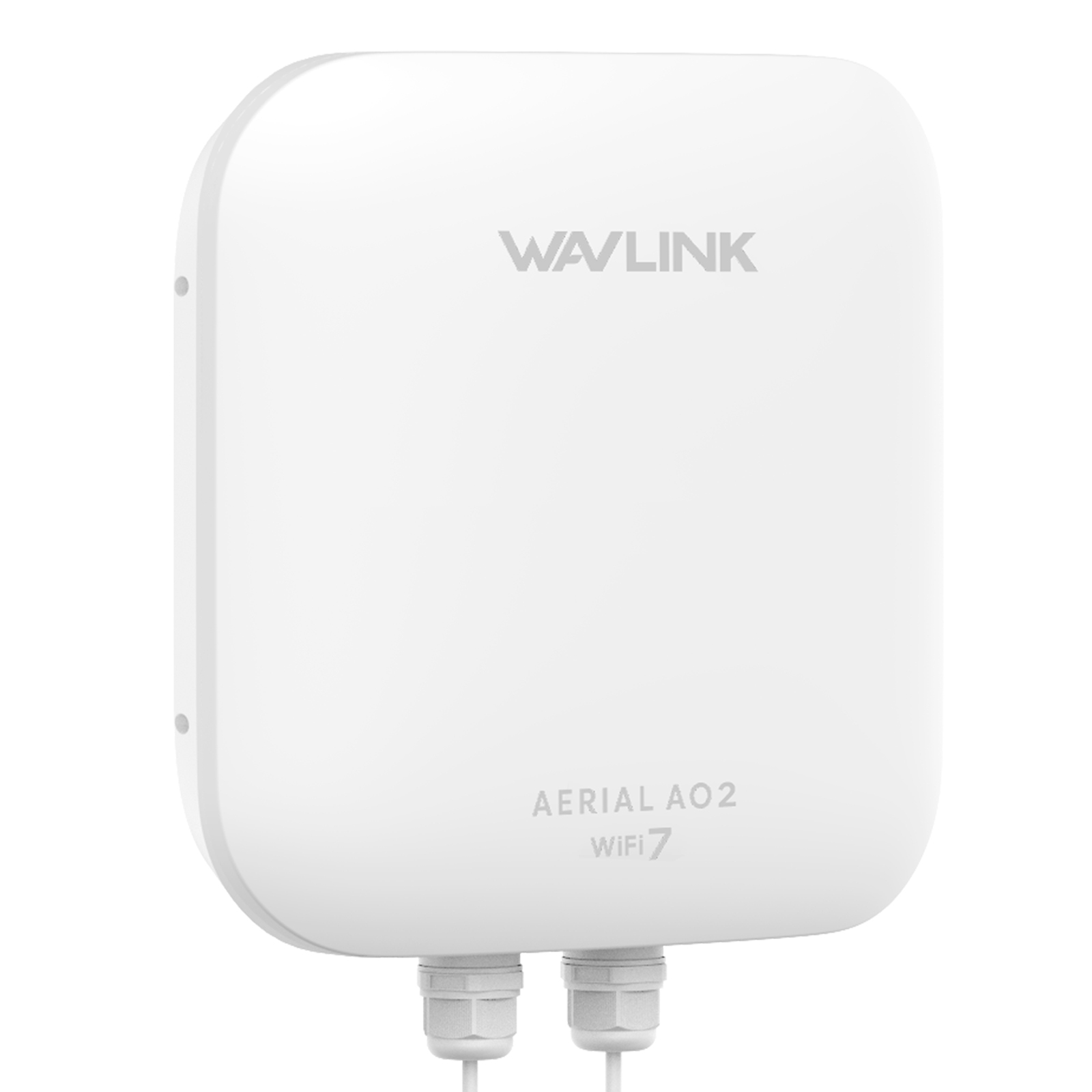

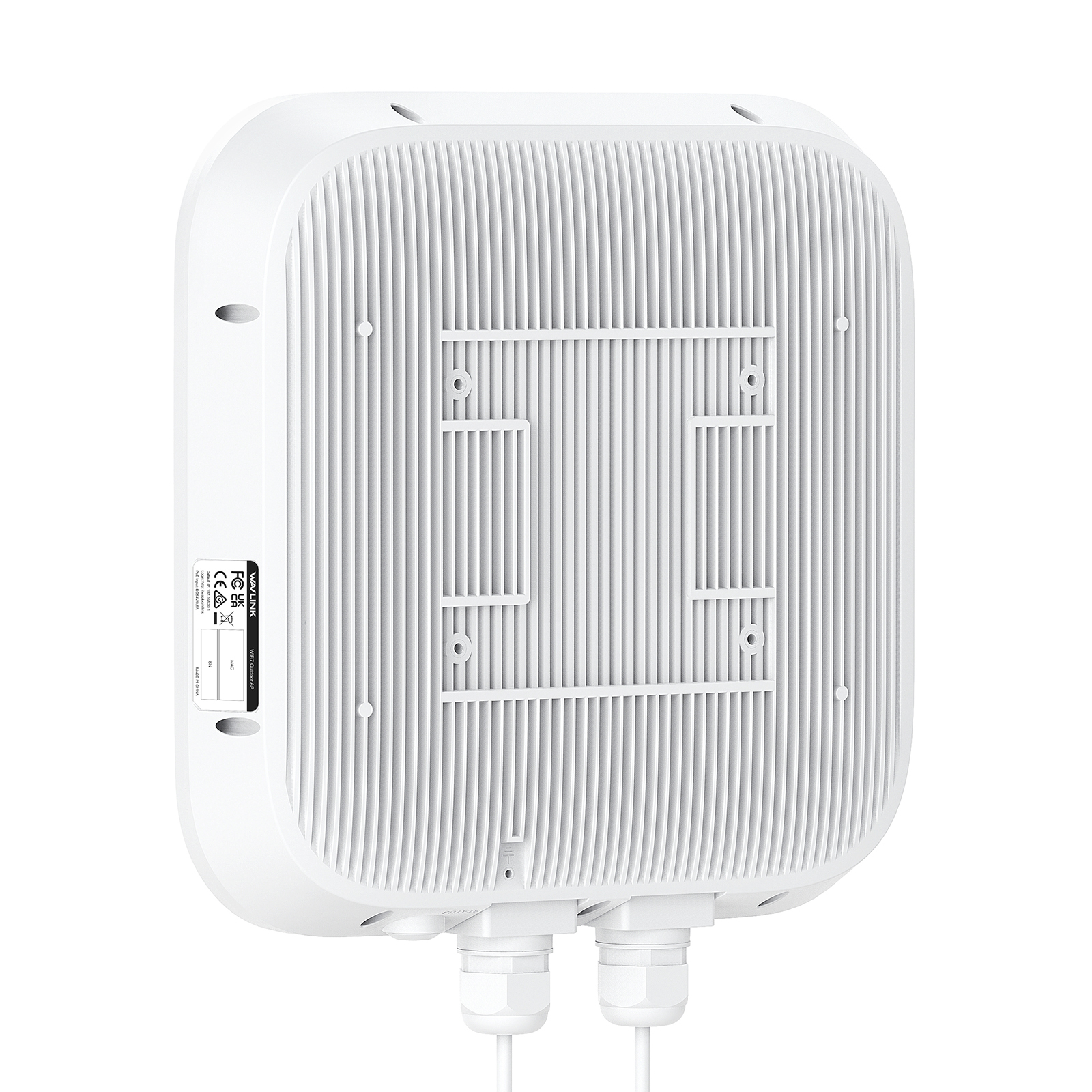

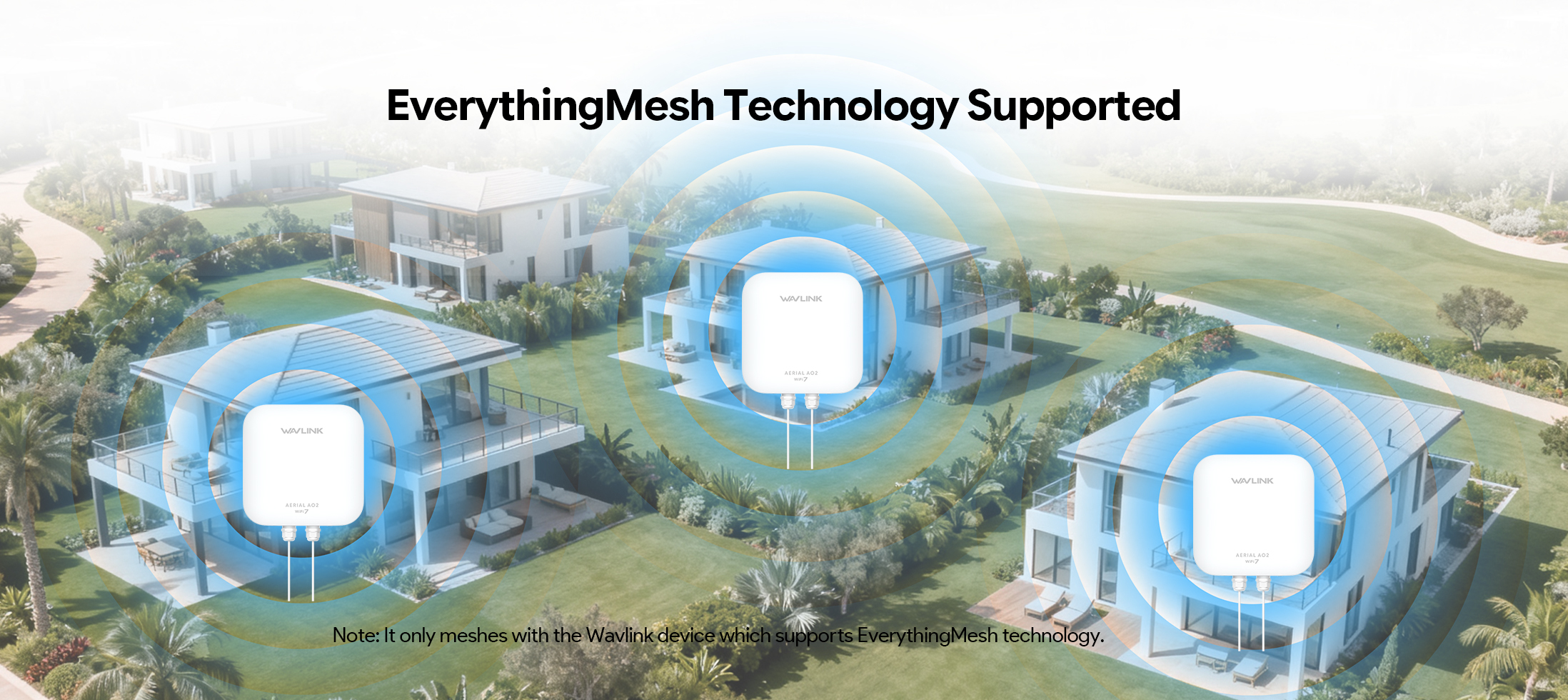

WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support EverythingMesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports
  • WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support EverythingMesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports 1
  • WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support EverythingMesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports 2
  • WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support EverythingMesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports 3
  • WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support EverythingMesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports 4
  • WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support EverythingMesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports 5

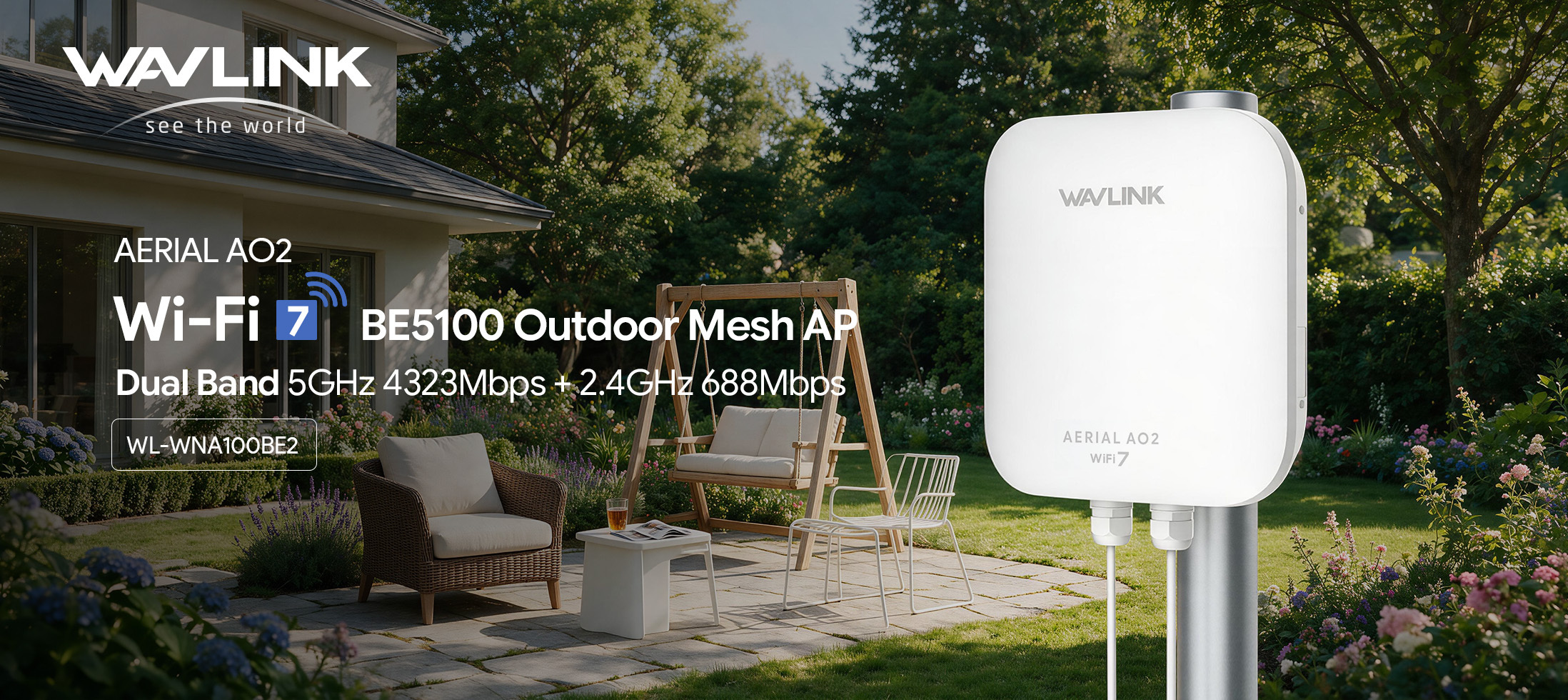

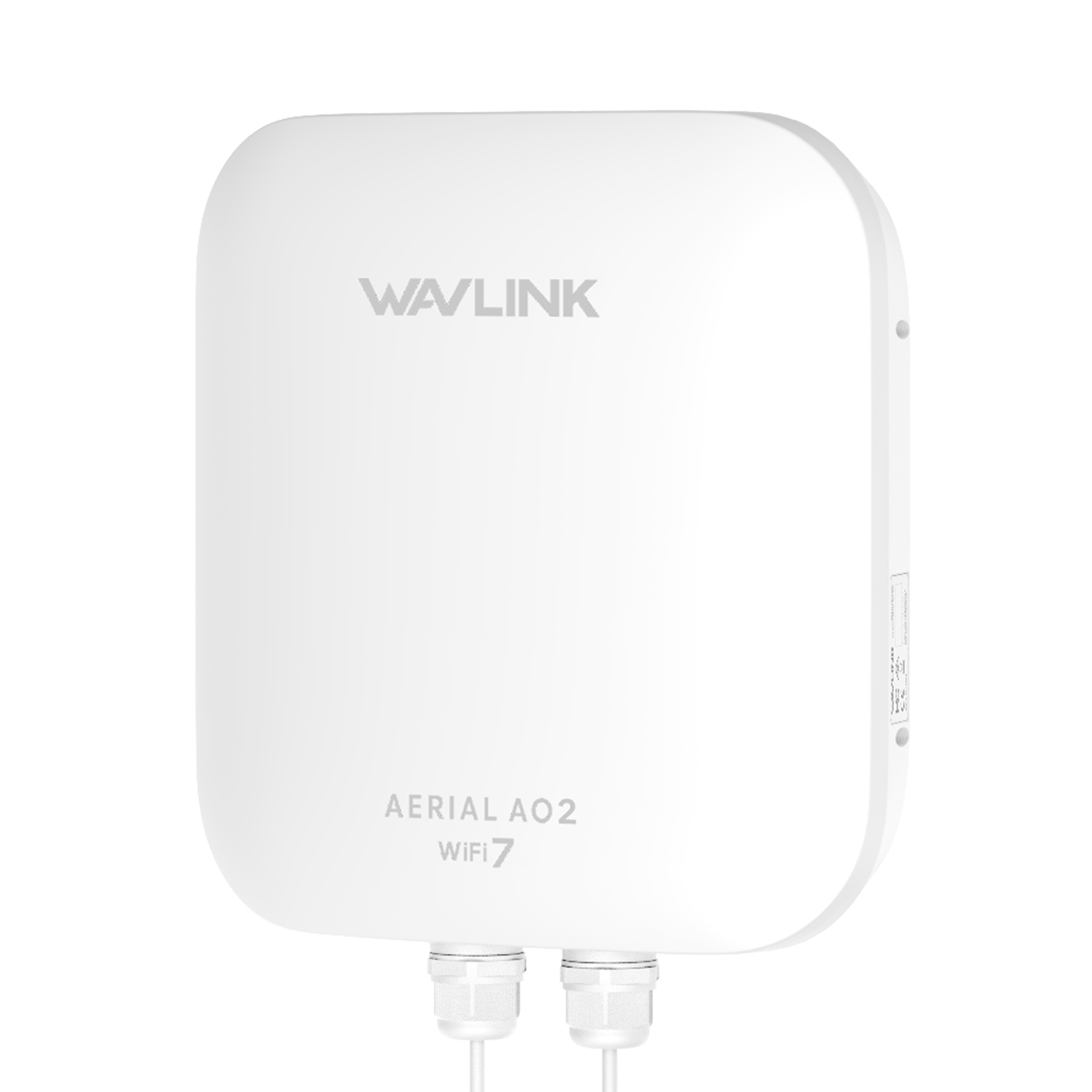

WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support EverythingMesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports

Aerial Ao2

Model: WL-WNA100BE2

- Frequency: dual band 2.4GHz 688Mbps+5GHz 4323Mbps, speed up to 5100Mbps.
- Ethernet Port: 1×2.5G Internet+1×2.5G LAN.
- Antennas: 2×2.4G 5dBi +3×5G 5dBi internal omnidirectional antennas.
- Operation Modes: AP/Range Extender/Router mode.
- Encryption Type: WPA2-PSK; WPA1-PSK/WPA2-MIX; WPA3-SAE/WPA2-PSK; WPA/WPA2-Enterprise.
- Power Adapter: 100-240V/50-60Hz; DC 54V (Passive PoE);30W (Active PoE)

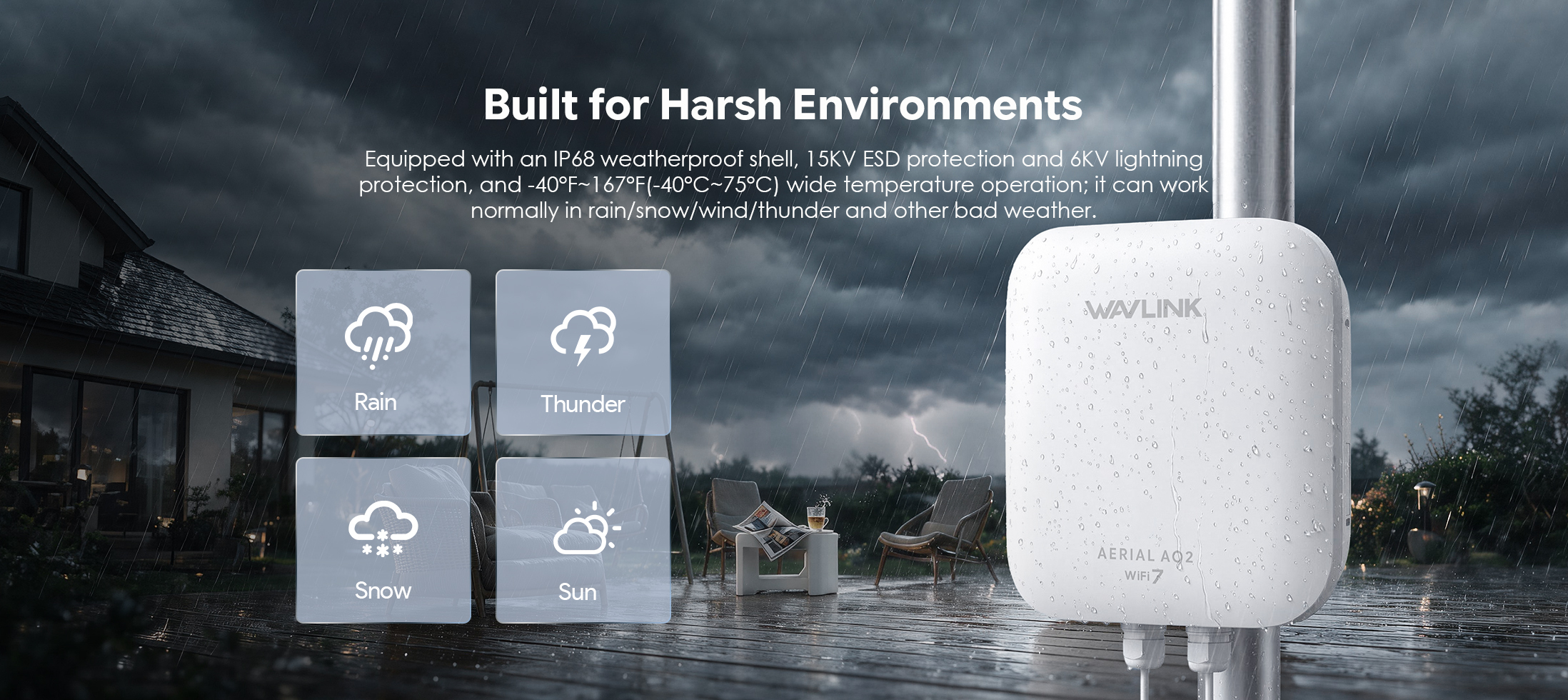

- IP 68 waterproof, 15KV ESD and 6KV lightning protection.
- Complies with IEEE 802.11be/ax/ac/a/n/g/b standards.
- Supports 802.3at active PoE and passive PoE to supply power.

  • Overview

  • Specifications

  • Manual

Specifications

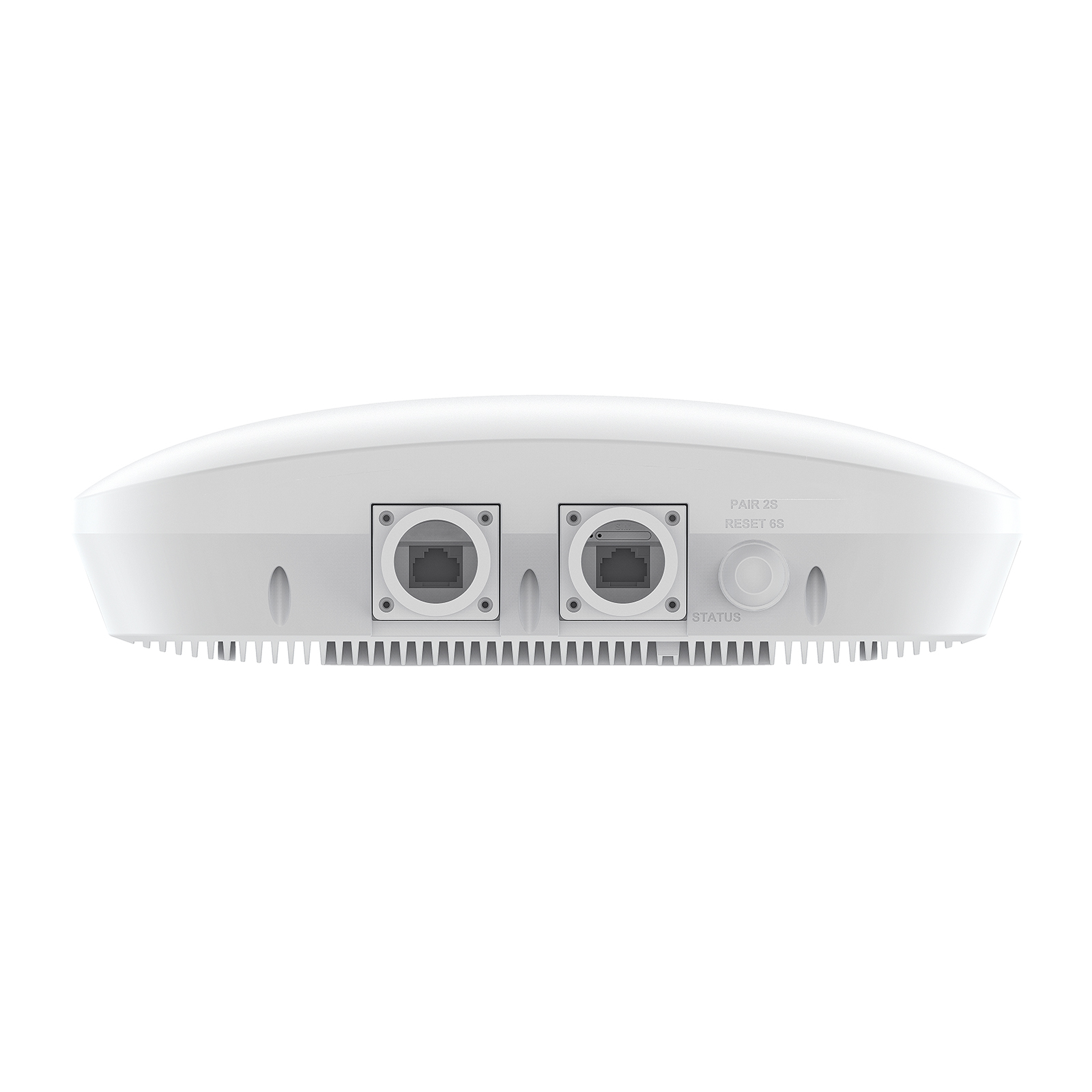

Ports 1 x 2.5G LAN
1 x 2.5G Internet
Button Pair & reset button
Pair/Reset LED Blue
PoE Converter Status LED Green
Power 100-240V/50-60Hz; DC 54V (Passive PoE);30W (Active PoE)
Power Supply 802.3at active PoE and passive PoE
Product Size 27x27x7.7cm/10.6x10.6x3in
Wireless Standard IEEE 802.11 be/ax/ac/a/n/g/b
Frequency 2.4GHz 688Mbps + 5GHz 4323Mbps
Wireless Security WPA2-PSK; WPA1-PSK/WPA2-MIX; WPA3-SAE/WPA2-PSK; WPA/WPA2-Enterprise
Antennas 5 x 5dBi Omnidirectional Internal Antennas (2 x 2.4G 5dBi +3 x 5G 5dBi)
CPU Quad-core 2.0GHz
Operation Modes AP/Range Extender/Router mode

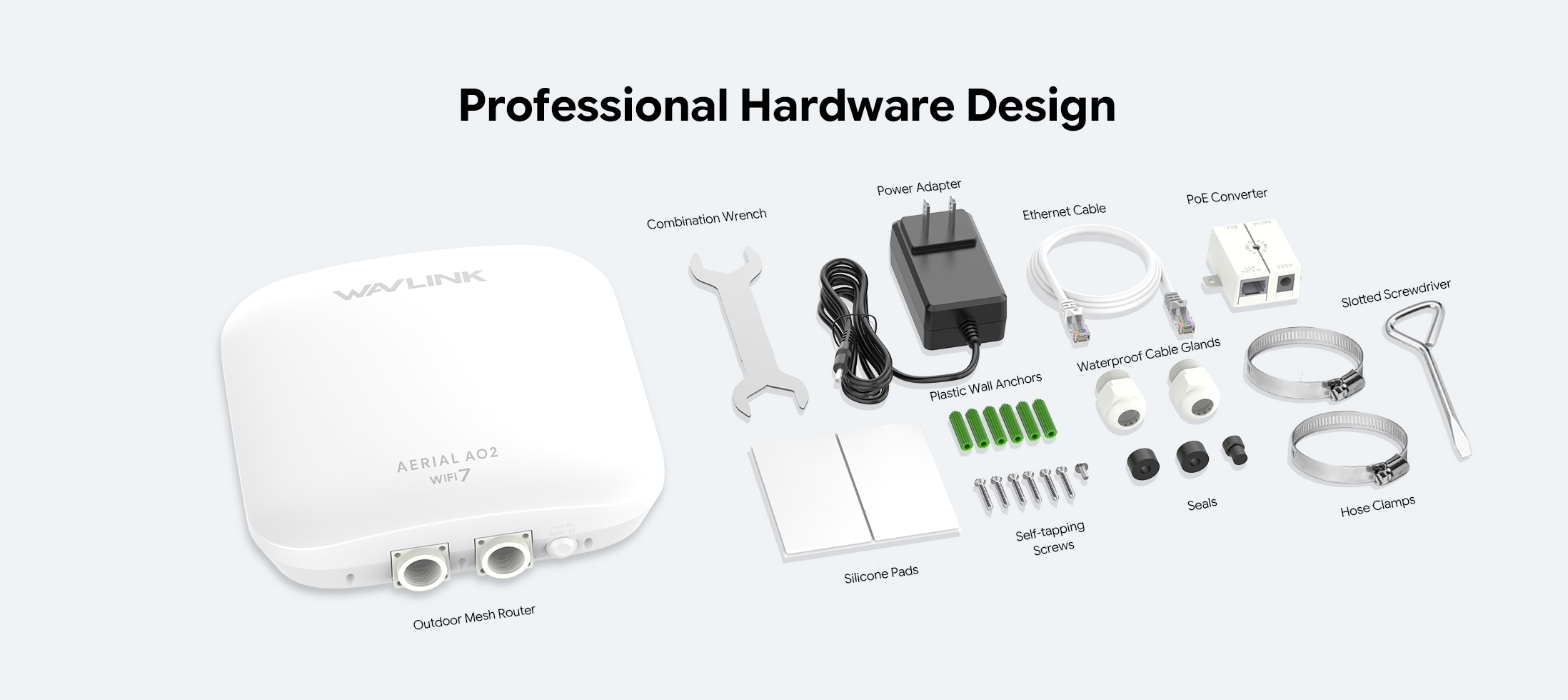

In the Box 1 x Wi-Fi 7 BE5100 Dual Band 2.5G Outdoor AP
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
2 x Waterproof Cable Glands
2 x Stainless Steel Hose Clamps
2 x Silicone Pads
1 x Slotted Screwdriver
1 x 28mm and 31mm Combination Wrench
1 x Quick Start Guide
Several Screws

Manual

WL-WNA100BE2

Description : WL-WNA100BE2

Post Date : 16/09/2026

Available : WL-WNA100BE2

Online Reading : View
