AC1200 Dual Band Wireless High Power Access Point

AERIAL HD8S

Model: WL-WN588HA2

Support dual-band (2.4G 300Mbps + 5G 867Mbps) speeds up to 1200Mbps.
Support one WAN/LAN Ethernet Gigabit port.
Complies with IEEE 802.1ac/a/n/g/b standards.
2x7dBi 5GHz and 2x7dBi 2.4GHz detachable omnidirectional external antennas provide excellent wireless performance.
Supports AP/Repeater/Mesh Router/Mesh Extender mode.
Encryption type: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, or WPA/WPA2-Enterprise.
Seamless and stable Wi-Fi Mesh makes you enjoy seamless roaming throughout the house with an SSID and password.
Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
Support 802.3 AT/AF Active PoE and Passive PoE to supply power
Support Fat AP Mode.
Support Fit AP Mode with WAVLINK AC controller.
AC1200 WiFi5 Outdoor Access Point
Dual Band, 7dBi High Gain Antennas, Everything Mesh, 4 Work Modes, IP 67 Waterproof & Dustproof, Support Active & Passive PoE, FIT AP & FAT AP
Born for Outdoor Use
Engineered with an IP67 waterproof enclosure, this rugged Wi-Fi extender is built to withstand nature's toughest challenges. 15KV ESD Protection‌, Shields against static discharge. 6kV Lightning Protection:‌ Ensures uninterrupted operation. All-Weather Durability‌ - Resists rain, snow, extreme winds, and thunderstorms.
Vast WiFi Coverage
Engineered with 4 detachable 7dBi omnidirectional antennas, this high-performance outdoor AP delivers robust 360° coverage for large open areas. With a powerful 1000 mW signal strength and built-in high-power amplifier (PA+LNA), it ensures seamless connectivity even in challenging environments. Ideal for farms, estates, gardens, and industrial sites, this solution eliminates dead zones and provides stable wireless connectivity for outdoor applications.

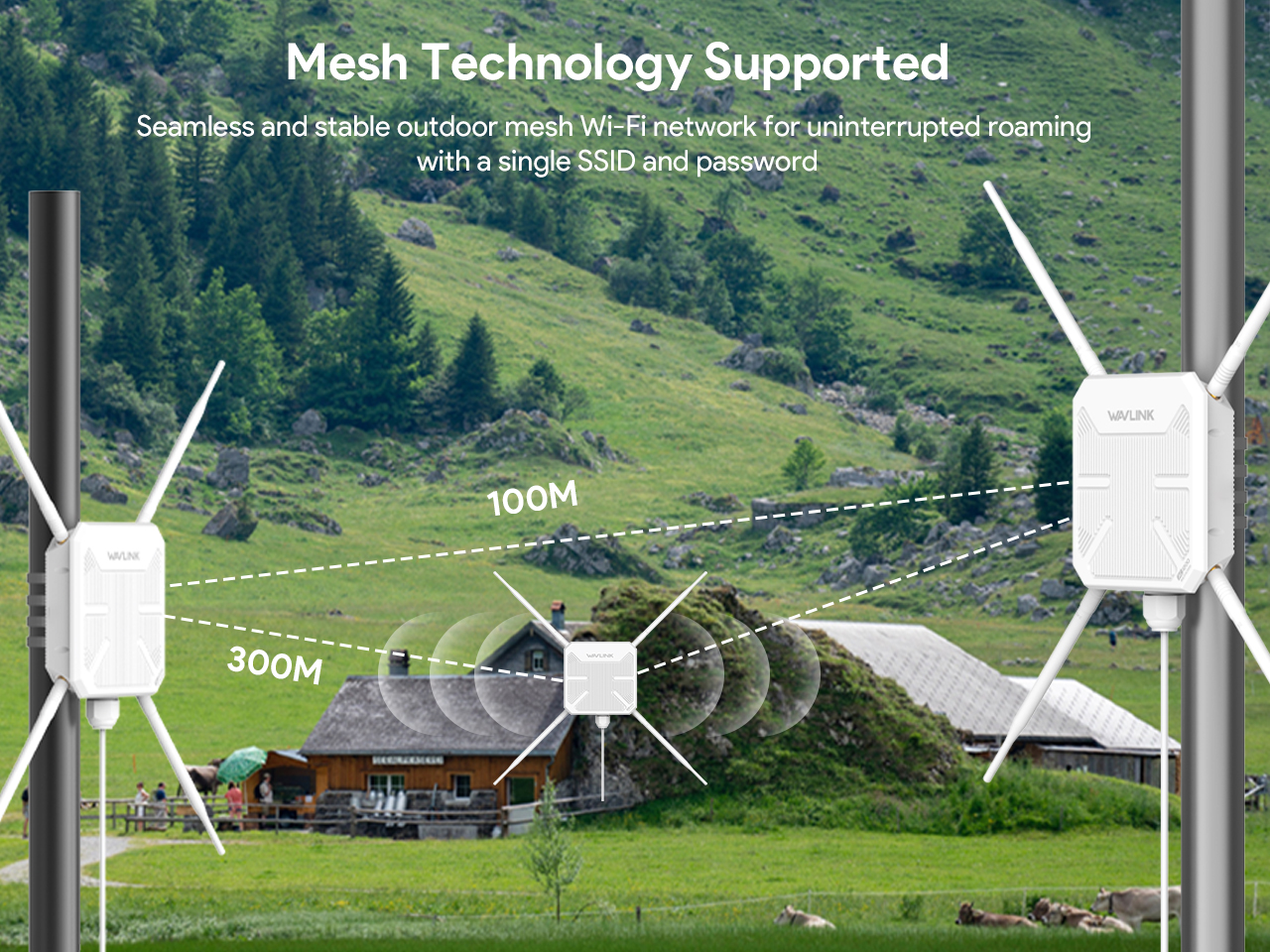

Everything Mesh for Unified WiFi Connection & Management
This AP supports Everything Mesh technology; one click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.

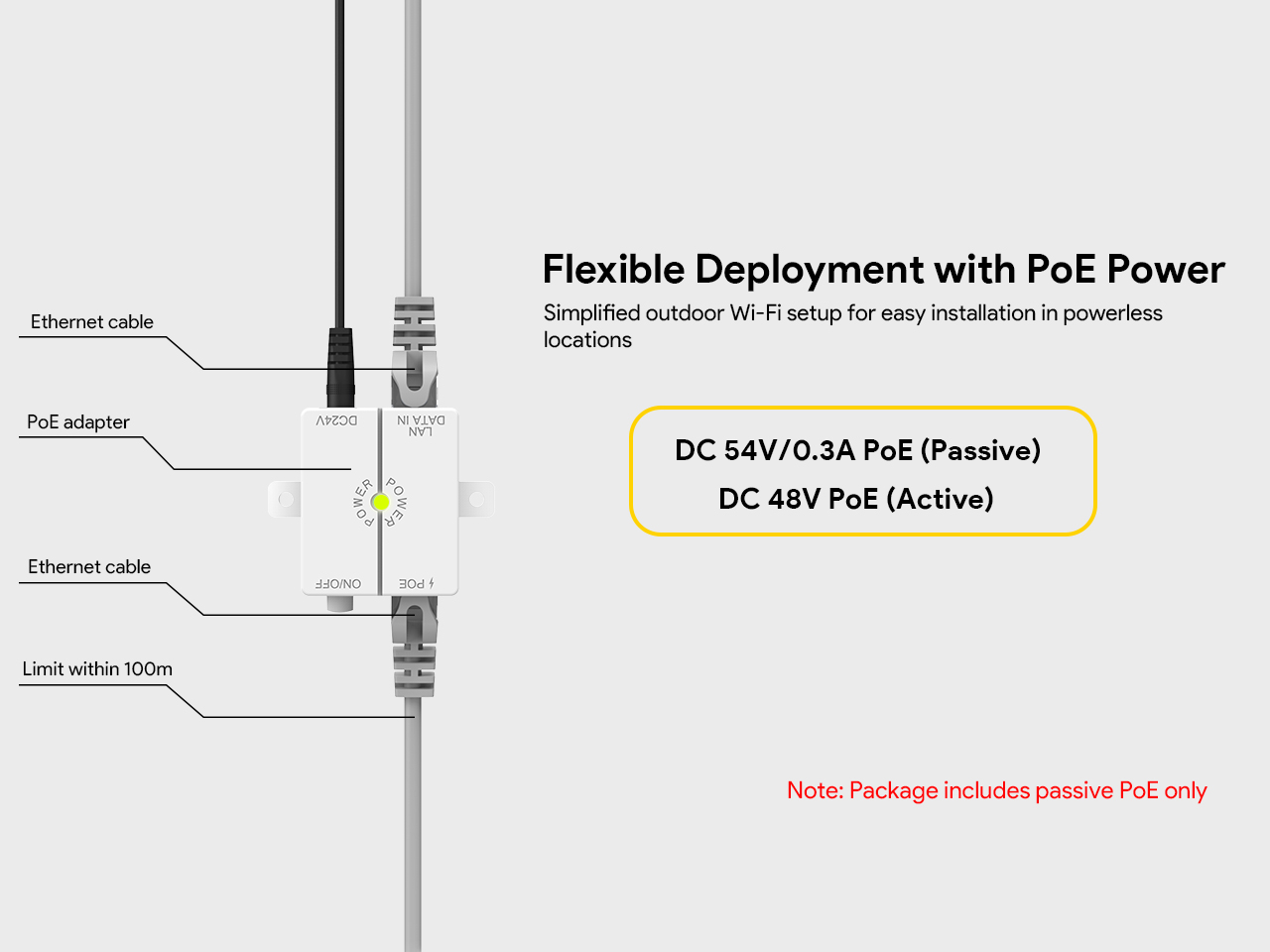

Powered by PoE
Supports 802.3AT/AR Active PoE and Passive PoE for flexible deployment by integrating power and network data over a single cable, simplifying outdoor Wi-Fi access point setup, making it convenient to install devices in locations without a power source. Note: PoE converter is not waterproof.

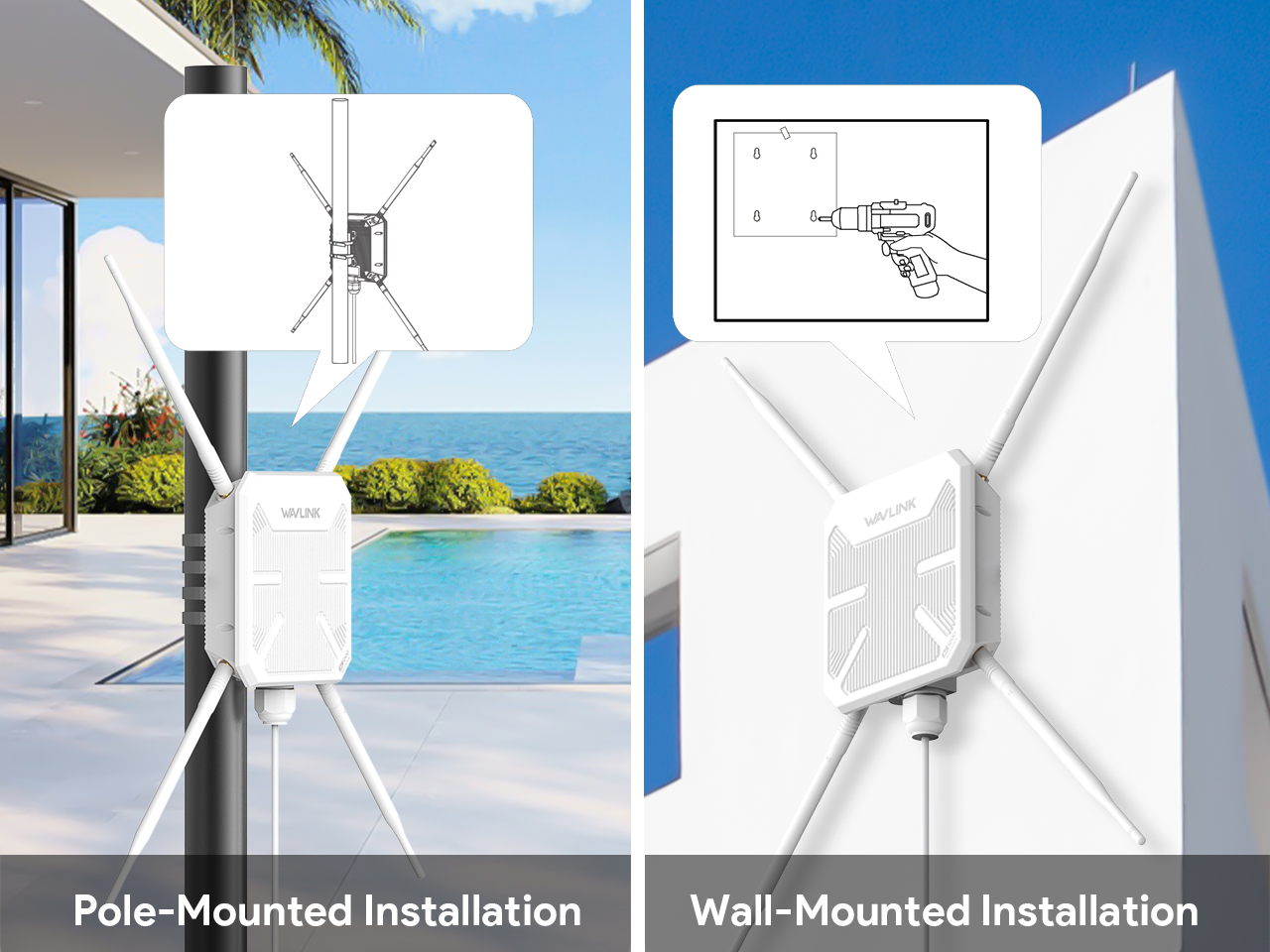

Flexible Mounting Ways
Pole mounting allows for easy installation in gardens, squares, or roadside areas, covering open spaces like a streetlight. Wall mounting can be affixed under eaves, on balconies, or against walls without occupying ground space. Both methods enable flexible positioning of the device to avoid obstructions and direct Wi-Fi signals precisely where needed. Additionally, they allow angle adjustments based on the actual environment, ensuring strong and stable signal performance.

Specifications

Hardware Wireless
Ports 1 x 10/100/1000 Mbps WAN Port(POE) Standard IEEE 802.11b/g/n/ac
Button 1 x Reset Frequency band 2.4GHz, 5GHz
LED 1 x SYS Transmit Power 2.4G:28dBm, max 5G:28dBm max
Solution MT7621A+MT7613B+MT7603E Sensitivity 802.11b:-95dBm/802.11g:-90dBm /802.11n:-90dBm,802.11ac:-90dBm
Flash 16MB Speed 802.11ac: 5GHz 867Mbps and
2.4GHz 300Mbps
DDR 128MB Wireless Security WPA2-PSK,WPA3-PSK/WPA2-PSK MIX
Rated Voltage/
Frequency
Input: 100-240V ac,50/60 Hz
DC 54V/0.3A Power over Ethernet (Passive)
DC 48V Power over Ethernet (Active)
Antennas 4x7dBi Omni Directional Antennas
Distance Outdoors 1000 Meters (According to the actual environment change)
Dimension Software
Unit Dimensions 172.7 mm * 169.6 mm *56.5 mm WAN Type PPPoE, Dynamic IP, Static IP
Environmental
Operating
Temperature
-40~50 °C Function AC Controller (option)
Mode selection: Mesh Router/
Repeater (wisp)/ Repeater
(bridge)/ AP / Mesh Extender
- Wireless Setting
- Advanced: Parental Control,QoS,VLAN
Storage
Temperature
-40~70 °C
Relative
Humidity
(Operational)
10%~90%,noncondensing
