Thunderbolt™ 5 15-In-1 Quad Display M.2 Ultra Docking Station
  • Thunderbolt™ 5 15-In-1 Quad Display M.2 Ultra Docking Station 1
  • Thunderbolt™ 5 15-In-1 Quad Display M.2 Ultra Docking Station 2
  • Thunderbolt™ 5 15-In-1 Quad Display M.2 Ultra Docking Station 3
  • Thunderbolt™ 5 15-In-1 Quad Display M.2 Ultra Docking Station 4
  • Thunderbolt™ 5 15-In-1 Quad Display M.2 Ultra Docking Station 5

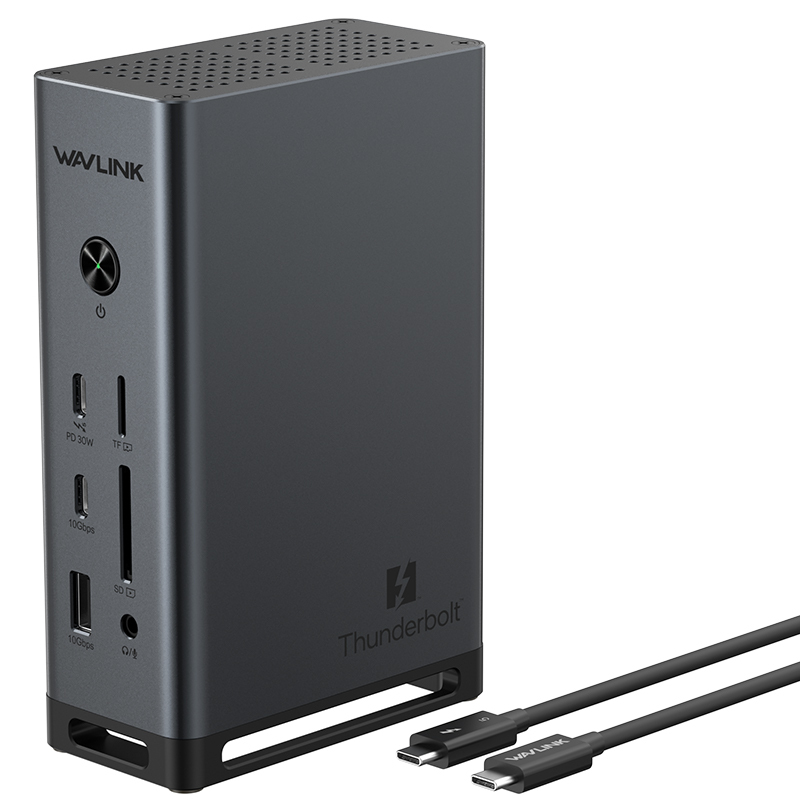

Thunderbolt™ 5 15-In-1 Quad Display M.2 Ultra Docking Station

BlitzDockM

Model: WL-UTD62M

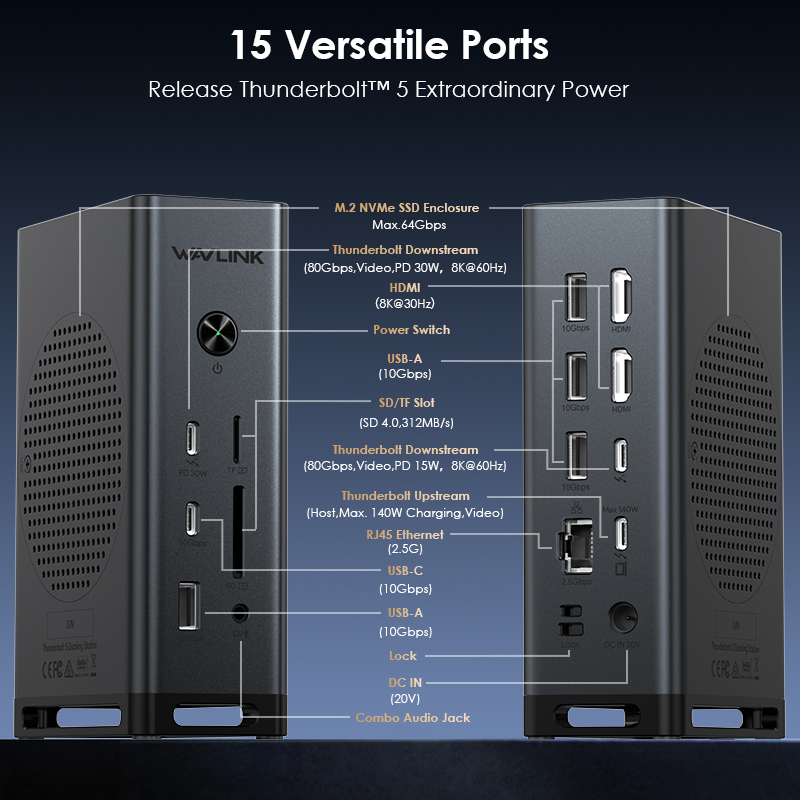

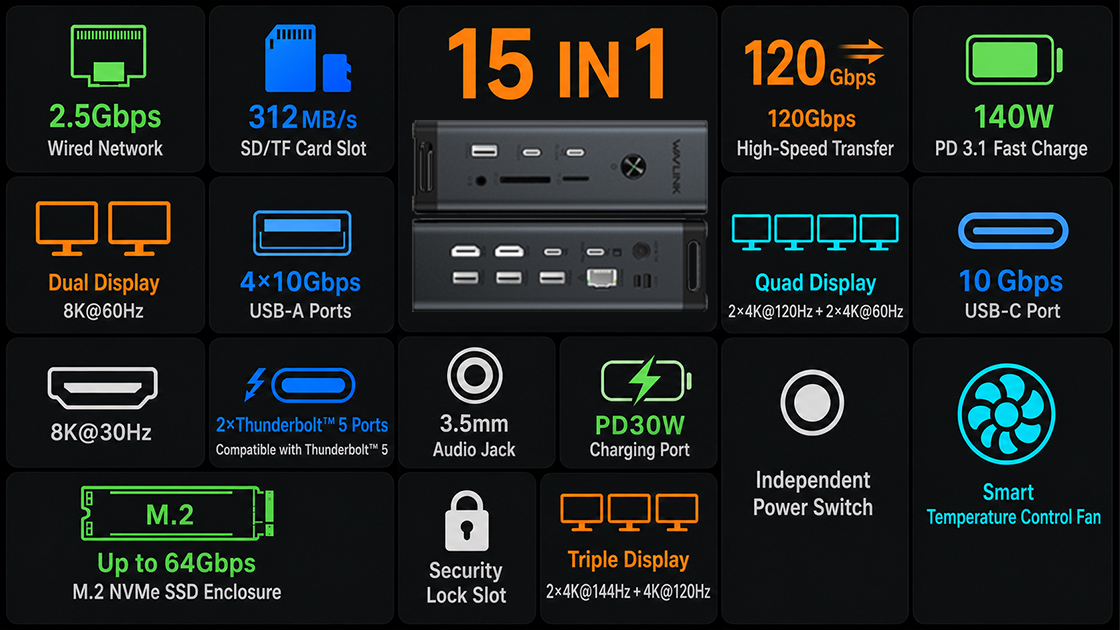

• 15 Versatile Ports
• 1 x UFP & 2 x DFP TBT 5 Ports, Thunderbolt 5 Up to 120Gbps Bandwidth & 80Gbps Data Transfer

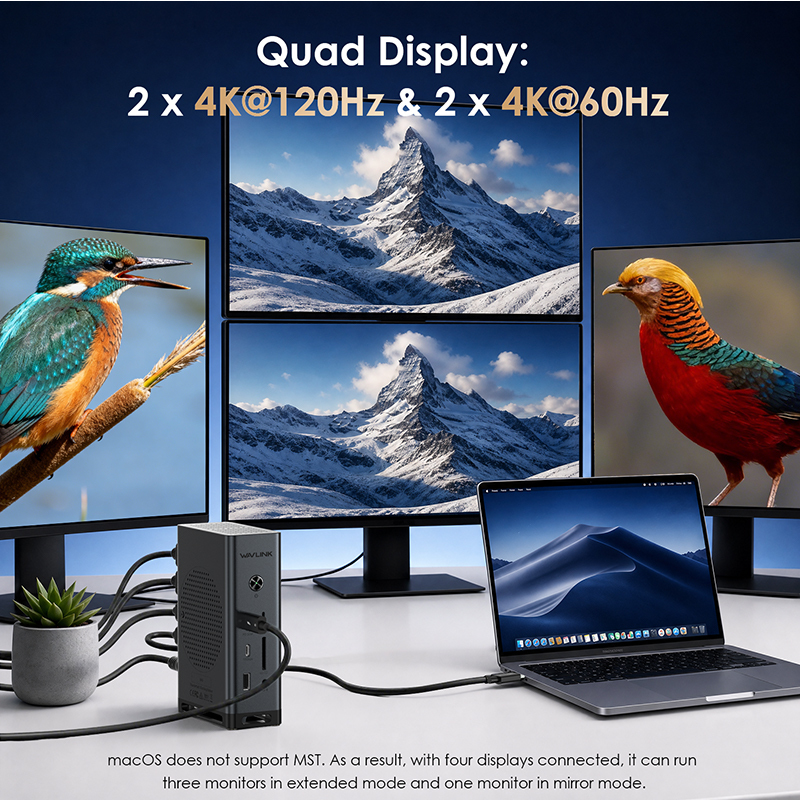

• Dual Display 8K@60Hz / Triple Display 2x 4K@144Hz +4K@120Hz / Quad Display 2x 4K@120Hz + 2x 4K@60Hz
• M.2 NVMe SSD PCIe 4x4 Slot up to 64Gbps
• Host Charging Port PD 140W, 1x 30W & 1x 15W TBT DFP
• Smart Cooling System

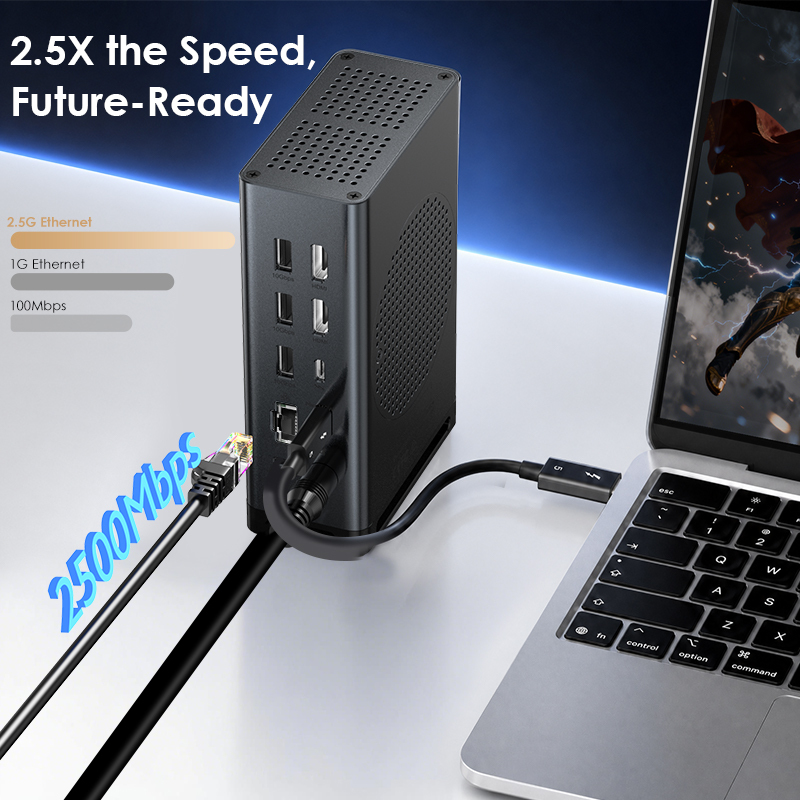

• 2.5 Gigabit Ethernet Port
• 1 x USB-C 10Gbps , 4 x USB-A 10Gbps
• SD4.0 SD & MicroSD Card Reader up to 312 MB/s
• 3.5mm Combo Audio In/Out

  • Overview

  • Specifications

  • Manual

Thunderbolt 5 Multifunctional Docking Station
Dual 8K@60Hz Display，80Gbps Data Transfer, 64Gbps M.2 Slot, 140W Pass-through Charging, 2.5Gbps Ethernet

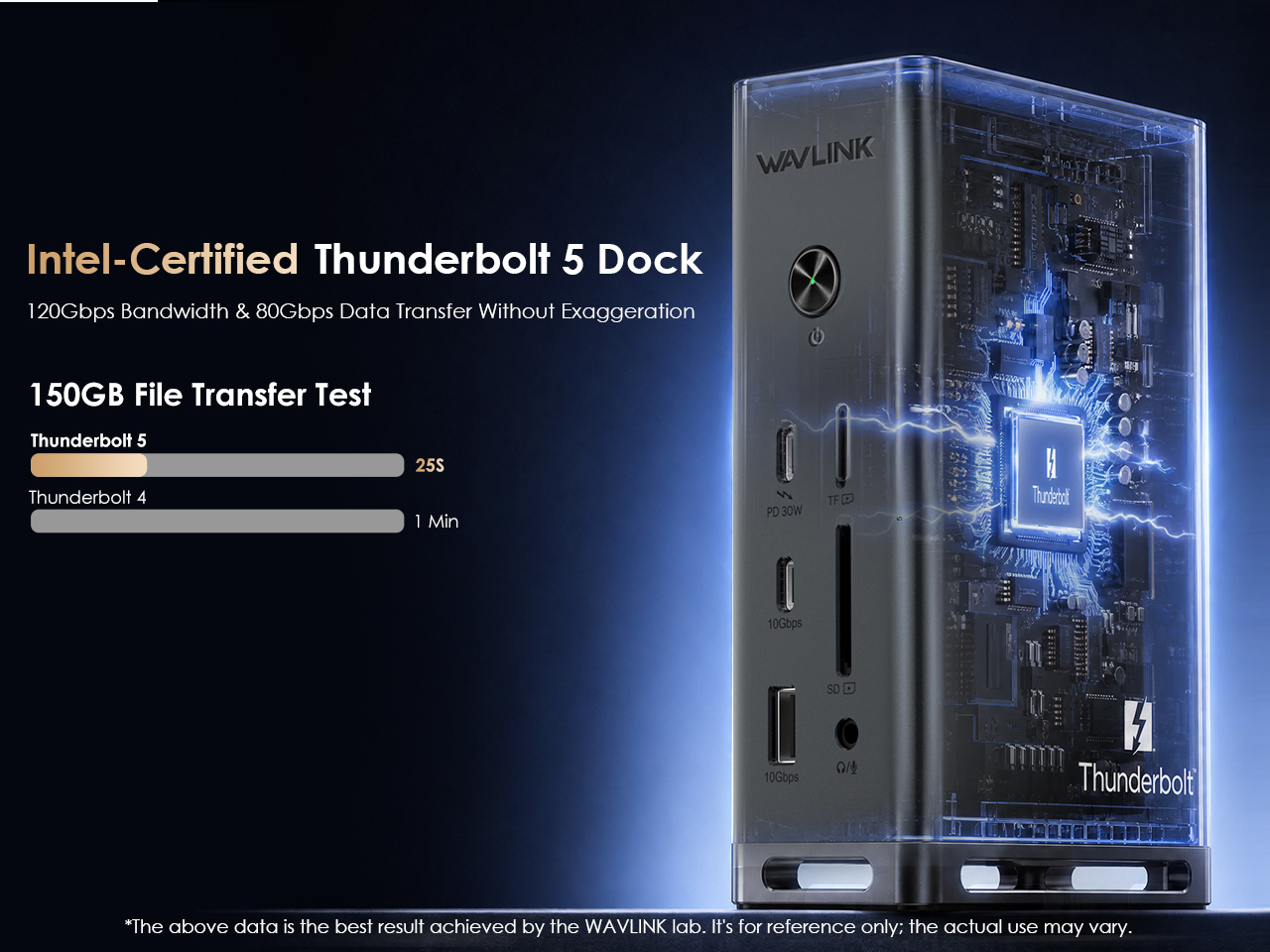

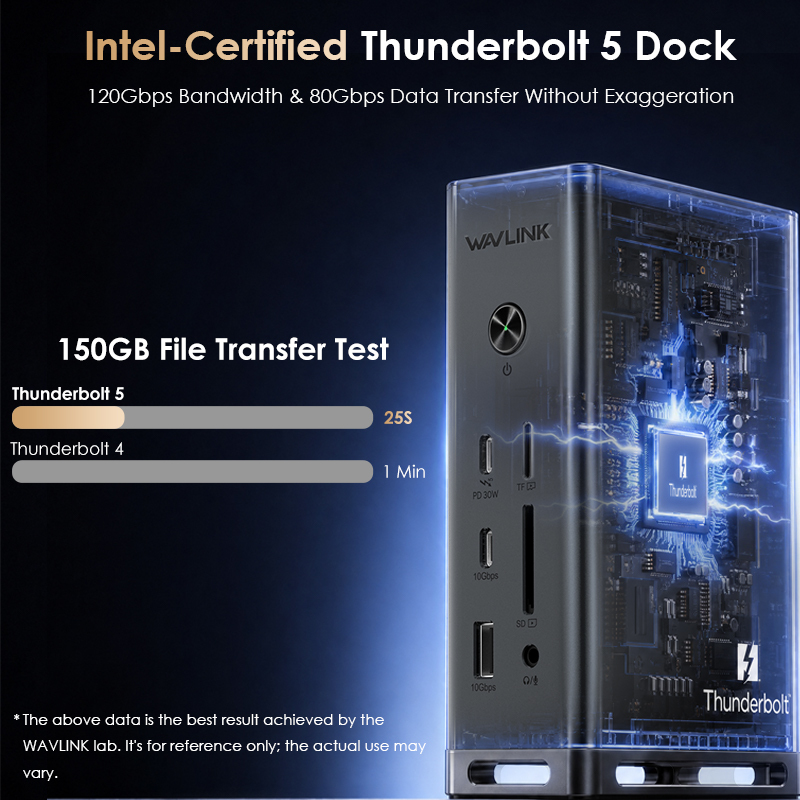

Blazing-Fast Thunderbolt 5 Speed
Experience a massive 120Gbps total bandwidth, with data transfer speeds hitting 80Gbps—double that of Thunderbolt 4. This means handling massive files, multiple high-resolution monitors, and professional-grade peripherals is smoother than ever. One cable, everything connected.

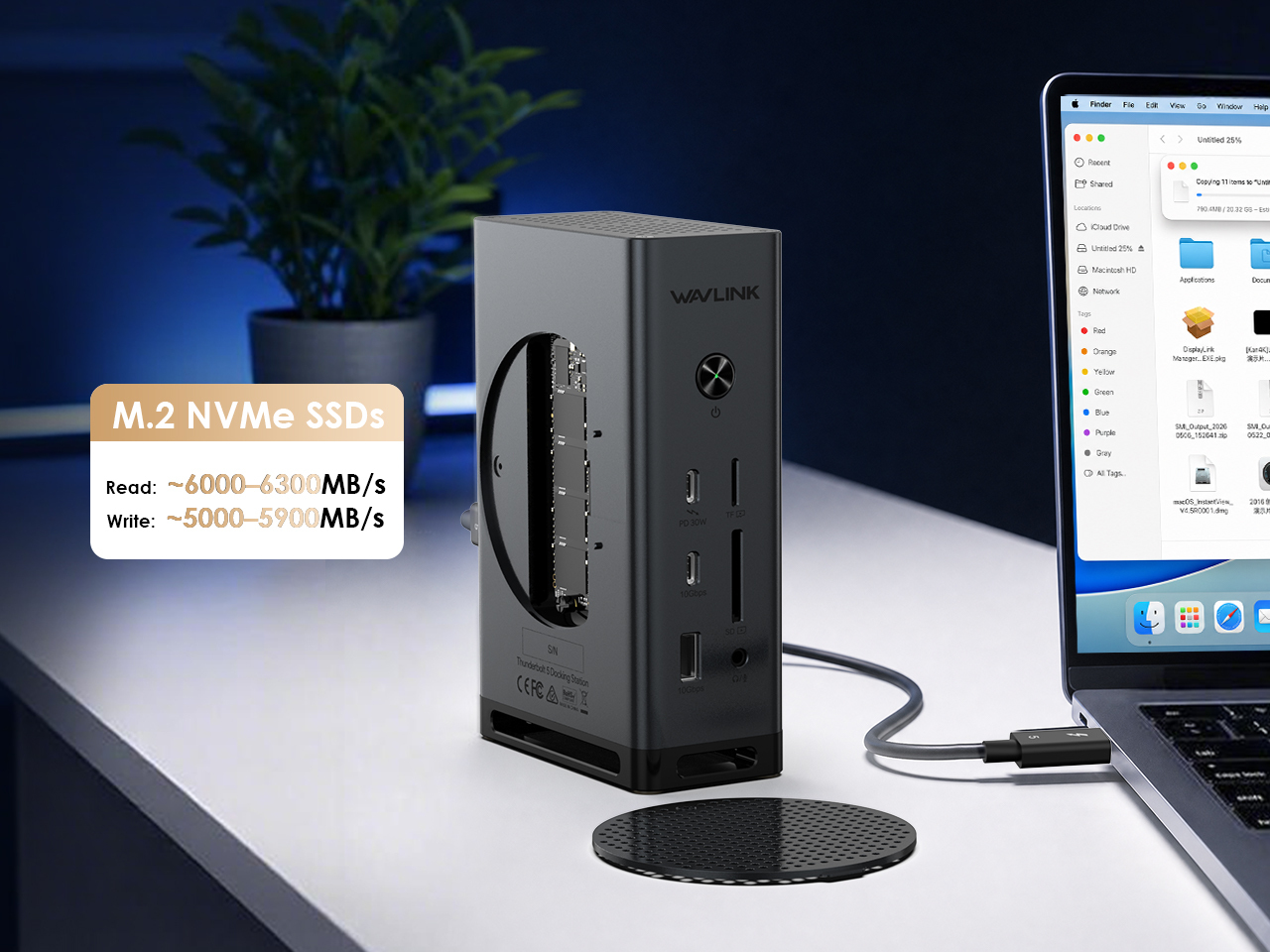

64Gbps M.2 SSD Slot
Add or expand storage directly on the dock. The built-in M.2 slot supports PCIe 4.0 x4 SSDs (sizes 2230, 2242, 2260, 2280) with blazing read/write speeds up to 6200 MB/s and 5900 MB/s—ideal for video editing, large file transfers, or running games.

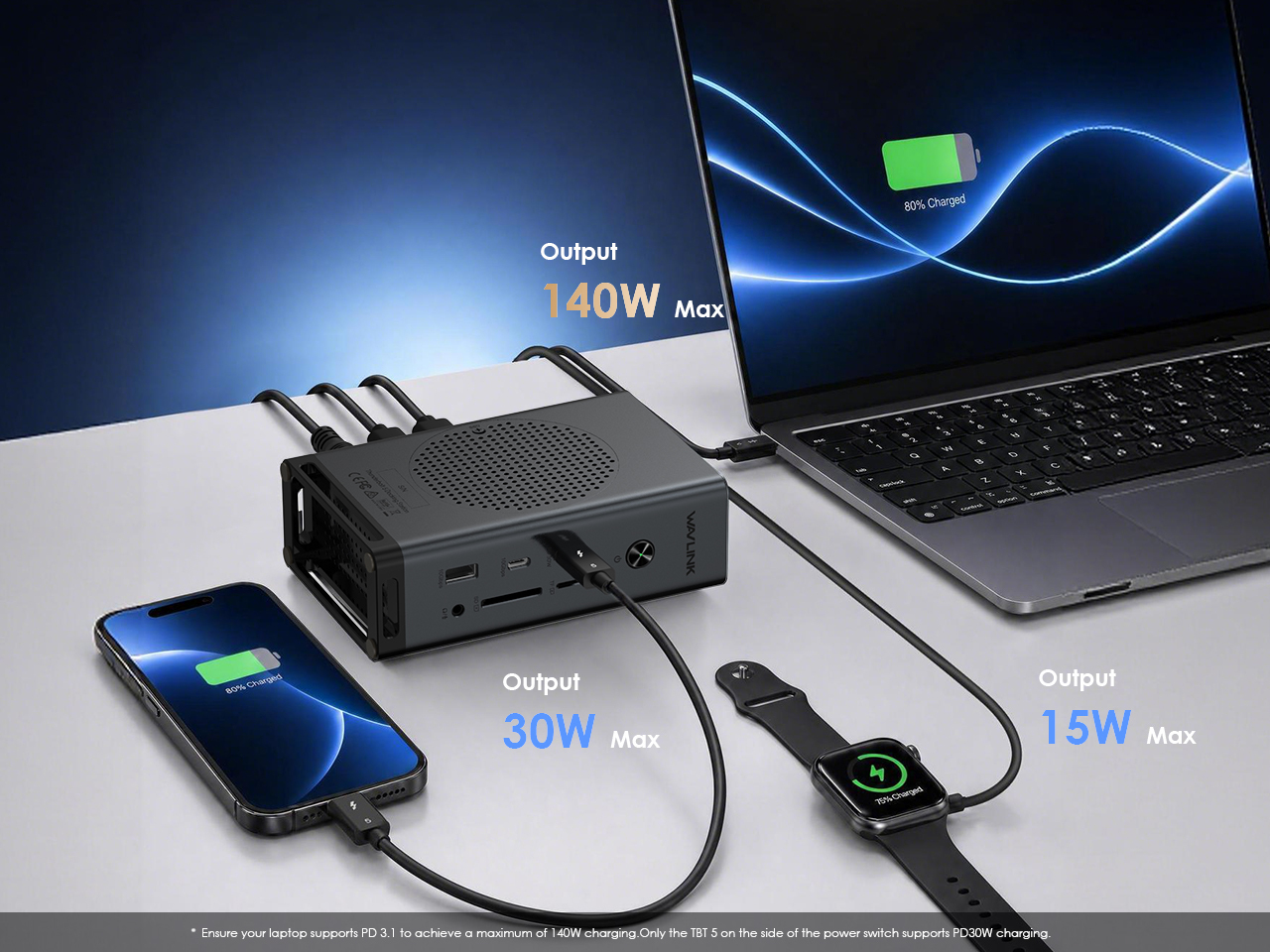

Pass-through Charging
Keep your laptop powered with up to 140W charging via the upstream Thunderbolt 5 port. The two downstream Thunderbolt 5 ports also provide 15W and 30W charging respectively—perfect for keeping your iPad, iPhone, or wireless earbuds topped up while you work.

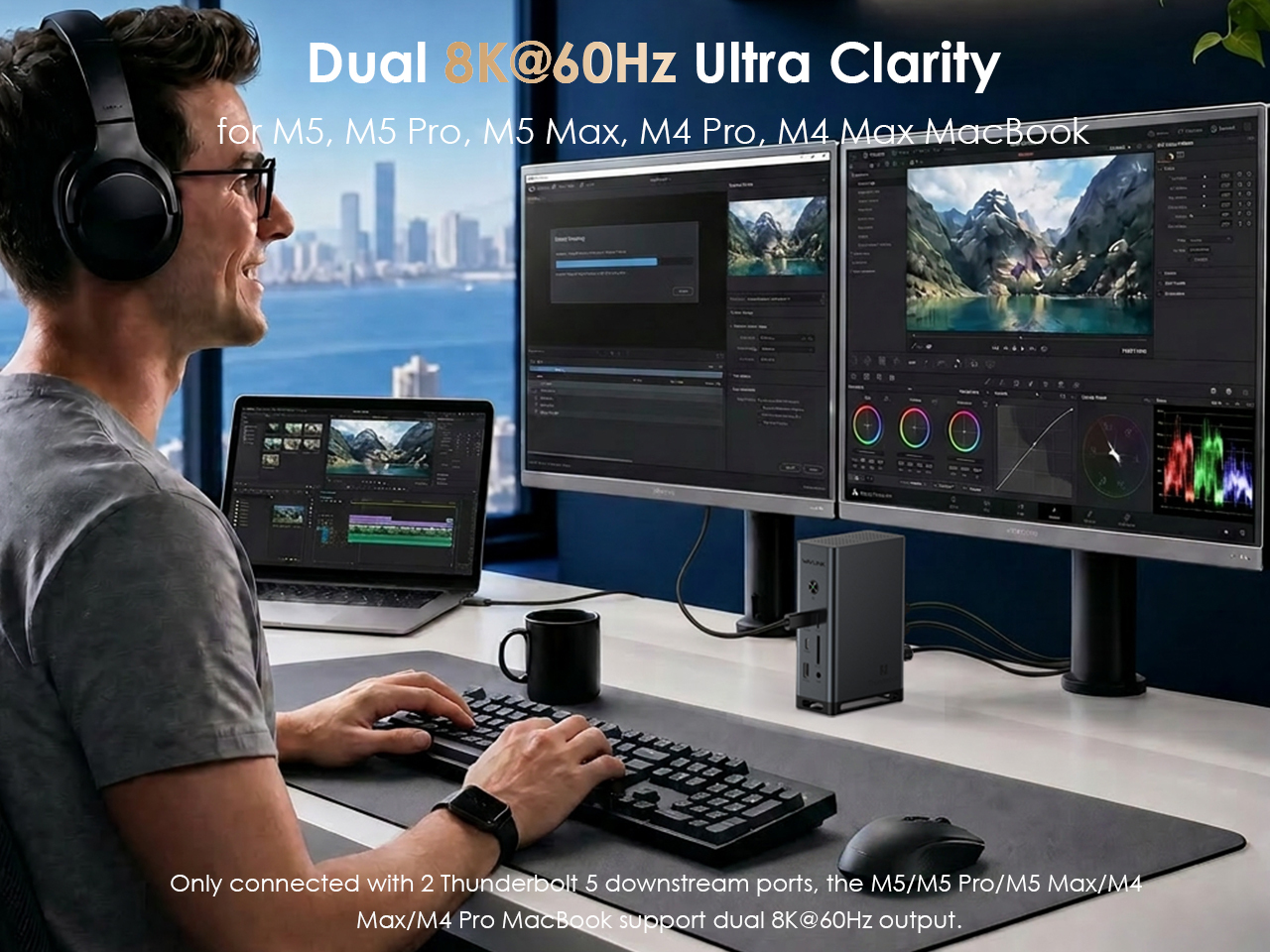

Dual 8K@60Hz
Enjoy dual 8K@60Hz displays. Perfect for immersive gaming, streaming, or creative workflows. Note: Due to macOS limitations (no MST support), multi-display capabilities on Mac are reduced. Please check your Mac model’s native display support.

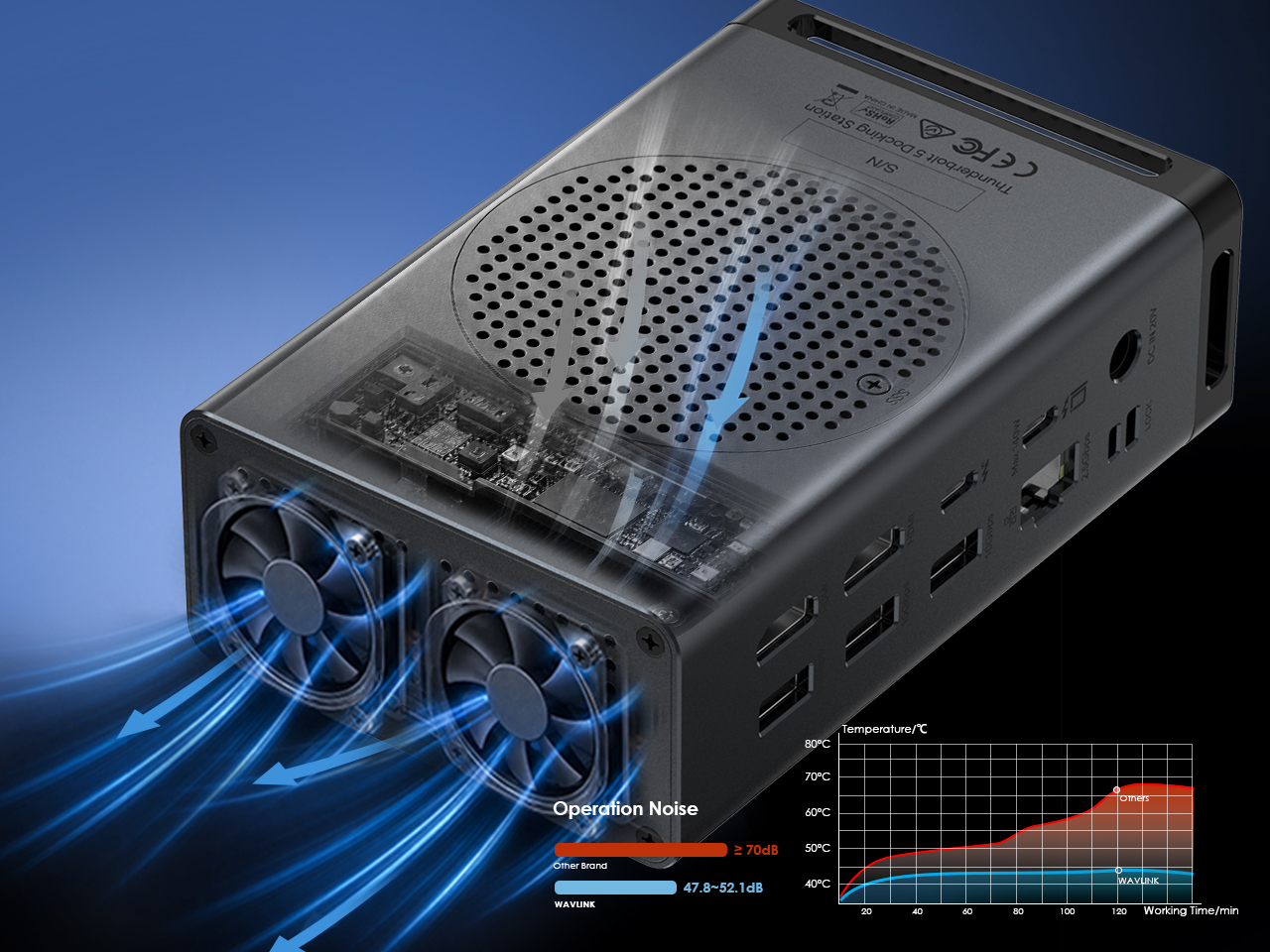

Smart Cooling System
Equipped with a temperature-controlled fan, optimized ventilation grills, an aluminum alloy shell, and a floating chassis design. This cooling system ensures stable, flicker-free performance even during demanding tasks like 8K video editing or heavy AI computing.

Specifications

Connection Host To 1M Thunderbolt 5 Cable
Plug & Play No Driver required.
Computers Works with Thunderbolt 5, Thunderbolt 4&3, USB4, USB3.0 computers.
Operating Systems Windows 11 or higher, Mac OS 11 or higher
Key Supports only M Key PCIe NVMe M.2 SSDs; does not support PCIe AHCI SSDs.
M.2 Form Factor Compatible with NVMe in sizes: 2280.
Port Thunderbolt 5 UFP*1,Thunderbolt 5 DFP*2,HDMI 2.1 *2,USB3.1-A 10G *4,
2.5G RJ45*1,SD4.0*1,3.5MM Audio*1, M.2 Port*1
LED 1 x Power indicator light
Material Aluminum alloy
Working Environment Operation temperature: 0~40°C.
Storage temperature: 0~70°C.
Operation RH (relative humidity): 30%~80%, noncondensing.
Storage RH: 10%~90%, noncondensing.
In the box 1 x Thunderbolt 5 Full size docking station
1 x 1M USB-C to USB-C Thunderbolt 5 Cable(80/120Gbps)
1 x User manual
1 x Pouch
1 x Thermal Silicone Pad
1 x Power 180W
(Note: NVMe SSD are not included)
