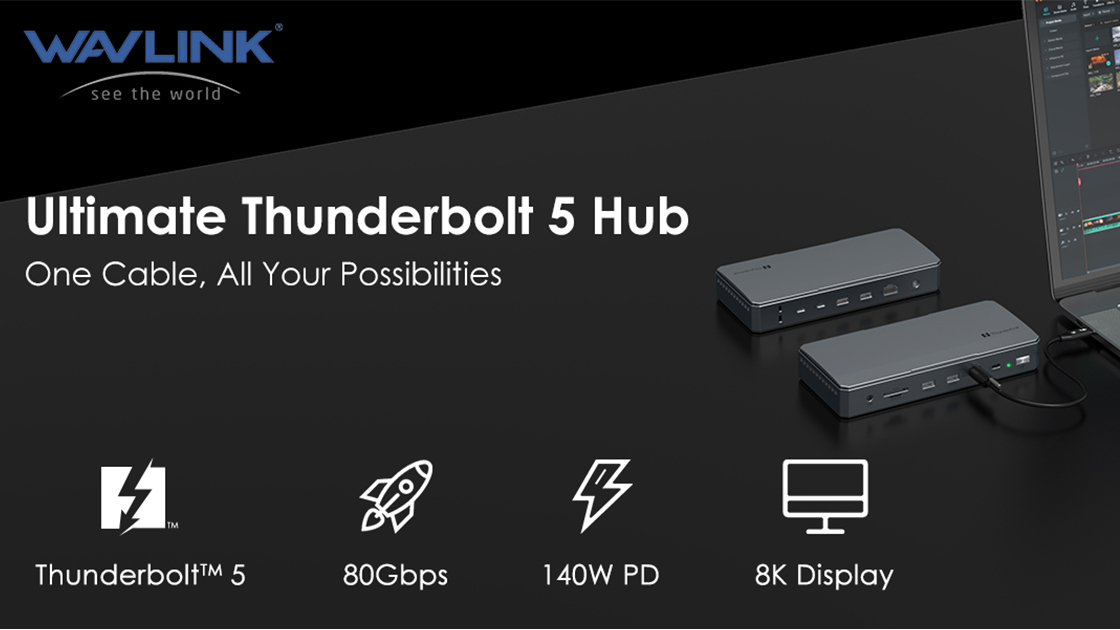

WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops
  • WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops 1
  • WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops 2
  • WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops 3
  • WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops 4
  • WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops 5

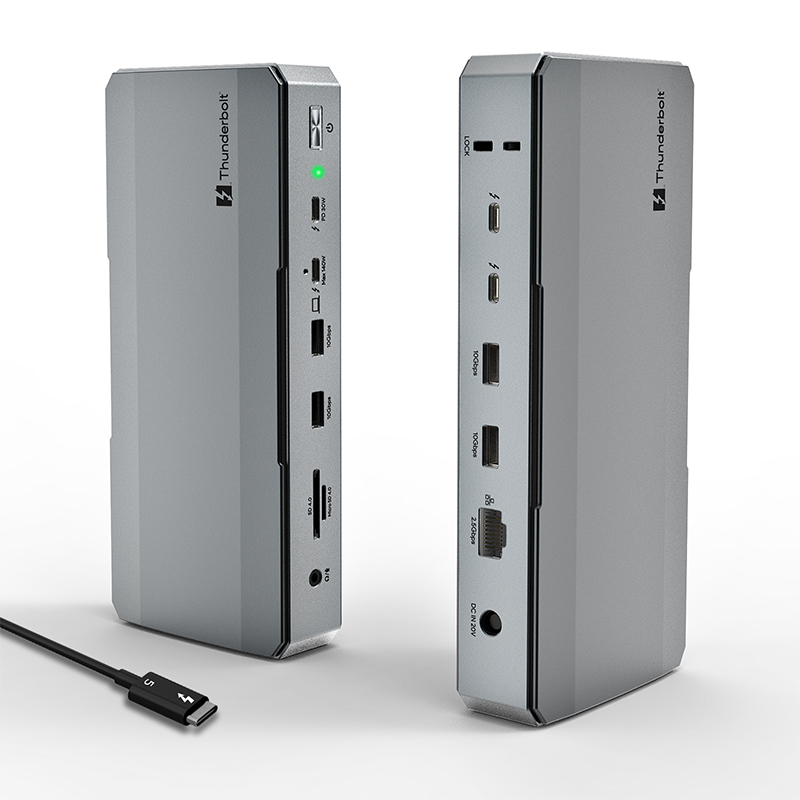

WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops

Model: WL-UTD59

- 1* Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwidth video transfer, 140W instant charging for the USB-C laptop.

- 3* Thunderbolt™5 DFP provide 80Gbps data, dual 8K@60Hz or triple 4K@144Hz display at 120Gbps bandwidth, one of them supports 30W instant charging for the downstream devices.

- 4* USB-A transfer speed up to 10Gbps, and compatible with USB 3.0/2.0.

- 1* RJ45 Ethernet provides efficient transfer, low-latency game experience, stable wired network.

- 1* UHS-Ⅱ SD/Micro SD card reader transfers high-definition video and vivid images at 312MB/s, and compatible with UHS-Ⅰdevices.
- 1* Combo 3.5mm mic/headphone jack for clear audio in and out.

  • Overview

  • Specifications

  • Q&A

WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display, for Mac & Windows TB5/4 Laptops

Discover the official WAVLINK Thunderbolt 5 Dock. Experience up to 120Gbps bandwidth, 140W PD 3.1 fast charging, multi-display support for Mac & Windows, and a full suite of high-speed ports.

Universal Compatibility

Works seamlessly with Thunderbolt 4/5 eqiupped Windows 11+ and macOS 14.6+ systems. Compatible with top brands like Apple, Dell, Razer,and more.

Windows Multi-Display Power

Unlock ultimate productivity on Windows 11+ PCs with Thunderbolt 5. Drive up to three external displays in stunning high resolution and refresh rates for an immersive workspace.

Elevate Your Mac Workspace

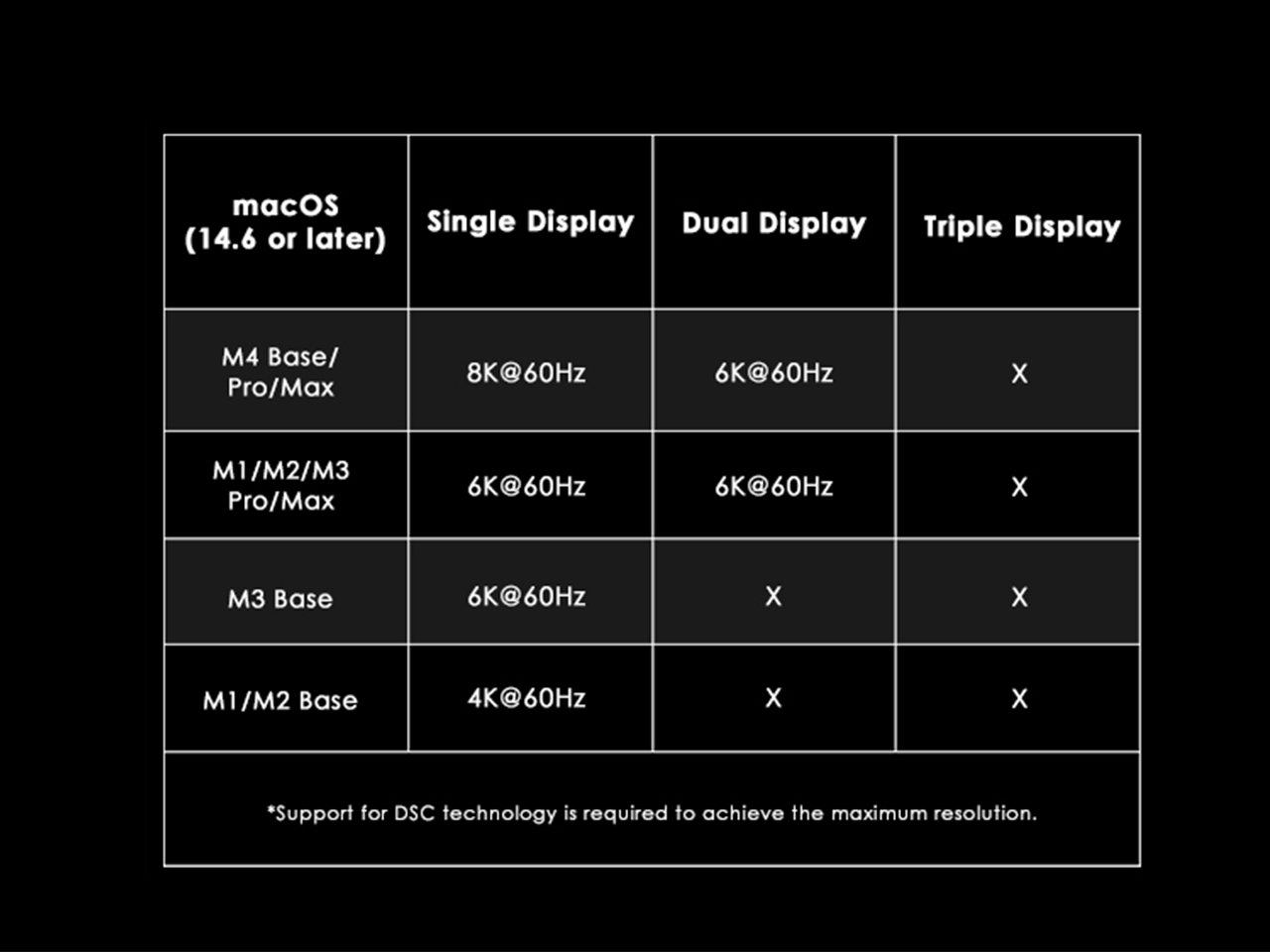

Perfectly complements your Mac. Supports up to dual 6K@60Hz displays on compatible M-series Pro/Max/M4 Base, creating a powerful creative or professional workstation.

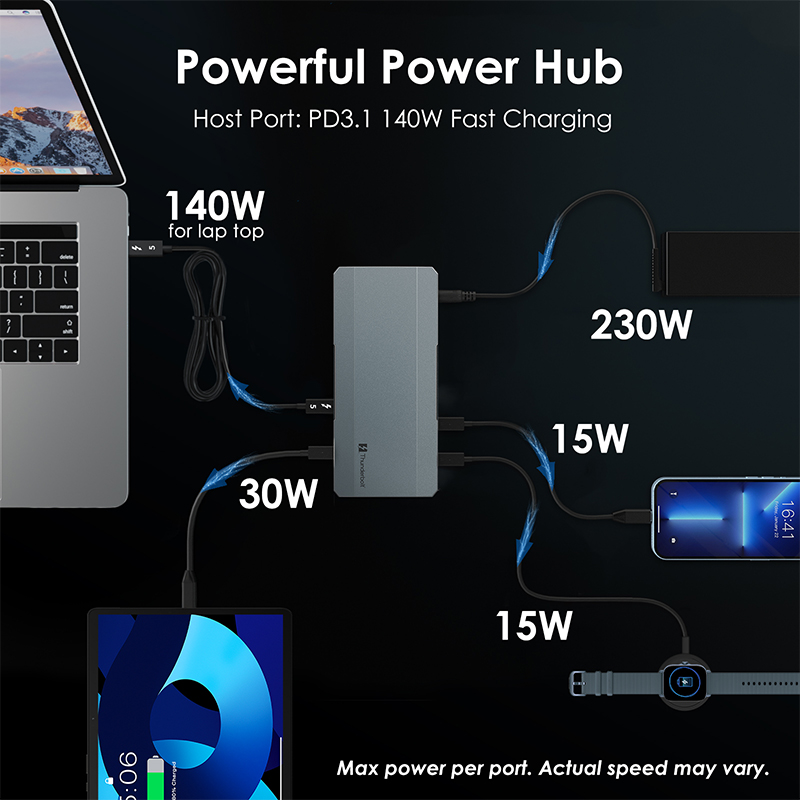

Max 140W Power Delivery

Keep your high-performace laptop powered with up to 140W PD3.1 fast charging through the host port. Power through your most demanding tasks without interruption.

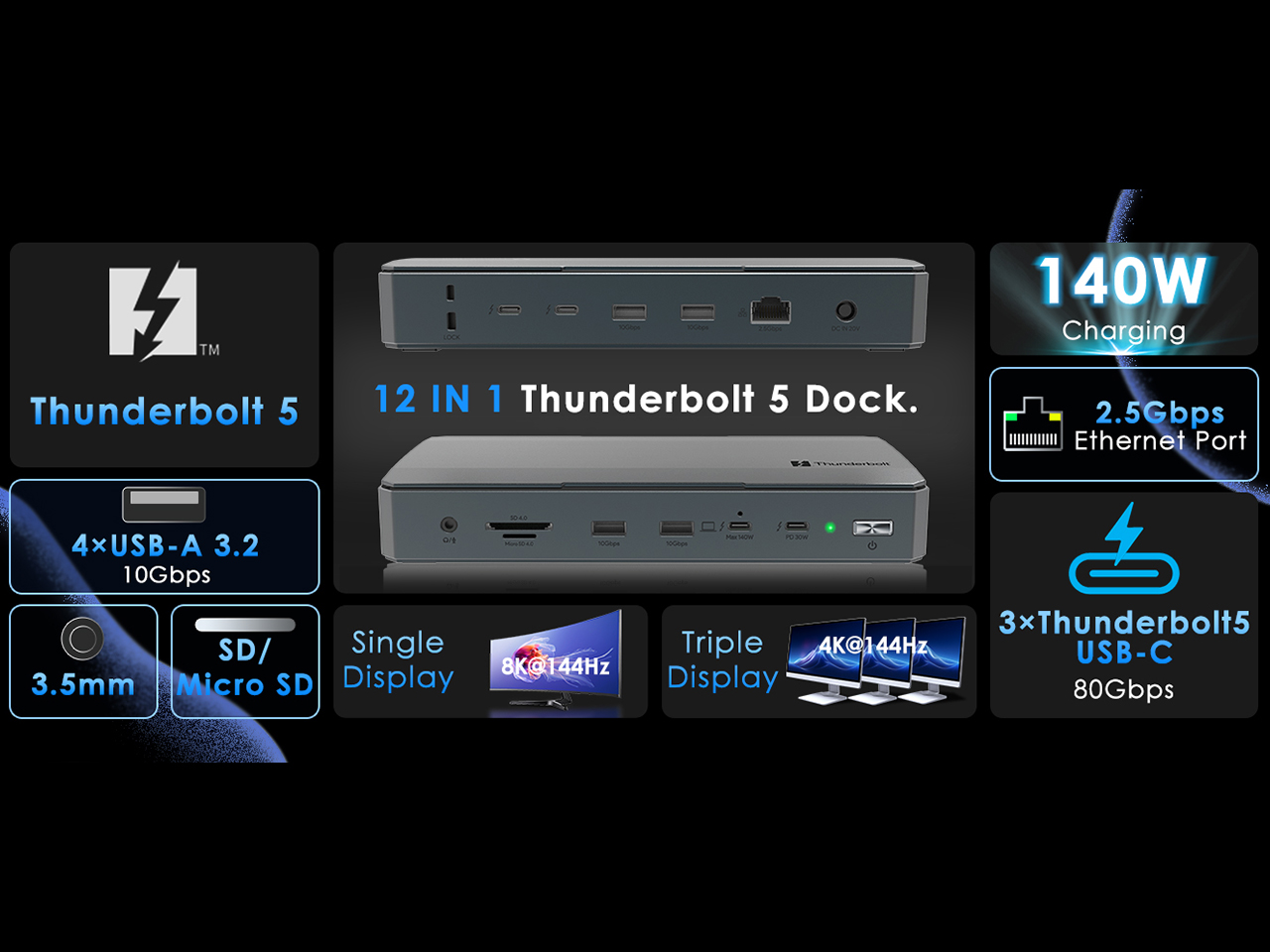

12-in-1 All-in-one Connectivity

This 12-in-1 features Thunderbolt 5,high-speed USB-A 10Gbps, 2.5Gbps Ethernet, and a UHS-II card reader, connecting all your essential devices through a single cable.

SPECIFICATION

Connection To Host 1M Thunderbolt 5 Cable
Plug & Play No Driver required.
Solution JHL9480、PMG1-S3,CCG8D,PS5512,RTL8156B,GL3231S,SSS1700.
Computers Works with Thunderbolt 5, Thunderbolt 4, USB4, USB3.0 computers.
Operating Systems Windows 11 or higher, Mac OS 14.6 later(M chip) or higher
Port Thunderbolt 5 UFP * 1, Thunderbolt 5 DFP * 3, USB31-A 10G * 4, 2.5G RJ45 * 1,
SD/TF 4.0 * 1, 3.5MM Audio * 1
LED 1 x Power indicator light
