WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps
  • WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps 1
  • WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps 2
  • WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps 3
  • WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps 4
  • WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps 5

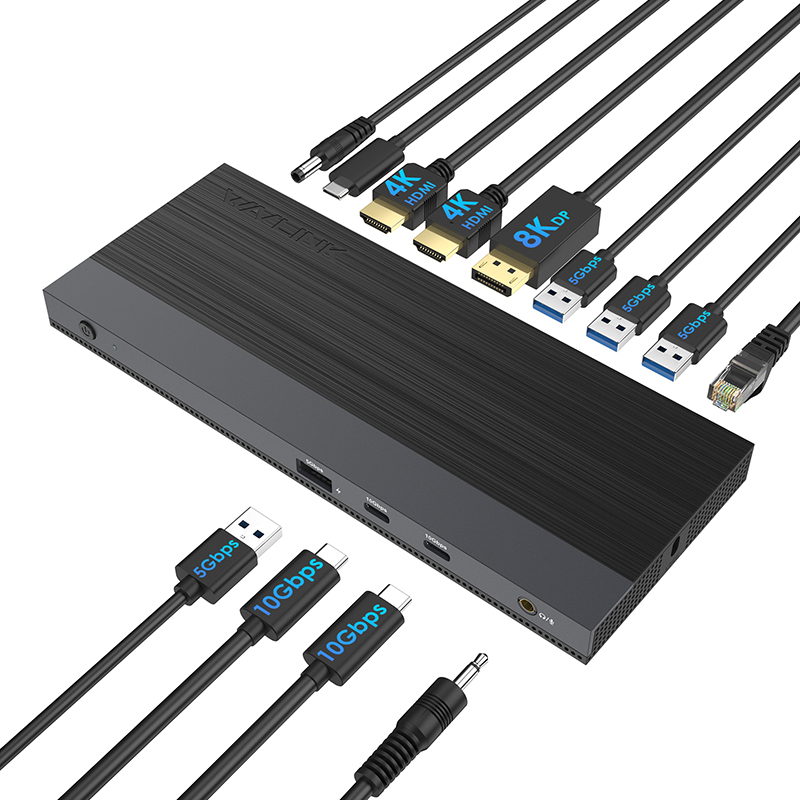

WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps

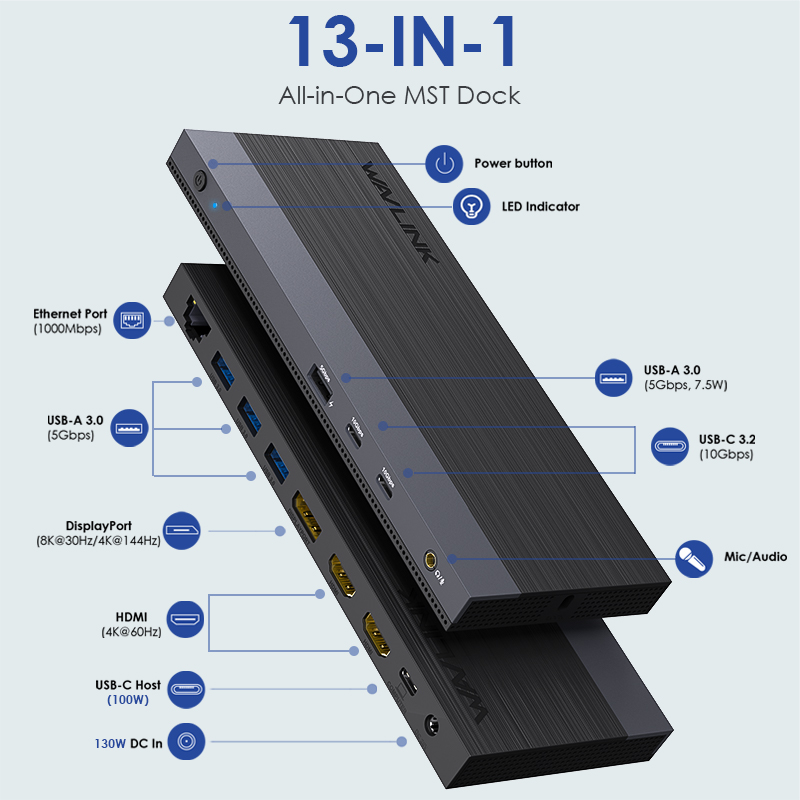

Model: WL-UMD05M-Pro

-One DP and two HDMI work for triple video output, supporting single DP Max. 4K@144Hz/8K@30Hz and dual 4K@60Hz.

-One PD3.0 USB-C upstream port provides 100W upstream charging for the laptop.

-Two USB-C transfer speed up to 10Gbps, and are backward compatible with USB 3.0/2.0.

-Four USB-A transfer speed up to 5Gbps, one of them supports BC1.2 fast charging, and are compatible with USB 2.0/1.1.

-One Gigabit LAN port for a stable and fast wired network, and is backward compatible with 100/10Mbps network.

-One 3.5mm 4-pole jack for audio output and input.

  • Overview

  • Specifications

  • Manual

WAVLINK 13-in-1 USB-C Triple Display Docking Station: 8K Output, 100W PD & 10Gbps
One connection to rule them all. Boost your productivity with 8K single display and triple 4K monitors. Features 100W PD 3.0 fast charging and blazing-fast 10Gbps data transfers.

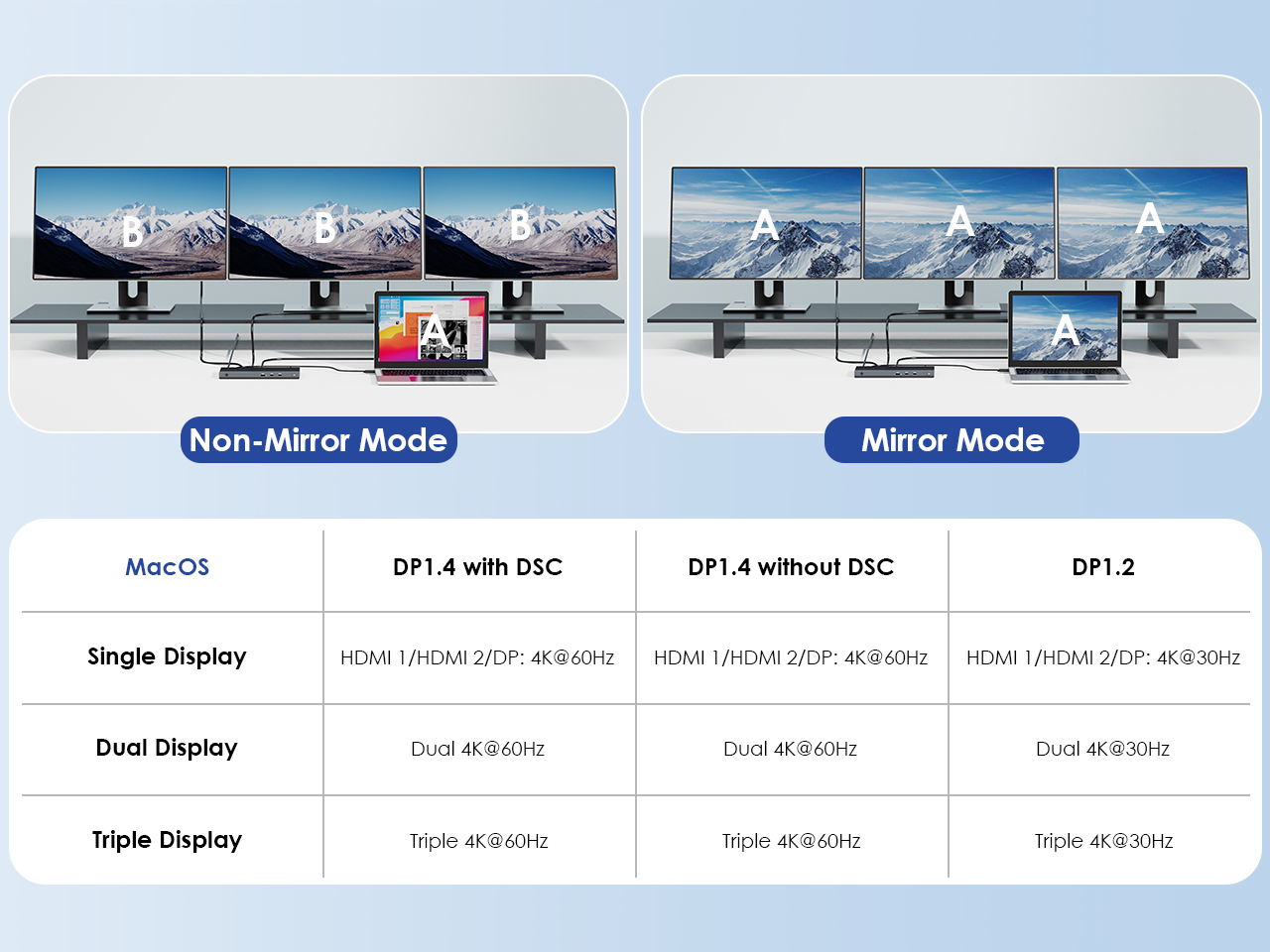

Stunning 4K Triple Extension
Perfectly optimized for macOS, this dock allows you to extend your desktop to three external monitors in SST mode, where each external screen displays the same content. Enjoy consistent, high-resolution 4K visuals across all screens, providing a massive and unified canvas for your creative projects and complex spreadsheets.

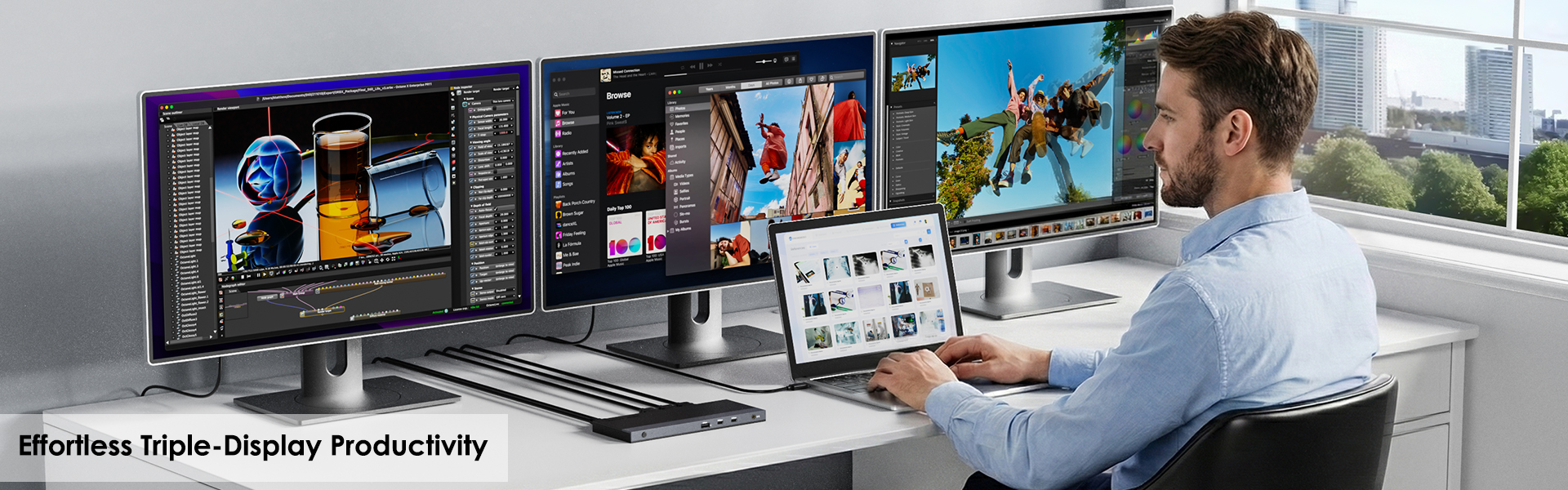

Pro-Level Triple Display

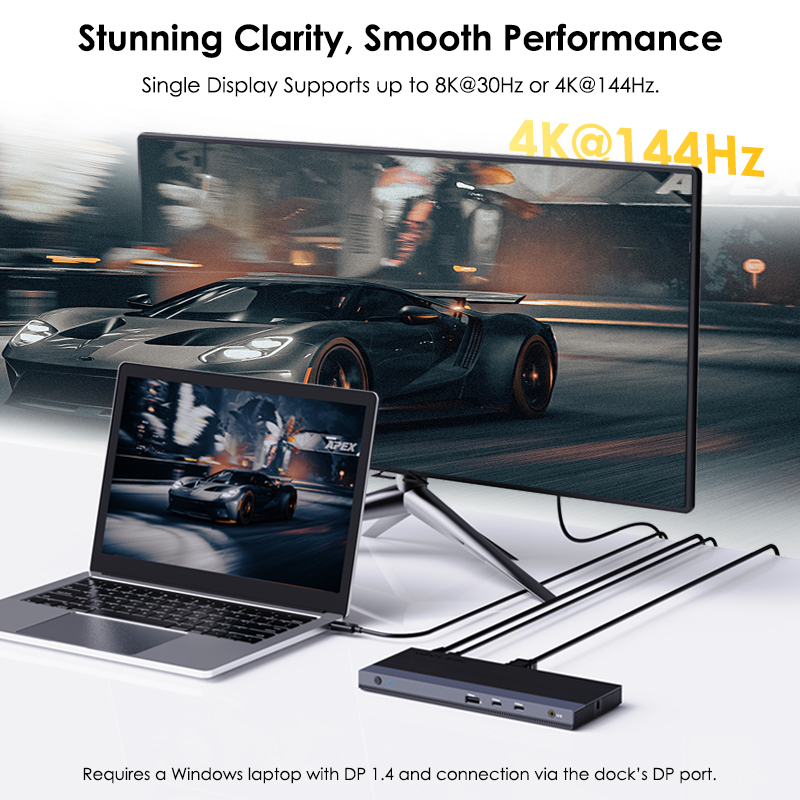

Expand your Windows workspace into a multi-screen powerhouse. With MST technology, you can extend your desktop to three different monitors. By connecting to a DP 1.4 host, experience ultra-high definition on a single screen at 8K@30Hz or 4K@144Hz, significantly boosting your multitasking efficiency for professional workflows.

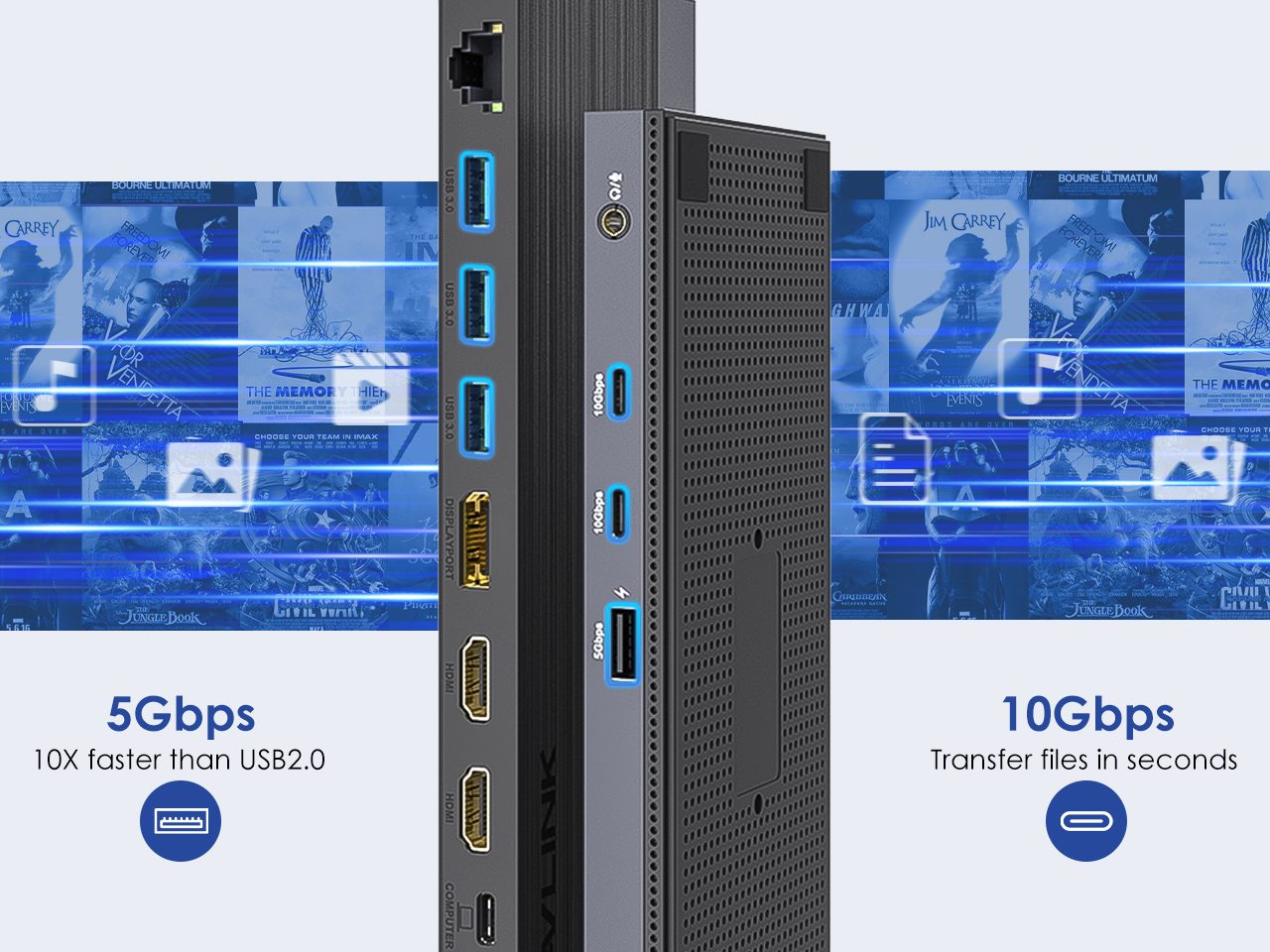

Blazing-Fast 10Gbps Speed
Transfer massive files in seconds with ultra-high-speed connectivity. This dock is equipped with 4 USB-A ports and 2 USB-C ports distributed across the device for maximum convenience. It supports speeds up to 10Gbps—10x faster than standard USB 2.0—ensuring seamless data management for all your external drives and peripherals.

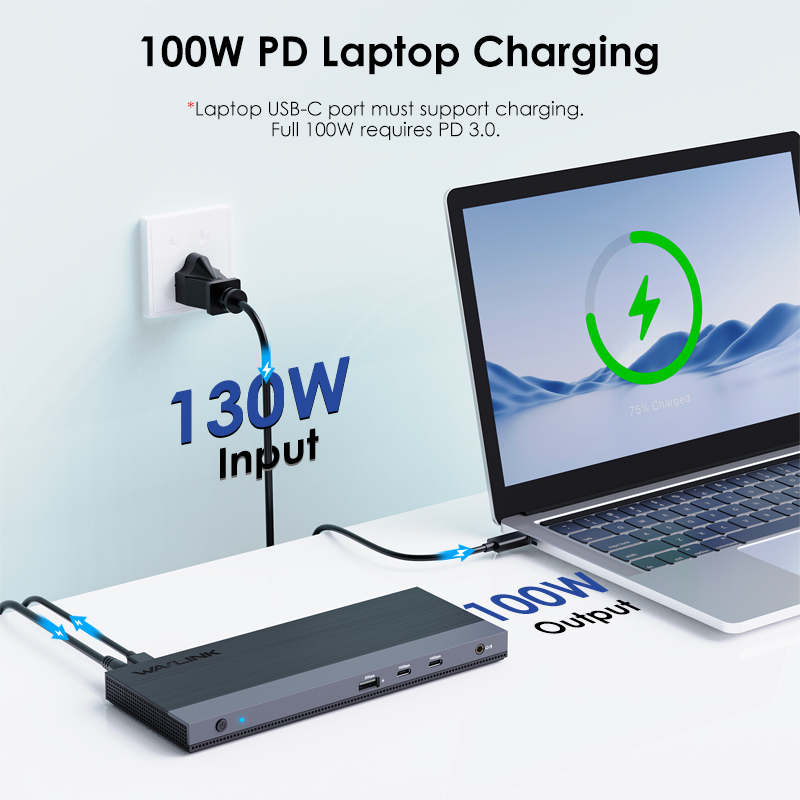

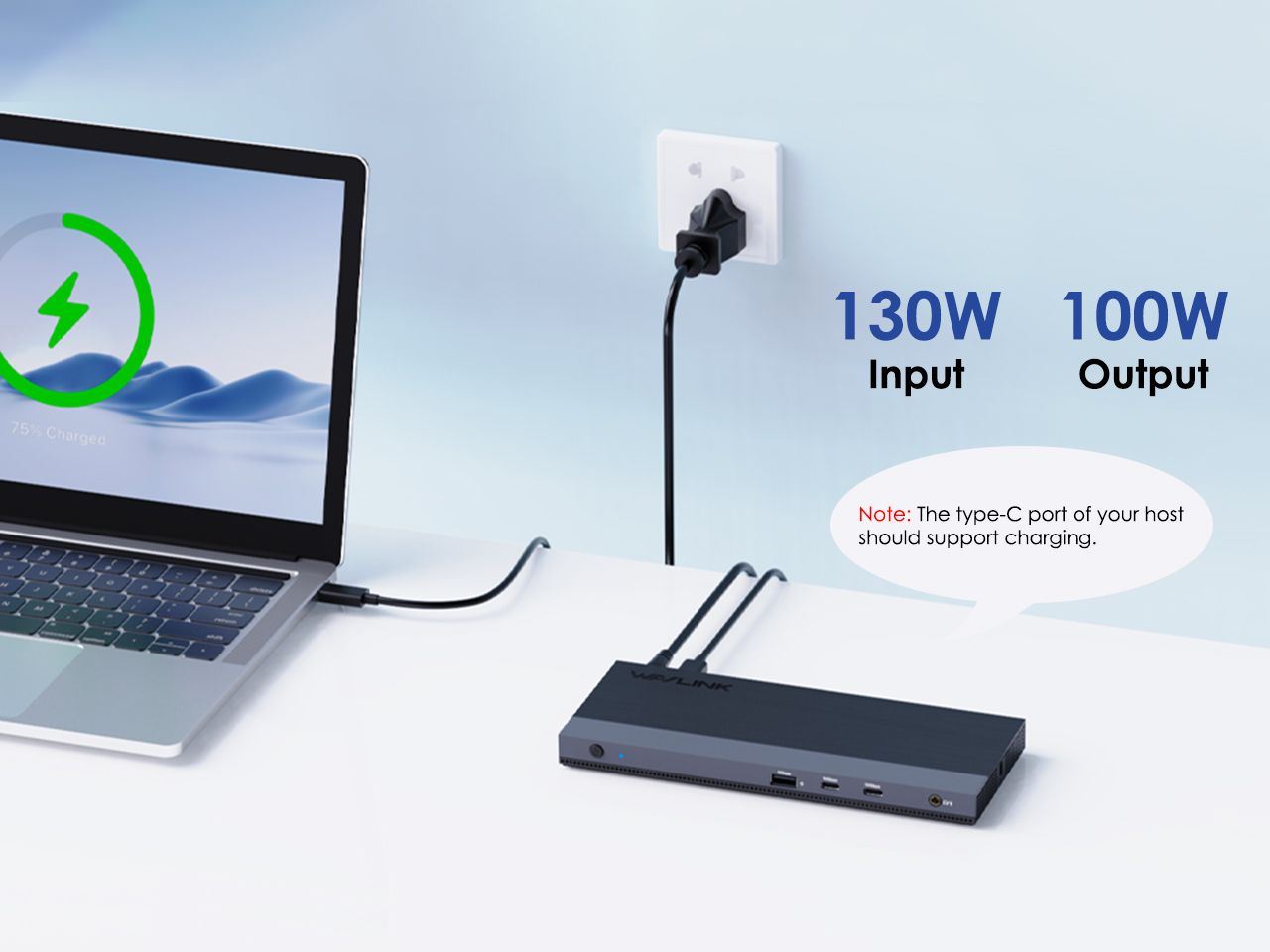

High-Power Charging Station
Keep your laptop at full power while you work. With a 130W DC input, the upstream port delivers up to 100W of power directly to your laptop. To achieve the maximum 100W charging speed, please ensure your host device’s USB-C port supports the PD 3.0 protocol.

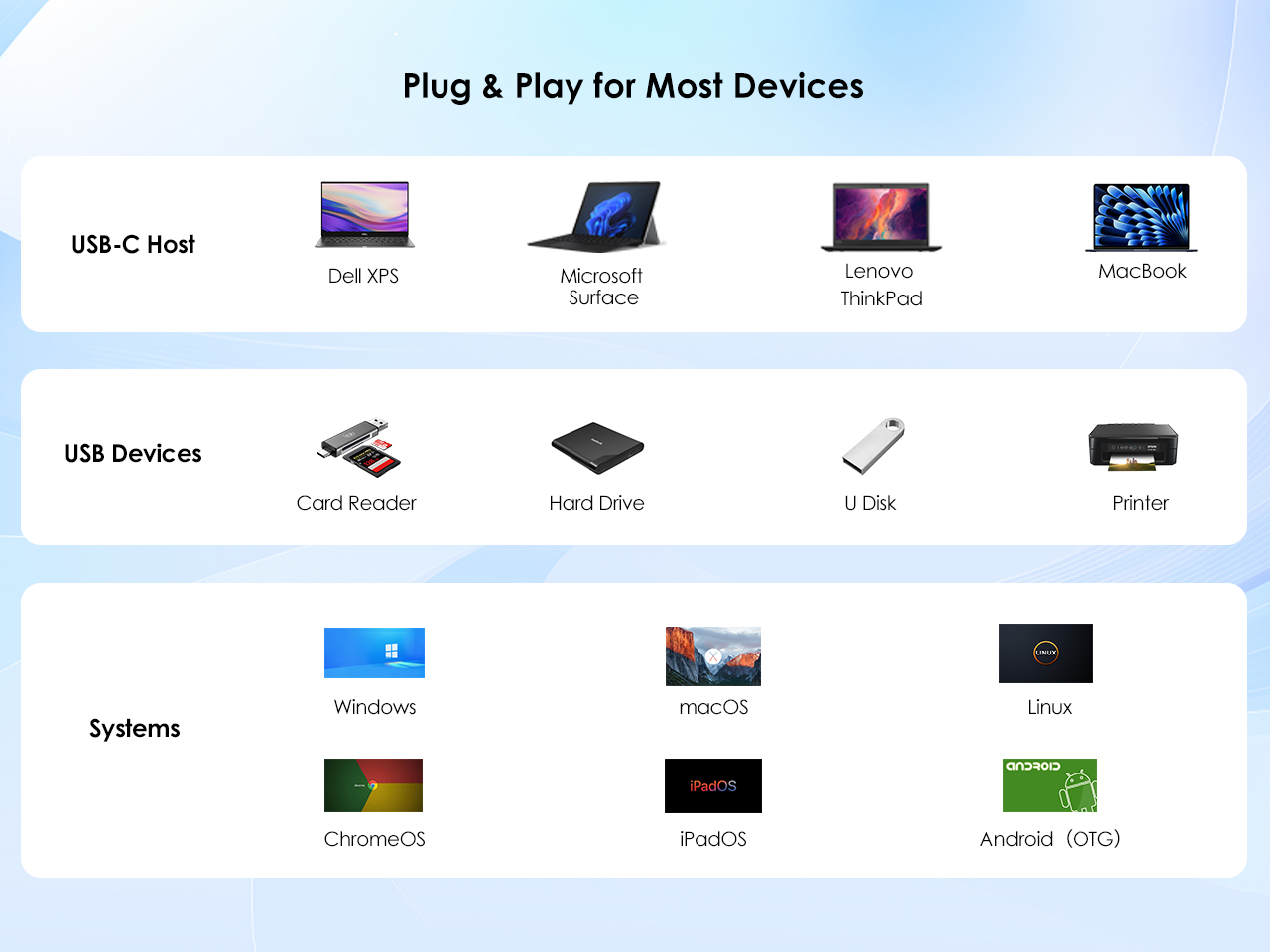

Instant Plug & Play
Ready to work right out of the box with Windows, macOS, and Linux. No driver installation is required—simply ensure your laptop's USB-C port supports DP Alt Mode for video output and Power Delivery for charging. Connect all your peripherals to one hub and simplify your desktop setup instantly.

Specifications

SPECIFICATION

Connection To Host 1 x USB-C to USB-C, 1m cable (E-mark)
Plug & Play Supported
Power Delivery Supports USB Power Delivery up to 130W; provides up to 100W upstream charging to laptop (DC power adapter included)
USB Ports 2 x USB-C ports, up to 10Gbps;
3 x USB-A ports, up to 5Gbps;
1 x USB-A port, up to 5Gbps (supports BC1.2 fast charging)
Video Ports 2 x HDMI 2.0
1 x DisplayPort 1.4
Audio 3.5mm TRRS 4-pole combo audio jack
Ethernet 1 x RJ45 Gigabit Ethernet (10/100/1000 Mbps)
LED 1 x Power LED
Button Power ON/OFF button
Lock Kensington lock
Power Adapter 1 x DC 130W Power Adapter (Brick style)
Operating Systems Windows 10 or later
Apple Mac OS 10.15 or later

Manual

WL-UMD05M-Pro-Manuals

Description : WL-UMD05M-Pro-Manuals

Post Date : 14/11/2024

Available : WL-UMD05M-Pro

Download : English
