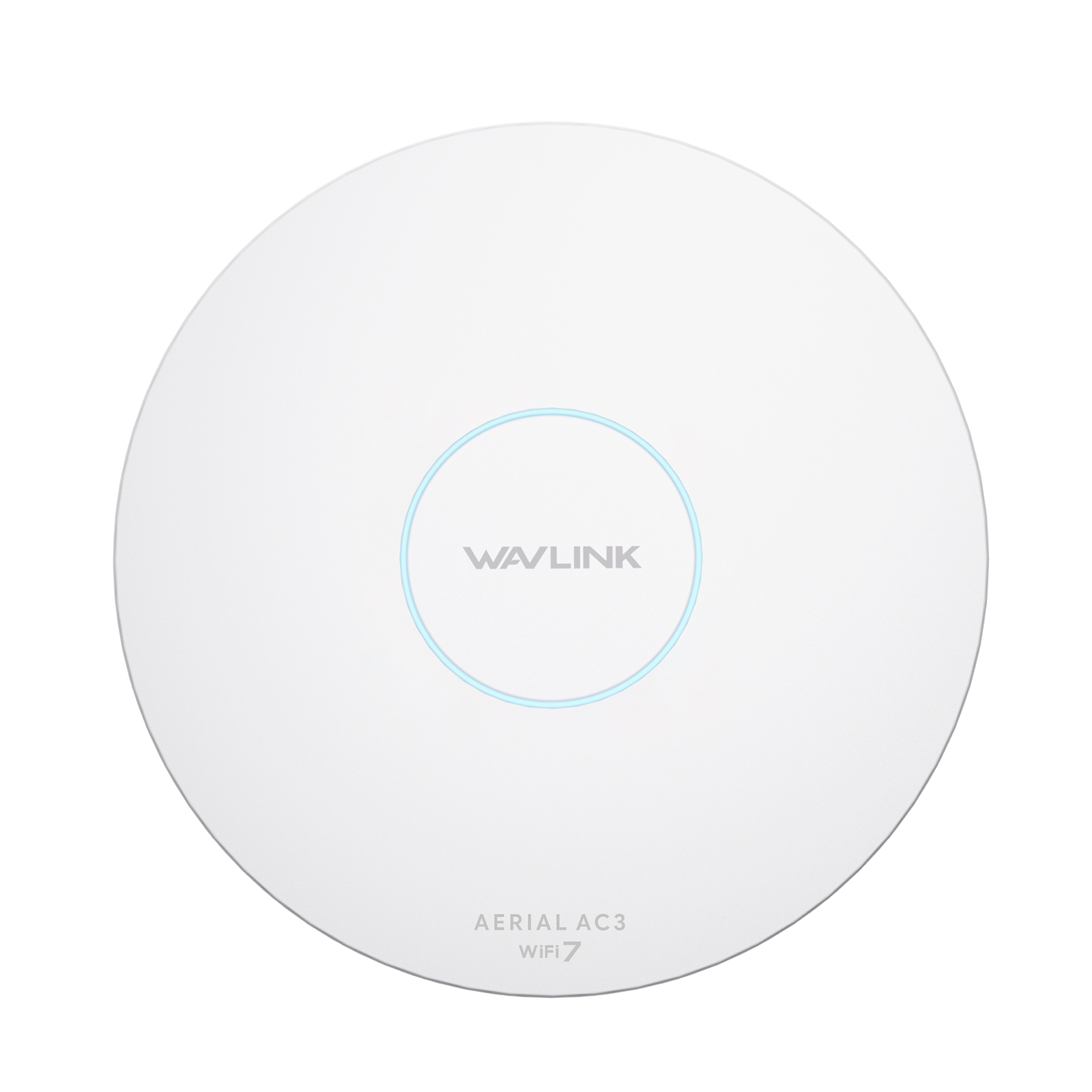

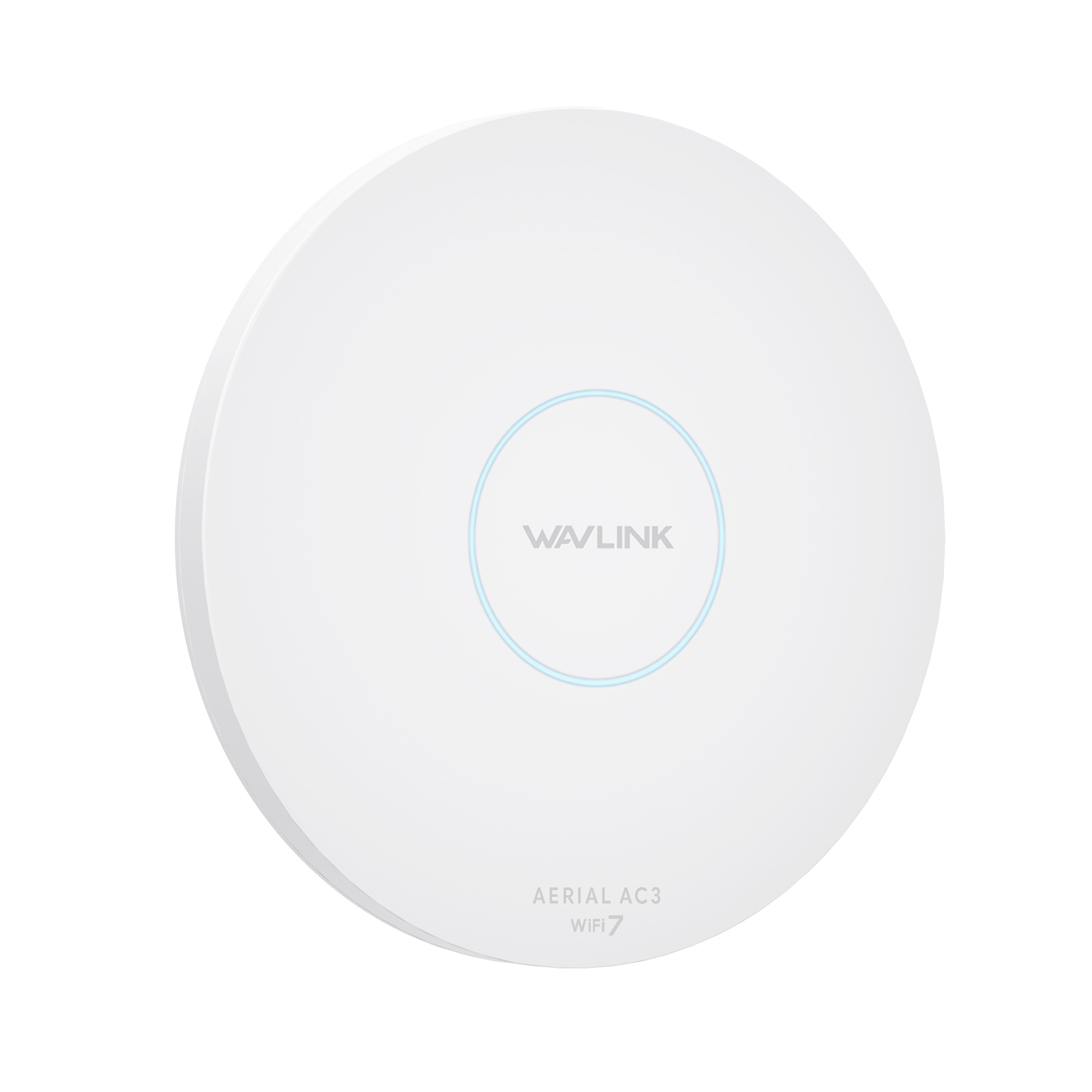

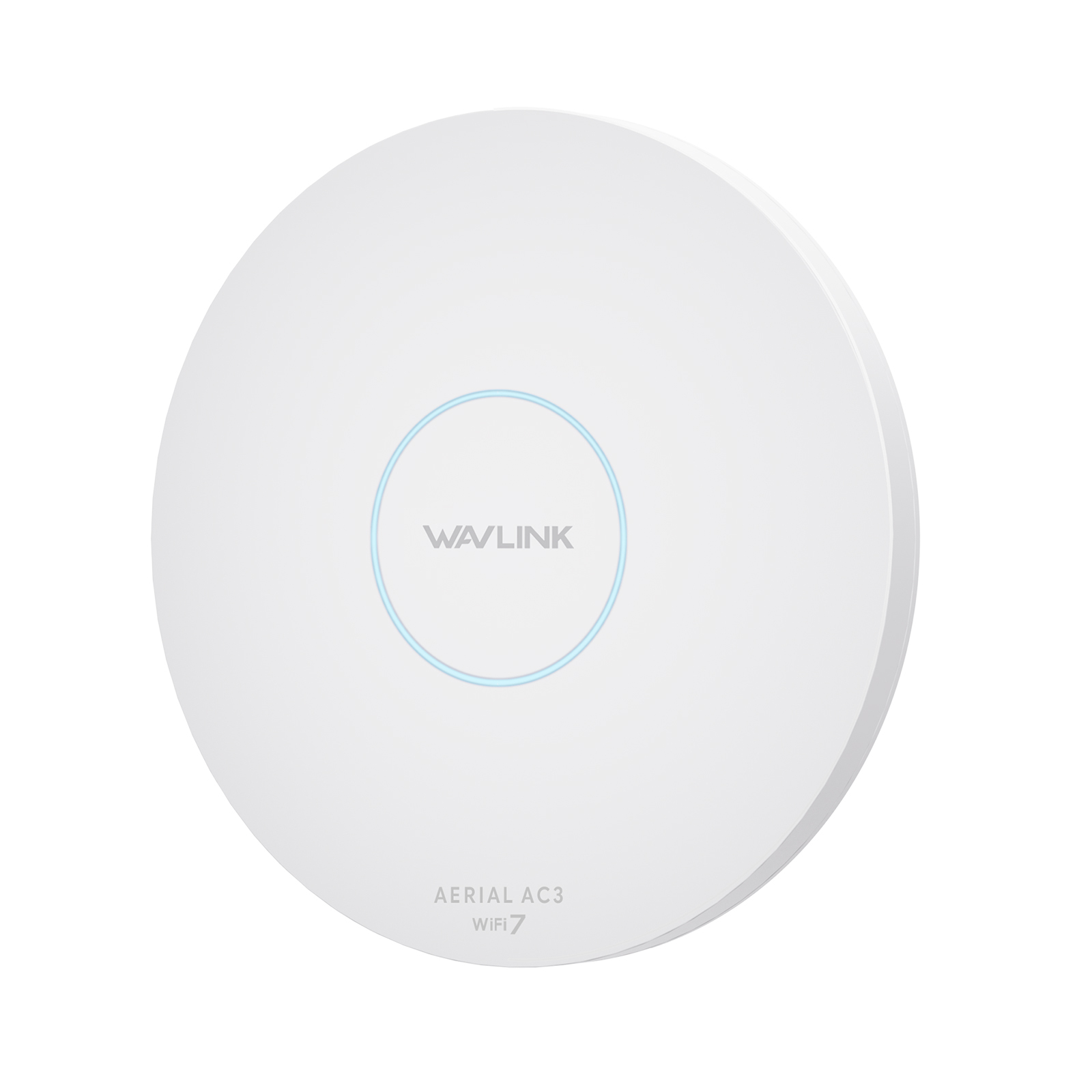

WAVLINK Wi-Fi 7 Wireless Access Point - BE7200 Dual Band Ceiling-Mount AP, 2.5G Port, PoE+ or DC Powered, DC Adapter Included, Everything Mesh, MLO, MRU, 4K-QAM, WPA3, WavRouter APP & Web-Management

AERIAL AC3

Model: WL-WNA503HBE3

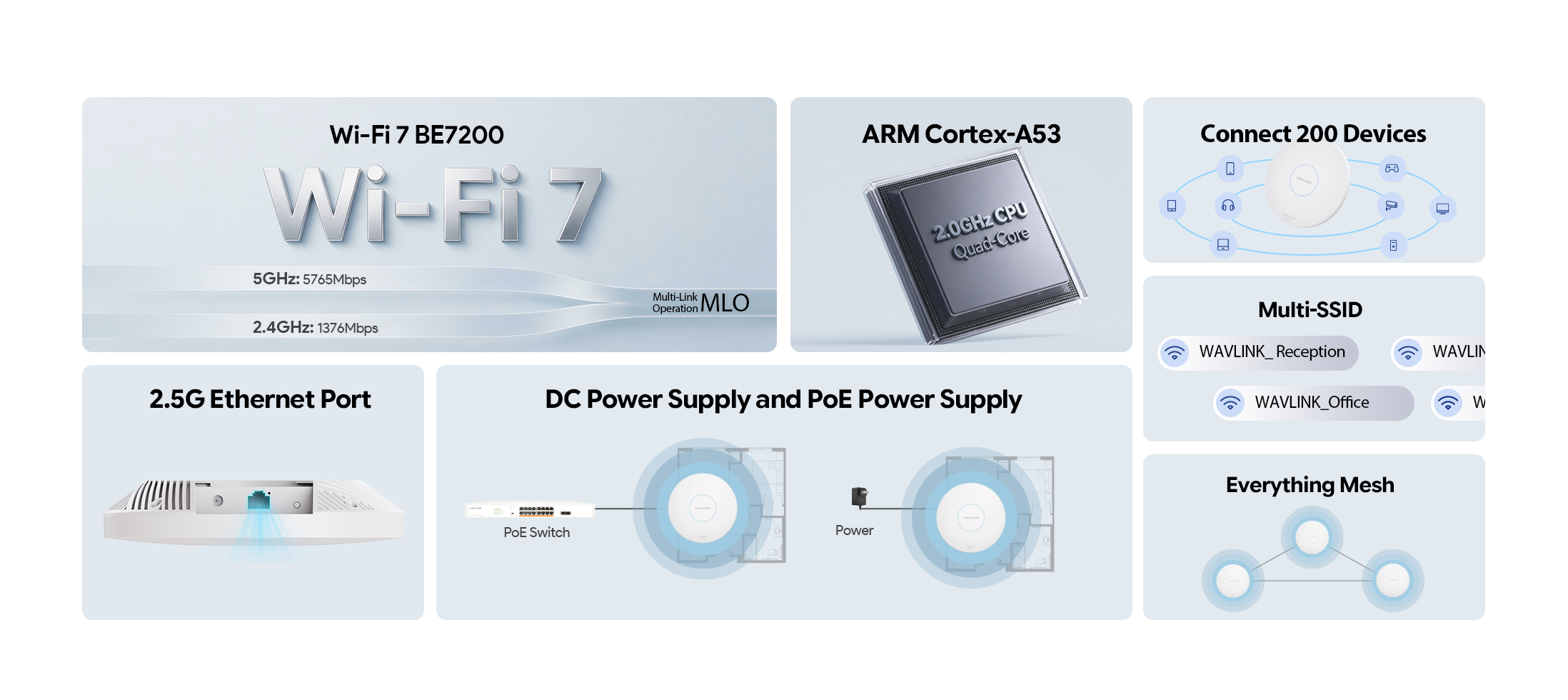

- Wi-Fi 7 802.11be compliant, up to 7200Mbps combined speed.

- Support MLO Multi-Link Operation & 4K-QAM 12 bits/symbol.

- 320MHz ultra-wide channel bandwidth for higher throughput.

- OFDMA & MRU technology optimizes multi-user concurrent access.

- 2.5G Ethernet port + 802.3at PoE+ powered.

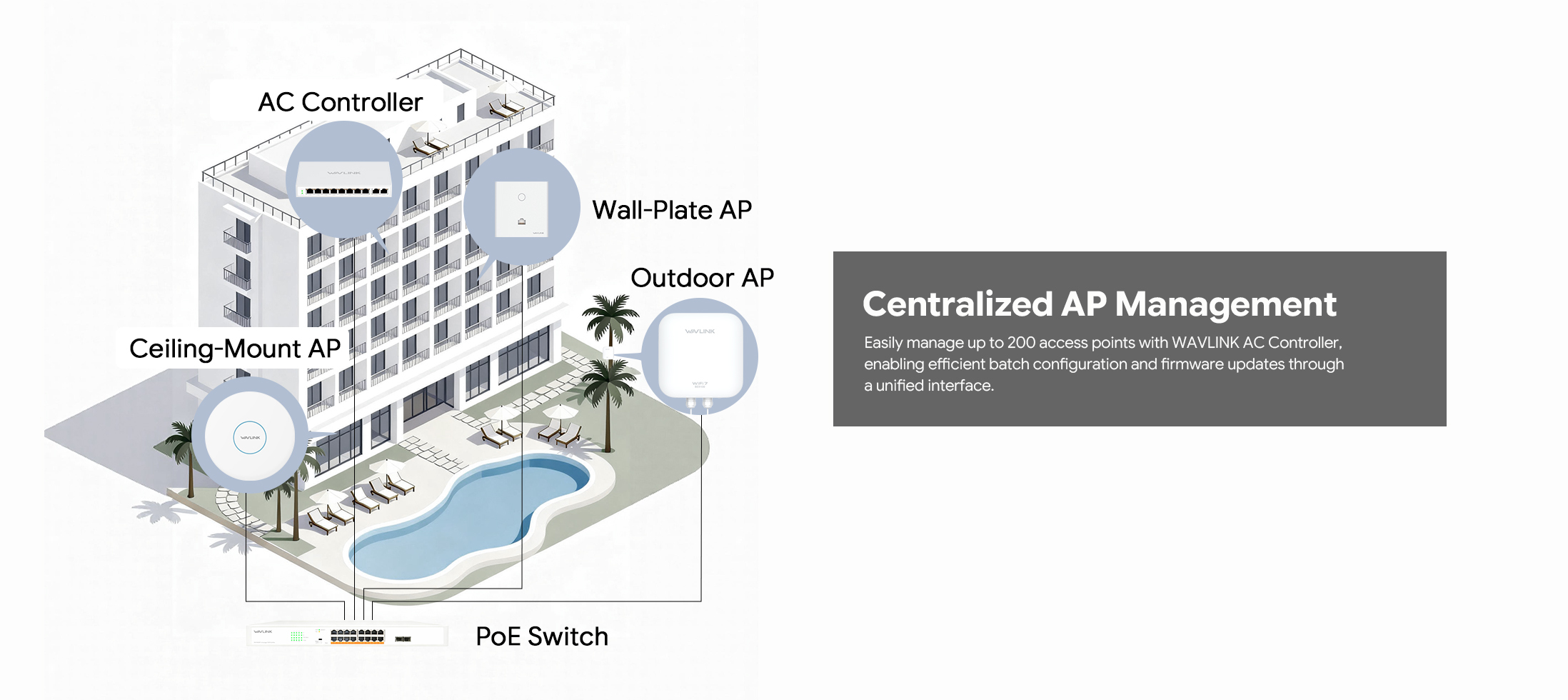

- Support WavRouter APP and Web management for remote unified deployment.

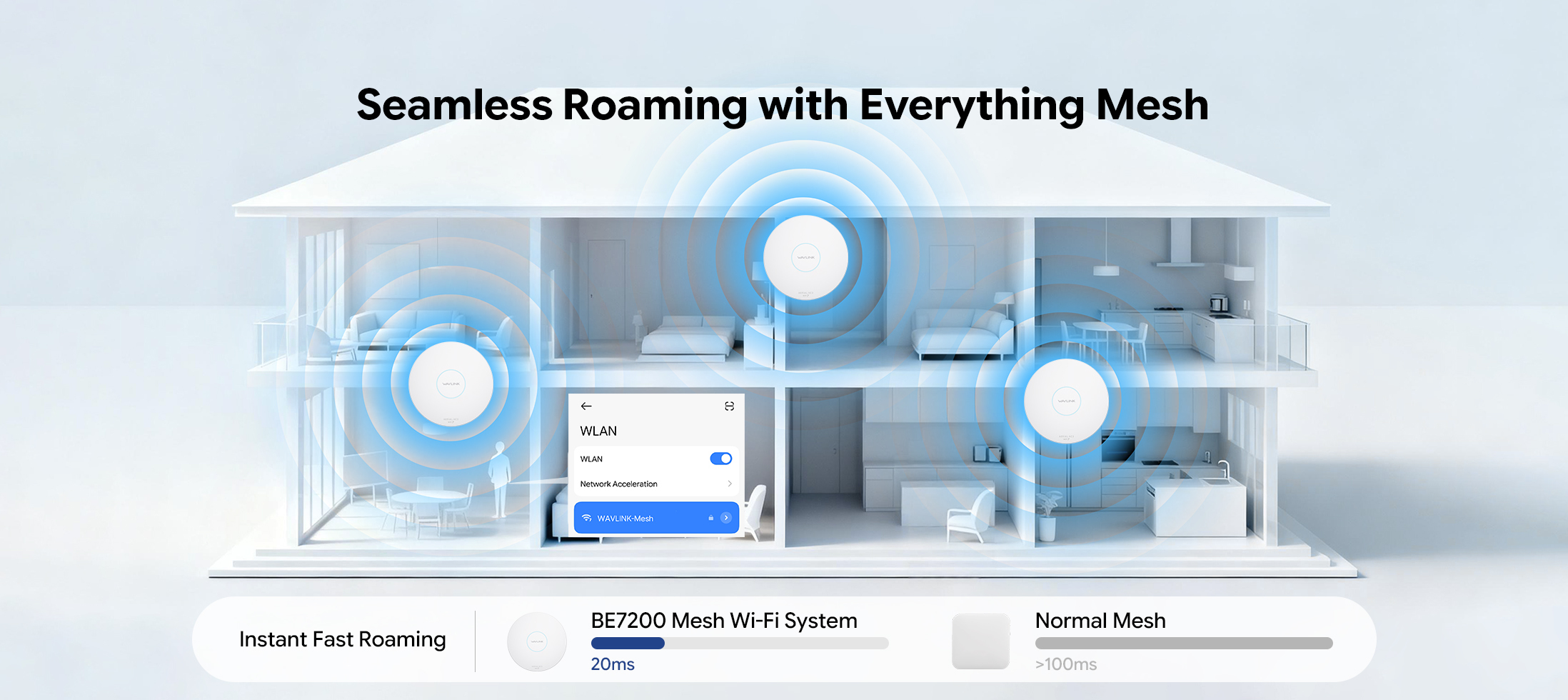

- Seamless roaming & Band Steering for stable wireless connection.

- Enterprise-grade WPA3 wireless security protection.

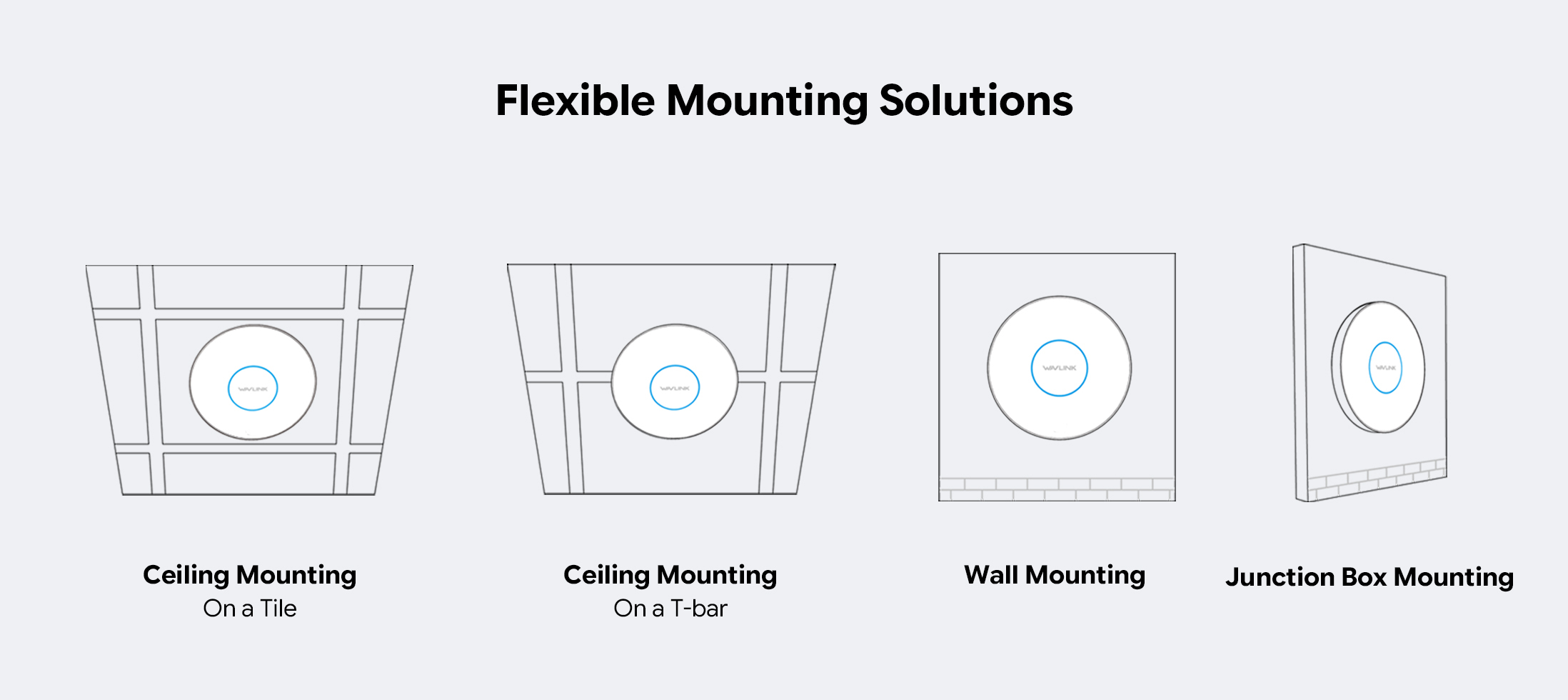

- Multiple mounting methods, ideal for commercial & indoor scenarios.

Specifications

Model	WL-WNA503HBE3/AERIAL AC3

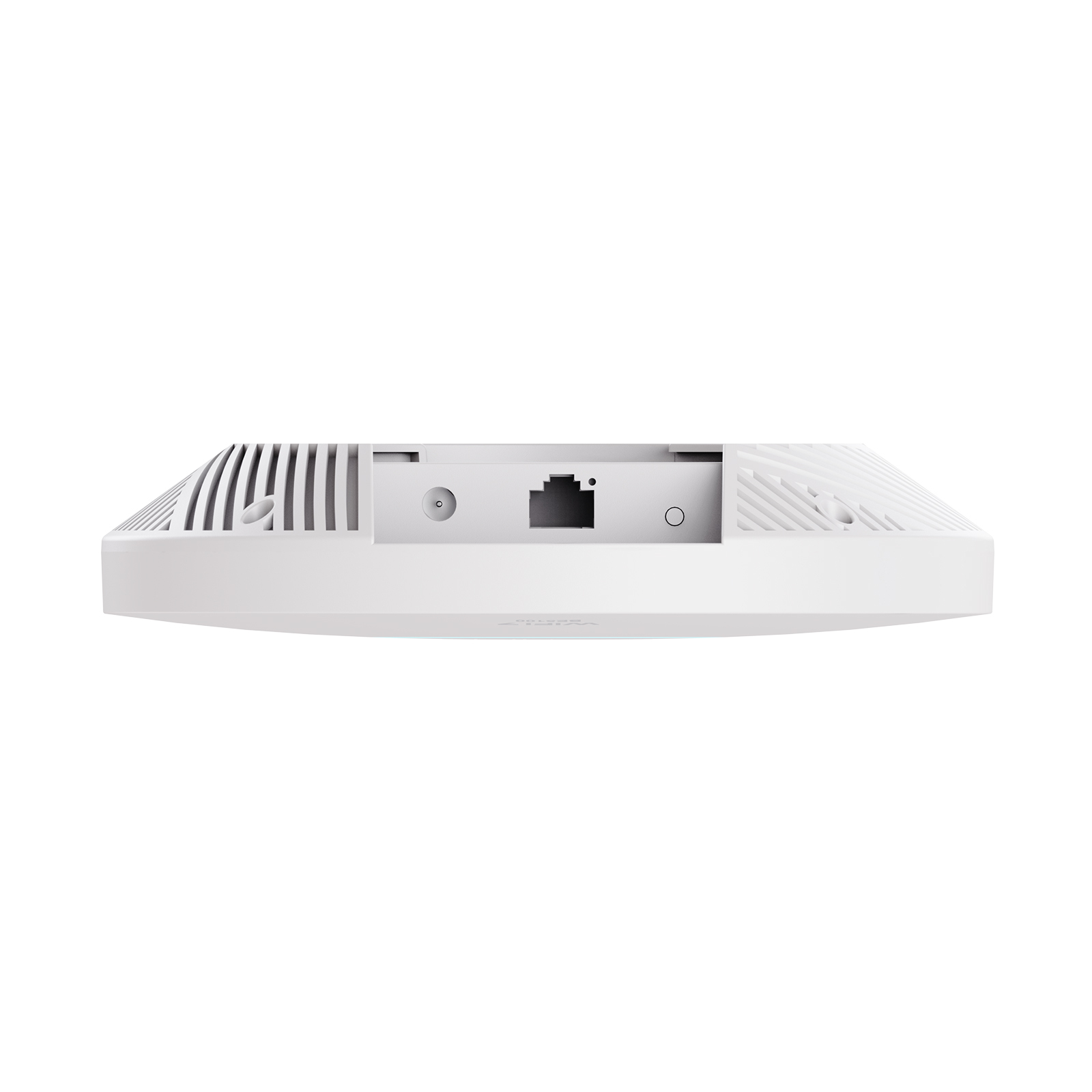

Port	1x 2.5G RJ45 PoE Port
Button	1x Reset/Pair
LED	1x Statues
Power Input	DC Jack, PoE via Ethernet Port
Wireless Standard	IEEE 802.11b/g/n/a/ac/ax/be
Frequency band	2.4GHz, 5GHz
Transmit Power	2.4G: 22dBm Max 5G: 23dBm Max
Sensitivity	802.11b: -93dBm; 802.11g: -85dBm; 802.11n: -85dBm; 802.11ax: -80dBm
Speed	2.4 GHz: 1376Mbps 5 GHz: 5765Mbps
Antennas	8x Built-in omnidirectional antenna 5 GHz: 5dBi 2.4 GHz: 6dBi
Unit Dimension	216.4mm x 38.2mm
In the Box	1x Ceiling Mount Wi-Fi 7 Access Point 1x Ceiling/Wall/Junction Box Mounting (Kits included) 1x T-Bar Mounting (Kits included) 1x Power Adapter 1x Quick Start Guide
