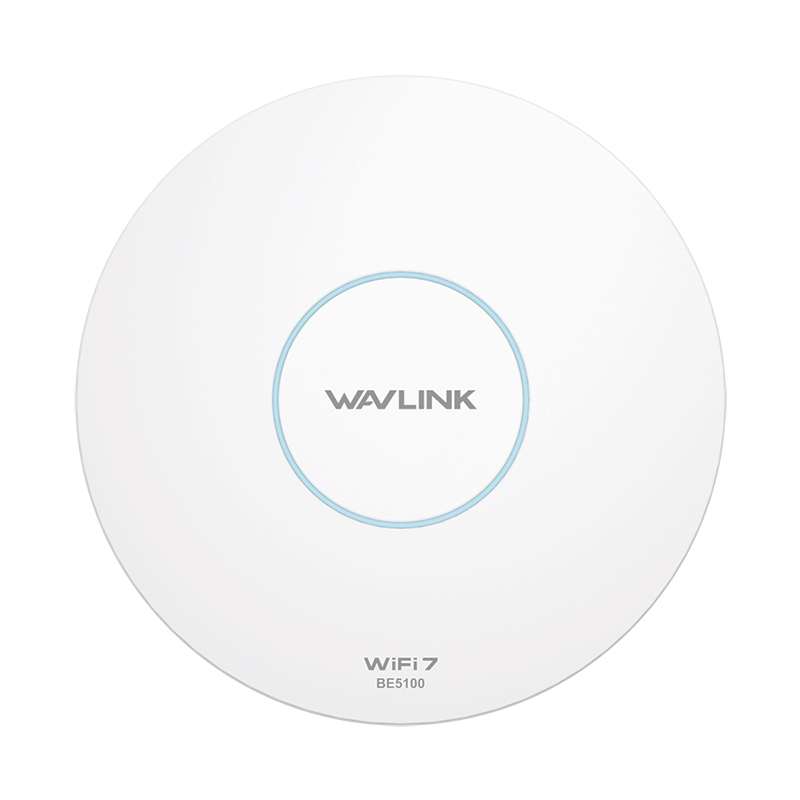

WAVLINK Wi-Fi 7 Wireless Access Point - BE5100 Dual Band Ceiling-Mount AP, 2.5G Port, PoE+ or DC Powered, DC Adapter Included, Everything Mesh, MLO, MRU, 4K-QAM, WPA3, WavRouter APP & Web-Management
  • WAVLINK Wi-Fi 7 Wireless Access Point - BE5100 Dual Band Ceiling-Mount AP, 2.5G Port, PoE+ or DC Powered, DC Adapter Included, Everything Mesh, MLO, MRU, 4K-QAM, WPA3, WavRouter APP & Web-Management 1
  • WAVLINK Wi-Fi 7 Wireless Access Point - BE5100 Dual Band Ceiling-Mount AP, 2.5G Port, PoE+ or DC Powered, DC Adapter Included, Everything Mesh, MLO, MRU, 4K-QAM, WPA3, WavRouter APP & Web-Management 2

WAVLINK Wi-Fi 7 Wireless Access Point - BE5100 Dual Band Ceiling-Mount AP, 2.5G Port, PoE+ or DC Powered, DC Adapter Included, Everything Mesh, MLO, MRU, 4K-QAM, WPA3, WavRouter APP & Web-Management

Model: WL-WNA501HBE2

- Wi-Fi 7 802.11be compliant, up to 5100Mbps combined speed.
- Support MLO Multi-Link Operation & 4K-QAM 12 bits/symbol.
- 320MHz ultra-wide channel bandwidth for higher throughput.
- OFDMA & MRU technology optimizes multi-user concurrent access.
- 2.5G Ethernet port + 802.3at PoE+ powered.

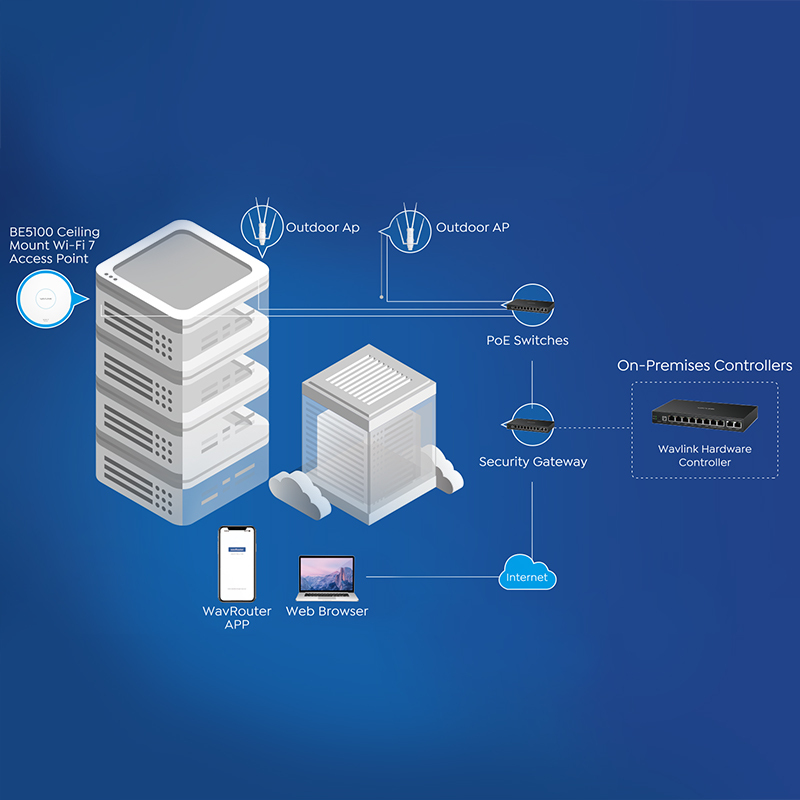

- Support WavRouter APP and Web management for remote unified deployment.
- Seamless roaming & Band Steering for stable wireless connection.
- Enterprise-grade WPA3 wireless security protection.
- Multiple mounting methods, ideal for commercial & indoor scenarios.

  • Overview

  • Specifications

WAVLINK High-Speed BE5100 Wi-Fi 7 Ceiling Mount Access Point with 2.5G PoE
Smart Cloud Managed for Office Hotel Commercial Use
Low-Latency Connection for HD Video Conference
Built-in MLO and 4K-QAM technology ensures ultra-low latency, perfectly adapt to video meetings, wireless projection and online sharing.
Smooth Office Network for Multi-Device Workspace
Deliver stable Wi-Fi 7 signal to densely connected office terminals, support dozens of employees online simultaneously with high speed and no lag.

Seamless Wi-Fi Roaming at Reception Area
Wide signal coverage and seamless roaming function, realize automatic Wi-Fi handover when personnel move, keep network connected all the time.

Specifications

Model WL-WNA501HBE2
Port 1x 2.5G RJ45 PoE Port
Button 1x Reset/Pair
LED 1x Status
Power Input DC Jack, PoE via Ethernet Port
Wireless Standard IEEE 802.11b/g/n/a/ac/ax/be
Frequency band 2.4GHz, 5GHz
Transmit Power 2.4G: 26dBm Max
5G: 27dBm Max
Sensitivity 802.11b: -93dBm; 802.11g: -85dBm; 802.11n: -85dBm; 802.11ax: -80dBm
Speed 2.4 GHz: 688Mbps
5 GHz: 4324Mbps
Antennas 5x Built-in omnidirectional antenna
5 GHz: 5dBi
2.4 GHz: 3dBi
Unit Dimension 170mm x 37mm
In the Box 1 x Ceiling Mount Wi-Fi 7 Access Point
1 x Mounting Kit
1 x Power Adapter
1 x Quick Start Guide
