Outdoor AP Aluminum Alloy Bracket - Suitable for Installation of WAVLINK WL-WN573/100 Series APs
  • Outdoor AP Aluminum Alloy Bracket - Suitable for Installation of WAVLINK WL-WN573/100 Series APs 1
  • Outdoor AP Aluminum Alloy Bracket - Suitable for Installation of WAVLINK WL-WN573/100 Series APs 2
  • Outdoor AP Aluminum Alloy Bracket - Suitable for Installation of WAVLINK WL-WN573/100 Series APs 3
  • Outdoor AP Aluminum Alloy Bracket - Suitable for Installation of WAVLINK WL-WN573/100 Series APs 4
  • Outdoor AP Aluminum Alloy Bracket - Suitable for Installation of WAVLINK WL-WN573/100 Series APs 5

Outdoor AP Aluminum Alloy Bracket - Suitable for Installation of WAVLINK WL-WN573/100 Series APs

Model: WL-WNA100T1

- Material: ADC12 Aluminum Alloy
- Surface Treatment: Anodized
- Corrosion Resistance: Enhanced by anodization, suitable for complex outdoor environments
- Wind Resistance: Level 12
- Load Capacity: 35kg
- Product Weight: 500g
- Tilt Angle: 180° (affected by antennas)
- Horizontal Rotation Angle: 180°
- Mounting Options: Wall mount, pole mount (horizontal/vertical)
- Compatible Scenarios: Fits 30-150mm diameter poles; concrete/brick walls, etc.
- Operating Temperature: -40℃~+70℃ (Wide temperature range for extreme outdoor conditions)
- Product Dimensions: 211.89mm×136mm×127.55mm (L×W×H, fits mainstream router mounting sizes)

  • Overview

  • Specifications

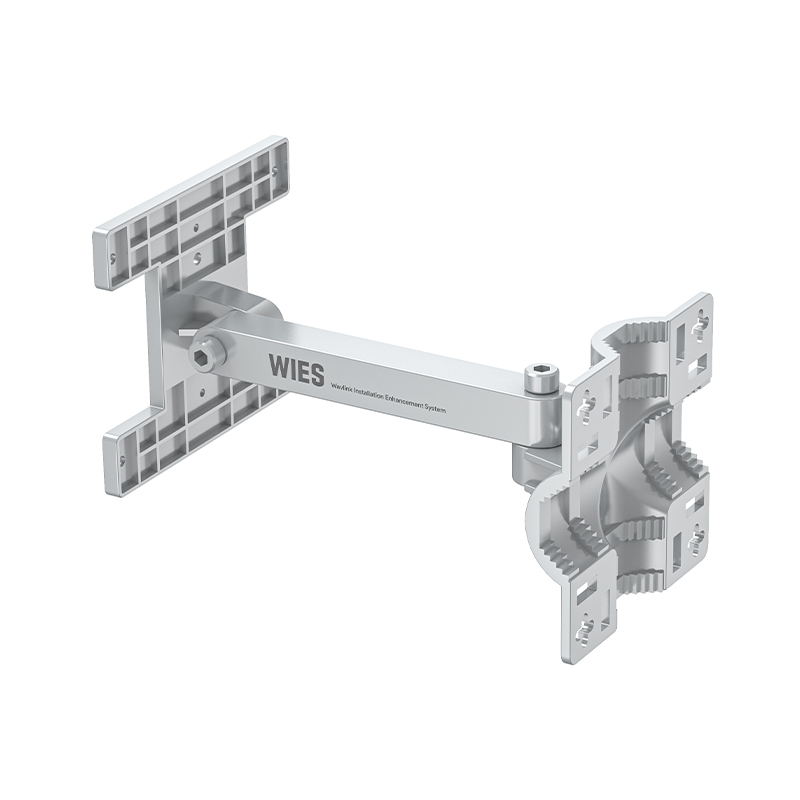

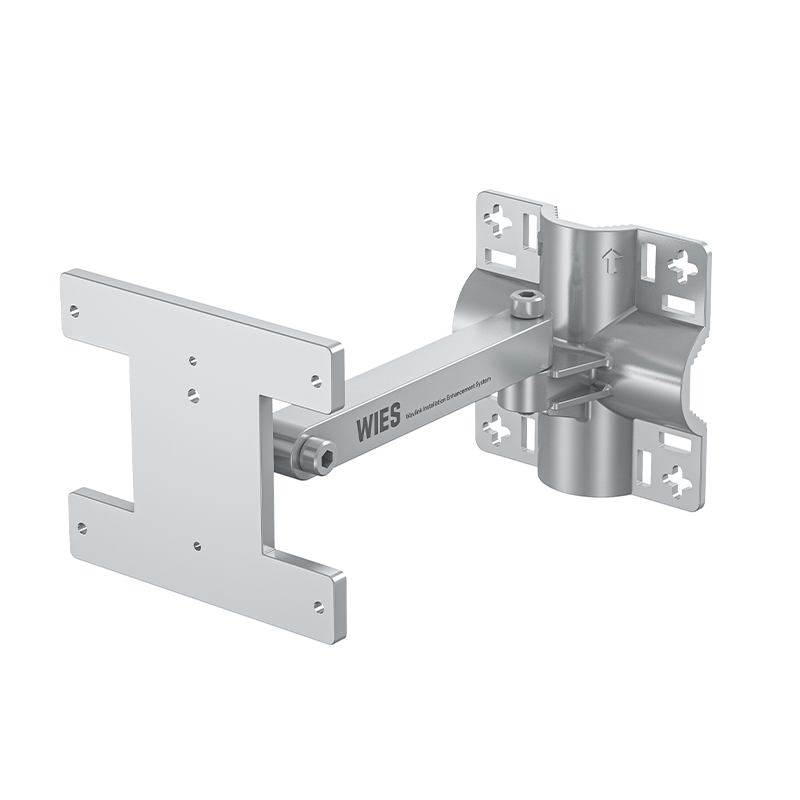

Outdoor AP Aluminum Alloy Bracket

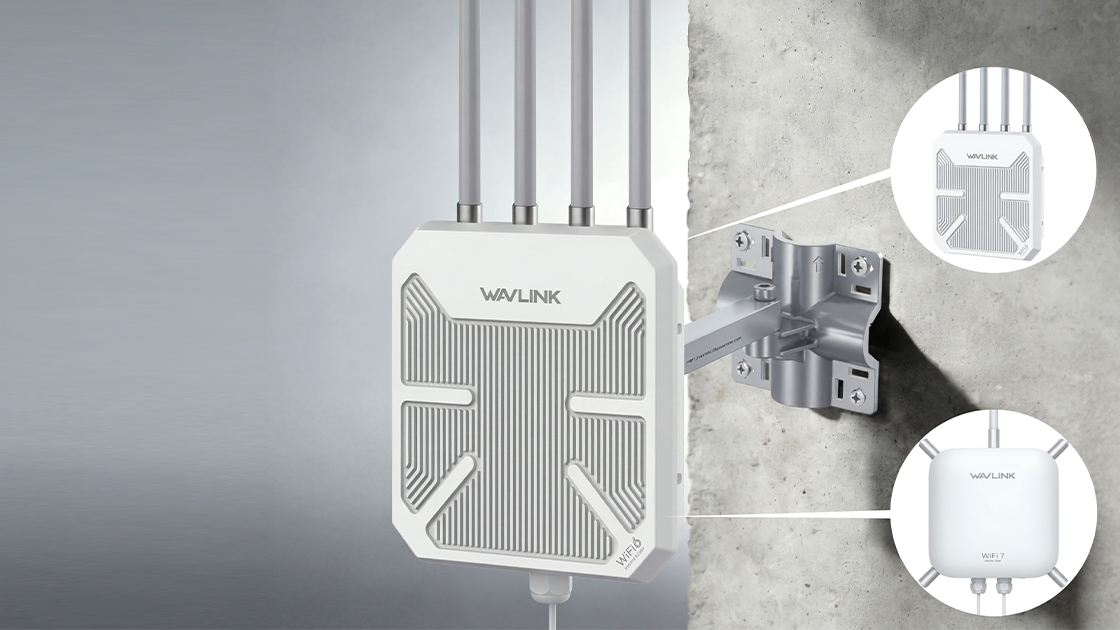

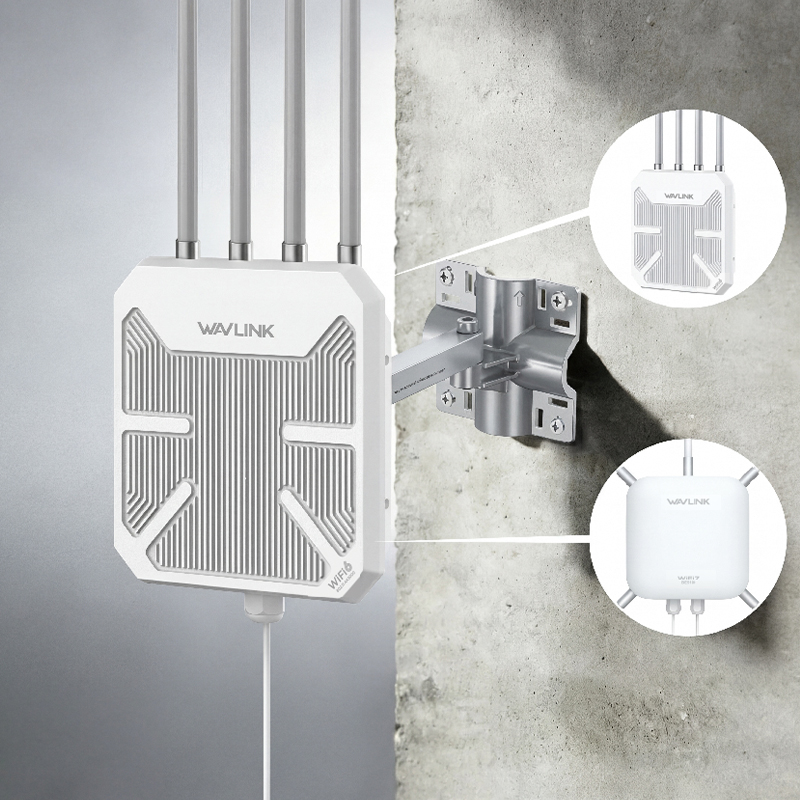

Suitable for Installation of WAVLINK WL-WN573/100 Series APs

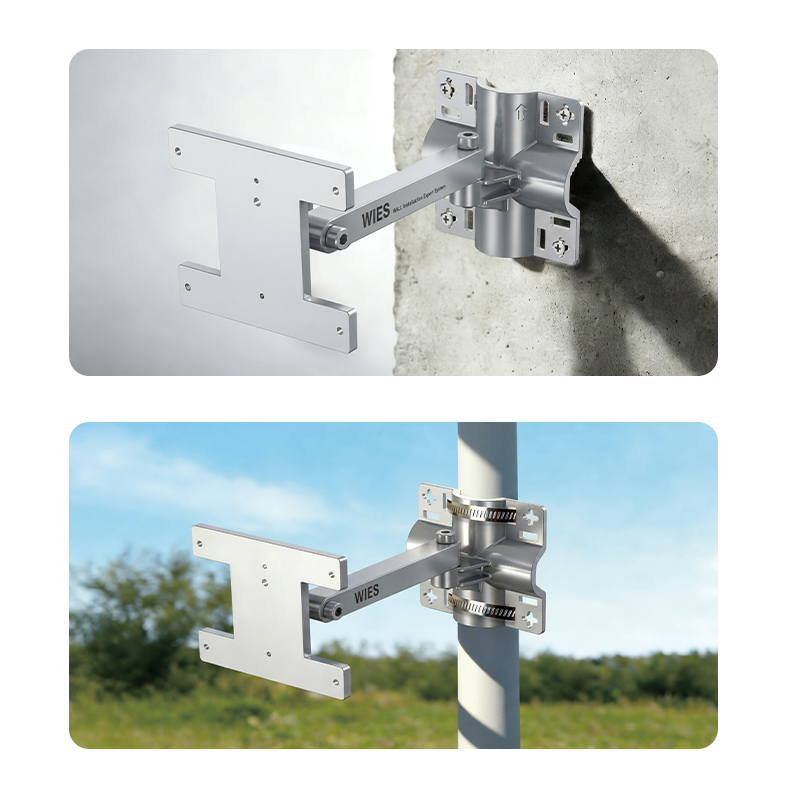

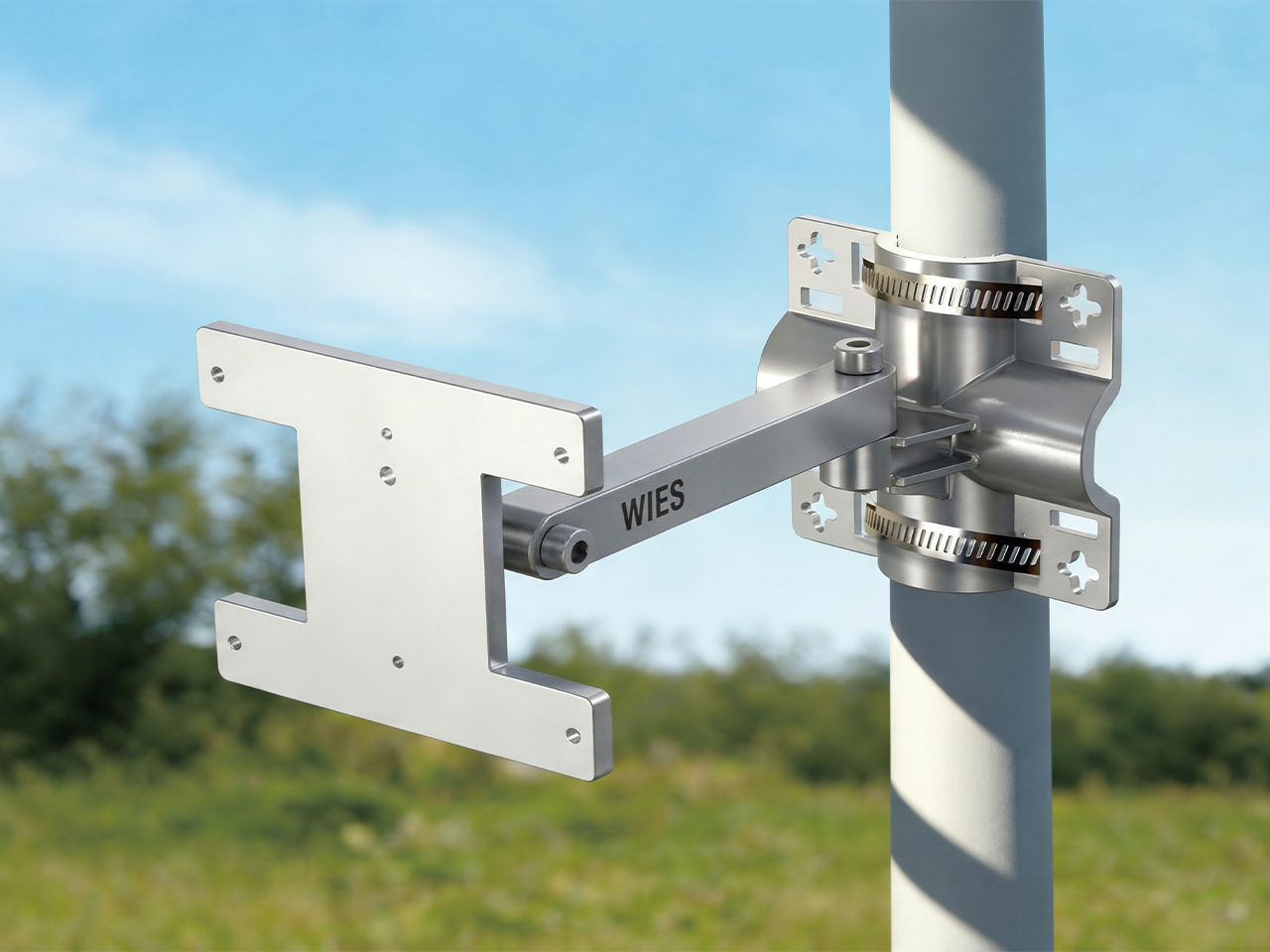

Pole Mount
Fits 30-150mm diameter poles (horizontal/vertical)

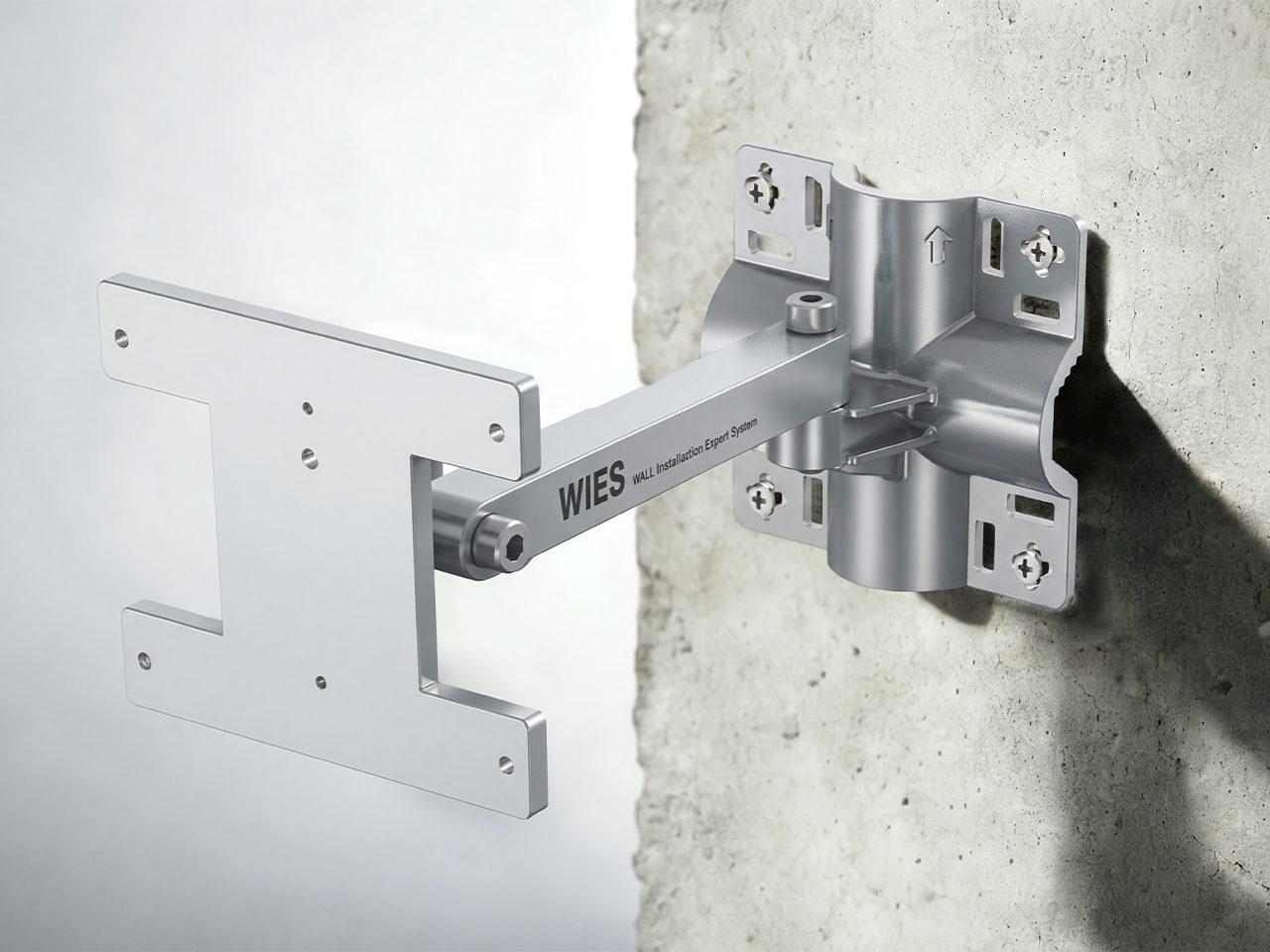

Wall Mount
Fits concrete/brick walls

Level 12 Wind Resistance
Stable and reliable structure

Specifications


  • Material

    ADC12 aluminum alloy

  • Load Capacity

    Max load capacity: 35kg

  • Mounting Method

    Wall/pole mount (Φ30-150mm)

  • Operating Temperature

    -40ºC~70ºC

  • Storage Temperature

    -40ºC~90ºC

  • Surface Treatment

    Anodized

  • Compatible Devices

    WAVLINK WN573/WN100 series outdoor APs

  • Wind Resistance

    Level 12
