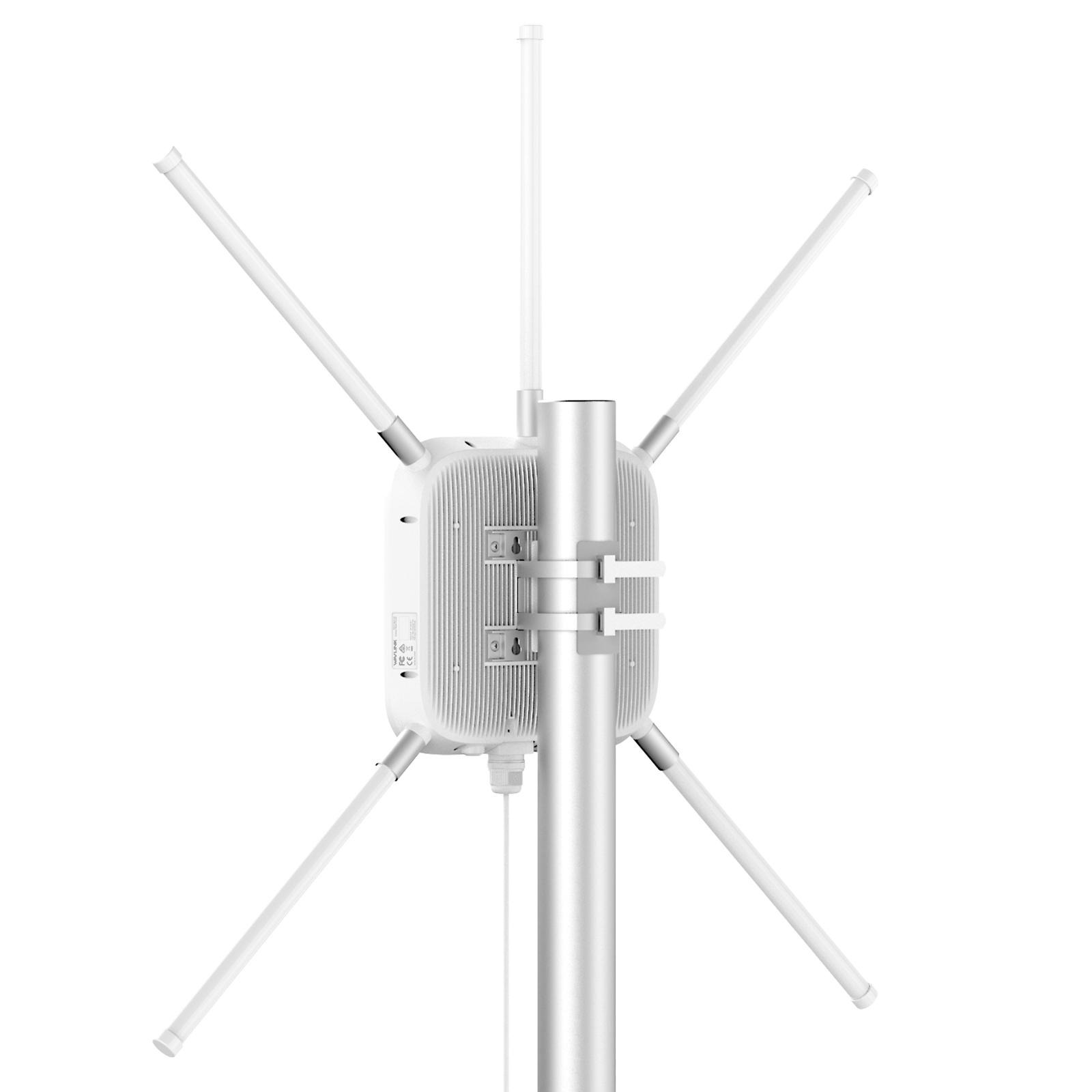

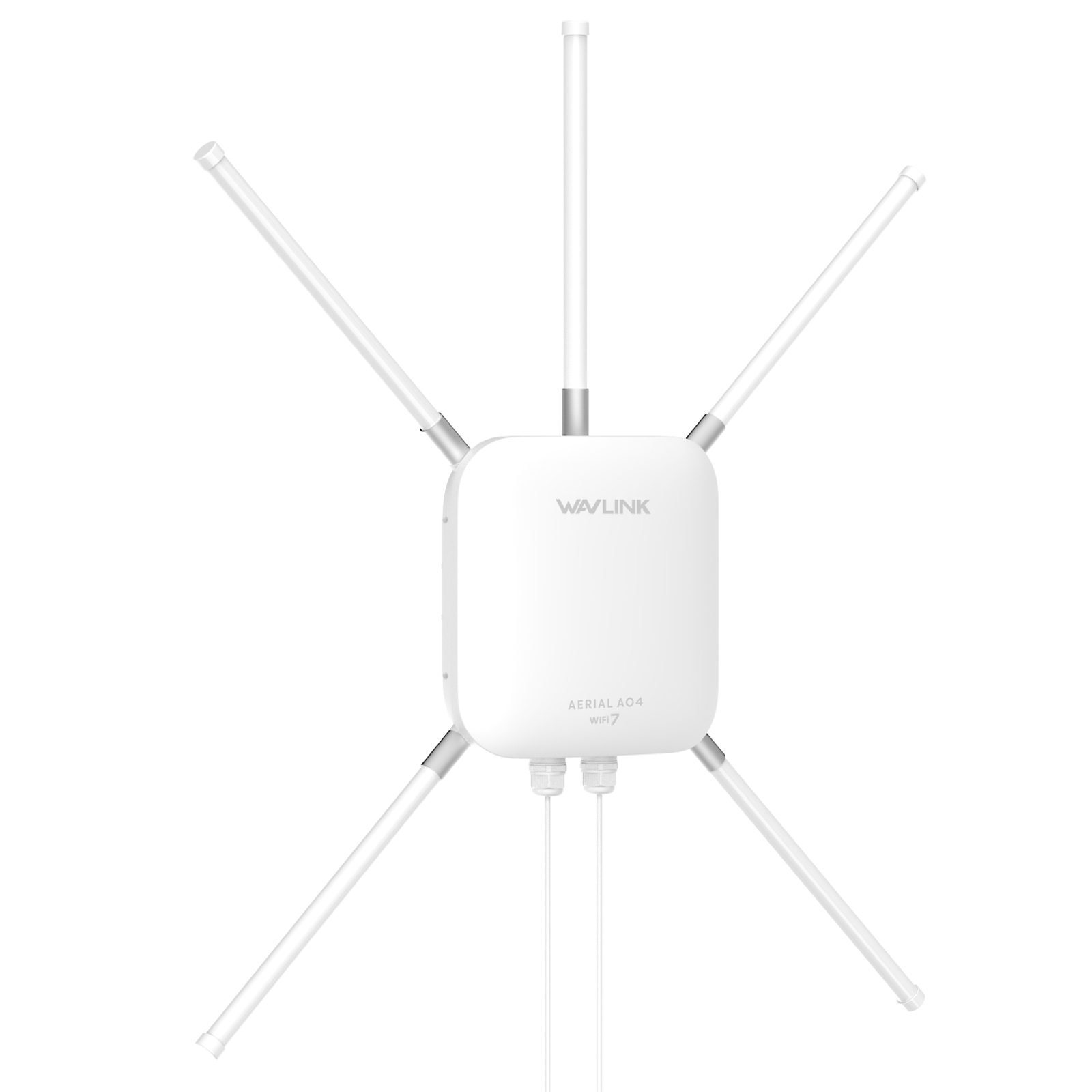

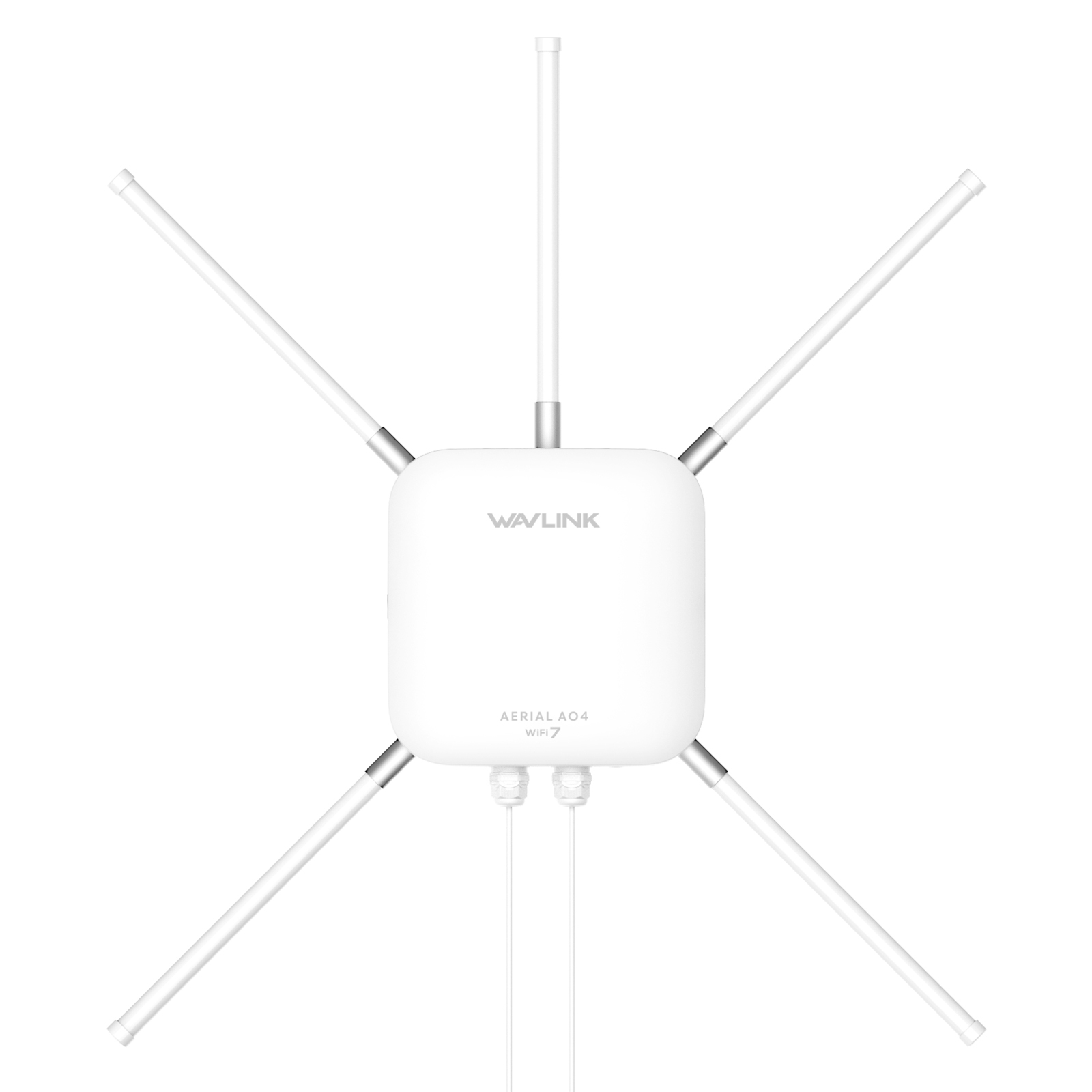

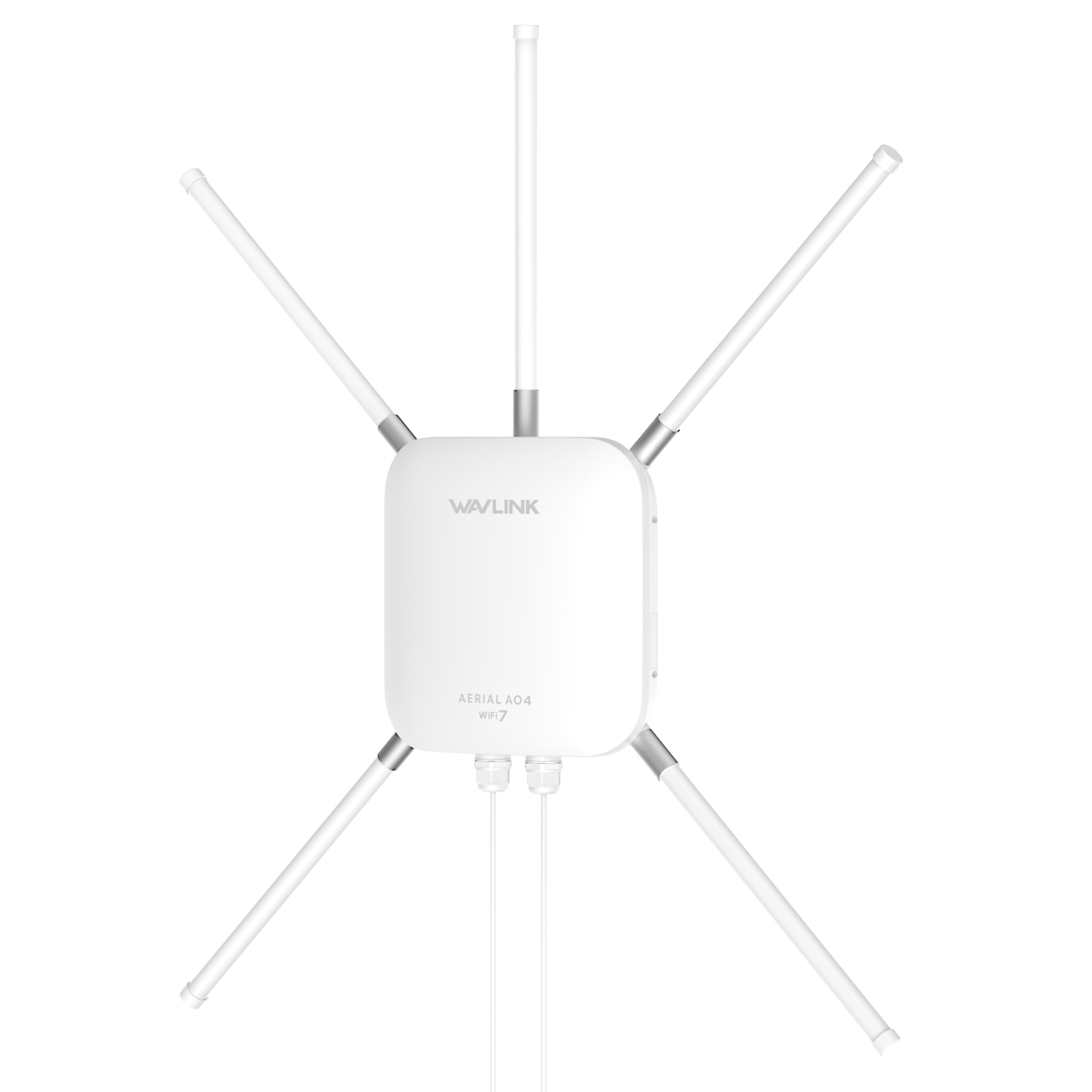

WL-WNA100BE2P: WAVLINK Wi-Fi 7 BE5100 Outdoor Access Point, Support Everything Mesh/Router/AP/Range Extender Mode, IP68 Weatherproof, Dual 2.5G Ports

AERIAL AO4

Model: WL-WNA100BE2P

- Frequency: dual band 2.4GHz 688Mbps + 5GHz 4323Mbps, speed up to 5100Mbps.

- Ethernet Port: 1×2.5G Internet + 1×2.5G LAN.

- Antennas: 2×2.4G 8dBi + 3×5G 8dBi omnidirectional fiberglass antennas.

- Operation Modes: AP/Range Extender/Router mode.

- Encryption Type: WPA2-PSK; WPA1-PSK/WPA2-MIX; WPA3-SAE/WPA2-PSK; WPA/WPA2-Enterprise.

- Power: 100-240V/50-60Hz; DC 54V (Passive PoE); 30W Active PoE.

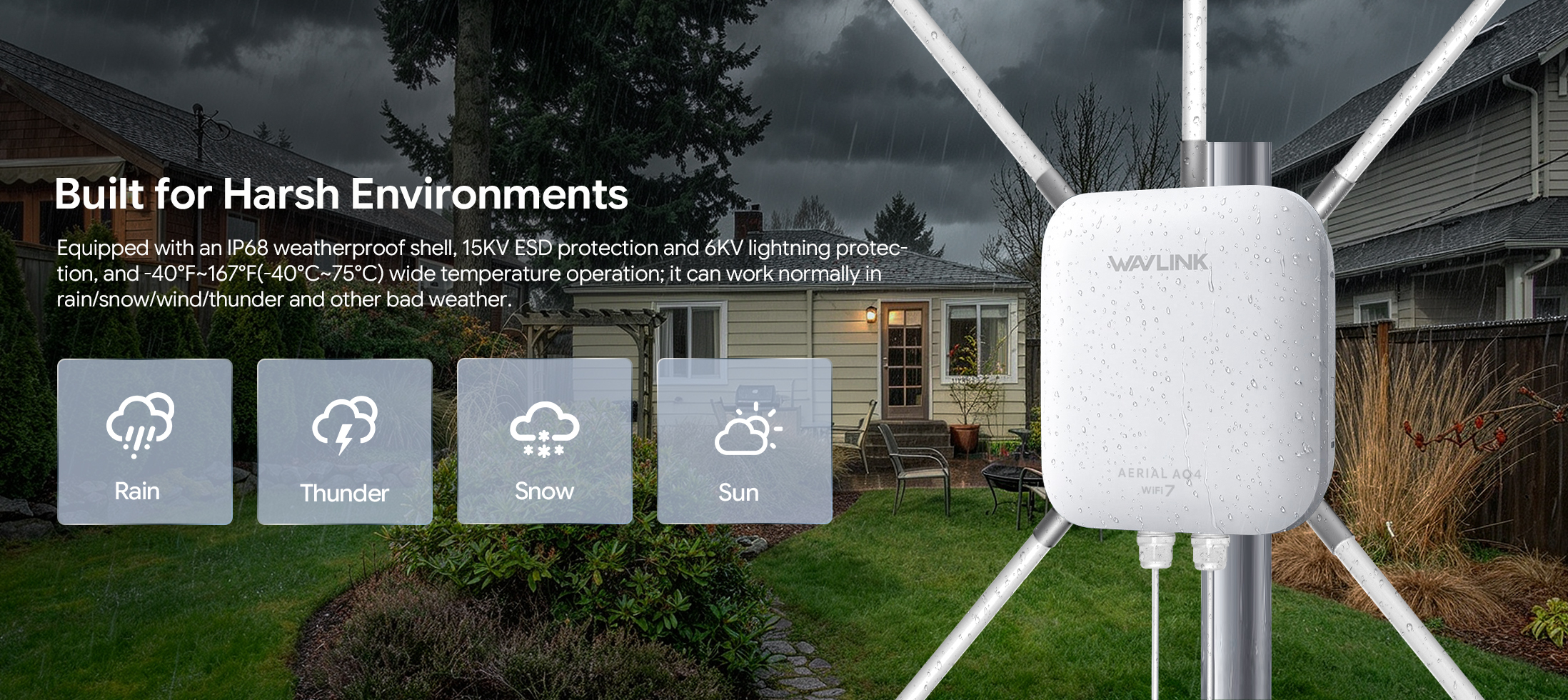

- IP 68 waterproof, 15KV ESD and 6KV lightning protection.

- Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.

- Supports 802.3at active PoE and passive PoE to supply power.

Specifications

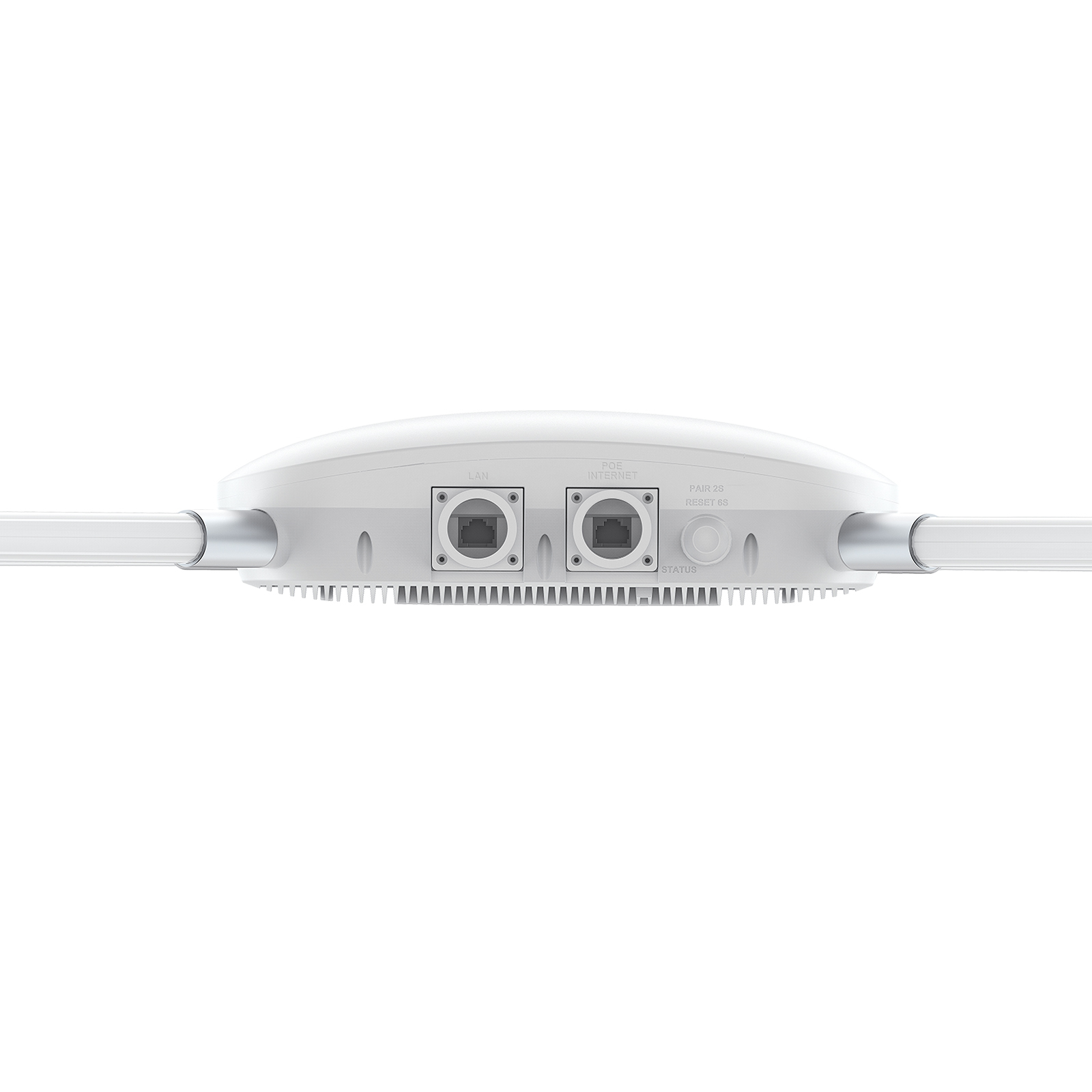

Ports	1 x 2.5G LAN 1 x 2.5G Internet
Button	Pair & reset button
Pair/Reset LED	Blue
PoE Converter Status LED	Green
Power	100-240V/50-60Hz; DC54V (Passive PoE);30W (Active PoE)
Power Supply	802.3at active PoE and passive PoE
Product Size (without antennas)	27x27x7.7cm/10.6x10.6x3in
Wireless Standard	IEEE 802.11 be/ax/ac/a/n/g/b
Frequency	2.4GHz 688Mbps + 5GHz 4323Mbps
Wireless Security	WPA2-PSK; WPA1-PSK/WPA2-MIX; WPA3-SAE/WPA2-PSK; WPA/WPA2-Enterprise
Antennas	2×2.4G 8dBi +3×5G 8dBi omnidirectional fiberglass antennas
CPU	Quad-core 2.0GHz
Operation Modes	AP/Range Extender/Router mode

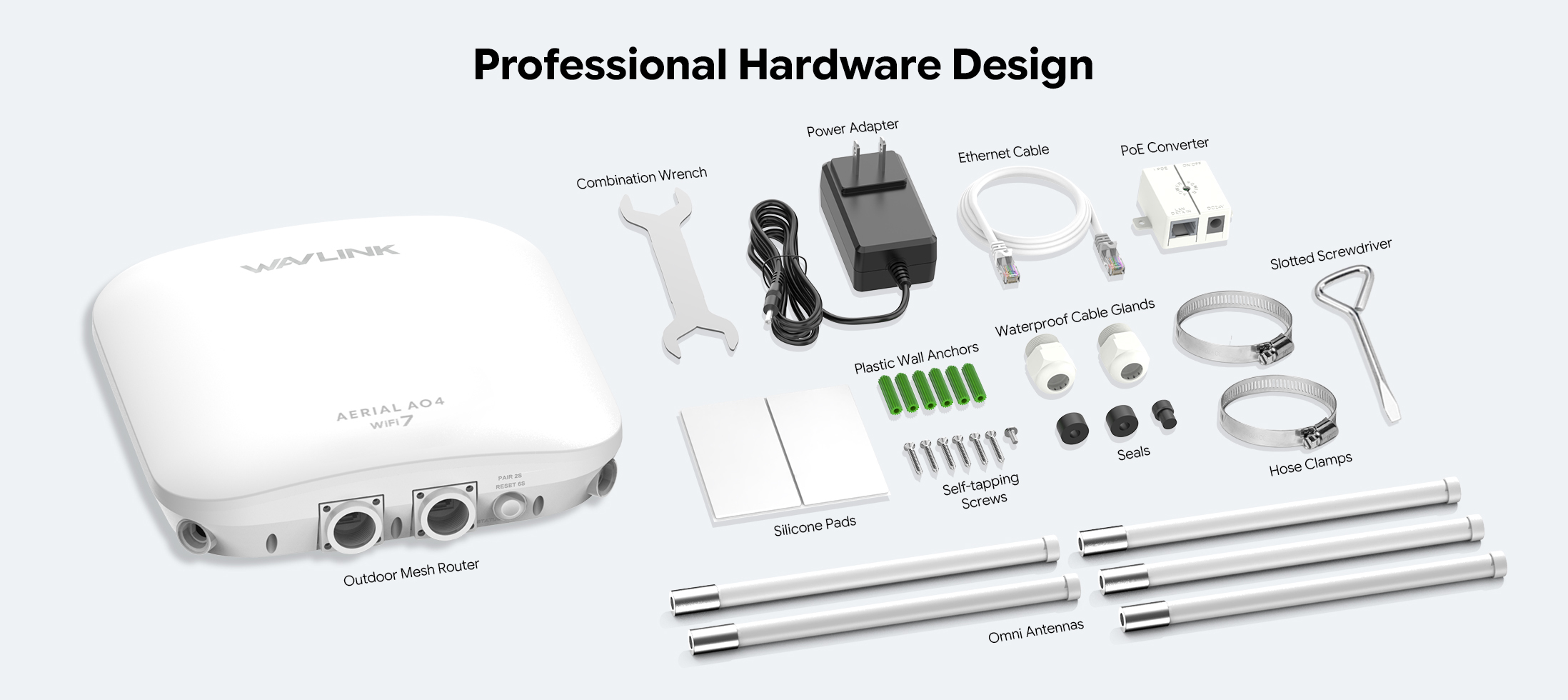

In the Box	1 × WiFi7 BE5100 Outdoor Mesh Router 1 × 54V Power Adapter 1 × PoE Converter 1 × Ethernet Cable 2 × Waterproof Cable Glands 5 × Omni Antennas 2 × Stainless Steel Hose Clamps 2 × Silicone Pads 1 × Slotted Screwdriver 1 × 28mm and 31mm Combination Wrench 1 × Quick Start Guide Several Screws
