Wi-Fi 7 Tri-Band BE6500 PCIe Adapter with Magnet Base
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter with Magnet Base 1
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter with Magnet Base 2
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter with Magnet Base 3
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter with Magnet Base 4
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter with Magnet Base 5

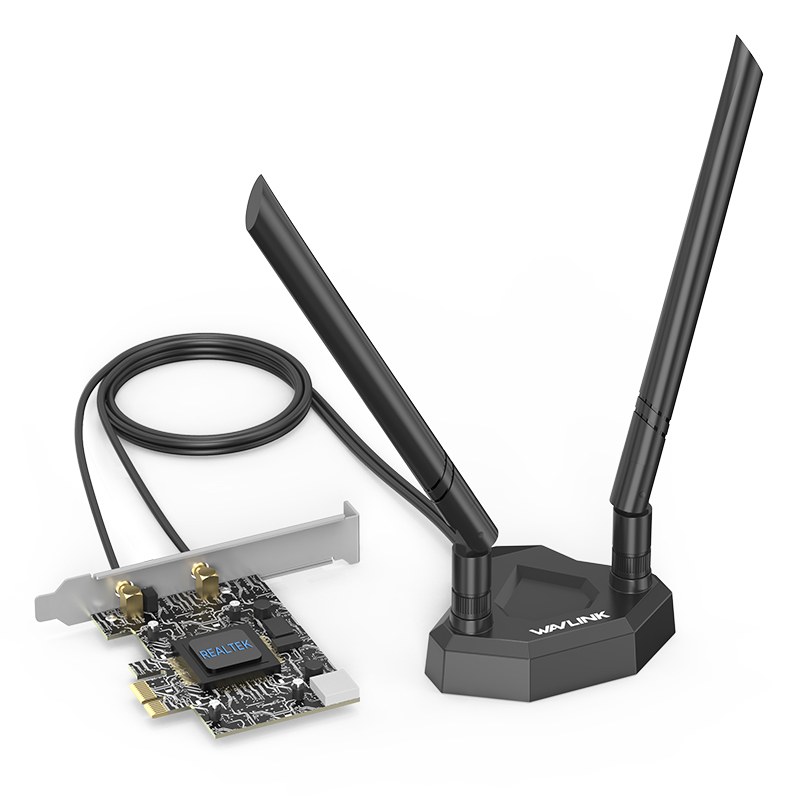

Wi-Fi 7 Tri-Band BE6500 PCIe Adapter with Magnet Base

Model: WL-WN922BE3S

- The latest Wi-Fi 7 BE6500 standard gives you incredible speed and connectivity.
- Tri-Band Speed up to 2.4GHz 688Mbps, 5GHz 2882Mbps, 6GHz 2882Mbps.

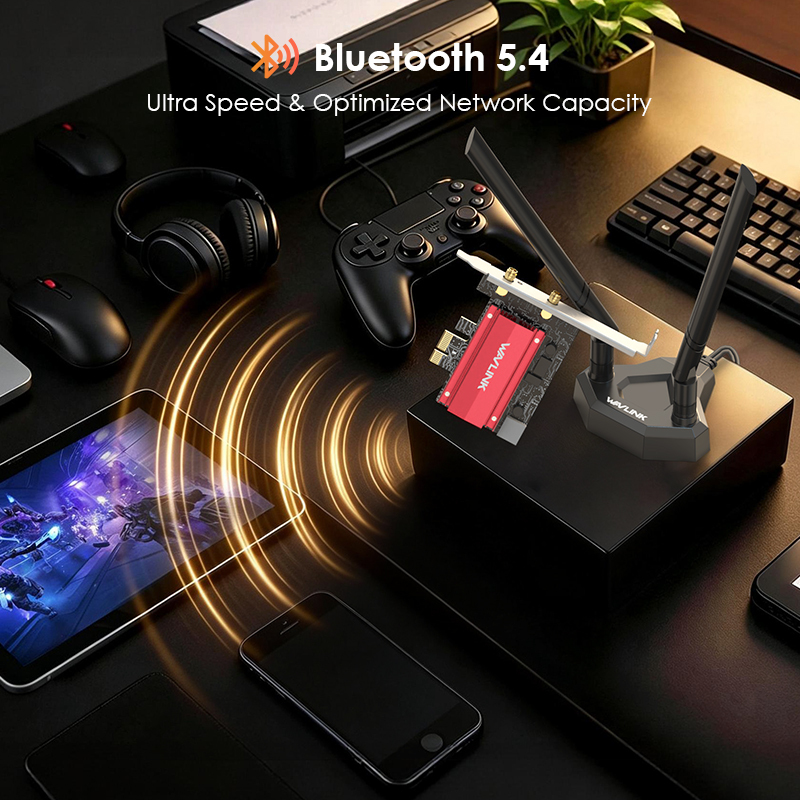

- Supports the latest Bluetooth 5.4 with a longer transmission distance and better stability.
- The MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance.
- Security: WPA/WPA2/WPA3.
- 2×5dBi external Wi-Fi 7 antennas: allows you to position and optimize your network coverage and reception.

  • Overview

  • Specifications

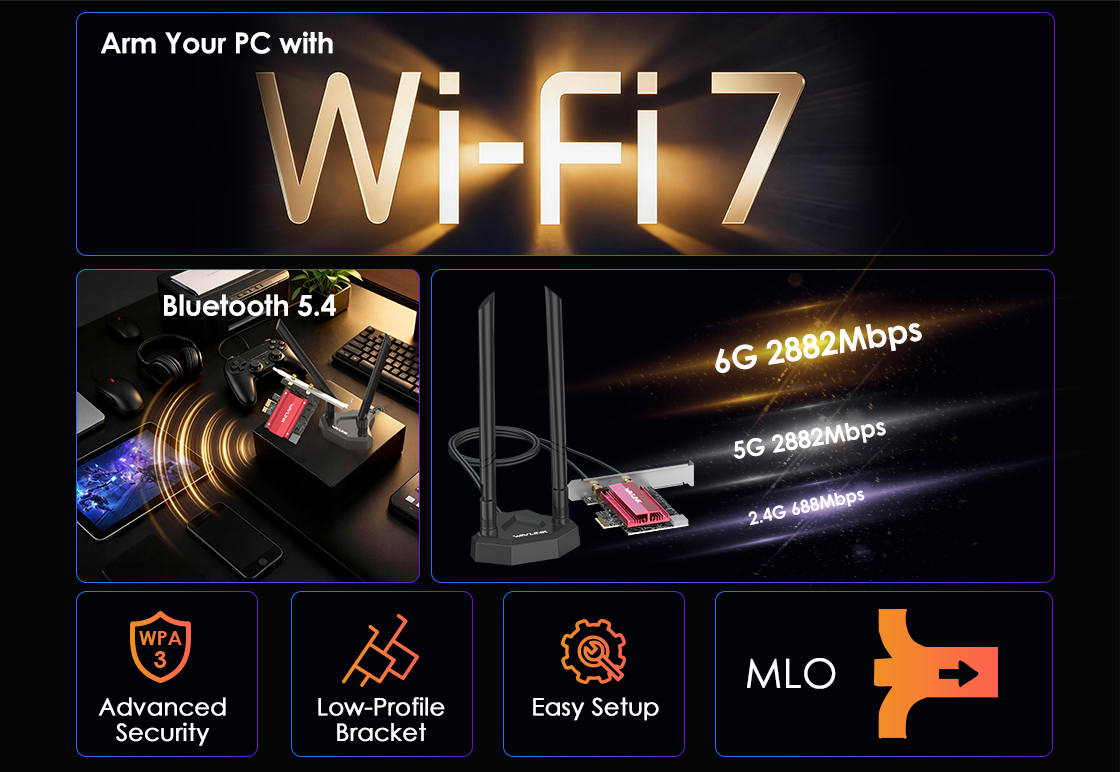

BE6500 Tri-band PCIe Adapter, Unleash the Full Potential of Wi-Fi 7
Bluetooth 5.4, 2882Mbps@6GHz, 2882Mbps@5GHz, 688Mbps@2.4GHz, Standard & Low-Profile Bracket, MLO & MU-MIMO, Magnet Base

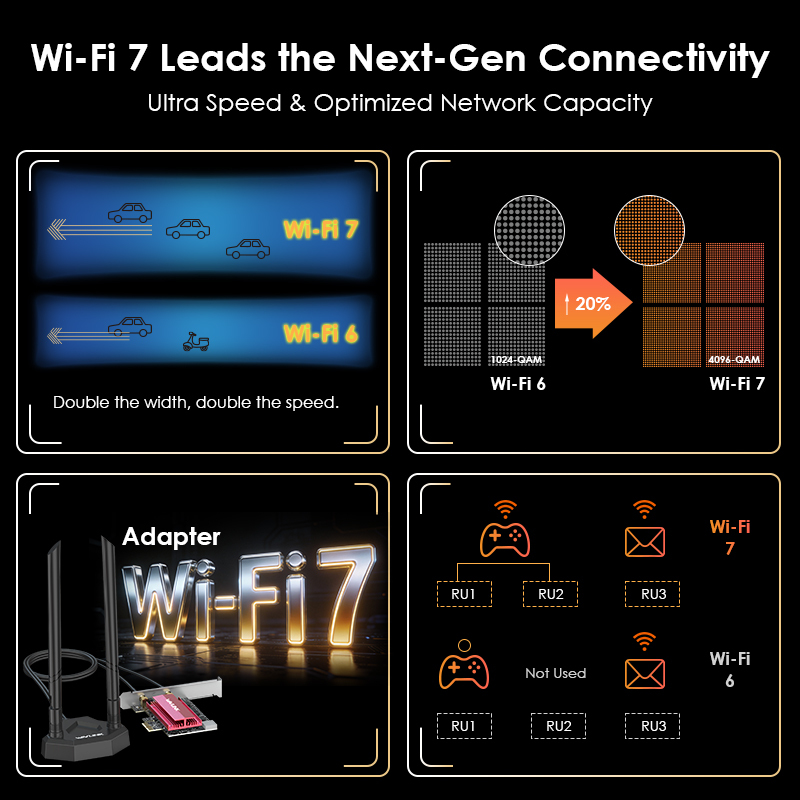

Next-Gen Wi-Fi 7

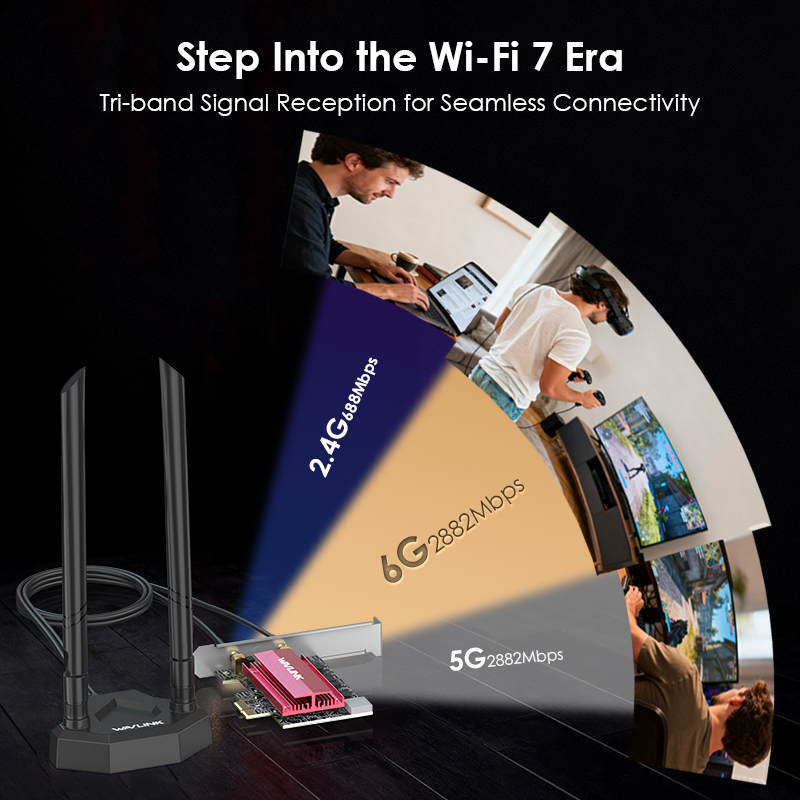

Wi-Fi 7 BE6500 offers 6.5 Gbps total speed with 320 MHz channels and 4K-QAM, plus under 2 ms latency—great for 8K video, cloud gaming, and large backups. It has three bands: 2.4 GHz (688 Mbps) for smart devices, 5 GHz (2882 Mbps) for conferencing and downloads, and 6 GHz (2882 Mbps) for VR/AR and gaming—all running smoothly at the same time without interference.

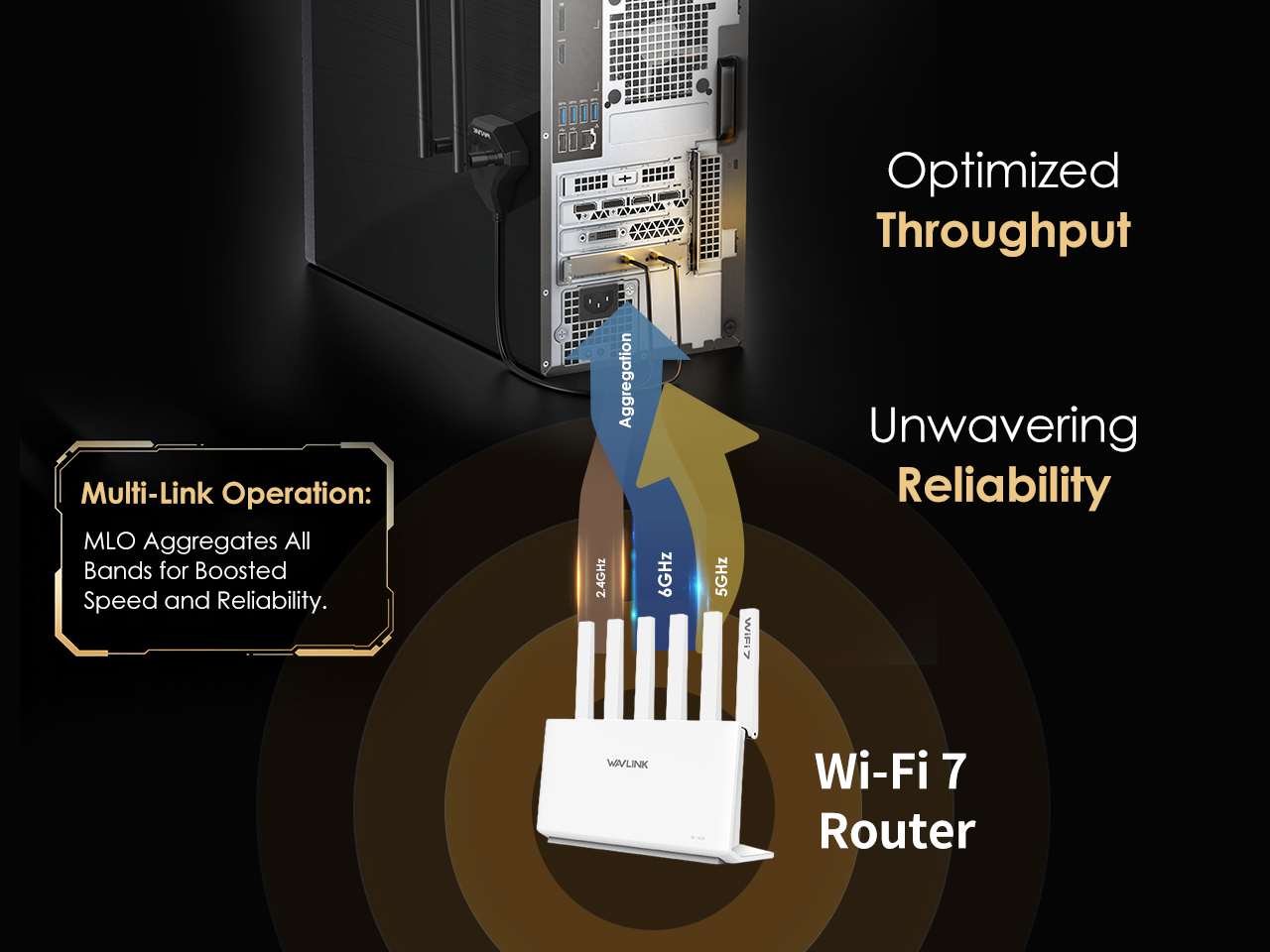

Wi-Fi 7 MLO Technology
With MultiLink Operation (MLO), the router aggregates multiple bands at once, boosting overall throughput by up to 30% and reducing jitter to under 1 ms. In real-world use, this means a laptop can stream 8K video over the 6 GHz band while simultaneously downloading large files via 5 GHz—all without lag or disconnection.

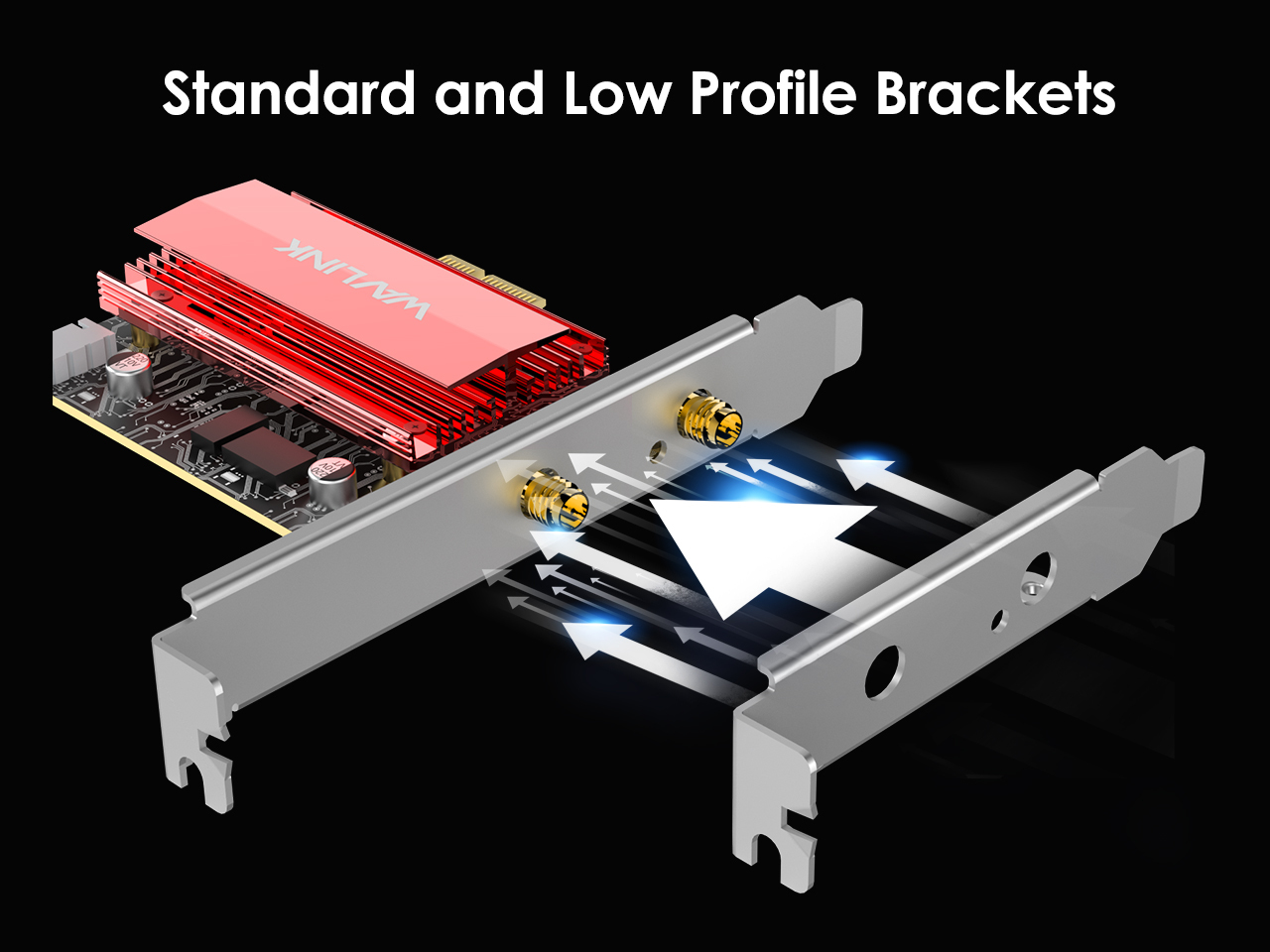

Standard & Low Profile Brackets Can be Chosen
The PCIe card includes both standard and low-profile brackets, ensuring compatibility with everything from fullsize towers to compact mini PCs. This flexible design lets you upgrade your network performance without worrying about chassis space constraints.

Strong RLT8922AE Chipset
Powered by the RTL8922AE chip, this Wi-Fi 7 adapter doubles the speed of Wi-Fi 6 for faster downloads and smoother gaming. With dynamic tri-band support and MLO, it intelligently uses 2.4/5/6 GHz bands to avoid congestion and cut latency.

WPA3 Encryption
With WPA3, your PCIe card secures smart home devices from Wi-Fi attacks, encrypts open cafe hotspots to protect passwords and browsing, and safeguards office files against bruteforce cracking—keeping you protected wherever you connect.

Specifications

Hardware Wireless
Ports PCI-E Standard IEEE 802.11b/g/n/a/ac/ax/be
LED 1 X Link Frequency band 2.4GHz, 5GHz, 6GHz
Chipset RTL 8922AE Speed 5G:2882Mbps
6G:2882Mbps
2.4G:688Mbps
Environmental
Operating Temperature 0℃~40℃
Storage Temperature -10~70℃ Wireless Security WPA/WPA2/WPA3,
WPA-PSK/WPA2-PSK
Relative Humidity (Operational) 10%~90%, noncondensing Antennas 2x5dBi Tri-Band Antennas
Relative Humidity(Storage) 10%~90%, noncondensing System Microsoft Windows 11 64 bit
