Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module
  • Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module 1
  • Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module 2
  • Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module 3
  • Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module 4
  • Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module 5
  • Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module 6

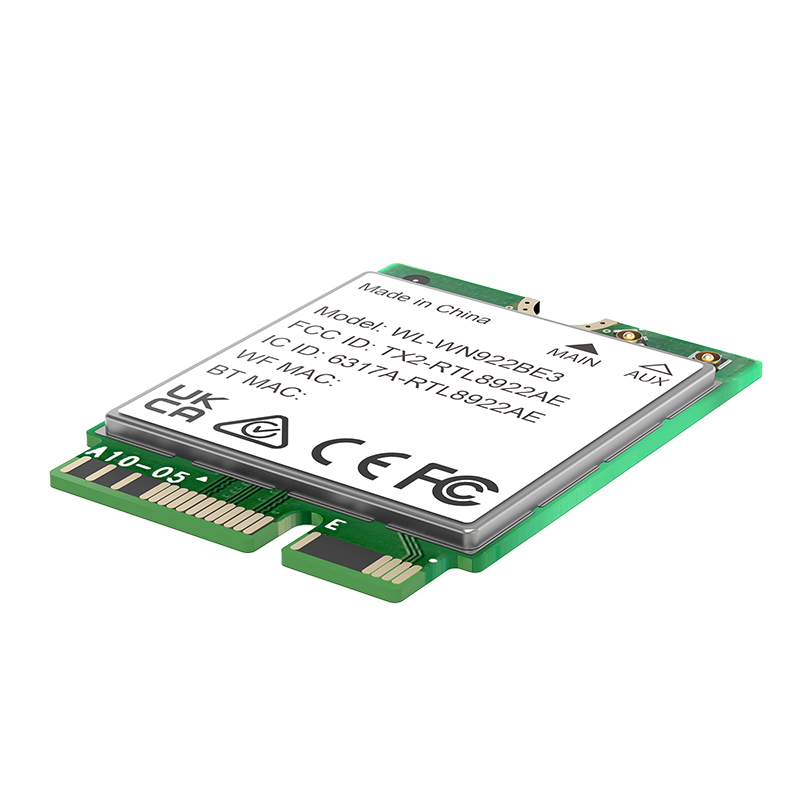

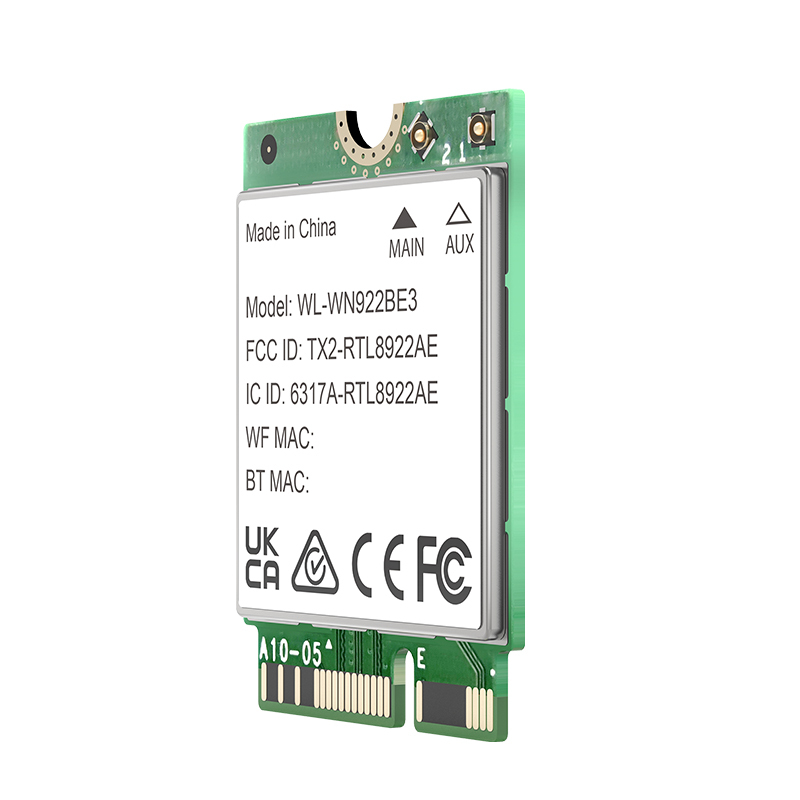

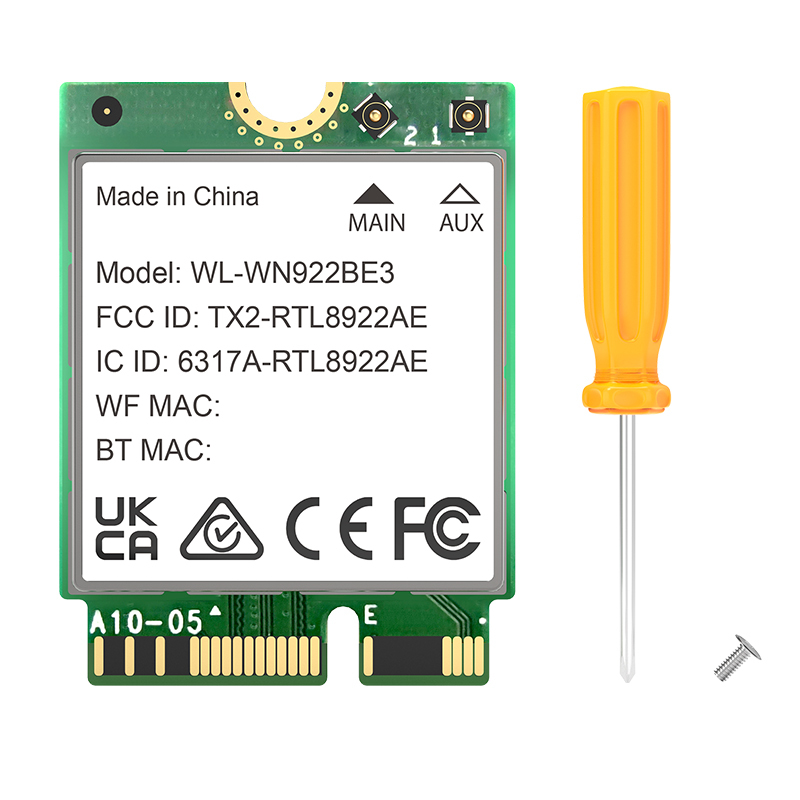

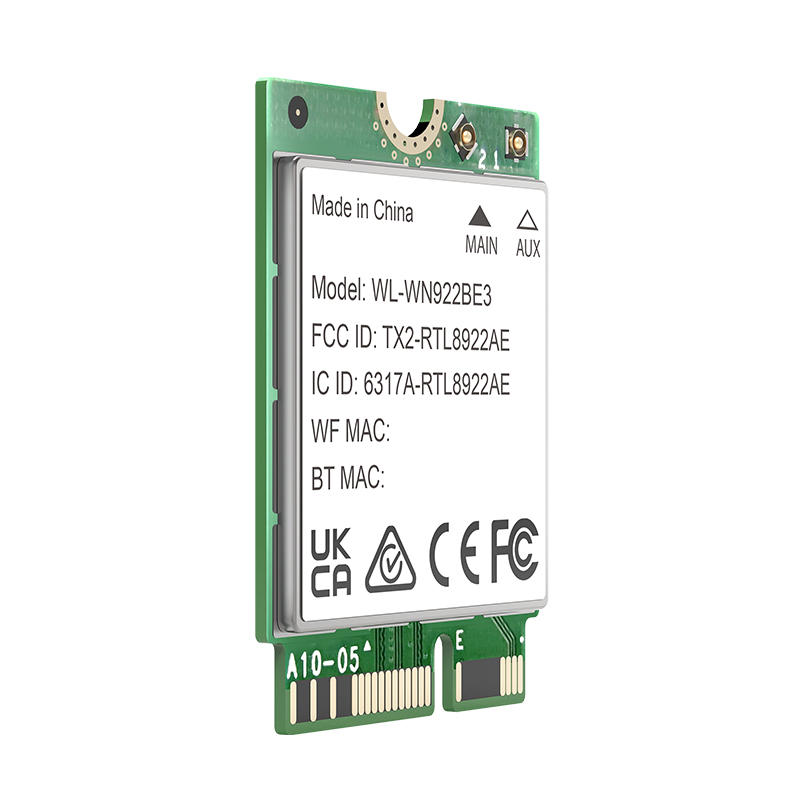

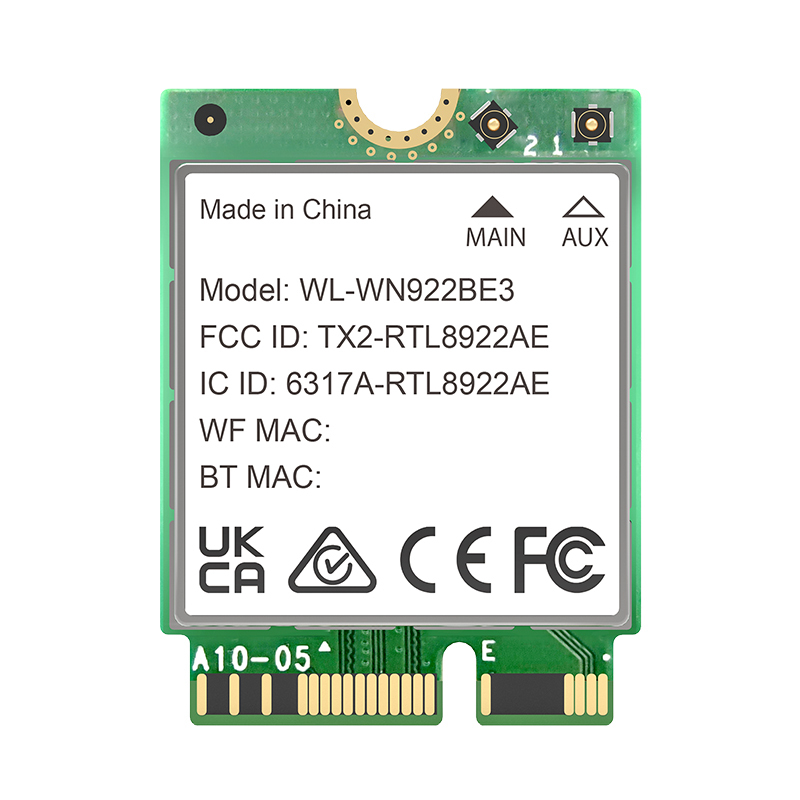

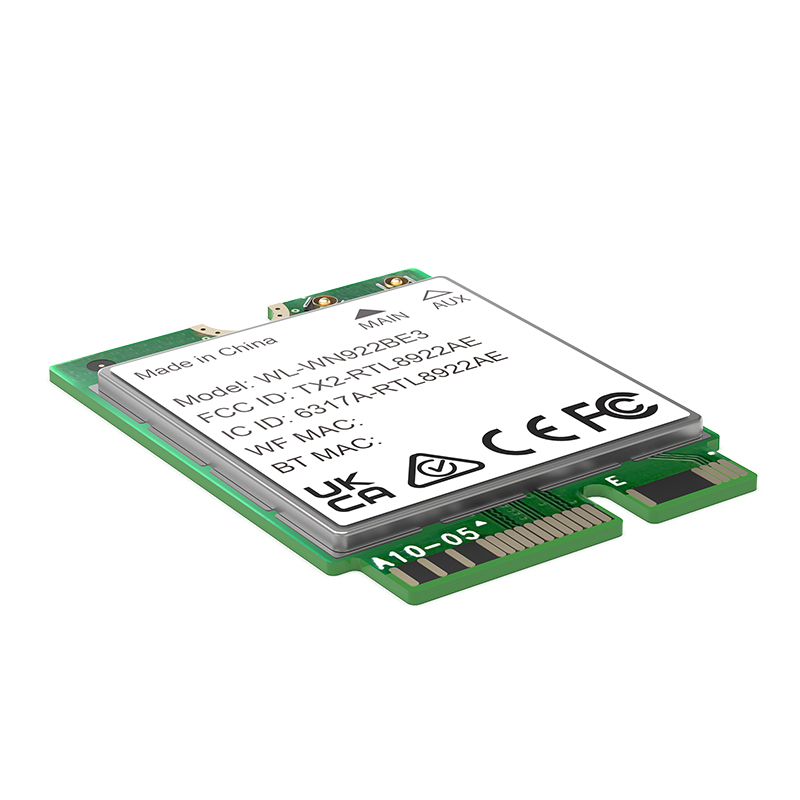

Wi-Fi 7 BE6500 Tri-Band M.2 Wireless Module

Model: WL-WN922BE3M

WavlinkTri-Band M.2 Module is a BE6500 wireless adapter for laptops that has the NGFF/M.2 connector. It has the MLO feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking experience. Wavlink M.2 module supports MU-MMO technology, making the wireless signal faster and more effective by cooperating with a MU-MMO compatible router. Compliant with 802.11 BE specification, the module supports 2.4G, 5G and 6G bands with a maximum data transfer rate 6500Mbps.

  • Overview

  • Specifications

Next-Gen Wi-Fi 7 M.2 Module
Bluetooth5.4、2882Mbps@6GHz、2882Mbps@5GHz、688Mbps@2.4GHz、OFAMA、MU-MIMO
Next-Gen Wi-Fi 7
Wi-Fi 7 BE6500 offers 6.5 Gbps total speed with 320 MHz channels and 4K-QAM, plus under 2 ms latency—great for 8K video, cloud gaming, and large backups. It has three bands: 2.4 GHz (688 Mbps) for smart devices, 5 GHz (2882 Mbps) for conferencing and downloads, and 6 GHz (2882 Mbps) for VR/AR and gaming—all running smoothly at the same time without interference.
Newest Bluetooth 5.4 Function
Bluetooth 5.4 offers better stability, privacy, and lower latency. Ideal for TWS earbuds, keyboards, mice, and IoT devices. Backward compatible with earlier Bluetooth versions.

320MHz Chanel Bandwidth
M.2 Wi-Fi Card supports 320MHz bandwidth for ultra-fast speeds and low latency. Ideal for 8K streaming, gaming, and large file transfers. Compatible with older Wi-Fi standards.

Compatibility

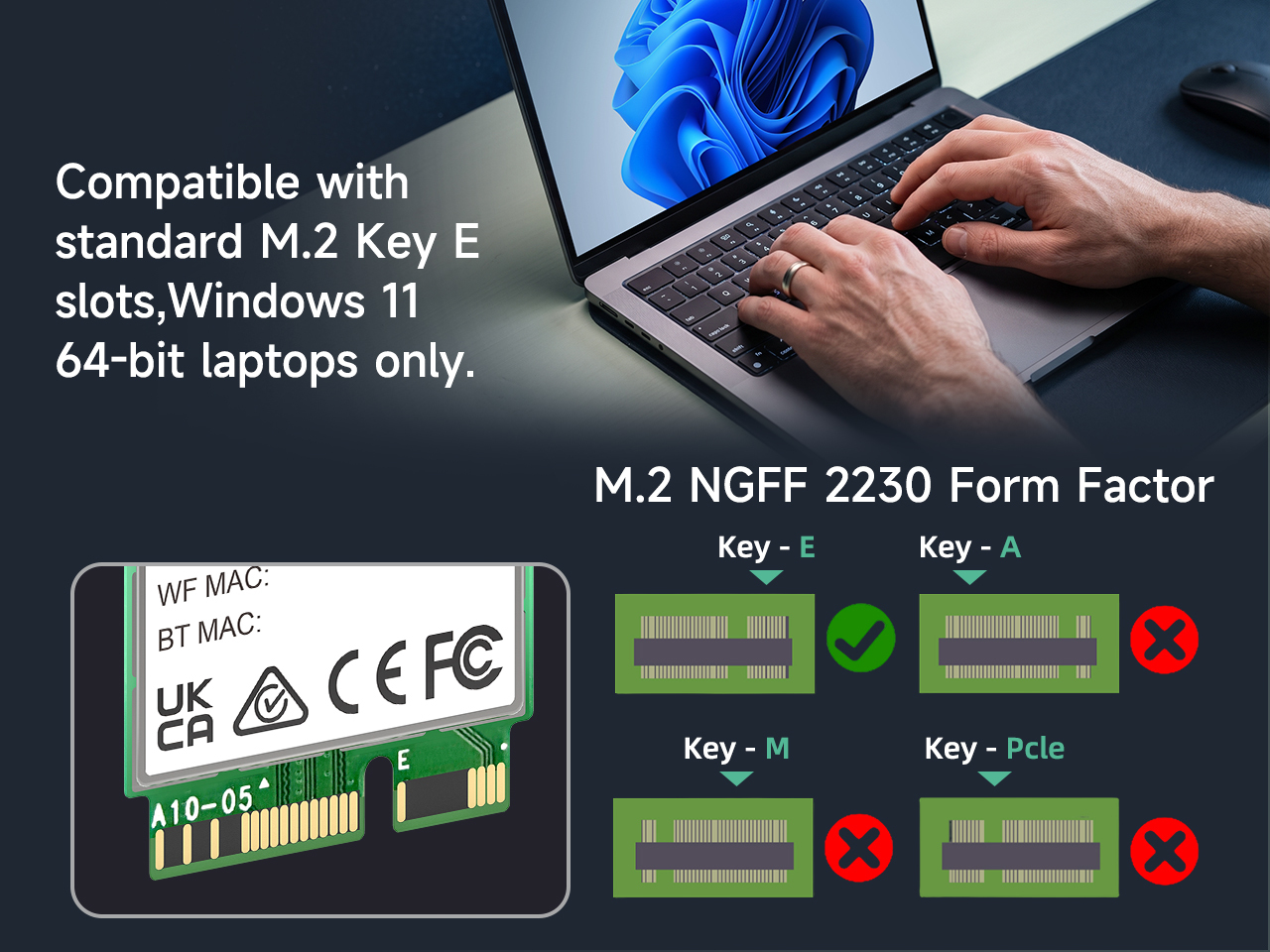

This M.2 wireless module features the standard NGFF 2230 form factor and is compatible with M.2 Key E slots. It does not support Key A, Key M, or PCIe interfaces. This module is designed exclusively for Windows 11 64-bit laptops.

WPA3 Encryption
WPA3 brings next-level security to your wireless connection—securing smart cameras and doorbells at home from deauthentication attacks, shielding your login credentials and browsing data on unsecured coffee shop Wi-Fi, and defending office workstations against dictionary brute-force attempts—so your digital life stays safe on every network.

Specifications

Hardware Wireless
Ports PCI-E Standard IEEE 802.11b/g/n/a/ac/ax/be
Chipset RTL 8922AE Frequency band 2.4GHz, 5GHz, 6GHz
Environmental Speed 5G:2882Mbps
6G:2882Mbps
2.4G:688Mbps
Operating Temperature 0℃~40℃
Storage Temperature -10~70℃
Relative Humidity(Operational) 10%~90%, noncondensing Wireless Security WPA/WPA2/WPA3,
WPA-PSK/WPA2-PSK
Relative Humidity(Storage) 10%~90%, noncondensing System Microsoft Windows 11 64 bit
