Wi-Fi 7 Tri-Band BE6500 PCIe Adapter
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter 1
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter 2
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter 3
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter 4
  • Wi-Fi 7 Tri-Band BE6500 PCIe Adapter 5

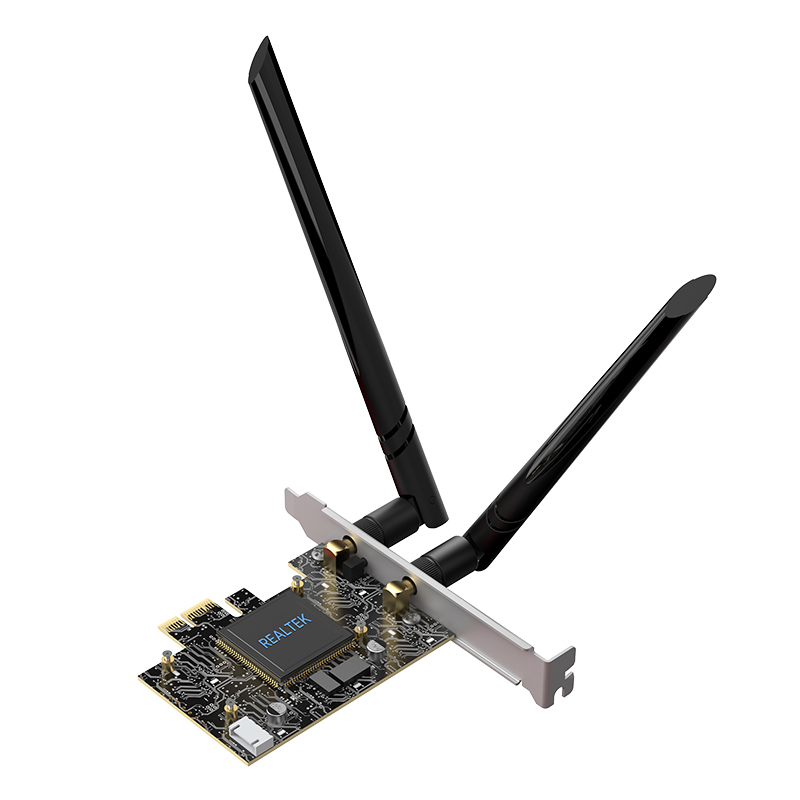

Wi-Fi 7 Tri-Band BE6500 PCIe Adapter

Model: WL-WN922BE3-B

- The latest Wi-Fi 7 BE6500 standard gives you incredible speed and connectivity.
- Tri-Band Speed up to 2.4GHz 688Mbps, 5GHz 2882Mbps, 6GHz 2882Mbps.
- Supports the latest Bluetooth 5.4 with a longer transmission distance and better stability.
- The MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance.
- It has the MLO feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking experience.
- Security: WPA/WPA2/WPA3.
- 2×5dBi external Wi-Fi 7 antennas: allows you to position and optimize your network coverage and reception.

  • Overview

  • Specifications

BE6500 Tri-band PCIe Adapter, Unleash the Full Potential of Wi-Fi 7
Bluetooth 5.4, 2882Mbps@6GHz, 2882Mbps@5GHz, 688Mbps@2.4GHz, Standard & Low-Profile Bracket, MLO & MU-MIMO
Next-Gen Wi-Fi 7

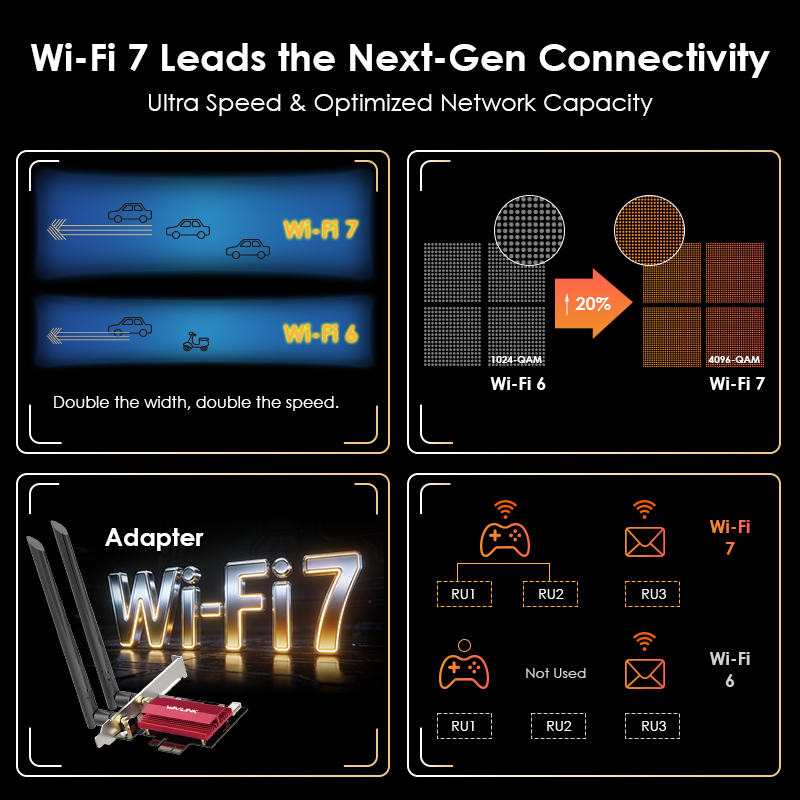

The latest Wi-Fi 7 BE6500 (802.11be) delivers 6.5 Gbps aggregate throughput via 320 MHz channels and 4K-QAM, cutting latency to < 2 ms—perfect for 8K streaming, cloud gaming, and large backups in multi-device homes. 2.4 GHz at 688 Mbps (for IoT sensors and smart speakers), 5 GHz at 2882 Mbps (for 4K conferencing and downloads), and 6 GHz at 2882 Mbps (dedicated to VR/AR and competitive gaming)—enabling simultaneous, interference-free operation.

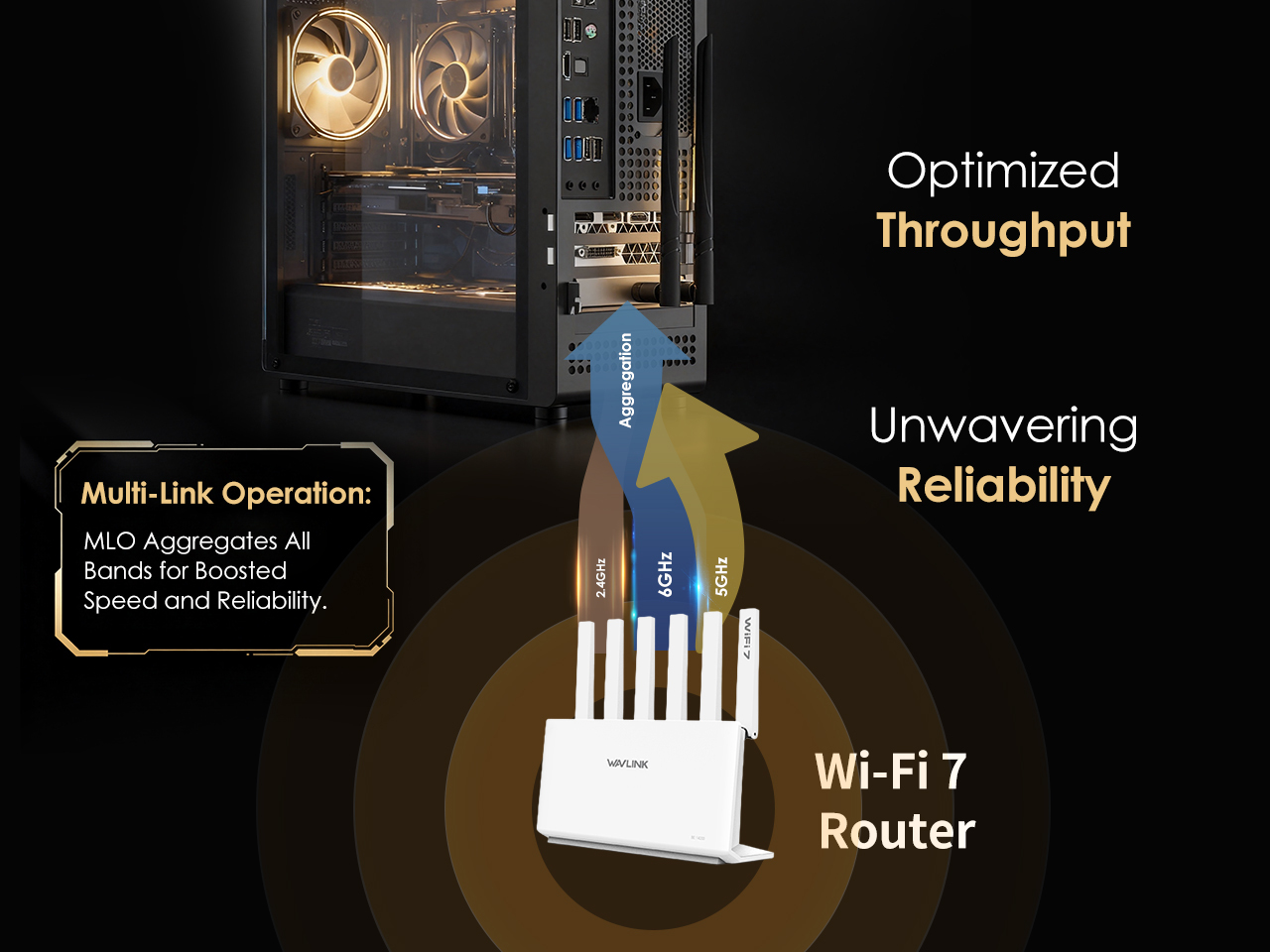

Wi-Fi 7 MLO Technology
It features Multi‑Link Operation (MLO) that aggregates multiple bands simultaneously, boosting throughput by up to 30% and reducing jitter to < 1 ms. In practice, MLO lets a laptop stream 8K video on 6 GHz while simultaneously downloading large files on 5 GHz—without lag or drop.

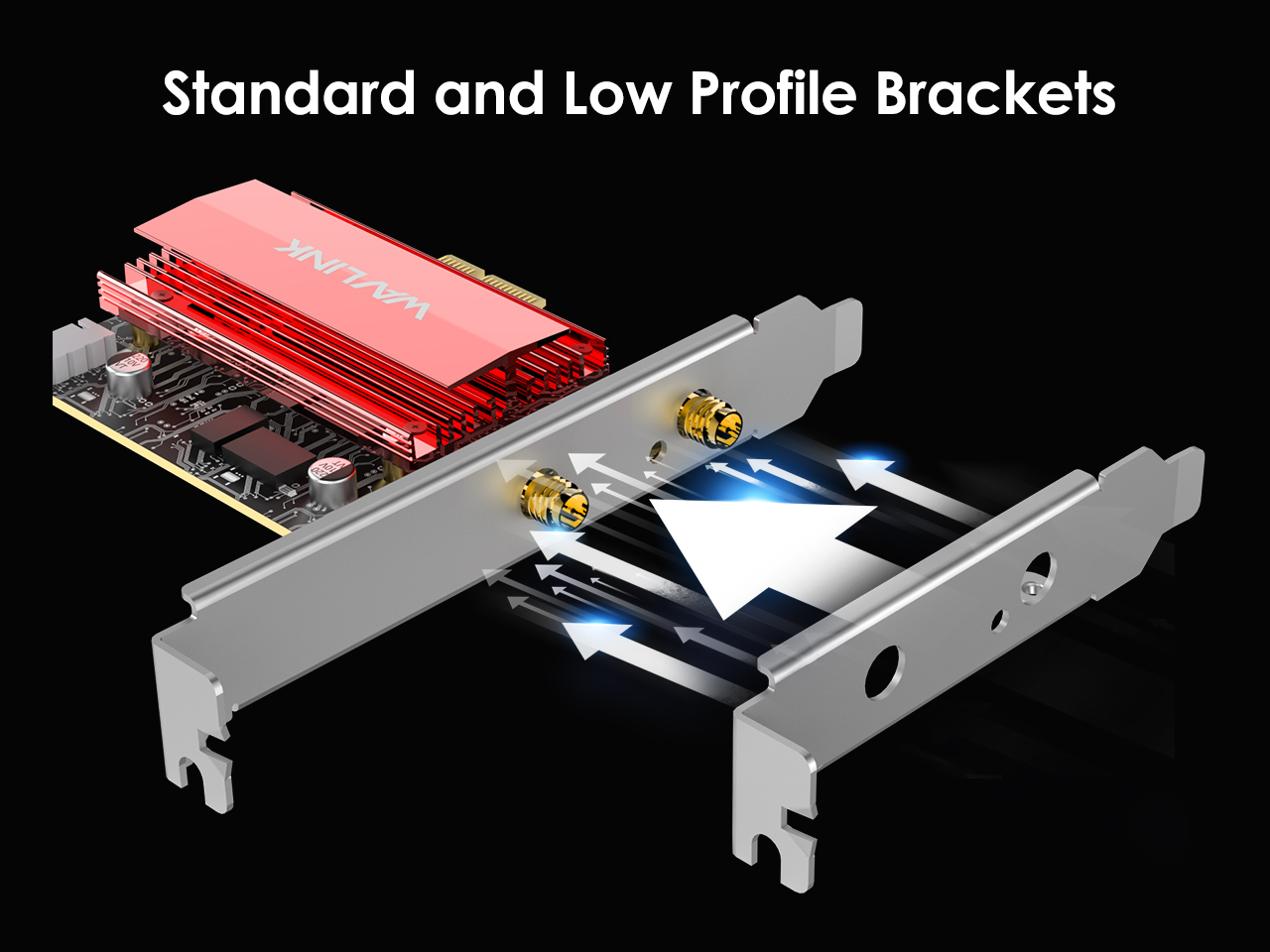

Standard & Low Profile Brackets Can be Chosen
The PCIe card comes with two bracket types (standard and low-profile), ensuring compatibility with all chassis sizes—from fullsize towers to compact mini PCs. This flexible design lets you upgrade network performance without worrying about case space limitations.

Strong RLT8922AE Chipset
The RTL8922AE chip supports the new Wi-Fi 7 standard, delivering double the transmission speed of Wi-Fi 6 for smoother large-file downloads and online gaming. It also features dynamic tri-band connectivity and Multi-Link Operation (MLO), intelligently switching or aggregating across 2.4GHz, 5GHz, and 6GHz bands to avoid signal congestion and significantly reduce network lag and latency.

WPA3 Encryption
WPA3 on your PCIe card secures home smart devices (cameras, locks) from Wi-Fi disconnection attacks. In cafes, it encrypts open hotspots, keeping your passwords and browsing private. For office use, it protects confidential files from brute-force guessing—giving you peace of mind anywhere you connect.

Specifications

Hardware Wireless
Ports PCI-E Standard IEEE 802.11b/g/n/a/ac/ax/be
LED 1 X Link Frequency band 2.4GHz, 5GHz, 6GHz
Chipset RTL 8922AE Speed 5G:2882Mbps
6G:2882Mbps
2.4G:688Mbps
Operating Temperature 0℃~40℃ Wireless Security WPA/WPA2/WPA3,
WPA-PSK/WPA2-PSK
Storage Temperature -10~70℃ Antennas 2x5dBi Tri-Band Antennas
Relative Humidity (Operational) 10%~90%, noncondensing System Microsoft Windows 11 64 bit
Relative Humidity(Storage) 10%~90%, noncondensing
