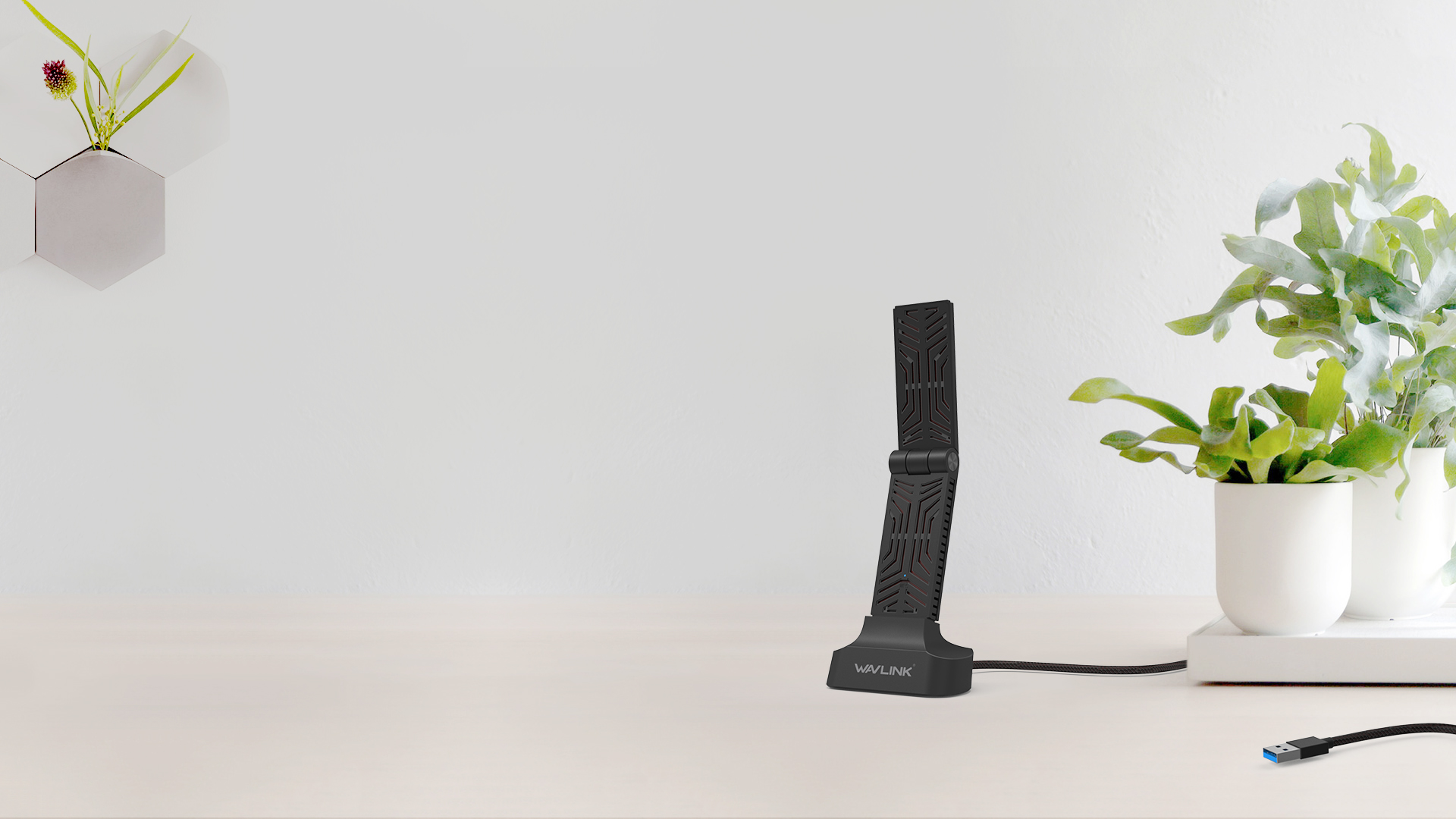

WL-WN690A5 — AC1900 Wireles USB Adapter

Vitesse

Model: WL-WN690A5

  • Dual Band - 802.11ac Dual band(1300Mbps on 5GHz band / 600Mbps on 2.4GHz band)
  • Ultra-fast Wi-Fi - up to 1900Mbps , better connections for lag-free HD video streaming and gaming
  • USB 3.0 port-Maximum speeds of 5Gbps
  • 20MHz & 40MHz & 80MHz bandwidth transmission
  • WPS Button - One button to connect and secure your WiFi.
  • Supports Windows, Mac OS X
Better Speeds for the Better Comfort

690A5 Dual Band USB3.0 adapter connects your laptop/PC wirelessly to the next generation 802.11ac technique with speeds max. 1900Mbps.

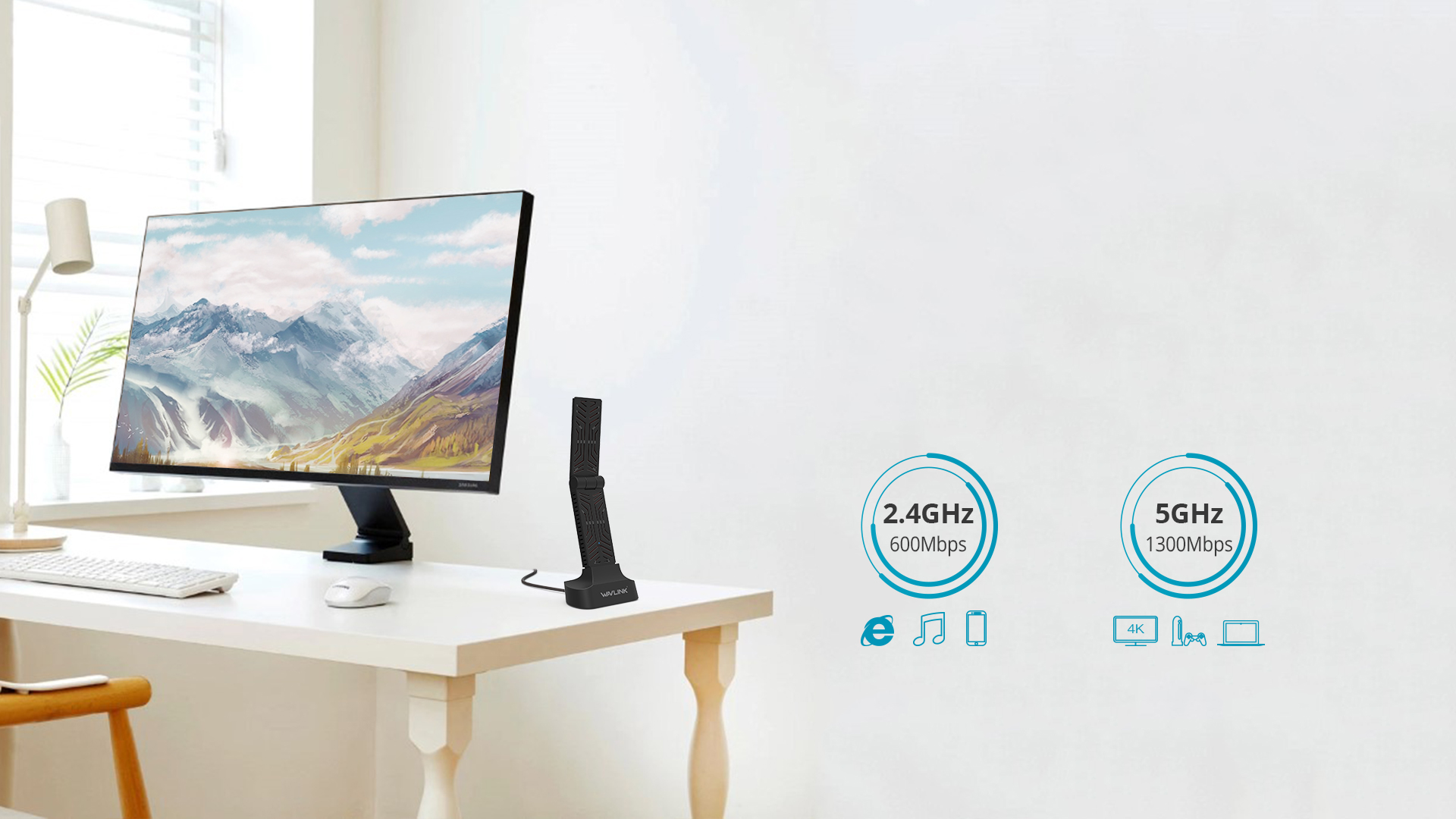

Enjoy Your Time with Dual Band Adapter

Supporting maximum 1900 (1300+600) Mbps speeds of dual 2.4GHz and 5GHz bands. Next generation 11ac Wi-Fi with dual band technique proves your home a better coverage.

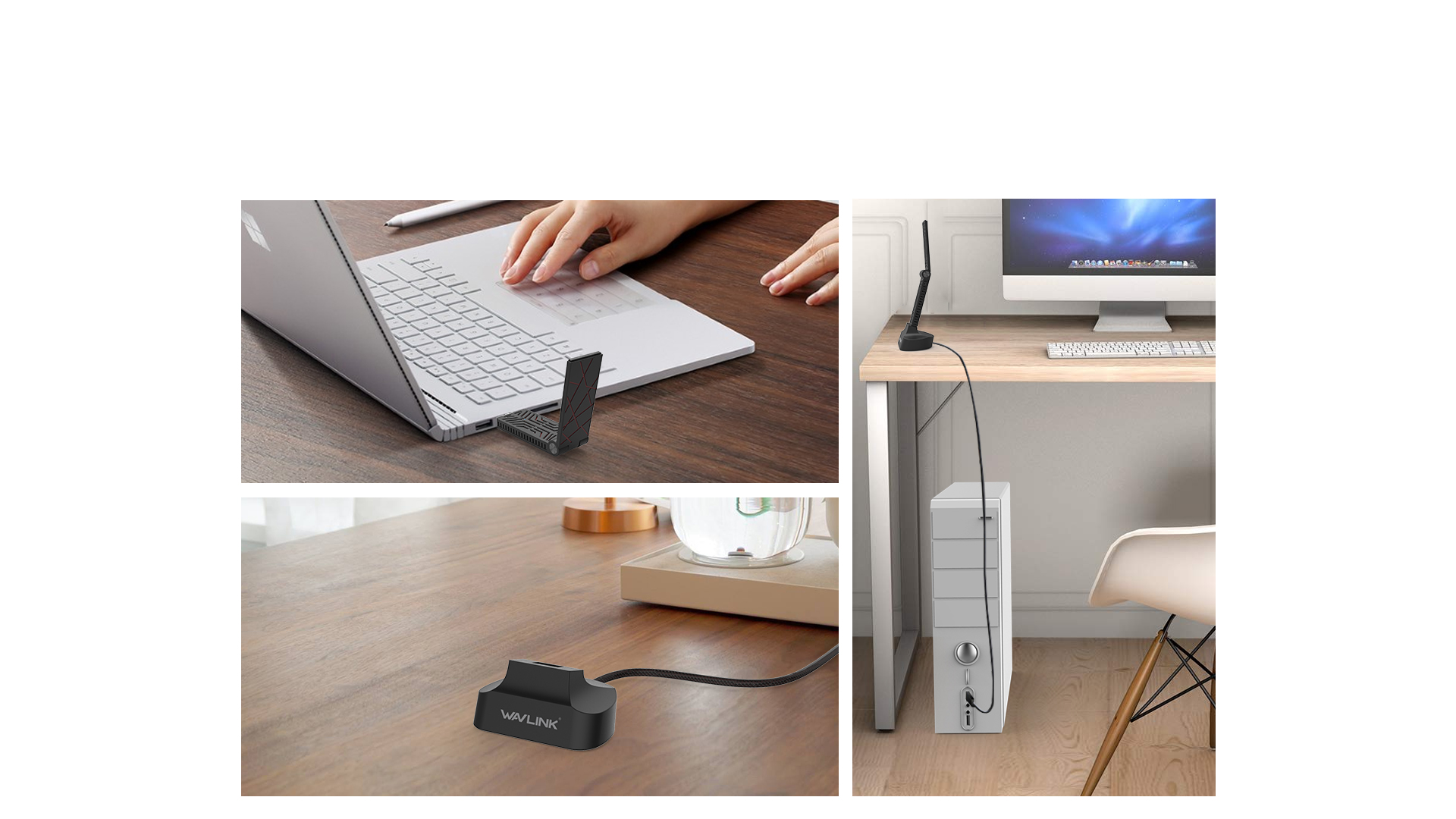

Flexible and Detachable Design

690A5 comprises two parts, a wireless adapter and a USB3.0 mini dock; whether you are in need of wireless connection or data transferring, it will be your best option!

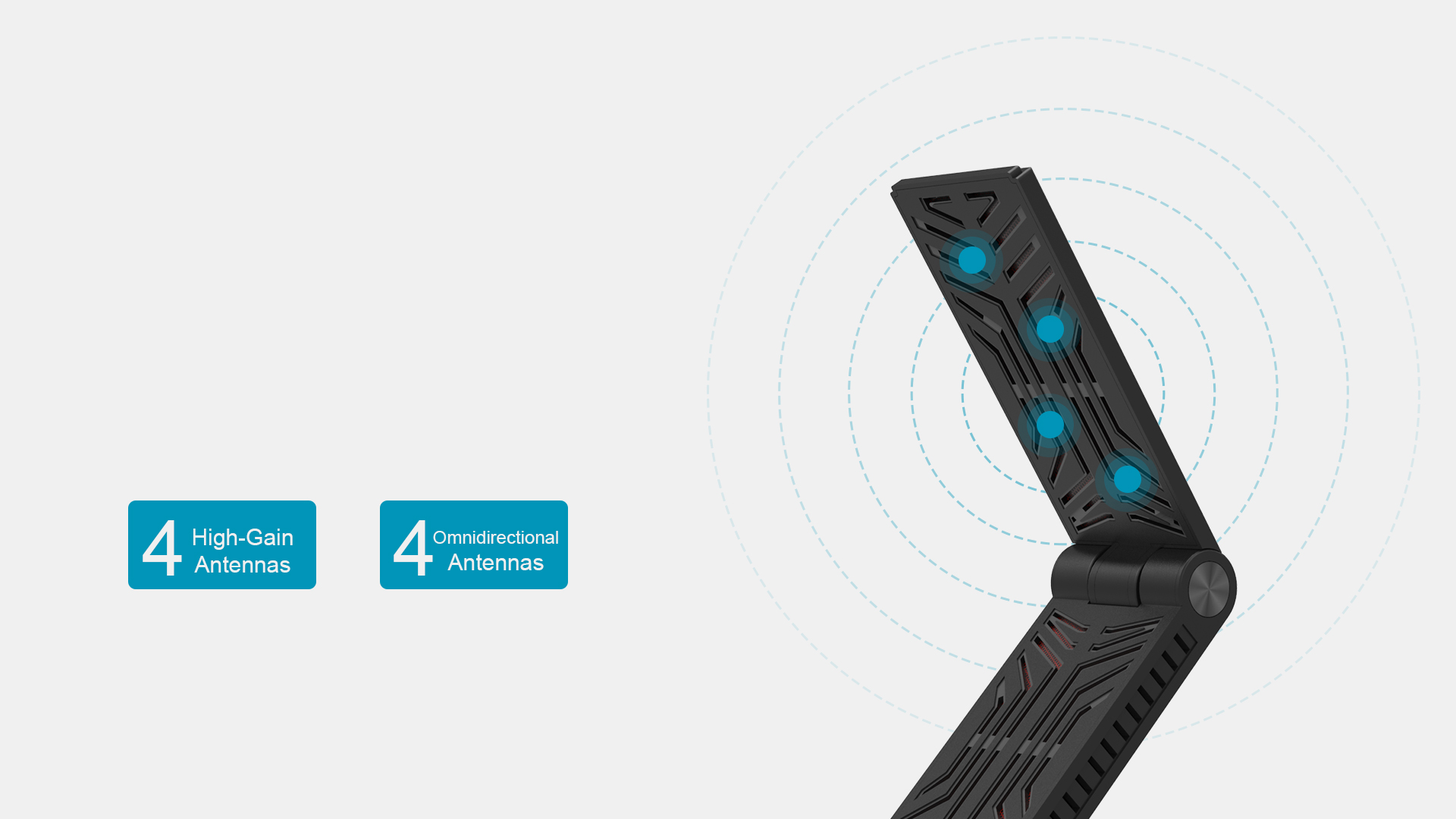

Smarter Antennas, Better Signal

Due to the use of smart antennas, 690A5 largely upgrades the Wi-Fi performance of your computer, especially by covering a wider range and improving the signal strength.

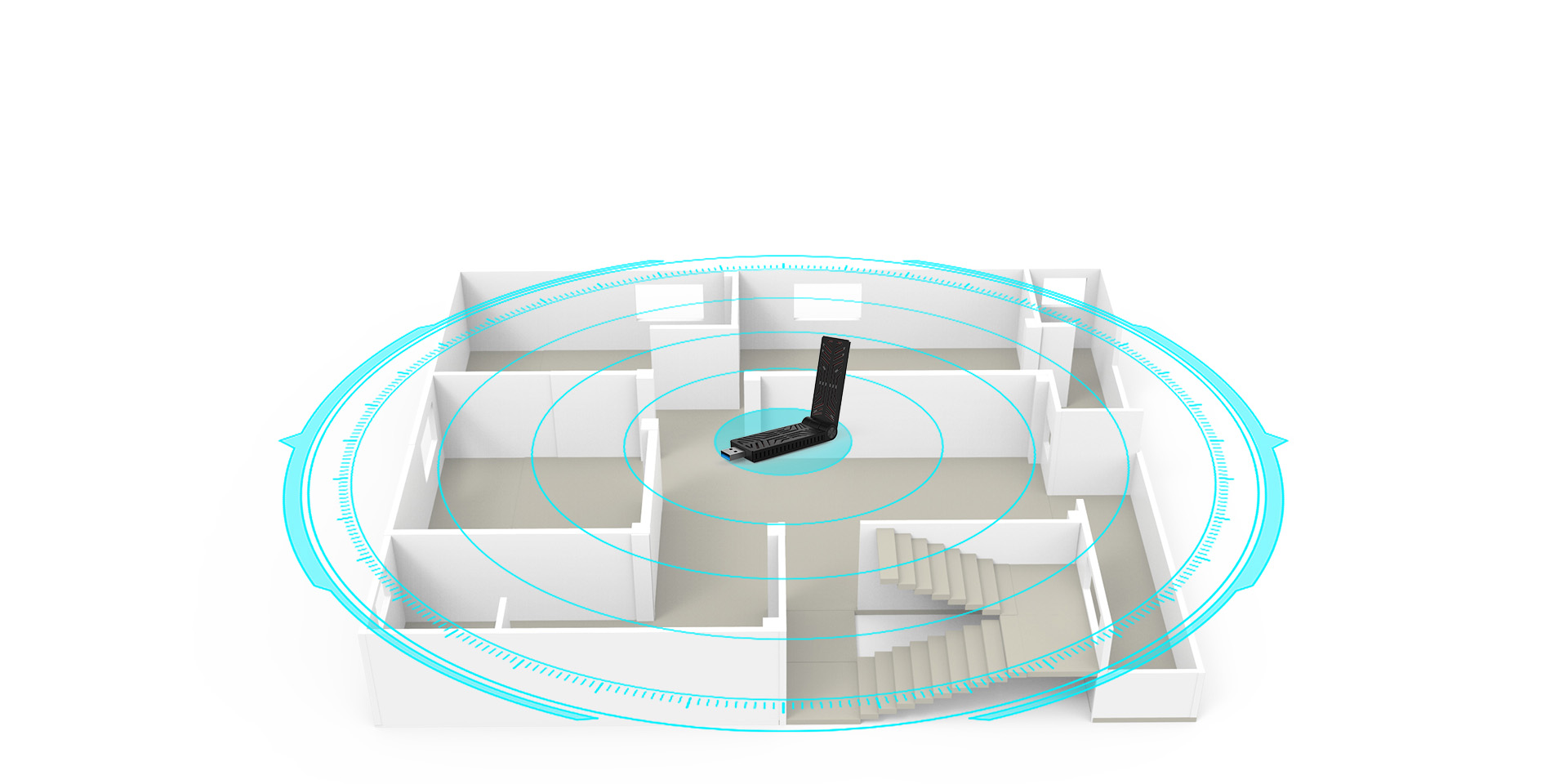

Expand your Wi-Fi Coverage

Four high-gain internal antennas and MU-MIMO supporting technology boost speed, reliability and a wider range of Wi-Fi connections.

Stable and Convenient Hotspot

Works perfectly with most devices. Once you set it as a hotspot, 690A5 keeps you connected smoothly for fast and efficient data transfer, online lag-free gaming and HD streaming.

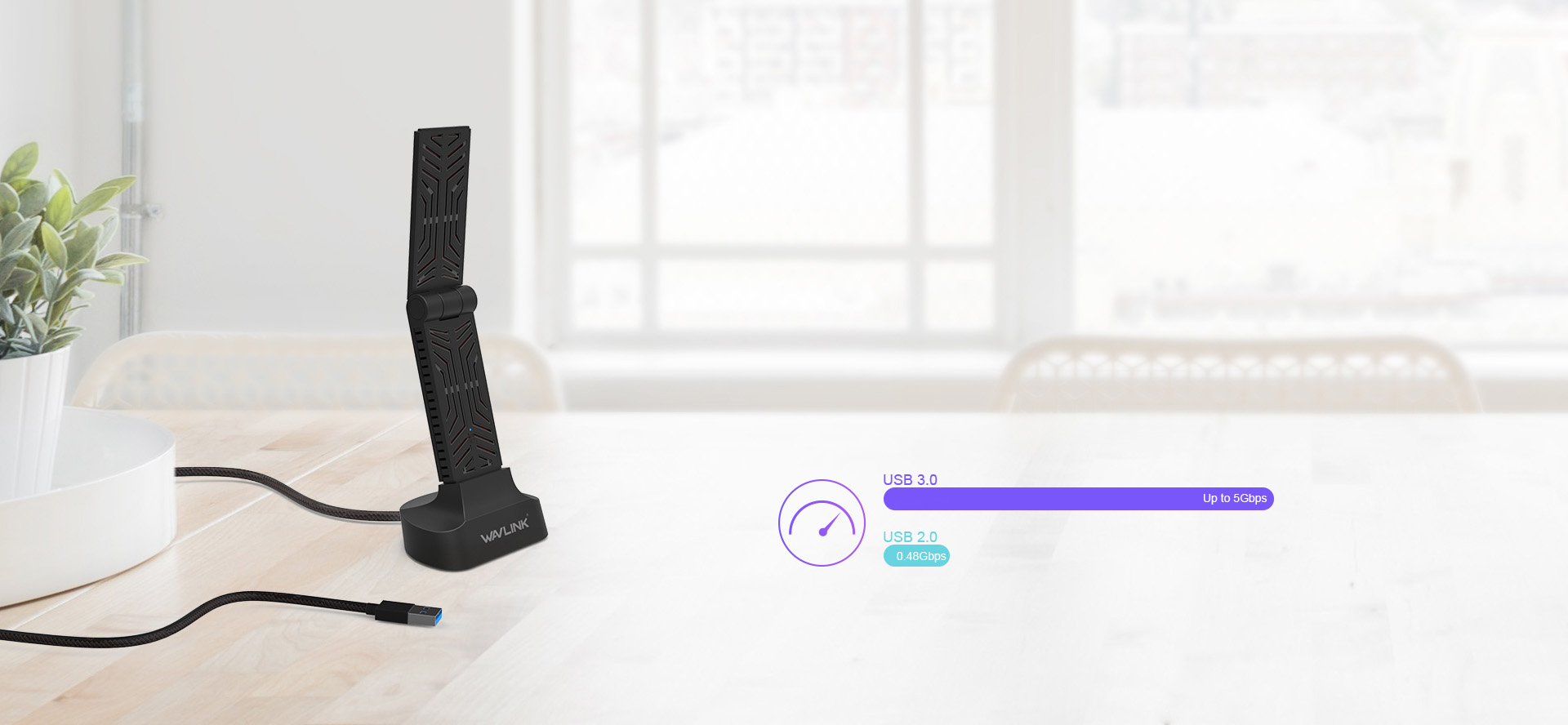

SuperSpeed USB 3.0 Port

The data transfer speeds of USB 3.0 is 10X faster than USB 2.0, making it possible to transfer files instantly.

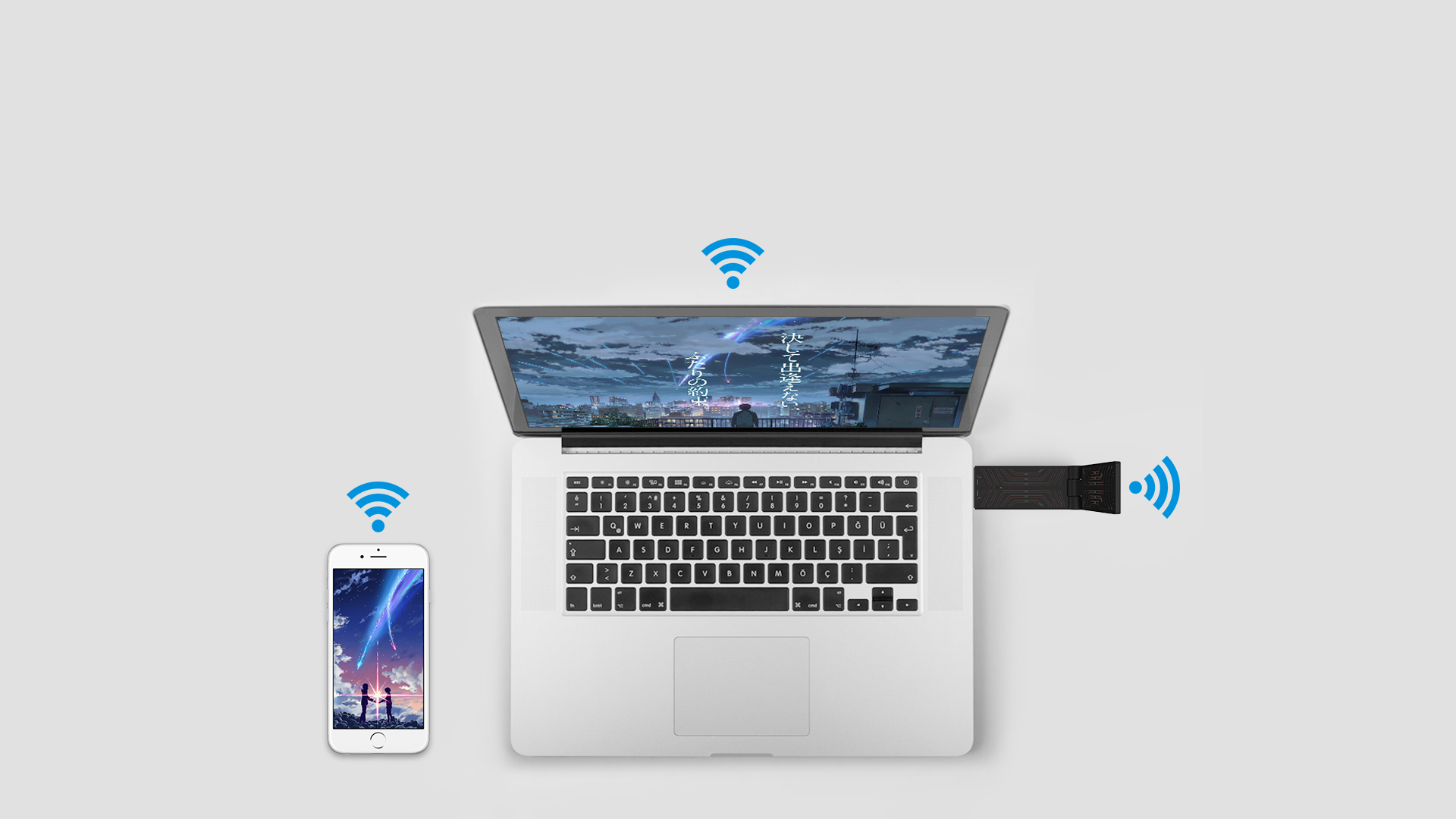

Access Point Mode for Multiple Usage

When working as an access point, you can turn your PC, laptop with a wired connection into a Wi-Fi Hotspot, providing a Wi-Fi connection for all of your other devices.

  • TECHNICAL SPECIFICATIONS
  • Model

    WL-WN690A5

  • Ports

    1 x USB 3.0

  • Buttons

    1 x WPS button

  • LED

    1 x Link/Active

  • Power Supply

    USB 5V

  • Rated Voltage/ Frequency

    DC 5V

  • DIMENSIONS
  • Unit Dimensions

    75.5mm x 30mm x 12.2mm ( L x W x H )

  • WIRELESS
  • Standard

    IEEE 802.11a/b/g/n/ac

  • Speed

    IEEE 802.11ac: 1300Mbps

    IEEE 802.11n: 600Mbps

    IEEE 802.11g: 54Mbps

    IEEE 802.11a: 54Mbps

    IEEE 802.11b: 11Mbps

  • Frequency Band

    2.4GHz, 5GHz

  • Wireless Security

    WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

  • Antennas

    4 x 3dBi Internal Antennas

  • FUNCTIONS
  • Operating System Support

    Windows XP/7/10
    Mac OS X

  • PACKAGE
  • In The Box

    1 x AC1900 Dual band Wireless USB Adapter

    1 x USB 3.0 Mini Dock

    1 x Quick Guide
