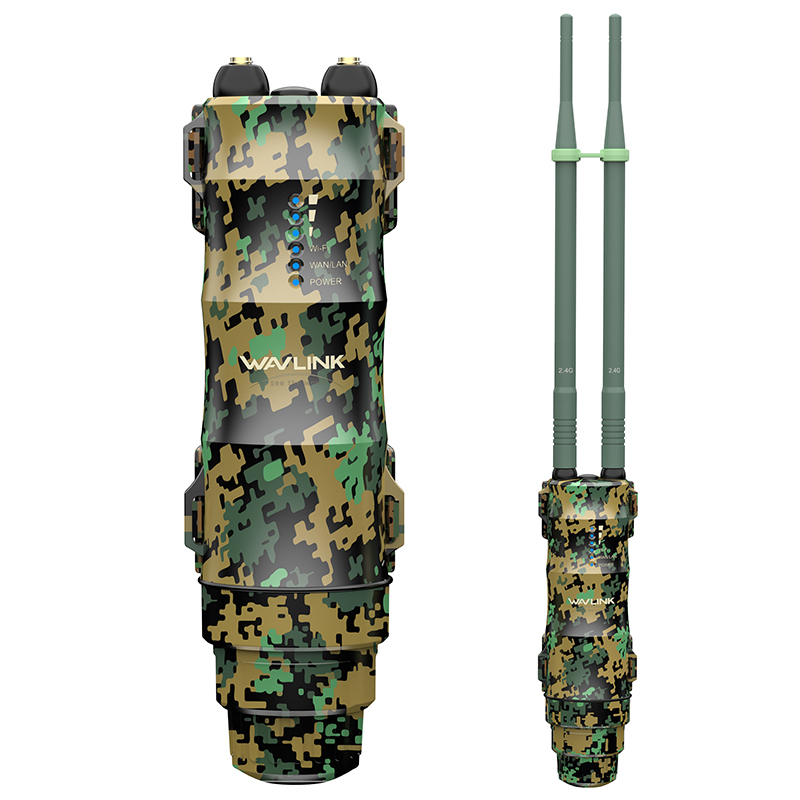

Model: WL-WN570HN2-GW
Easy installation, flexible placement.
Supports AP, Router, Repeater modes.

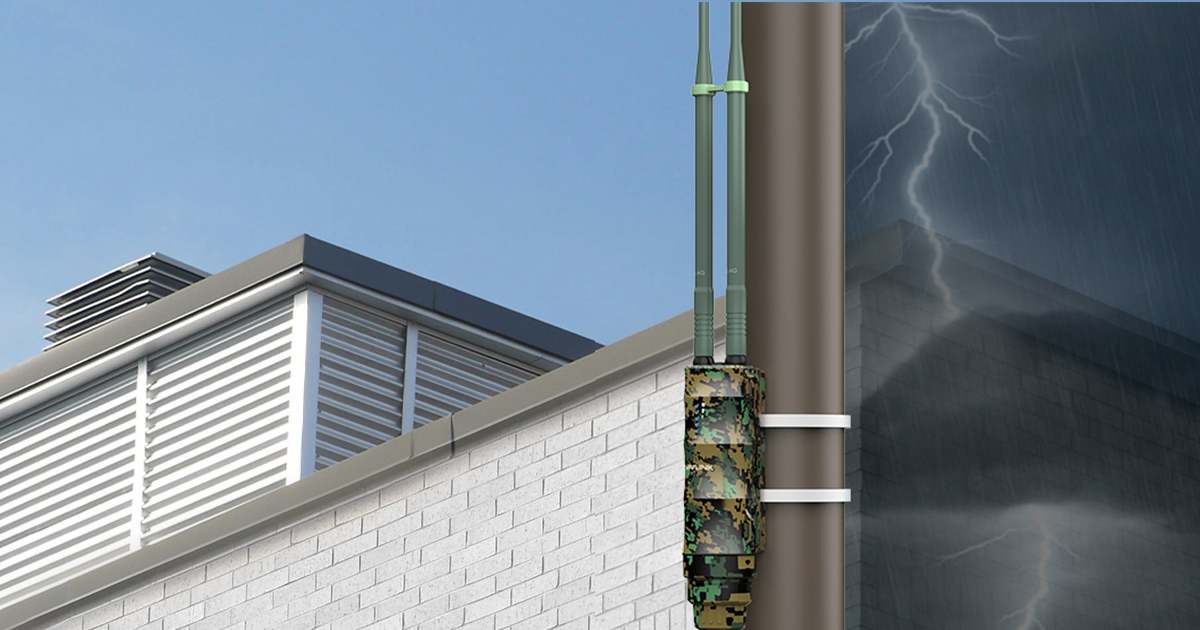

Robust weatherproof enclosure design, 15KV ESD and 6KV Lightning Protection.

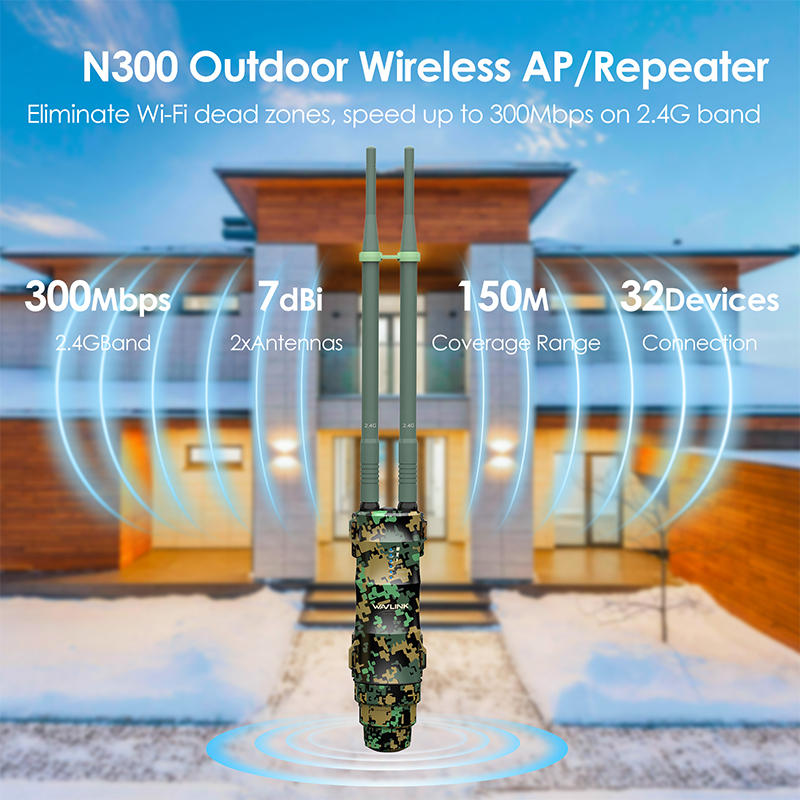

Complies with IEEE 802.11 b/g/n standards, wireless speed up to 300Mbps.
2x7dBi high-gain antennas.
Supports WPA/WPA2 (TKIP/AES) Encryption modes.
Features 6 LED status indicators.
High-Speed Outdoor Wi-Fi Solution

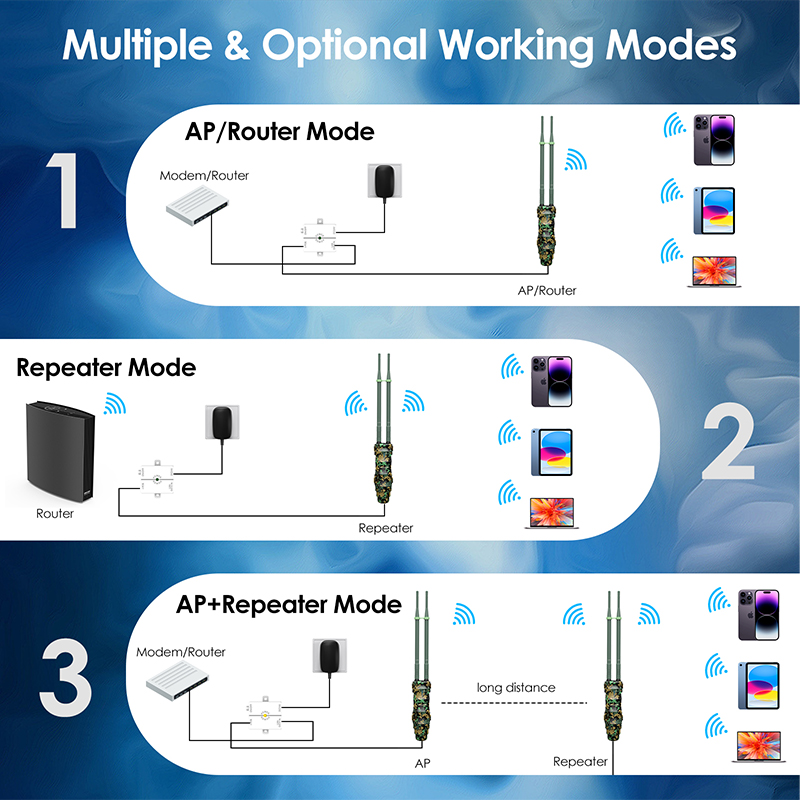

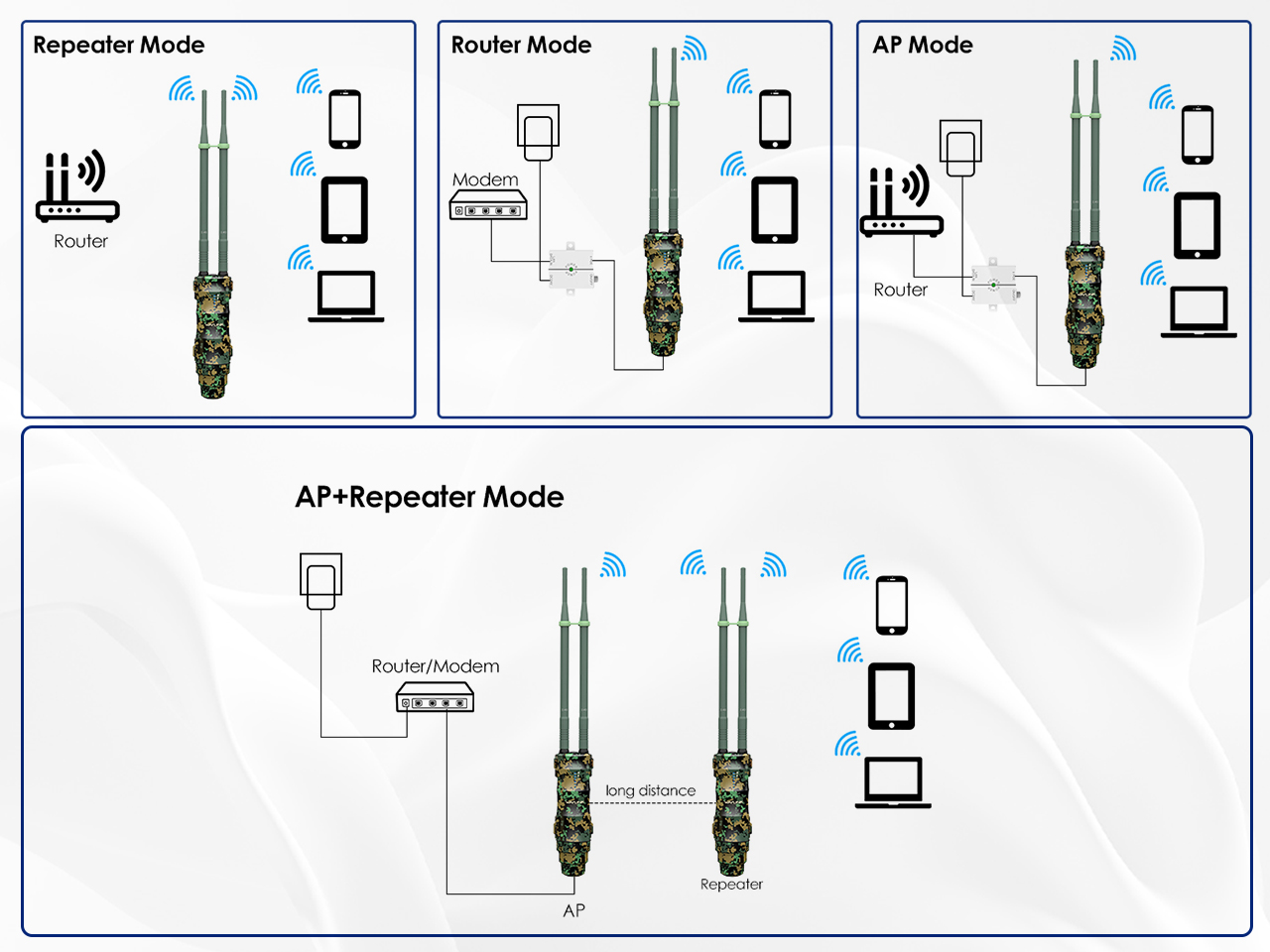

Supports AP, Router, Repeater, and AP+Repeater modes for flexible networking. Easily adapt to different environments and extend Wi-Fi coverage with seamless connectivity.

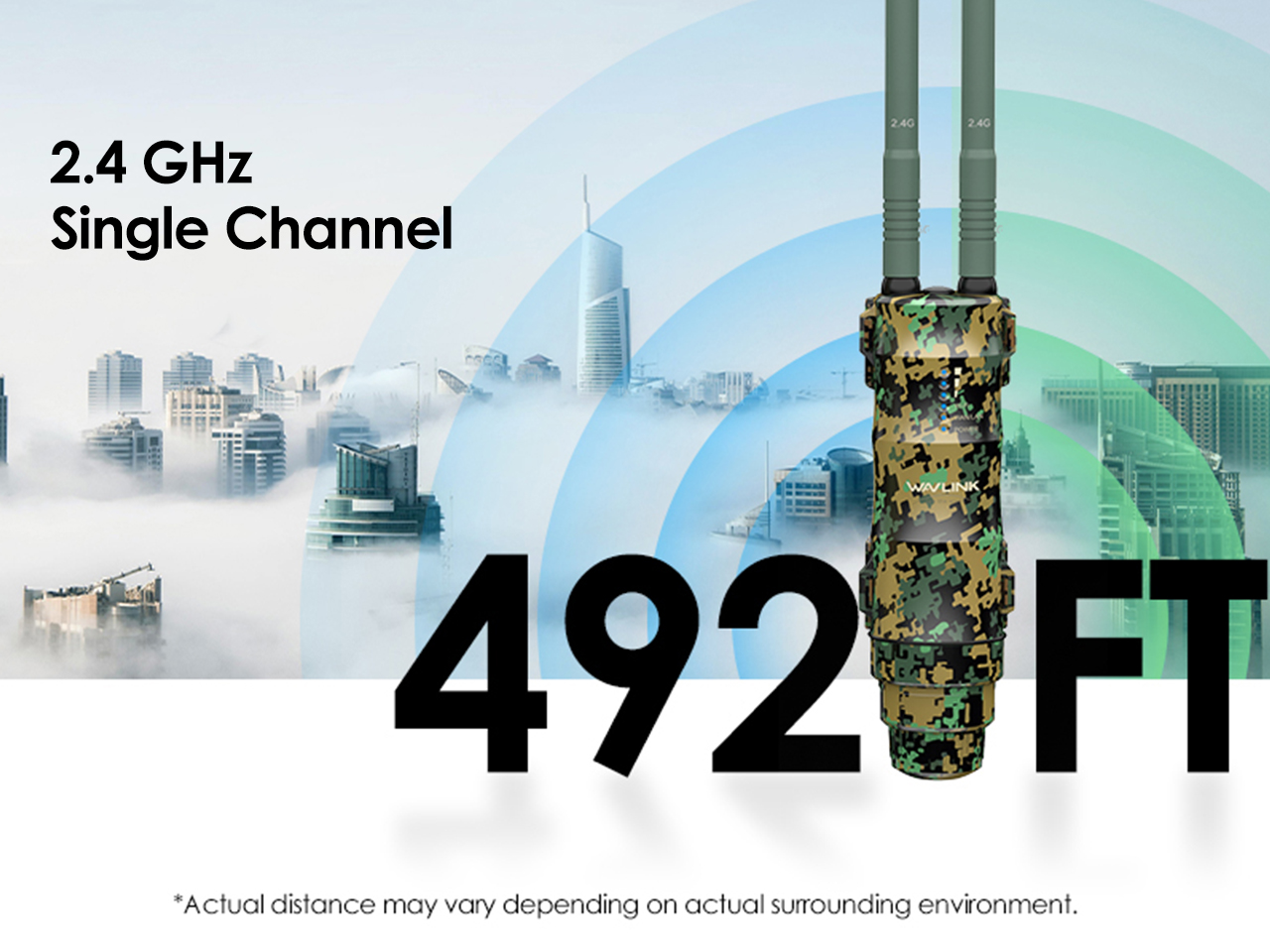

Supports 2.4GHz frequency and single-channel transmission, suitable for indoor and outdoor wireless networking. Typical indoor coverage reaches up to 492 feet, with extended range achievable in open outdoor environments.

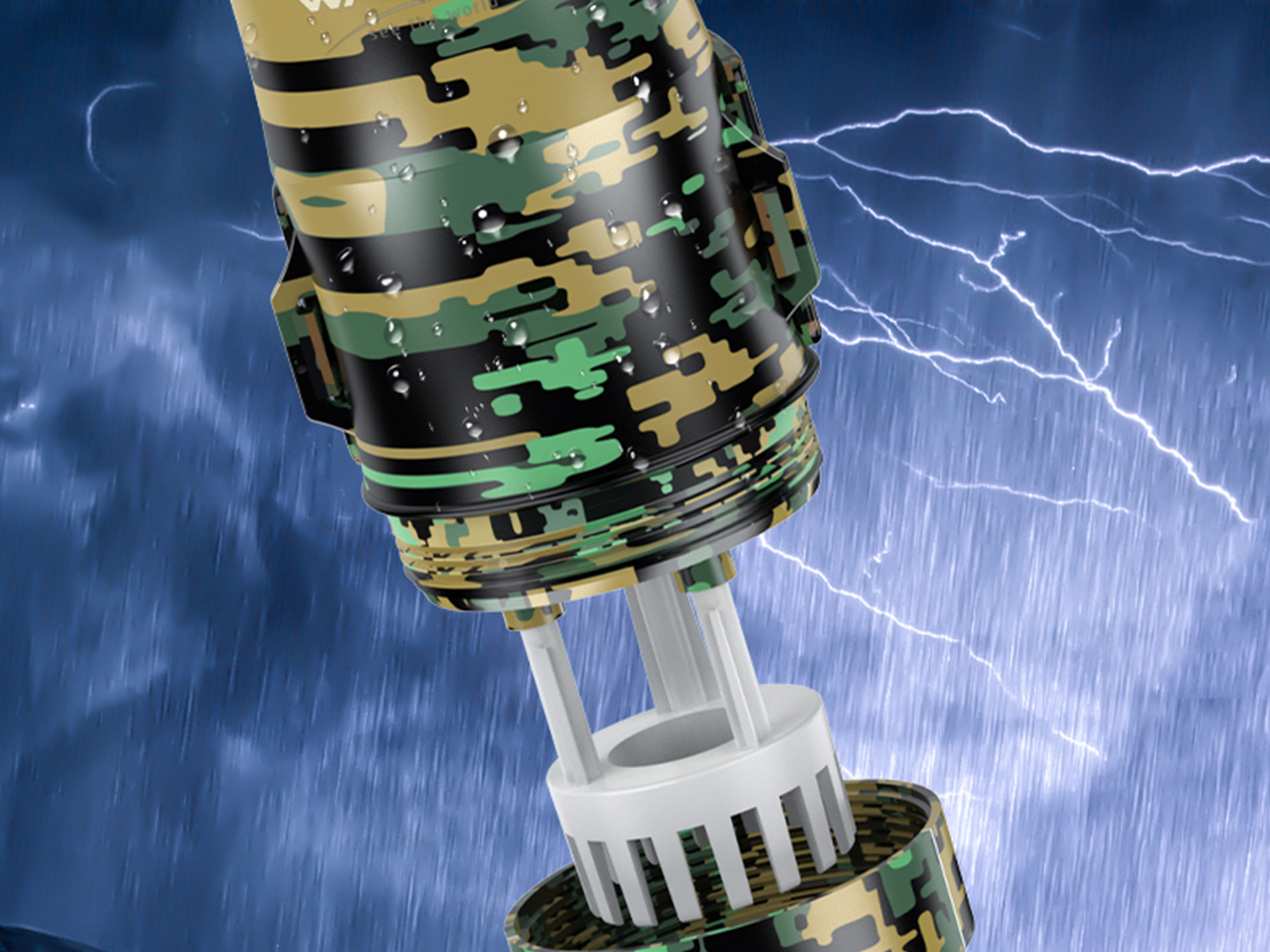

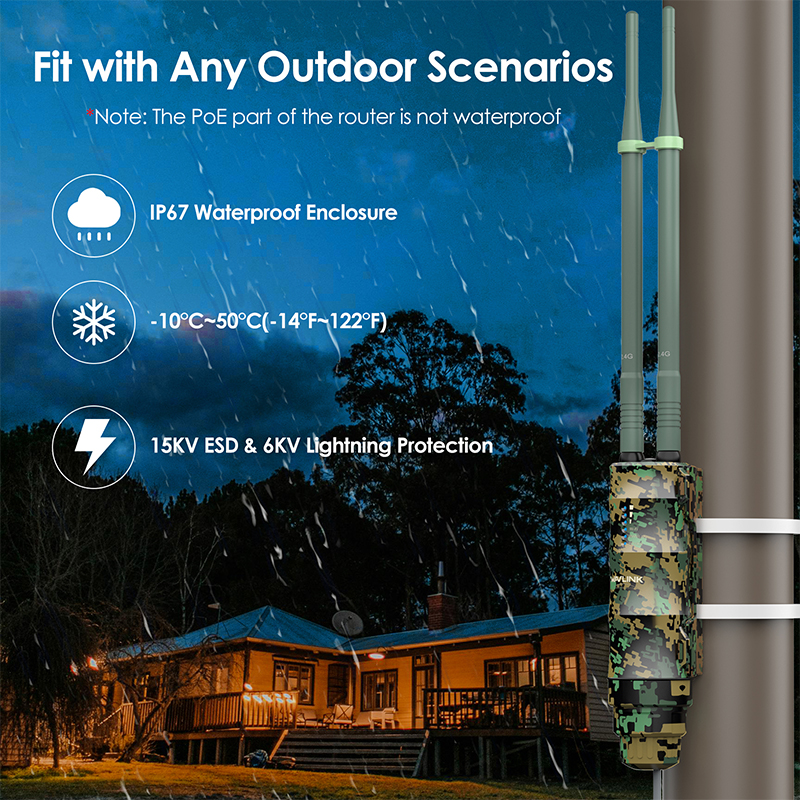

The outdoor access point features an IP67-rated waterproof housing that offers excellent protection against dust and water ingress. This rugged enclosure ensures reliable operation even in harsh outdoor environments or during temporary exposure to rain.

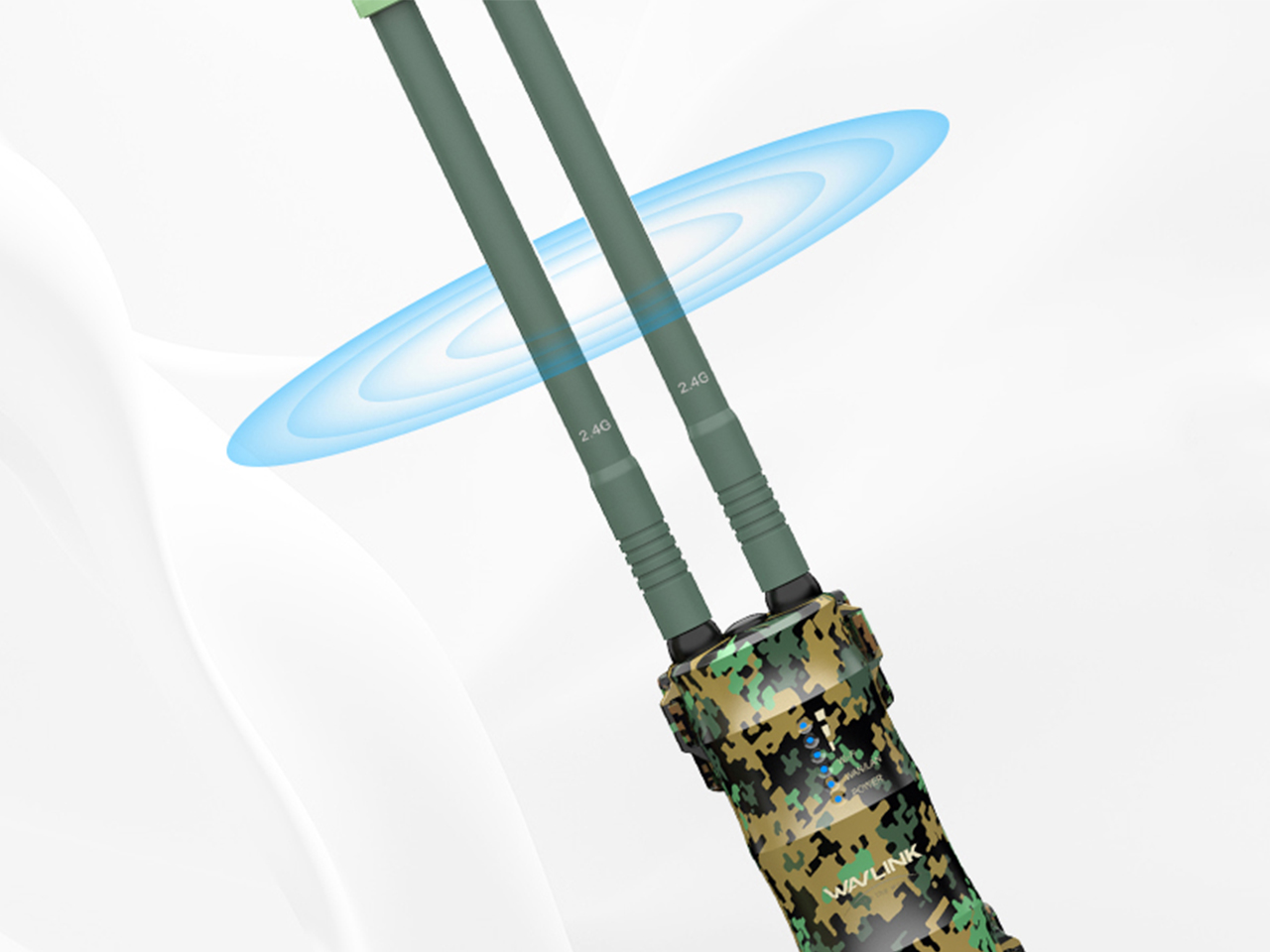

Whether deployed in yards, parks, or other outdoor public spaces, the 2 x 7dBi high-gain omnidirectional antennas significantly enhance both the range and stability of your wireless connection, delivering reliable Wi-Fi coverage over a wider area.
WPA2 encryption enhances Wi-Fi security by strengthening data protection, helping to keep your personal accounts and network systems safe — even in public areas.
SPECIFICATION
| Hardware | Wireless | ||
| Ports | 1 x WAN/LAN | Standard | IEEE 802.11b/g/n |
| Button | 1 x Reset | Frequency | 2.4GHz |
| LED | 1 x Power, 1 x WAN/LAN, 1 x WiFi, 3 x Signal | Transmit | 28dBm MAX |
| Chipset | MT7628DAN+Si3404 | Sensitivity | 802.11b: -93dBm / 802.11g: -73dBm / 802.11n: -68dBm |
| Flash | 8MB | Speed | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps (dynamic), 11b: Up to 11Mbps |
| DDR2 | 64MB | ||

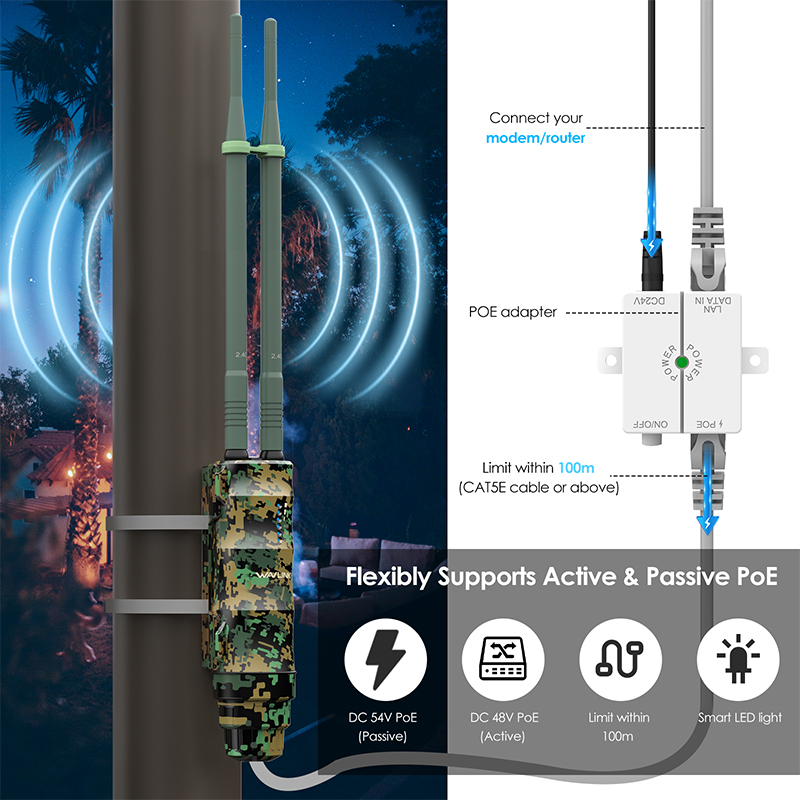

| Power Supply | Input:100 - 240 Va.c. 50/60Hz DC 54V/0.3A Power over Ethernet（Passive） |
Wireless Security | WPA-PSK/WPA2-PSK encryption |
| ated Voltage/ requen | Input:100 - 240 Va.c. 50/60Hz | Antennas | 2x7dBi Omni Directional Antennas |
| ated Voltage/ requen | Input:100 - 240 Va.c. 50/60Hz | Distance | Outdoors 500m, Indoor 150m(According to the actual |
| Dimensions | Software | ||
| Unit | 180mm x 50mm x 50mm (L x W x H) | WAN Type | PPPoE, Dynamic IP, Static IP,WISP, Repeater |
| Environmental | DHCP Settings | Server, Client | |
| Operating Temperature | -10 °C to 50 °C | Function | AC Controller (option) Time Setting DHCP Server Wireless Setting |
| Storage Temperature | -30 °C to 70 °C | ||
| Relative Humidity | 10% - 90%,noncondensing | ||
| Relative Humidity(Storage) | 10% - 90%,noncondensing | ||
