AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink
  • AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 1
  • AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 2
  • AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 3
  • AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 4
  • AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 5

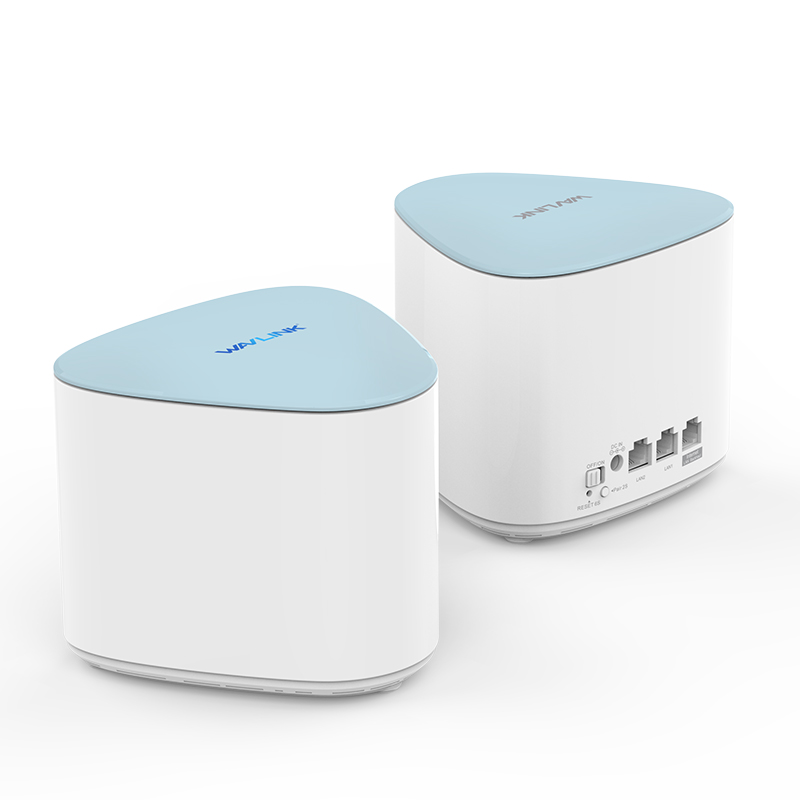

AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink

Model: WL-WN553X2-B

  • - Dual Band AX3000 with 2402Mbps@5GHz and 573Mbps@2.4GHz.

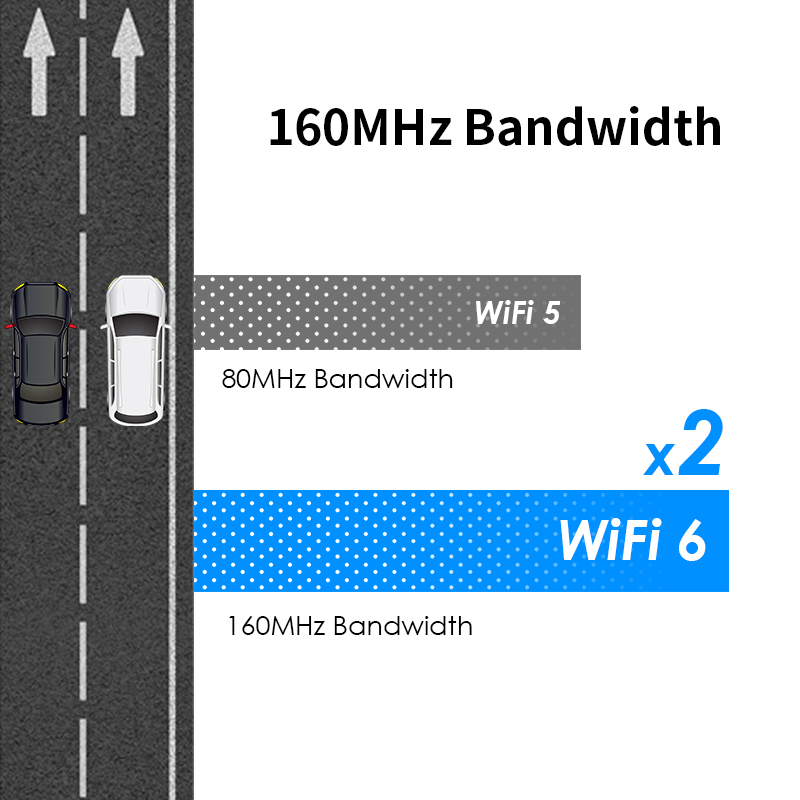

  • - The Wi-Fi 6 MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance.
  • - The TWT is a resource management technique that reduces more power consumption.
  • - PPPoE, Dynamic IP, Static IP and WISP access to the Internet.
  • - Built-in DHCP server with automatic dynamic IP address distribution.
  • - Supports multiple VPNs for protecting user data from being stolen or monitored by the third parties, enhancing the privacy of network activities.
  • - Support TouchLink, touch the sensor pad of TouchLink to open the guest network, and provide an independent and secure network environment.
AX3000 Wi-Fi 6 Dual Band Mesh Router

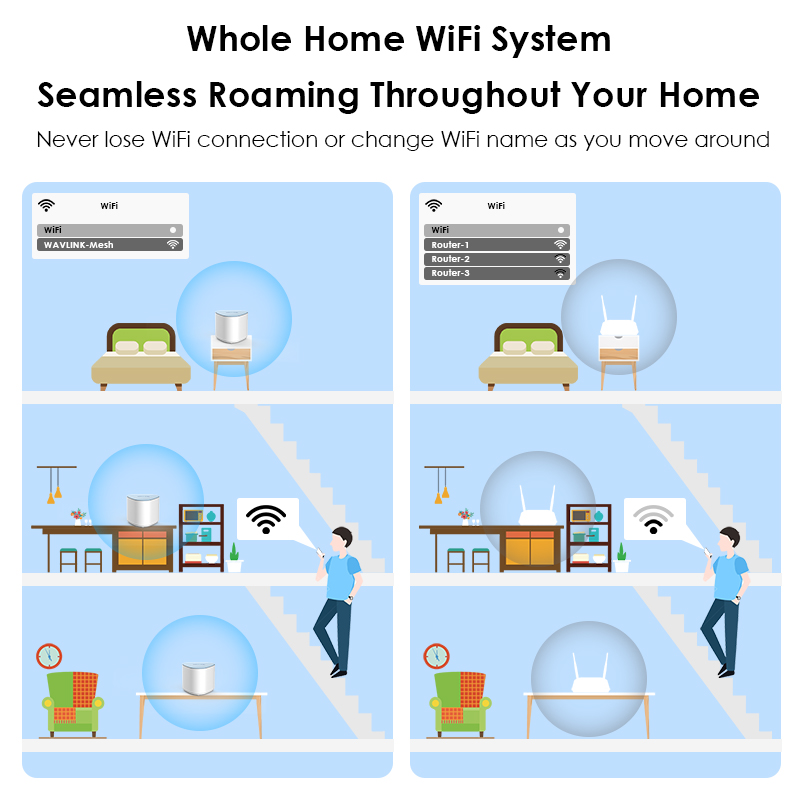

Whole Home Wi-Fi Mesh System, Achieving Seamless Roaming!

Support TouchLink Technology

Touch the sensor pad of TouchLink to open the guest network, and provide an independent and secure network environment.

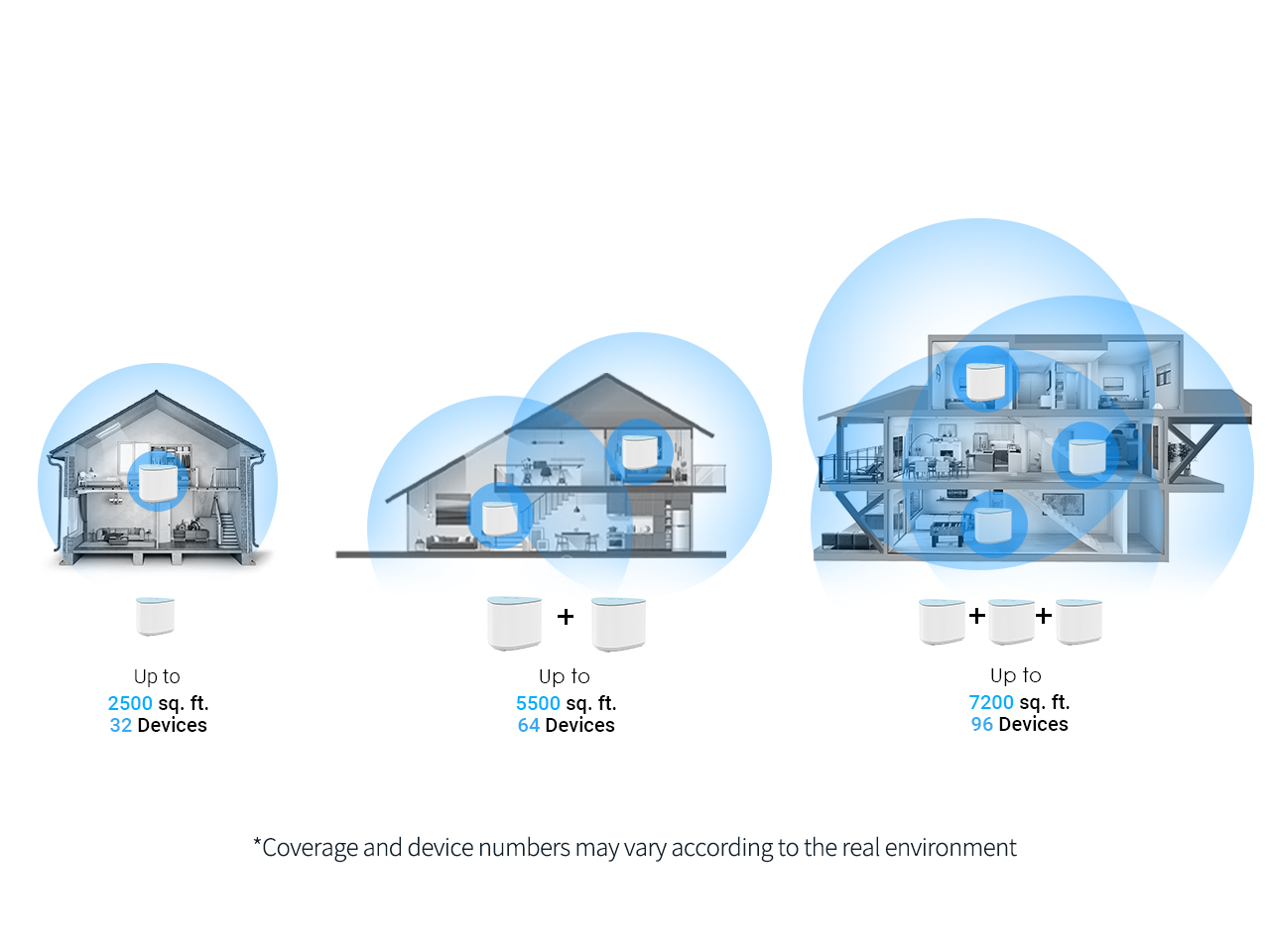

Ideal for Any Home Size

Select the appropriate number of devices based on your room dimensions to construct a robust mesh wireless network. You can enjoy stable and fast Wi-Fi throughout your home.

VPN Mesh Router

Offers enhanced online privacy, increased security, and access to geo-restricted content in a convenient service.

Safeguard Children’s Internet Activities

Effectively regulate and oversee Internet activities, ensuring a secure and nurturing online ecosystem for your children.

No Worry About Data Security Issues

Utilize WPA2-PSK, WPA3-SAE/WPA2-PSK, WPA1-PSK/WPA2-MIX enterprise encryption to secure your Wi-Fi Mesh Network, safeguarding your network and connected devices against potential hacker threats.

TECHNICAL SPECIFICATIONS

Hardware Wireless

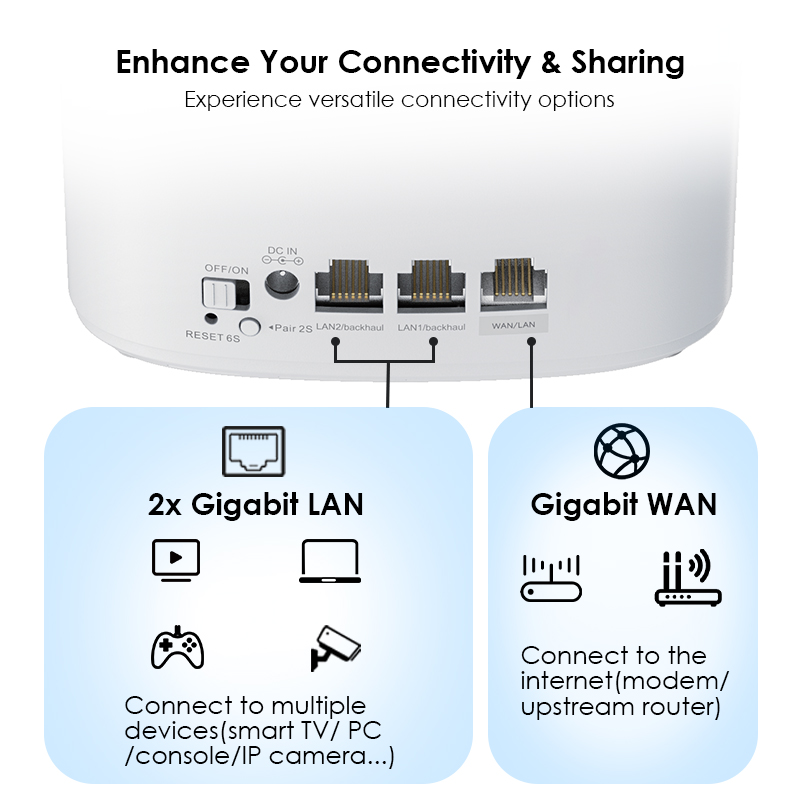

Ports 1 x 10/100/1000Mbps WAN PORT
2 x 10/100/1000Mbps LAN PORT		 Standard IEEE 802.11b/g/n/a/ac/ax
Button 1 x Power On/Off, 1 x Reset, 1 x Pair Button, 1 x TouchLink Frequency band 2.4GHz, 5GHz,
LED 3 x 1000Mbps LAN/WAN, 1 x Status Transmit Power 2.4G:28dBm Max,
5G: 28dBm Max,
Solution MT7981B+MT7976DA+MT7531AE Sensitivity 802.11b: -93dBm; 802.11g: -85dBm; 802.11n: -85dBm; 802.11ax: -80dBm
Flash 128Mb Speed 802.11ax: 5GHz 2401Mbps and 2.4GHz 574Mbps
DDR2 RAM 256Mb
Power Supply DC12V/1A Wireless Security WPA2-PSK, WPA3-SAE/WPA2-PSK, WPA1-PSK/WPA2-MX
Rated Voltage/frequency input:100-240 Va.c. 50/60Hz Antennas 2x3dBi 2G Omni Directional Antennas
3x3dBi 5G Omni Directional Antennas
Dimensions Distance Outdoors 100Meters (According to the actual environment change)
Unit Dimensions 119mm x 120mm x 197.6mm (L x W x H) Software
Environmental WAN Type PPoE, Dynamic IP, Static IP, WISP
Operating Temperature 0℃~40℃ DHCP Settings Server, Client, DHCP Client List
Storage Temperature -10~70℃ Function Remote Management
DHCP Server
Wireless Setting
Parental Control, QoS (Improving), VLAN (Improving)
Relative Humidity(Operational) 10%~90%,noncondensing
Relative Humidity(Storage) 10%~90%,noncondensing
