HALO AIR: AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink
  • HALO AIR: AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 1
  • HALO AIR: AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 2
  • HALO AIR: AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 3
  • HALO AIR: AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 4
  • HALO AIR: AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink 5

HALO AIR: AX3000 Wi-Fi 6 Mesh Router, Dual-band Whole Home Mesh System with TouchLink

HALO AIR

Model: WL-WN553X1-B

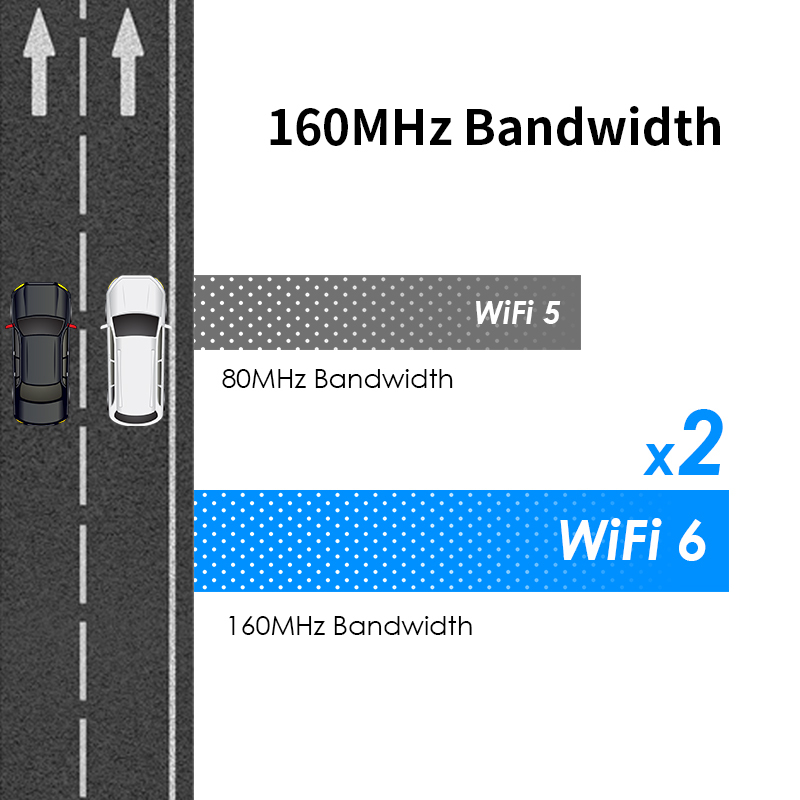

- Dual Band AX3000 with 2402Mbps@5GHz and 573Mbps@2.4GHz.
- The Wi-Fi 6 MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance.
- The TWT is a resource management technique that reduces more power consumption.
- PPPoE, Dynamic IP, Static IP and WISP access to the Internet.
- Built-in DHCP server with automatic dynamic IP address distribution.
- Supports multiple VPNs for protecting user data from being stolen or monitored by the third parties, enhancing the privacy of network activities.
- Support TouchLink, touch the sensor pad of TouchLink to open the guest network, and provide an independent and secure network environment.

  • Overview

  • Specifications

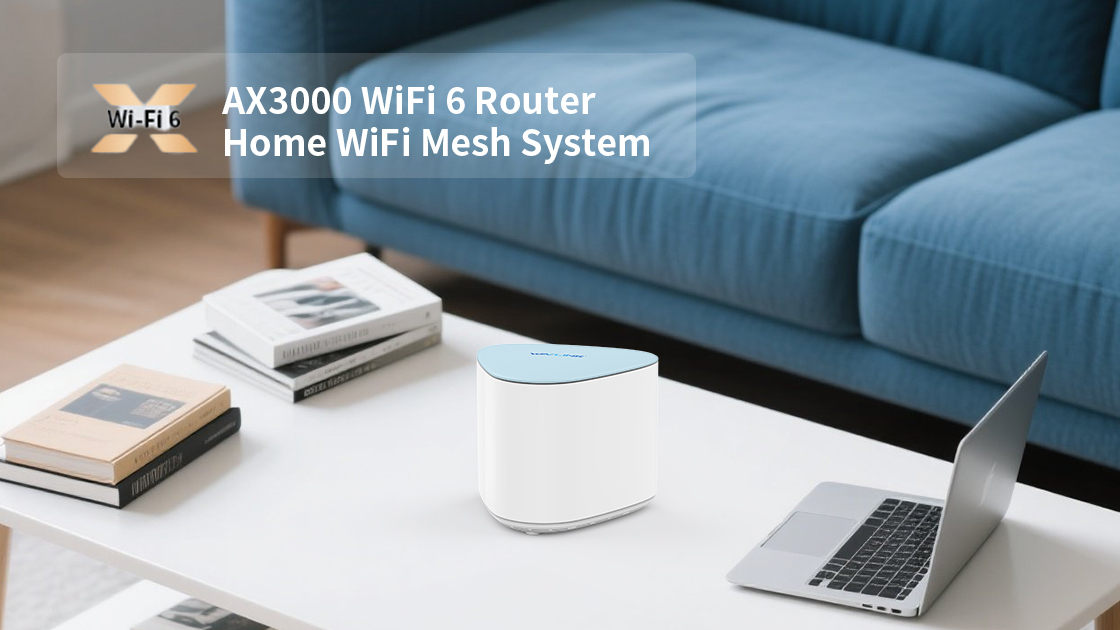

AX3000 Wi-Fi 6 Dual Band Mesh Router

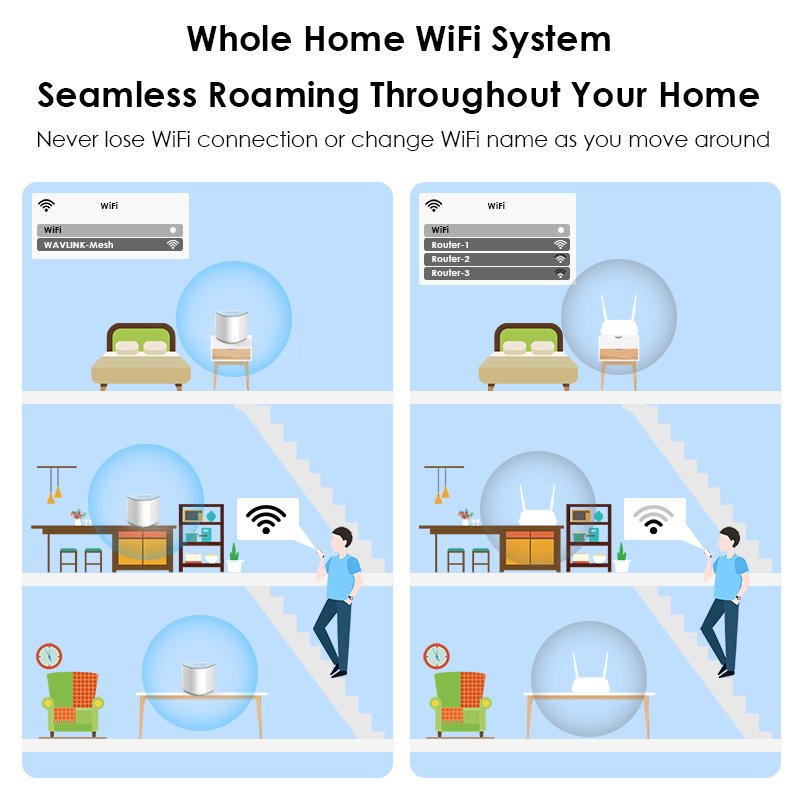

Whole Home Wi-Fi Mesh System, Achieving Seamless Roaming!
Support TouchLink Technology
Touch the sensor pad of TouchLink to open the guest network, and provide an independent and secure network environment.

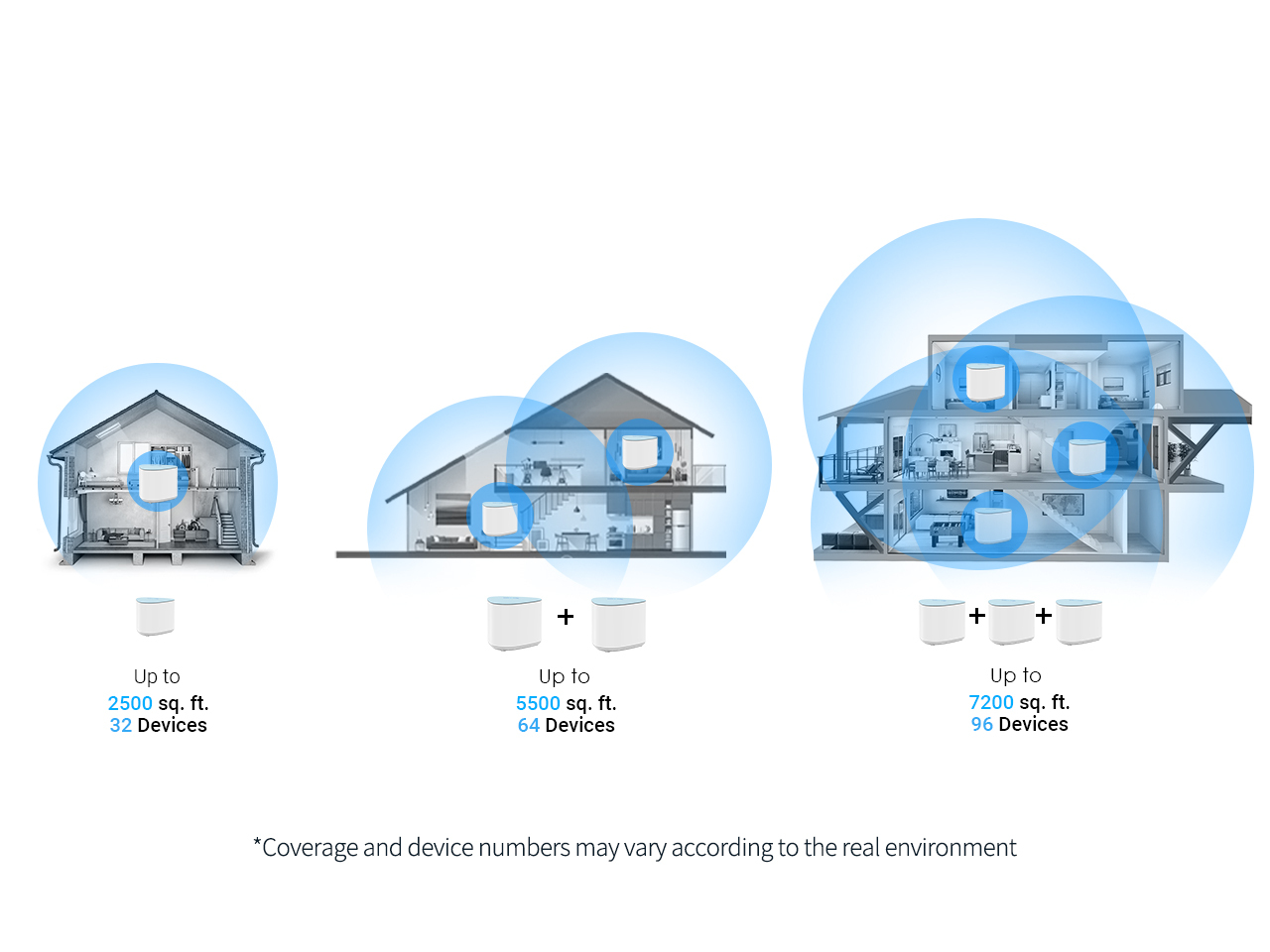

Ideal for Any Home Size
Select the appropriate number of devices based on your room dimensions to construct a robust mesh wireless network. You can enjoy stable and fast Wi-Fi throughout your home.

VPN Mesh Router
Offers enhanced online privacy, increased security, and access to geo-restricted content in a convenient service

Safeguard Children’s Internet Activities
Effectively regulate and oversee Internet activities, ensuring a secure and nurturing online ecosystem for your children.

No Worry About Data Security Issues
Utilize WPA2-PSK, WPA3-SAE/WPA2-PSK, WPA1-PSK/WPA2-MIX enterprise encryption to secure your Wi-Fi Mesh Network, safeguarding your network and connected devices against potential hacker threats.

Specifications

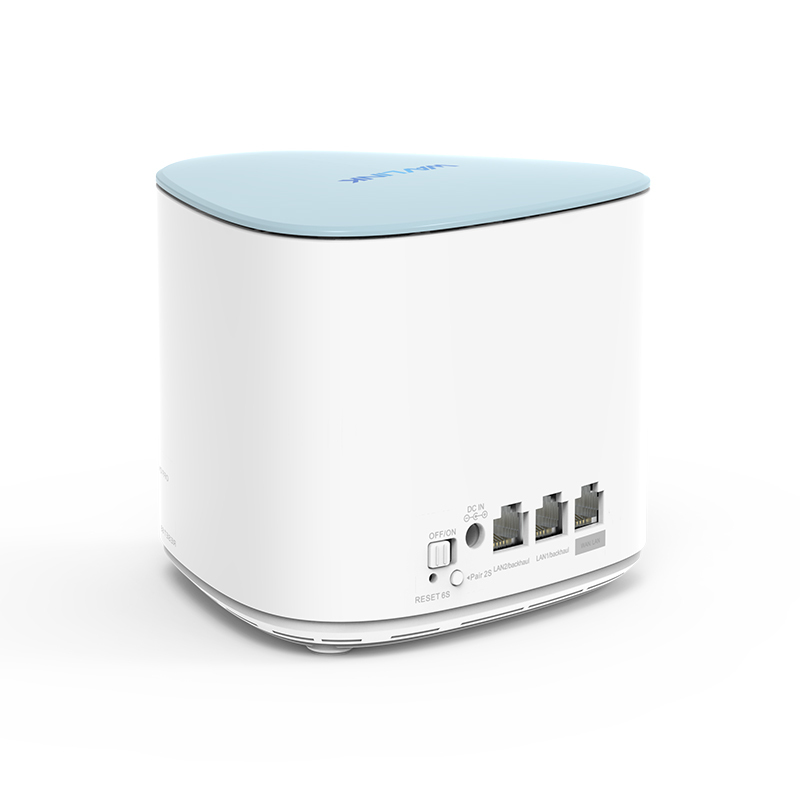

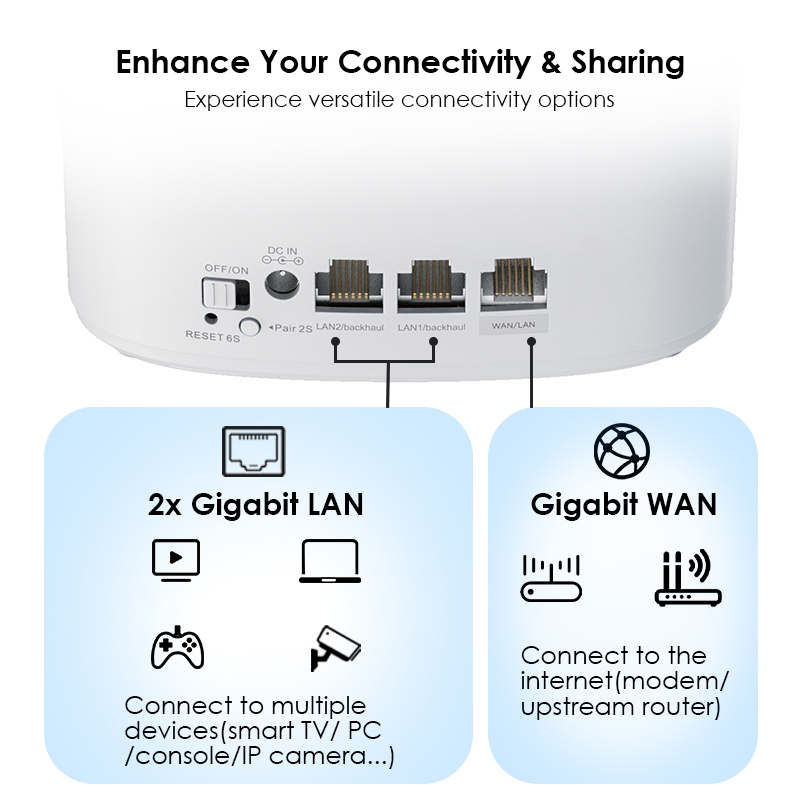

Ports 1 × 10/100/1000Mbps WAN port
2 × 10/100/1000Mbps LAN ports
Button 1 × Power On/Off Switch.
1 × Reset(6s)
1 × Pair Button(2s)
1 × TouchLink
LED 3 × 1000Mbps LAN/WAN
1 × Status
Power Supply DC12V/1A
Rated Voltage/ Frequency Input:100-240 Vac. 50/60Hz
Wireless Standard IEEE 802.11b/g/n/a/ac/ax
Frequency Band/Speed 2.4GHz(573Mbps)+5GHz(2402Mbps)
WAN Type PPPoE, Dynamic IP, Static IP, WISP
DHCP Settings Server, Client, DHCP Client List
Function Remote Management, DHCP Server, Wireless Setting
Parental Control, QoS (Improving), VLAN (Improving)
Antenna 2 × 3dBi 2.4GHz Omni-directional Antennas
2 × 3dBi 5GHz Omni-directional Antennas
Wireless Security WPA2-PSK, WPA3-SAE/WPA2-PSK, WPA1-PSK/WPA2-MIX
Unit Dimensions 133×125×115mm/5.2×4.9×4.5in (L × W × H)
Ethernet Cable Length 100cm/39.4in
In the Box 1 × AX3000 WiFi 6 Mesh Router
1 × Power Adapter
1 × Ethernet Cable
1 × Quick Start Guide
