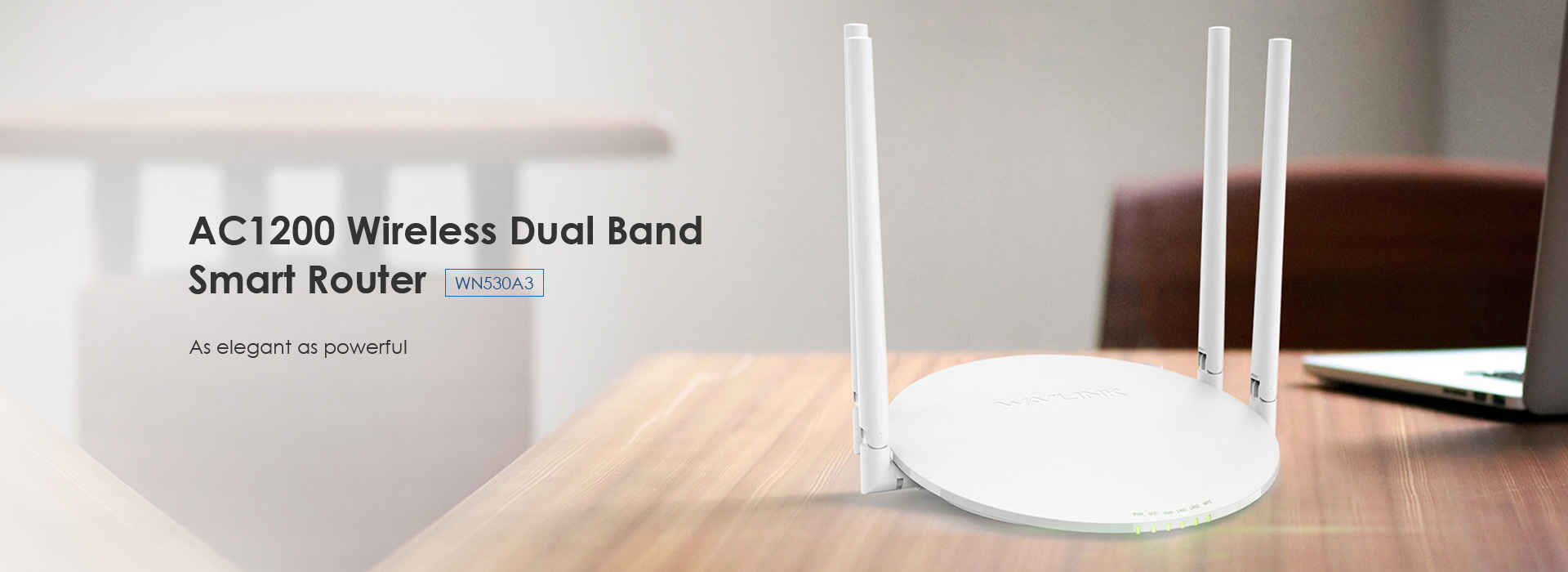

AC1200 Wireless Dual-band Smart Wi-Fi Router with High Gain Antennas
Fit in Anywhere of Your Home

Appearances by mirror and grind arenaceous design, it shows an elegant texture and color to perfectly blend into your stylish home.

The Next Generation Wi-Fi with Dual-band Connectivity

Comes with the next generation Wi-Fi standard – 802.11AC, 3 times faster than wireless N speeds, it delivers a combined wireless data transfer rate of up to 1200Mbps. It is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

More Channels,More Entertainments

The latest AC standards Wi-Fi router offers the flexibility of two dedicated Channels. More channels allows more devices to connect and help them run faster by automatically assigning to the best available channel.

Unique Antenna Design

With unique omnidirectional patent antennas, either place it on your desk or rotate those antennas and hang it on the wall to save room, it will always be fitted in.

4 x 5dBi High-Performance Antennas

4 x 5dBi high gain antennas boost the receiving sensitivity and sending ability of the router, which maximize Wi-Fi range and greatly improve network performance.

Dual Processors for Optimal Performance

Two powerful CPU easily handle multiple complex tasks and demanding applications with ease, allowing more users connect to the network at the same time.

Greatly Expanded Coverage

Four high-performance dual band antennas dramatically increase the Wi-Fi range and reduce interference. You can enjoy high speed wireless network anywhere in your home.

More than a Router

Connect external drives to the USB port and easily share files, photos, music and video with family and friends across your network.

USB port + USB disk= offline download and date-sharing

USB port + 3G/4G adapter= emergency network

Easy Management and Use

The intuitive web interface and powerful WAVAPP allow you to easily manage your network settings from any Android or iOS device.

  • TECHNICAL SPECIFICATIONS
  • Model

    WN530A3

  • Ports

    1 x 10/100Mbps WAN

    2 x 10/100Mbps LAN

    1 x USB 2.0

    1 x DC Power Jack Port

  • Buttons

    1 x Power On/Off button

    1 x WPS button

    1 x Reset button

  • LED

    1 x Power

    1 x WiFi

    1 x WAN

    2 x LAN

    1 x WPS

  • Power Supply

    DC5V / 2A

  • Rated Voltage / Frequency

    input:100-240 Va.c. 50/60Hz

  • DIMENSIONS
  • Unit Dimensions

    170mm x 170mm x 25mm ( L x W x H )

  • WIRELESS
  • Standard

    IEEE 802.11a/b/g/n/ac

  • Speed

    IEEE 802.11ac: up to 867Mbps

    IEEE 802.11n: up to 300Mbps

    IEEE 802.11g: 54Mbps

    IEEE 802.11b: 11Mbps

    IEEE 802.11a: up to 54Mbps

  • Frequency band

    2.4Ghz,5Ghz

  • Wireless Security

    WPA-PSK/ WPA2-PSK encryption

  • Antennas

    4 x 5dBi Omni Directional Antennas

  • PACKAGE
  • In The Box

    1 x Wireless Router

    1 x RJ45 Networking Cable

    1 x DC5V Power Adapter

    1 x Quick Guide
