Model: WL-VR204
- Supports capturing every detail of gameplay, streaming video, live broadcasts with one 4K@30Hz HDMI IN and one USB-C host.
- Supports loop-out for an immersive and clear viewing experience with a 4K@30Hz HDMI OUT.
- Supports working with third party software to capture or stream your HD game or other HD video sources and enhance your workflow with ultra-low latency technology.
- Supports up to a single 4K@144Hz extend with one DP, one PD and Video port.

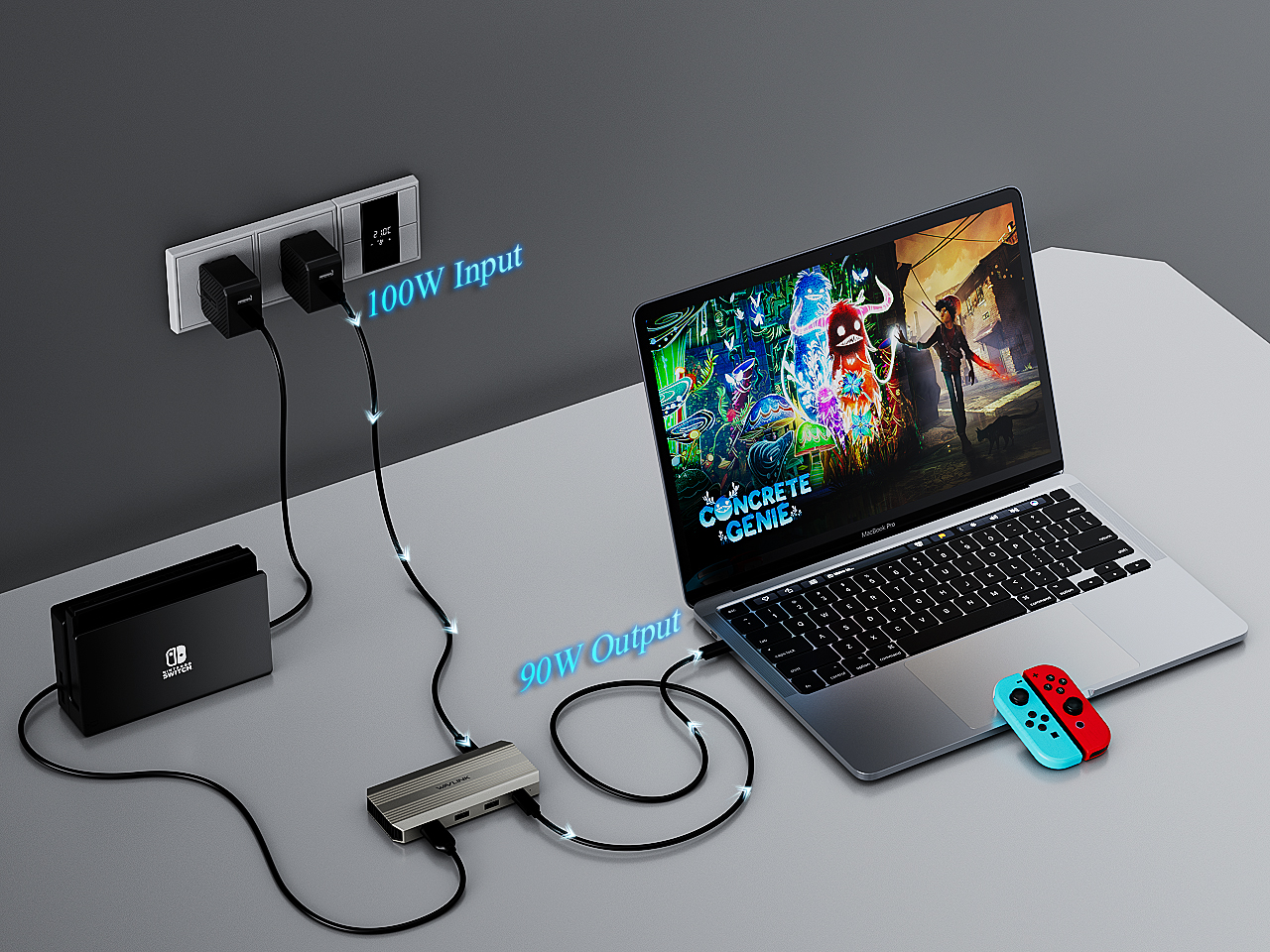

- Supports PD pass-through IN 100W for capture card and 90W charging for upstream USB-C host with one USB-C PD.
- Supports stable and reliable data transfer with two USB-A ports.
- Plug and play, driver free, easy to set up.

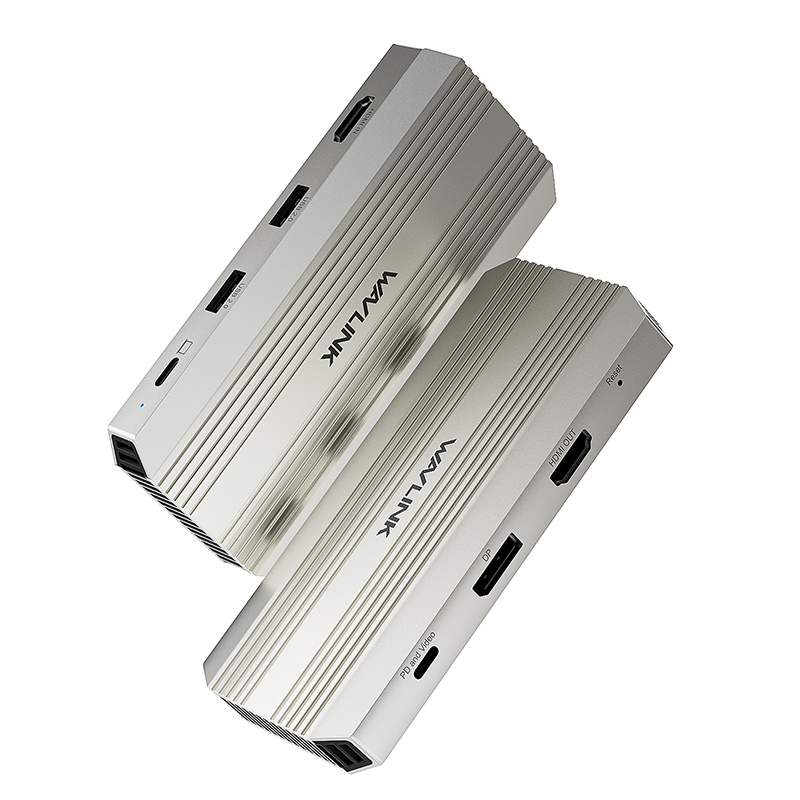

- Supports highly effective heat dissipation with full aluminium case.

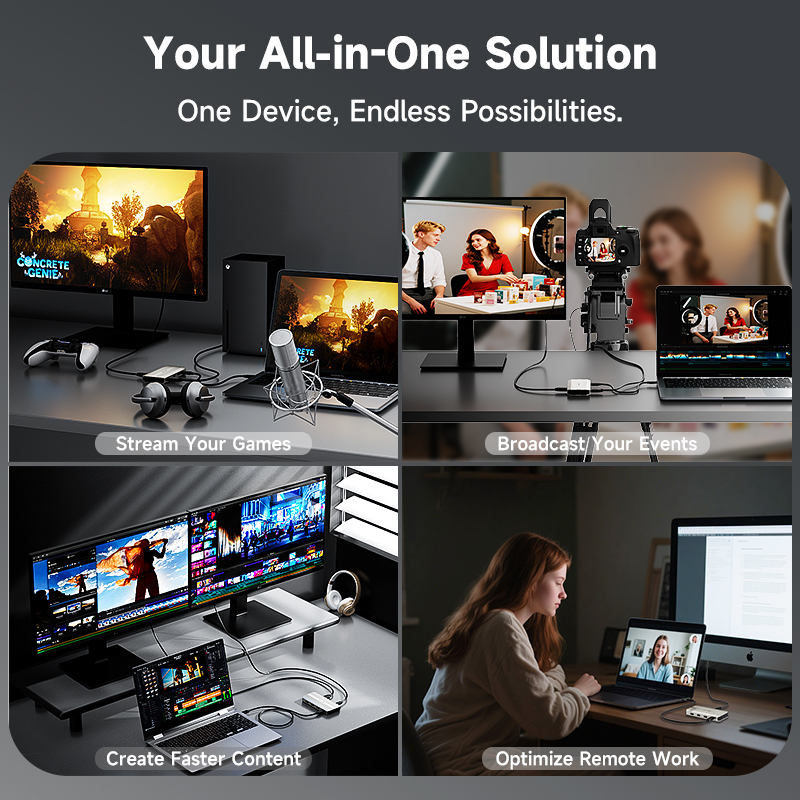

The ultimate tool for streamers and creators,combining low-latency 4K capture with high-performace display expansion and robust 90W charging.

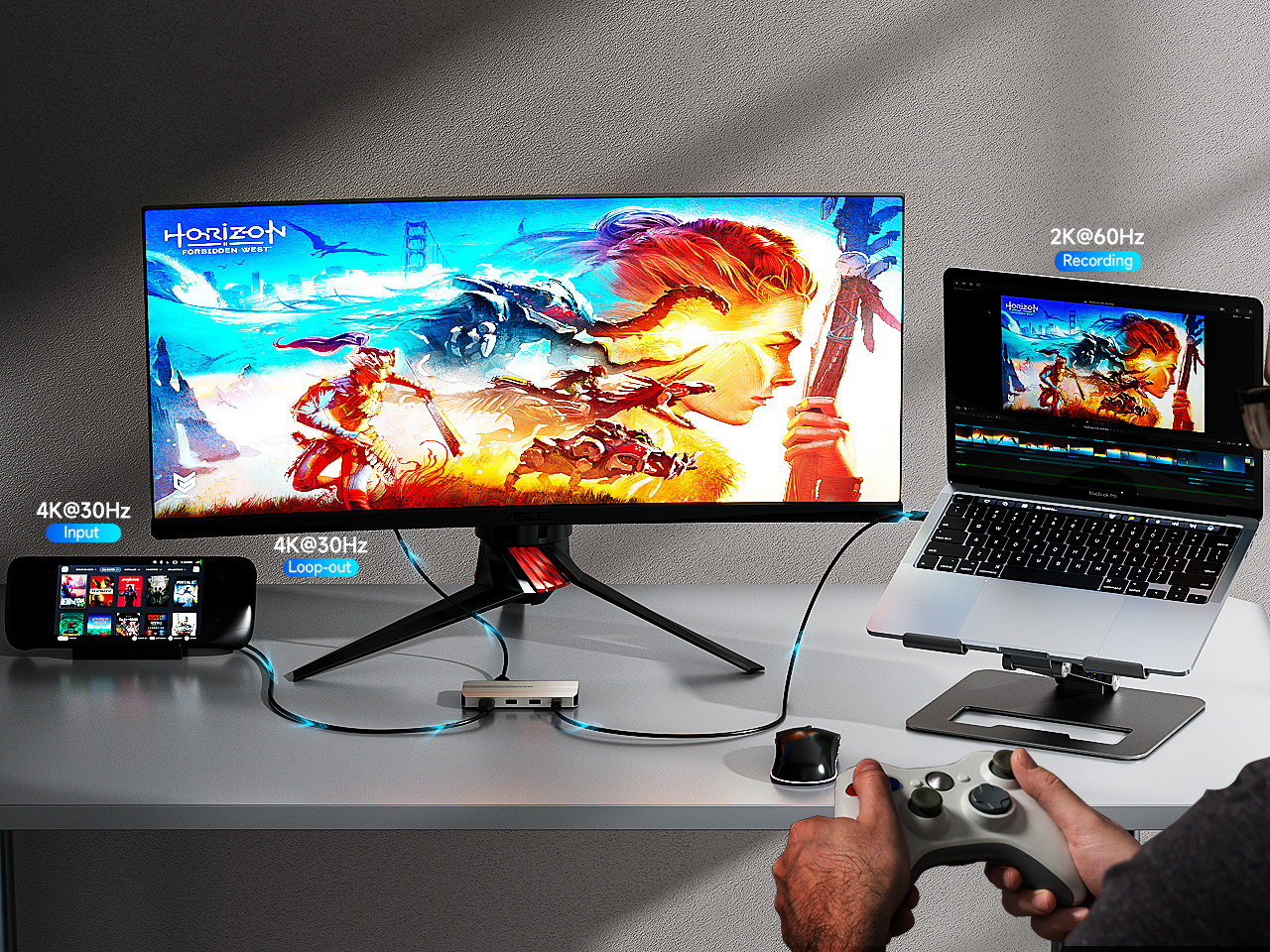

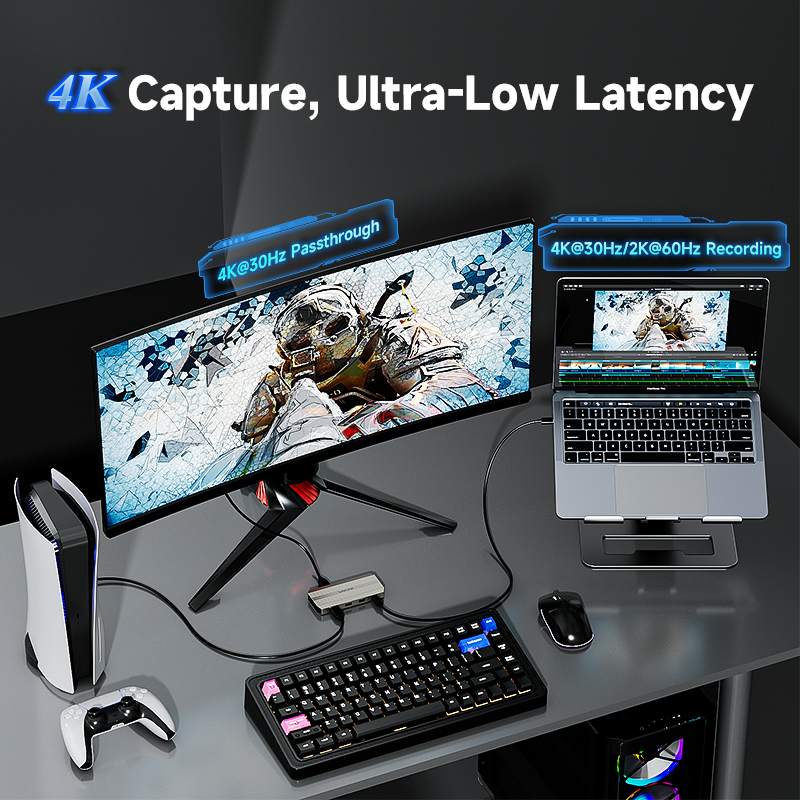

Record and stream your gameplay in stunning 4K@30Hz from PS5, Xbox, Switch, or PC with ultra-low latency passthrough.
Powered by a high-speed USB 3.0 interface,this device ensures stable,reliable data transfer.This robust connection is key to delivering smooth,uncompressed video and a lag-free experience for both capture and hub functionlities.

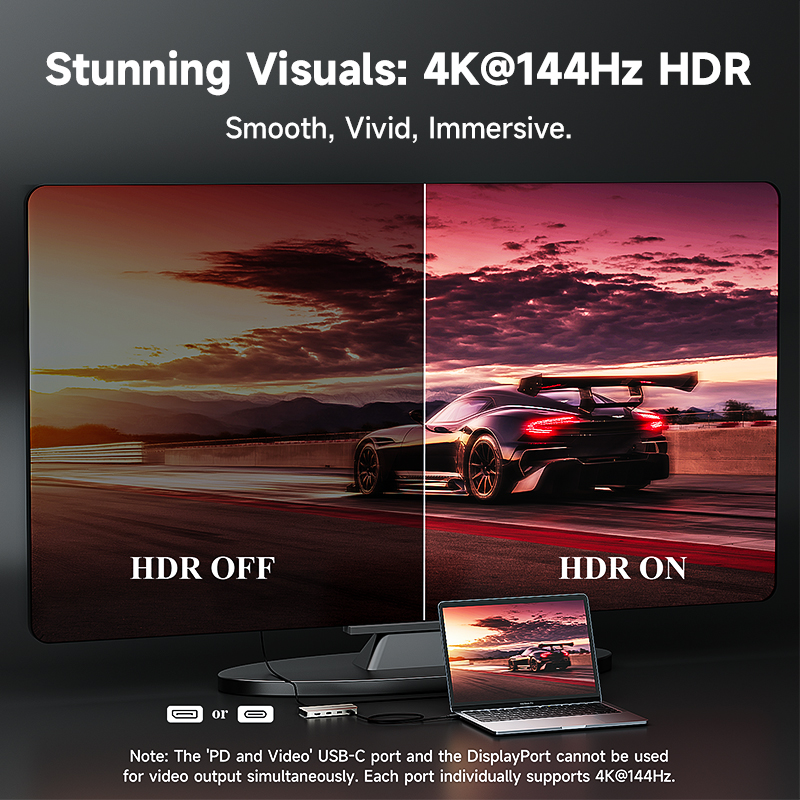

Transform your visual experience. Drive breathtaking 4K resolution at 144Hz with HDR for ultra-smooth, lifelike graphics.

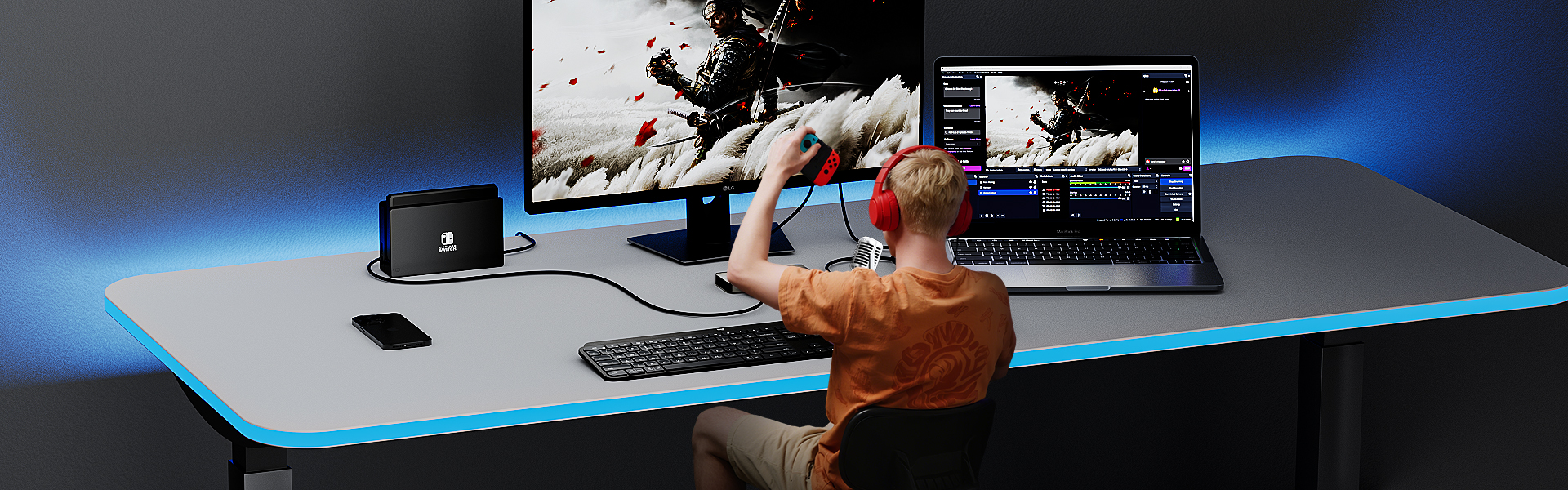

Focus on your switch adventure, not your laptop’s battery, with reliable power delivery ensuring continuous operation.

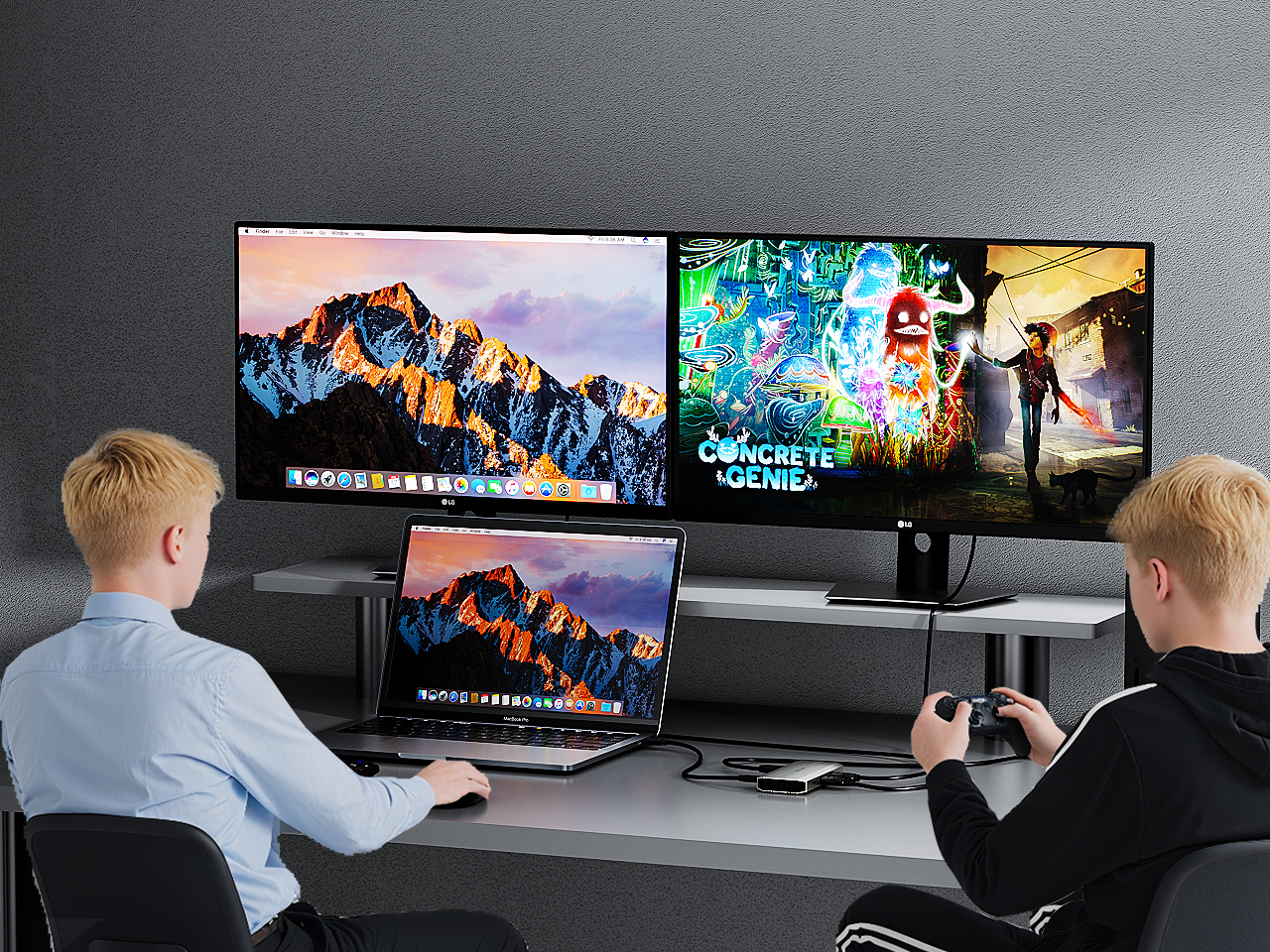

Enhance teamwork or family fun. Supports simultaneous use for collaborative projects or shared entertainment experience.
TECHNICAL SPECIFICATIONS
| Connection To Host | 1 x Type-C to Type-C cable |
| Plug & Play | Driver - free Plug and Play |
| USB Power Delivery | 1 x PD and Video port for USB3.0 PD passthrough PD IN 100W, charge laptop up to 90W |
| USB Port | 2 x USB 2.0 port speed up to 480Mbps |
| Video Outputs | PD and Video port : 4K@144Hz (Single display) 4K@60Hz (Dual display) DP port : 4K@144Hz (Single display) 4K@60Hz (Dual display) (When using DP port for video output, PD port is only used as power supply) |
| Video capture | USB - C port ：4K30 HDMI IN port: 4K30 (When the video source is connected to HDMI IN port, only it will be captured) |
| Video loop out | HDMI OUT port: 4K30 (Loop out the captured video source) |
| Operating Systems | Microsoft Windows 7 / 8 / 10 / 11 Apple Mac OS 10.8 or later |
