WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot
  • WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot 1
  • WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot 2
  • WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot 3
  • WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot 4
  • WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot 5

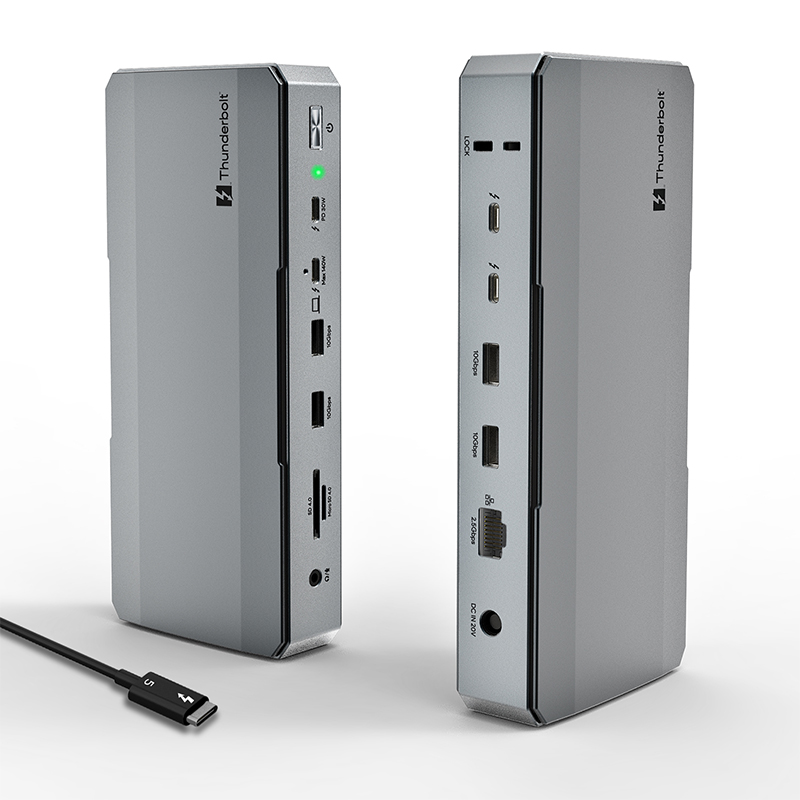

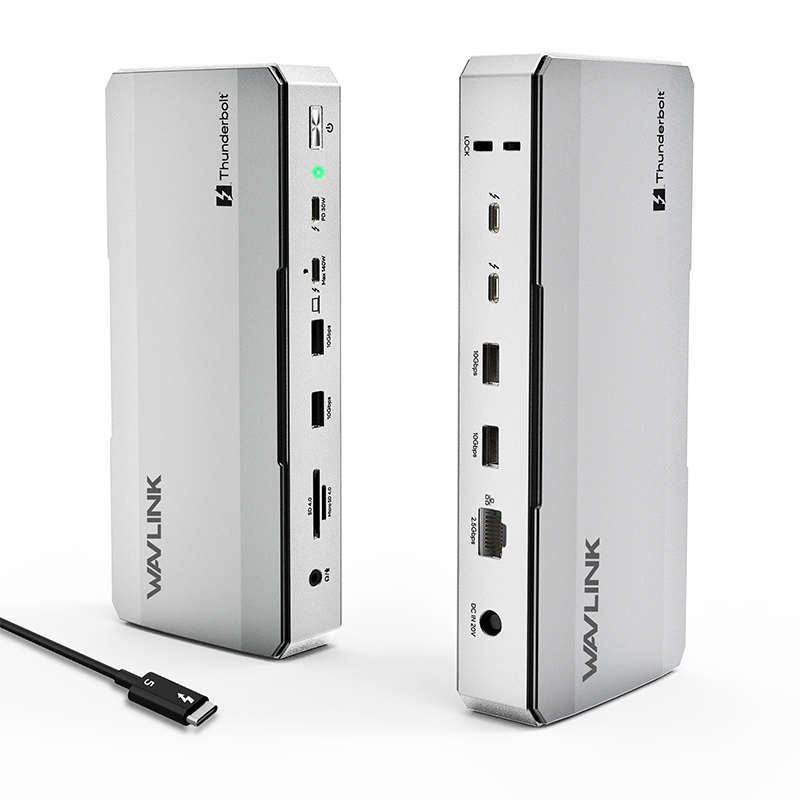

WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot

Model: WL-UTD59-M

-1* Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwidth video transfer, 140W instant charging for the USB-C laptop.
-3* Thunderbolt™5 DFP provide 80Gbps data, dual 8K@60Hz or triple 4K@144Hz display at 120Gbps bandwidth, one of them supports 30W instant charging for the downstream devices.
-1* M.2 PCIe 4×4 slot is compatible with 2280 M-key SSDs, and provides 64Gbps transfer speed.
-4* USB-A transfer speed up to 10Gbps, and compatible with USB 3.0/2.0.
-1* RJ45 Ethernet provides efficient transfer, low-latency game experience, stable wired network.
-1* UHS-II SD/Micro SD card reader transfers high-definition video and vivid images at 312MB/s, and compatible with UHS-I devices.
-1* Combo 3.5mm mic/headphone jack for clear audio in and out.
WAVLINK 13-in-1 Thunderbolt 5 Dock: up to 120Gbps, 140W PD 3.1, 6400MB/s M.2 SSD Slot

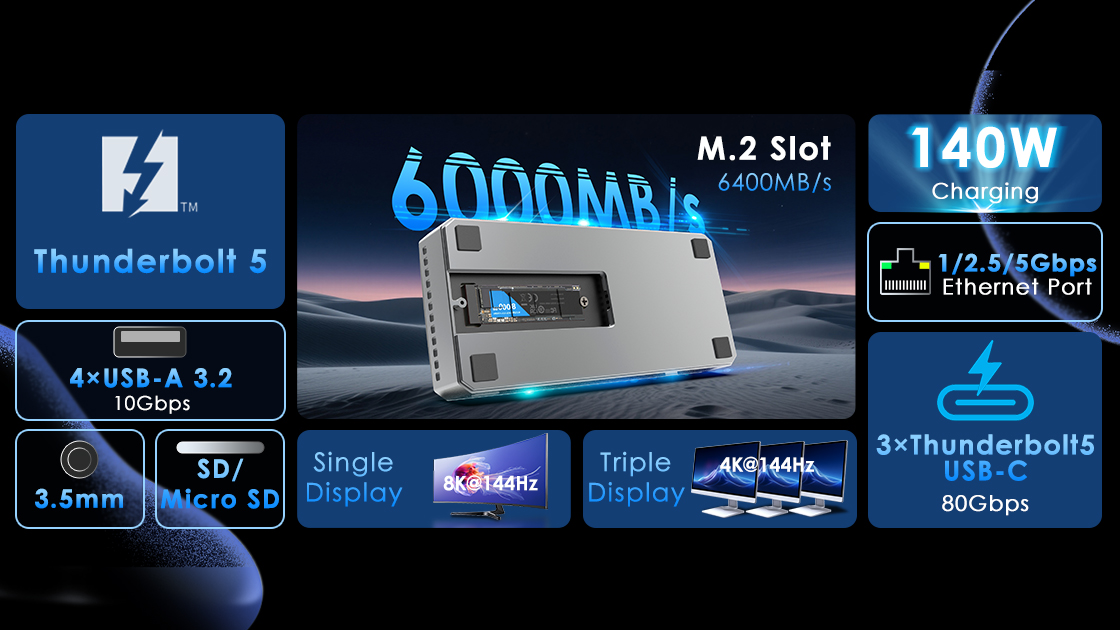

Future Connectivity, Ultimate Power. This 13-in-1 Thunderbolt 5 dock features 120Gbps bandwidth, 140W host charging, and up to 6400MB/s M.2 Slot. Instantly eliminate bottlenecks, enabling effortless 8K/4K multi-display performance.

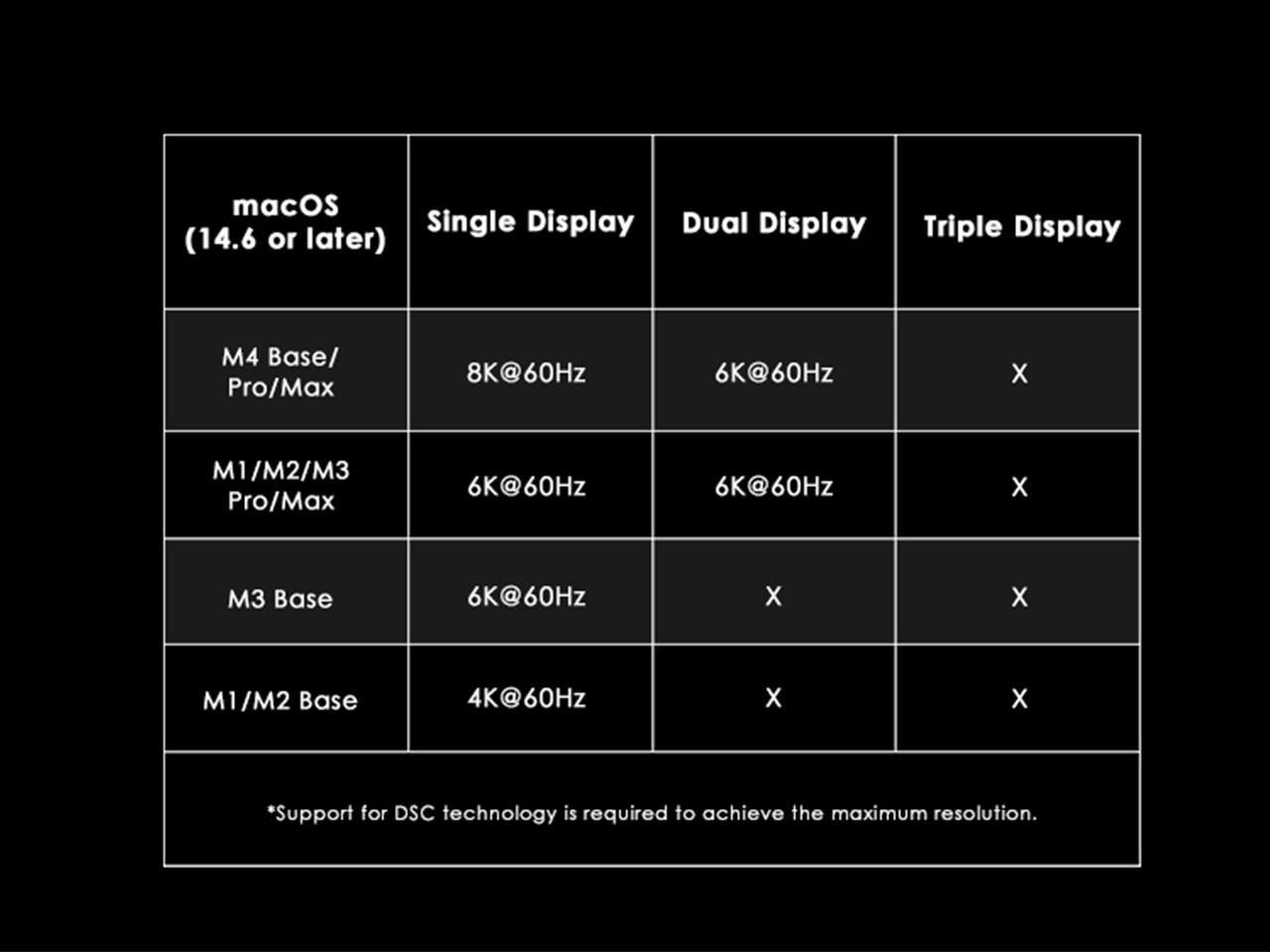

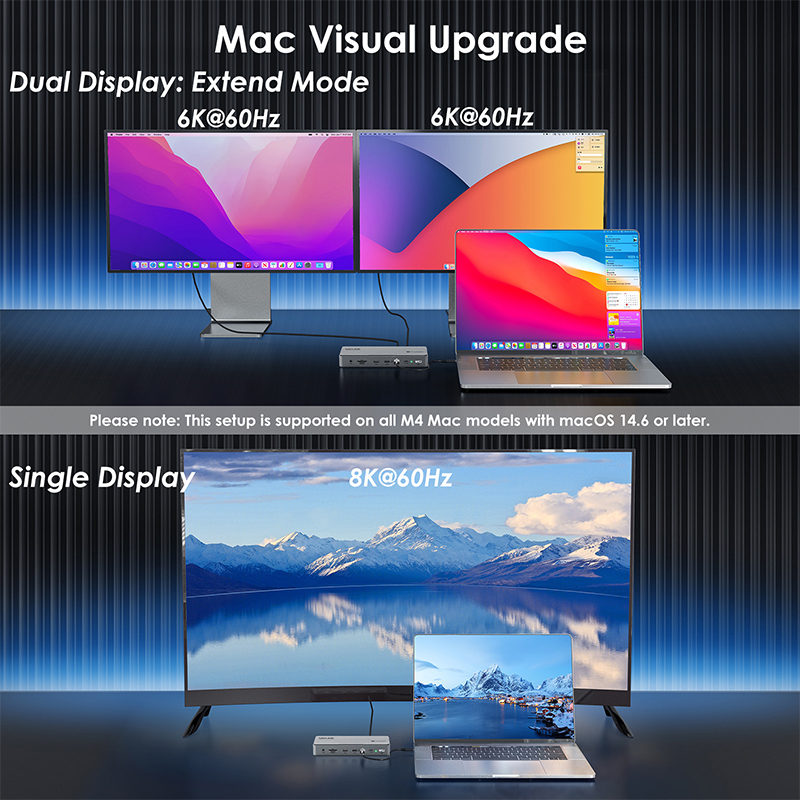

Ultimate macOS Display Matrix

macOS (14.6 or later) compatibility. M4 Series chips support single 8K@60Hz or dual 6K@60Hz UHD displays. M1/M2/M3 Pro/Max chips support dual 6K@60Hz. Unlock maximum resolution with DSC technology, delivering an unparalleled visual experience for Mac creators.

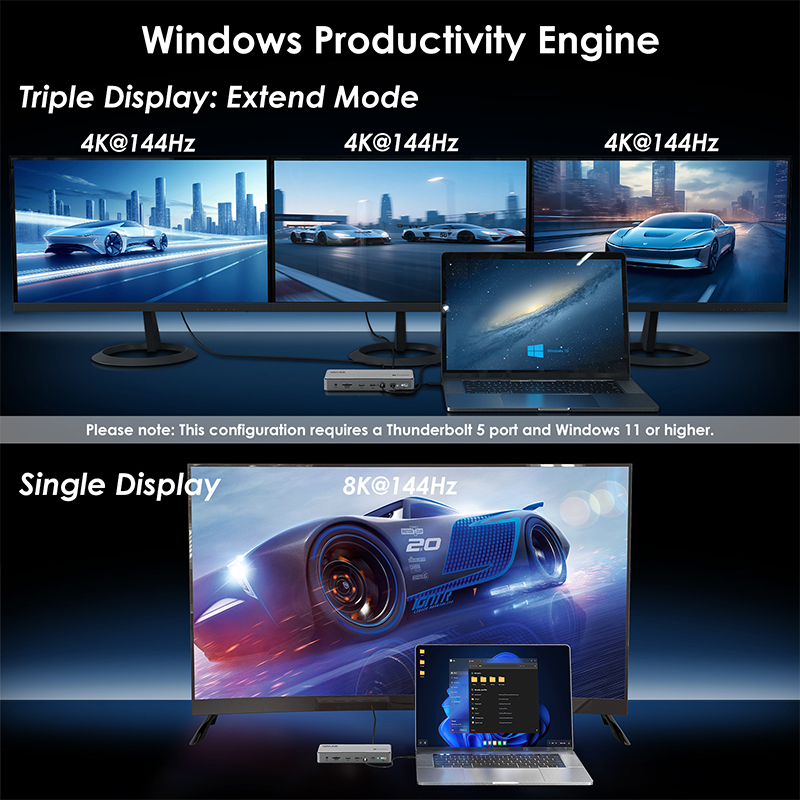

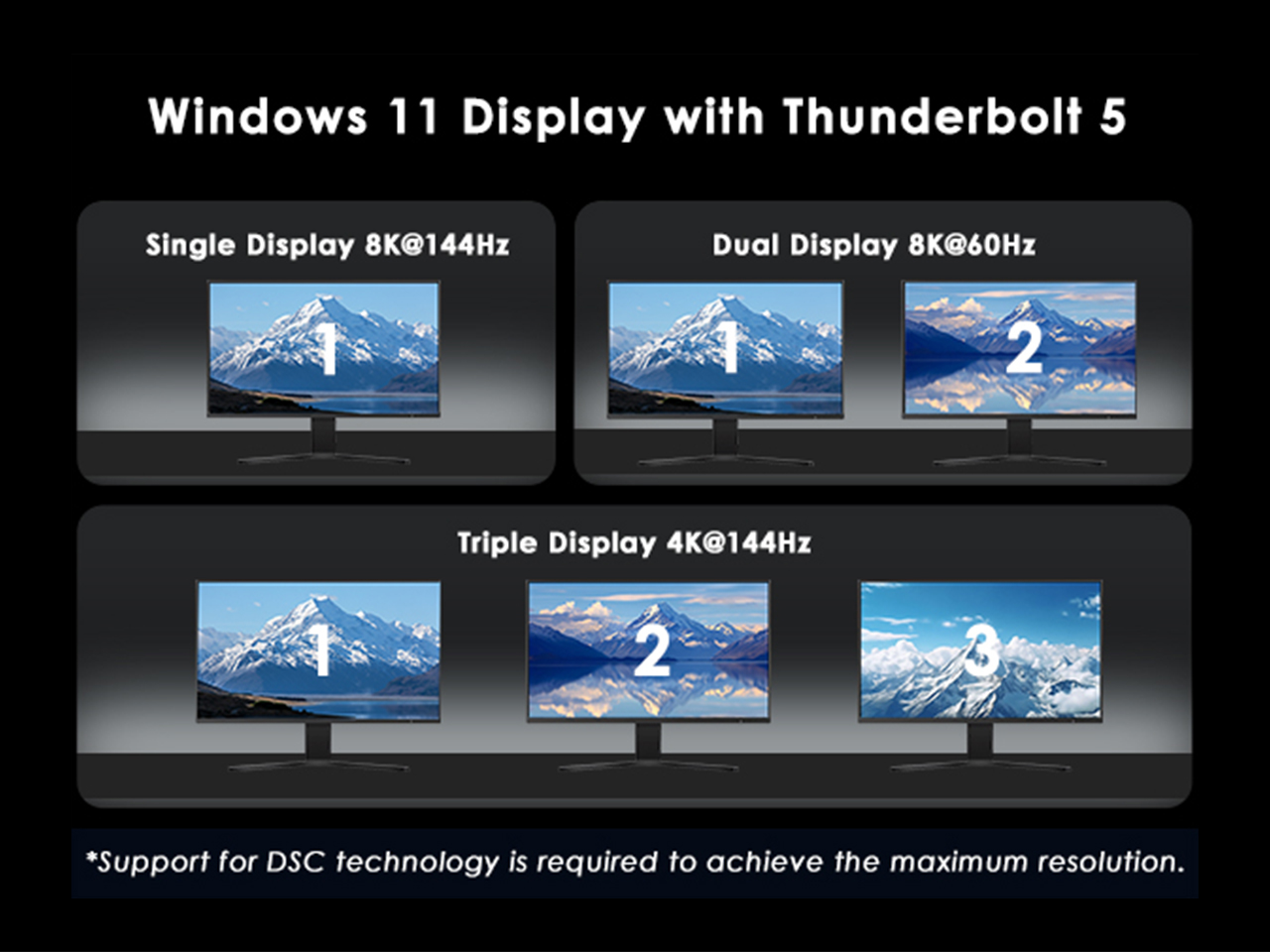

Thunderbolt 5 Windows Triple Display

Achieve peak performance with Windows 11 or later and a host system equipped with a Thunderbolt 5 port. Display solutions built for high-performance users. Achieve a staggering single 8K@144Hz or dual 8K@60Hz setup. Easily build a Triple 4K@144Hz workstation, providing the most expansive, fluid visual experience.

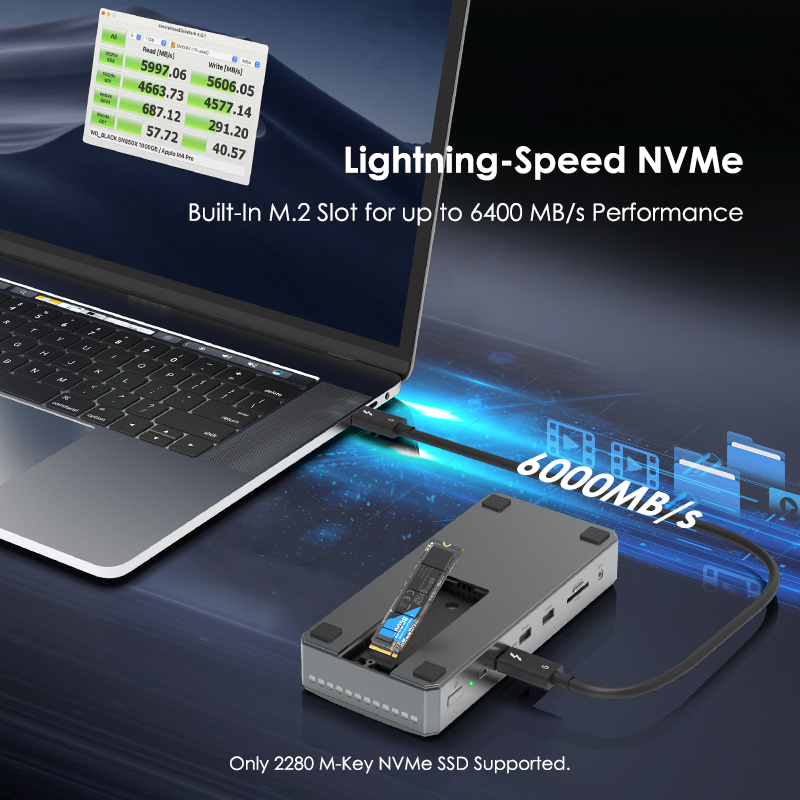

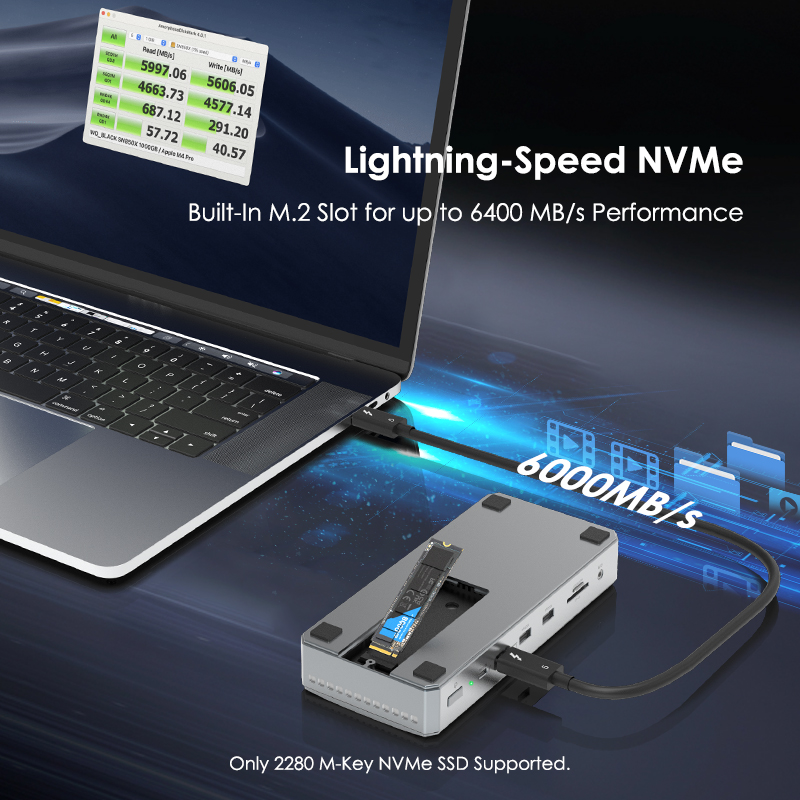

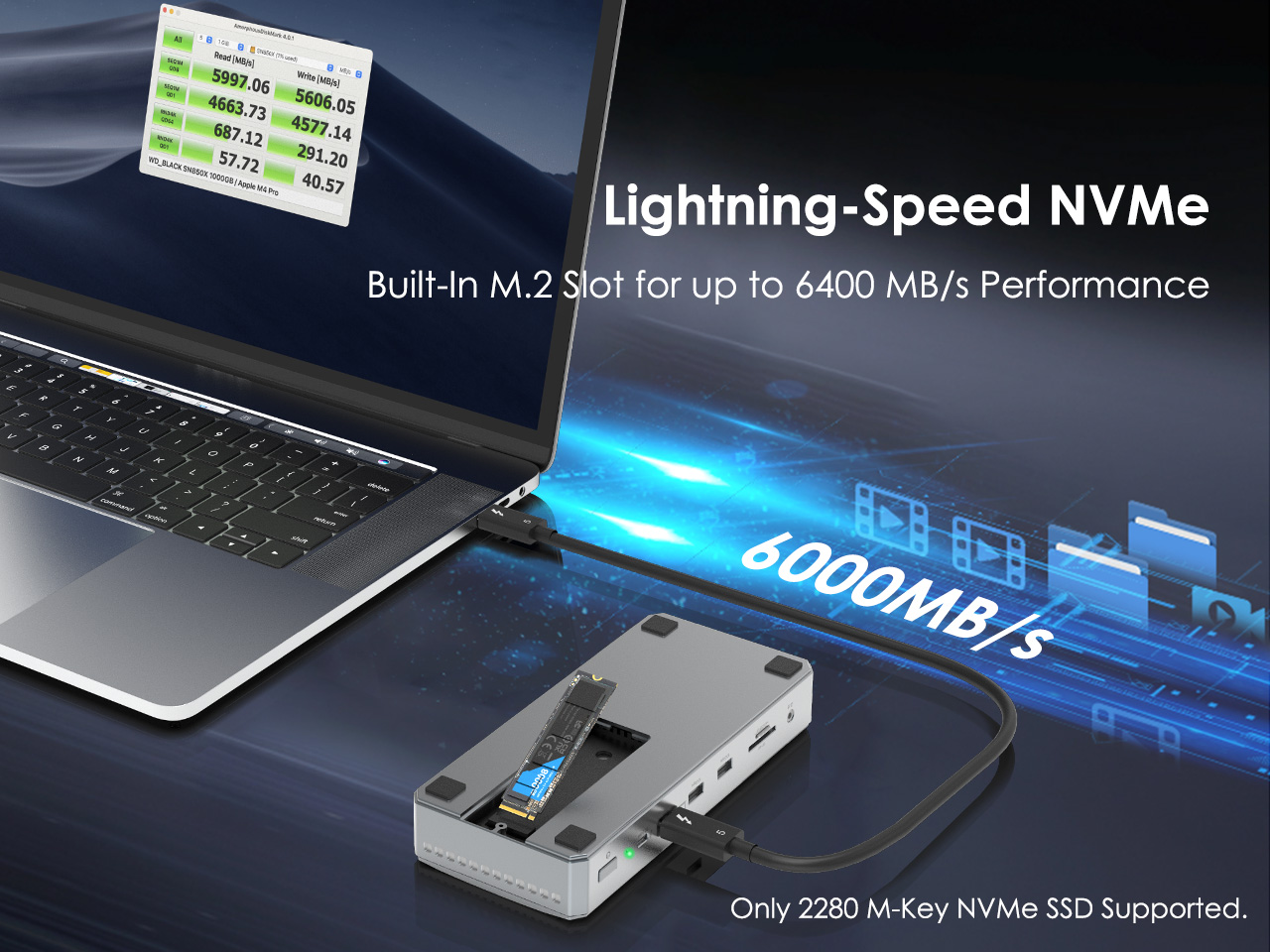

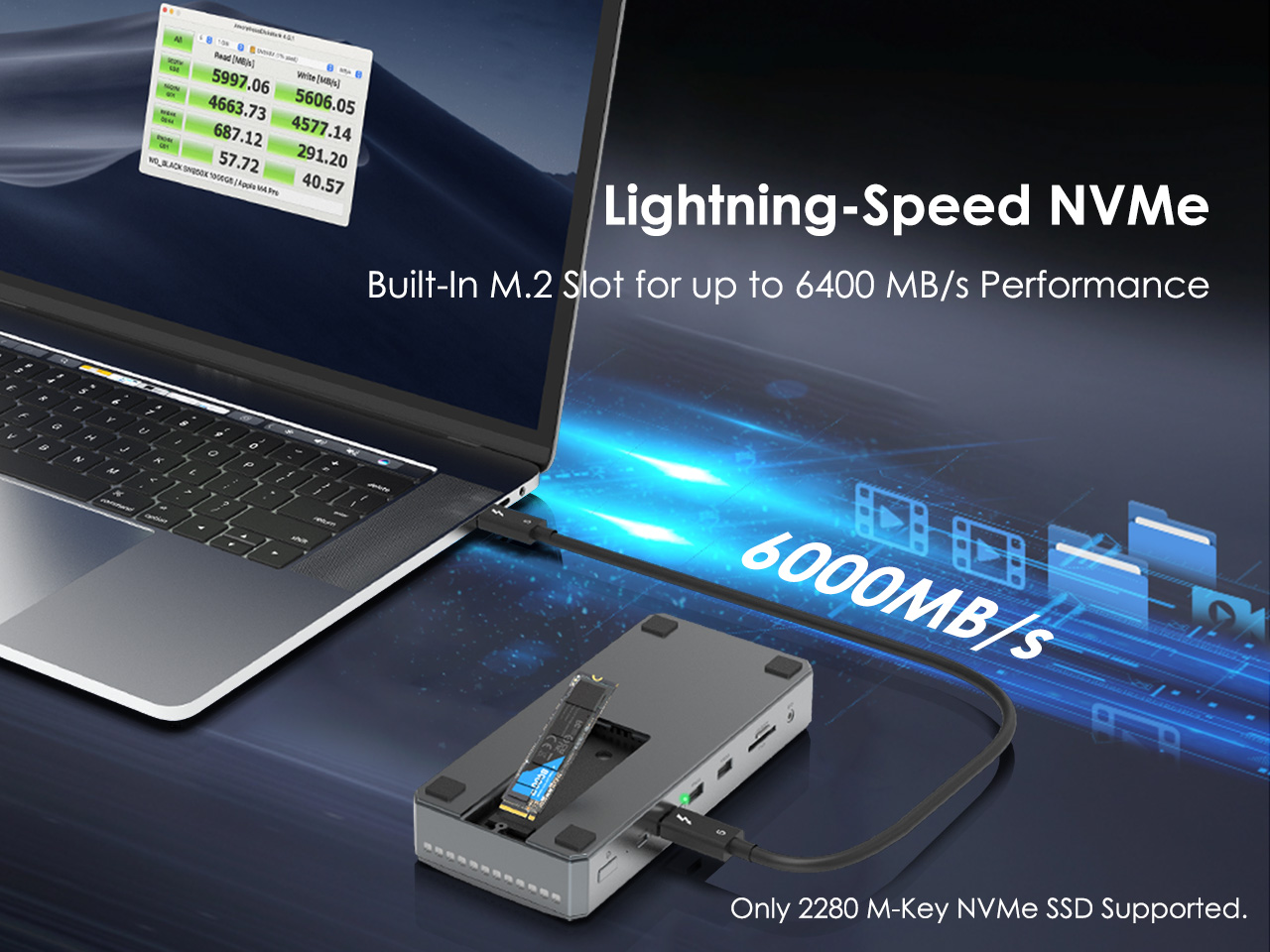

Built-in M.2 Slot, Lightning NVMe

Expand your storage easily with the built-in M.2 slot. Designed for 2280 M-Key NVMe SSDs, delivering lightning-speed performance up to 6400 MB/s. Transfer large files and HD video instantly. Eliminate external storage bottlenecks and significantly boost your workflow speed.

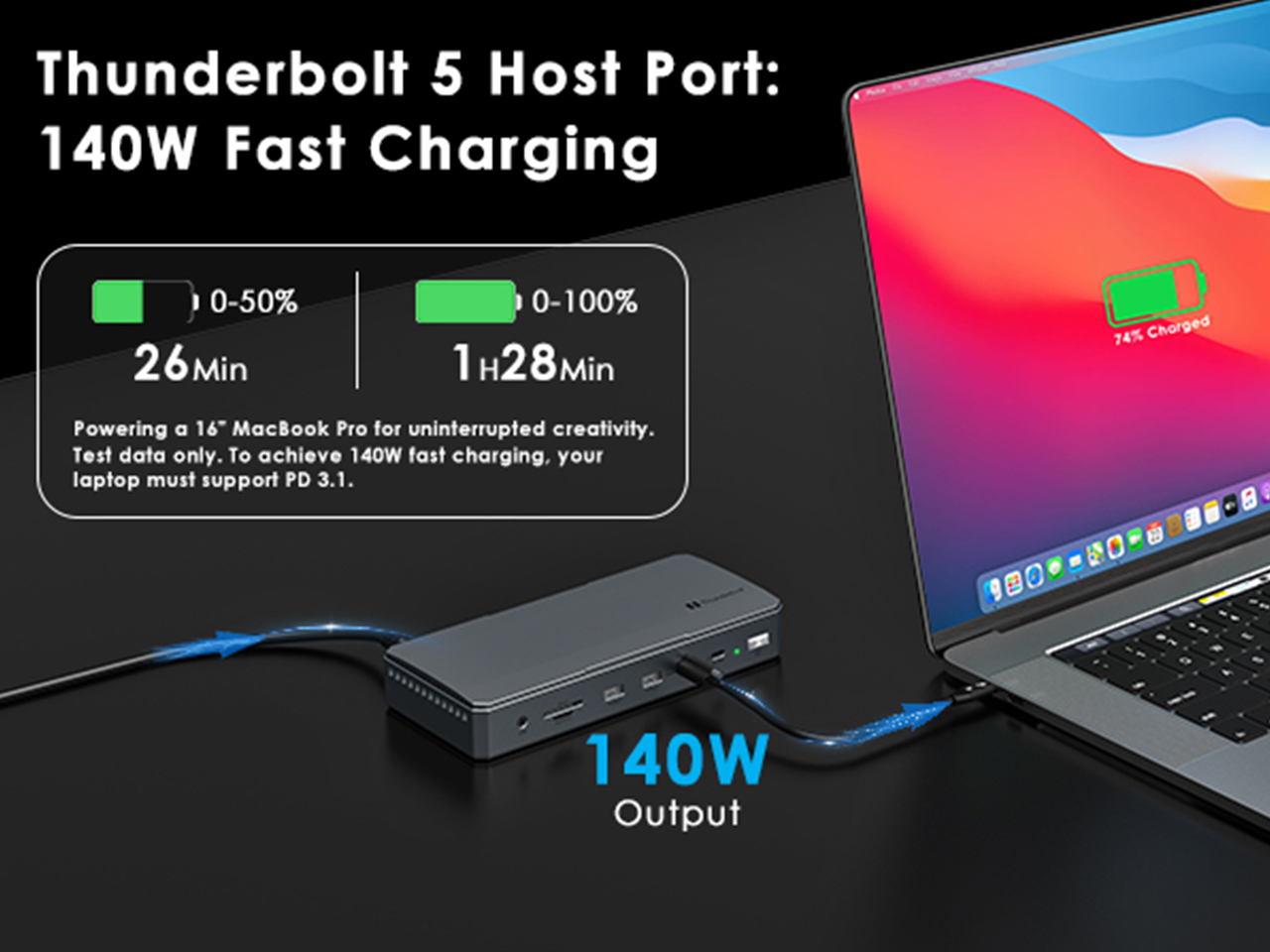

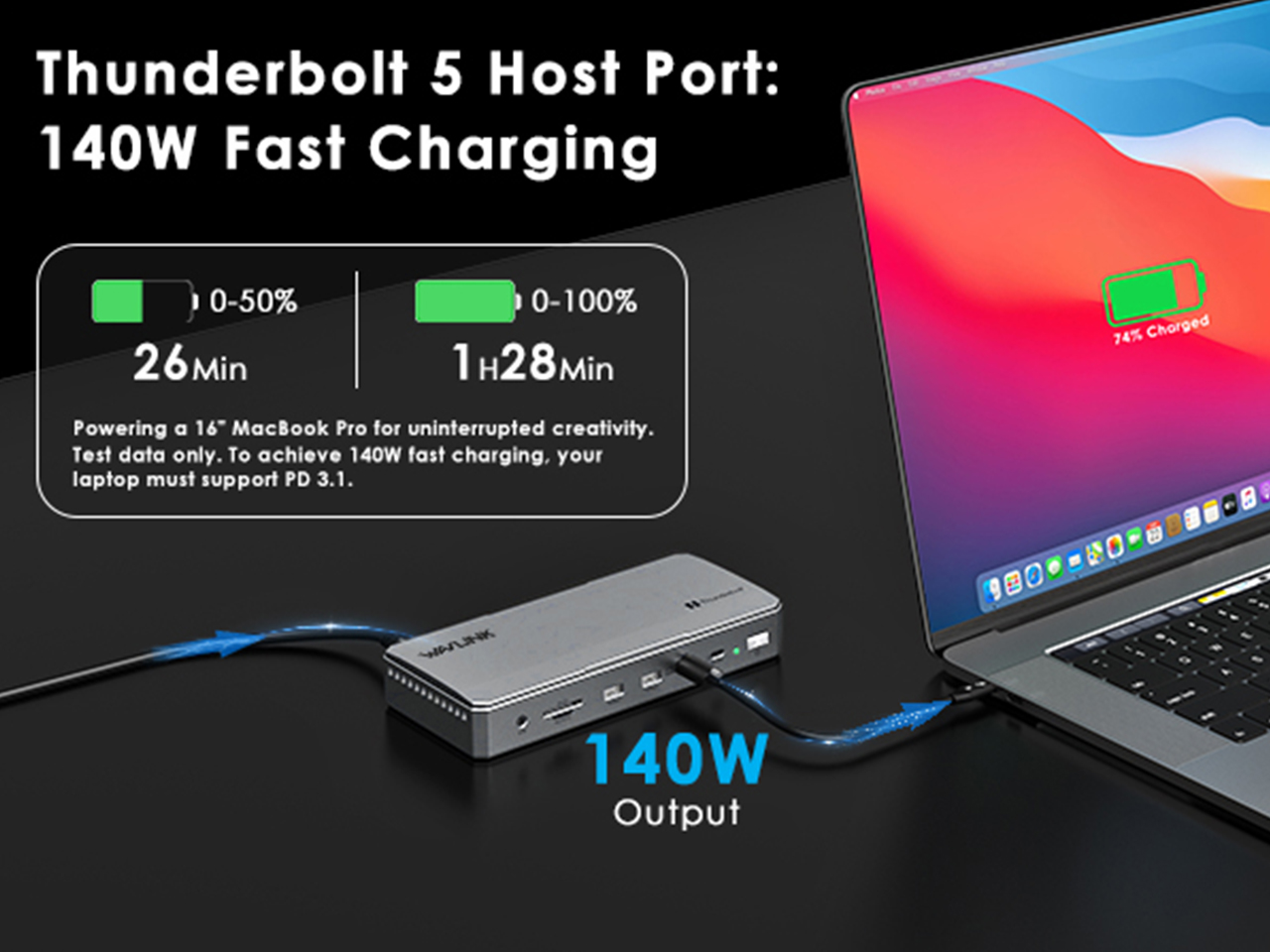

140W Host Port, Uninterrupted Power

The Thunderbolt 5 Host Port delivers a robust 140W PD 3.1 charging output. This provides full-speed, uninterrupted power for high-performance laptops, such as a 16" MacBook Pro. Ensure your devices remain fully charged and ready to maximize your workflow efficiency.

Universal Compatibility, Optimal Port

Simply connect via a full-function Thunderbolt 4 or 5 port for optimal performance. Fully compatible with Windows 11 (or later) Thunderbolt 4/5 systems and macOS 14.6 (or later). Seamlessly connect to mainstream brands like MacBook Pro/Air, Mac Mini, Dell, and Thinkpad, ensuring true universal connectivity.

Specifications

SPECIFICATION

Connection To Host 1M Thunderbolt 5 Cable
Plug & Play No Driver required.
Solution JHL9480、PMG1-S3,CCG8D,PS5512,RTL8156B,GL3231S,SSS1700.
Computers Works with Thunderbolt 5, Thunderbolt 4, USB4, USB3.0 computers.
Operating Systems Windows 11 or higher, Mac OS 14.6 later(M chip) or higher
Key Supports only M Key PCIe NVMe M.2 SSDs; does not support PCIe AHCI SSDs.
M.2 Form Factor Compatible with NVMe in sizes: 2280.

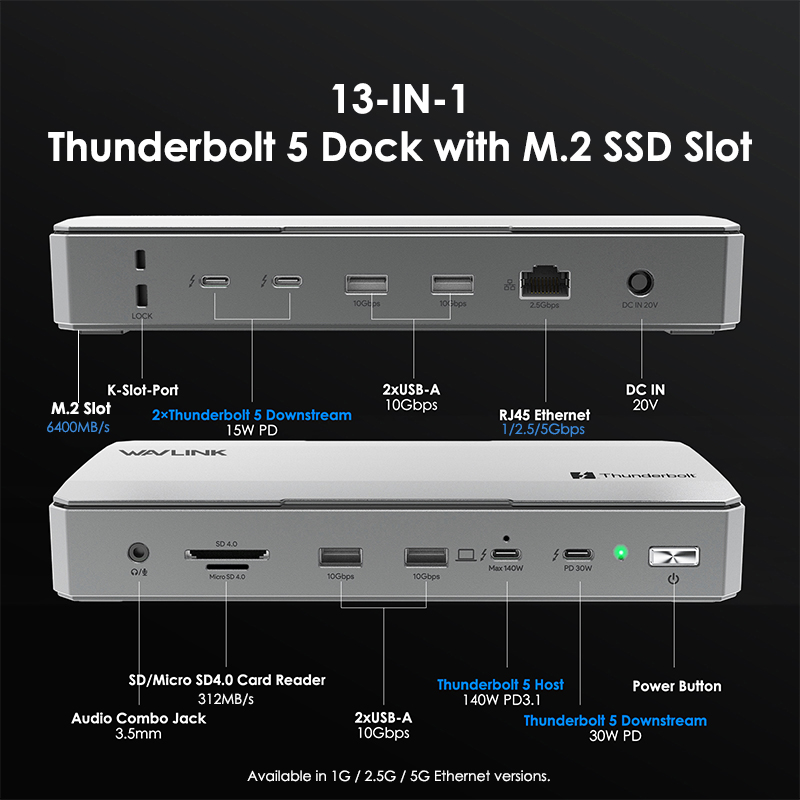

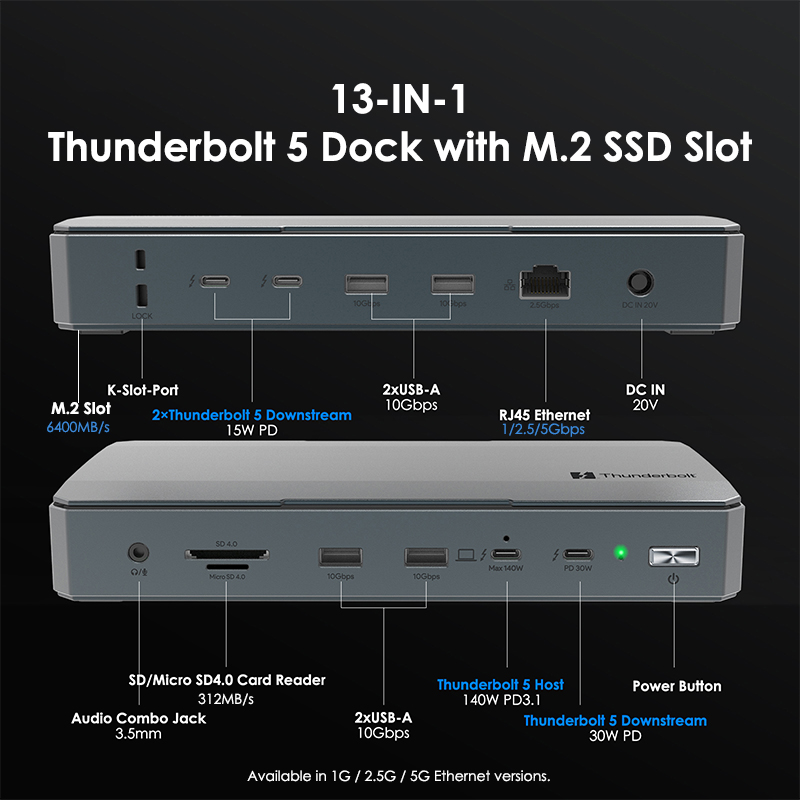

Port Thunderbolt 5 UFP * 1, Thunderbolt 5 DFP * 3, USB3.1-A 10G * 4, 2.5G RJ45 * 1, SD4.0 * 1, 3.5MM Audio * 1, M.2 Port * 1
LED 1 x Power indicator light

Manual

WL-UTD59-M-Manuals

Description : WL-UTD59-M-Manuals

Post Date : 16/04/2026

Available : WL-UTD59-M

Online Reading : View

Q&A

What should I do if the dock cannot deliver power to my laptop?

Please ensure that your laptop’s USB-C port supports power delivery (PD).

Also, make sure you are using the Thunderbolt 5 cable that comes with the dock.

Why can’t I get triple external displays with this dock?

1.Your laptop must be equipped with a Thunderbolt 5 port.

2.Please use the original thunderbolt 5 cable.

Why can’t Thunderbolt 3 PCs recognize this Thunderbolt 5 docking station?

Thunderbolt 5 is a newer technology that was not available when Thunderbolt 3 devices were developed. As a result, most Thunderbolt 3 PCs do not support Thunderbolt 5 docking stations.

Why doesn't the 2.5Gbps Ethernet port achieve its full 2500Mbps speed?

Due to the bandwidth limitation of Intel Thunderbolt, the maximum speed is limited about 1300-2000Mbps.

Why can't the video downstream ports of this docking station reach 8K resolution when the Thunderbolt 5 docking station works with my computer?

This Thunderbolt 5 docking station can reach up to 8K resolution, and the resolution and refresh rate of the docking station's video downstream ports depends on the graphics card capability of your computer.

Why does my dock get hot during use?

It is normal for the dock to generate heat while operating. For better heat dissipation, we recommend placing the dock in a well-ventilated, open area.
