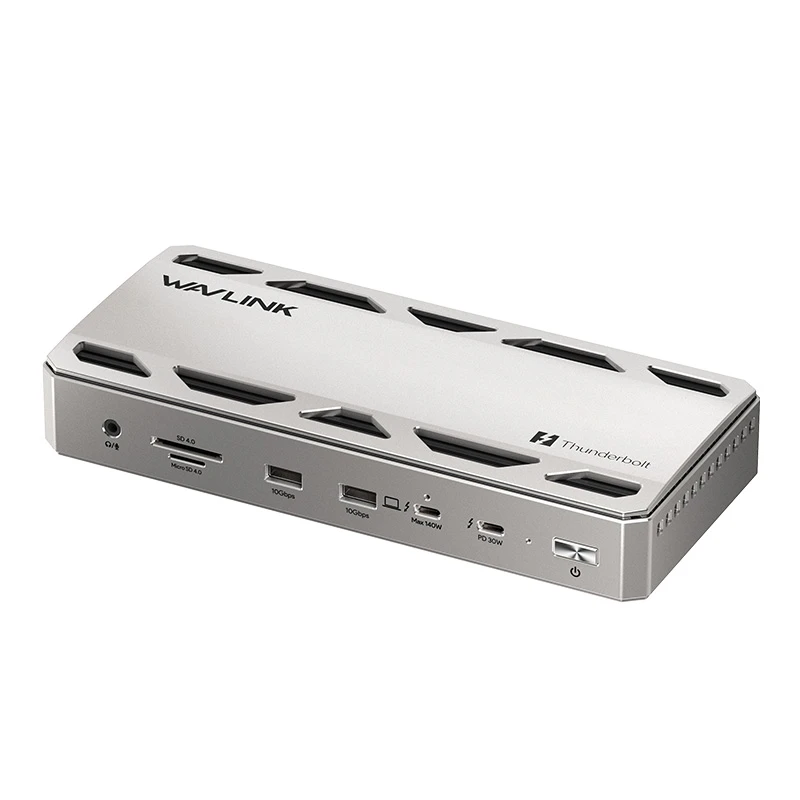

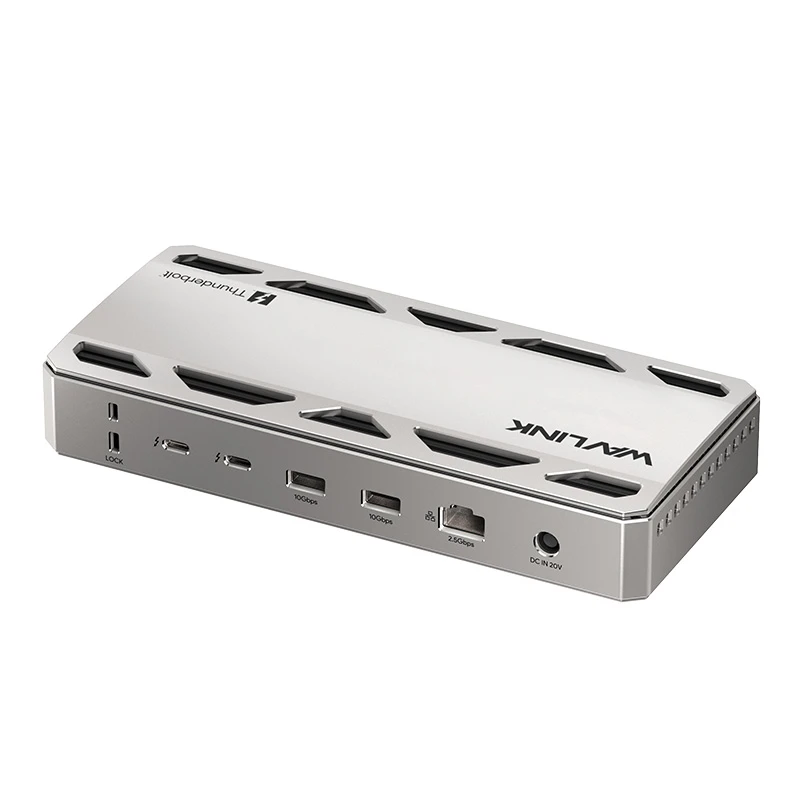

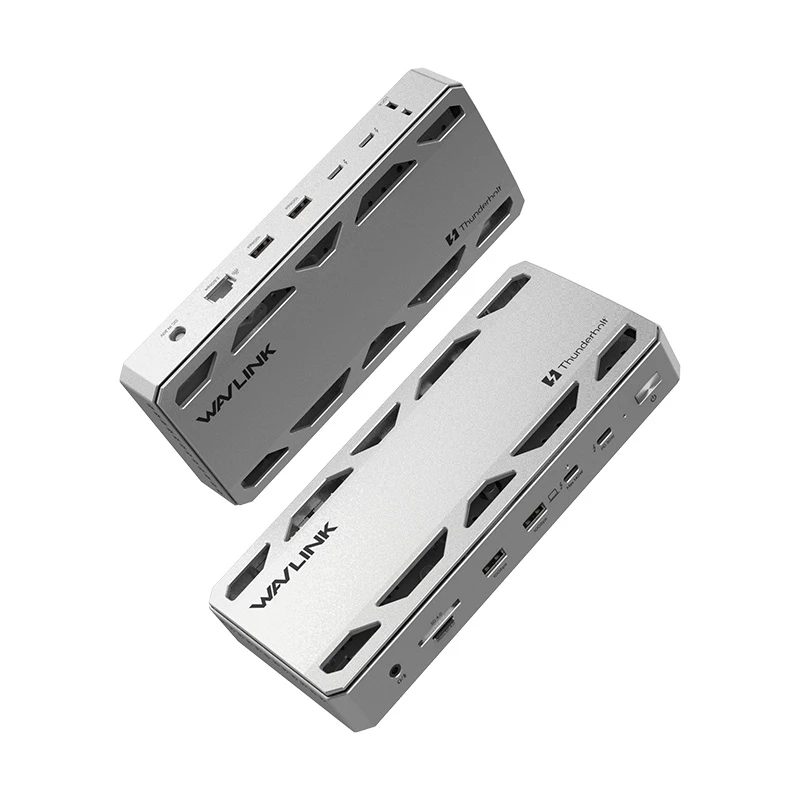

THUNDERLIGHT DOCK
Model: WL-UTD58
- 1* Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwidth video transfer, 140W instant charging for the USB-C laptop.
- 3* Thunderbolt™5 DFP provide 80Gbps data, dual 8K@60Hz or triple 4K@144Hz display at 120Gbps bandwidth, one of them supports 30W instant charging for the downstream devices.
- 4* USB-A transfer speed up to 10Gbps, and compatible with USB 3.0/2.0.
- 1* RJ45 Ethernet provides efficient transfer, low-latency game experience, stable wired network.
- 1* UHS-Ⅱ SD/Micro SD card reader transfers high-definition video and vivid images at 312MB/s, and compatible with UHS-Ⅰdevices.
- 1* Combo 3.5mm mic/headphone jack for clear audio in and out.
Expand your Mac's view.This dock supports connecting up to Dual 6k@60Hz displays for most M-chip Pro/Max/M4 Base/Inter Macs.M1/M2/M3 Base models supports single 4K/6K. (Note: No triple display on macOS).
Unlock powerful multi-monitor setups on Windows.Connect up to Triple external displays with a Thunderbolt 5 Windows 11+ PC.Supports up to Single 8k@144Hz,Dual 2x8K@60Hz,or Triple 3x4K
Quickly import photos and videos with the high-speed UHS-II SD/Micro SD card reader. Supports speeds up to 312MB/s, ideal for rapid transfer of large files from cameras.

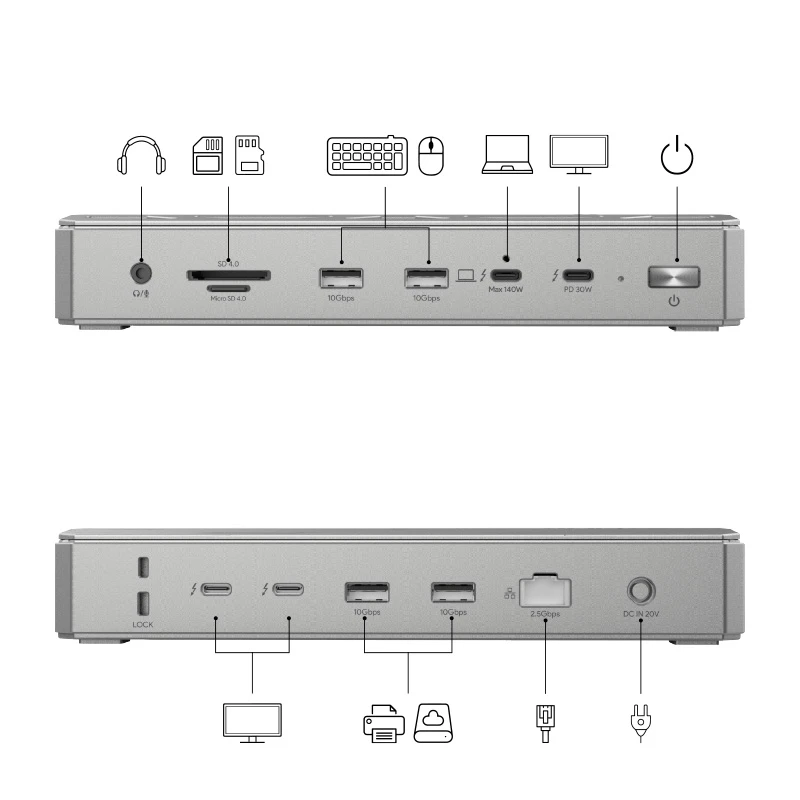

Provides 1x Thunderbolt 5 Host (MAX 140W PD), 3x Thunderbolt 5 Downstream (80Gbps data, with PD), and 4x USB-A 3.2 (up to 10Gbps). Connect all your peripherals.
Triple display requires a Thunderbolt 5 Windows 11+ PC. High resolutions/refresh rates(6K/8K, >60Hz) often need DSC support on both GPU and monitor. Compatibility varies by your laptop's port type and OS.
Please ensure that your laptop’s USB-C port supports power delivery (PD).
Also, make sure you are using the Thunderbolt 5 cable that comes with the dock.
1.Your laptop must be equipped with a Thunderbolt 5 port.
2.Please use the original thunderbolt 5 cable.
Thunderbolt 5 is a newer technology that was not available when Thunderbolt 3 devices were developed. As a result, most Thunderbolt 3 PCs do not support Thunderbolt 5 docking stations.
Due to the bandwidth limitation of Intel Thunderbolt, the maximum speed is limited about 1300-2000Mbps.
This Thunderbolt 5 docking station can reach up to 8K resolution, and the resolution and refresh rate of the docking station's video downstream ports depends on the graphics card capability of your computer.
It is normal for the dock to generate heat while operating. For better heat dissipation, we recommend placing the dock in a well-ventilated, open area.
