Thunderbolt™ 4 Quad Display Docking Station

Model: WL-UTD41-C

-Two video streams support dual 4K@60Hz display. Two video ports in the same video stream could not work at the same time. Three TBT4 downstream ports support single 8K@30Hz, and dual 4K@60Hz display. Two video streams combined with any two downstream TBT4 ports can work for quad 4K@60Hz video output. Single 8K@60Hz is enabled for computers with DP 1.4 or higher and DSC.
-One RJ45 port supports 2.5G Ethernet, and backward compatible with 1000/100/10Mbps network.
-Two USB-A ports data transfer speed up to 10Gbps. Two USB-A ports data transfer speed up to 5Gbps.
-One integrated SD V4.0 Card Reader with SD slot supports UHS-II theoretical bus speed up to 312MB/s, and is also backward compatible with SDXC, SDHC, and standard SD cards.
-One 3.5mm Audio/Mic interface supports CTIA/OTMP headphones and MIC.
-One Kensington lock prevents theft of the device.
Thunderbolt™ 4 Quad Display Docking Station
96W PD/ 40Gbps Data Transfer/ Quad Display modes/ Thunderbolt™ 4

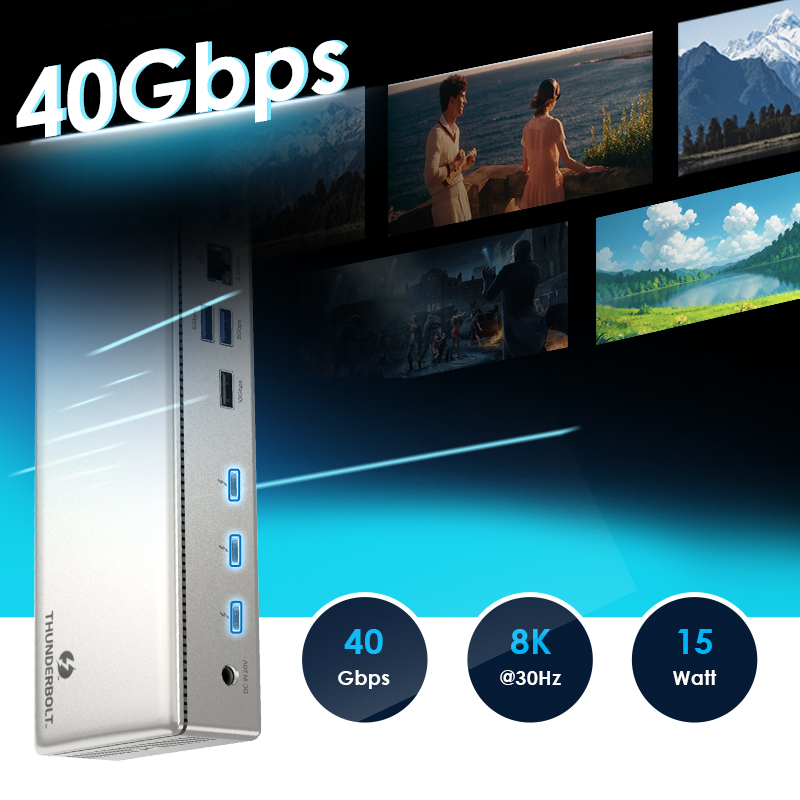

Thunderbolt 4 provides High-Speed Data Transmission
Equipped with Thunderbolt 4, it supports syncing a 3GB large file in just 1 second. Experience ultra-fast data transfer for high-definition videos, large project files and heavy workloads, greatly improving your productivity and workflow efficiency.
Versatile Display Modes
Equipped with 2 Thunderbolt 4 ports and 2 DP/HDMI ports, it offers versatile display modes including extend mode and mirror mode, allowing you to flexibly build a multi-screen setup for efficient multitasking, presentations and content creation.

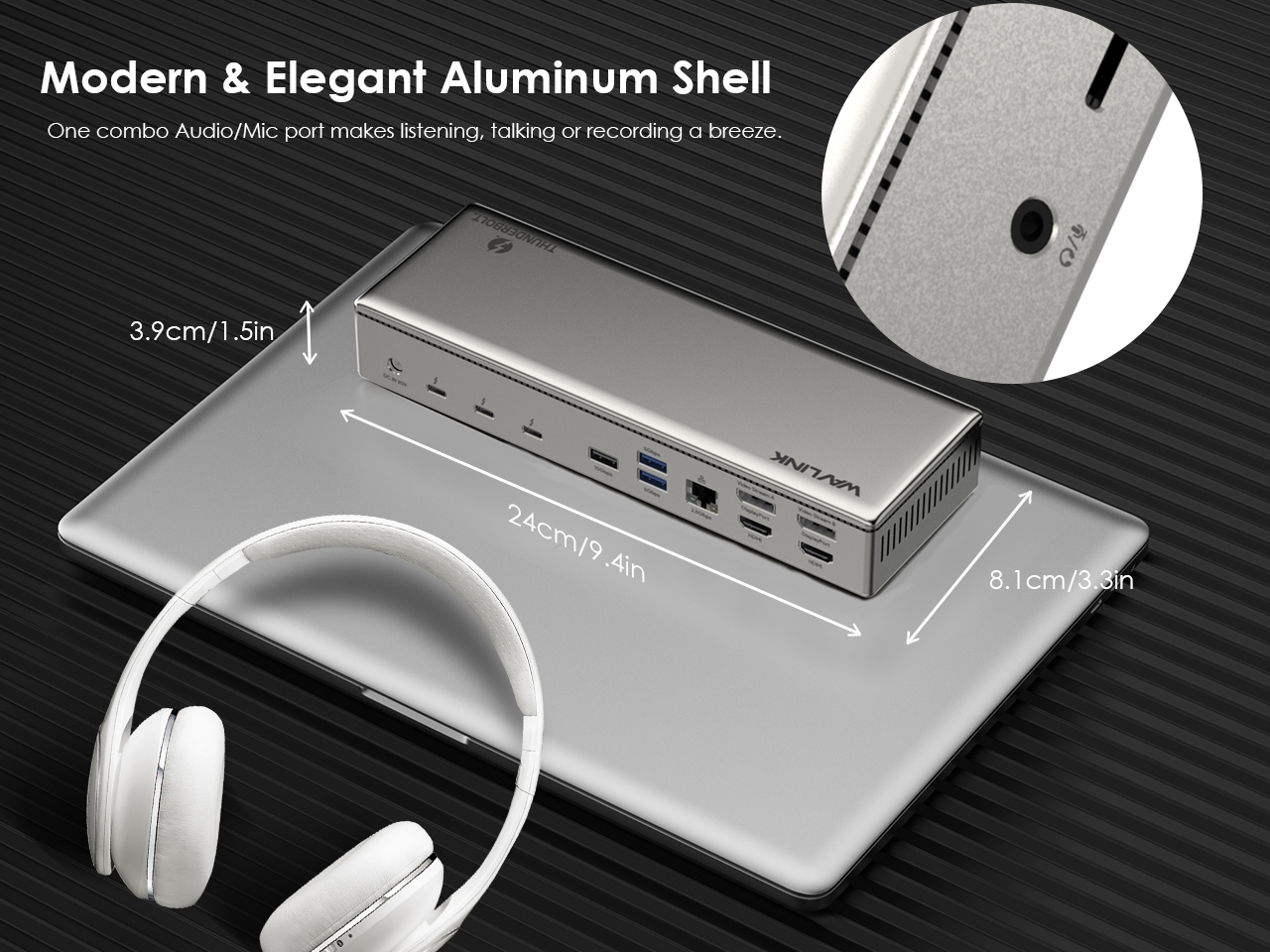

Premium Aluminum Body & Combo Audio/Mic Port
Crafted with a modern and elegant aluminum shell, it delivers premium texture and excellent heat dissipation in a sleek, minimalist design. The combo audio/mic port makes listening, talking, and recording effortless, catering to all your needs for entertainment, communication, and work in one convenient solution.

SD V4.0 Card Reader
Features a high-speed SD V4.0 card reader that runs 2.5X faster than SD V3.0, greatly reducing time spent on copying and transferring large-capacity media files, ensuring efficient read-write performance for photography and videography professionals.

Wide Compatibility
This docking station is fully compatible with a wide range of flagship devices and mainstream systems. It works perfectly with MacBook Pro, MacBook Air, Intel NUC, Dell XPS 13 9350, HP EliteBook Folio G1 and many other devices. For operating systems, it supports PCs with USB4 / Thunderbolt™ 4 / Thunderbolt™ 5 port running Windows 10/11, as well as Mac devices with Thunderbolt 3/4 ports running macOS 11 or later. It ensures cross-device usability without hassle and adapts to various office and creation scenarios.

Specifications

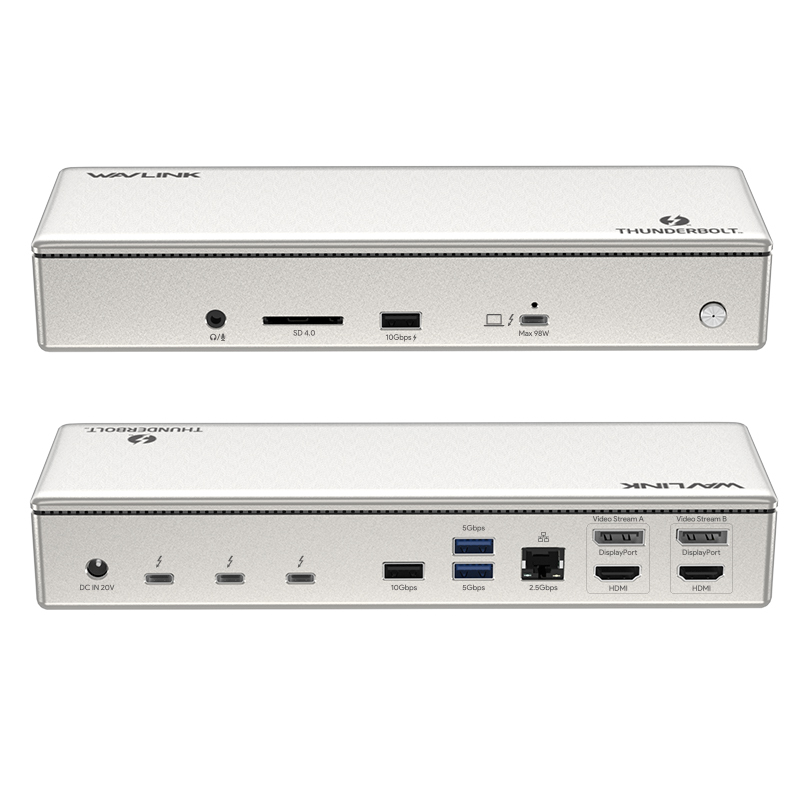

Item Name Thunderbolt™ 4 Quad Display Docking Station
Model ThunderDock Quattuor
Material ABS plastic
Size 240 x 81.3 x 29.5 mm
Connection To Host 80cm Thunderbolt 4 Cable
Plug & Play 1) Need driver for 2xHDMI & 2xDisplayPort
2) Plug & Play for rest functions
USB Power Delivery Supports USB PD 3.0 96Watt Power Delivery

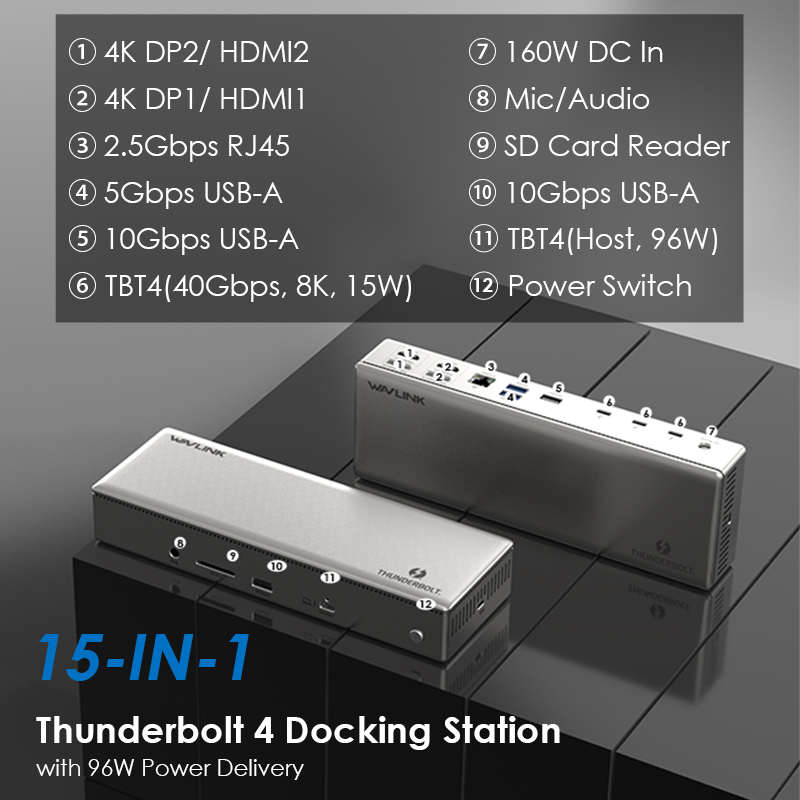

USB Port 1 x Thunderbolt 4 40Gbps upstream 96W PD
3 x Thunderbolt 4 (1 for 40Gbps, 2) video output, or 3) 15W PD charging
2 x USB-A 10Gbps ports to extend more connectivity to USB devices
2 x USB-A 5Gbps ports to extend more connectivity to USB devices
Video Ports 2 x HDMI ports
2 x DisplayPort
Audio Integrated TRRS 4-pole phone jack
Card Reader Integrated SD V4.0 Card Reader
Ethernet Speed 1x RJ45 10/100/1000/2500Mbps Ethernet
LED 1 x Power LED
Button ON/OFF button to turn the docking station on and off
Lock Kensington lock
Power Adapter 1x DC20V/10A 160Watt (Brick Style)
Operating Systems Microsoft Windows 10/11
Apple Mac OS 11 or later
