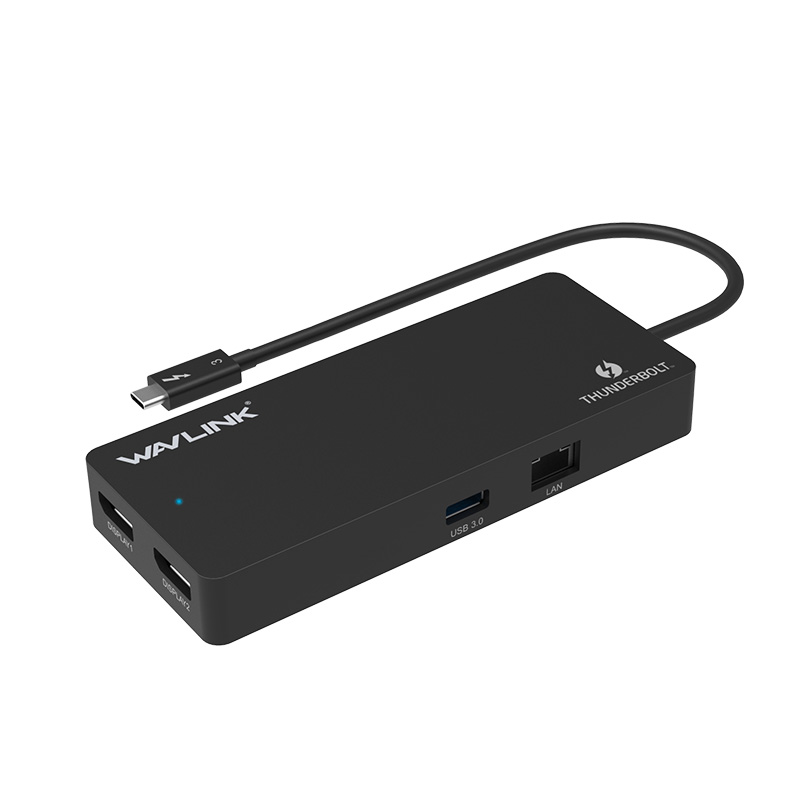

Thunderdock SE/Thunderdock SE III - Thunderbolt™ 3 Dual 4K Mini Docking Station
  • Thunderdock SE/Thunderdock SE III - Thunderbolt™ 3 Dual 4K Mini Docking Station 1
  • Thunderdock SE/Thunderdock SE III - Thunderbolt™ 3 Dual 4K Mini Docking Station 2
  • Thunderdock SE/Thunderdock SE III - Thunderbolt™ 3 Dual 4K Mini Docking Station 3
  • Thunderdock SE/Thunderdock SE III - Thunderbolt™ 3 Dual 4K Mini Docking Station 4
  • Thunderdock SE/Thunderdock SE III - Thunderbolt™ 3 Dual 4K Mini Docking Station 5

Thunderdock SE/Thunderdock SE III - Thunderbolt™ 3 Dual 4K Mini Docking Station

Model: WL-UTD04/WL-UTD04H  Magazine Review

  • Supports Dual 4K/ Single 5K@60Hz.
  • USB-A 3.0 port for easy access to any USB devices.
  • RJ45 Gigabit Ethernet provides secure, reliable high speed wired networks.
  • Compact and portable design, plenty of ports on one dock brings users the enjoyment of fastness, steadiness and effectiveness.
  • Attached 0.5m Thunderbolt pigtail cable (Intel Certified) ensures the transfer rate up to 40Gbps - 8X faster than USB 3.0 data transmission without any lag and distortion.
Thunderbolt™ 3 Dual 4K Mini Docking Station


Small and portable

Easy to take anywhere with the compact and portable design, plenty of ports on one dock brings users the enjoyment of fastness, steadiness and effectiveness.

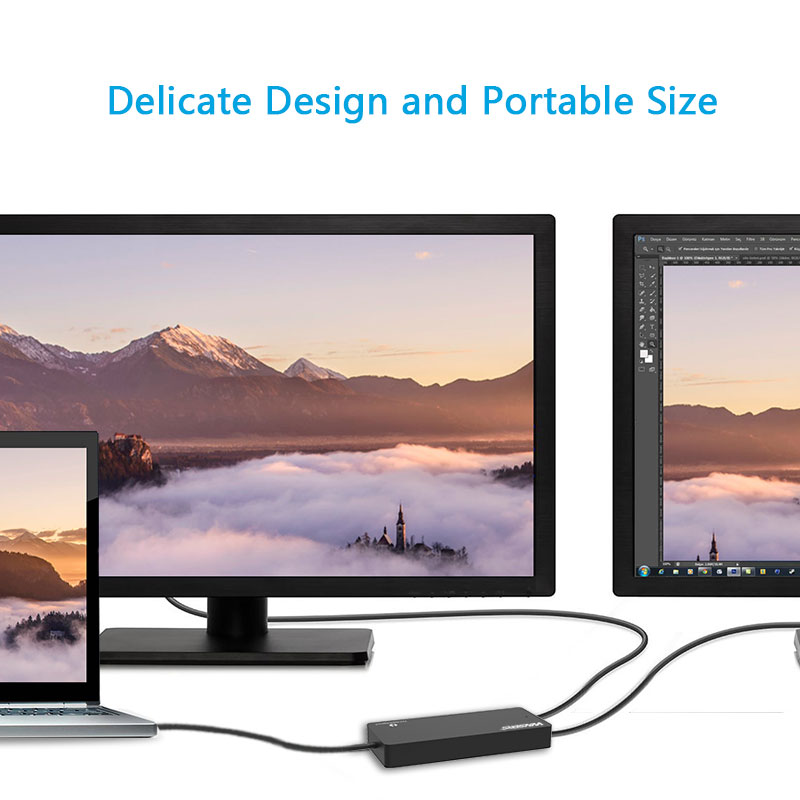

Dual 4K Displays

Connect your HD monitors to DP/HDMI (DP to HDMI adapters) ports respectively; then you can view HD images on one or two 4K screens (4096×2160@60Hz) so as to extent screens, play video games, watch clips or work on important projects and so on.

One Station in Hand Worth all Demands

Plenty of ports on one dock offers a wide range of use for either working or gaming, in addition, issues such as repeated damage caused to dock is now improved to ensure a longer lifespan.

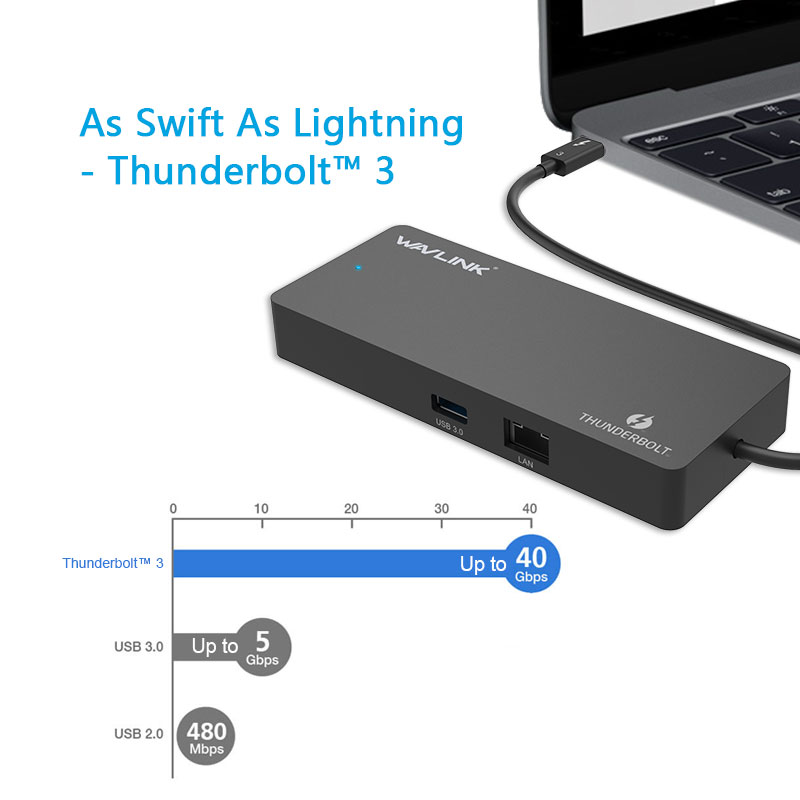

As Swift As Lightning - Thunderbolt™ 3

Thunderbolt™ 3 is a single-cable solution, delivering the fastest connection to any Thunderbolt™ 3 and Type-C based devices. At the moment, it is the fastest port available with data transfer up to 40Gbps, 8x more bandwidth than USB3.0 for video and data.

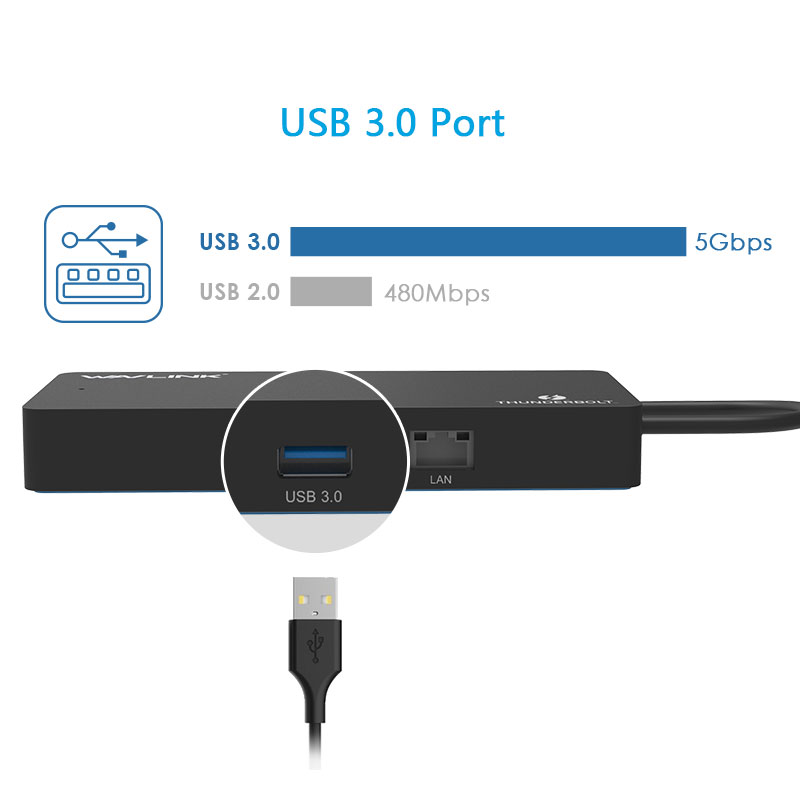

USB 3.0 Port

In contrast with traditional USB ports, USB 3.0 port is bi-directional that reads and writes data simultaneously with maximum speed of 5Gbps.

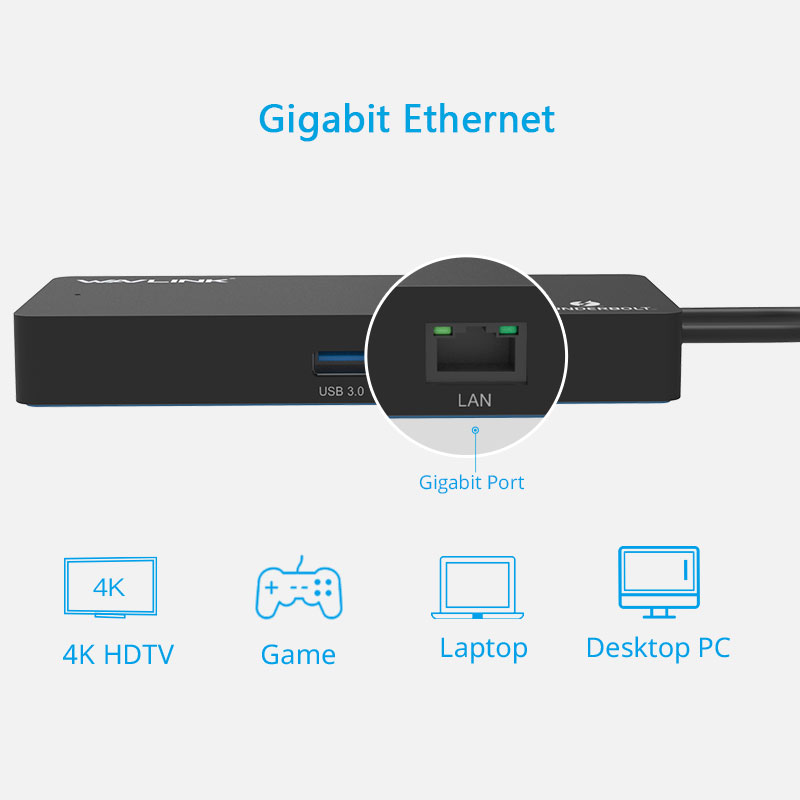

Gigabit Ethernet

Connect to your laptop with RJ45 Gigabit Ethernet, your multitasking online will be amazingly sped up compared to regular Ethernet port. Theoretically speaking, it supports up to 1 gigabit/second (1000Mbps), thus bandwidth capacity would be largely enhanced.

  • TECHNICAL SPECIFICATIONS
  • Model

    UTD04/UTD04H

  • Ports

    1 x Thunderbolt™ 3 port

    2 x DisplayPort(DP1.2)

    1 x USB 3.0

    1 x RJ45 Gigabit Ethernet

  • LED

    Blue

  • Power Consumption

    12W MAX.

  • Rated Volt./ Freq./Current

    DC5V / 3A Max

  • DIMENSIONS
  • Unit Dimensions

    150mm x 62mm x 21mm ( L x W x H )

  • Housing Material

    ABS Plastic

  • Shell Color

    Black

  • FUNCTION
  • Working Standards

    USB3.0 A Port: 5Gbps

    RJ45: Gigabit Ethernet

    DP: Dual 4K/60Hz or Single 5K/60Hz.

  • Operating System Support

    Microsoft Windows 10

    Apple Mac OS X

    Thunderbolt™ 3 system

  • Max. Pixels

    Dual 4K/ Single 5K@60Hz

  • PACKAGE
  • In The Box

    1 x Thunderbolt™ 3 Dual 4K Mini Docking Station

    1 x Quick Start Guide

    1 x DP to HDMI Adapter (Only included in UTD04H)
