WAVLINK Dual 4K USB-C Dock with 125W PD, 2.5G Ethernet, High-Speed USB and SD/Micro SD
  • WAVLINK Dual 4K USB-C Dock with 125W PD, 2.5G Ethernet, High-Speed USB and SD/Micro SD 1
  • WAVLINK Dual 4K USB-C Dock with 125W PD, 2.5G Ethernet, High-Speed USB and SD/Micro SD 2
  • WAVLINK Dual 4K USB-C Dock with 125W PD, 2.5G Ethernet, High-Speed USB and SD/Micro SD 3
  • WAVLINK Dual 4K USB-C Dock with 125W PD, 2.5G Ethernet, High-Speed USB and SD/Micro SD 4
  • WAVLINK Dual 4K USB-C Dock with 125W PD, 2.5G Ethernet, High-Speed USB and SD/Micro SD 5

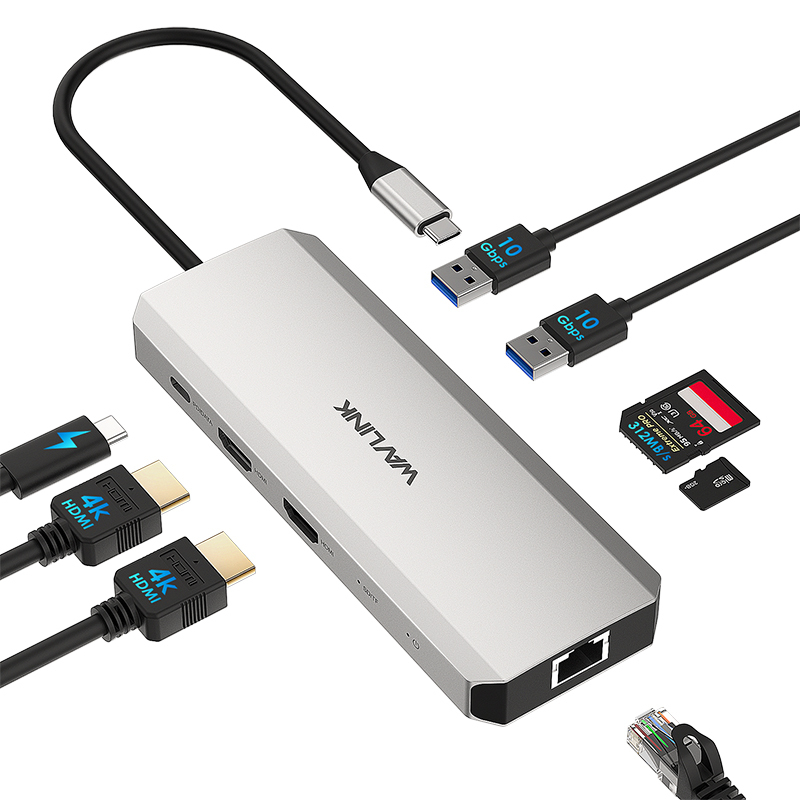

WAVLINK Dual 4K USB-C Dock with 125W PD, 2.5G Ethernet, High-Speed USB and SD/Micro SD

Model: WL-UMD327

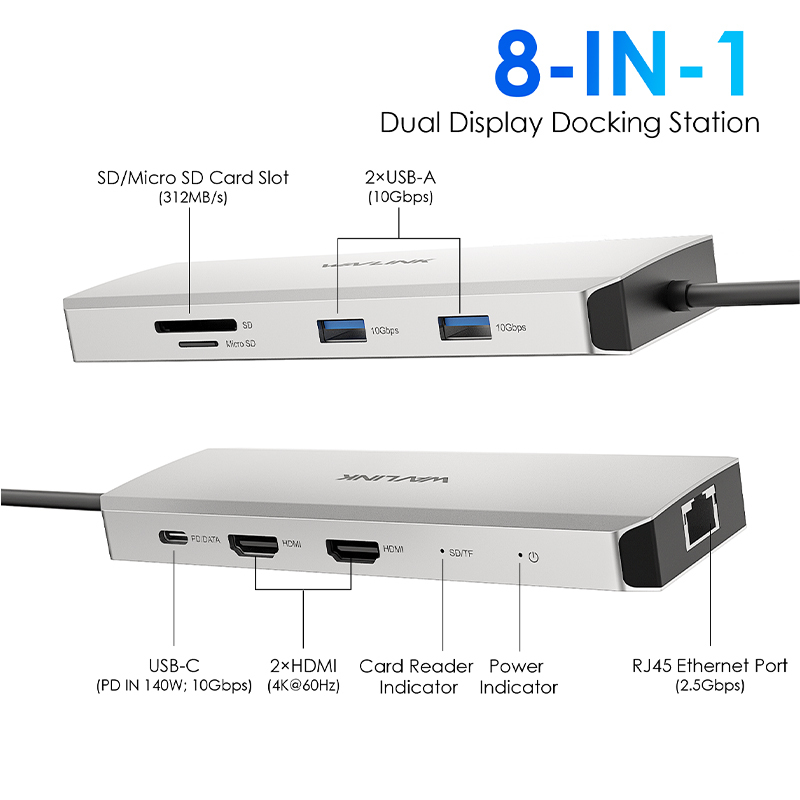

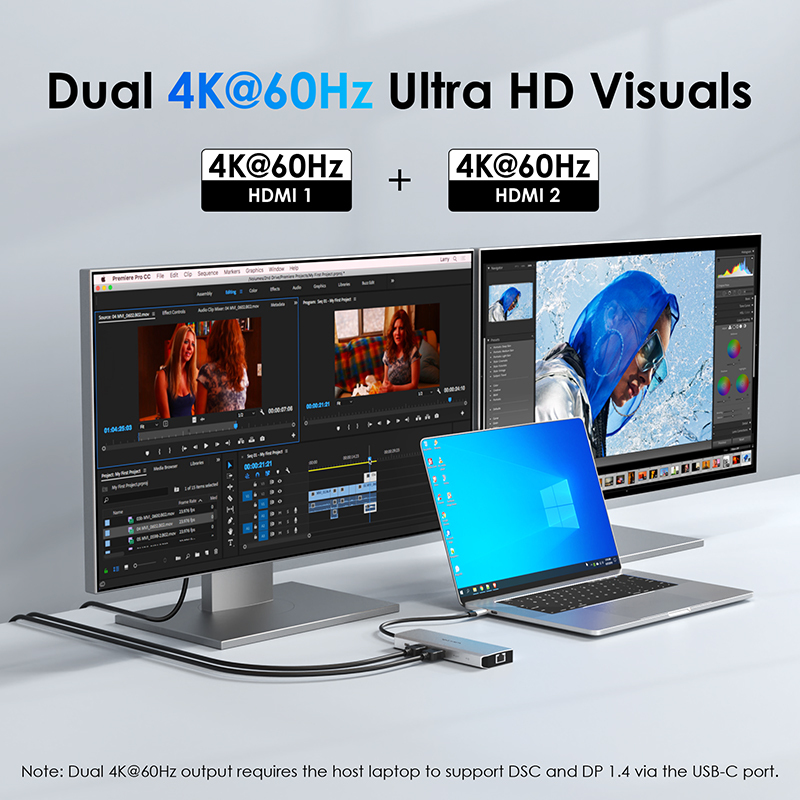

-2 x HDMI ports support dual 4K@60Hz display output. If the host support DSC and DP 1.4 via type-c port.
-1 x USB-C port offers 140W power delivery to the docking station and 10Gbps data transmission.
-Integrated SD V4.0 card reader with SD/Micro SD slot supports UHS-II theoretical bus speed up to 312MB/s.
-2 x USB-A ports support 10Gbps transmission speed.
-1 x RJ-45 port allows a 2.5G Gigabit wired network.

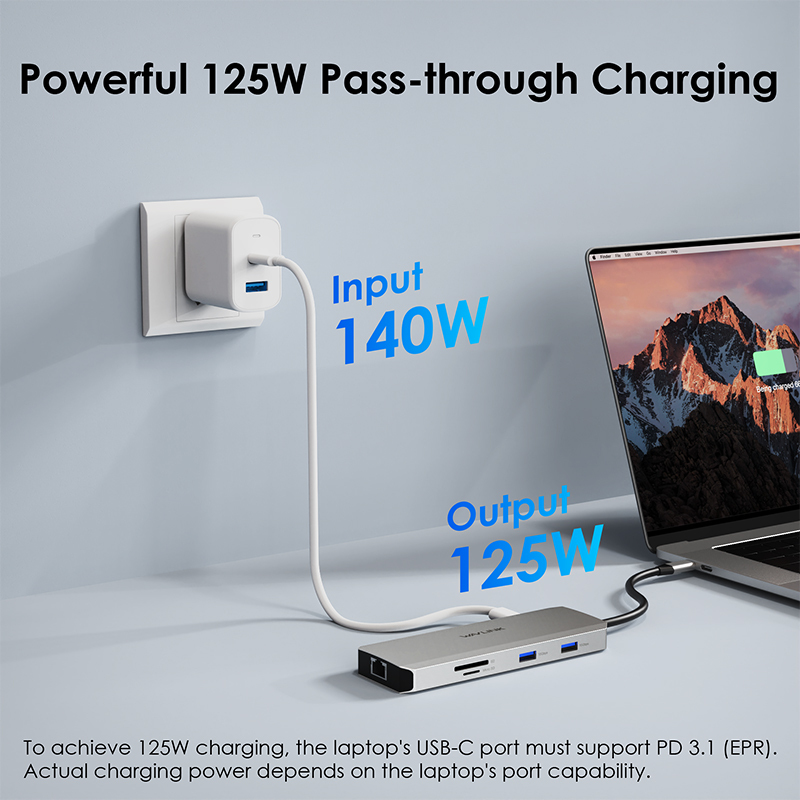

-1 x USB-C connector supports 125W upstream charging for your laptop.

  • Overview

  • Specifications

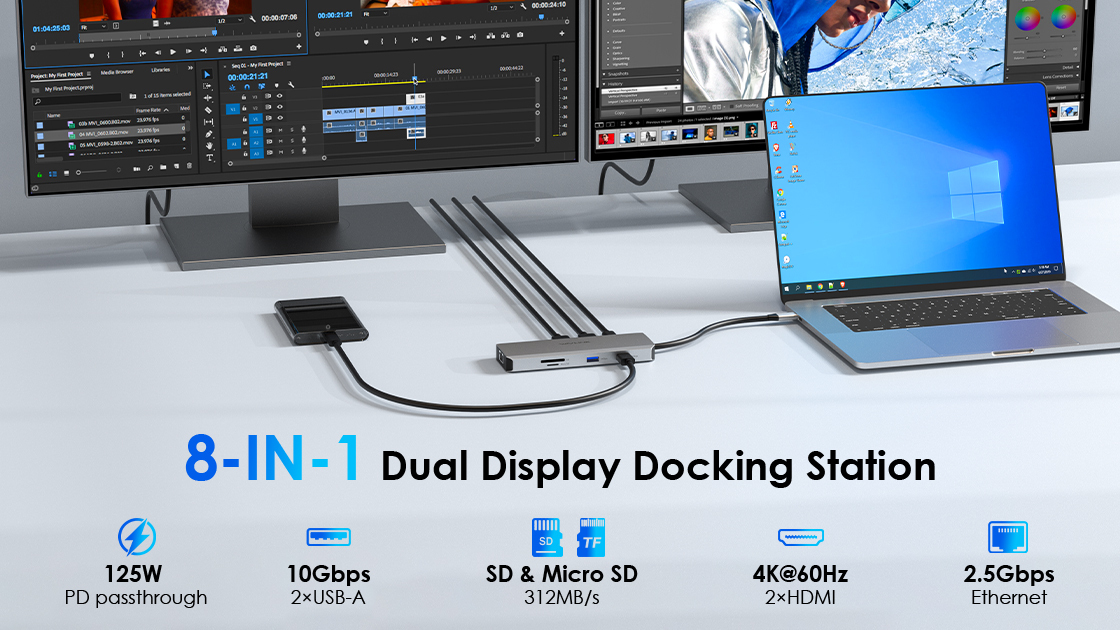

9-in-1 Triple Display Docking Station with PD 3.1 Charging
All-in-one USB-C dock for dual 4K displays, speed, and power

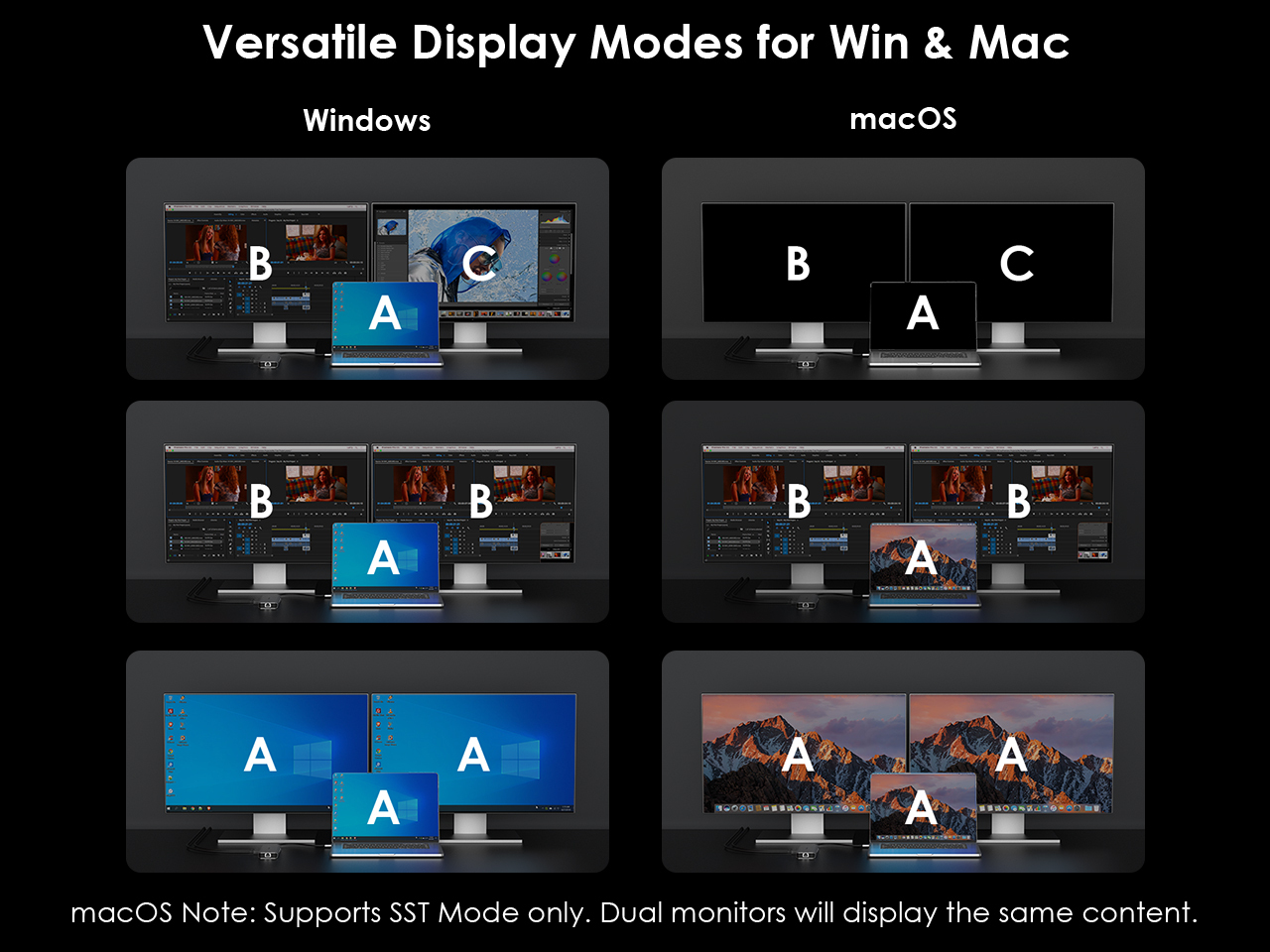

Flexible Multi-Screen Setup
Works with multiple monitors—Windows can extend screens freely, macOS supports single-screen extension. Easily manage your displays for work or creative projects, making full use of every inch of screen space.
High-Speed Network Connectivity

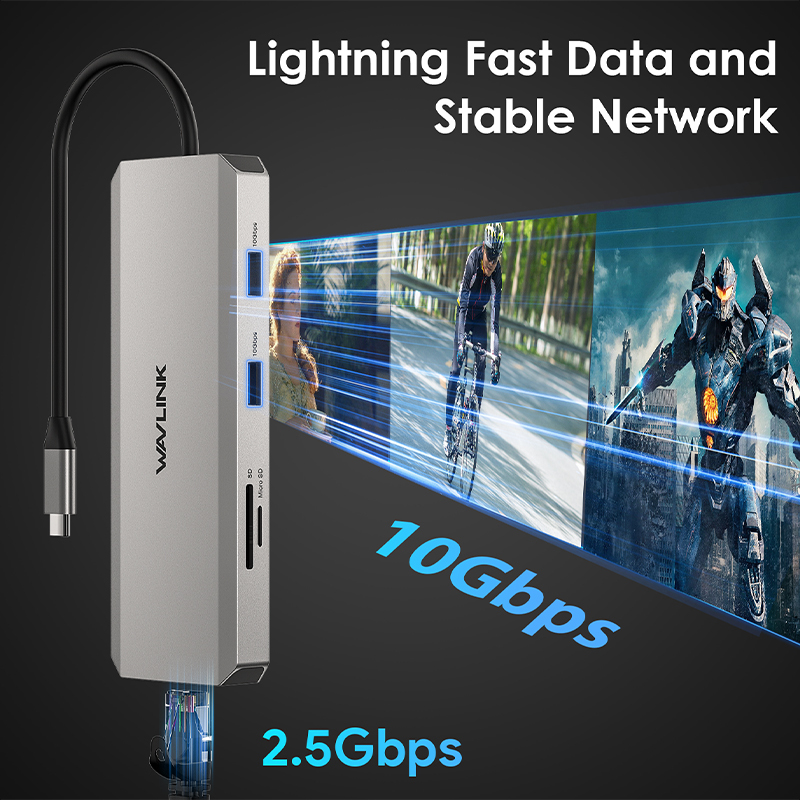

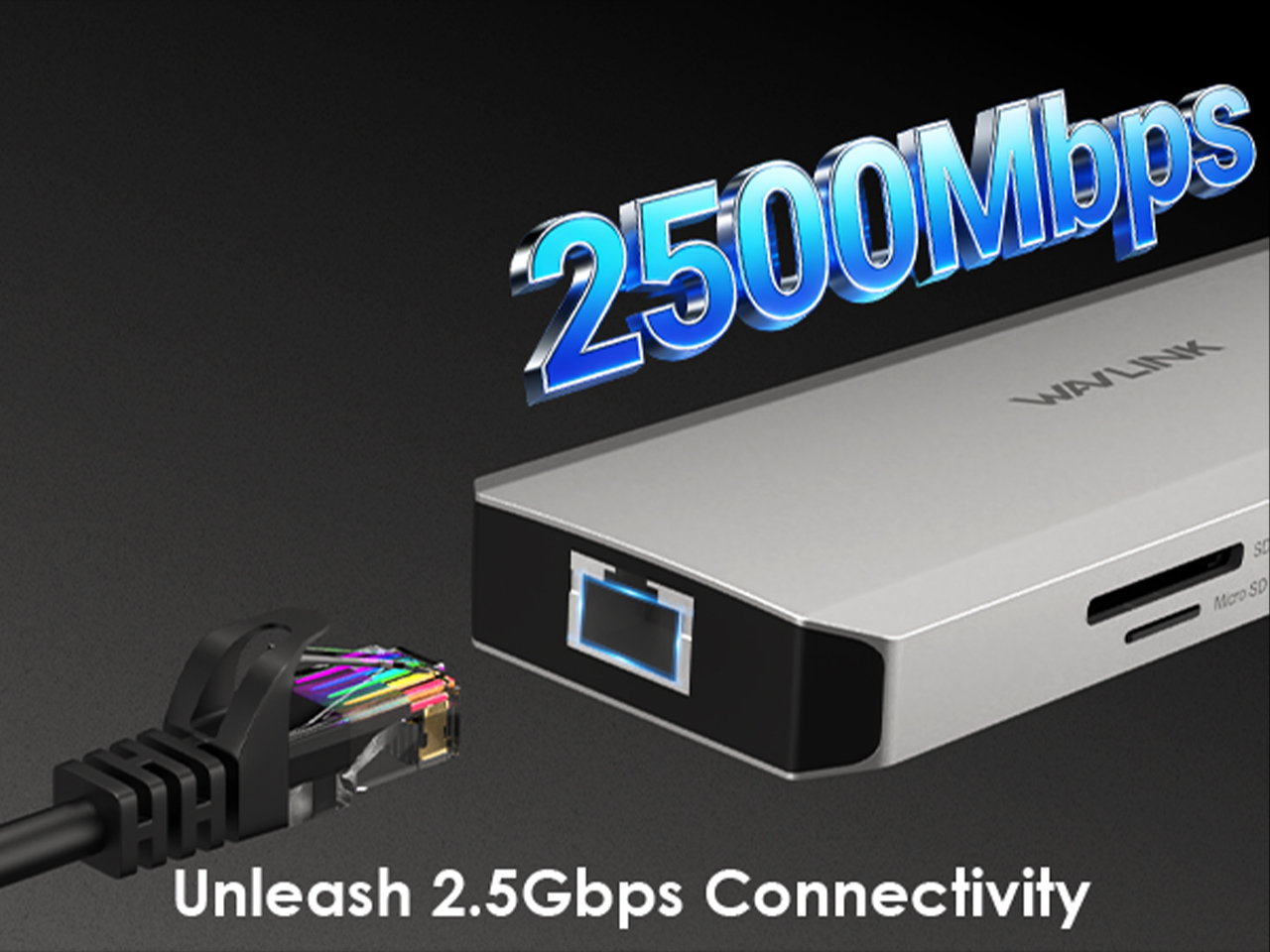

Equipped with a 2.5Gbps Ethernet port for fast downloads, uploads, and large file transfers. Reliable and stable connection ensures smooth remote work, HD video conferencing, and multitasking performance.

Blazing-Fast File Transfers

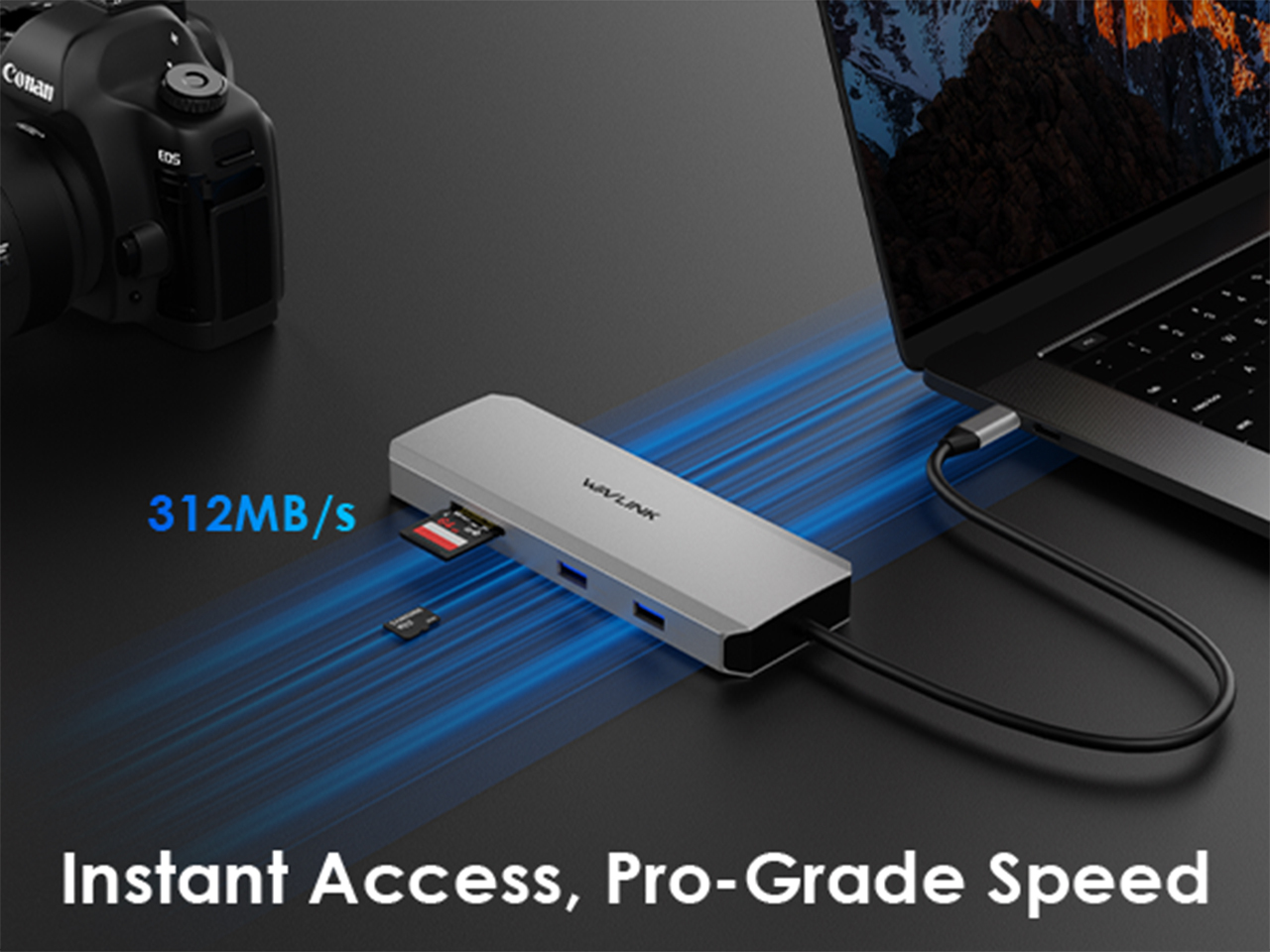

Enjoy ultra-fast 312MB/s transfer speeds with SD and Micro SD cards. Perfect for photographers, videographers, or anyone handling large files—access, store, and move data instantly and effortlessly.

Seamless Device Compatibility
Supports Windows, macOS, Linux, ChromeOS, iPadOS, and Android (OTG). Compatible with all SD and Micro SD cards and popular laptops like MacBook, Dell XPS, HP Spectre, Lenovo ThinkPad, and more.

Maximize Your USB-C Port

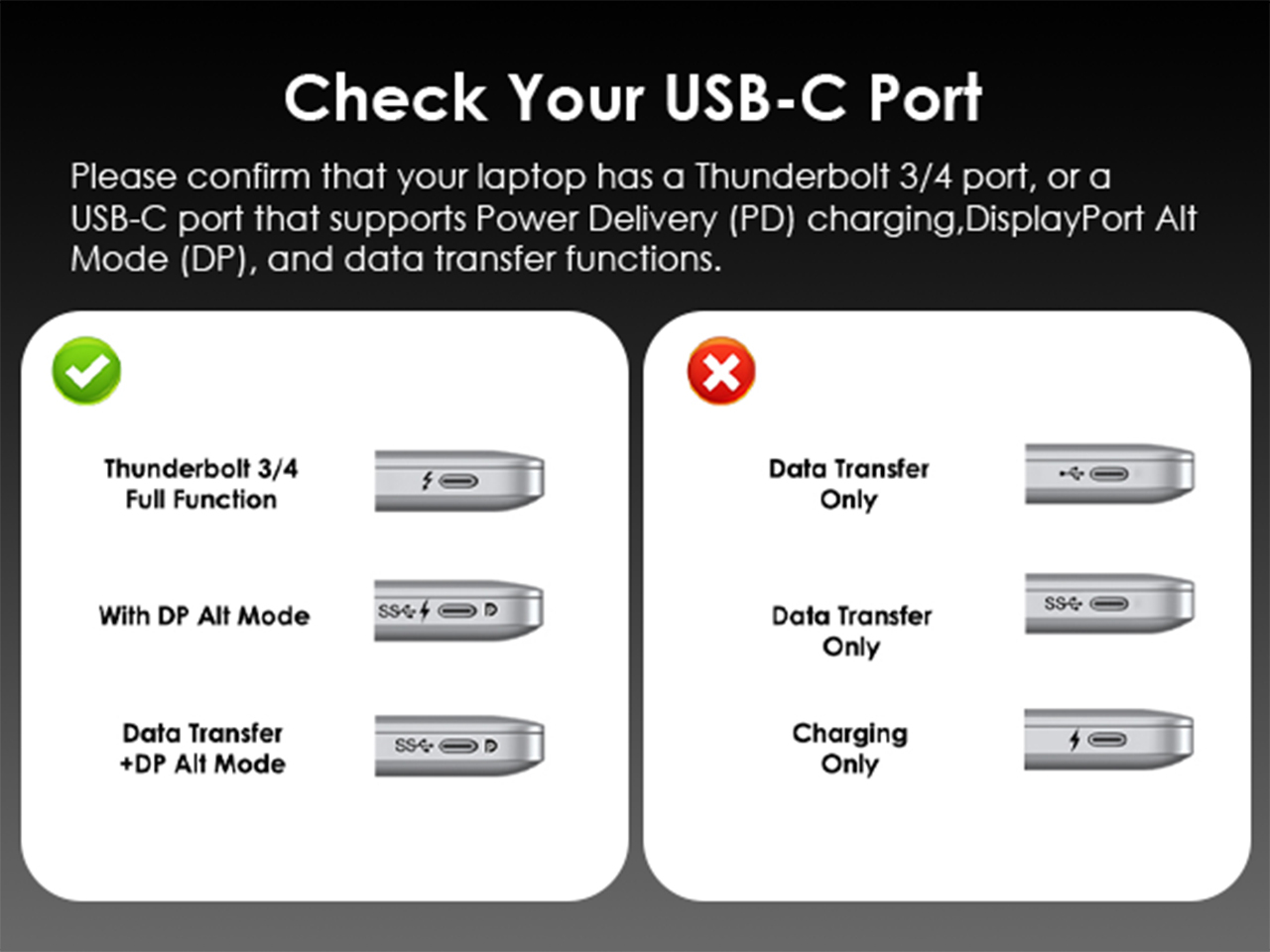

Ensure your laptop’s USB-C port supports video output (DisplayPort Alt Mode / DP) and data transfer. Thunderbolt 3/4 ports provide full functionality, while some ports may only handle data or charging.

Specifications

Connection To Host 1 x USB-C attached cable 25cm
Plug & Play Driver-free Plug and Play
USB Power Delivery 1 x USB-C for USB3.1 PD pass-through
PD IN 140W, charge laptop up to 125W
USB Port 2 x USB-A port speed up to 10Gbps
1 x USB-C port speed up to 10Gbps
Video Outputs HDMI (2.0)
Card Reader SD V4.0 / Micro SD Card Reader slot data transfer speed up to 312MB/s
Ethernet Speed 1x RJ45 10/100/1000/2.5G Ethernet
Operating Systems Microsoft Windows 7 / 8 / 10 / 11
Apple Mac OS 10.8 or later
Product Dimensions mm (W x D x H)
Material Aluminum housing
Working Environment Operation temperature: 0°C~40°C
Storage temperature: -10~70°C
Operation RH (relative humidity): 10%~90%, Noncondensing
Storage RH: 10%~90%, Noncondensing
In the box 1 x USB-C Triple Display MST Docking Station
1 x Quick start guide
DISPLAY RESOLUTION
Scenarios / Systems Windows macOS
Single Display 4K@60Hz (DP1.4)
4K@30Hz (DP1.2)		 4K@60Hz
Dual Display Dual 4K@60Hz (DP1.4 DSC)
4K@60Hz+4K@30Hz (DP1.4 WITHOUT DSC)
Dual 1080@60Hz (DP1.2)		 Dual 4K@60Hz (Mirror)
*Note:
- When connected with Apple computer, the product supports 1 external monitor.
- 4K: refers to 3840 x 2160
- MacOS Dual Display only supports mirror mode
