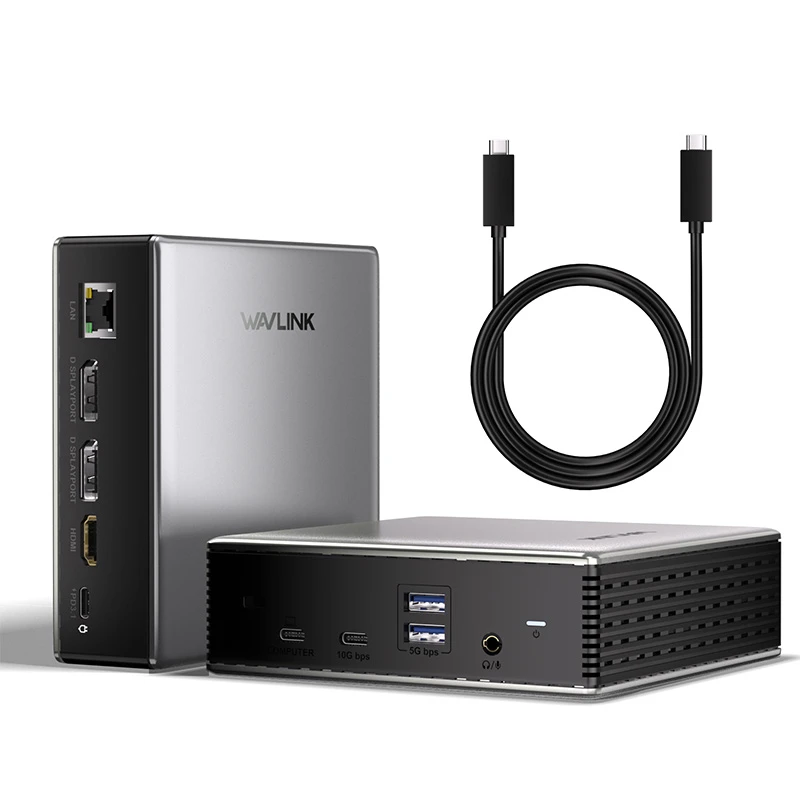

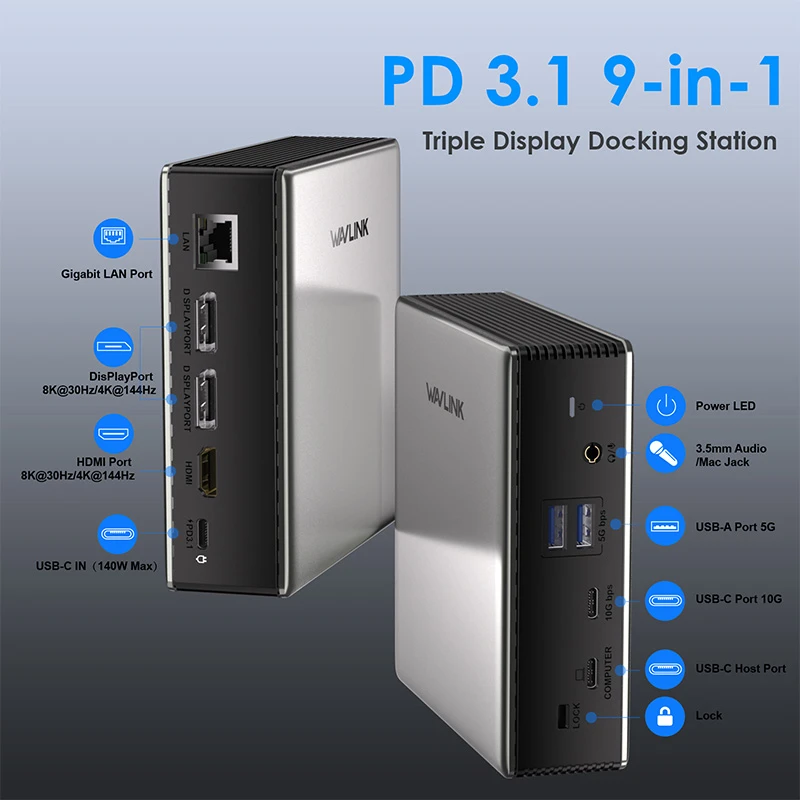

Model: WL-UMD29
- Three video ports(1*HDMl+2*DisplayPort) work for triple display, and the resolution is up to single 8K(7680x4320)@30Hz or 4K(3840x2160)@144Hz.
- One USB-C PD 3.1 IN provides 140W power delivery for the dock, and supports 125W upstream charging for the Host.
- One Gigabit Ethernet port provides stable and high speed network, and is backward compatible with 10/100Mbps network.
- Two USB-A transfer speed up to 5Gbps and are backward compatible with USB 2.0/1.1.
- One USB-C transfers speed up to 10Gbps and is backward compatible with USB 3.0/2.0/1.1.
- One integrated TRRS 4-pole phone jack works for microphone input and earphone output.

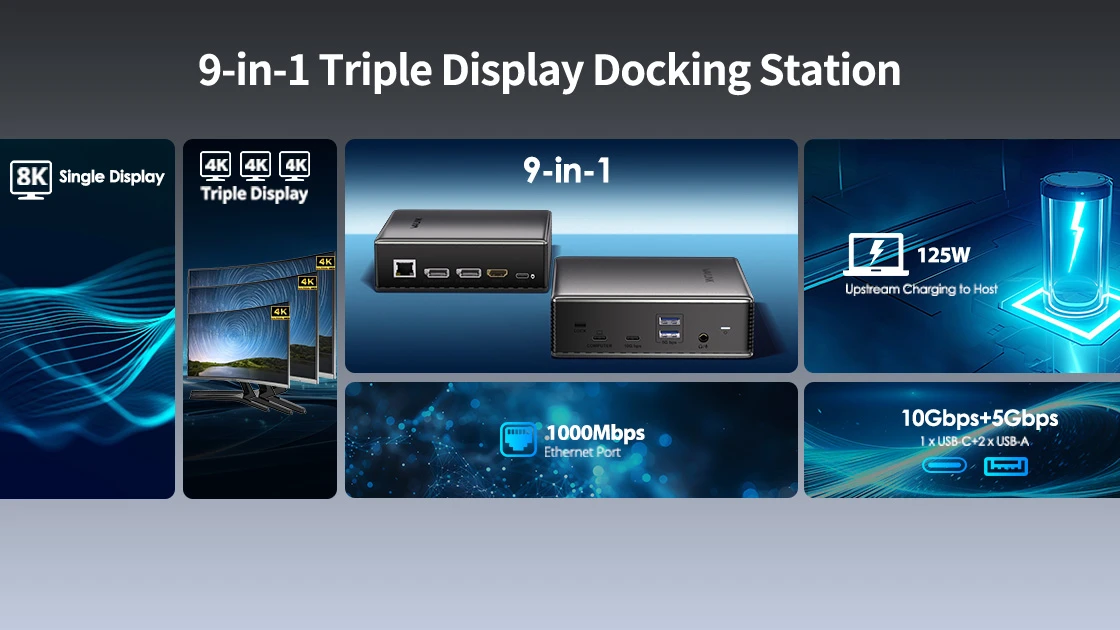

DP,HDMI, PD3.1, Gigabit LAN,10Gbps USB-C,5Gbps USB-A,3.5mm Audio &Mic

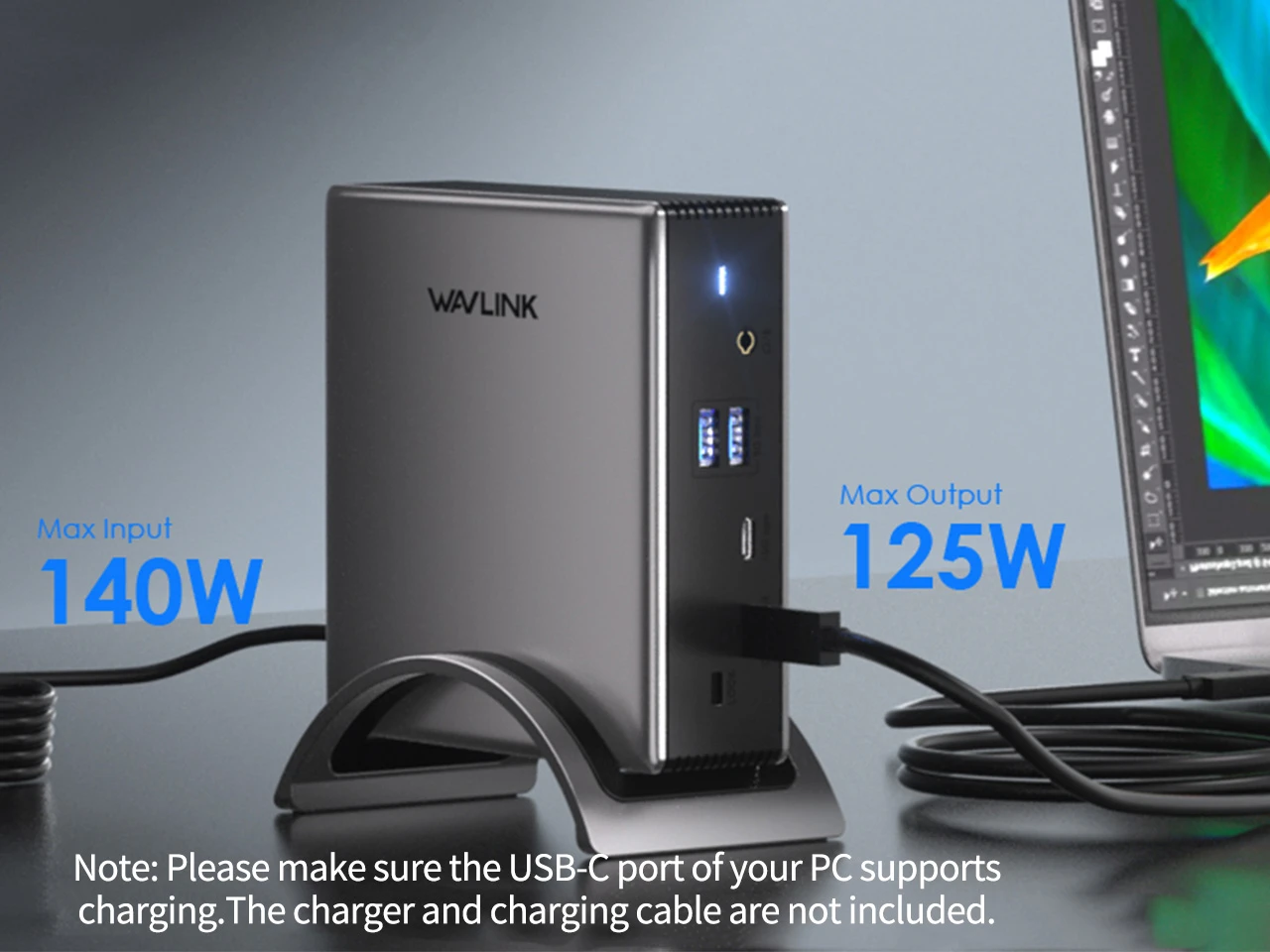

Equipped with the latest PD 3.1 technology,this dock supports up to 140W input put 125W output,providing fast charging for your laptop.

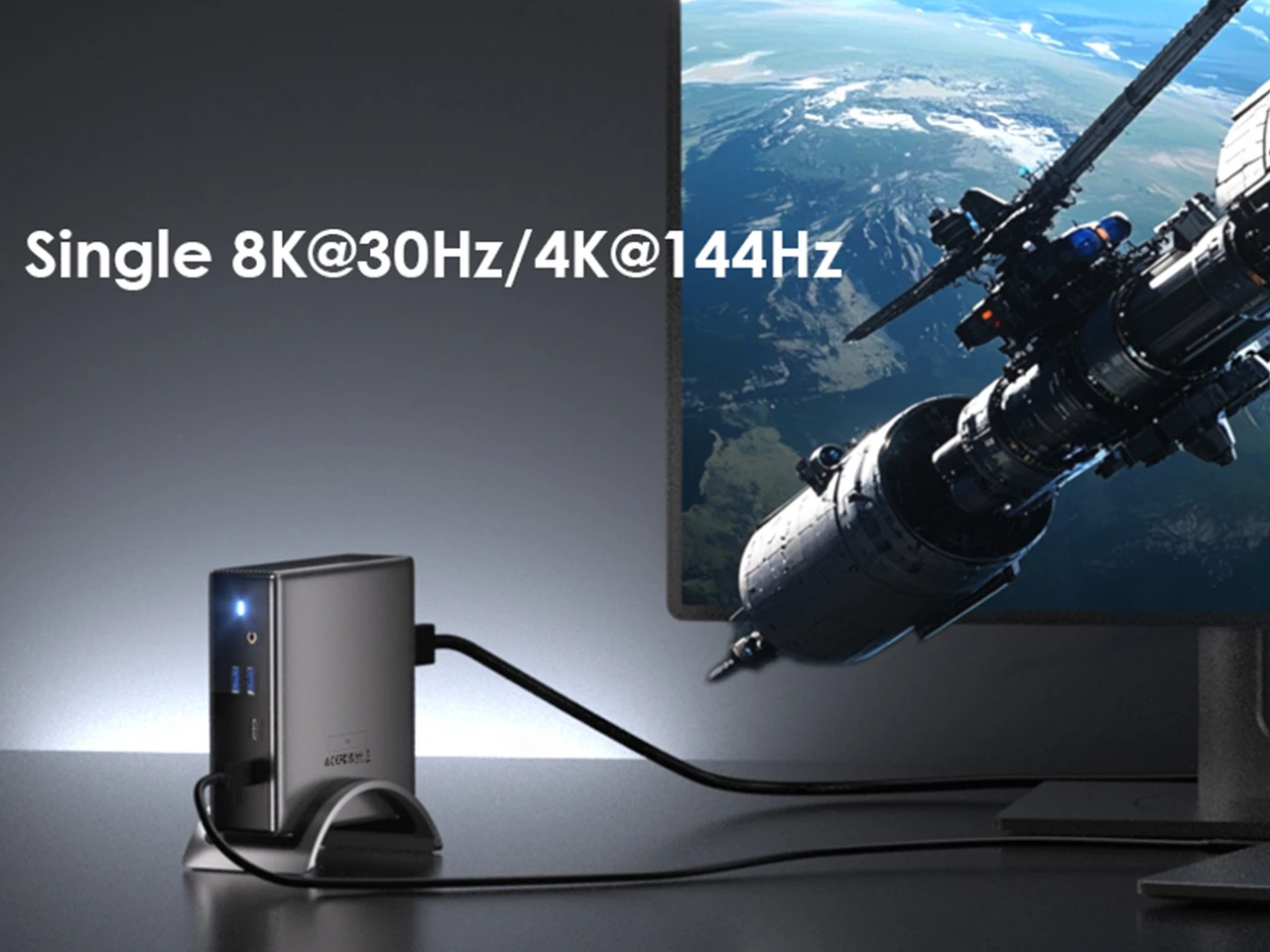

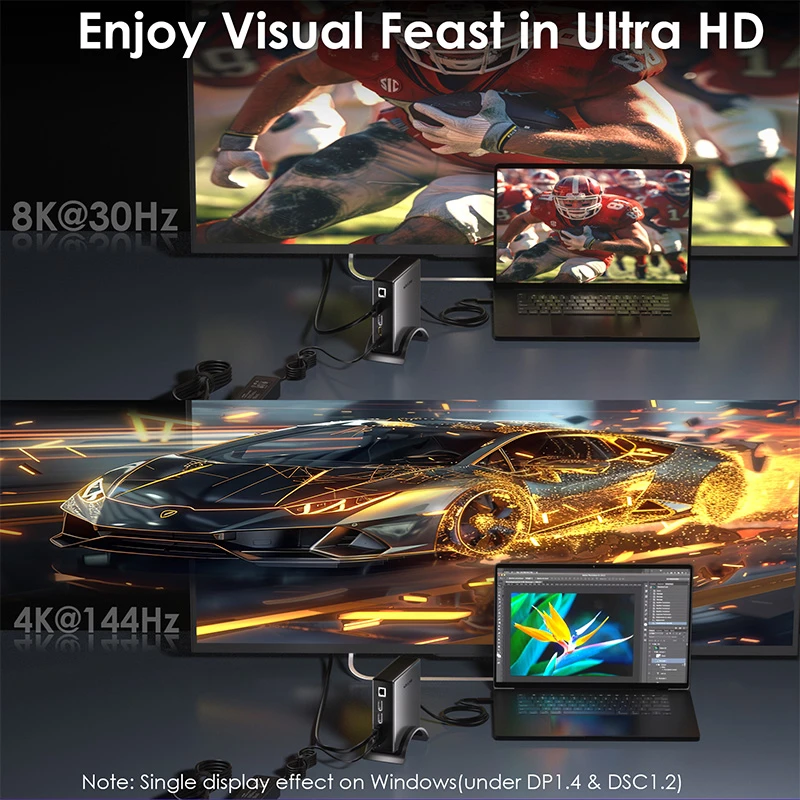

Experience breathtaking visuals with DP 1.4 & DSC 1.2 support, delivering 8K@30Hz or 4K@144Hz on a single external display. A nice choice for gamers, video editors, and designers seeking ultra-clear visuals.

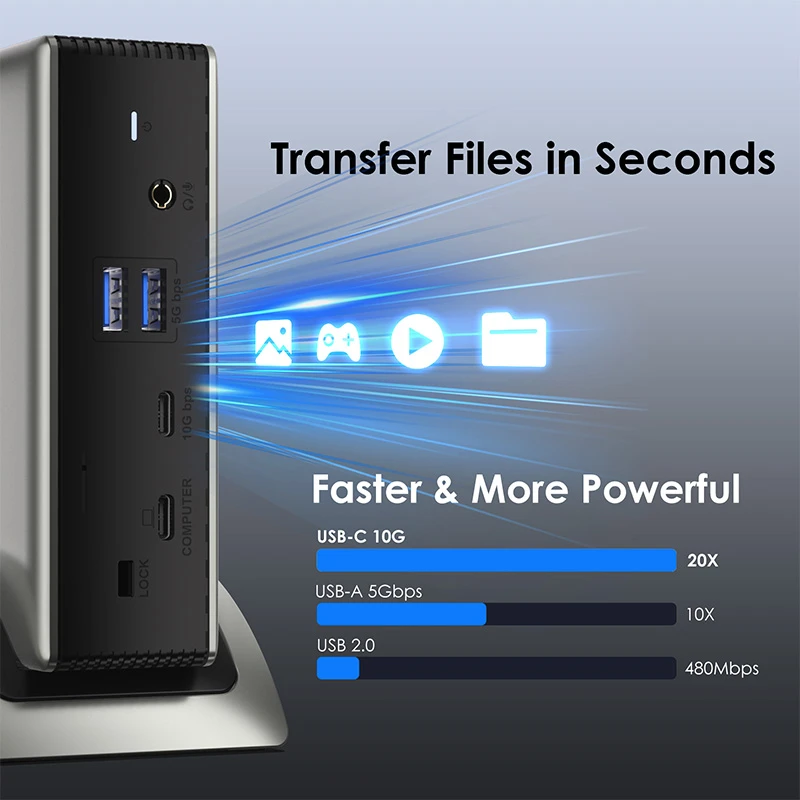

This dock features 2 x 5Gbps USB-A and 1 x 10Gbps USB-C ports, which can transfer data in seconds and greatly level up your work efficiency.

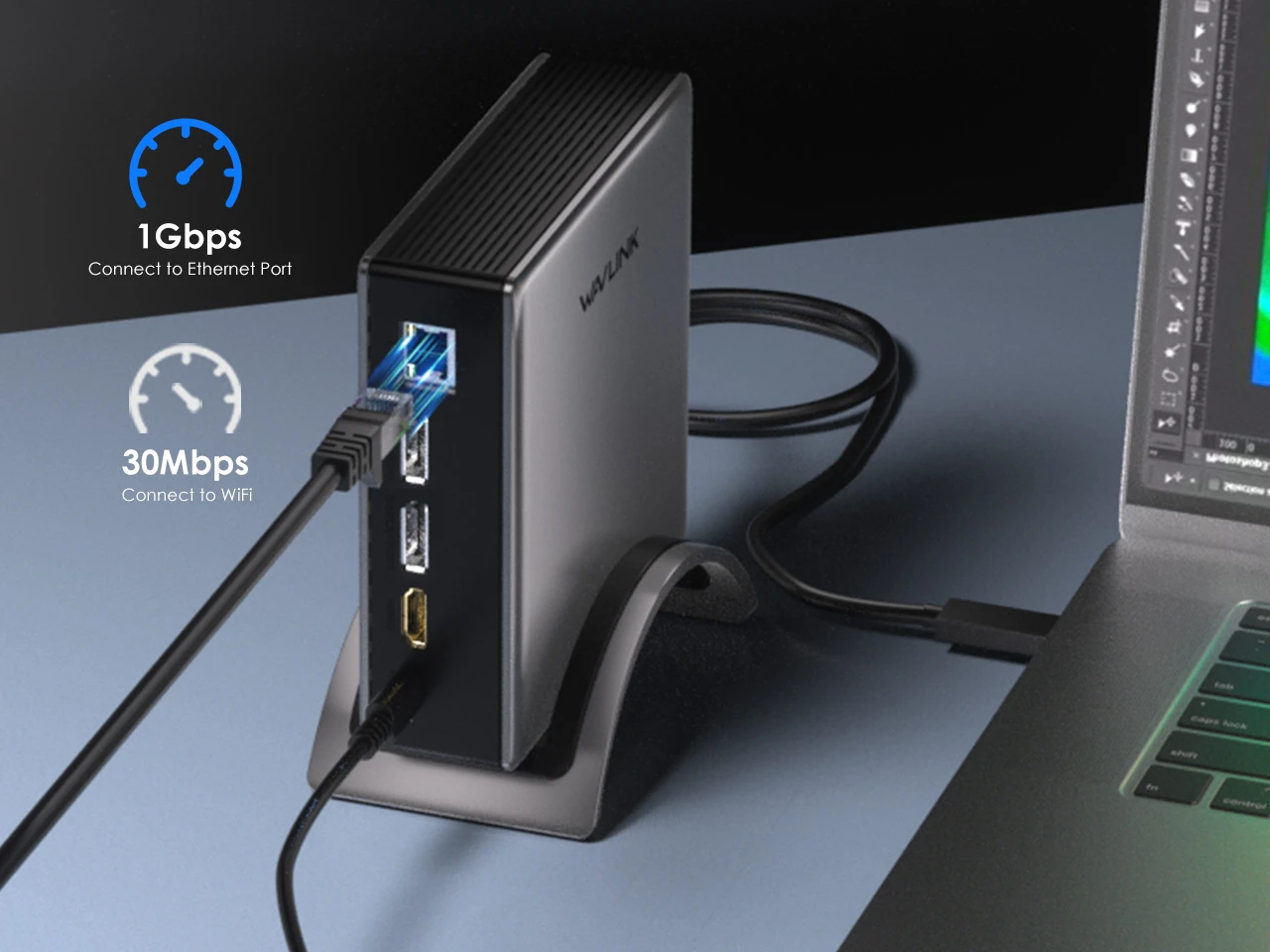

Maximum network speed can be up to 1000Mbps and is backward compatible with 10/100Mbps, which works well with gaming, live-streaming, and video clipping.

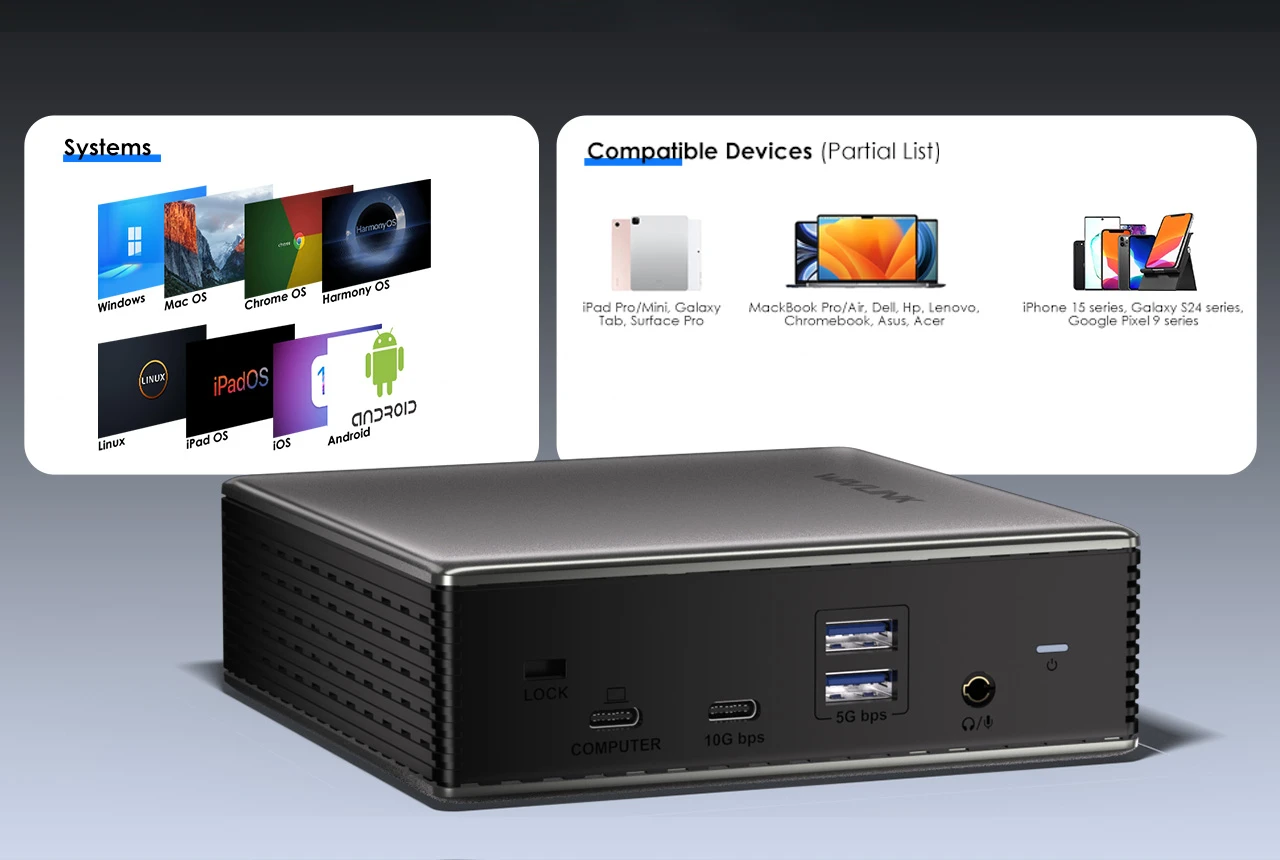

It is applicable to multiple systems such as macOS, Windows, iOS, Harmony OS, etc., and supports various electronic devices such as iPad Pro, MacBook Pro, Lenovo, ASUS, HP, etc.
TECHNICAL SPECIFICATIONS
| Connection To Host | 100cm PD3.1 240W USB-C to C Cable with E-Mark | |
| Plug & Play | Latest Driver | |
| USB Power Delivery | Supports USB PD 3.1 125Watt Power Delivery | |
| USB Port | 1 x USB-C PD 3.1, PD IN 140W, charging host up to 125W | |
| 1 x USB-C 10Gbps ports | ||
| 2 x USB-A 5Gbps ports | ||
| Video Output | 1 x HDMI 2.1 | |
| 2 x DisplayPort 1.4 | ||
| Card Reader | ||
| Audio | 1 x Integrated TRRS 4-pole phone jack | |
| Ethernet Speed | 1x RJ45 10/100/1000Mbps Ethernet | |
| LED | BLUE | |
| Operating Systems | Microsoft Windows 10/11 Apple Mac OS 11 or later |
|
