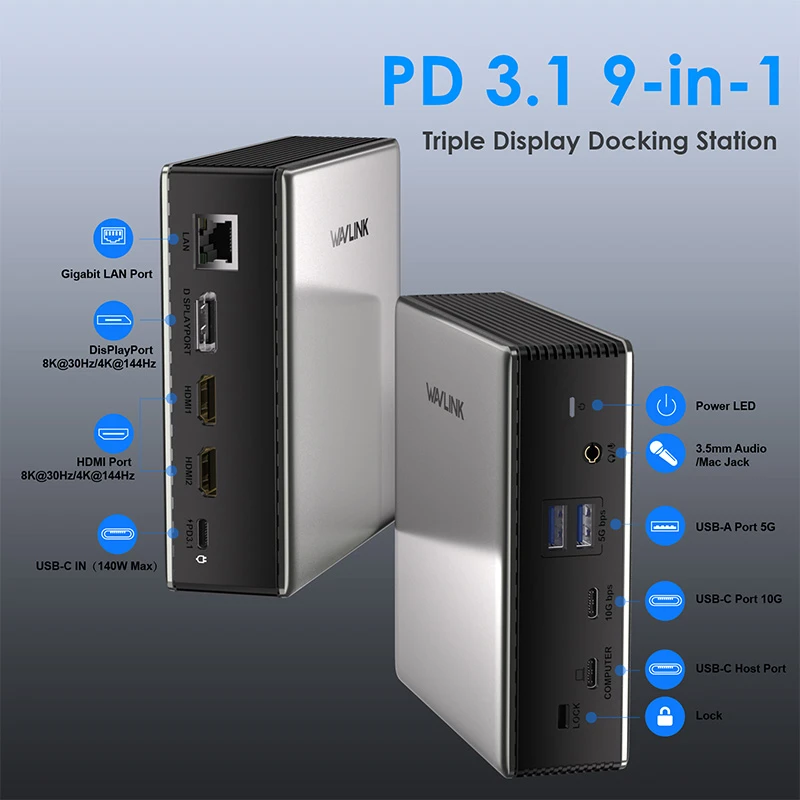

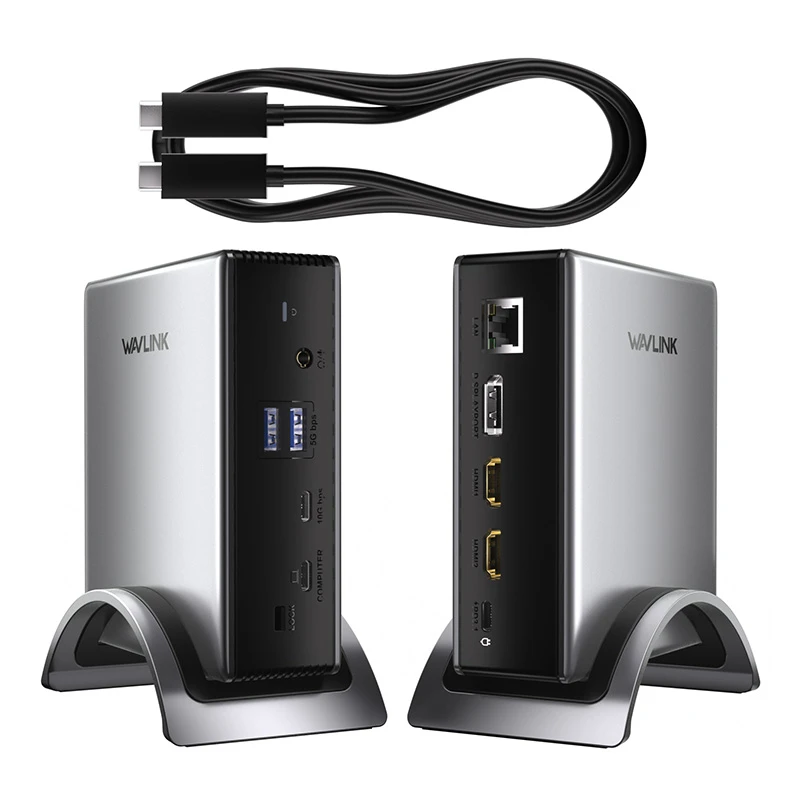

Model: WL-UMD27-Pro

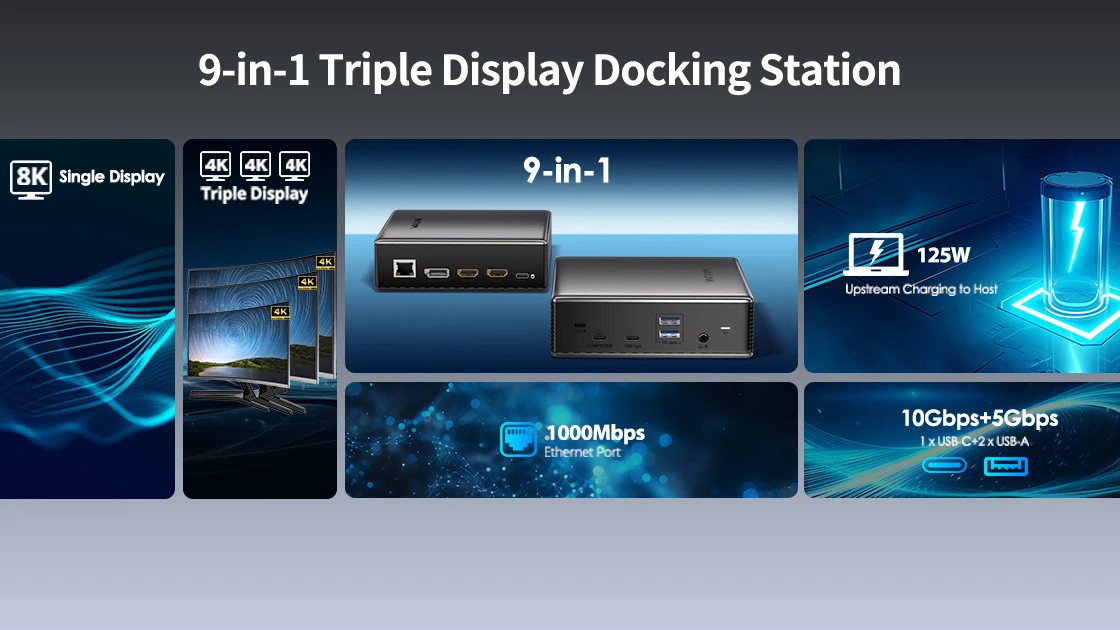

- Three video ports (2*HDMI+1*DisplayPort) work for triple display, and the resolution is up to single 8K(7680x4320)@30Hz or 4K(3840x2160)@144Hz.
- One USB-C PD 3.1 IN provides 140W power delivery for the dock, and supports 125W upstream charging for the Host.
- One Gigabit Ethernet port provides a stable and high-speed network and is backward compatible with a 10/100Mbps network.
- Two USB-A transfer speeds up to 5Gbps and are backward compatible with USB 2.0/1.1.
- One USB-C transfers speed up to 10Gbps and is backward compatible with USB 3.0/2.0/1.1.
- One integrated TRRS 4-pole phone jack works for microphone input and earphone output.

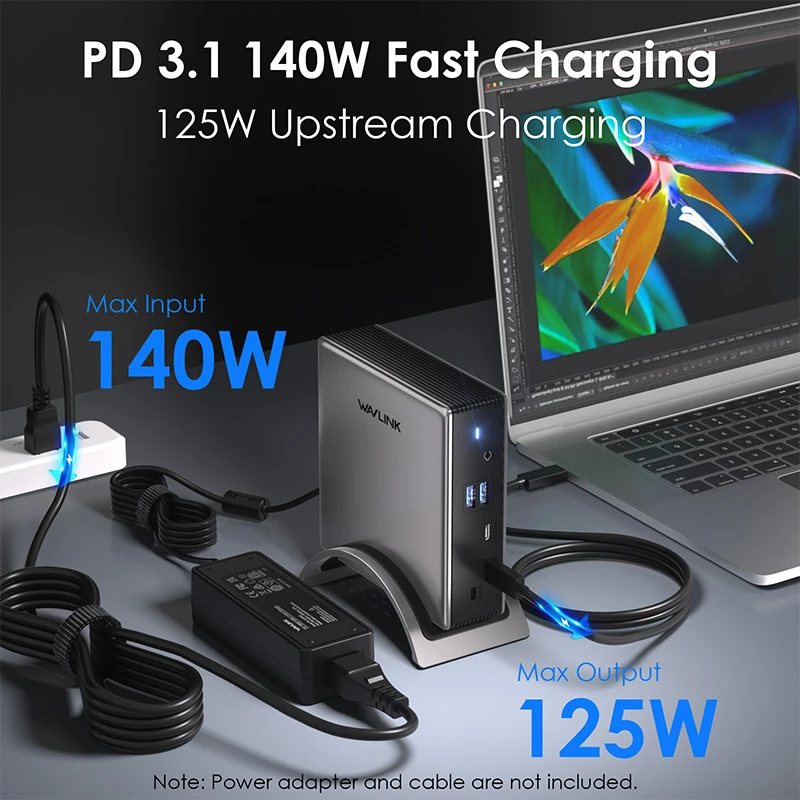

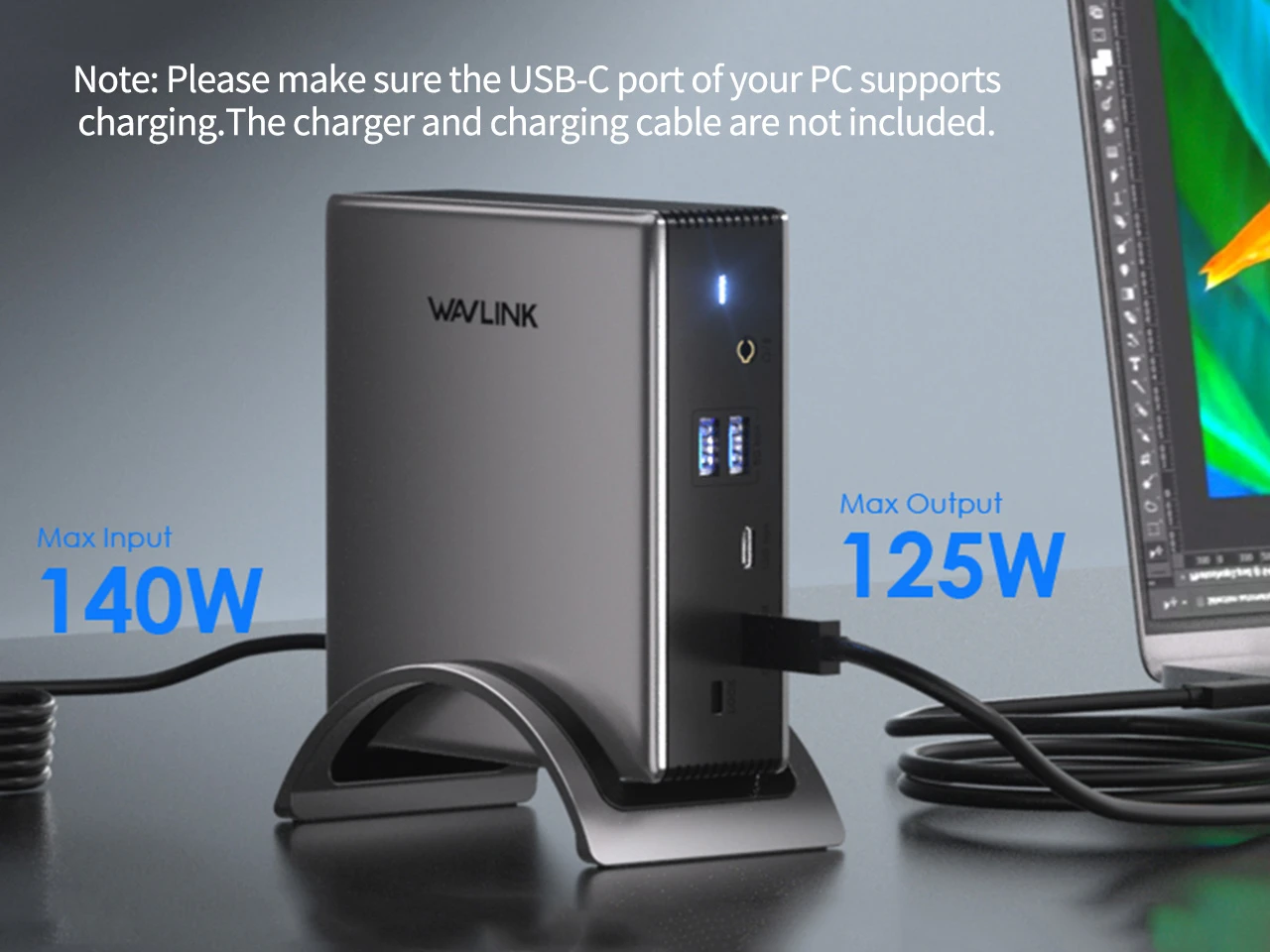

Equipped with the latest PD 3.1 technology, this dock supports up to 140W input and 125W output, providing fast charging for your laptop.
Experience breathtaking visuals with DP 1.4 & DSC 1.2 support, delivering 8K@30Hz or 4K@144Hz on a single external display. A nice choice for gamers, video editors, and designers seeking ultra-clear visuals.

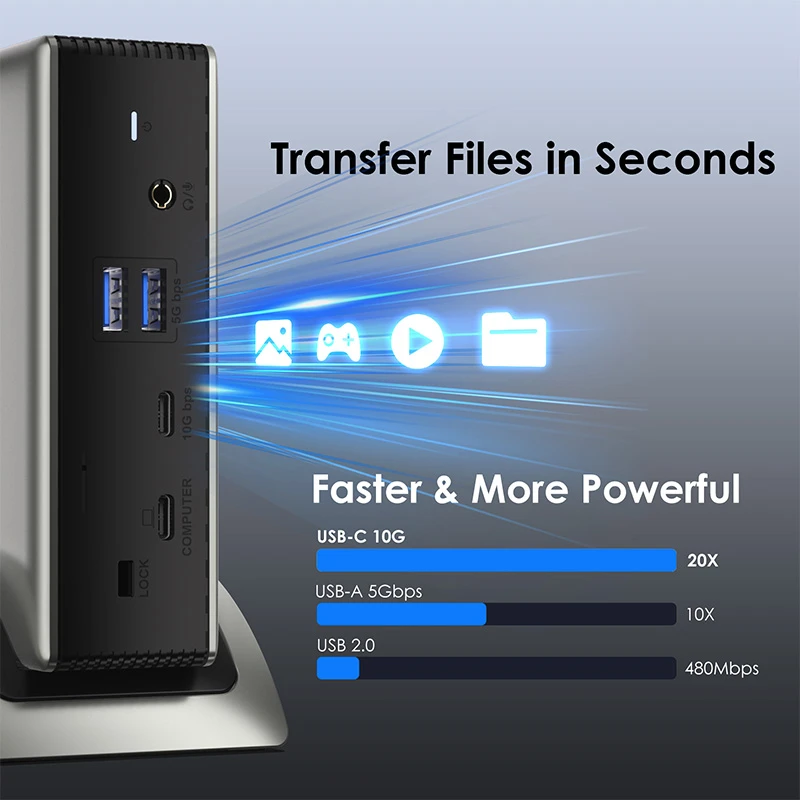

This dock features 2 x 5Gbps USB-A and 1 x 10Gbps USB-C ports, which can transfer data in seconds and greatly level up your work efficiency.

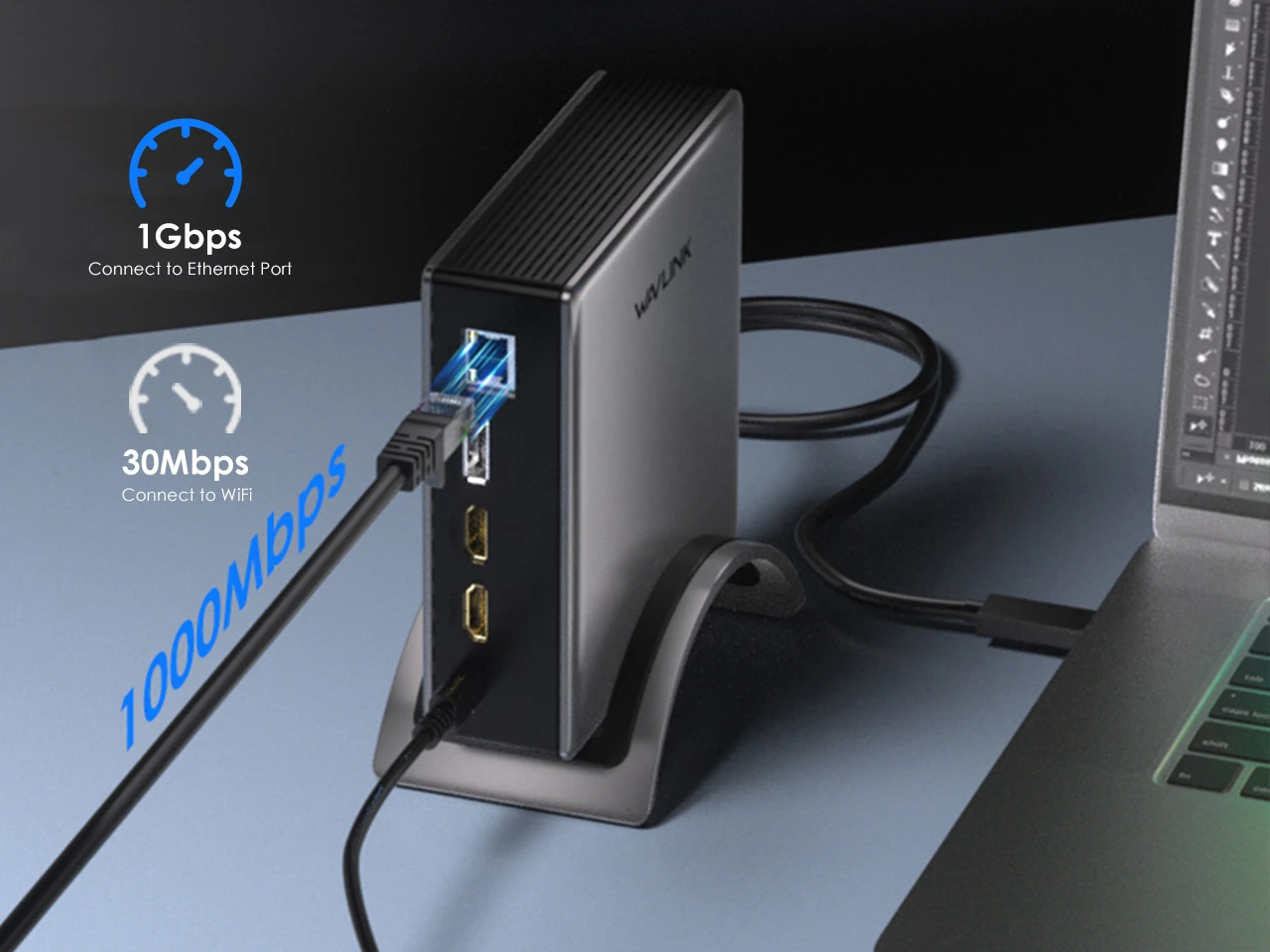

Maximum network speed can be up to 1000Mbps and is backward compatible with 10/100Mbps, which works well with gaming, live-streaming, and video clipping.

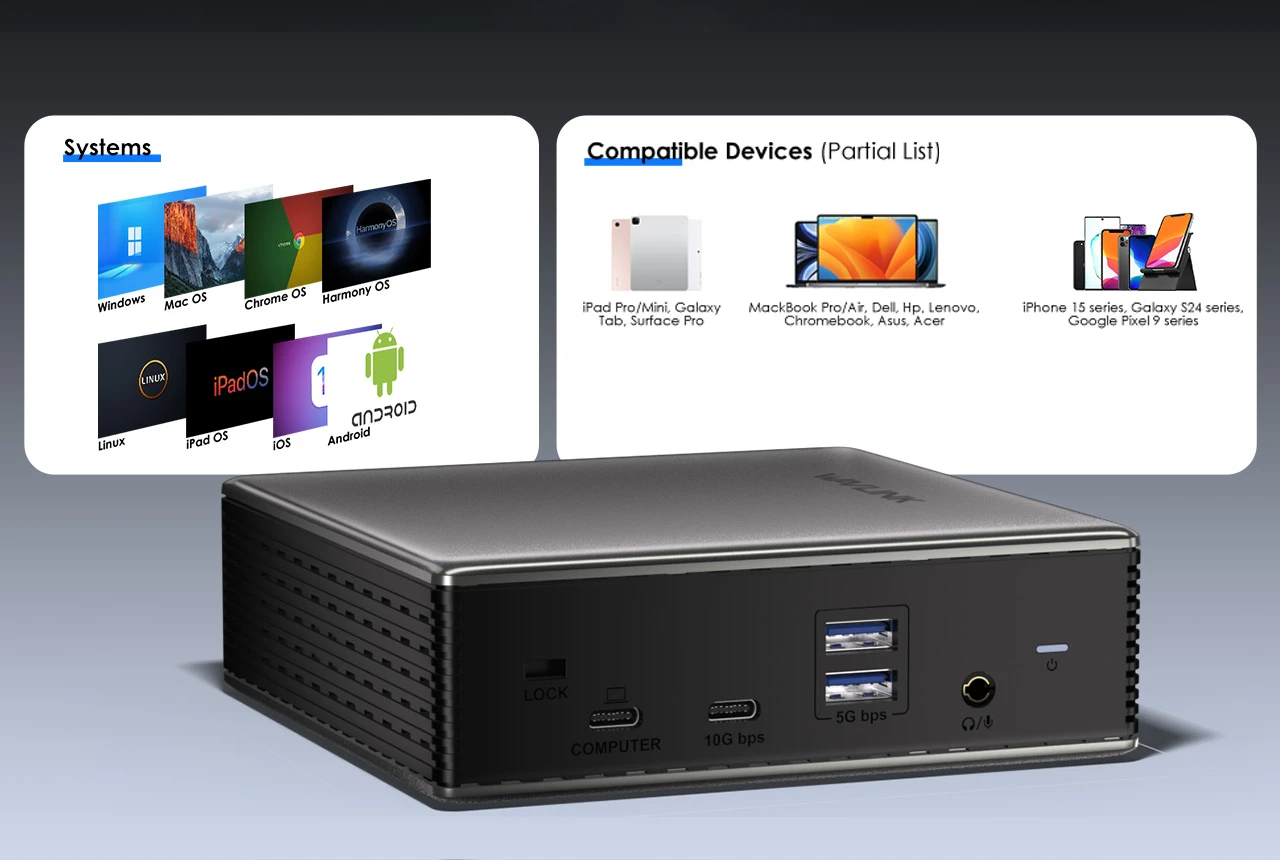

It is applicable to multiple systems such as macOS, Windows, iOS, Harmony OS, etc., and supports various electronic devices such as iPad Pro, MacBook Pro, Lenovo, ASUS, HP, etc.
TECHNICAL SPECIFICATIONS
| Connection To Host | 100cm PD3.1 240W USB-C to C Cable witd E-Mark |
| Plug & Play | Latest Driver |
| USB Power Delivery | Supports USB PD 3.1 125Watt Power Delivery |
| USB Port | 1 x USB-C PD 3.1, PD IN 140W, charging host up to 125W |
| 1 x USB-C 10Gbps ports | |
| 2 x USB-A 5Gbps ports | |
| Video Output | 1 x HDMI 2.1 |
| 2 x DisplayPort 1.4 | |
| Audio | 1 x Integrated TRRS 4 - pole phone jack |
| Etdernet Speed | 1x RJ45 10/100/1000Mbps Etdernet |
| LED | BLUE |
| Operating Systems | Microsoft Windows 10/11 |
| Apple Mac OS 11 or later |
1.Your computer’s USB-C port must support DisplayPort Alt Mode (video output) for the external monitor to function through the dock. To verify this,you could contact the laptop/pc manufacturer or contact our support team and tell us the detail model number of your laptop.
2.If the docking comes with a type-c cable,please make sure you should use the original type-c cable.
This dock uses MST (Multi-Stream Transport) technology. macOS does not support MST, so all connected displays will mirror the same screen.
This is a limitation of macOS, not a defect of the dock.
Please ensure that your computer’s USB-C port supports charging. If the dock does not come with a power adapter, please connect a compatible power adapter to the dock to enable the charging function.
This dock is driver-free and supports plug-and-play functionality. Please ensure that your computer’s USB-C port supports video output for the external monitor to work with the dock.
No. This dock requires a native USB-C port that supports both data transfer and video output to function properly.
Please ensure that the power adapter you are using with the dock is in good condition. If possible, try using a different power adapter, another USB-C port on your computer, or another computer for testing. If the “slow charging” message still appears, please contact our support team for further assistance.
To ensure that four monitors can function properly (one built-in display and three external displays), your GPU must support up to four displays simultaneously. Please note that not all GPUs have this capability.
If you are unsure whether your device supports this feature, we kindly recommend contacting your laptop or PC manufacturer for confirmation. Alternatively, you may reach out to our support team and provide the detailed model number of your laptop—we will be happy to assist you further.
The maximum supported resolution depends on the DisplayPort (DP) version of the host USB-C port. We kindly recommend referring to the user manual to check the supported resolutions for different DP versions.
If you are unsure about the DP version of your device’s USB-C port, please contact your laptop or PC manufacturer for confirmation. Alternatively, you may reach out to our support team, and we will be happy to assist you further.
