USB-C PD3.1 Two HDMI One DP 11-in-1 MST Aluminum Docking Station with PD3.1 Power Delivery up to 140W
  • USB-C PD3.1 Two HDMI One DP 11-in-1 MST Aluminum Docking Station with PD3.1 Power Delivery up to 140W 1
  • USB-C PD3.1 Two HDMI One DP 11-in-1 MST Aluminum Docking Station with PD3.1 Power Delivery up to 140W 2
  • USB-C PD3.1 Two HDMI One DP 11-in-1 MST Aluminum Docking Station with PD3.1 Power Delivery up to 140W 3
  • USB-C PD3.1 Two HDMI One DP 11-in-1 MST Aluminum Docking Station with PD3.1 Power Delivery up to 140W 4
  • USB-C PD3.1 Two HDMI One DP 11-in-1 MST Aluminum Docking Station with PD3.1 Power Delivery up to 140W 5

USB-C PD3.1 Two HDMI One DP 11-in-1 MST Aluminum Docking Station with PD3.1 Power Delivery up to 140W

Model: WL-UMD26

  • Compatible with Type-C USB 3.2 Gen2 full specification PC Computer
  • USB-C power port support PD3.1 the latest technology, PD IN 100W, upstream power charging to PC computer maximum up to 125Watt
  • Triple displays: 2xHDMI + 1xDP
  • Ethernet port supports up to 1Gbps (10/100/1000 Mbps)
  • One USB-C 10G ports and two USB-A 5G ports for devices connectivity
  • 1 x Integrated TRRS 4-pole phone jack
  • Combo built in USB3.0 SD and TF / Micro SD Card Reader

  • Overview

  • Specification

  • Q&A

USB-C Triple Display 11-in-1 MST Aluminum Docking Station

with PD3.1 Power Delivery up to 140W

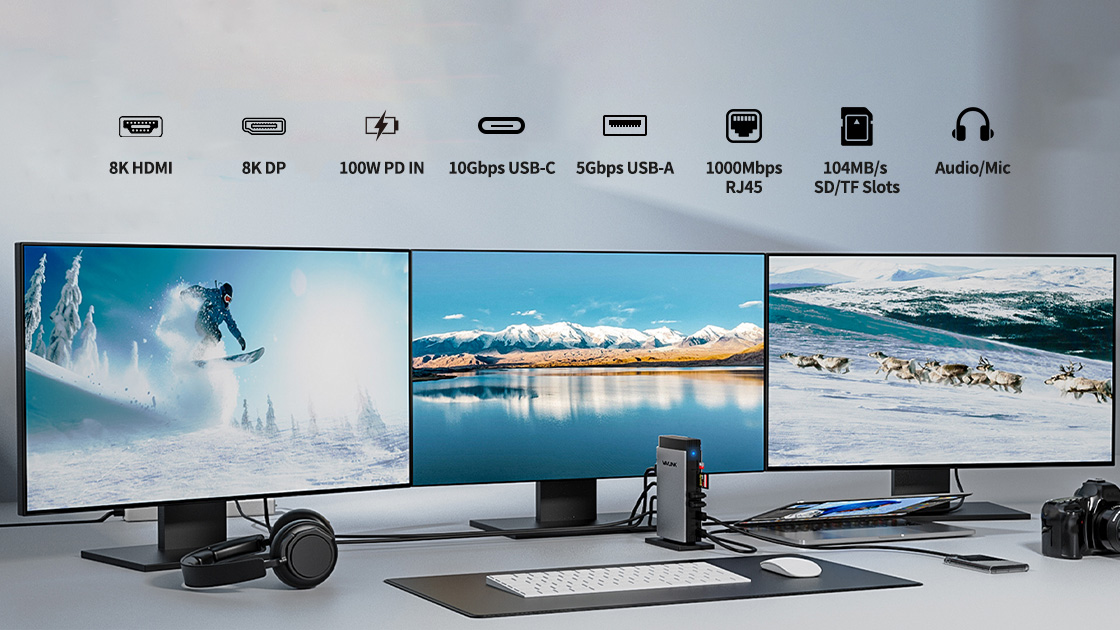

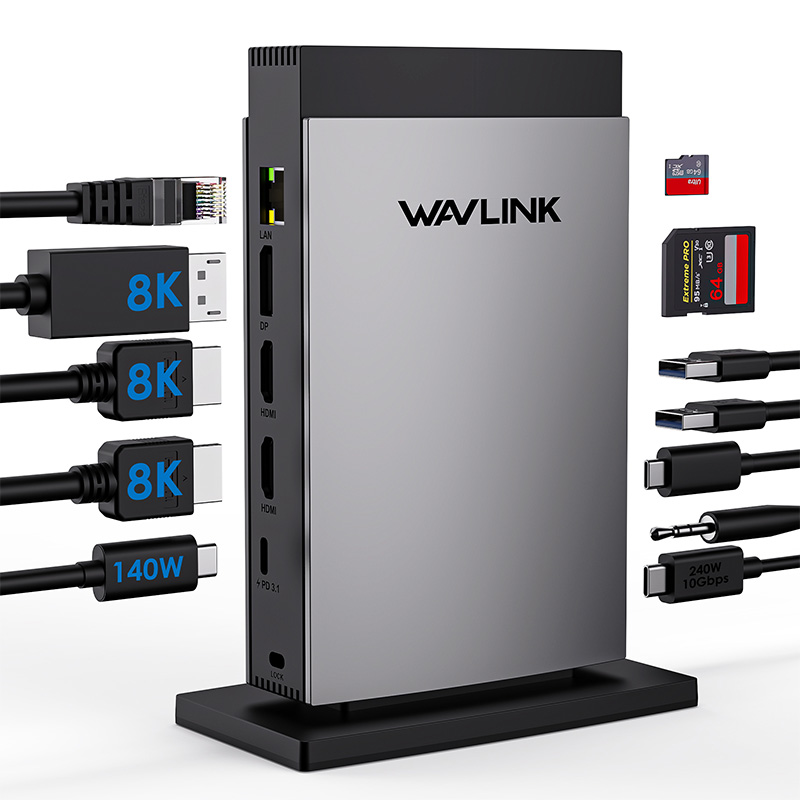

11-in-1, More Efficient

With 11 ports in one, this docking station allows you to extend external monitors, charge your host laptop and extends more ports to help to improve efficiency

Triple Display, More Efficient

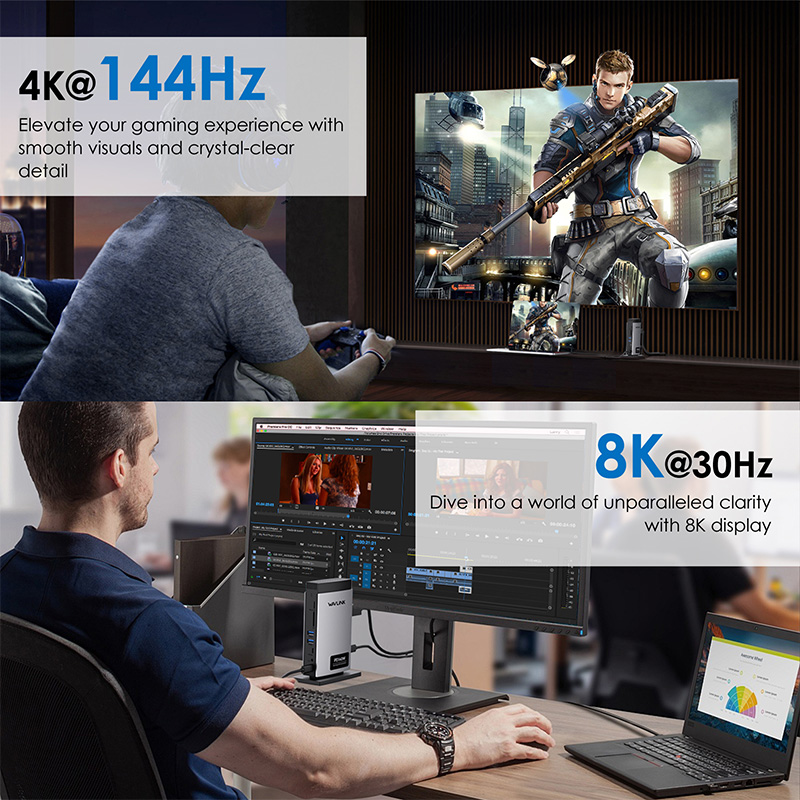

Two HDMI ports and one DisplayPort support single display up to 7680x4320@30Hz and triple displays up to 4K. Higher definition external monitors help to improve your PC/laptop’s screen display.

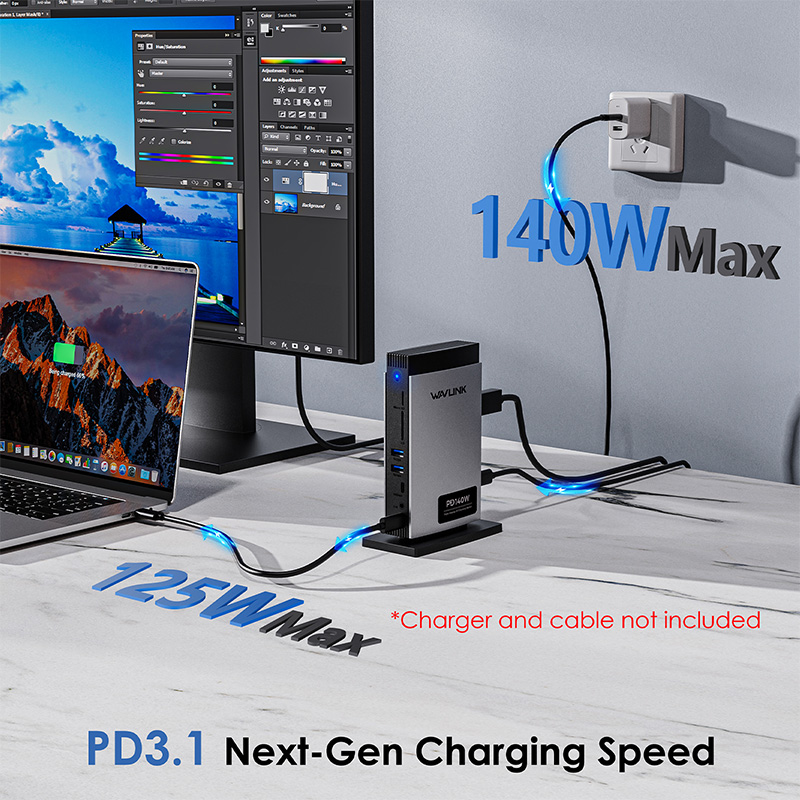

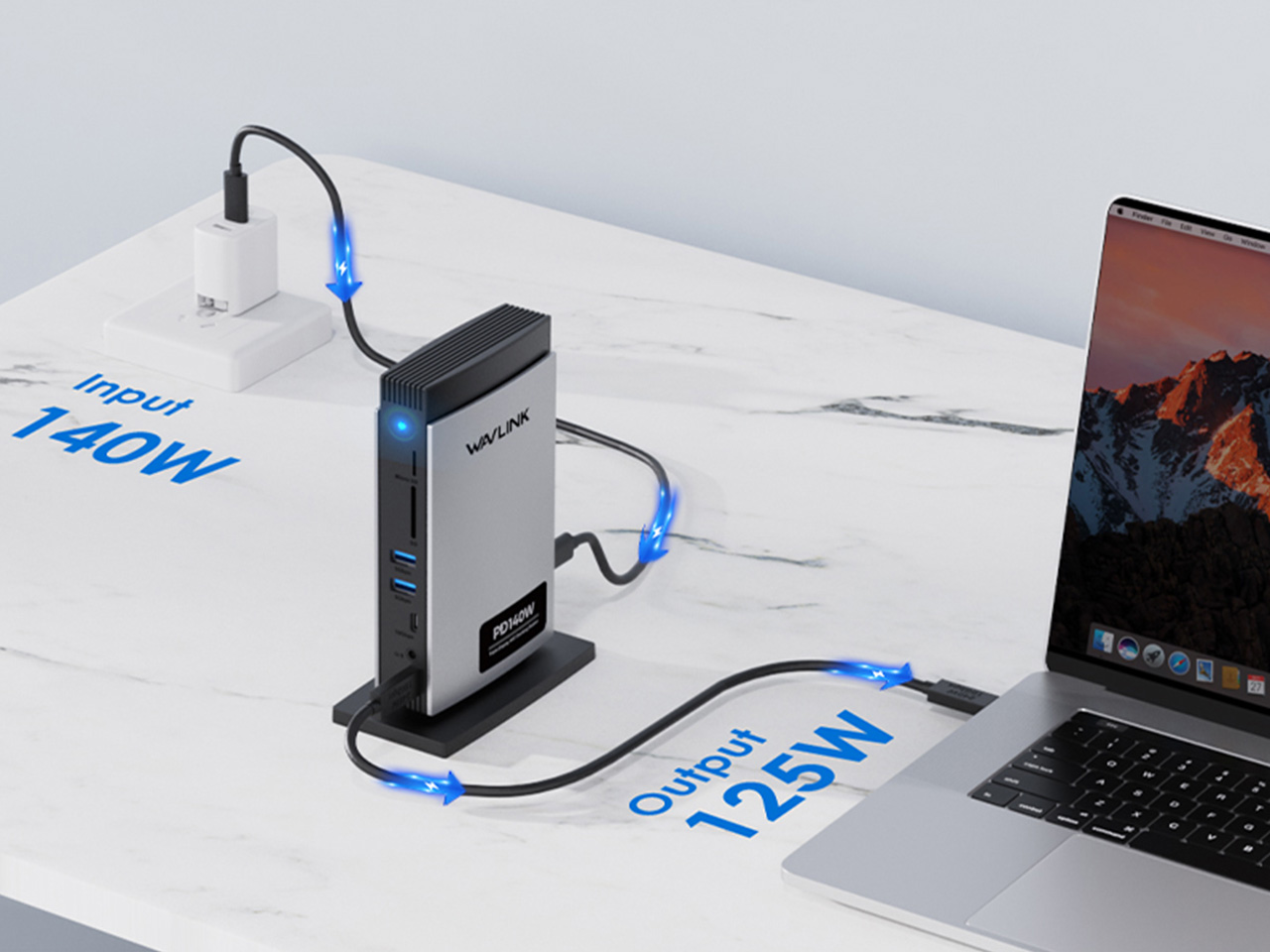

PD 3.1, up to 125W Charging

Supporting the latest PD3.1 technology, when connected to a power adapter, this docking station supports USB Power delivery up to 125W upstream Charging for PC/laptop.

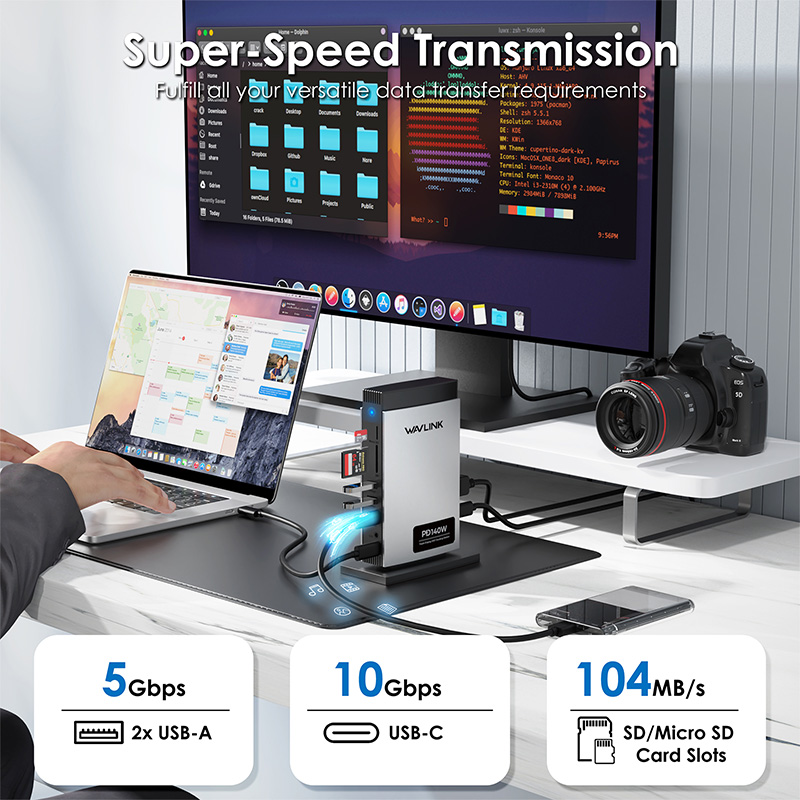

10G & 5G USB Ports

One USB-C 10G ports and two USB-A 5G ports can be connected to U disks, Bluetooth receiver, etc., to meet your different needs.

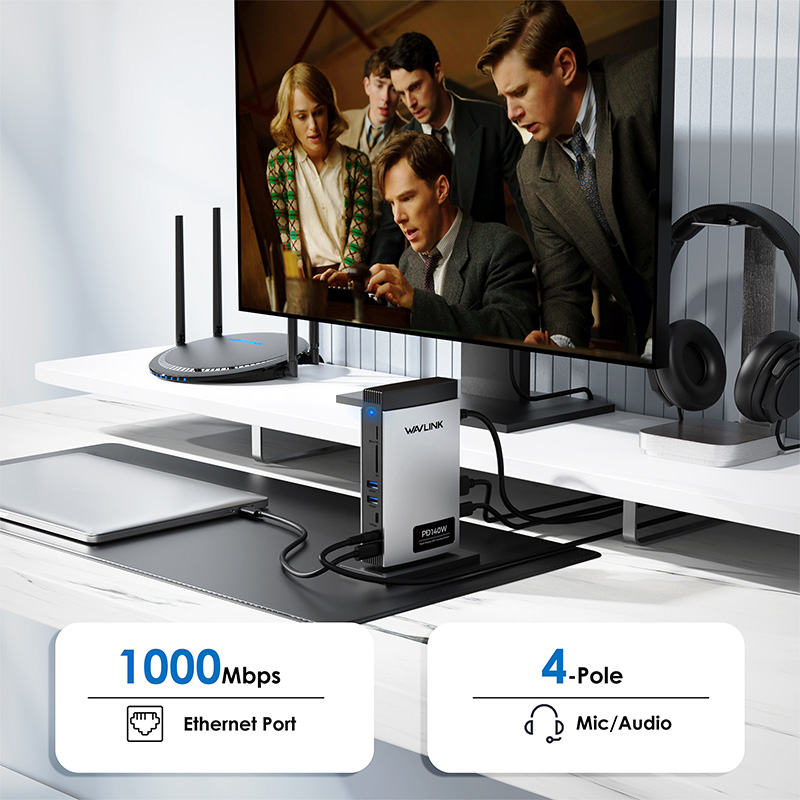

Gigabit Ethernet port provides stable network performance in wired connection, enhancing your use experience.

SD/Micro SD V3.0 Card Reader supports data transfer speed up to 104MB/s.

Audio/microphone jack provides additional convenience.



  • SPECIFICATION
  • Connection To Host

    100cm PD3.1 240W USB-C to C Cable with E-Mark

  • Plug & Play

    Latest Driver

  • USB Power Delivery

    Supports USB PD 3.1 125Watt Power Delivery

  • USB Port

    1 x USB-C PD 3.1, PD IN 140W, charging host up to 125W

    1 x USB-C 10Gbps ports

    2 x USB-A 5Gbps ports

  • Video Outputs

    2 x HDMI 2.1

    1 x DisplayPort 1.4

  • Audio

    1 x Integrated TRRS 4-pole phone jack

  • Ethernet Speed

    1x RJ45 10/100/1000Mbps Ethernet

  • Card Reader

    1 x V3.0 SD / Micro SD Card Reader slot

  • USB Power Delivery

    Supports USB PD 3.1 125Watt Power Delivery

  • LED

    BLUE

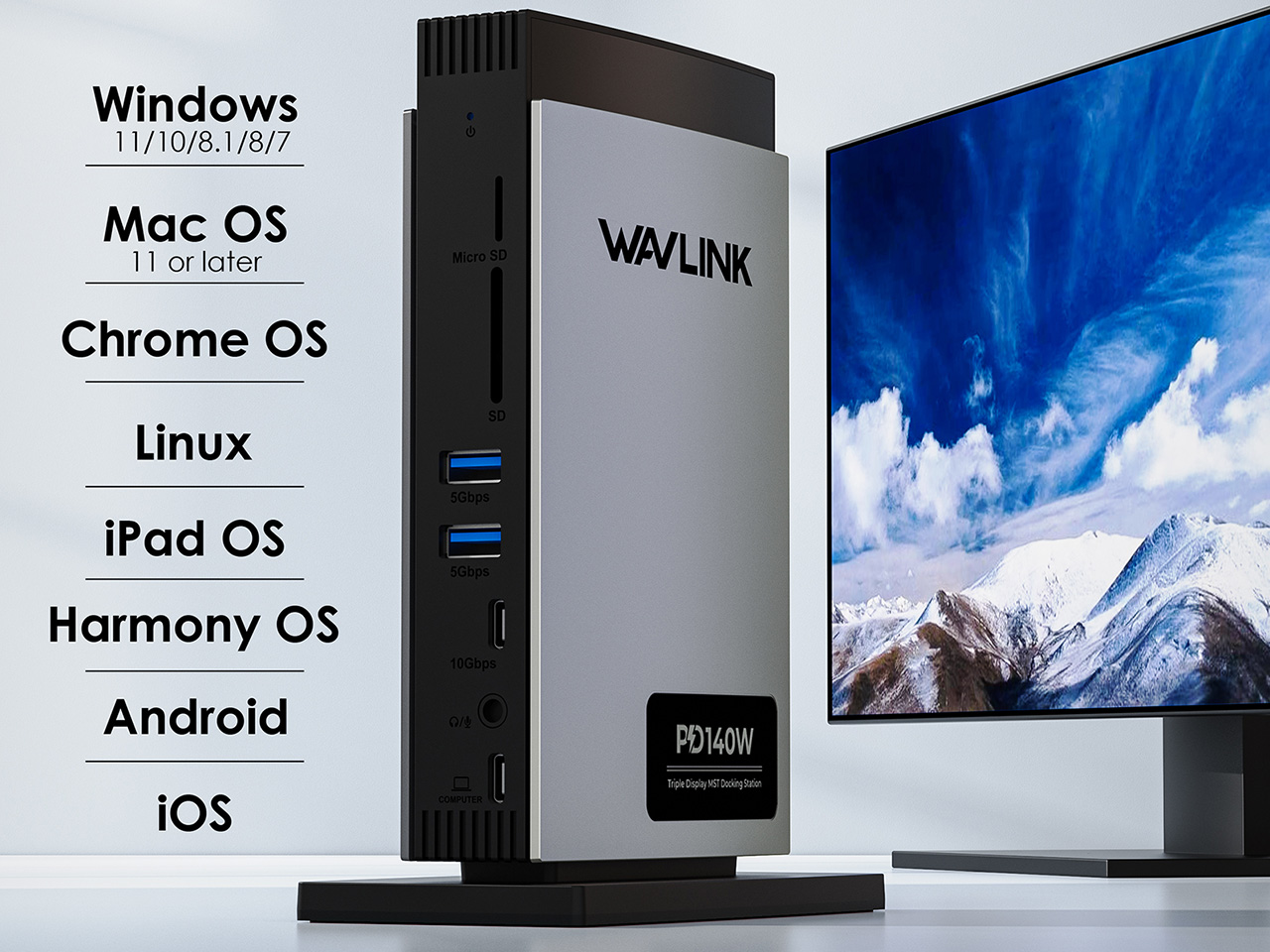

  • Operating Systems

    Microsoft Windows 10/11

    Apple Mac OS 11 or later

  • PHYSICAL
  • Material

    Aluminum + ABS Plastic

  • In the box

    1 x PD3.1 Triple Display Docking with Attachable Stand

    1 x 100cm PD3.1 USB-C to C Cable with E-Mark

    1 x Quick Start Guide

  • PHYSICAL

    •

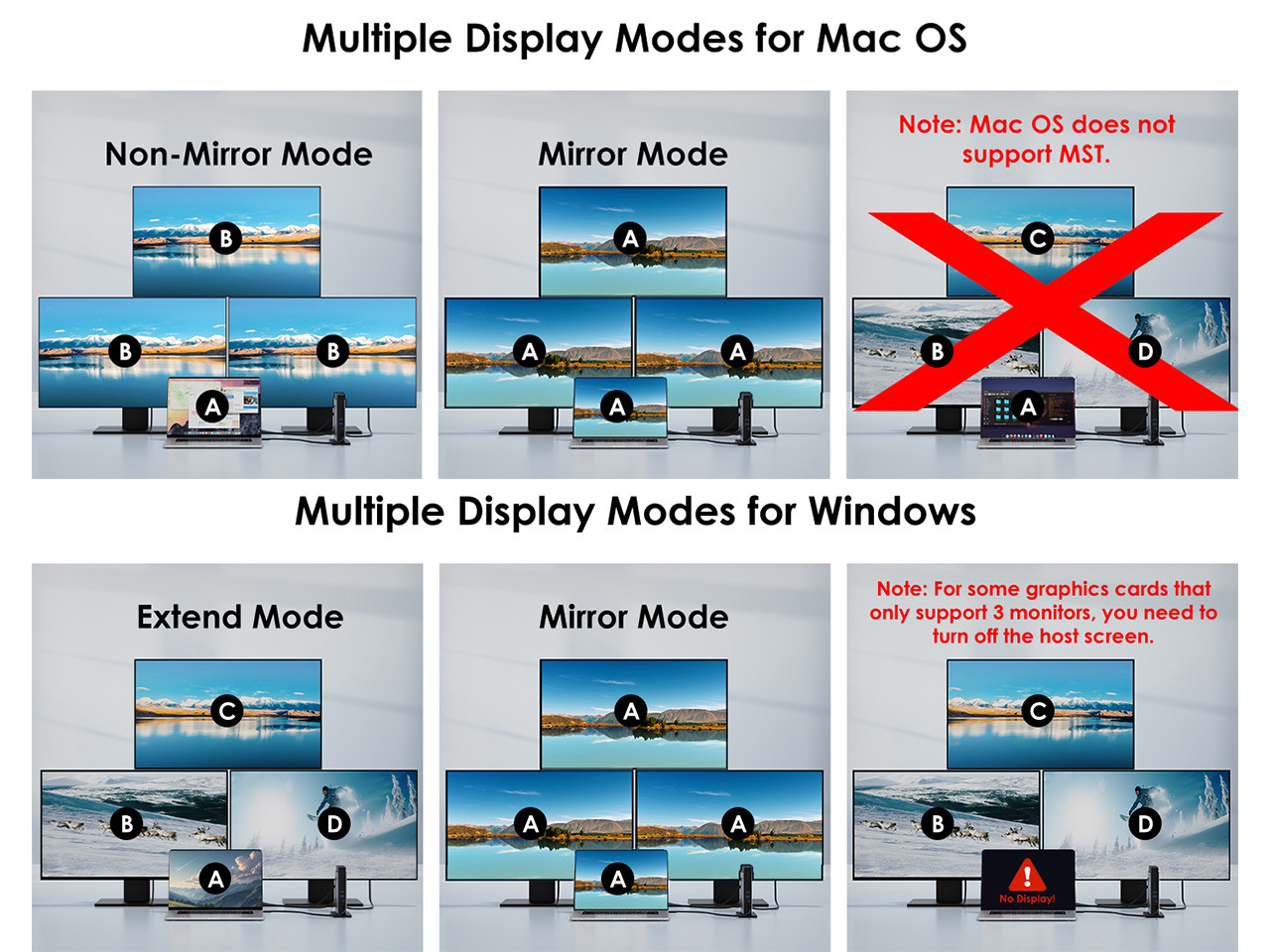

    Scenarios

    Systems


     Connected with DP1.4 & DSC1.2 Computer




    Connected with DP1.4 (no DSC1.2) Computer


    Connected with DP1.2 Computer



    Single Display

    Windows



     Extend:

     7680x4320@30Hz




     Extend:

     4096*2160@60HZ



    Extend:

    4096*2160@30HZ


    macOS



    3840x2160@60Hz






    Dual Displays

    		Windows

     Extend:

     Dual 3840x2160 60Hz

     Extend:

     Dual 3840x2160 60Hz



     Extend:

     One 3840x2160 30Hz

     One 1920x1080 60Hz


    macOS



     3840x2160@60Hz






     Triple Displays

    		Windows


     Extend:

     One 4K 3840x2160@60Hz

     Two 4K 3840x2160@30Hz




     Extend:

     Triple 4K 3840x2160@30Hz




     Extend:

     Triple 1920x1080 60Hz


    macOS


     3840x2160@60Hz
