WAVLINK USB-C MST Docking Station, 12-IN-1 Triple Display Laptop Dock for M1/2/3/4/5 MacBook Pro/Air, 100W PD, DP+2HDMI, 4xUSB-A, 10G USB-C, Gigabit Ethernet
  • WAVLINK USB-C MST Docking Station, 12-IN-1 Triple Display Laptop Dock for M1/2/3/4/5 MacBook Pro/Air, 100W PD, DP+2HDMI, 4xUSB-A, 10G USB-C, Gigabit Ethernet 1
  • WAVLINK USB-C MST Docking Station, 12-IN-1 Triple Display Laptop Dock for M1/2/3/4/5 MacBook Pro/Air, 100W PD, DP+2HDMI, 4xUSB-A, 10G USB-C, Gigabit Ethernet 2

WAVLINK USB-C MST Docking Station, 12-IN-1 Triple Display Laptop Dock for M1/2/3/4/5 MacBook Pro/Air, 100W PD, DP+2HDMI, 4xUSB-A, 10G USB-C, Gigabit Ethernet

Model: WL-UMD05MR-Pro

- One DP and two HDMI work for triple video output, supporting single DP Max. 4K@144Hz/8K@30Hz and dual 4K@60Hz.
- One PD3.0 USB-C upstream port provides 100W upstream charging for the laptop.
- Two USB-C transfer speed up to 10Gbps, and are backward compatible with USB 3.0/2.0.
- Four USB-A transfer speed up to 5Gbps, one of them supports BC1.2 fast charging, and are compatible with USB 2.0/1.1.
- One 2.5Gbps LAN port for a stable and fast wired network, and is backward compatible with 1000/100/10Mbps network.
- One 3.5mm 4-pole jack for audio output and input.

  • Overview

  • Specifications

WAVLINK USB-C 12-in-1 MST Docking Station
Bring You More Possibilities
Cinema-Level Visuals: 4K@144Hz/8K@30Hz
This docking station supports 4K resolution at 144Hz and 8K resolution at 30Hz, delivering crystal-clear images, vivid colors and blur-free dynamic effects, making every frame of the picture clear and smooth.

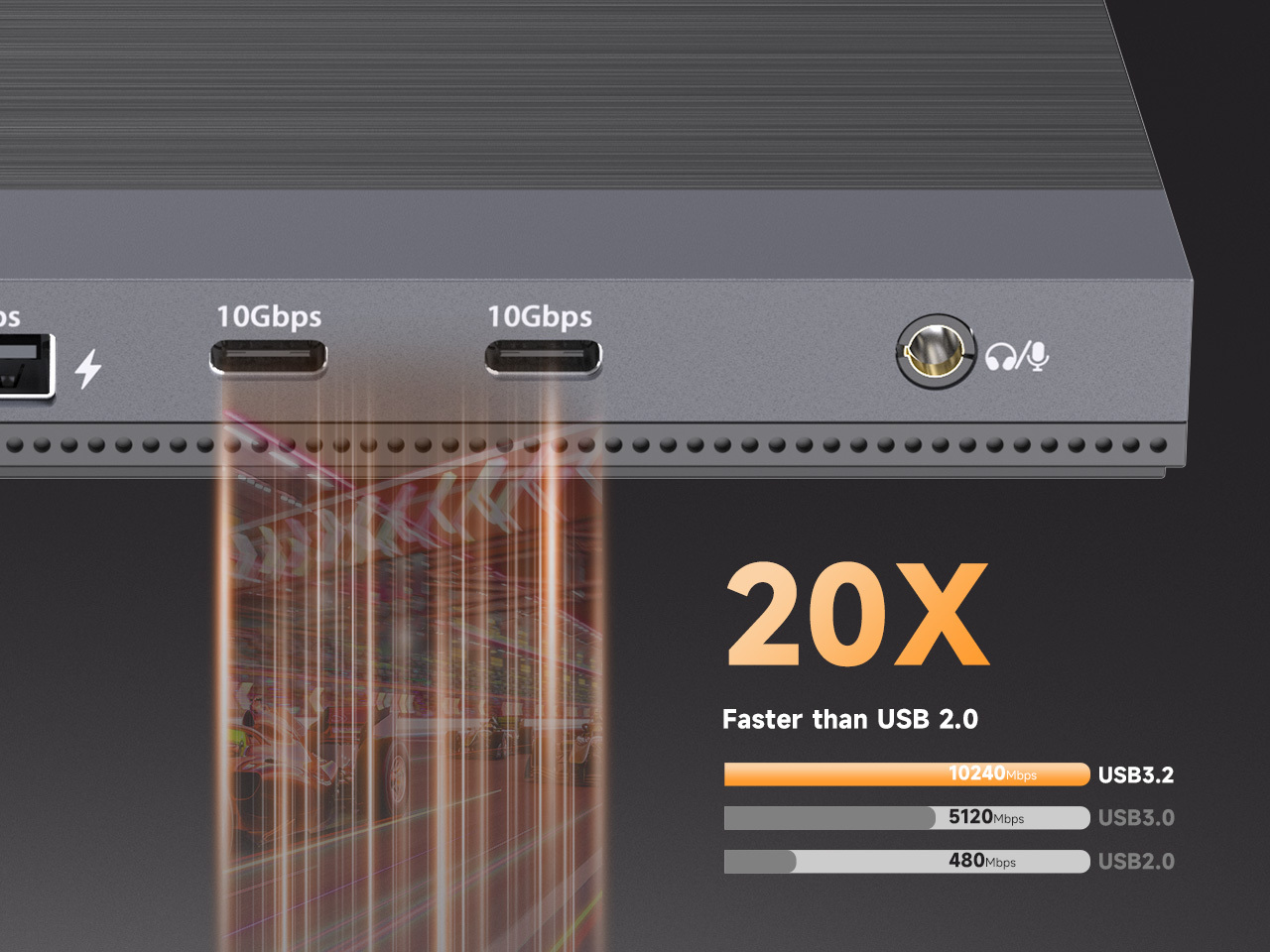

Blazing-Fast Transfer: 10Gbps USB-C
Say goodbye to long waiting for data transfer with 10Gbps high-speed USB-C data transmission. It can transfer a 10GB large file in just a few seconds, greatly improving your work and entertainment efficiency.

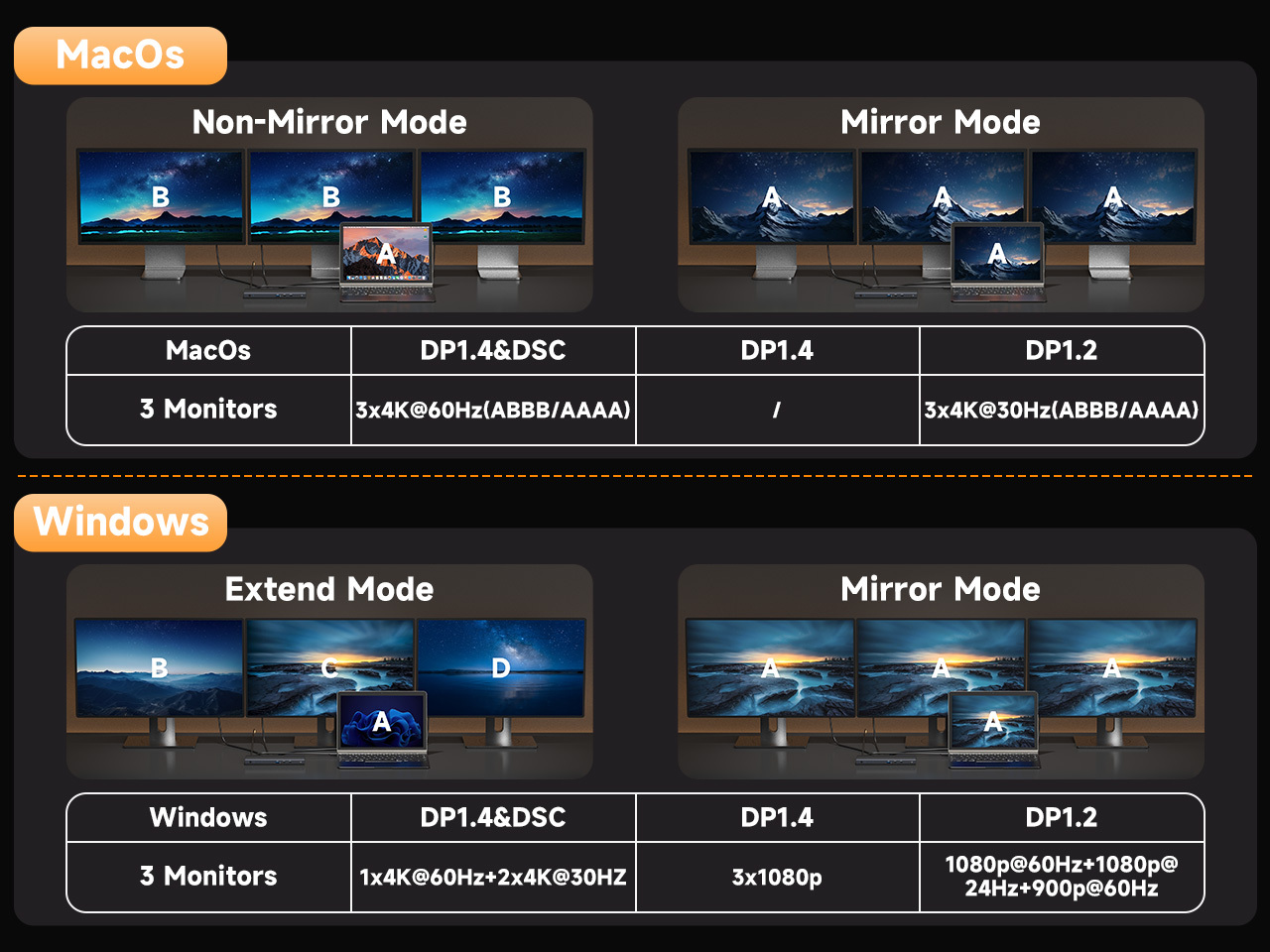

Boost Productivity: Dual HDMI + DP
Allows you to connect two HDMI displays and one DP display at the same time, supporting extend mode and mirror mode freely switching—greatly expanding your workspace and reducing the trouble of switching windows frequently.

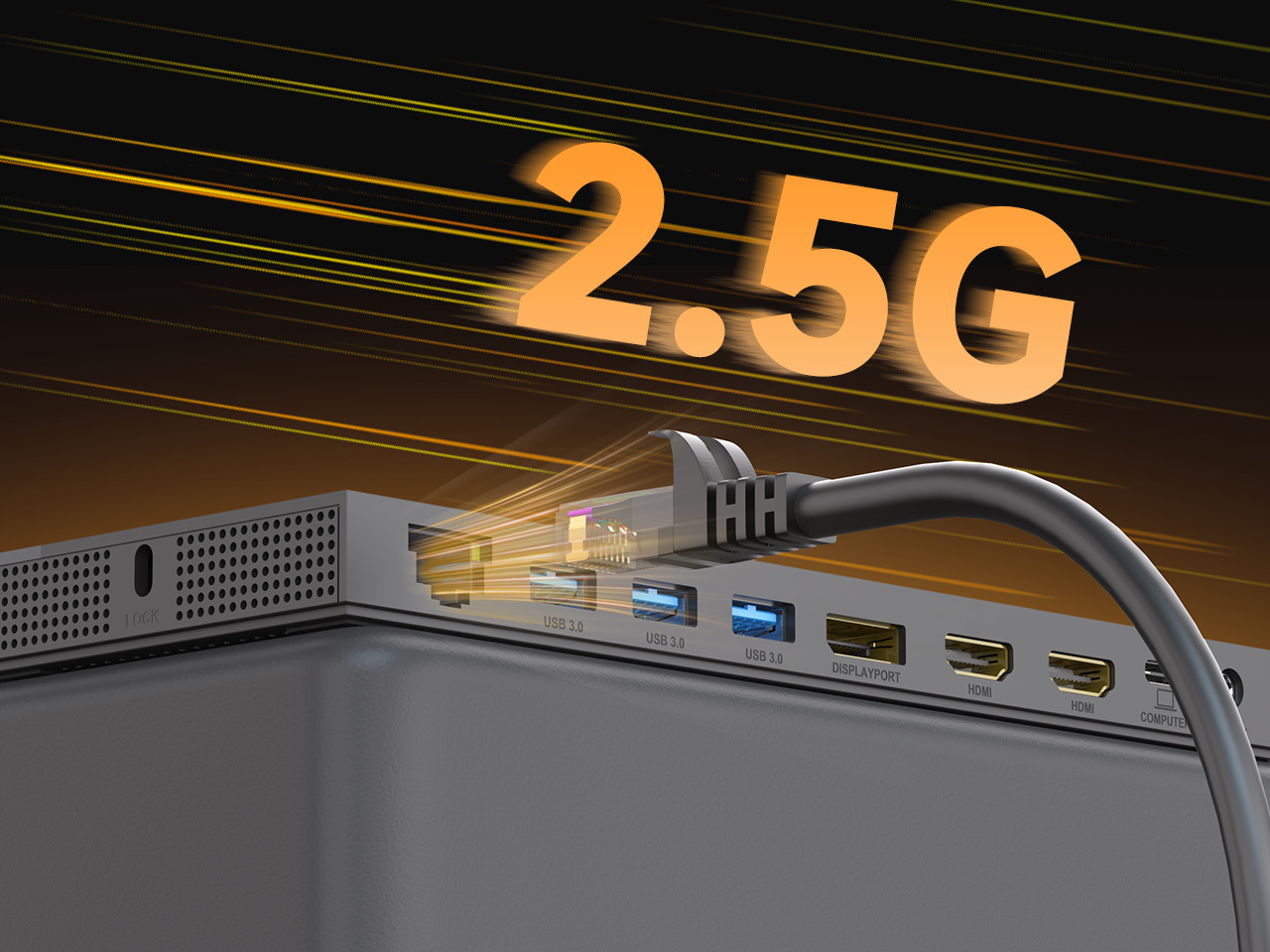

Lag-Free Network: 2.5G Ethernet Port
Provides faster and more reliable wired network connectivity than traditional 1G Ethernet ports, effectively eliminating Wi-Fi signal interference, disconnections, latency and packet loss issues.

Specifications

Model WL-UMD05MR-Pro

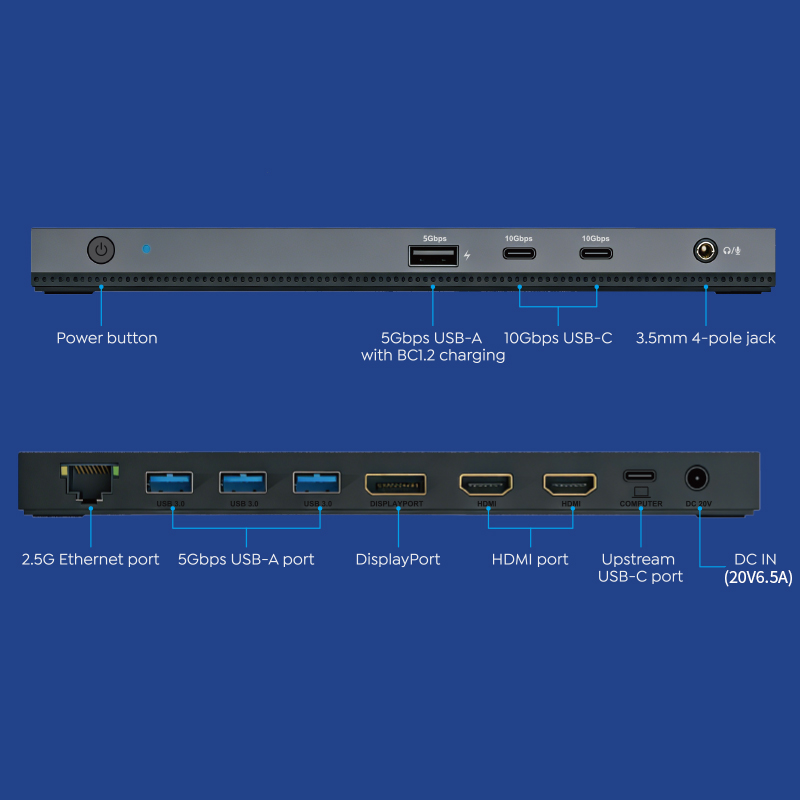

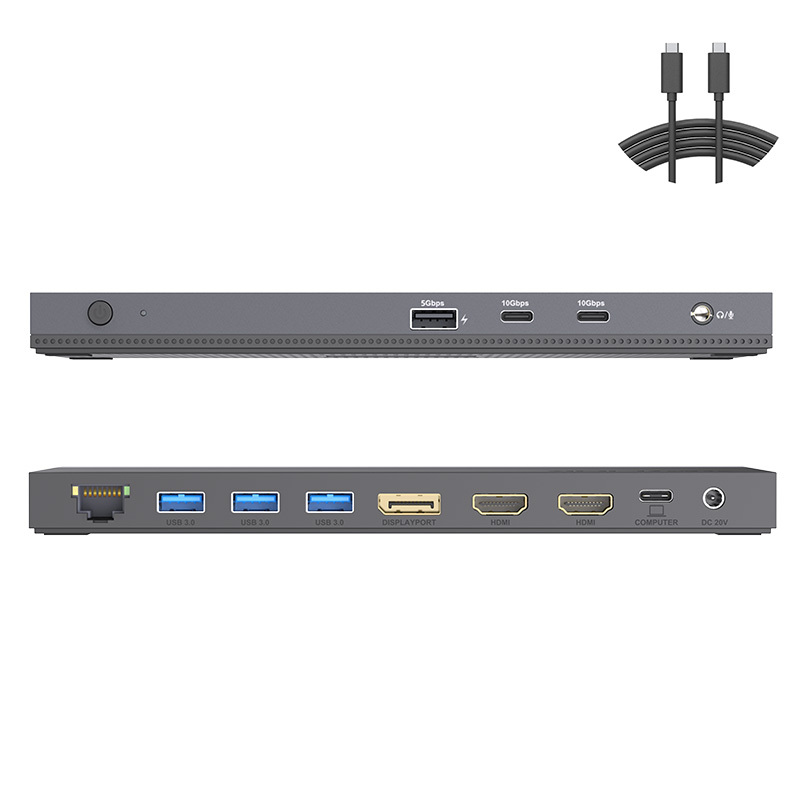

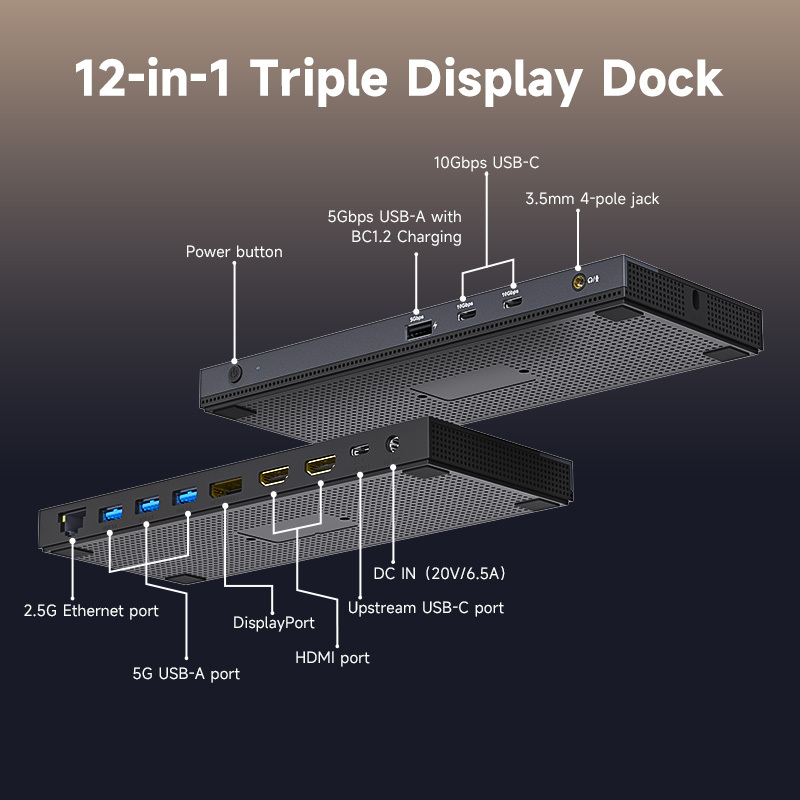

Ports 1xDC IN, 1xUpstream USB-C, 1xDP, 2xHDMI, 1xUSB-A 3.0 with BC1.2, 3xUSB-A 3.0, 2xUSB-C 3.2, 1xRJ45, 1x4-pole phone jack
LED & Button 1xPower LED
ON/OFF button
Plug & Play Support
Operating Systems Windows 10/11, macOS 10.15 or later
Material ABS
Working Environment Operation temperature: 0°C to 40°C
Storage temperature: -10°C to 70°C
Operation RH (relative humidity): 10%~90%, noncondensing
Storage RH: 10%~90%, noncondensing
In the Box 1 x USB-C 8K@30Hz/4K@144Hz Triple Display Docking Station
1 x USB-C to USB-C 1m Cable (E-mark)
1 x 20V/6.5A Power Adapter (130W)
1 x AC Power 1.5m Cable
1 x Quick Start Guide
