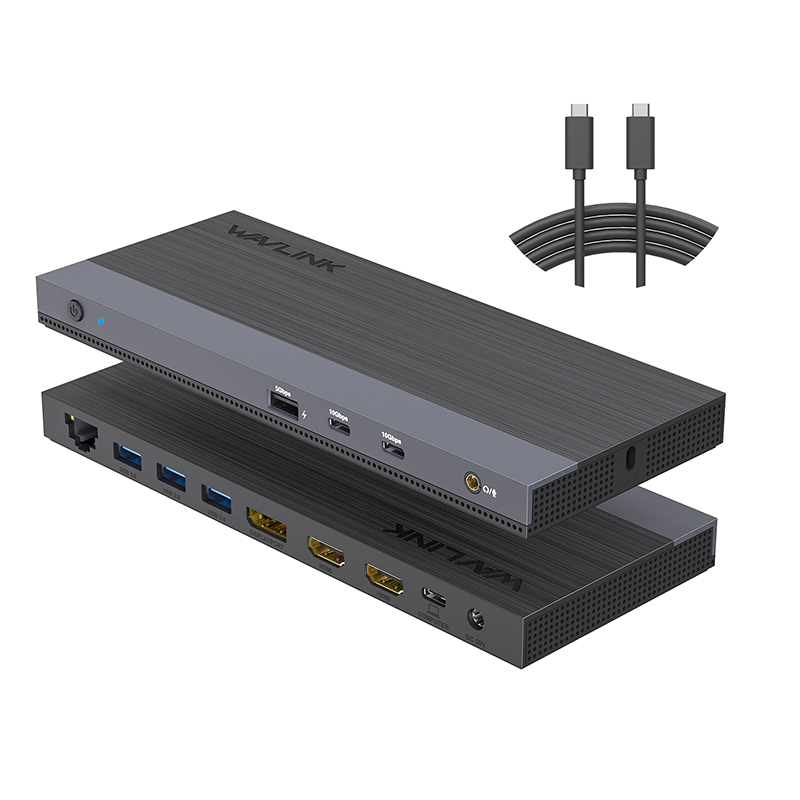

Model: WL-UMD05M-Pro
-One DP and two HDMI work for triple video output, supporting single DP Max. 4K@144Hz/8K@30Hz and dual 4K@60Hz.
-One PD3.0 USB-C upstream port provides 100W upstream charging for the laptop.

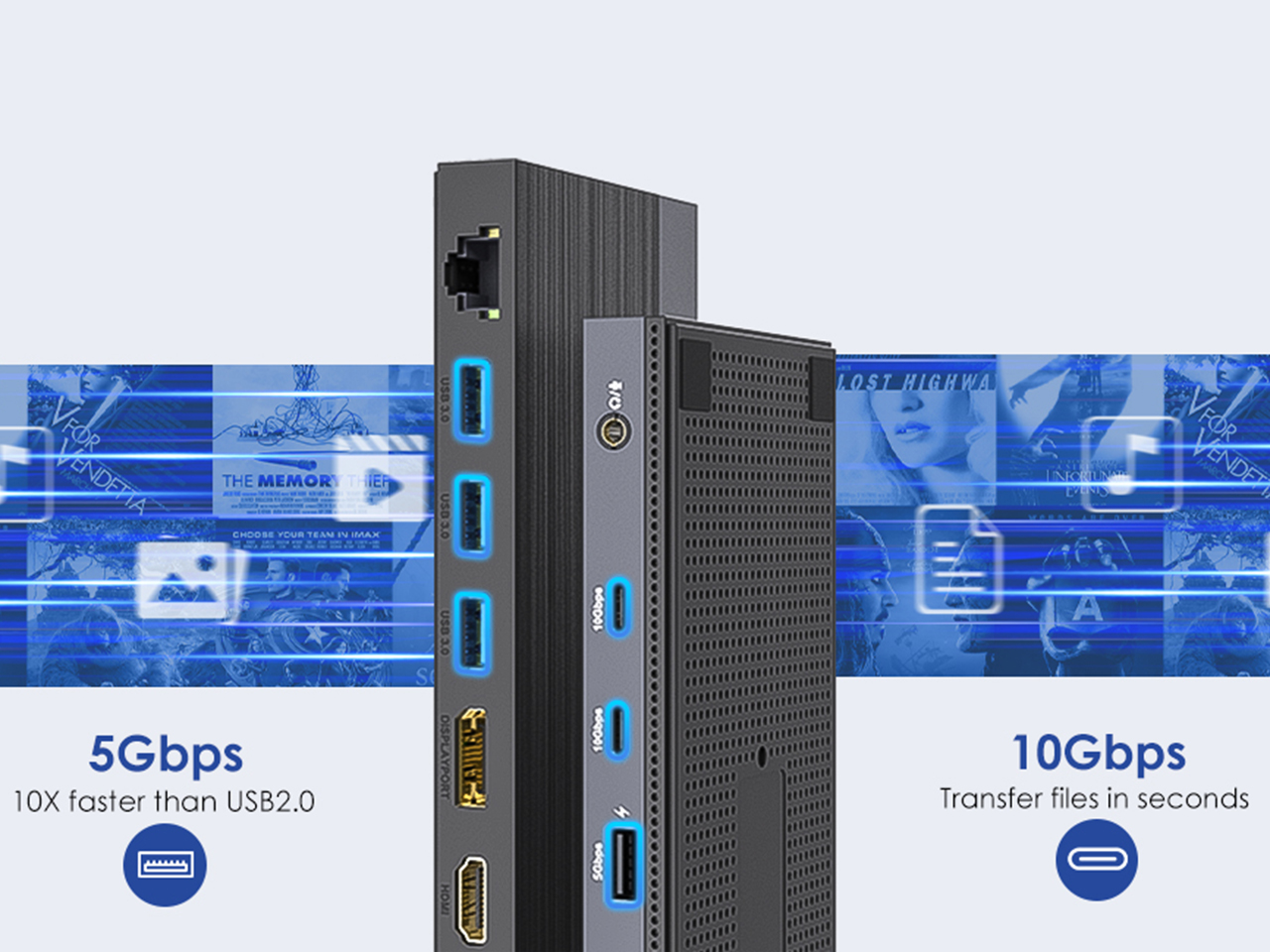

-Two USB-C transfer speed up to 10Gbps, and are backward compatible with USB 3.0/2.0.
-Four USB-A transfer speed up to 5Gbps, one of them supports BC1.2 fast charging, and are compatible with USB 2.0/1.1.
-One Gigabit LAN port for a stable and fast wired network, and is backward compatible with 100/10Mbps network.
-One 3.5mm 4-pole jack for audio output and input.
SPECIFICATION

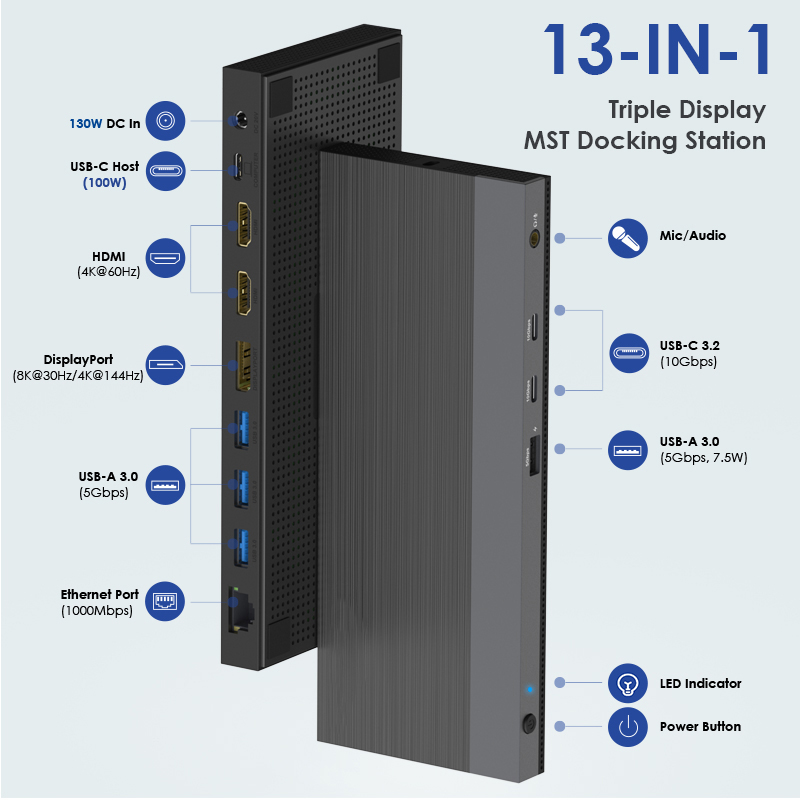

| Connection To Host | 1 x USB-C to USB-C, 1m cable (E-mark) |
| Plug & Play | Supported |
| Power Delivery | Supports USB Power Delivery up to 130W; provides up to 100W upstream charging to laptop (DC power adapter included) |
| USB Ports | 2 x USB-C ports, up to 10Gbps; 3 x USB-A ports, up to 5Gbps; 1 x USB-A port, up to 5Gbps (supports BC1.2 fast charging) |
| Video Ports | 2 x HDMI 2.0 1 x DisplayPort 1.4 |
| Audio | 3.5mm TRRS 4-pole combo audio jack |
| Ethernet | 1 x RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| LED | 1 x Power LED |
| Button | Power ON/OFF button |
| Lock | Kensington lock |
| Power Adapter | 1 x DC 130W Power Adapter (Brick style) |
| Operating Systems | Windows 10 or later Apple Mac OS 10.15 or later |
Description : WL-UMD05M-Pro-Manuals
Post Date : 14/11/2024
Available : WL-UMD05M-Pro

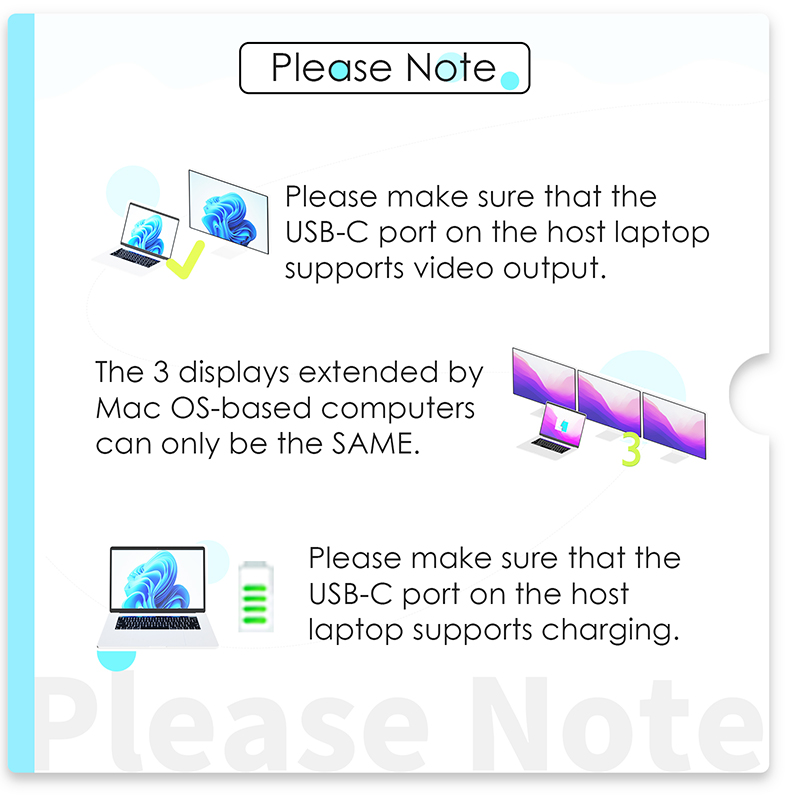

1.Your computer’s USB-C port must support DisplayPort Alt Mode (video output) for the external monitor to function through the dock. To verify this,you could contact the laptop/pc manufacturer or contact our support team and tell us the detail model number of your laptop.
2.If the docking comes with a type-c cable,please make sure you should use the original type-c cable.

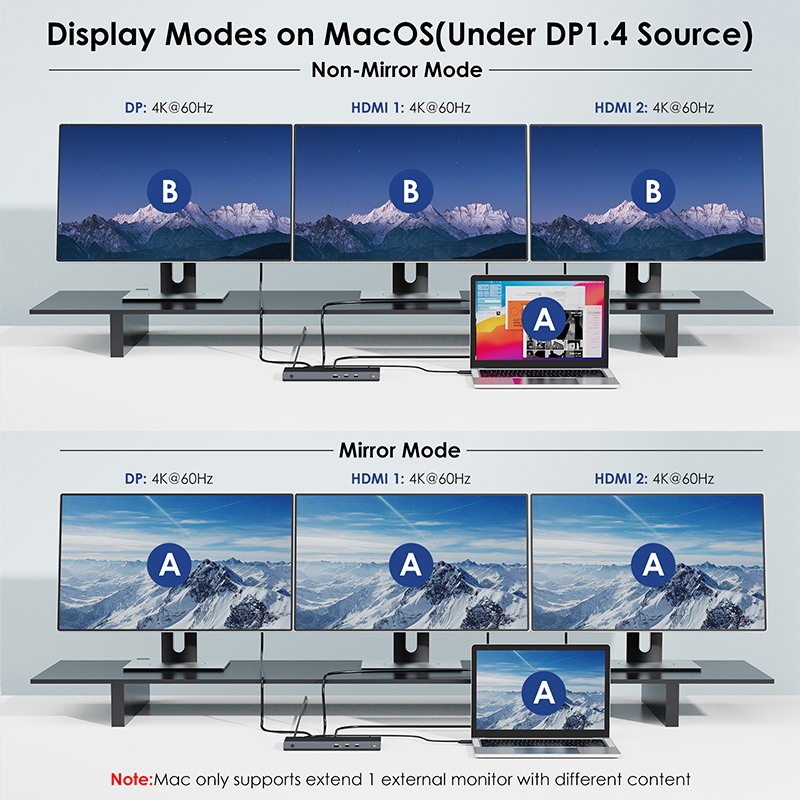

This dock uses MST (Multi-Stream Transport) technology. macOS does not support MST, so all connected displays will mirror the same screen.
This is a limitation of macOS, not a defect of the dock.
Please ensure that your computer’s USB-C port supports charging. If the dock does not come with a power adapter, please connect a compatible power adapter to the dock to enable the charging function.
This dock is driver-free and supports plug-and-play functionality. Please ensure that your computer’s USB-C port supports video output for the external monitor to work with the dock.

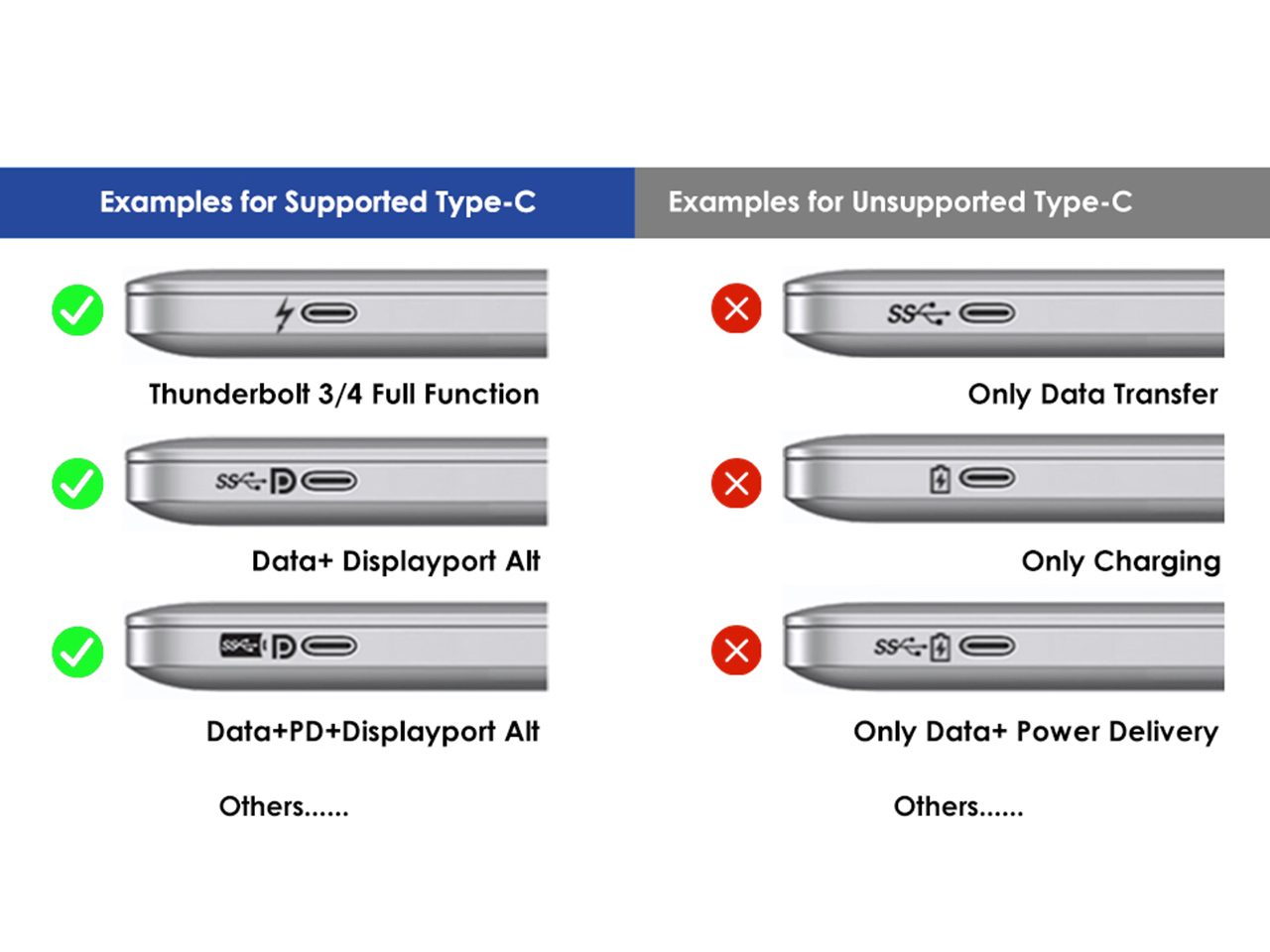

No. This dock requires a native USB-C port that supports both data transfer and video output to function properly.
Please ensure that the power adapter you are using with the dock is in good condition. If possible, try using a different power adapter, another USB-C port on your computer, or another computer for testing. If the “slow charging” message still appears, please contact our support team for further assistance.
To ensure that four monitors can function properly (one built-in display and three external displays), your GPU must support up to four displays simultaneously. Please note that not all GPUs have this capability.
If you are unsure whether your device supports this feature, we kindly recommend contacting your laptop or PC manufacturer for confirmation. Alternatively, you may reach out to our support team and provide the detailed model number of your laptop—we will be happy to assist you further.
The maximum supported resolution depends on the DisplayPort (DP) version of the host USB-C port. We kindly recommend referring to the user manual to check the supported resolutions for different DP versions.
If you are unsure about the DP version of your device’s USB-C port, please contact your laptop or PC manufacturer for confirmation. Alternatively, you may reach out to our support team, and we will be happy to assist you further.
