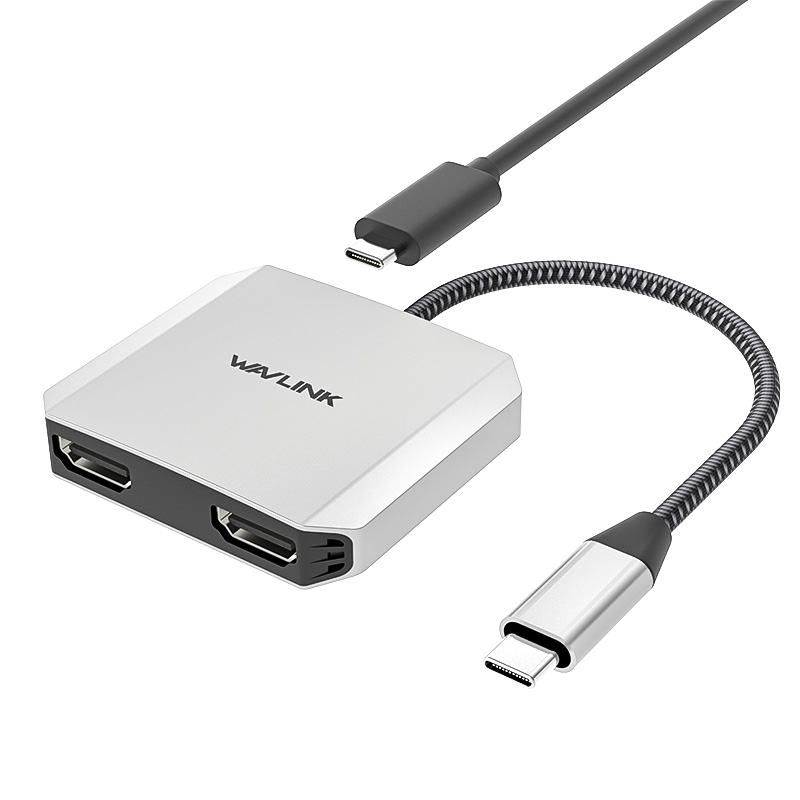

Model: WL-UHP510-Max
.-Support single and dual 4K@60Hz display.
-Support 95W power delivery for your host Laptops.
-The HDMI ports can extend two HDMI monitors.
-Mirror and Extend modes provide more operational possibilities.
-Compatible with Type-C Alt-mode Laptops.

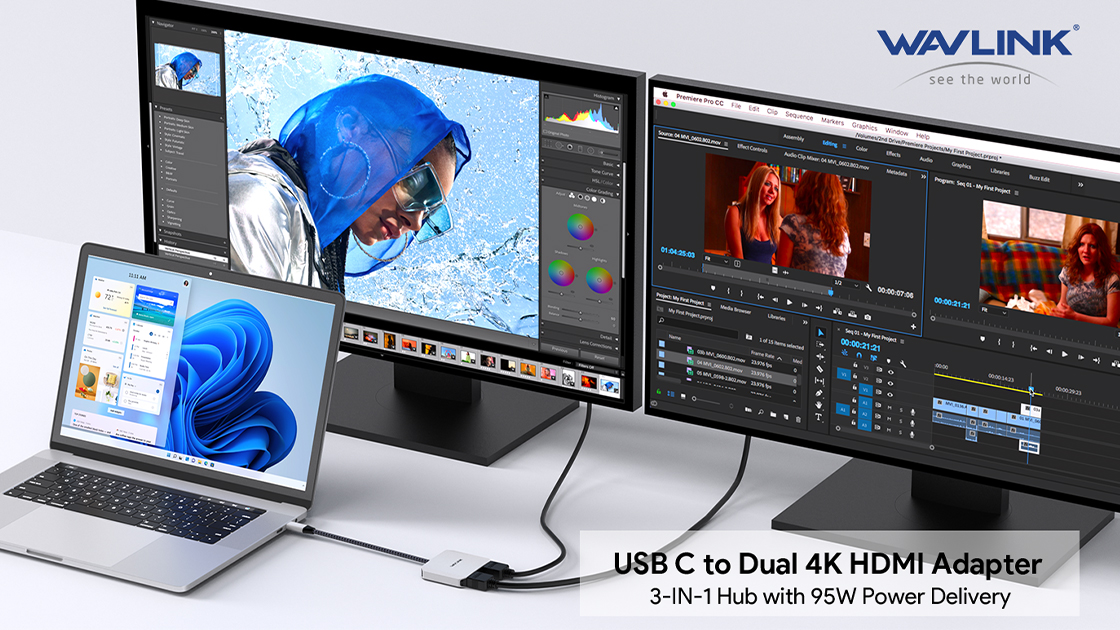

Instantly expand your workspace across two stunning 4K@60Hz monitors.This powerful adapter also delivers 95W of passthrough power, keeping your laptop fully charged. The perfect plug-and-play solution for ultimate productivity.

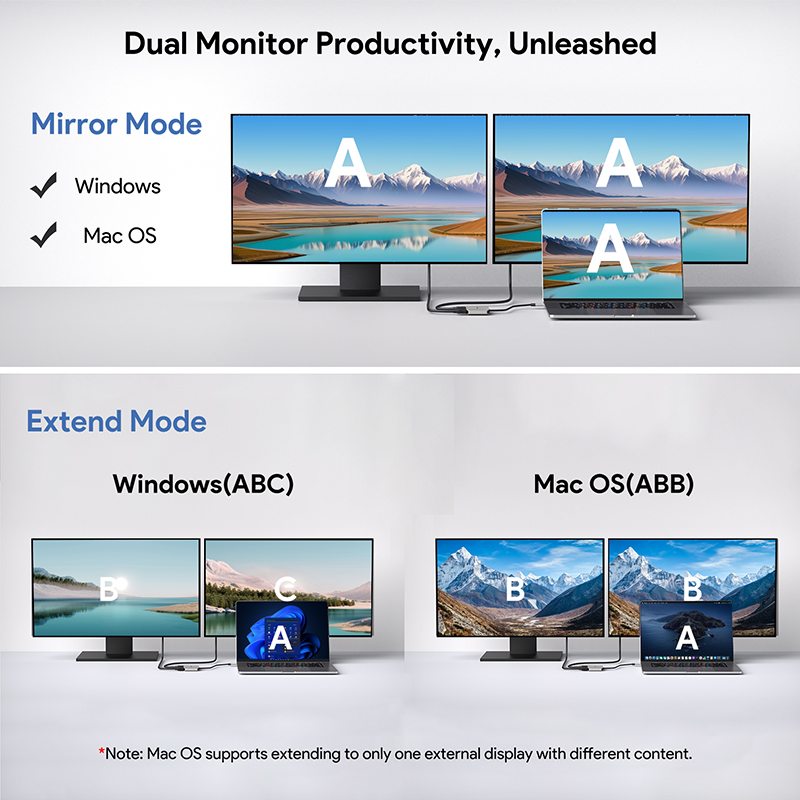

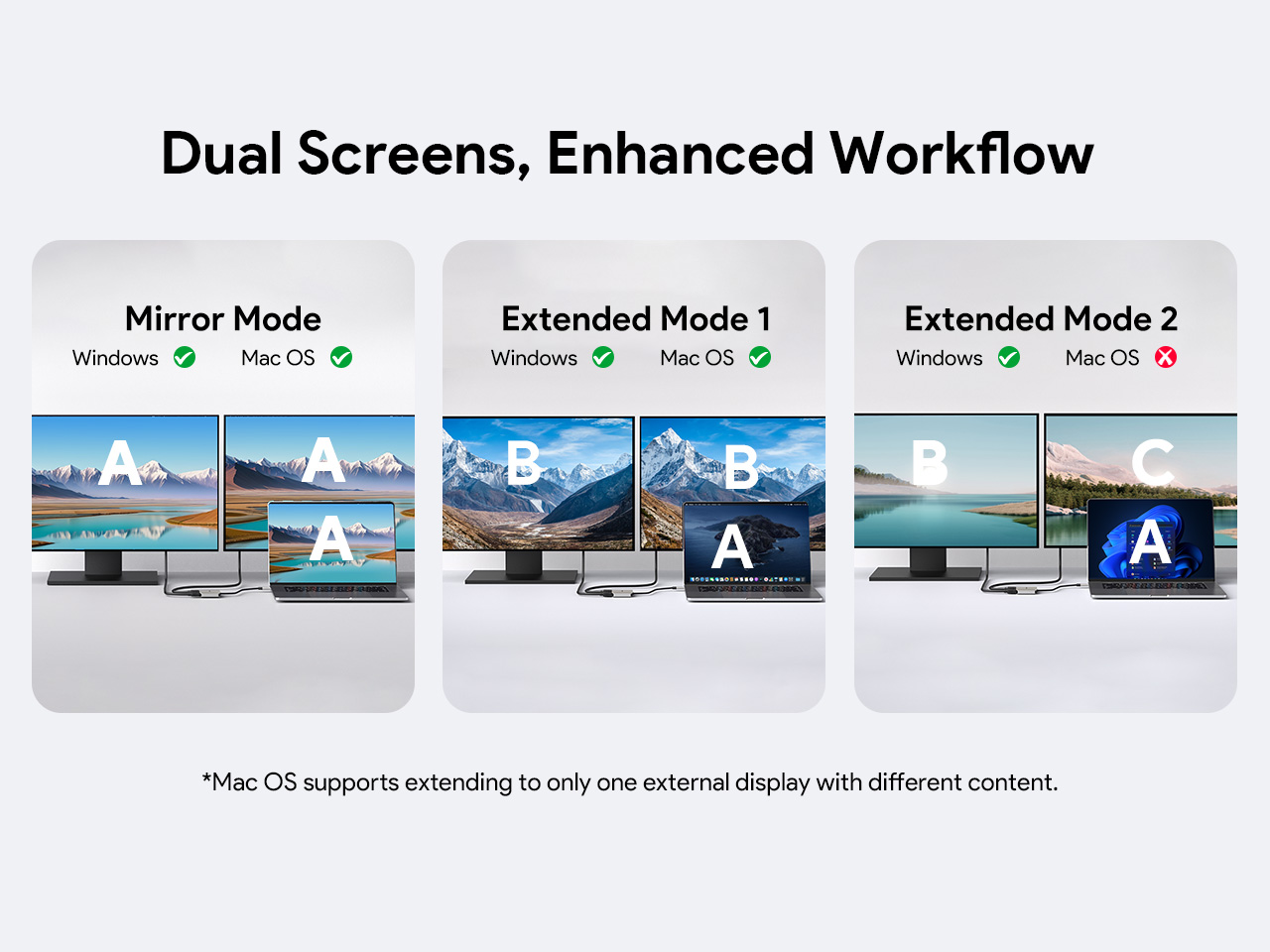

Effortlessly switch between Mirror Mode for impressive presentations and Extend Mode for a massive,productivity-boosting desktop. Your workflow, your way.

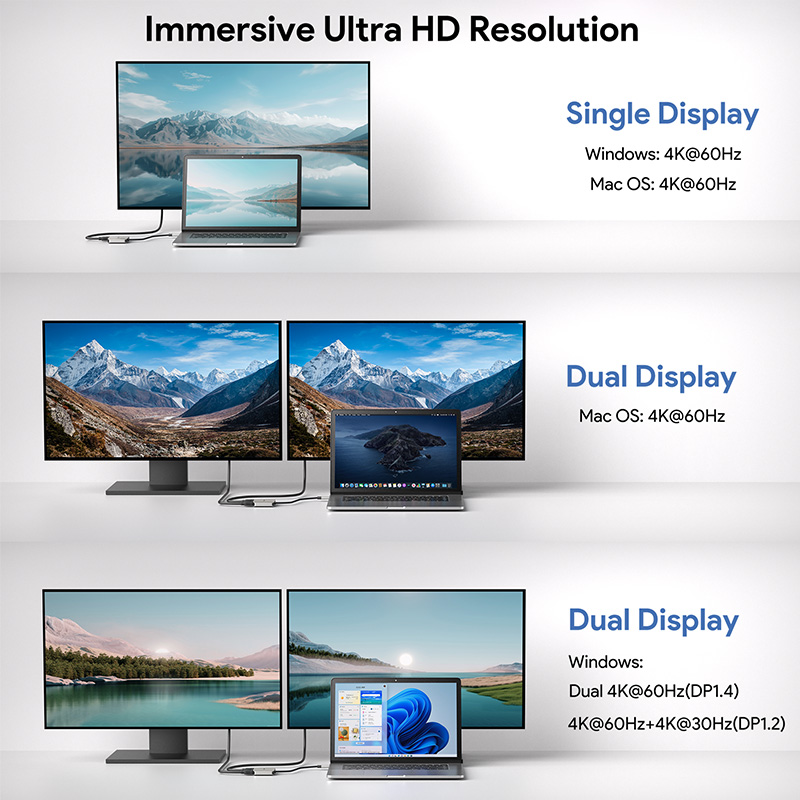

Experience breathtaking detail and vibrant color with dual 4K@60Hz resolution. Perfect for creative professionals, data analysis, and immersive entertainment. Your content has never looked this good.

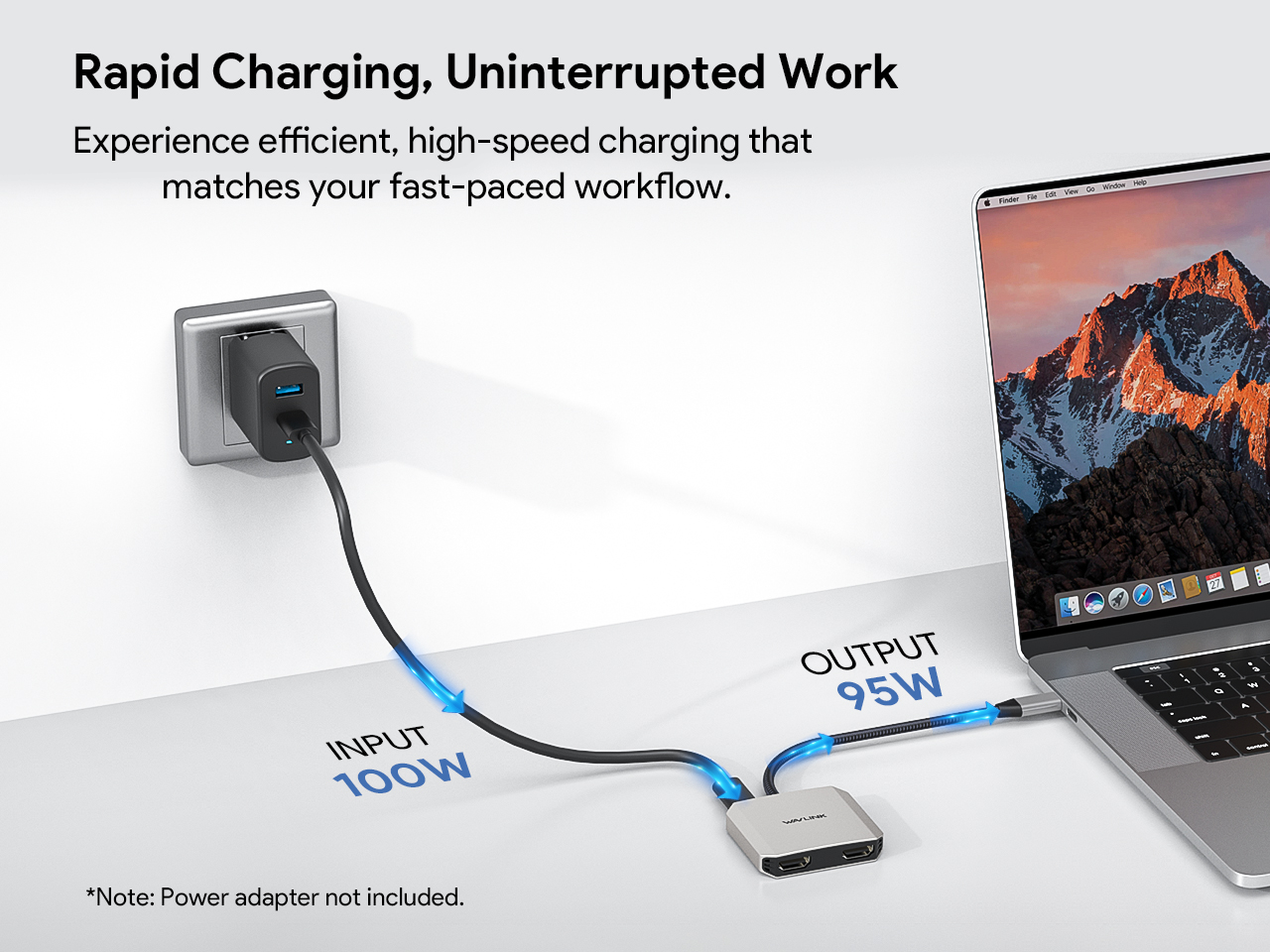

Featuring a 95W Power Delivery port to charge your laptop at full speed while you work. Never compromise on power or productivity again. One port for everything.

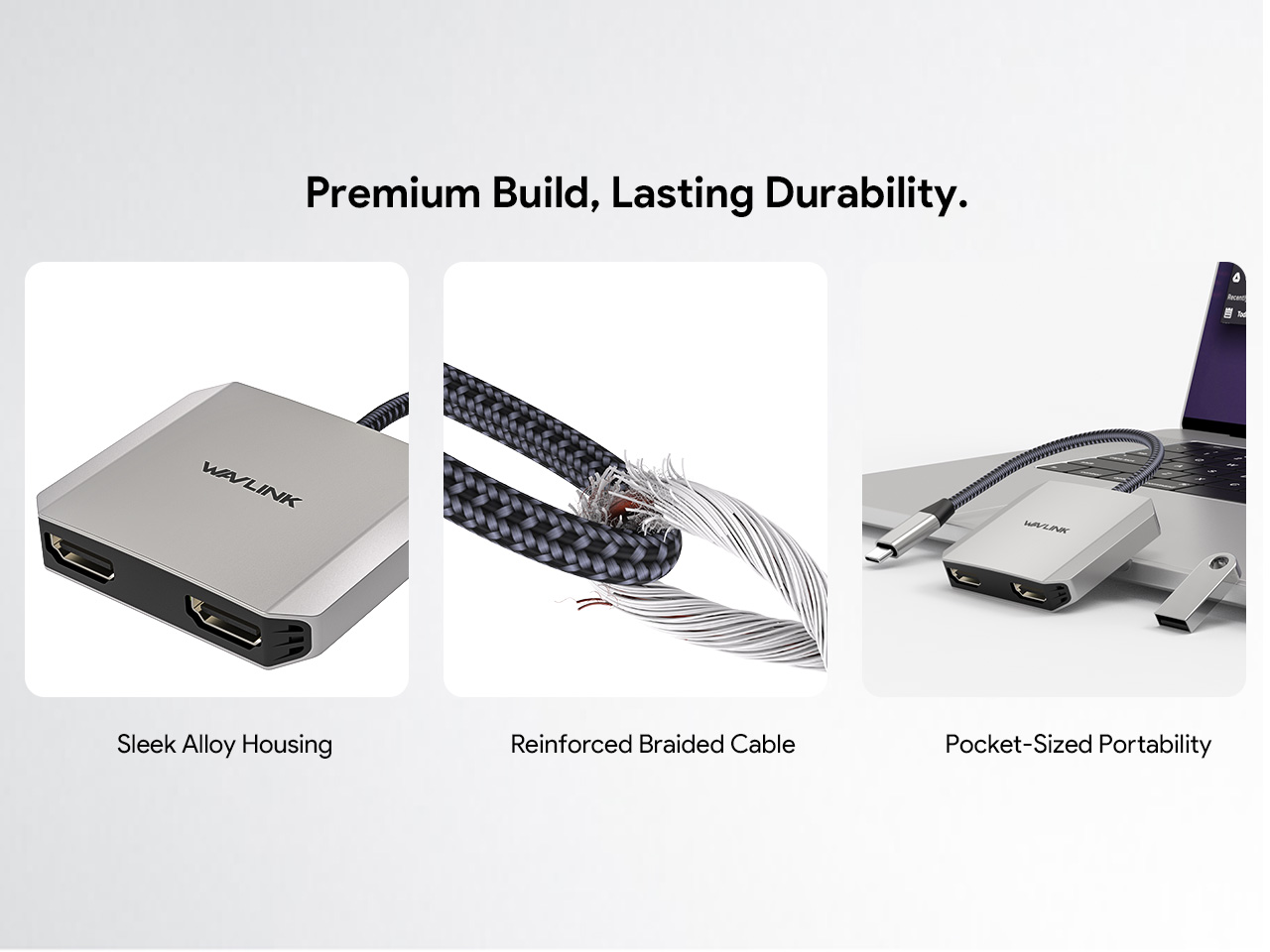

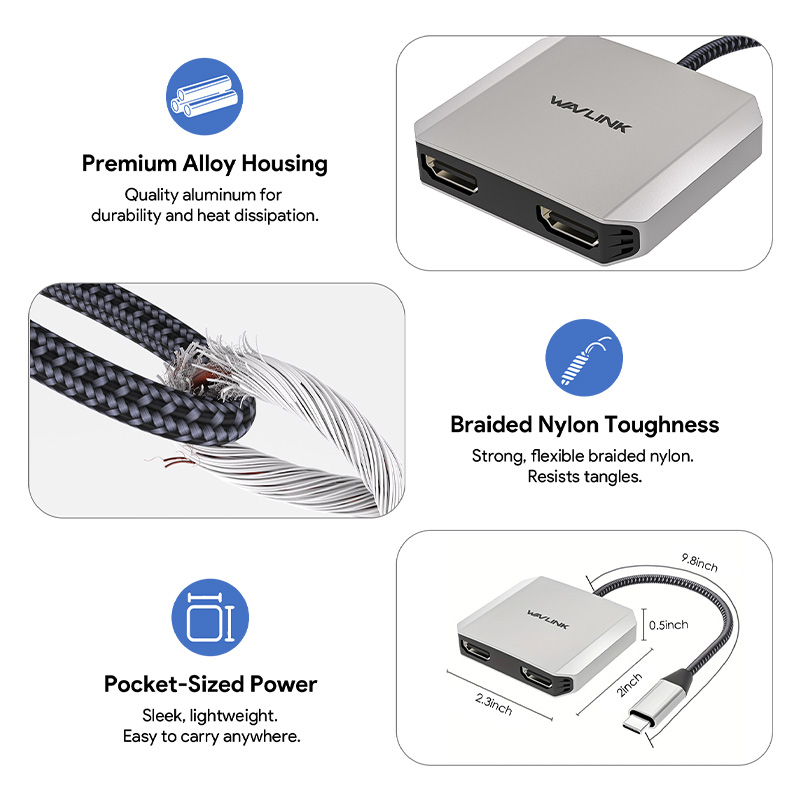

A premium aluminum alloy shell superior heat dissipation and durability. The reinforced, braided nylon cable is engineered for thousands of bends. Quality you can see and feel.
Instantly connect with a wide range of USB-C (Thunderbolt3/4 compatible) laptops, tablets, and smartphones. Just plug and play-no drivers required. It simply works.
SPECIFICATION
| Connection To Host | 1 x USB-C attached cable 25cm |
| Plug & Play | Driver-free Plug and Play |
| USB Power Delivery | 1 x USB - C for USB3.0 PD passthrough PD IN 100W, charge laptop up to 95W |
| Video Outputs | HDMI 1 4K 60Hz HDMI 2 4K 60Hz |
| Operating Systems | Microsoft Windows 7 / 8 / 10 / 11 Apple Mac OS 10.8 or later |
Description : WL-UHP510-MAX-Manuals
Post Date : 20/01/2025
Available : WL-UHP510-MAX
1.Your computer’s USB-C port must support DisplayPort Alt Mode (video output) for the external monitor to function through the dock. To verify this,you could contact the laptop/pc manufacturer or contact our support team and tell us the detail model number of your laptop.
2.If the docking comes with a type-c cable,please make sure you should use the original type-c cable.
This dock uses MST (Multi-Stream Transport) technology. macOS does not support MST, so all connected displays will mirror the same screen.
This is a limitation of macOS, not a defect of the dock.
Please ensure that your computer’s USB-C port supports charging. If the dock does not come with a power adapter, please connect a compatible power adapter to the dock to enable the charging function.
This dock is driver-free and supports plug-and-play functionality. Please ensure that your computer’s USB-C port supports video output for the external monitor to work with the dock.
No. This dock requires a native USB-C port that supports both data transfer and video output to function properly.
Please ensure that the power adapter you are using with the dock is in good condition. If possible, try using a different power adapter, another USB-C port on your computer, or another computer for testing. If the “slow charging” message still appears, please contact our support team for further assistance.
To ensure that four monitors can function properly (one built-in display and three external displays), your GPU must support up to four displays simultaneously. Please note that not all GPUs have this capability.
If you are unsure whether your device supports this feature, we kindly recommend contacting your laptop or PC manufacturer for confirmation. Alternatively, you may reach out to our support team and provide the detailed model number of your laptop—we will be happy to assist you further.

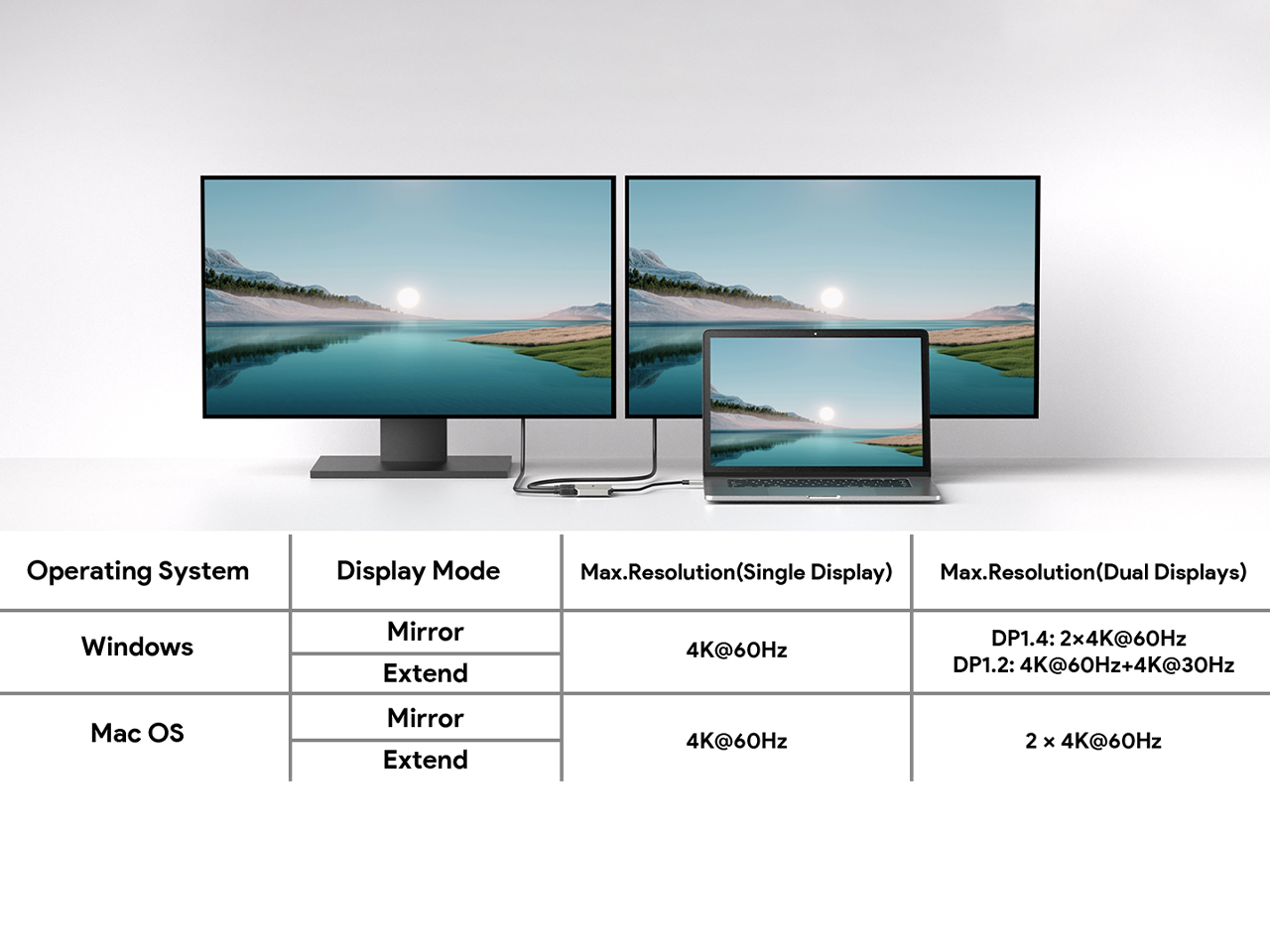

The maximum supported resolution depends on the DisplayPort (DP) version of the host USB-C port. We kindly recommend referring to the user manual to check the supported resolutions for different DP versions.
If you are unsure about the DP version of your device’s USB-C port, please contact your laptop or PC manufacturer for confirmation. Alternatively, you may reach out to our support team, and we will be happy to assist you further.
