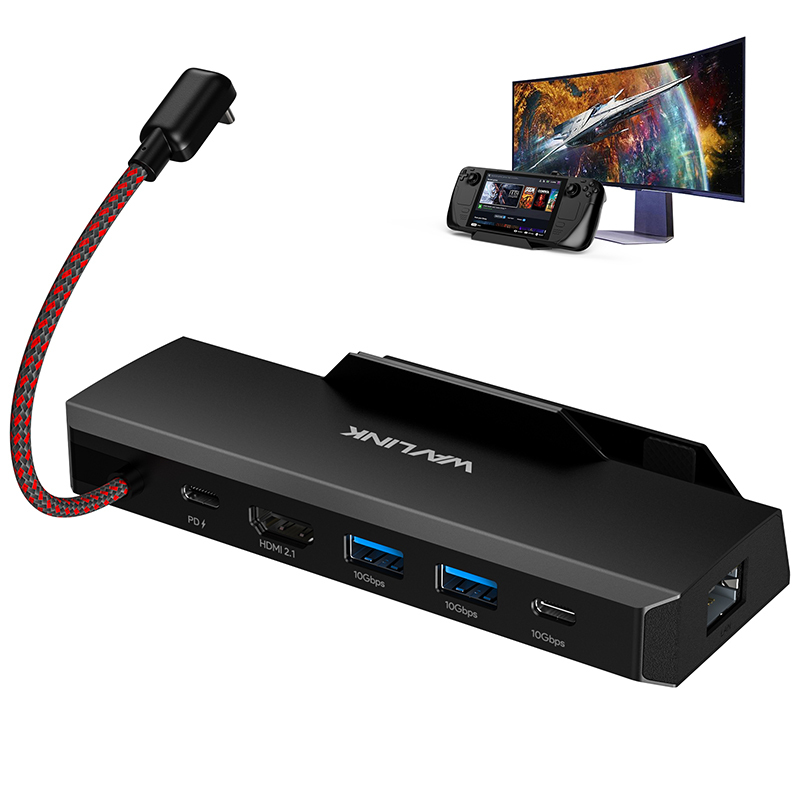

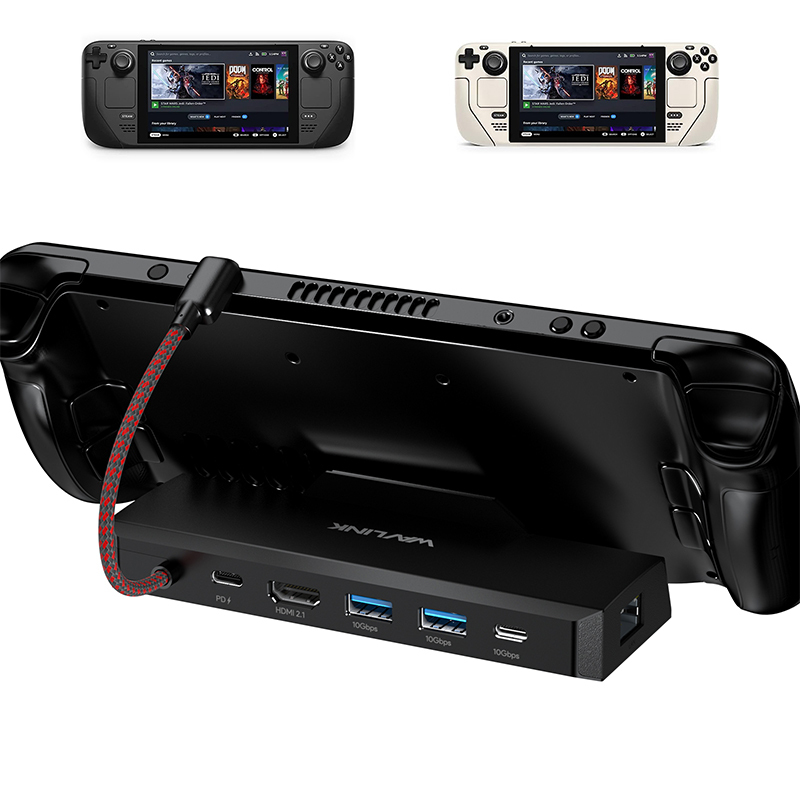

6-in-1 Steam Deck/ROG Dock

Model: WL-UHP3426

- 1 x HDMI port supports up to 3840X2160@144Hz display.
- Compatible with Type-C USB 3.2 Gen2 full specification computers.
- USB-C power interface supports PD3.0, PD IN 100W, uplink charging to the computer up to 85w.
- One Ethernet port supports up to 1Gbps (10/100/1000Mbps).
- 2 x USB-A and 1 x USB-C ports transfer rates up to 10 Gbps.
- Plug and play, no configuration.

  • Overview

  • Specifications

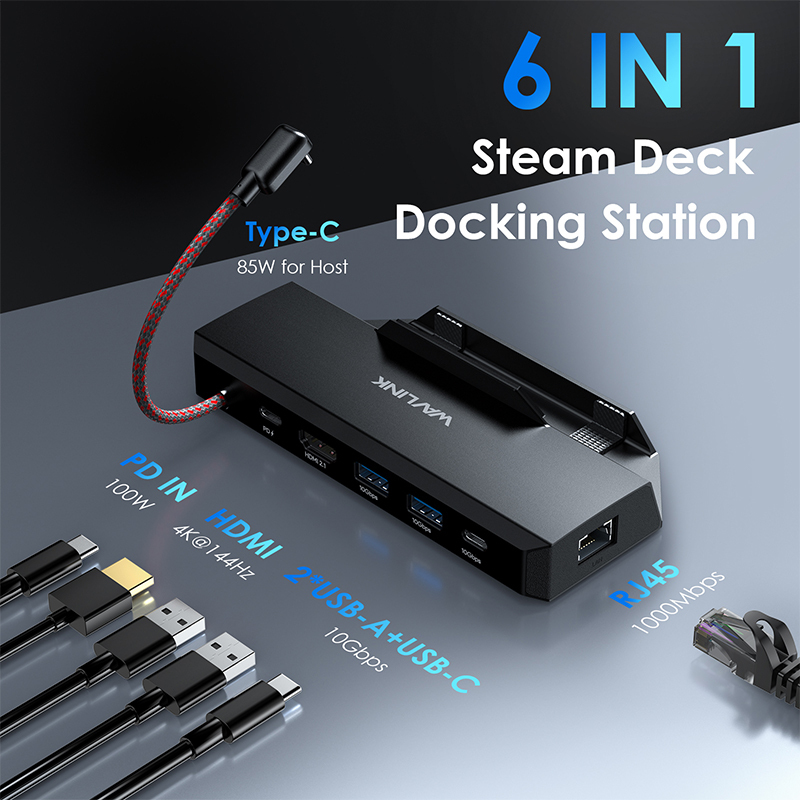

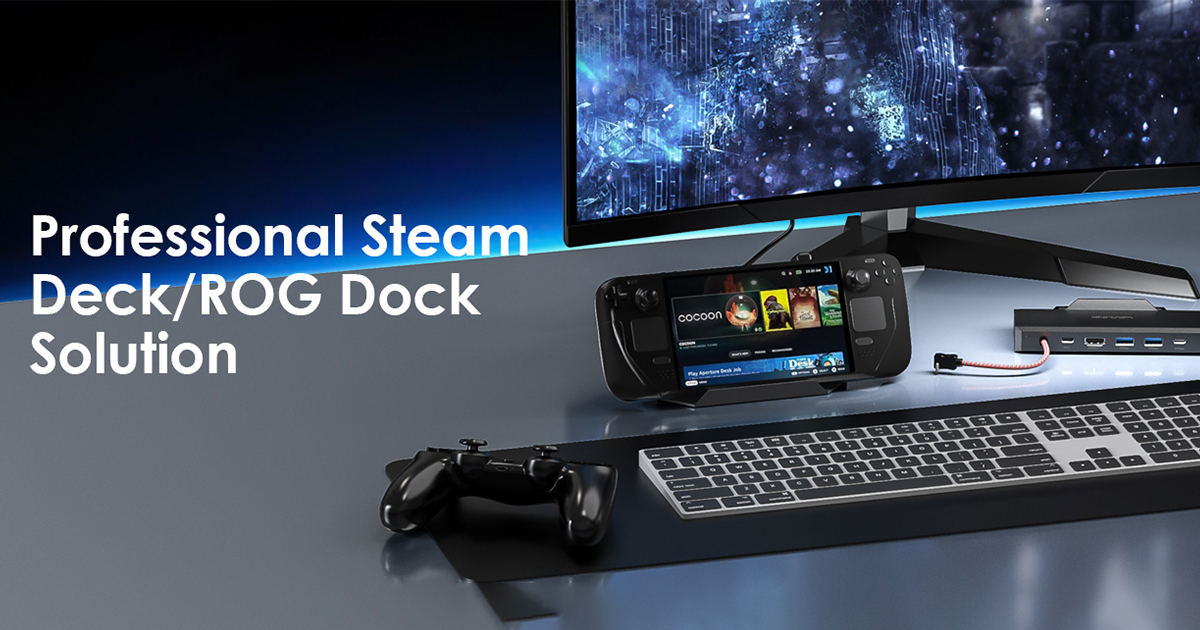

4K@144Hz 6-Port USB-C Dock for Steam Deck/ROG
HDMI 2.1, Gigabit Ethernet, 10Gbps USB-A/C, PD 85W, Plug and Play
Upgraded 4K@144Hz HDMI Output
Explore enhanced game details on a larger 4K UHD display, breaking free from the constraints of the Steam Deck's screen. With the HDMI port that supports 4K@144Hz/2K@165Hz/1080P@240Hz (under DP1.4 & DSC), the WAVLINK Steam Deck stand elevates your gaming experience to new heights. Also supports HDCP2.3, so you could enjoy videos on Blu-ray/Netflix/Prime/iTunes/Hulu, etc. through the dock at home.

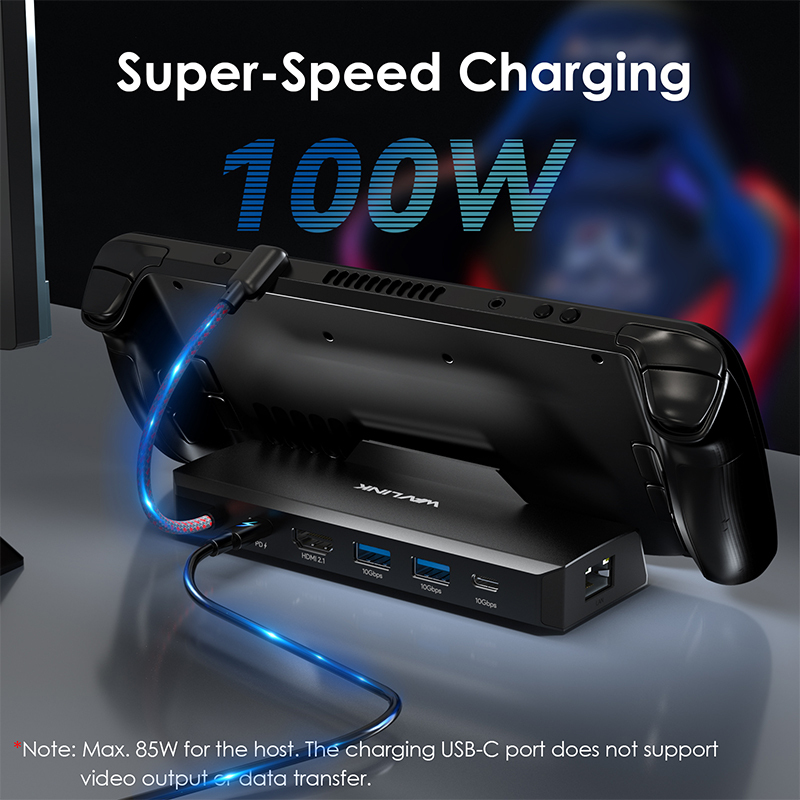

100W Super-Speed Charging
Featuring an integrated USB-C PD IN port, this Steam Dock ensures a stable and robust power supply for all station ports. Charging the dock with a maximum 100W PD input enables it to deliver 85W to the host device, allowing uninterrupted gaming enjoyment without power concerns. Note: The charger and charging cable are not included. The charging USB-C port does not support video output or data transfer.

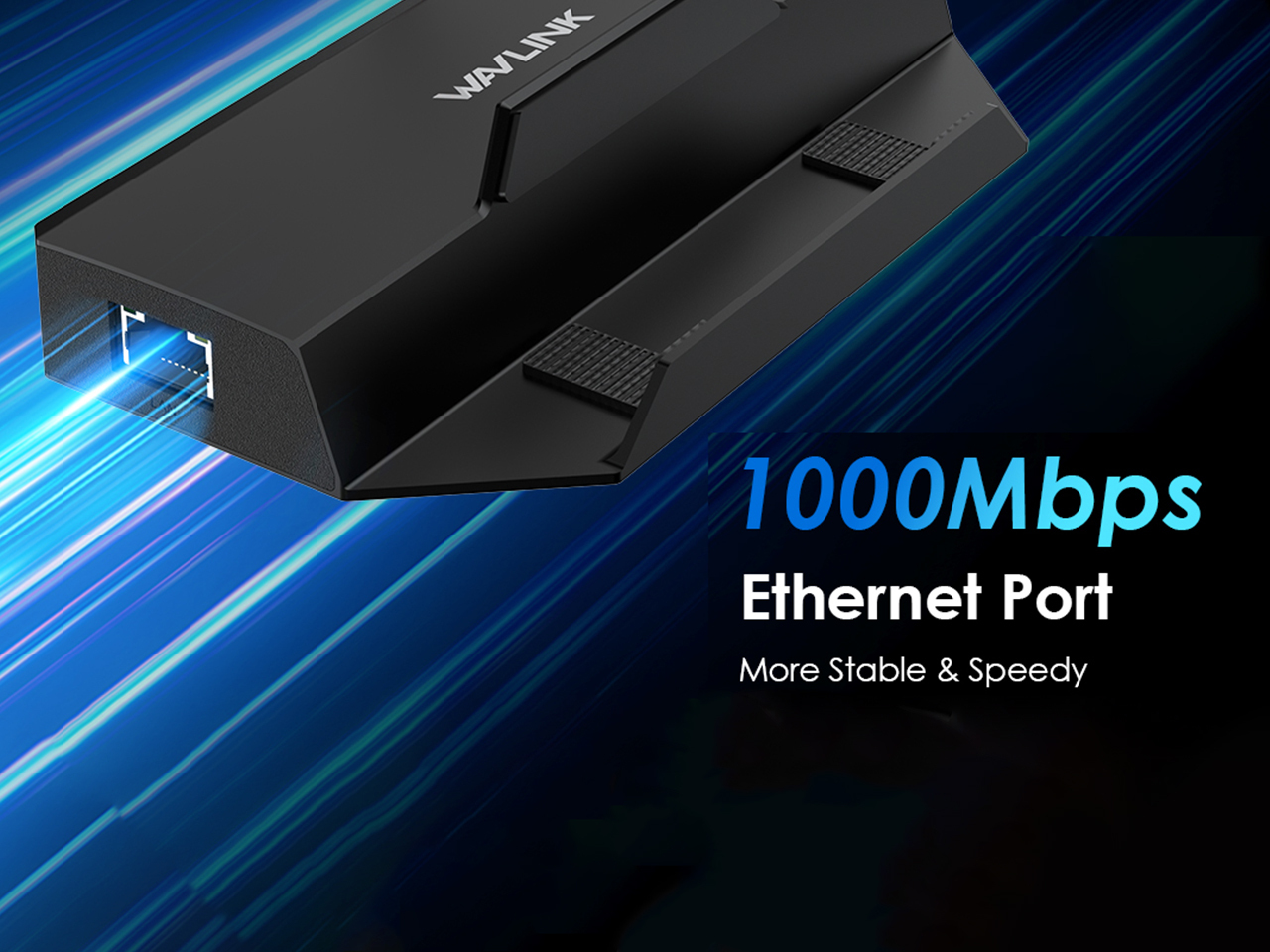

1000Mbps Ethernet
Improve your gaming experience by utilizing Gigabit Ethernet for smooth online gameplay, rapid updates, and quick file transfers. Delight in swift downloads and uploads, eradicating lag and latency to ensure uninterrupted gaming sessions.

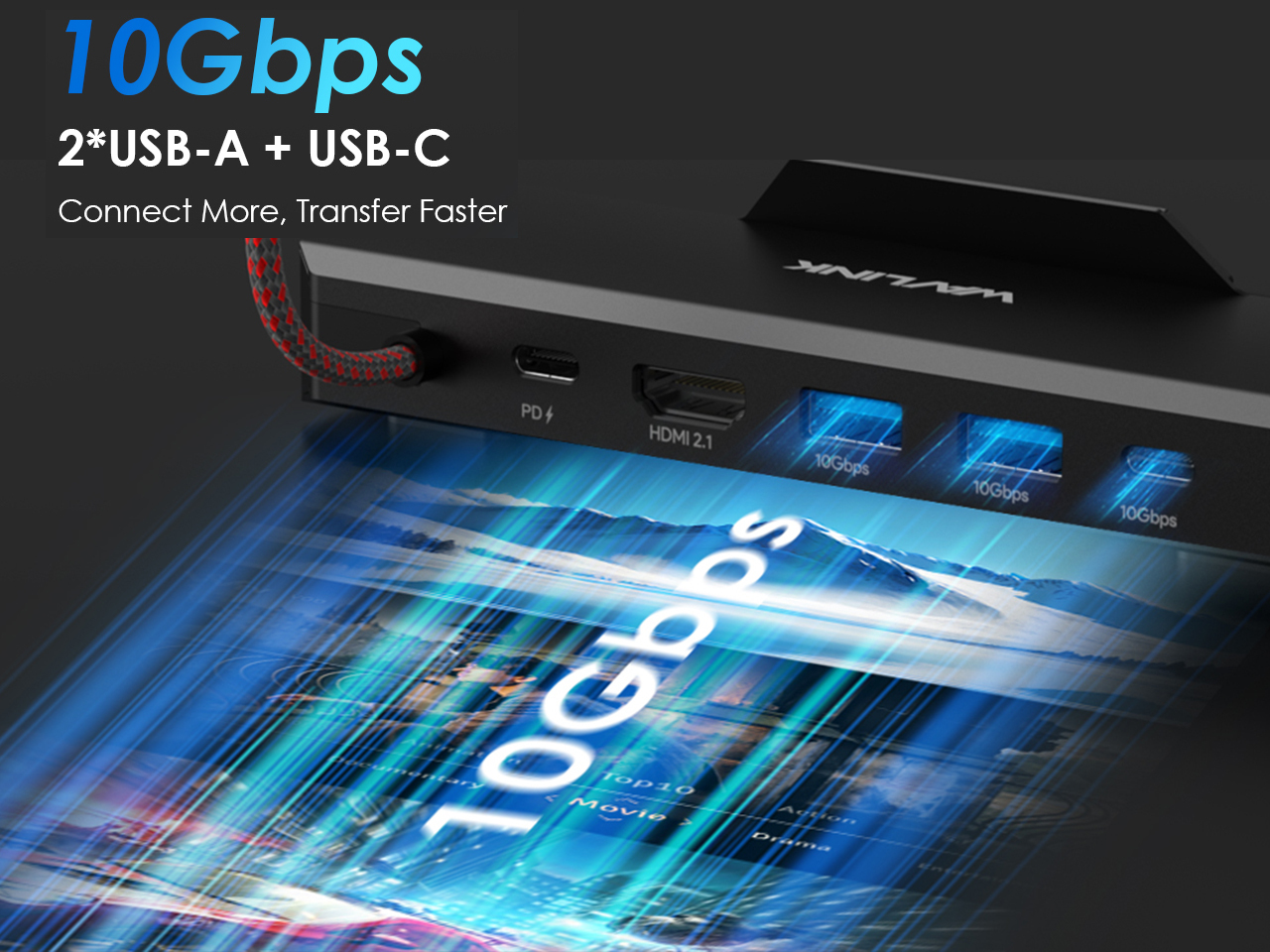

10Gbps Lightning-Speed USB Ports
This USB-C Dock has 3x USB 3.2 Gen 2 ports (2*USB-A + 1*USB-C) with a blazing transmission rate of up to 10Gbps, facilitating flexible connectivity for external mobile hard drives or USB flash drives, ensuring swift game file transfers. Moreover, these ports support the connection of keyboards, mice, gamepad receivers, etc., enhancing your gaming experience by extending more peripherals.

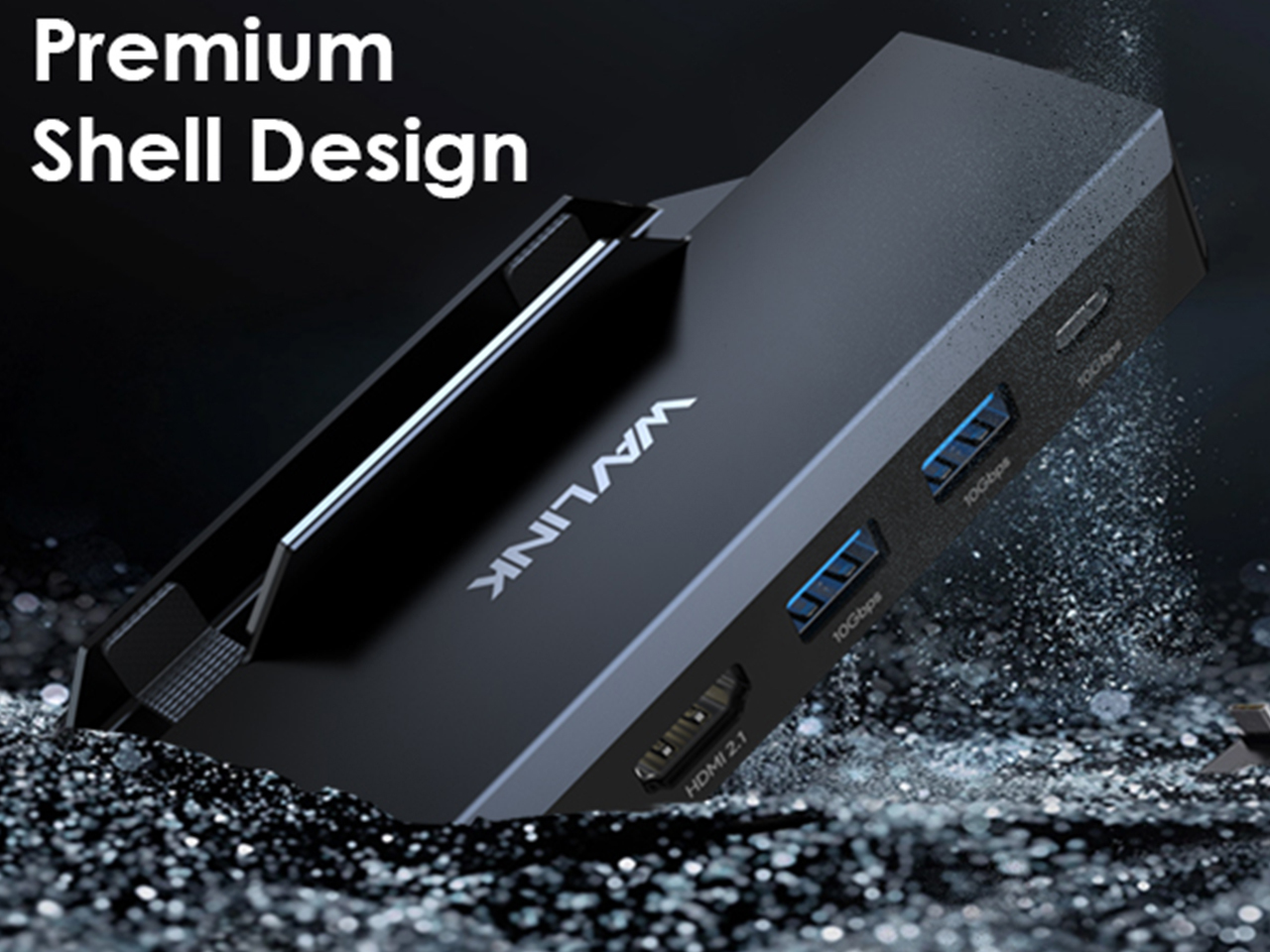

Upgraded Shell Design
The black matte finish not only enhances rapid heat dissipation but also adds a touch of modern elegance, combining functionality with sleek aesthetics.

Specifications

Connection To Host 25cm USB-C Cable
USB Power Delivery Supports USB PD 3.0 85Watt Power Delivery
USB Port 1 x USB-C PD 3.0, PD IN 100W, Charging Host up to 85W
USB Port 1 x USB-C 10Gbps ports
USB Port 2 x USB-A 10Gbps ports
Video Output 1 x HDMI 2.1
Ethernet Speed 1x RJ45 10/100/1000Mbps Ethernet
LED Blue
Operating Systems Microsoft Windows 10/11
Apple Mac OS 11 or later
Working Environment Operation temperature: 0°C~40°C
Storage temperature: -10~70°C
Operation RH (relative humidity): 10%~90%, noncondensing
Storage RH: 10%~90%, noncondensing
In the Box 1 x Quick Start Guide
1 x 6-in-1 Steam Deck/ROG Dock
