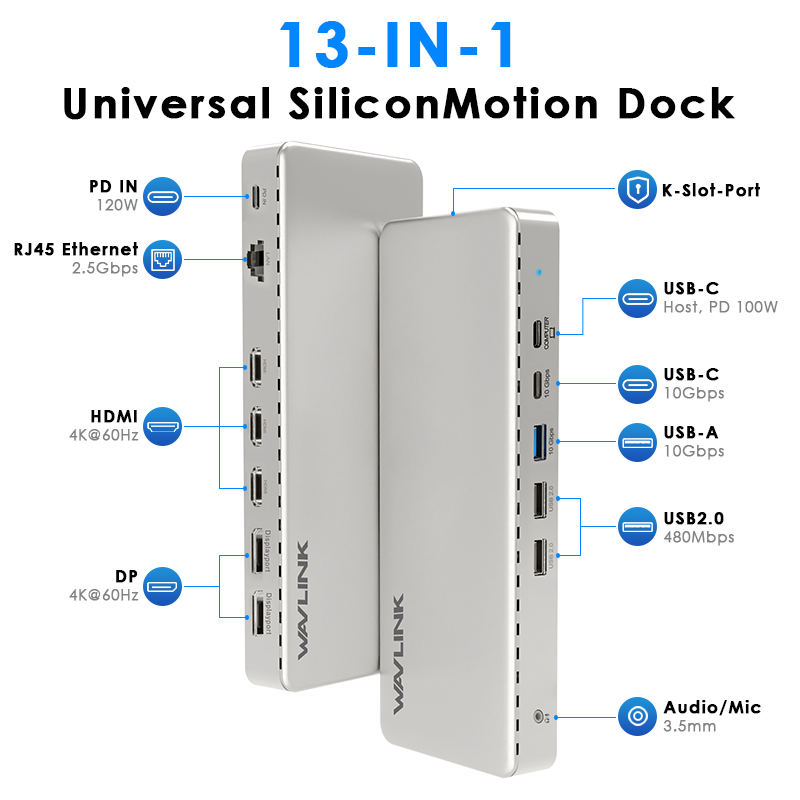

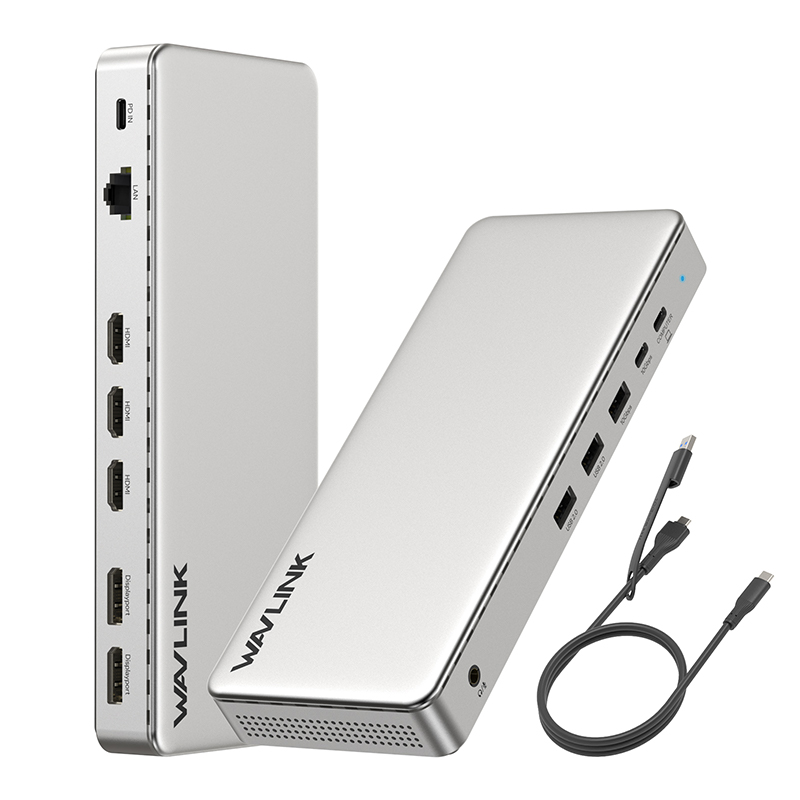

Model: WL-UG77PD1-Pro
- 2 x DP & 3 x HDMI ports support triple 4K.
- 1 x USB-C/A 2-in-1 cable, easily connect to the host.
- 1 x RJ45 Ethernet port speed up to 2.5Gbps.
- 1 x USB-C supports 100W PD upstream charging to the laptop.
- Among 3 x USB-A & 1 x USB-C, 1 x USB-A & 1 x USB-C transfer speed up to 10Gbps.
- 1 x 4-pole audio jack works for the audio output/input.

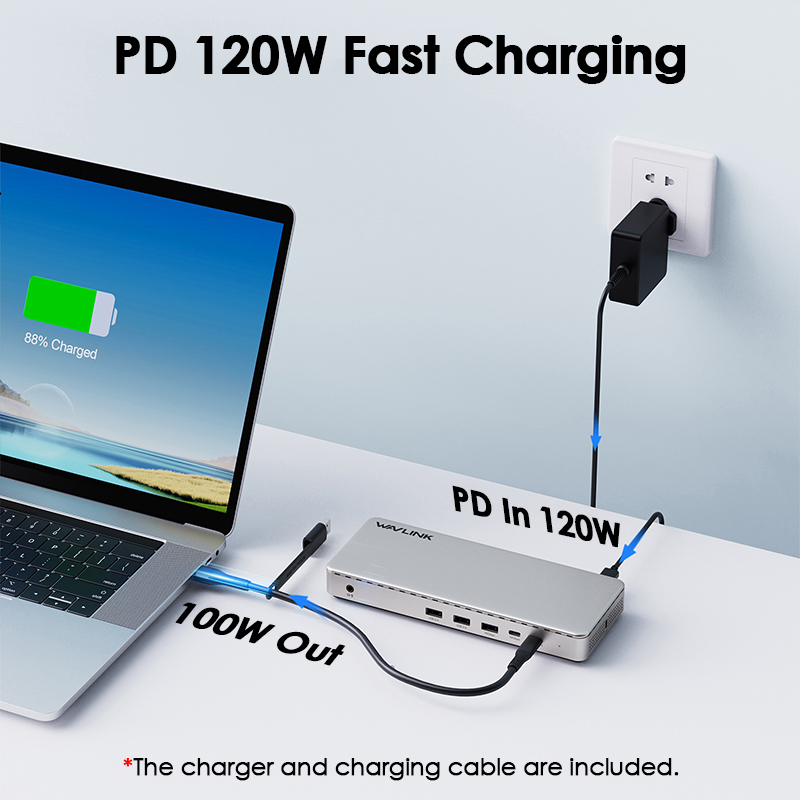

- 1 x PD IN port provides a 120W power supply for the docking station.
Elevate your productivity and visual experience!
Built-in Silicon Motion chip ensures high-quality image output, multi-device compatibility, and stable performance, especially perfect for those who need multiscreen high-loaded operation during work, like designers and programmers.
WAVLINK universal docking is especially suitable for MacBook users. Compared with other MST USB-C docking, it can expand your MacBook’s capabilities with a true extended display.

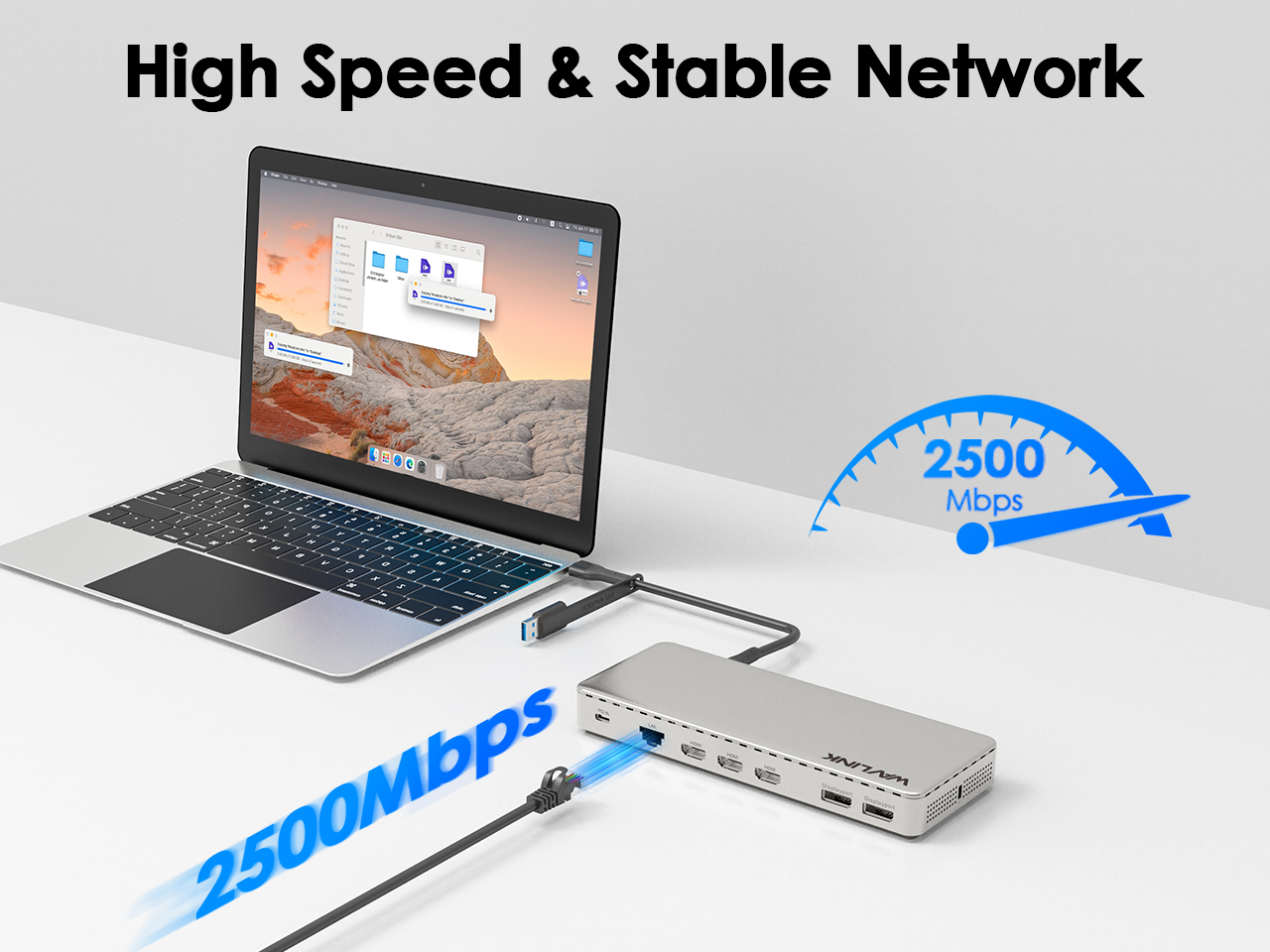

The 2.5Gbps ultra-fast Ethernet port allows you to enjoy extremely fast and stable Internet access. You can easily connect to the network and smoothly watch 4K videos, play online games, and download or upload large files without any glitches.
Two USB3.1 ports feature an ultra-fast transfer speed of up to 10Gbps, syncing data far quicker than regular USB ports. Two USB2.0 ports feature a transfer speed of 480Mbps. These ports offer the option of connecting various USB peripheral devices.

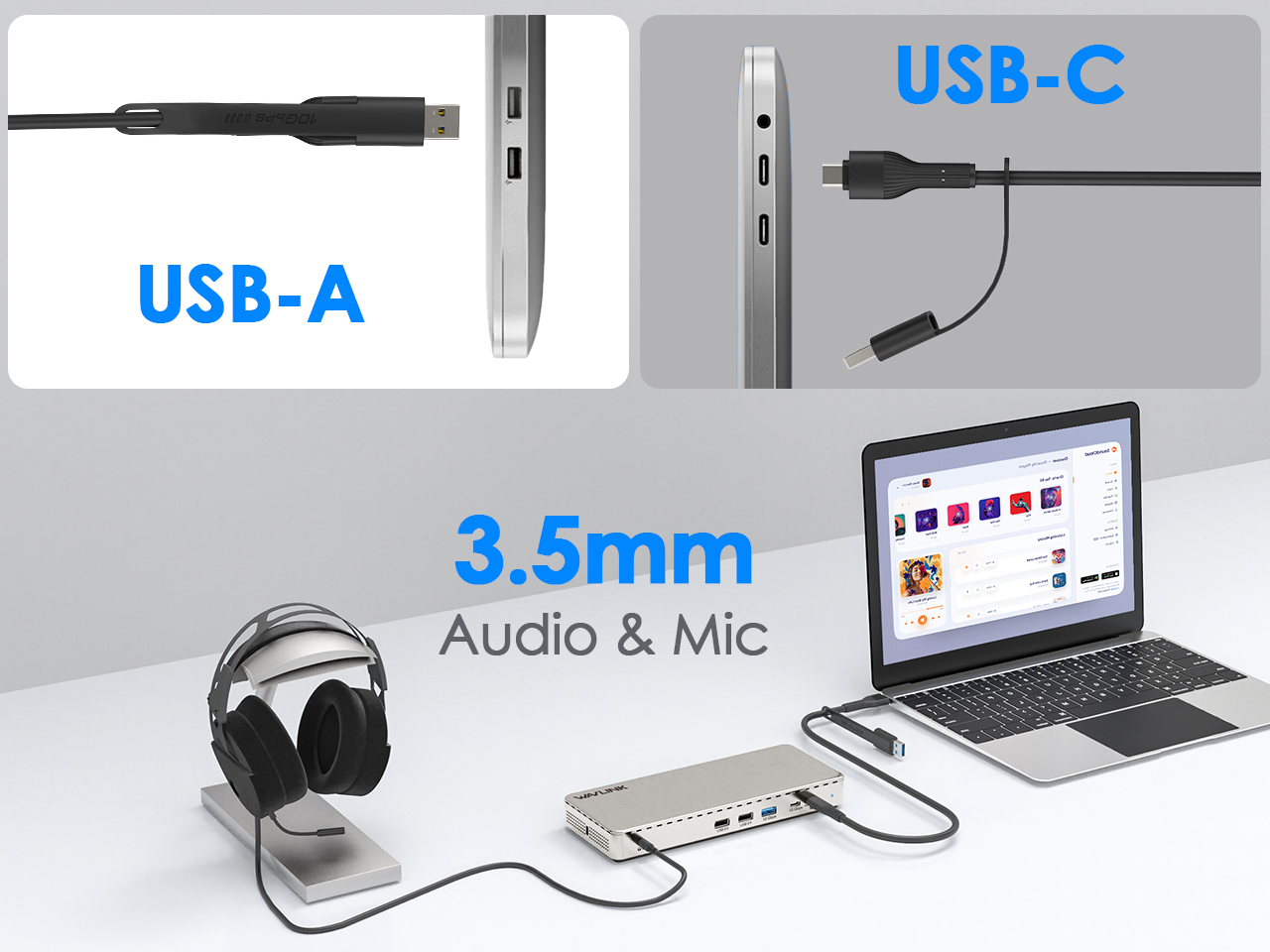

Perfectly compatible with most Mac and Windows laptops and computers. You can connect the USB-C/A connector to your host. 4-pole audio jack works for the audio output/input.
SPECIFICATION
| Connection To Host | 1 x 100cm Type-C to Type-C Cable with a USB-C to USB-A adapter |
| Plug & Play | Silicon Motion Driver |
| USB Power Delivery | 1 x PD port for USB3.0 PD passthrough PD IN: 120W; charge laptop up to 100W |
| USB Port | 1 x USB 3.2 gen2 upstream 1 x USB-C for 120W PD IN 1 x USB-C 10Gbps 1 x USB-A 10Gbps 2 x USB-A 2.0 |
| Video Outputs | 2 x DP 3 x HDMI |
| Audio | Integrated TRRS 4-pole phone jack |
| Ethernet Speed | 1x RJ45 1G/2.5G Ethernet |
| LED | Blue |
| Operating Systems | Microsoft Windows 10/11 Apple Mac OS 13 or later Compatible with Thunderbolt 4/3, USB3.1/3.0, and legacy USB-A port laptops |
Please ensure that the appropriate driver for the dock is installed. You can download the latest driver from the link below:
macOS requires Screen Recording permission for the Silicon Motion driver to function properly. The InstantView app does not transmit any information to Wavlink or Silicon Motion, so there is no need to worry.
1.The docking station does not support HDCP, so protected content from services like Apple TV, Hulu, and Netflix cannot be played while the dock is connected. This is expected behavior. Please disconnect the dock when playing these videos.
2.Alternatively, you can try ：
1) Open Google Chrome settings.
2) Click on "Advanced" and select "System."
3) Disable "Use hardware acceleration when available"
4) Select "Relaunch" to activate the new settings.
No, the driver of Silicon Motion graphics software does not support blue light reduction, so applications such as f.lux, Night shift won't affect the display.
Please use the USB-C to USB-A cable to connect the dock to your laptop.
This will prevent the dock from supplying power.
