Model: WL-UG7701

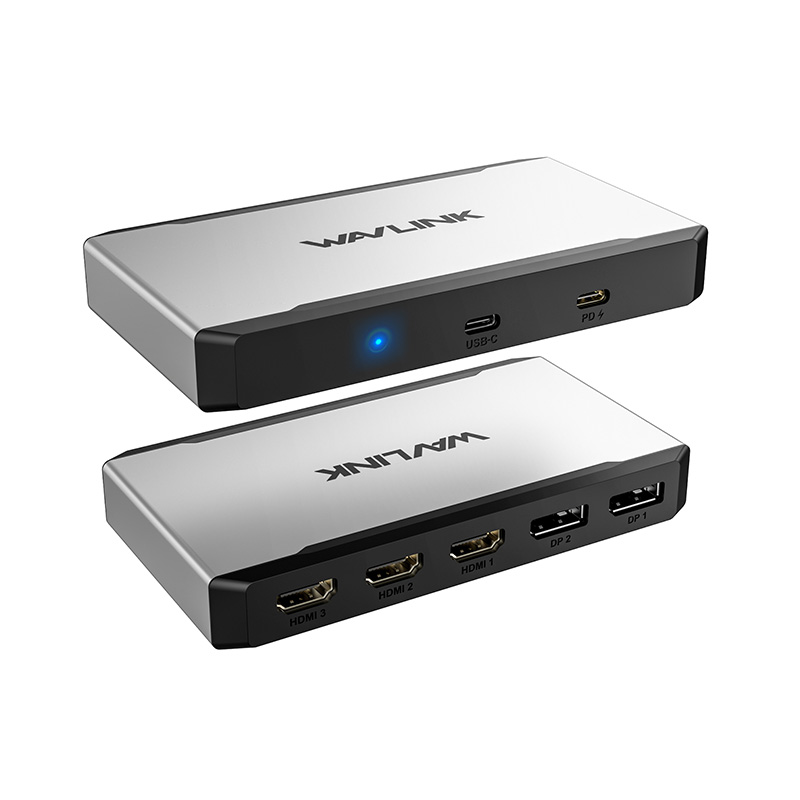

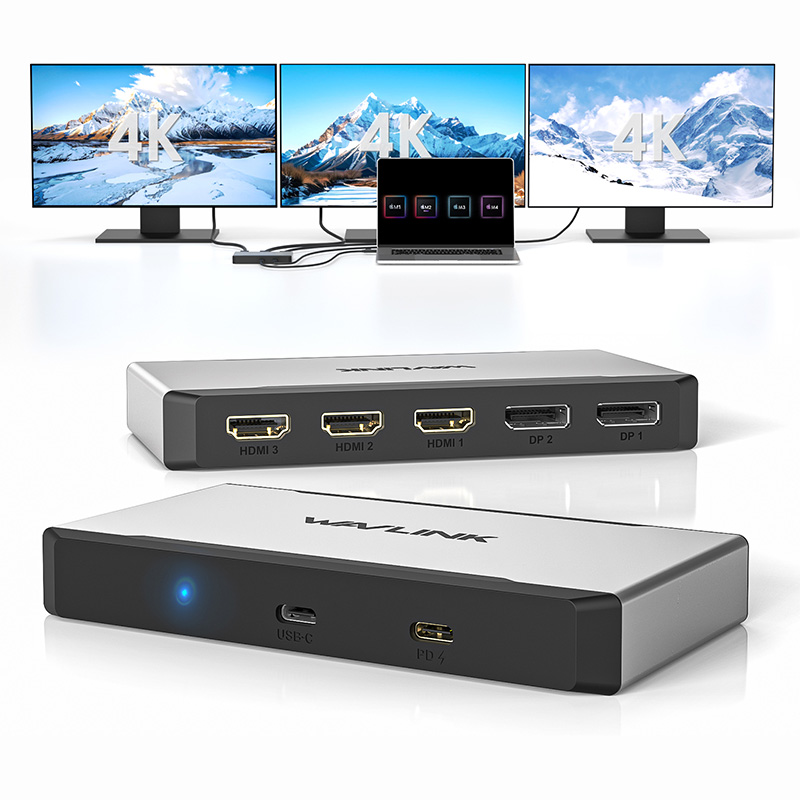

- 5*Video ports(3*HDMI+2*DP) support max. triple 4K@60Hz display in your required combination.
- 1*USB-C upstream is compatible with Thunderbolt 4/3 and full-functional USB4/3.2/3.1/3.0/2.0 Type-C/Type-A hosts, and provides up to 10Gbps data transfer and upstream 95W power delivery for the USB-C hosts.

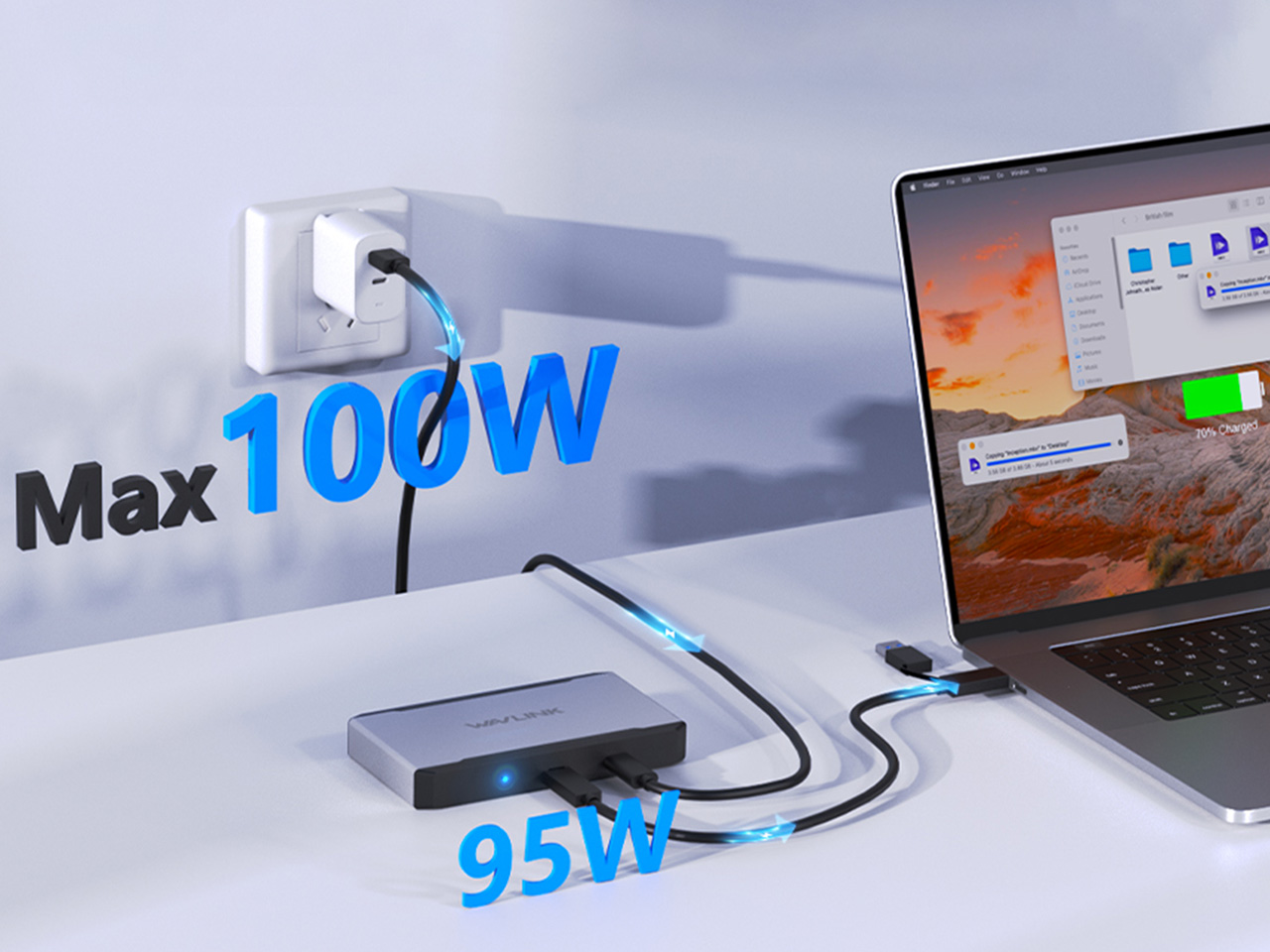

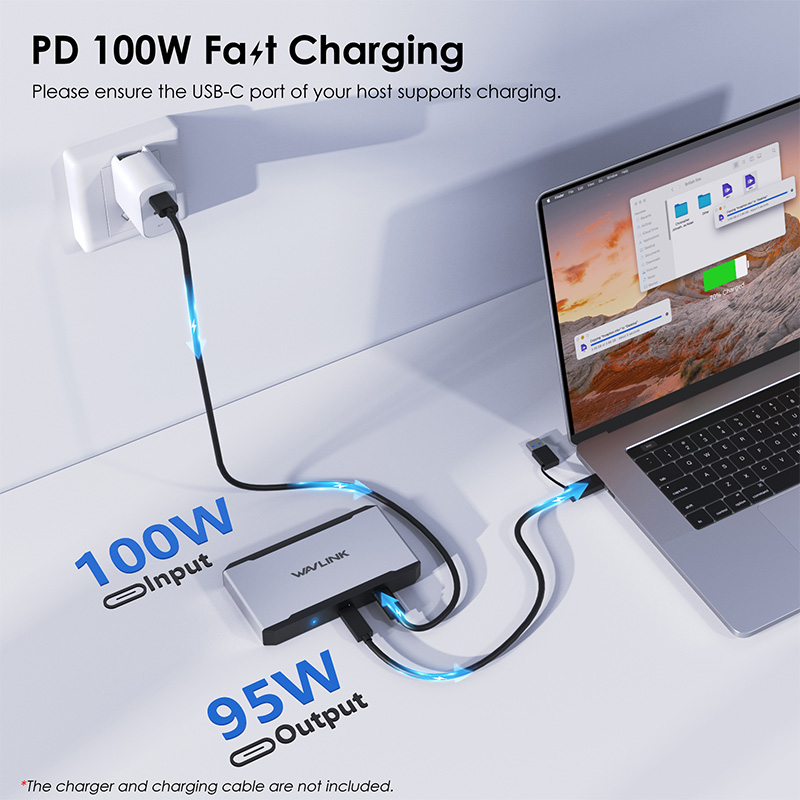

- 1*USB-C PD IN 3.0 passthrough provides 100W power supply for the adapter.
Power Redefined, Clutter Erased

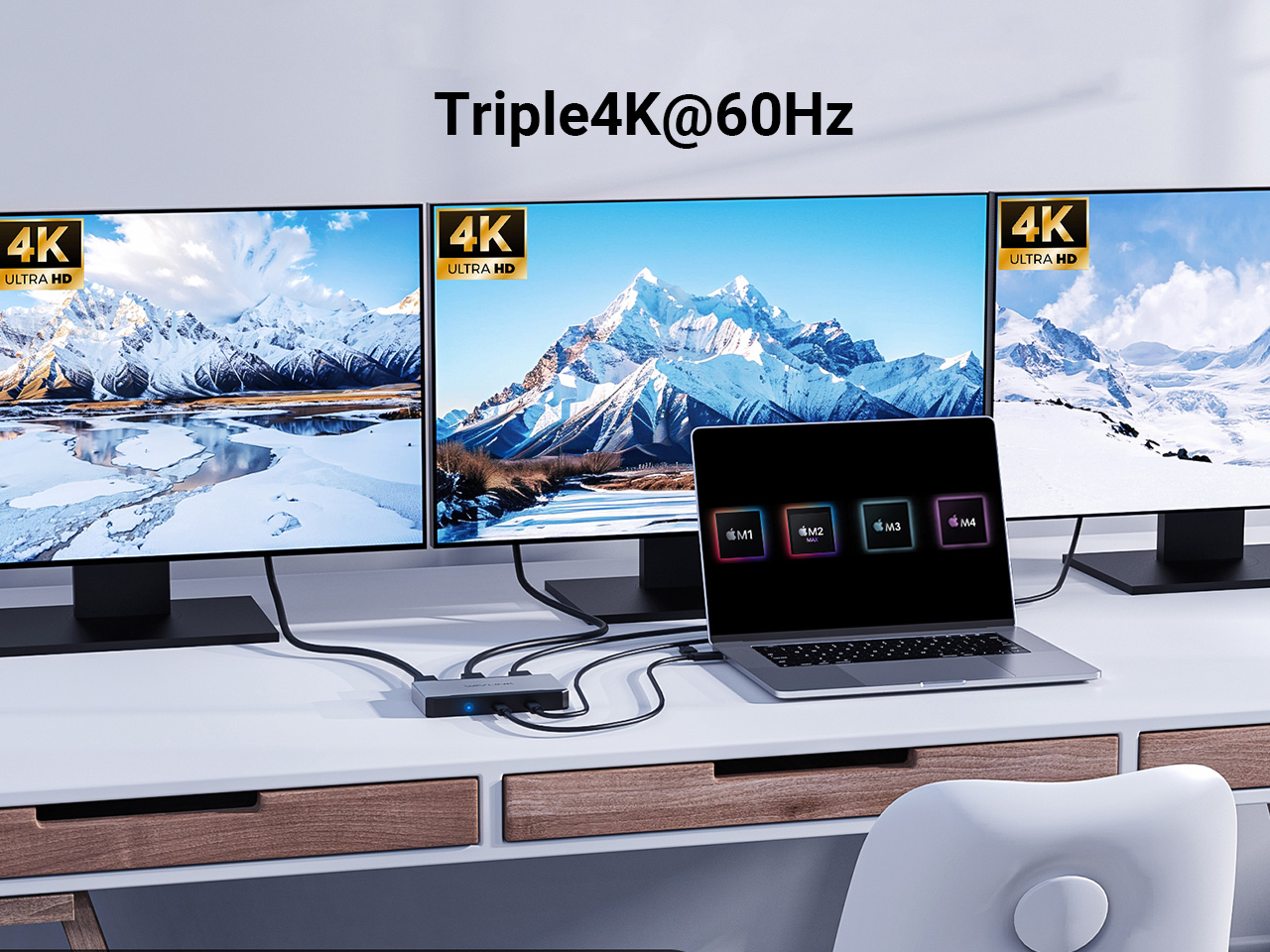

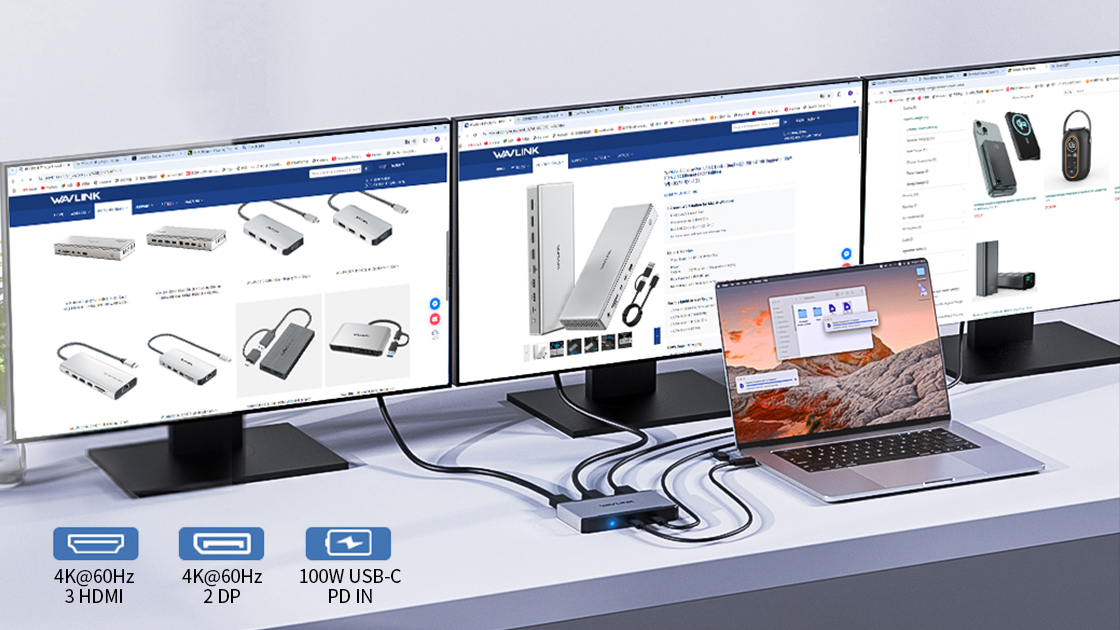

Fuels three 4K@60Hz screens simultaneously (3 outputs from 3*HDMI or 2*DP) – designed for financial analysts, 4K image enthusiast, project manager and more.
Ensure your laptop’s USB-C port supports charging, and bring a qualified charger and cable.
Equipped with SM770 chip for ultra-stable performance. Does NOT support plug & play, please install the latest driver from our website (www.wavlink.com) to ensure full functionality of the dock.

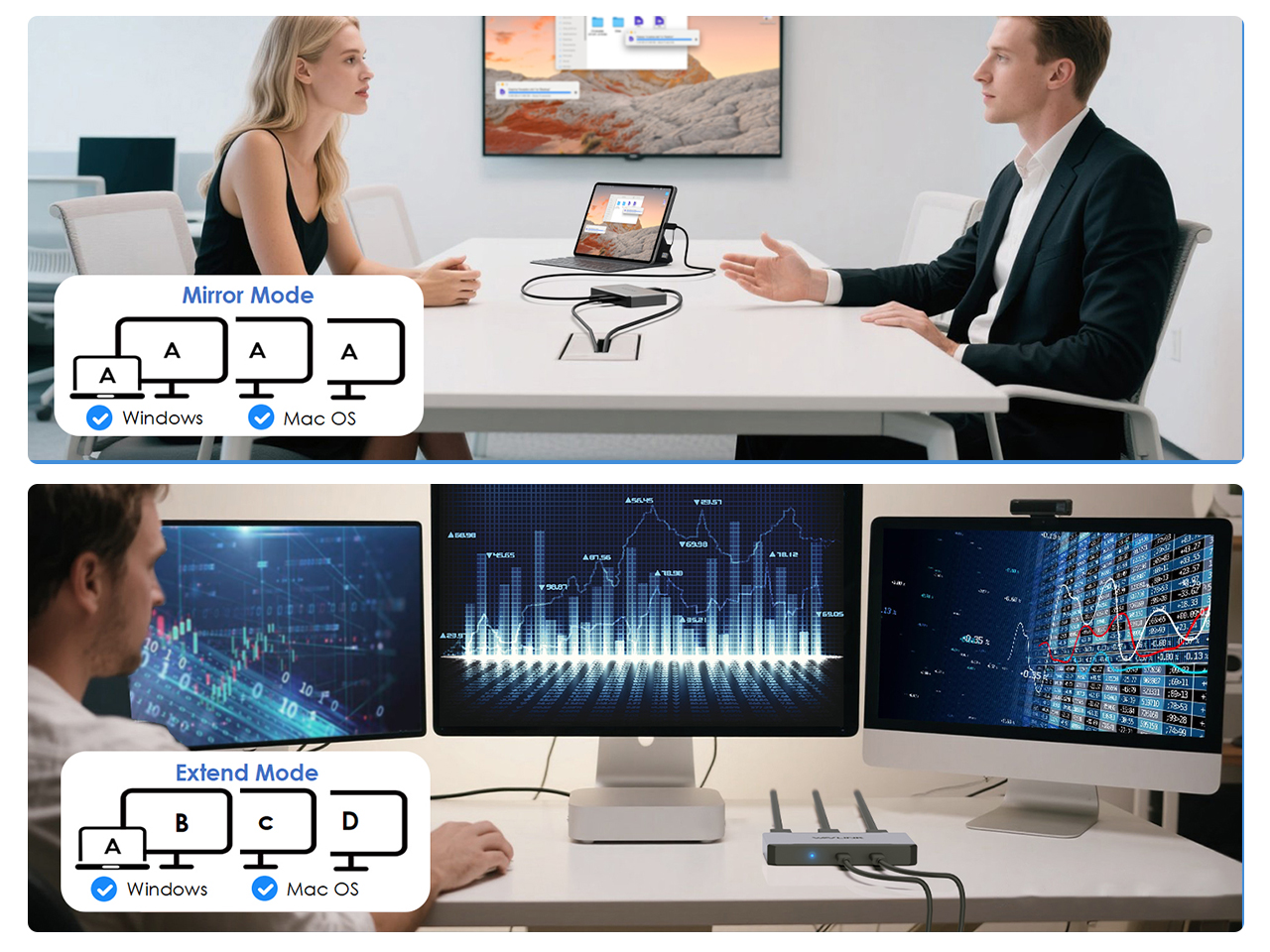

Both Windows and Mac support Mirror Mode and Extend Mode; Especially suitable for MacBook users, allowing them run different apps, windows, and workflows across multiple screens simultaneously.
The compact size of 13.7x7.7x2.0cm and lightweight of 182g make it easy to carry in your pocket or bag, ideal for professionals who need to work on-the-go.
TECHNICAL SPECIFICATIONS
| Connection To Host | 1 x 100cm Type-C to Type-C cable with a USB-C to USB-A adapter |
| Chip | SM770 |
| USB Power Delivery | 1 x PD port for USB3.0 PD passthrough PD IN 100W, charge laptop up to 85W |
| USB Port | 1 x USB 3.2gen2 upstream |
| Video Outputs | 2 x DP |
| 3 x HDMI | |
| LED | 1 x POWER LED |

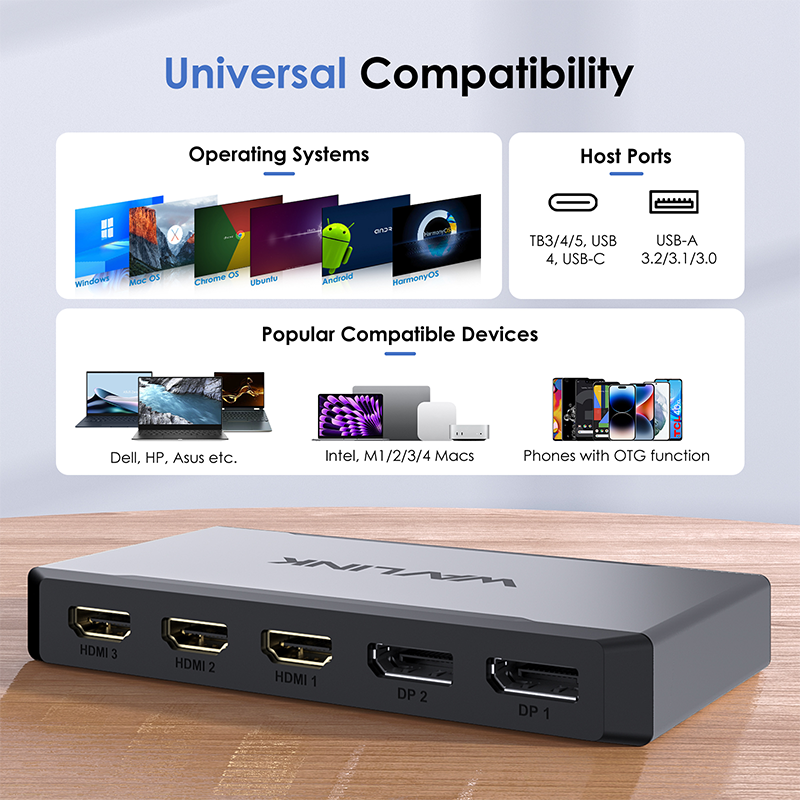

| Operating Systems | - Windows 11/10 - Mac OS 13.x or later - Chrome OS - Android - Harmony OS - Ubuntu |
