WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1-M5 Mac & Windows, 13 in 1 Laptop Dock with 100W Charging, Optional 1G/2.5G/5G LAN, USB 3.2-A/C, USB-C(PD 30W)
  • WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1-M5 Mac & Windows, 13 in 1 Laptop Dock with 100W Charging, Optional 1G/2.5G/5G LAN, USB 3.2-A/C, USB-C(PD 30W) 1
  • WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1-M5 Mac & Windows, 13 in 1 Laptop Dock with 100W Charging, Optional 1G/2.5G/5G LAN, USB 3.2-A/C, USB-C(PD 30W) 2
  • WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1-M5 Mac & Windows, 13 in 1 Laptop Dock with 100W Charging, Optional 1G/2.5G/5G LAN, USB 3.2-A/C, USB-C(PD 30W) 3
  • WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1-M5 Mac & Windows, 13 in 1 Laptop Dock with 100W Charging, Optional 1G/2.5G/5G LAN, USB 3.2-A/C, USB-C(PD 30W) 4
  • WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1-M5 Mac & Windows, 13 in 1 Laptop Dock with 100W Charging, Optional 1G/2.5G/5G LAN, USB 3.2-A/C, USB-C(PD 30W) 5

WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1-M5 Mac & Windows, 13 in 1 Laptop Dock with 100W Charging, Optional 1G/2.5G/5G LAN, USB 3.2-A/C, USB-C(PD 30W)

Model: WL-UG75PD3-4H

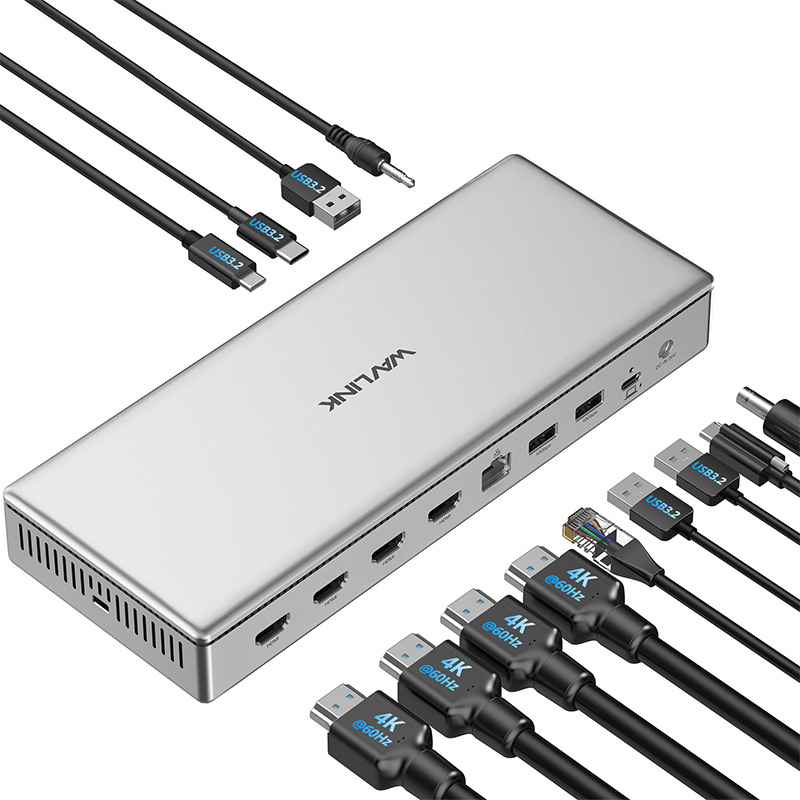

- Vivid Display Output: 4-Port HDMI delivers Quad 4K@60Hz Video Output

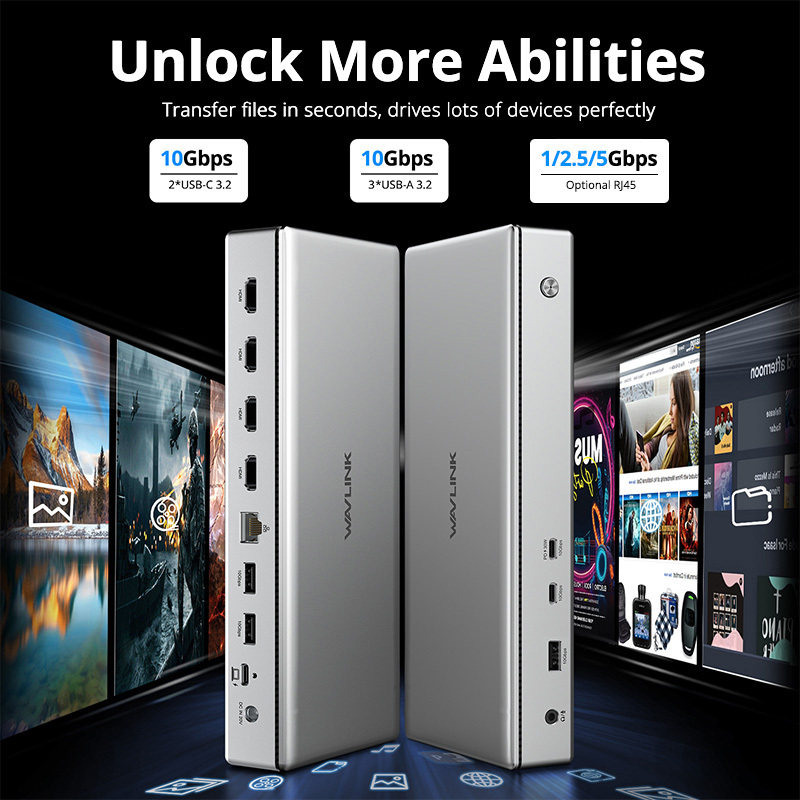

- Blazing-Fast Data Transfer: 2×10Gbps USB-C & 3×10Gbps USB-A Ports
- Dual-Port High-Power Charging: 100W Upstream USB-C for Laptop, plus a 30W Downstream USB-C Port
- Clear-Quality Audio-Mic Port: Single 4-Pole Combo Audio‑Microphone Jack
- Anti-Theft Protection: Built-in Kensington Security Lock Slot
- Optional RJ45 Models: 1G/2.5G/5Gbps Versions Available for Selection

  • Overview

  • Specifications

WAVLINK's Premium USB-C 4K Quad Displays Docking Station
Bring You Endless Possibilities Through a Single USB Port
Break Through the Limitations

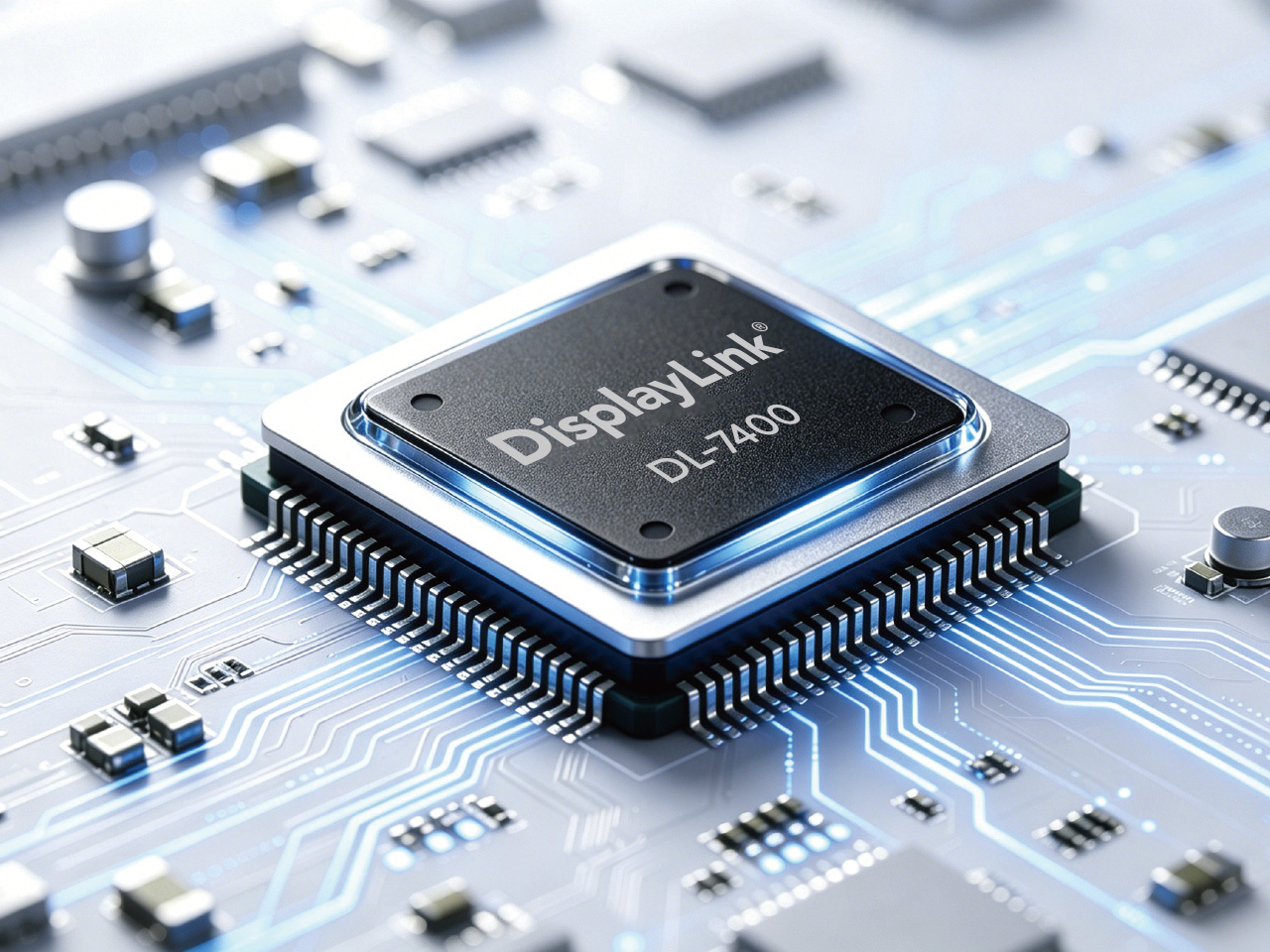

WAVLINK USB-C laptop docking station utilizes the latest DisplayLink DL7400 chipset to safely circumvent the display restrictions of Apple's triple display limitation and achieve quadruple display support.
Quadruple 4K Displays

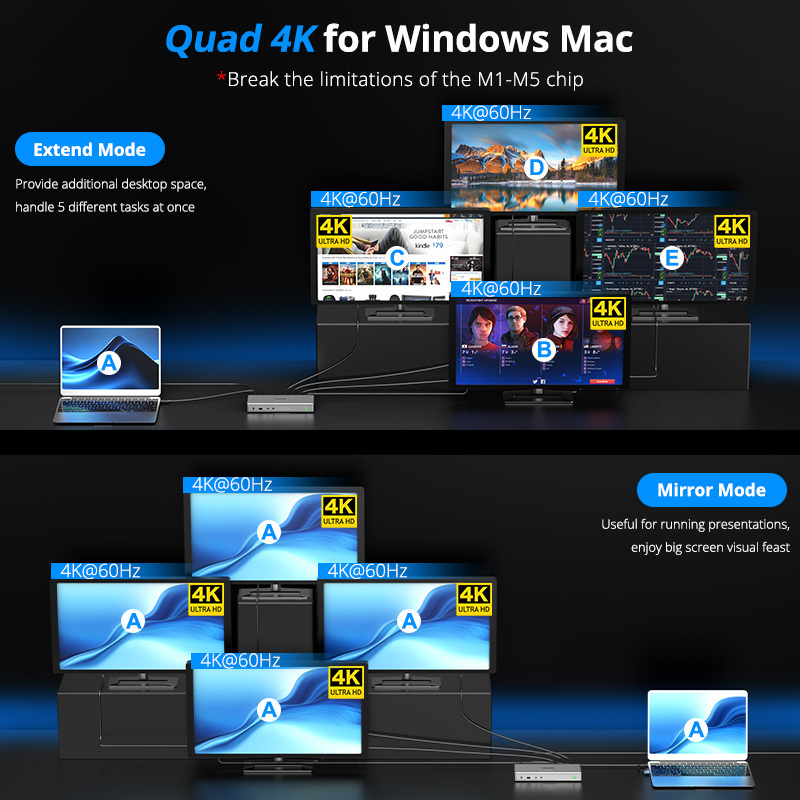

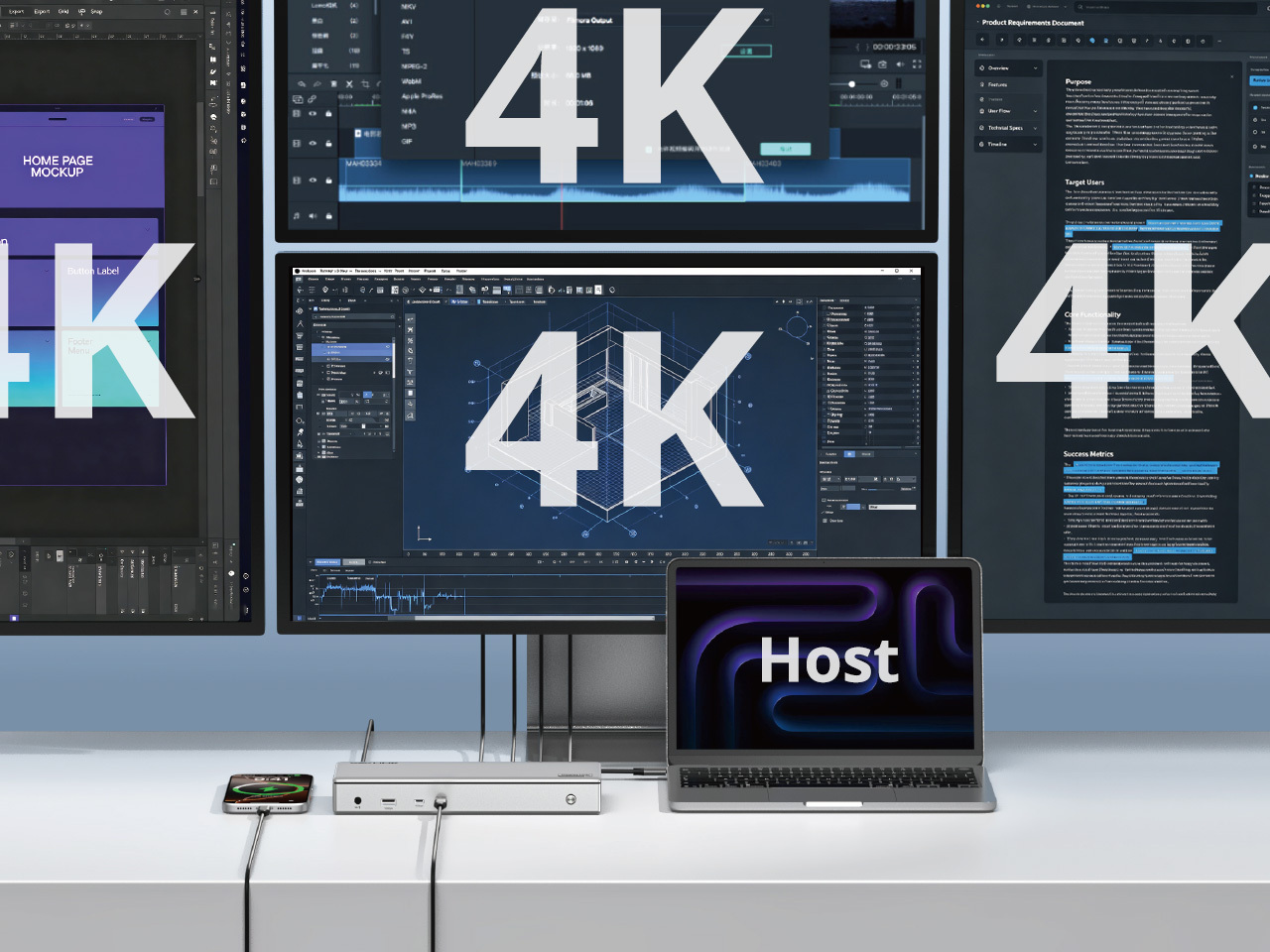

This DisplayLink USB-C docking station has 4×HDMI ports, supports up to quad 4K@60Hz resolution display, bringing you clear text, bright and vivid images, and overall higher pixel density.

Efficient Power Delivery

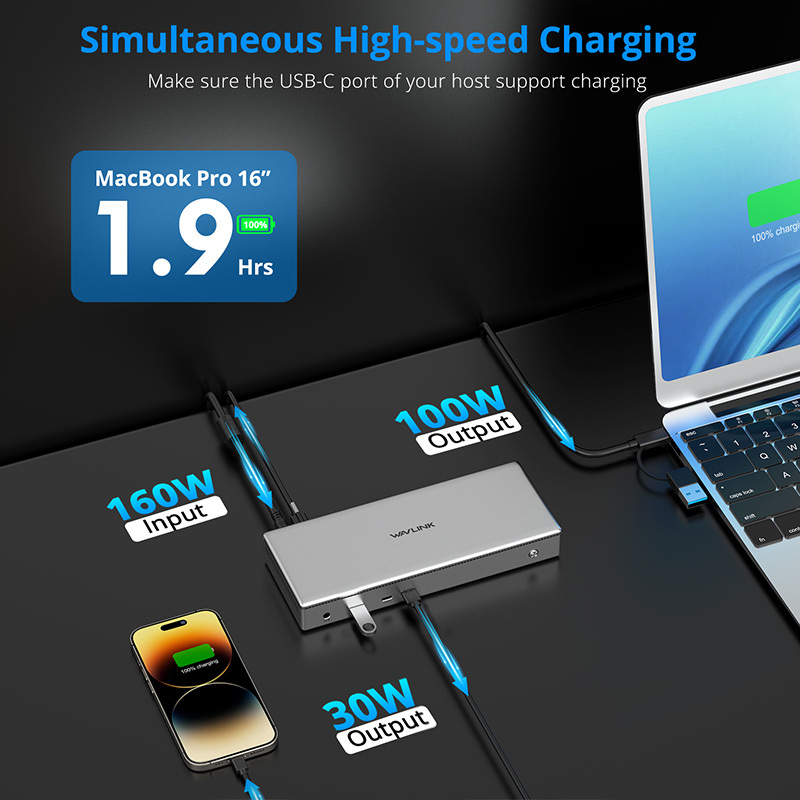

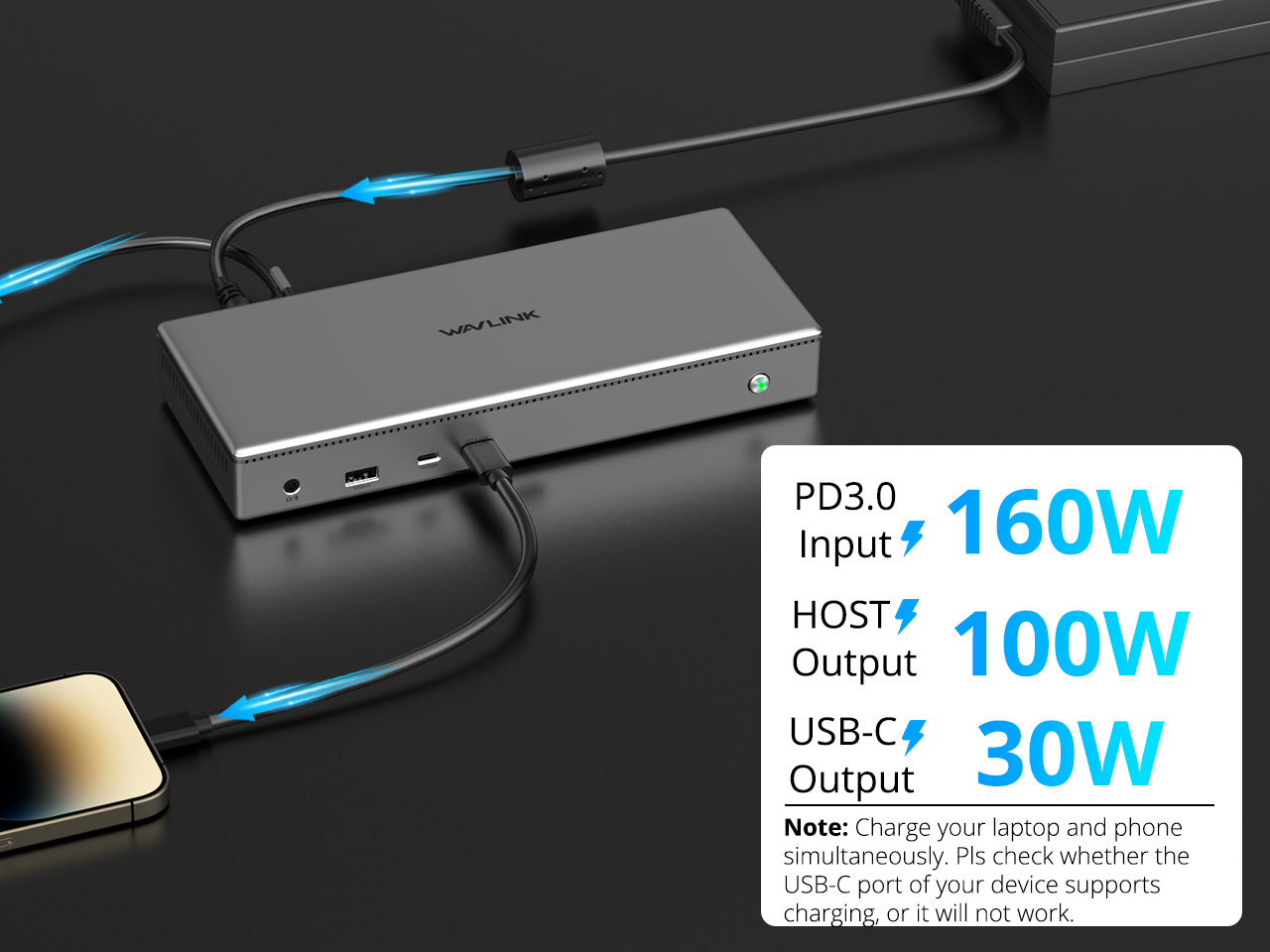

Comes with a 160W power adapter, this USB-C dock can charge your laptop up to 100W. Another USB-C port provides up to 30W charging for your mobile phone/pad or any USB-C devices supporting PD charging, giving you a blazing-fast charging speed experience.

Multiple Ethernet Speed Versions Available

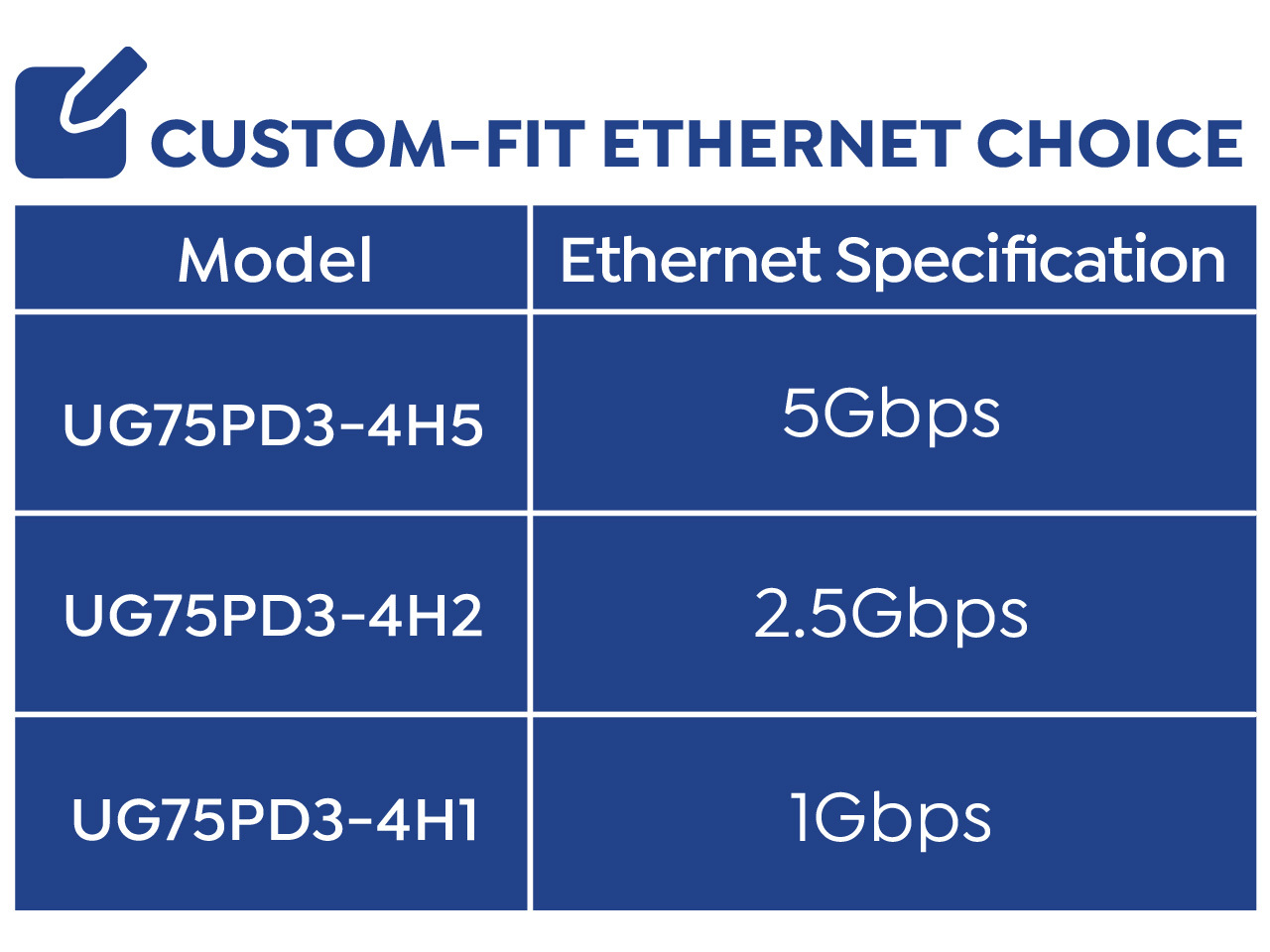

This docking station provides three independent hardware models: 1Gbps, 2.5Gbps and 5Gbps. You can select the exact speed version to match your router, switch and network environment for stable and max network performance.

Specifications

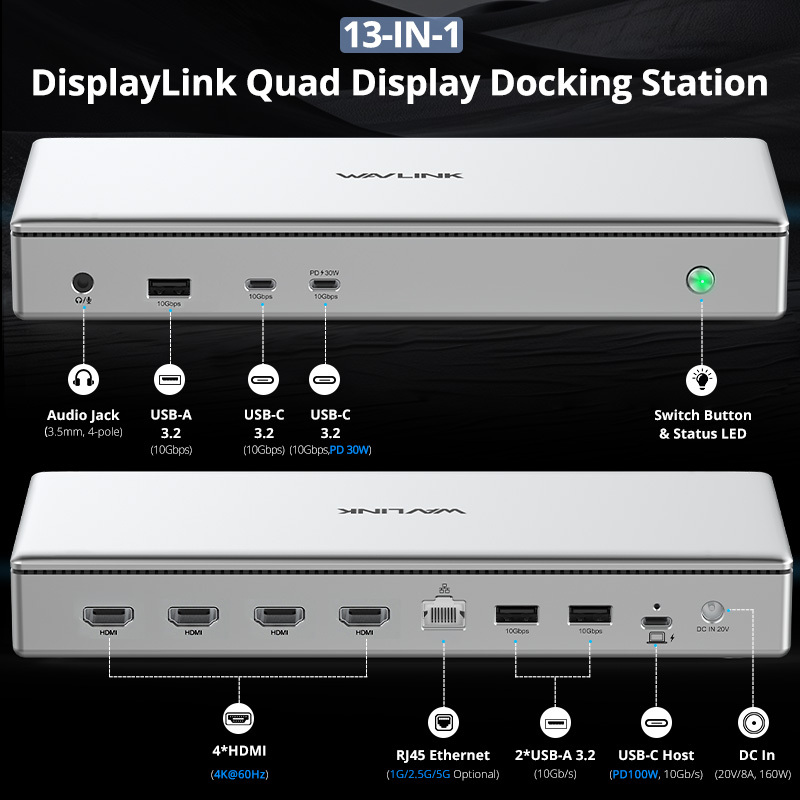

Model WL-UG75PD3-4H
Ports 4x HDMI: up to 4K@60Hz
1x Ethernet: 1/2.5/5Gbps Optional
3x USB-A 3.2: up to 10Gbps
1x USB-C 3.2: up to 10Gbps
1x USB-C 3.2: up to 10Gbps+PD30W
1x 3.5mm 4-Pole Audio & Mic Jack
1x USB-C (Host, PD100W)
1x DC IN (20V/8A, 160W)
Plug & Play DisplayLink Driver Needed
Operating Systems -Windows 11/10
-macOS 11.x-13.x or later
-Chrome OS
-Ubuntu
Material Aluminum
In the Box 1 x Universal 10G Quad 4K Docking Station
1 x Type-C to Type-C 10Gbps Cable with Type-C to Type-A Adapter
1 x DC20V/8A Power Adapter
1 x AC Power Cable
1 x Cable Holder
1 x Quick Start Guide
