USB-C Dual 5K DisplayLink Universal Docking Station, 13-in-1 Docking with 100W Charging, for Windows/macOS
  • USB-C Dual 5K DisplayLink Universal Docking Station, 13-in-1 Docking with 100W Charging, for Windows/macOS 1
  • USB-C Dual 5K DisplayLink Universal Docking Station, 13-in-1 Docking with 100W Charging, for Windows/macOS 2
  • USB-C Dual 5K DisplayLink Universal Docking Station, 13-in-1 Docking with 100W Charging, for Windows/macOS 3
  • USB-C Dual 5K DisplayLink Universal Docking Station, 13-in-1 Docking with 100W Charging, for Windows/macOS 4
  • USB-C Dual 5K DisplayLink Universal Docking Station, 13-in-1 Docking with 100W Charging, for Windows/macOS 5

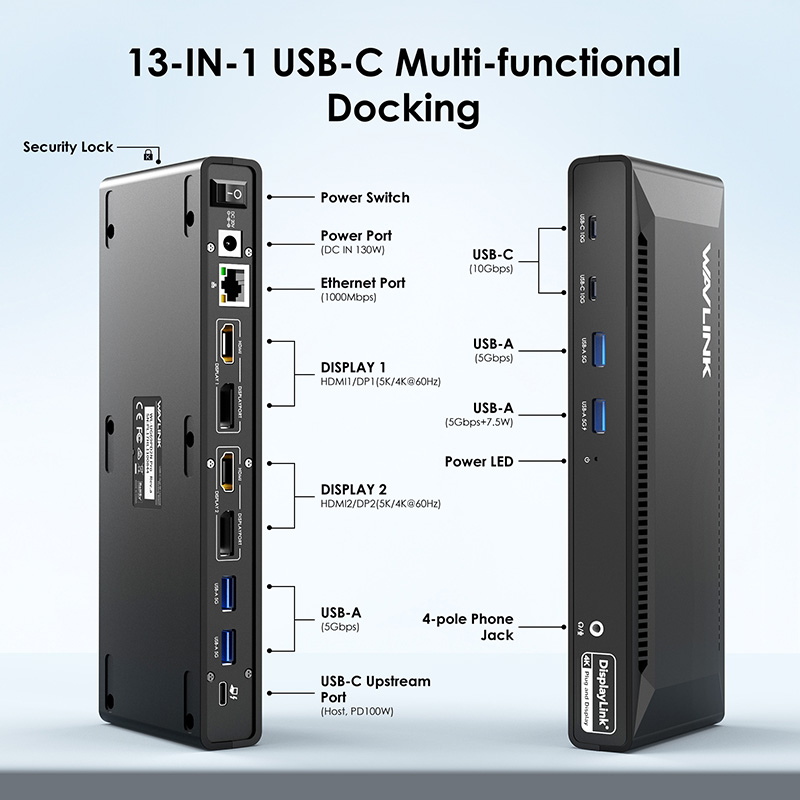

USB-C Dual 5K DisplayLink Universal Docking Station, 13-in-1 Docking with 100W Charging, for Windows/macOS

Model: WL-UG69PD2N-Pro

- 2 x DP and 2 x HDMI ports support dual display to mirror or extend your laptop.

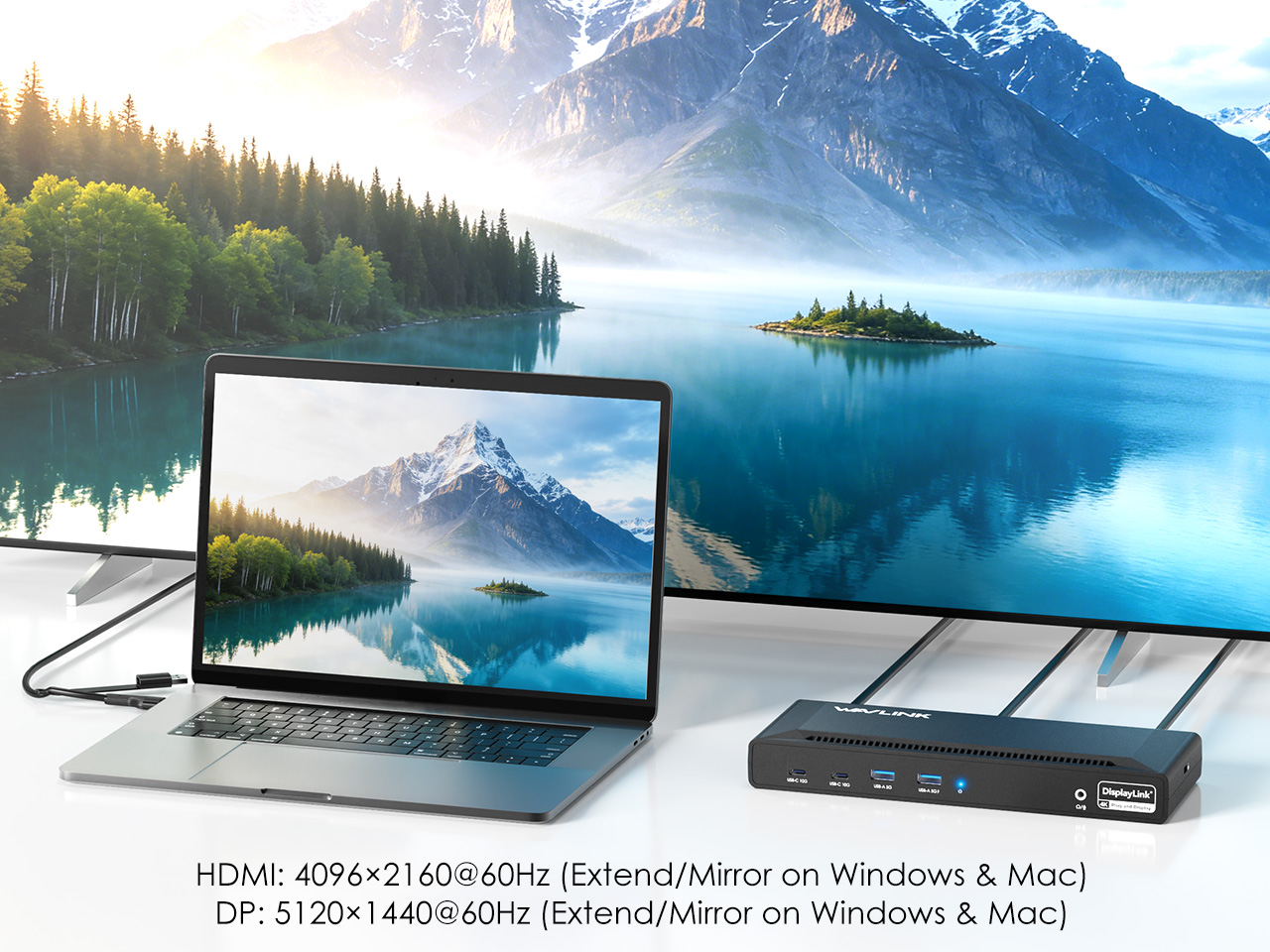

- Supports resolutions up to 5120x1440@60Hz via DP ports, 4096x2160@60Hz via HDMI ports.
- Offers 100W upstream charging for your laptop.
- 2 x 10Gbps USB-C ports provide ultra-fast data transfer.
- 4 x 5Gbps USB-A ports for high-speed transmission and peripheral device connection.
- 1 x Gigabit LAN port provides a fast Ethernet connection, backward compatible with 10/100Mbps networks.
- 1 x Integrated TRRS 4-pole phone jack for audio input and output.

  • Overview

  • Specifications

  • Q&A

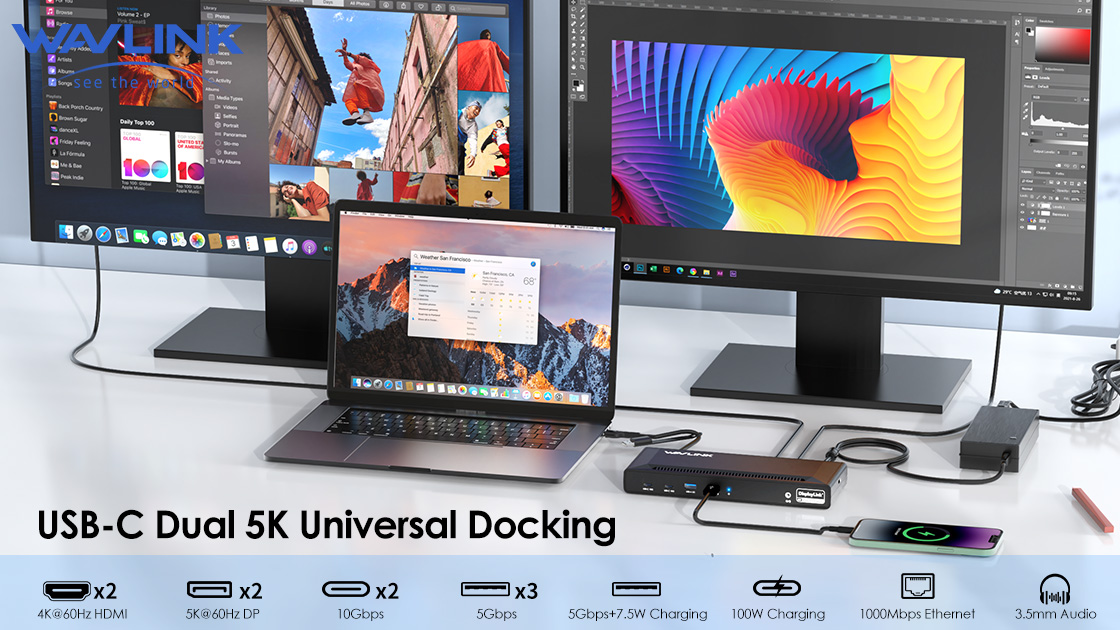

USB-C Dual 5K Universal Docking Station with Power Delivery
Offer More Connection Options, Enjoy High-definition Visual Feast!

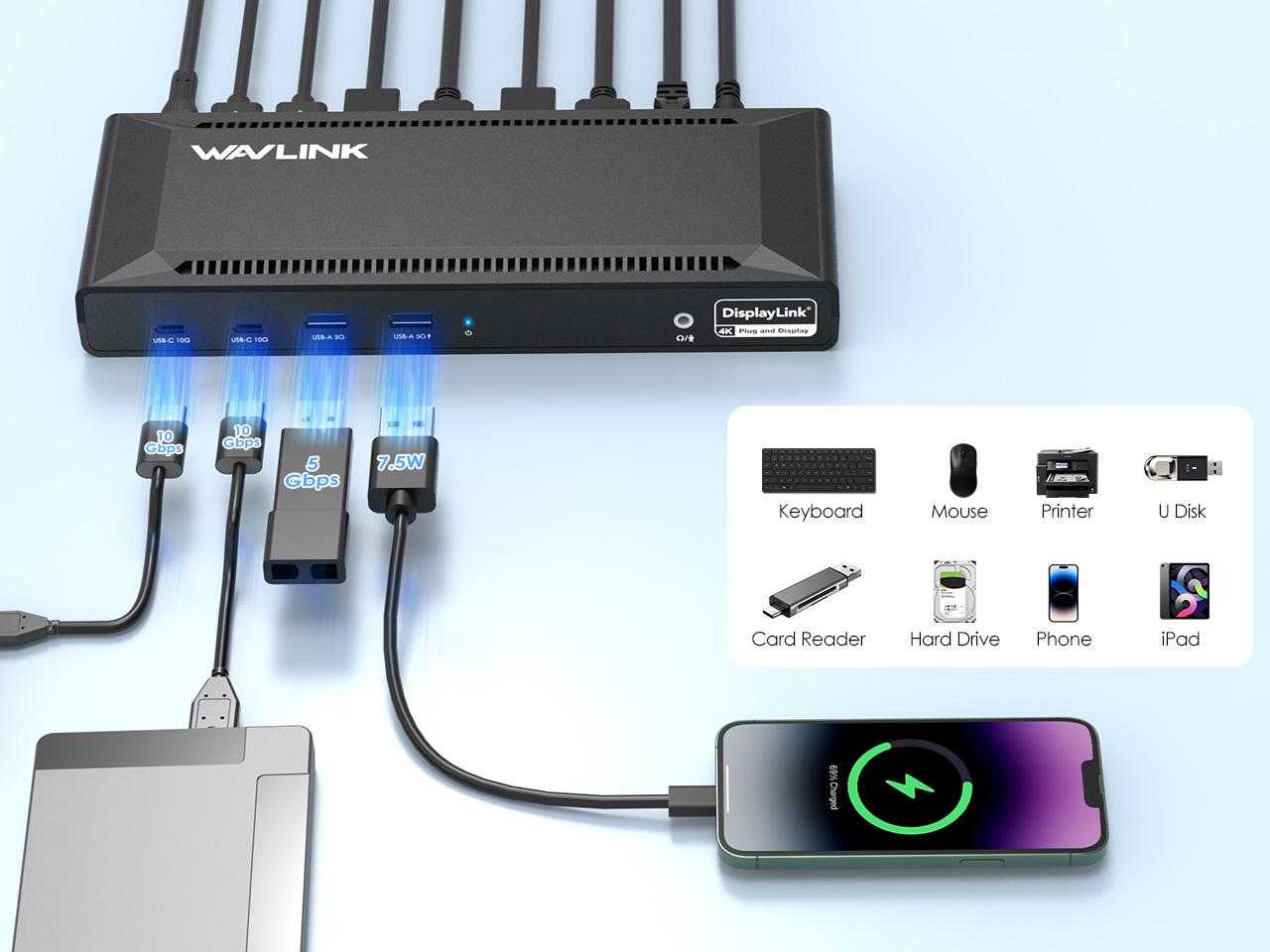

Enhanced Connectivity
With 4×5Gbps USB-A & 2×10Gbps USB-C ports for ultra-fast data transfer and peripheral device connection, it helps you reduce clutter and enhance productivity!

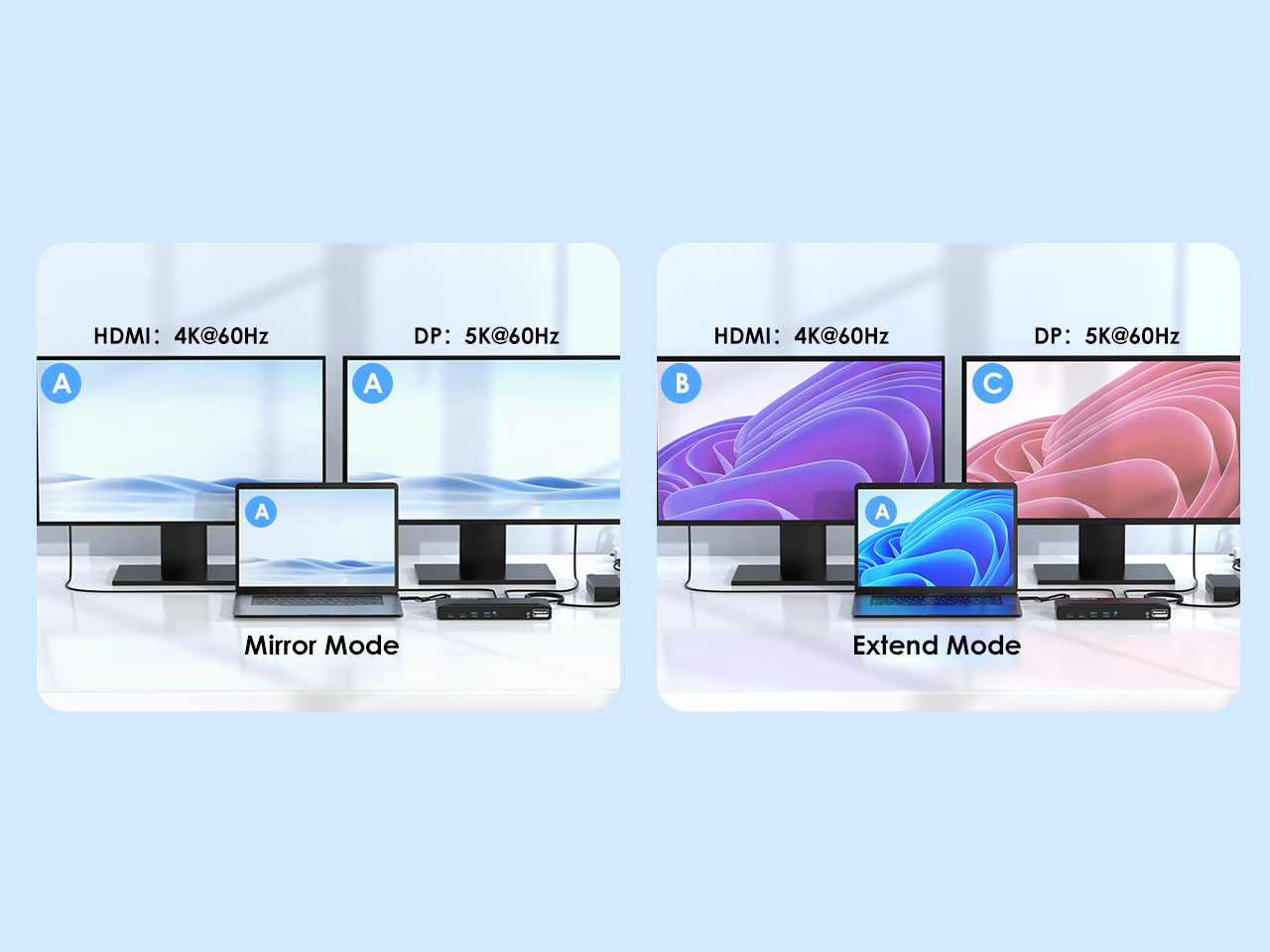

Windows & MacOS Display Mode
Compared with other USB-C MST docking stations, the Wavlink universal docking station can expand your MacBook’s capabilities with a true extended display.

Single DP up to 5K@60Hz Display
It supports 5K@60Hz when connected with the DP port on Windows & Mac, ensuring crystal-clear and highly detailed visuals for your monitor.

Gigabit Ethernet Stable Connection
Gigabit Ethernet offers blazing-fast and stable network connections, providing an amazing online experience for you.

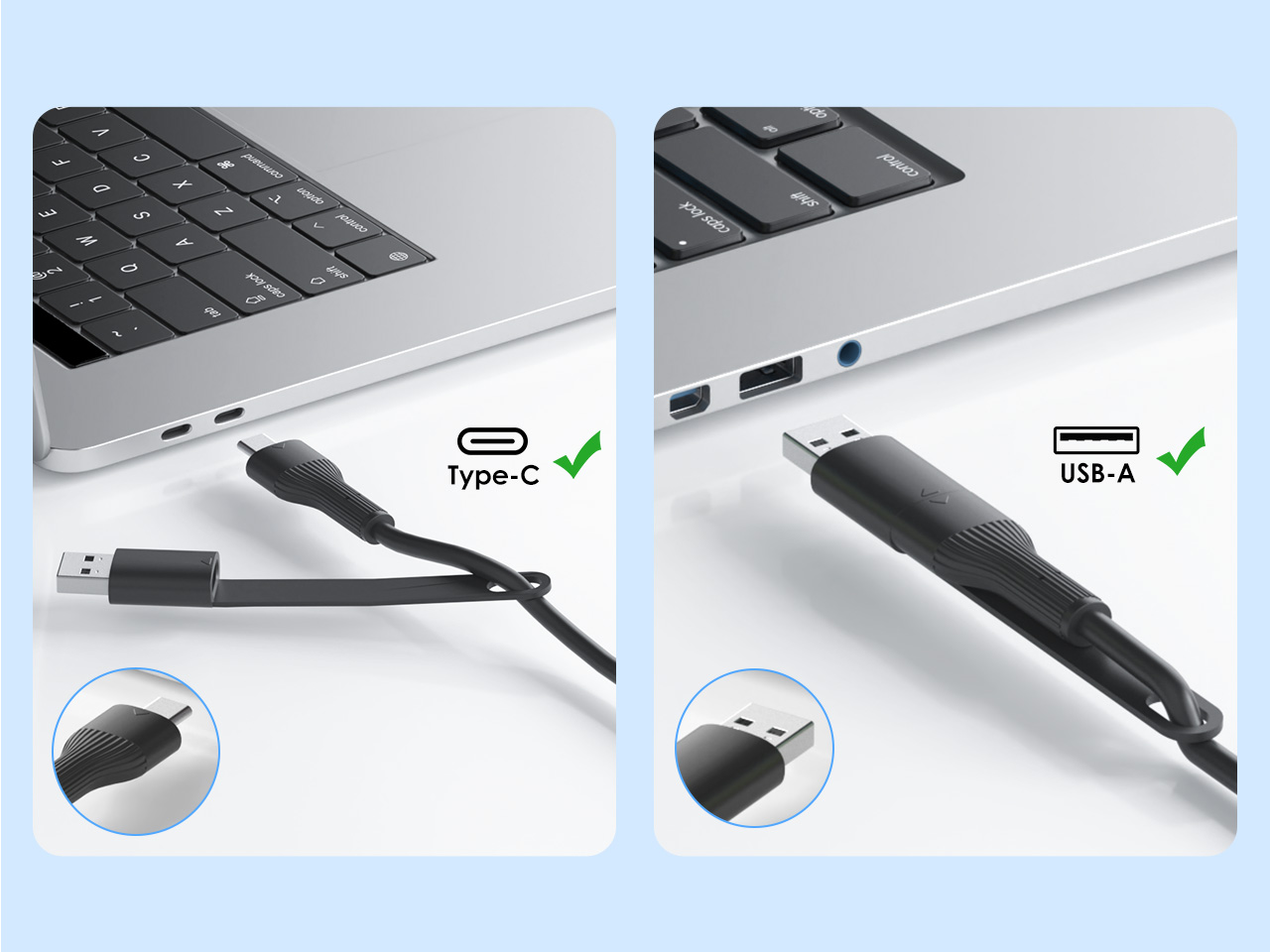

One Dock Two Use
Perfectly compatible with most Mac and Windows laptops and computers. You can connect the USB-C/A connector to your host.

Specifications

Host Connection 1 x USB-C to USB-C Cable with USB-A converter
Plug & Play DisplayLink Driver
Power IN DC 20V/6.5A 130W
USB Port 3 x USB-A (5Gbps)
1 x USB-A (5Gbps+7.5W charging)
2 x USB-C (10Gbps)
Video Output 2 x HDMI & 2 x DP
Operating Systems Microsoft Windows 10/11 or later
Mac OS 11x or later
Android
Chrome OS
Ubuntu

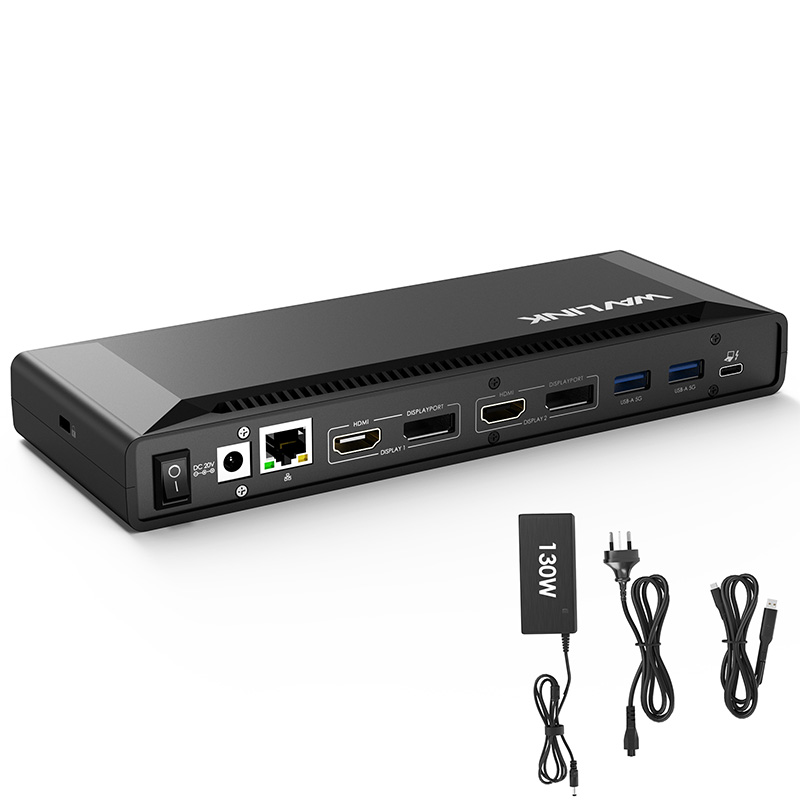

In The Box 1 x USB-C Dual 5K Universal Docking Station
1 x USB-C to USB-C Cable with USB-A Converter
1 x DC 20V/6.5A 130W Power Adapter
1 x AC Power Cable
1 x Quick Start Guide

Q&A

What should I do if the video ports of the docking are not working?

Please ensure that the DisplayLink driver for the dock is installed.

For macOS: Make sure you have installed the DisplayLink Manager App and granted permission for Screen Recording.

You can download the driver here :

DisplayLink macOS Software for Downloads Section | Synaptics

What should I do if the dock is not working as expected on a Windows computer?

Please follow the steps below:

1. Disconnect the dock from your computer and unplug the power cable to fully power it off. Keep it disconnected until the final step.

2. Uninstall any DisplayLink software from Control Panel > Programs and Features (if present).

3. Download and run the DisplayLink Cleaner Tool:

DisplayLink Installation Cleaner for Windows | Synaptics

4. Restart your computer (even if not prompted).

5. Download and install the latest DisplayLink driver:

Windows Driver Downloads for Downloads Section | Synaptics



6. Reconnect the dock’s power first, then connect the dock to your computer.

If the device is not detected during installation, click “Skip” to complete the process, then restart your system again.

Why does the DisplayLink Manager App request screen recording access on my MacBook?

macOS requires users to grant Screen Recording permission for the DisplayLink driver to function properly. The DisplayLink Manager App does not send any information to Wavlink or DisplayLink/Synaptics, so there is no need to worry.

Why can’t Apple TV, Hulu, or Netflix play when the docking station is connected?

1.The docking station does not support HDCP, so protected content from services like Apple TV, Hulu, and Netflix cannot be played while the dock is connected. This is expected behavior. Please disconnect the dock when playing these videos.

2.Alternatively, you can try ：

1)Open Google Chrome settings.

2)Click on "Advanced" and select "System."

3)Disable "Use hardware acceleration when available"

4)Select "Relaunch" to activate the new settings.

How can I stop the dock from charging my laptop?

Please use the USB-C to USB-A cable to connect the dock to your laptop.

This will prevent the dock from supplying power.
