WAVLINK USB-C HDMI and DisplayPort Triple Display 4K@60Hz 10-in-1 Universal Docking Station with 100W Power Delivery
  • WAVLINK USB-C HDMI and DisplayPort Triple Display 4K@60Hz 10-in-1 Universal Docking Station with 100W Power Delivery 1
  • WAVLINK USB-C HDMI and DisplayPort Triple Display 4K@60Hz 10-in-1 Universal Docking Station with 100W Power Delivery 2
  • WAVLINK USB-C HDMI and DisplayPort Triple Display 4K@60Hz 10-in-1 Universal Docking Station with 100W Power Delivery 3
  • WAVLINK USB-C HDMI and DisplayPort Triple Display 4K@60Hz 10-in-1 Universal Docking Station with 100W Power Delivery 4
  • WAVLINK USB-C HDMI and DisplayPort Triple Display 4K@60Hz 10-in-1 Universal Docking Station with 100W Power Delivery 5

WAVLINK USB-C HDMI and DisplayPort Triple Display 4K@60Hz 10-in-1 Universal Docking Station with 100W Power Delivery

Model: WL-UG69PD24 | WL-UG69PD24 PRO

  • Wavlink WL-UG69PD24 or WL-UG69PD24 PRO high-quality dock is one universal docking station compatible with USB 3.0 and USB-C notebooks across all notebook brands and platforms. It allows you to add Triple displays 4K@60Hz with 2x DisplayPort (DP1.2) ports and 1x HDMI (DP Alt Mode) ports, and the display resolution is up to 5K@60Hz with dual DisplayPort ports connected. It provides an operating desk environment by connecting 10 accessories and peripherals with just one cable to your laptop, making it easier to do more work in less time.

    • Features:

  • 2 x DP(DP1.2)+1 x HDMI(Alt Mode) , supports up to one 5K@60Hz or Triple 4K@60Hz resolution display
  • Supports USB Power delivery(PD3.0) up to 100W upstream Charging to a connected laptop
  • Four USB3.0 Type-A (5G) and one USB Type-C (5G) ports extend more connectivity to USB devices
  • LAN port supports up to 1Gbps (10/100/1000Mbps),providing a stable and high-speed internet connection
  • Supports for Kensington lock
  • One combo Audio/Mic port
  • Lay-flat horizontal design save valuable desk space when you put this dock under your monitor.

Like it, Buy now:

wavlink online

  • Overview

  • Specification

  • Q&A

UG69PD24 USB-C Triple 4K Display Docking Station

Let your laptop interface is no longer a single

Multiple Interfaces in One

A variety of indispensable expansion ports in one.The 10 expansion ports save you work and is a great helper for your work.

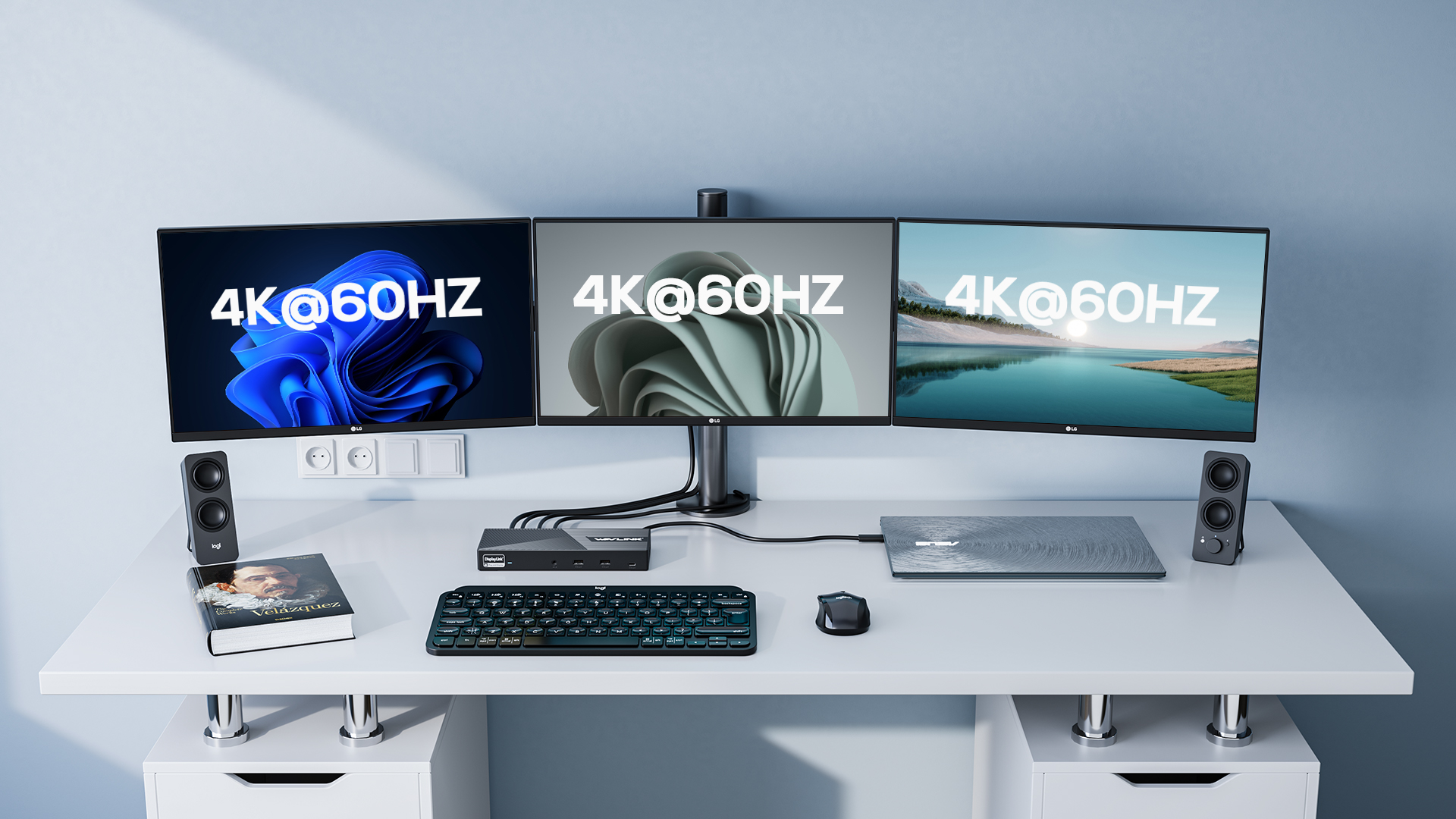

Triple Displays, Efficient Office

With three video interfaces (2 x DP (DP1.2)+1 x HDMI (DP Alt Mode)), three external screens can be displayed at the same time, letting you work more efficiently.

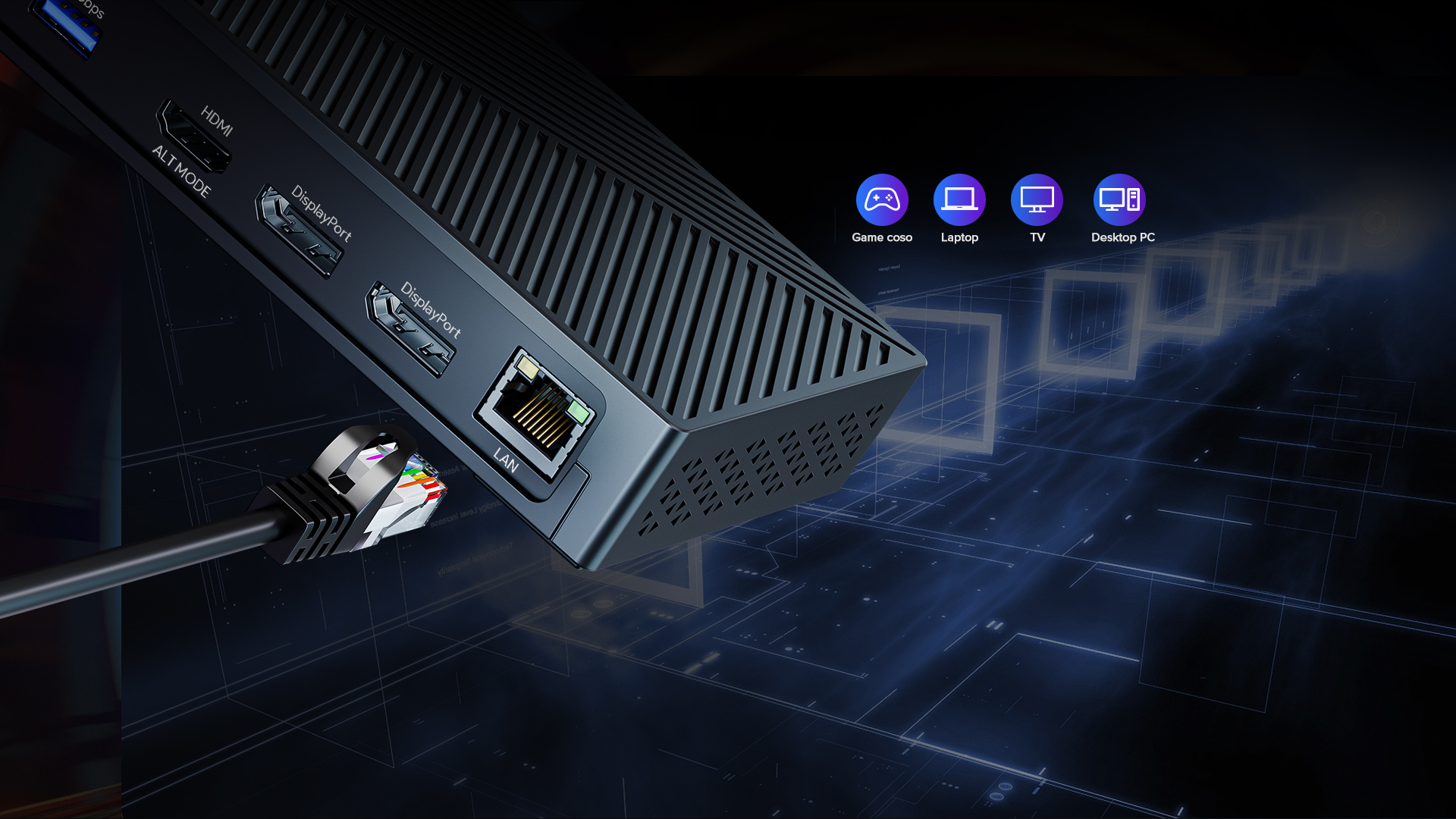

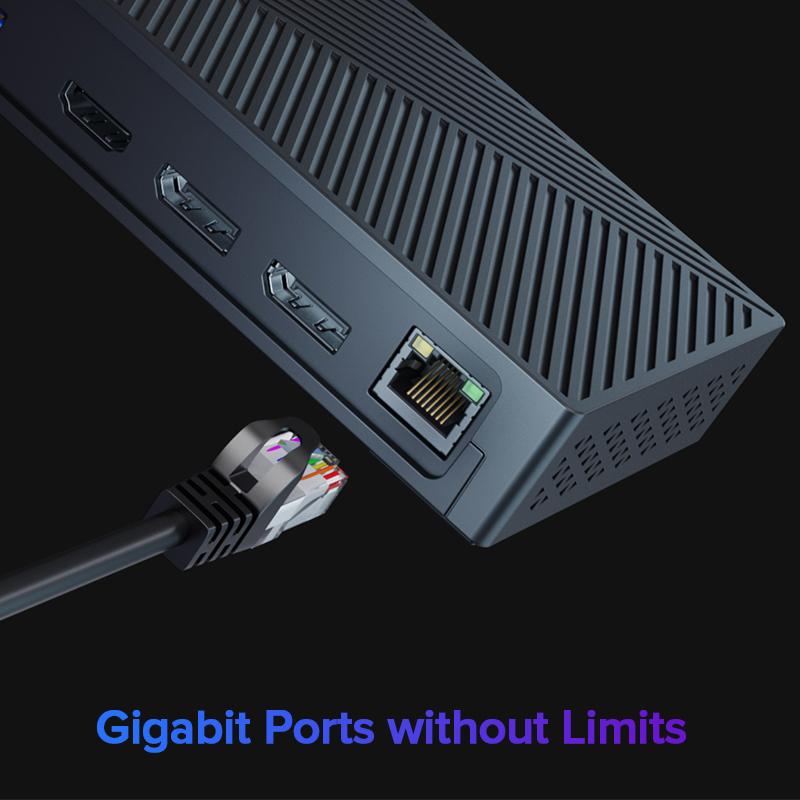

Gigabit Port without Limits

Connecting other devices such as laptops through this Gigabit Ethernet port can greatly increase Internet the speed of Internet access and support transfer rates of up to Gigabit.

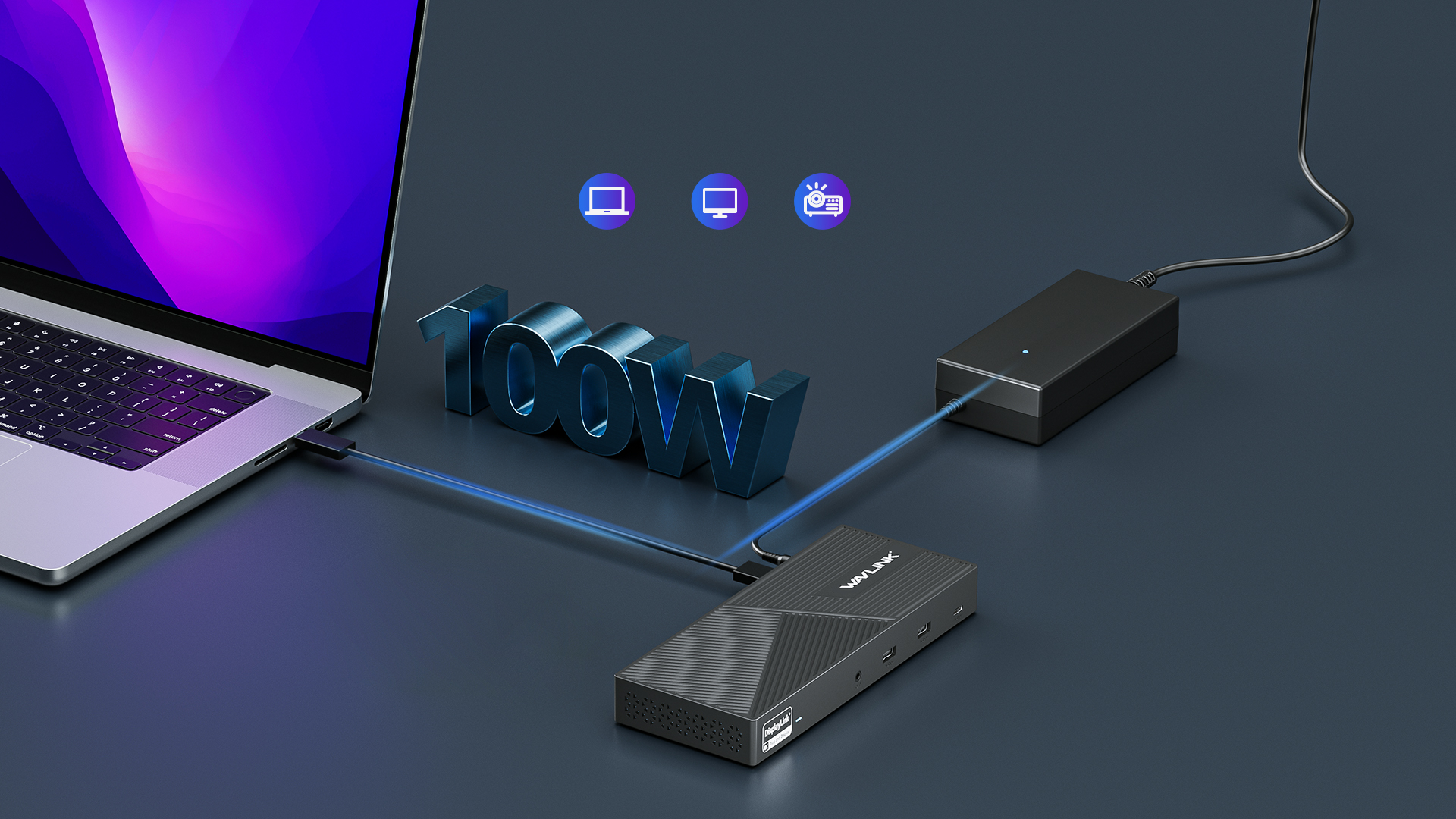

Sufficient Power Supply

100W of power can be supplied to each system via USB-C, which is enough power to drive high-powered devices such as laptops, monitors and DLP® movie projectors.

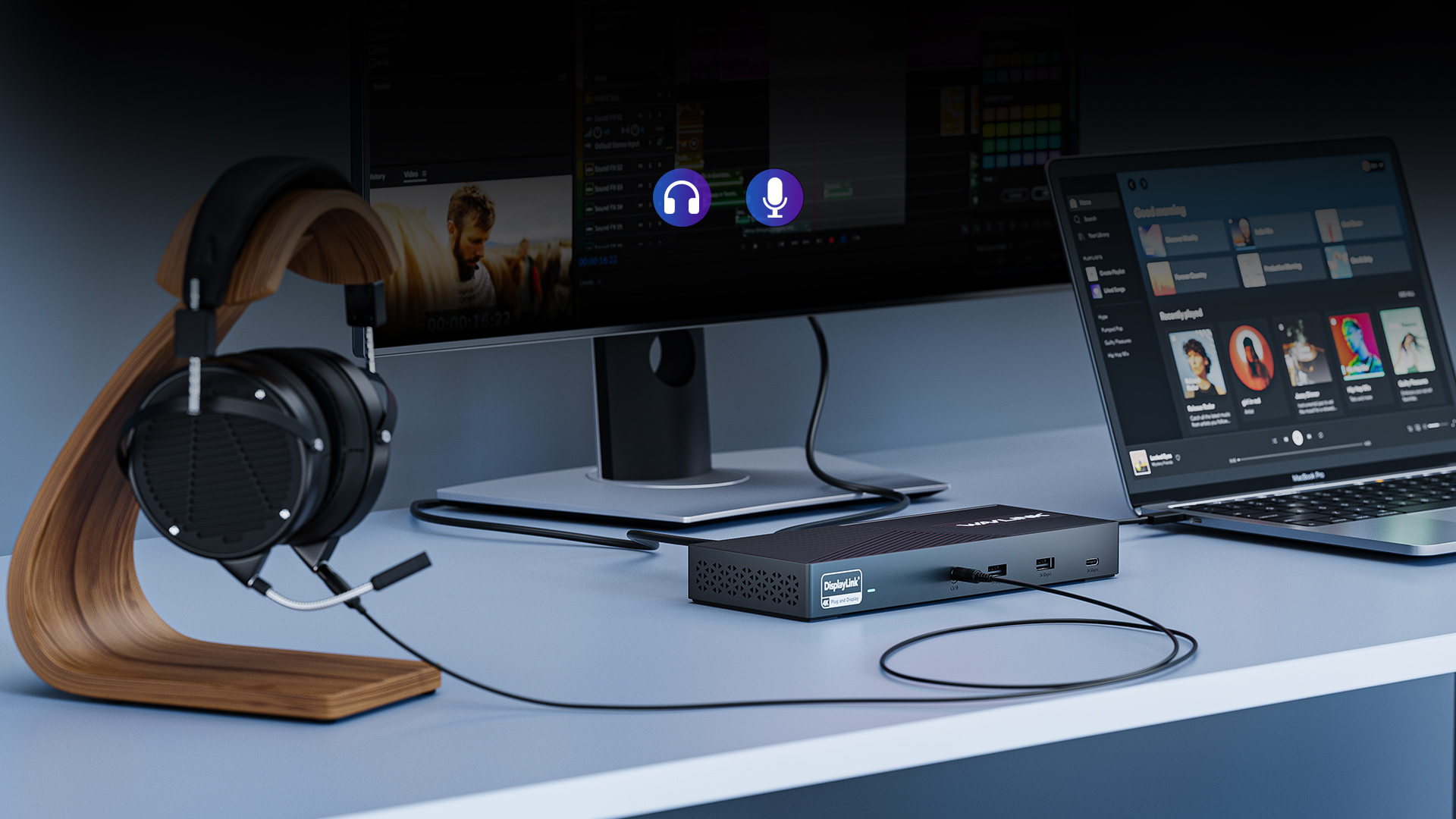

Two in One Audio Out & Mic in Port

Integrated combo audio headset and microphone port can connect microphones, headphones or mini stereos, improving the access experience qualitatively and efficiently.

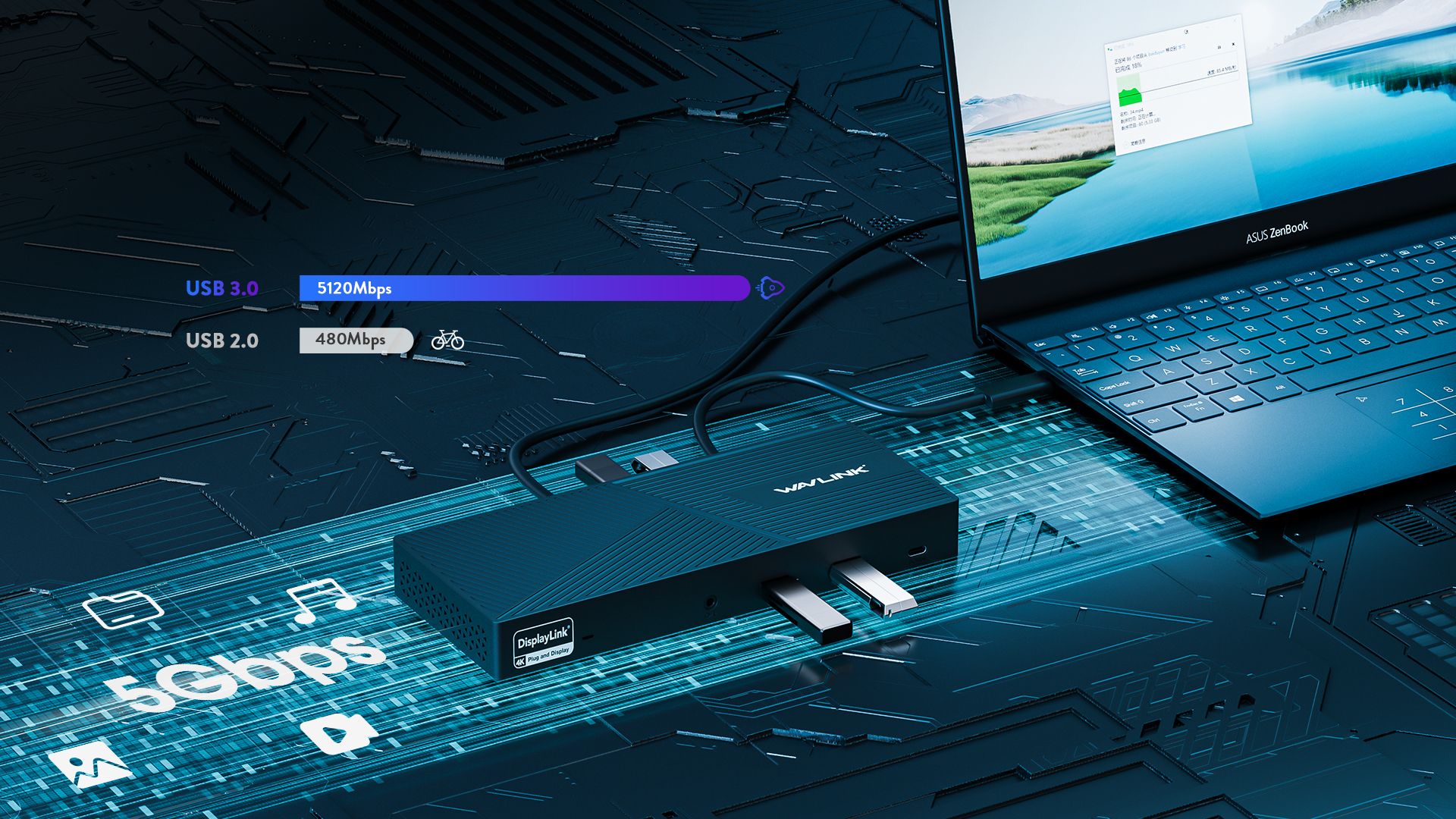

USB Interface High-speed Reading Data

USB-C and four USB 3.0 can reach a maximum rate of 5Gbps with no delay in data transfer.

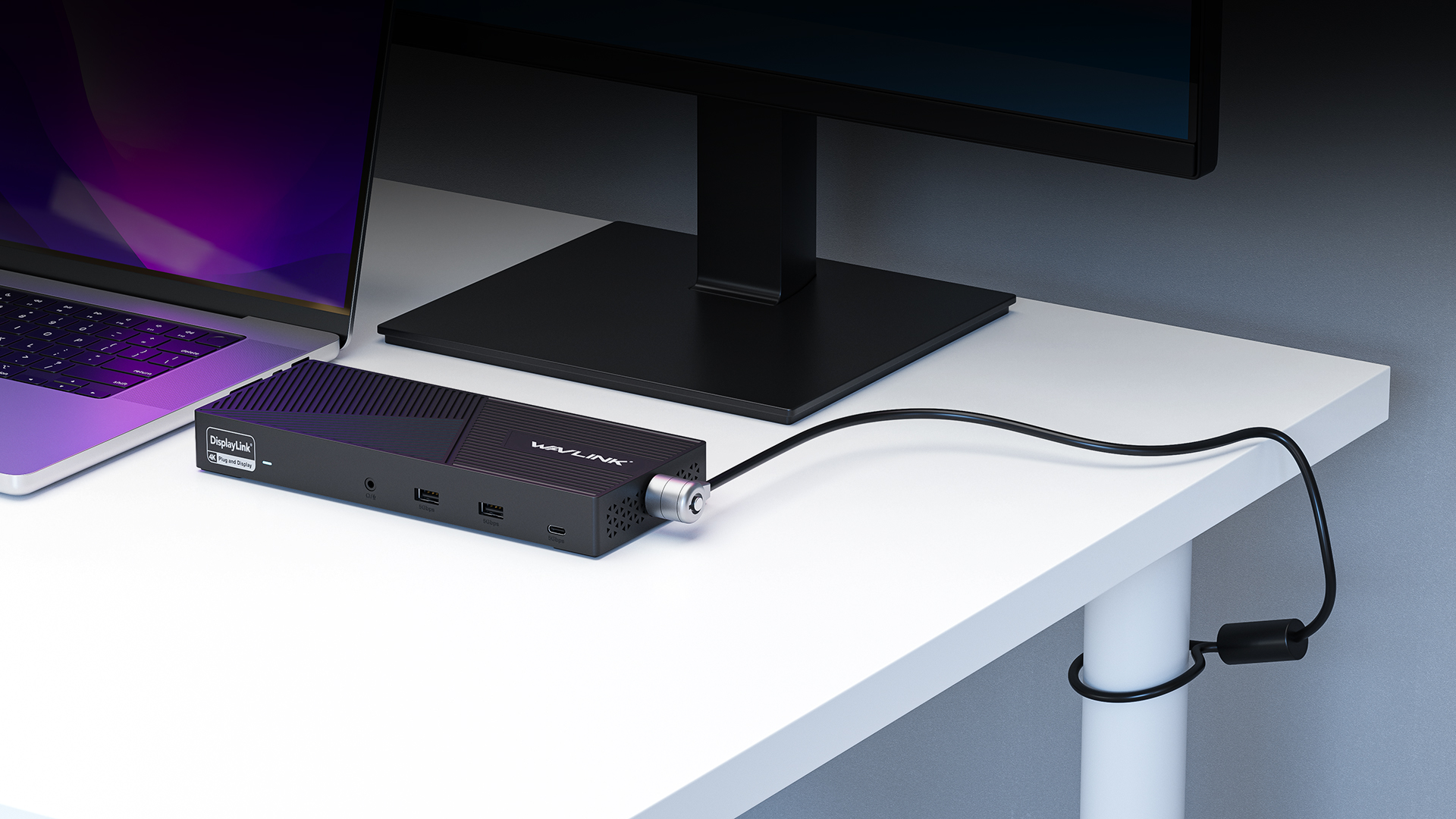

Supporting Kensington Lock

This docking station supports Kensington lock for security, which can save your device and important data from theft.

  • Specification
  • Connection To Host

    USB-C to C or USB3.0 Cable

  • Plug & Play

    Latest DisplayLink Driver

  • US Power Delivery

    Supports USB-C PD3.0 100Watt Power Delivery

  • USB Ports

    1x USB-C for host connection, supporting 100W Power Delivery to charging PC system.

    1x USB-C supporting data transfer 5Gbps

    4xUSB-A supporting data transfer 5Gbps

  • Video Outputs

    1 monitor:
    DisplayPort (DP1.2): Resolutions up to 4K@60Hz
    1x HDMI (DP Alt Mode):Resolutions up to 4K@60Hz
    2xDisplayPort together can support ONE 5K@60Hz monitor

    2 monitors :
    DisplayPort + HDMI: Resolutions up to dual 4K@60Hz
    DisplayPort + DisplayPort: Resolutions up to dual 4K@60Hz
    Triple monitors:
    Resolutions up to triple 4K@60Hz


  • LED

    1 x Power LED

  • Audio

    One combo Audio/Mic port

  • Ethernet Speed

    1x RJ45 10/100/1000Mbps Ethernet

  • Button

    ON/OFF button to turn the docking station on and off

  • Lock

    Kensington lock

  • Power adapter

    WL-UG69PD24: DC20V/6.5A 130Watt (Brick style)

    WL-UG69PD24 PRO: DC20V/8A 160Watt (Brick style)

  • Operating System(s)

    Microsoft Windows 7 / 8 / 10

    Apple Mac OS 10.8 or later

  • Product Dimensions (WxDxH)

    223 X 160 X 29.5mm

  • Product Weight (g)

    Approx 361g

  • In the box

    1 x USB-C Universal Dock

    1 x USB-C to USB-C 1m cable(E-mark) with USB-A converter

    1 x AC Power 1.5m Cable

    1 x DC20V Power Adapter

    1 x Cable Srew Holder

    1 x Quick Start Guide
