Model: WL-UG69PD11
Empower Your Workspace with Seamless Connectivity and Rapid PD 100W Upstream Charging
Simplify workflow, stay connected, and work anytime.
Enable stunning 5K visuals, connect single or dual monitors easily.

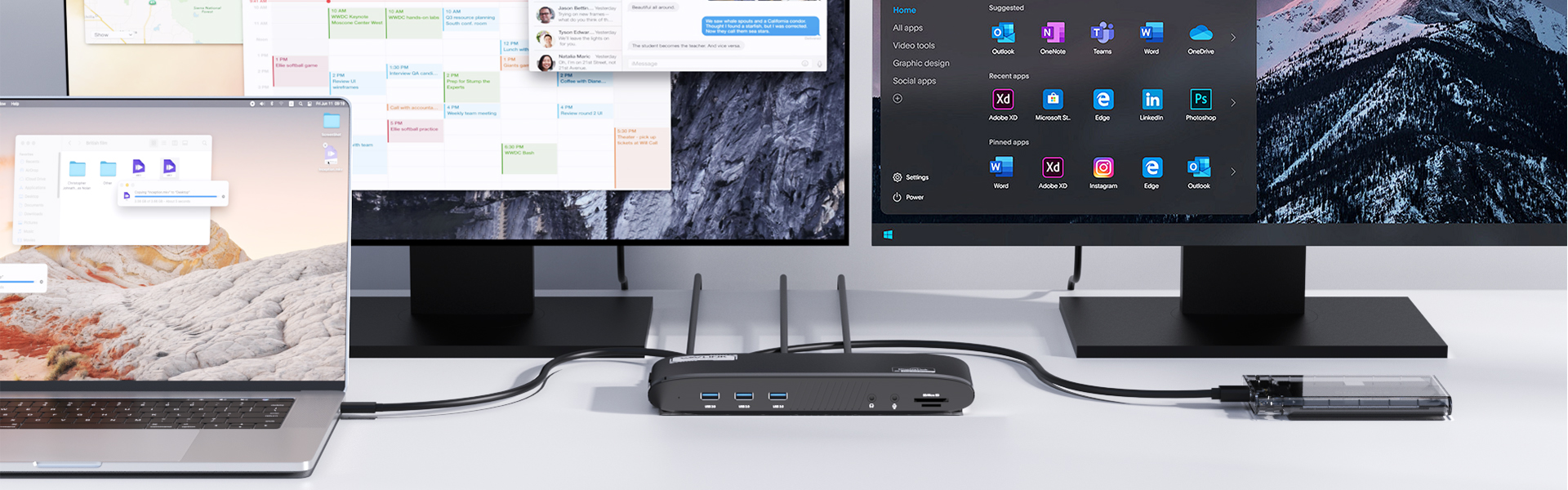

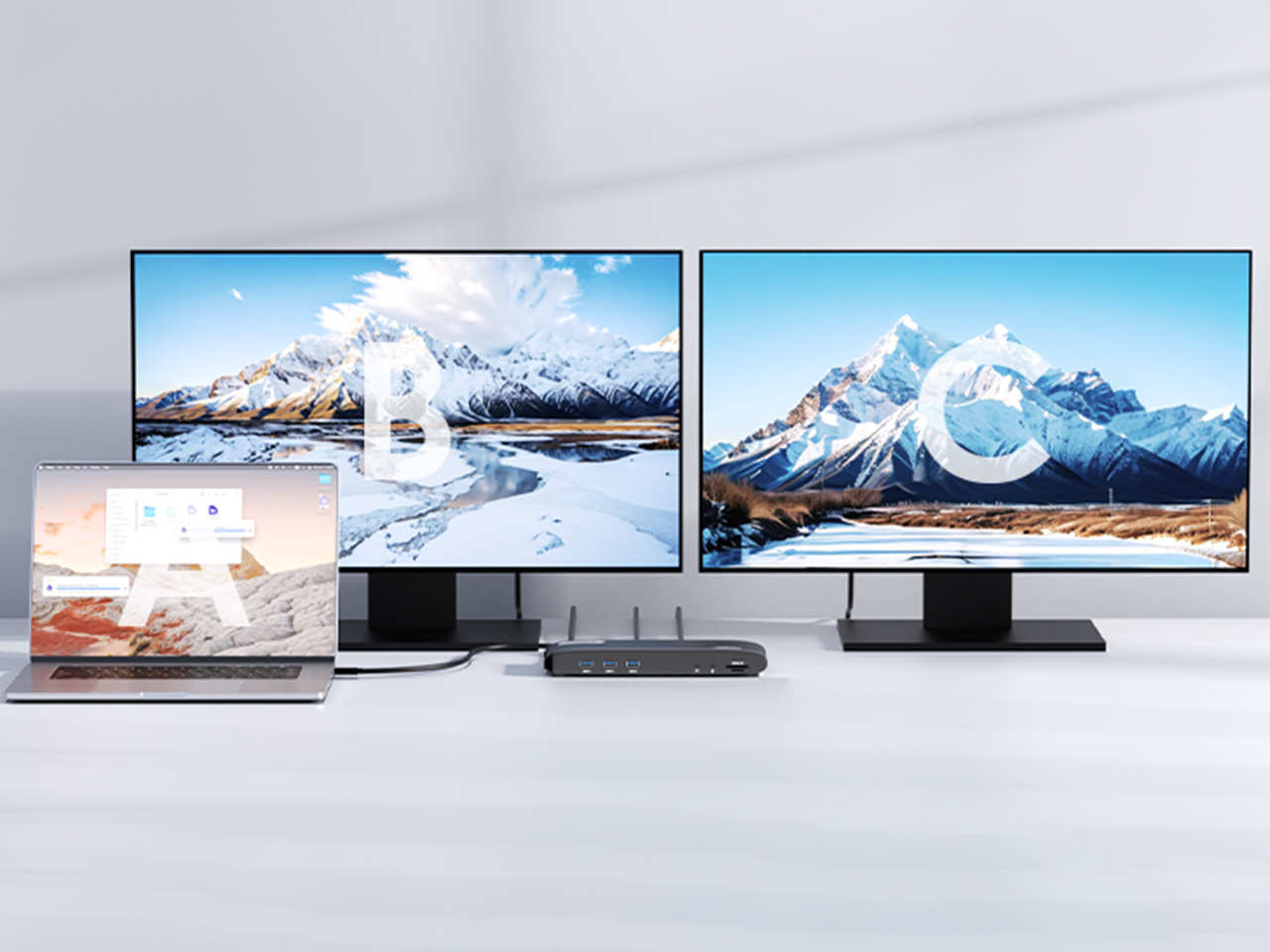

Mirror Mode syncs screens on Windows/Mac OS. Extend Mode expands desktops, supporting M1-M4 Macs for multi-screen setups.
Works smoothly with various operating systems, ensuring seamless multi-display performance.
Plug in 130W, charge your laptop with 100W USB-C. Just make sure your laptop’s Type-C can handle power delivery.
SPECIFICATION
| Hardware | Functions | Exterior | |||

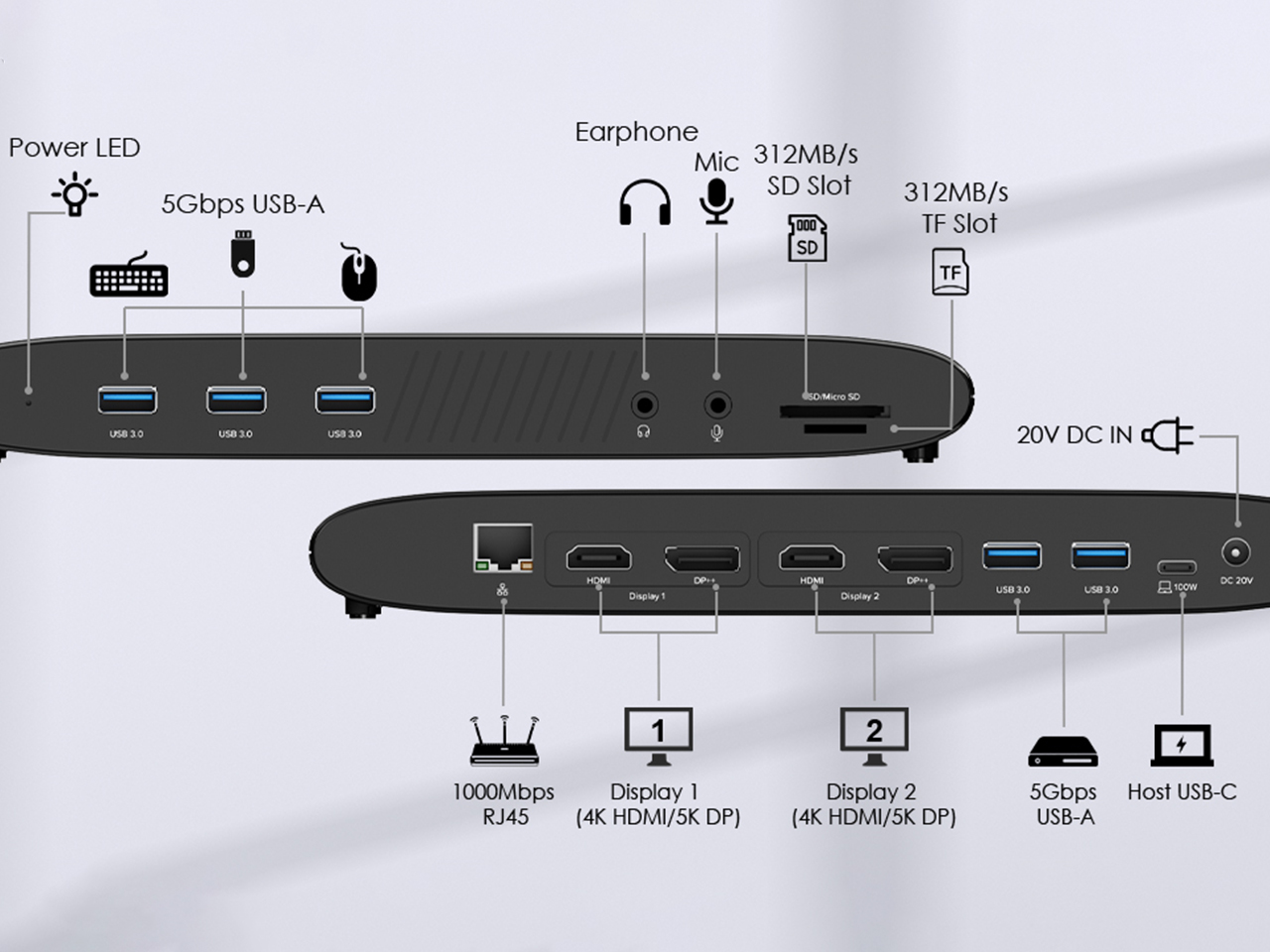

| Ports | DC Jack; USB-C; 2 x HDMI; 2 x DP; 5 x USB3.0 Type-A ports; 4-pole Earphone Jack; RJ45 Jack; SD / TF Slot | Working Standards | 1. USB-C I/P: USB3.1 Gen2 (Data, Alt-Mode and PD Charging) 2. DP/HDMI: 4K/60Hz max. 3. USB-A Port: 5Gbps 4. USB-A Port: 5Gbps; BC1.2 Charging 5. RJ45: Gigabit Ethernet 6. SD / TF: SD V4.0 7. 4-pole Phone Jack: TRRS / Stereo |
Housing Color | Black |
| Button | NIL | Data Cable | Black | ||
| LED | Blue Color LED | Power Cable | Black | ||
| Chipset | DL6950 GL3510 GL3523 GL3231 | ||||
| Flash | 32M x 2 | ||||
| DRAM | DDR3 256Mx16 x 2 8GB | ||||
| Power Supply | DC20V/6.5A 130Watt | Operating System | Microsoft Windows 7 / 8 / 10 Apple Mac OS 10. to latest; Chrome OS |
||
| Power Plug | US/EU/UK/AU or by request | ||||
| Power Consumption | 118Watt Full Loading | Max. Pixels | 3840x2560 (Dual Head) | ||
| Rated Volt./ Freq. / Current | 100-240 V.a.c. 50/60Hz, 2A Max., CLASS II | Max. Current(A) | DC 6 Ampere |
Description : WL-UG69PD11-Manuals
Post Date : 19/11/2025
Available : WL-UG69PD11
Online Reading : View
Please ensure that the DisplayLink driver for the dock is installed.
For macOS: Make sure you have installed the DisplayLink Manager App and granted permission for Screen Recording.
You can download the driver here :
DisplayLink macOS Software for Downloads Section | Synaptics
Please follow the steps below:
1. Disconnect the dock from your computer and unplug the power cable to fully power it off. Keep it disconnected until the final step.
2. Uninstall any DisplayLink software from Control Panel > Programs and Features (if present).
3. Download and run the DisplayLink Cleaner Tool:
DisplayLink Installation Cleaner for Windows | Synaptics
4. Restart your computer (even if not prompted).
5. Download and install the latest DisplayLink driver:
Windows Driver Downloads for Downloads Section | Synaptics
6. Reconnect the dock’s power first, then connect the dock to your computer.
If the device is not detected during installation, click “Skip” to complete the process, then restart your system again.
macOS requires users to grant Screen Recording permission for the DisplayLink driver to function properly. The DisplayLink Manager App does not send any information to Wavlink or DisplayLink/Synaptics, so there is no need to worry.
1.The docking station does not support HDCP, so protected content from services like Apple TV, Hulu, and Netflix cannot be played while the dock is connected. This is expected behavior. Please disconnect the dock when playing these videos.
2.Alternatively, you can try ：
1) Open Google Chrome settings.
2) Click on "Advanced" and select "System."
3) Disable "Use hardware acceleration when available"
4) Select "Relaunch" to activate the new settings.
Please use the USB-C to USB-A cable to connect the dock to your laptop.
This will prevent the dock from supplying power.
