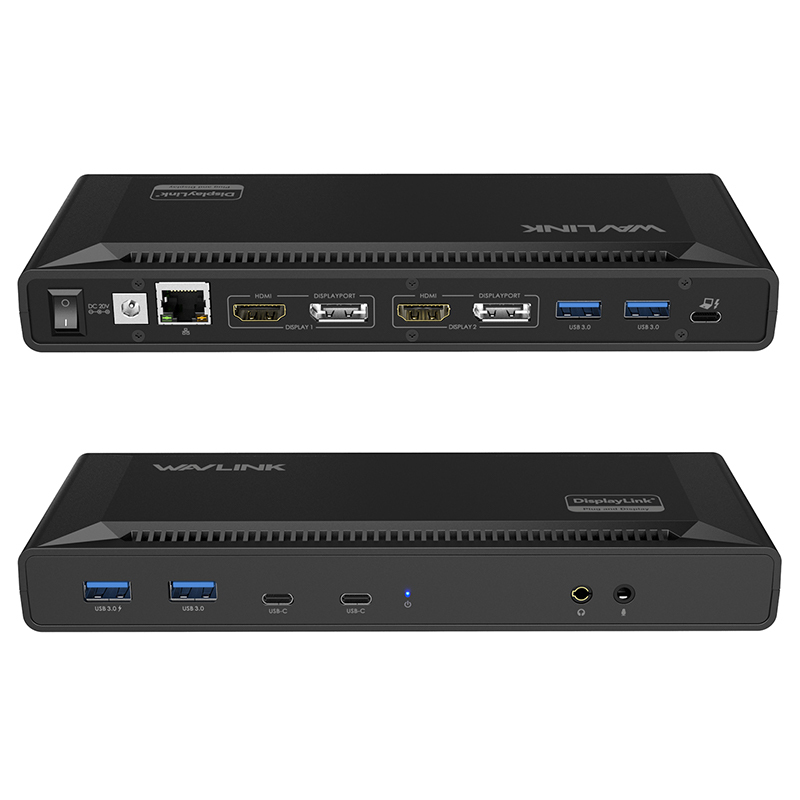

WAVLINK Dual 2K Docking Station(15-In-1), USB A/USB C Universal Laptop Dock Dual Monitors with 2xHDMI/DisplayPort, PD65W Charging, 6xUSB3.0 for Mac(Intel/M1/M2/M3/M4/M5) Lenovo Dell HP Asus Laptops
  • WAVLINK Dual 2K Docking Station(15-In-1), USB A/USB C Universal Laptop Dock Dual Monitors with 2xHDMI/DisplayPort, PD65W Charging, 6xUSB3.0 for Mac(Intel/M1/M2/M3/M4/M5) Lenovo Dell HP Asus Laptops 1
  • WAVLINK Dual 2K Docking Station(15-In-1), USB A/USB C Universal Laptop Dock Dual Monitors with 2xHDMI/DisplayPort, PD65W Charging, 6xUSB3.0 for Mac(Intel/M1/M2/M3/M4/M5) Lenovo Dell HP Asus Laptops 2

WAVLINK Dual 2K Docking Station(15-In-1), USB A/USB C Universal Laptop Dock Dual Monitors with 2xHDMI/DisplayPort, PD65W Charging, 6xUSB3.0 for Mac(Intel/M1/M2/M3/M4/M5) Lenovo Dell HP Asus Laptops

Model: WL-UG63PD2

- Built in Gigabit Ethernet port provides stable network speed for your working and gaming and is backward compatible with 10/100 network.
- Supports 65W upstream charging for your host laptop and 30W charging for all downstream devices.
- Two DisplayPort and two HDMI ports support up to dual 2K resolution video output.
- Four Type-A USB 3.0 ports transfer data to your downstream devices at the rate of up to 5Gbps.
- 2.0 Audio Line-out Jack for Earphone and Line-In Jack Microphone.
- One Type-A USB 3.0 port supports BC1.2 fast charging to your devices.
- Supports multiple video modes for intensive work.

  • Overview

  • Specifications

WAVLINK 15-In-1 Dual 2K Universal USB3.0 Docking Station
Max Connectivity, Dual 2K Performance

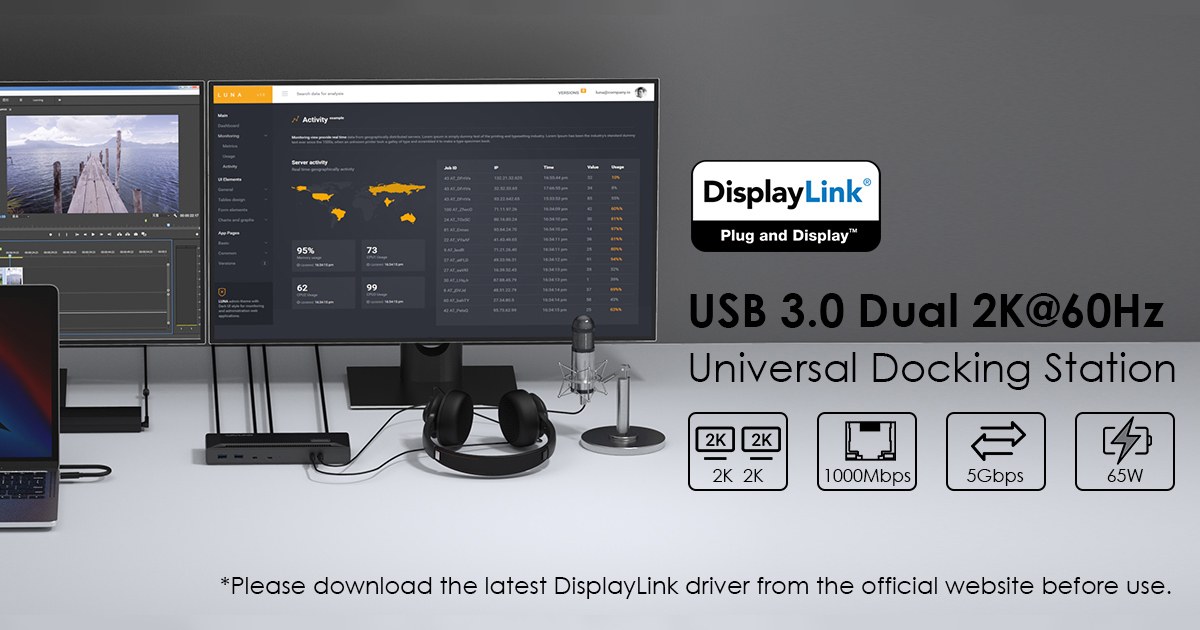

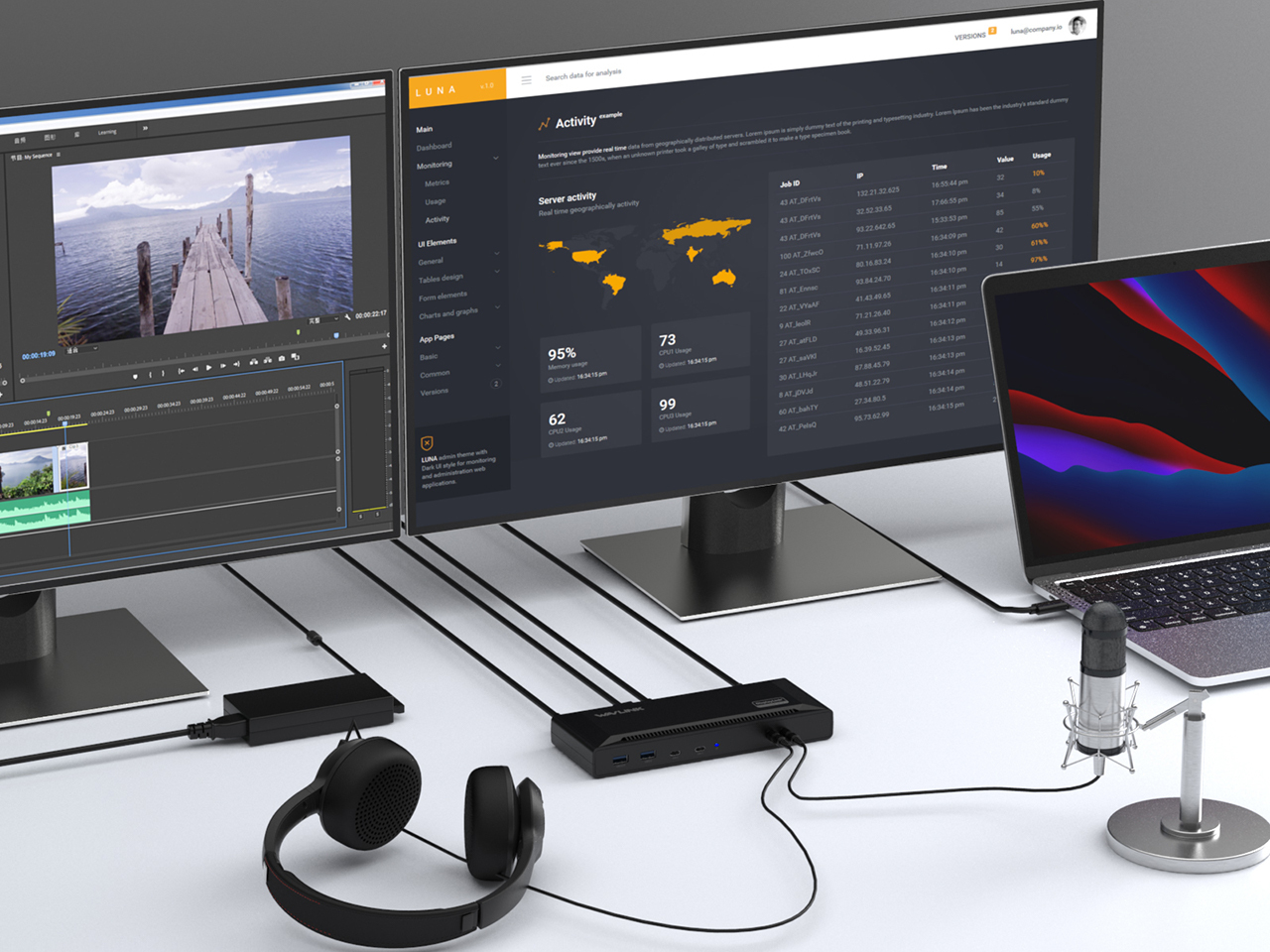

Dual 2K@60Hz Displays
Single or Dual displays support up to 2K@60Hz resolutions. Aims to increase your productivity or provide stunning viewing experience with mirror & extend modes. *Support M1/2/3/4/5 based Mac extends two different external displays.

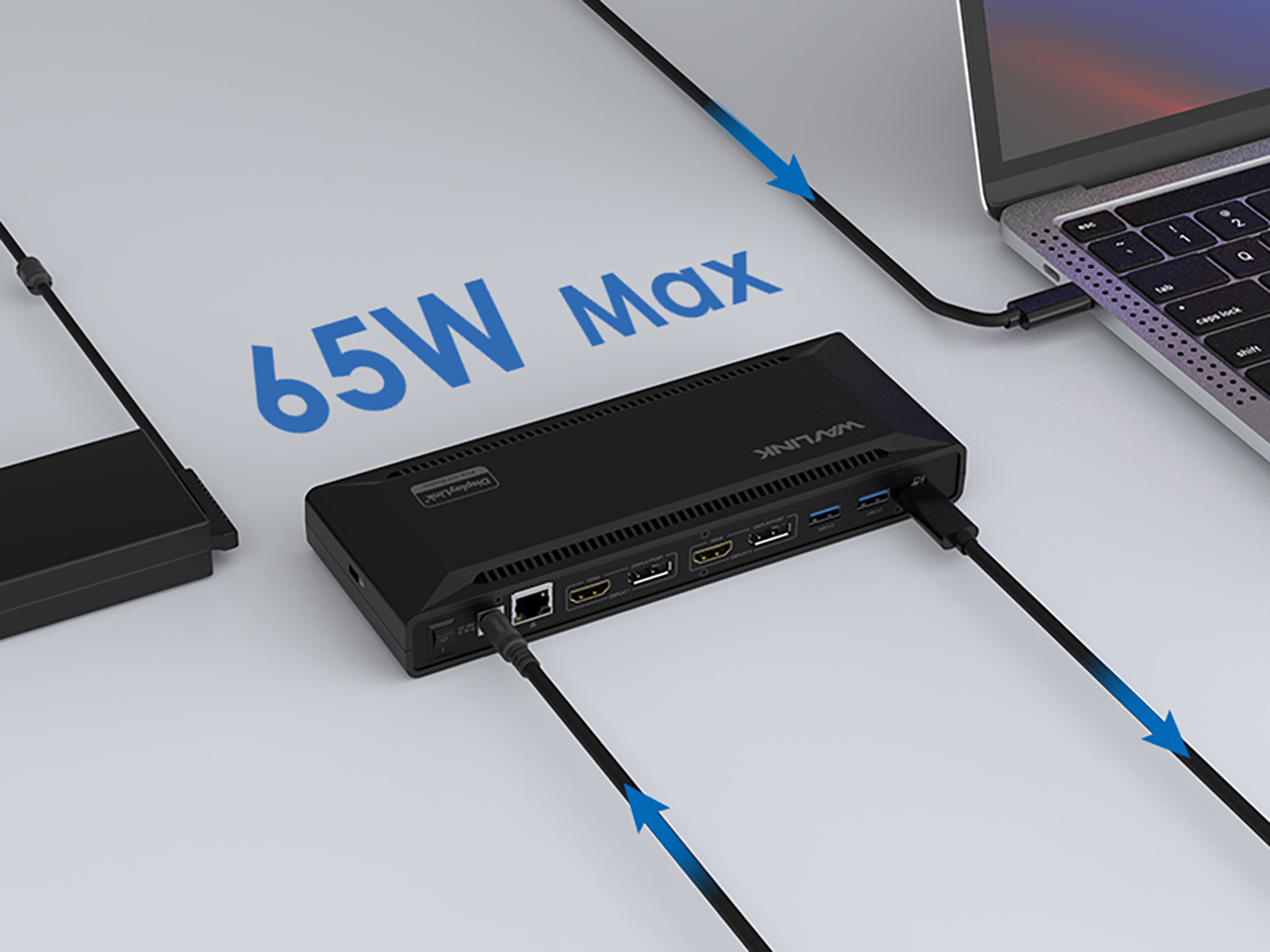

Charge the Host with 65W
The included 100-watt power adapter can charge your laptop at up to 65watts (via USB-C) and power all downstream devices and peripherals at 35watts.

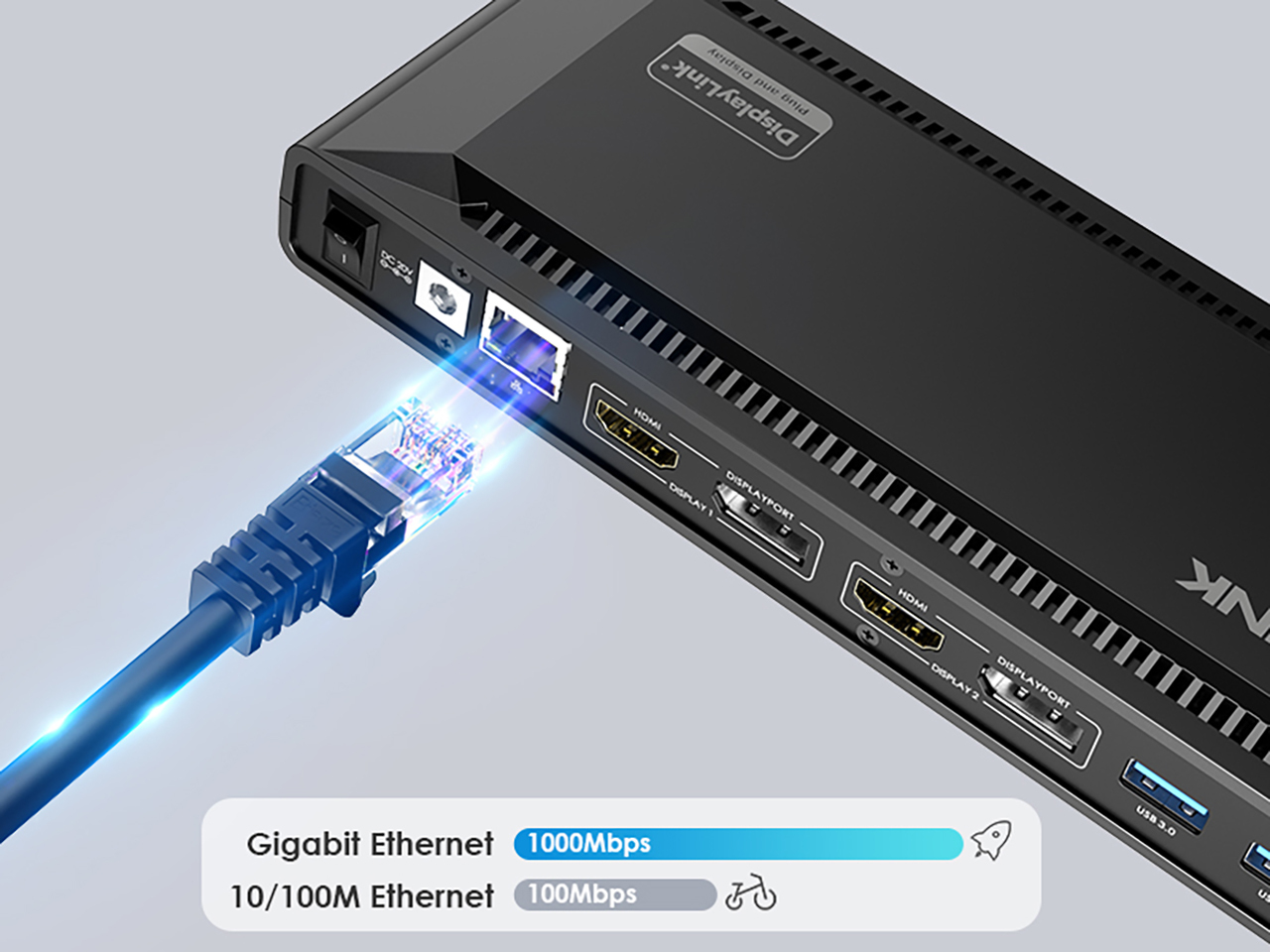

Blazing-fast Gigabit Ethernet
The Gigabit Ethernet port allows you to reach the full performance of a wired network with speeds up to 10/100/1000Mbps, faster and more reliable than any Wi-Fi connection.

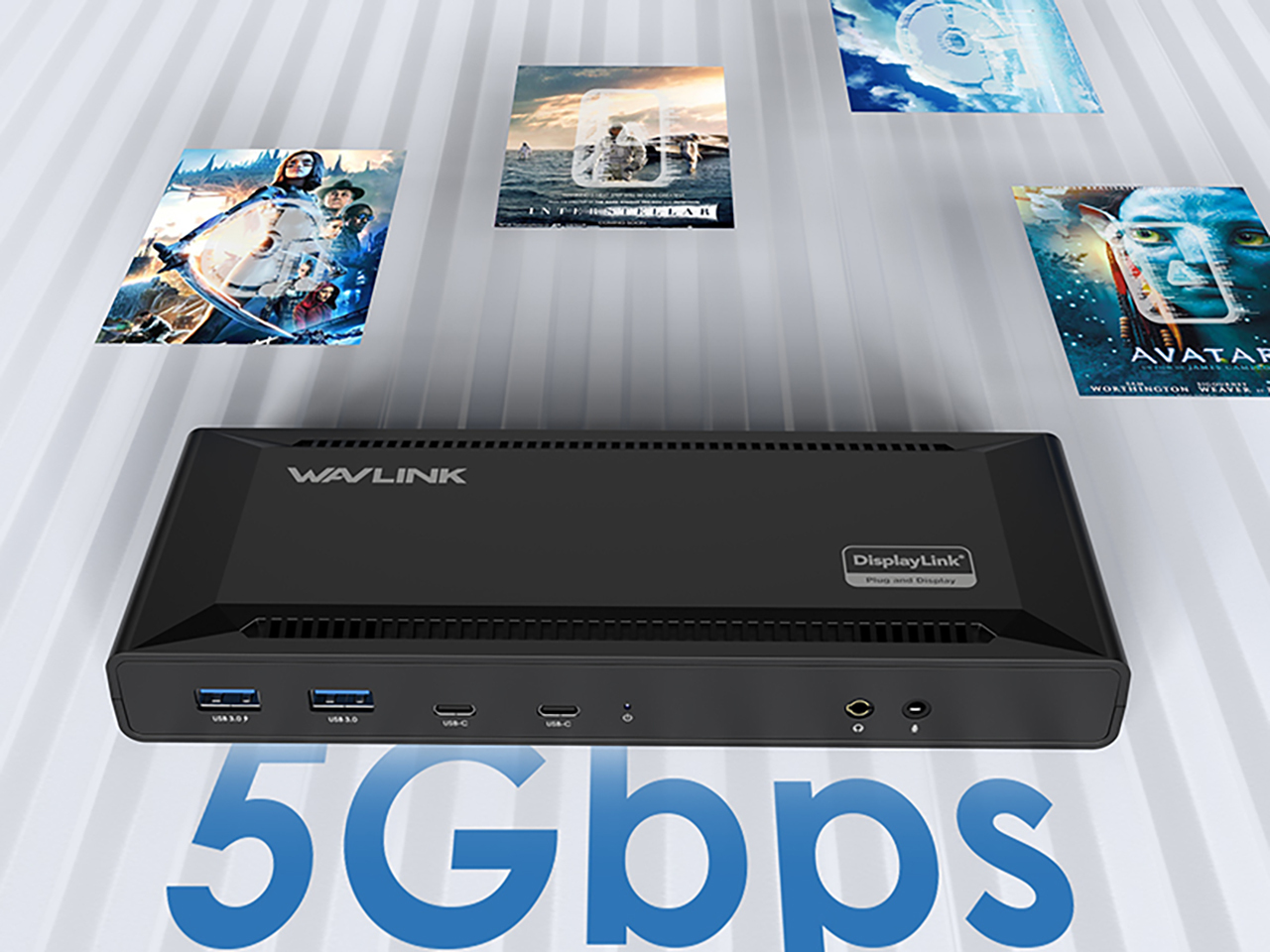

File Transfer in Seconds
Connect to either of the USB 3.0 Type-A ports or Type-C ports for different needs; support file transfer speeds up to 5Gbps for ultra time-saving and efficient data transmission.

Specifications

Model WL-UG63PD2

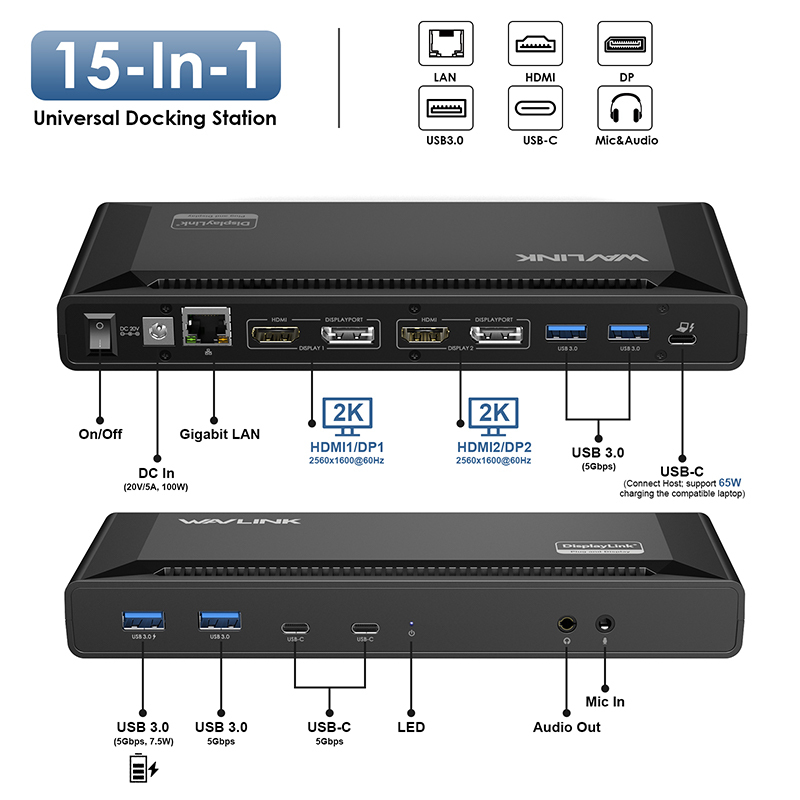

Ports 1x DC IN (20V/5A, 100W), 1x USB-C (Host, 65W), 2x DisplayPort, 2x HDMI, 1x RJ45, 4x USB3.0-A, 2 x USB3.0-C, 1x 3.5mm Audio Out, 1x 3.5mm Mic In
Plug & Play DisplayLink Driver Needed
Operating Systems - Windows 11/10/8.1/8/7/XP/Vista
- MacOS 10.14-13.x and latest
- Chrome OS, Ubuntu, Android and Harmony OS
Unit Size 22.3x8.3x2.7cm/8.8x3.3x1.1in (L x W x H)
Unit Weight 349g/12.3oz
Cable Length USB-C to C Cable Length: 100cm/39.4in
USB-C to A Cable Length: 100cm/39.4in
Power Adapter Cable Length(plug end): 150cm/59in
Power Adapter Cable Length (round port end): 120cm/47in
Material ABS Plastic
In the Box 1x Dual 2K Universal Docking Station
1x USB3.0 C to C Cable
1x USB3.0 C to A Cable
1 x 20V/5A 100W Power Adapter
1 x Quick Start Guide
1 x Driver Link Card
