Universal Dual 2K+4K DisplayLink Docking Station, for Mac M1-M4 & Windows, 13-in-1 with 100W Charging
  • Universal Dual 2K+4K DisplayLink Docking Station, for Mac M1-M4 & Windows, 13-in-1 with 100W Charging 1
  • Universal Dual 2K+4K DisplayLink Docking Station, for Mac M1-M4 & Windows, 13-in-1 with 100W Charging 2
  • Universal Dual 2K+4K DisplayLink Docking Station, for Mac M1-M4 & Windows, 13-in-1 with 100W Charging 3
  • Universal Dual 2K+4K DisplayLink Docking Station, for Mac M1-M4 & Windows, 13-in-1 with 100W Charging 4
  • Universal Dual 2K+4K DisplayLink Docking Station, for Mac M1-M4 & Windows, 13-in-1 with 100W Charging 5

Universal Dual 2K+4K DisplayLink Docking Station, for Mac M1-M4 & Windows, 13-in-1 with 100W Charging

Model: WL-UG39PD11

- Three HDMI ports support video output simultaneously: one HDMI port can support the resolution up to 4K@60Hz and the other two support up to 2K@60Hz.
- Extend/Mirror video modes are available for multiple tasks.
- 130W Power Supply delivers maximum 100W power upstream to charge your laptop.
- A Gigabit Ethernet port offers fast and stable network connection.
- Five USB-A ports with transfer speed up to 5Gbps, backward compatible with USB 2.0; one of USB-A ports supports 7.5W downstream charging.
- 3.5mm audio out and mic in ports for earphone, mic, and speaker connection and playing.
- SD/Micro SD v4.0 supports SDXC UHS-II and transfers speed up to 312MB/s.
Universal Triple Display DisplayLink Docking Station

Empower Your Workspace with Seamless Connectivity and Rapid PD 100W Upstream Charging

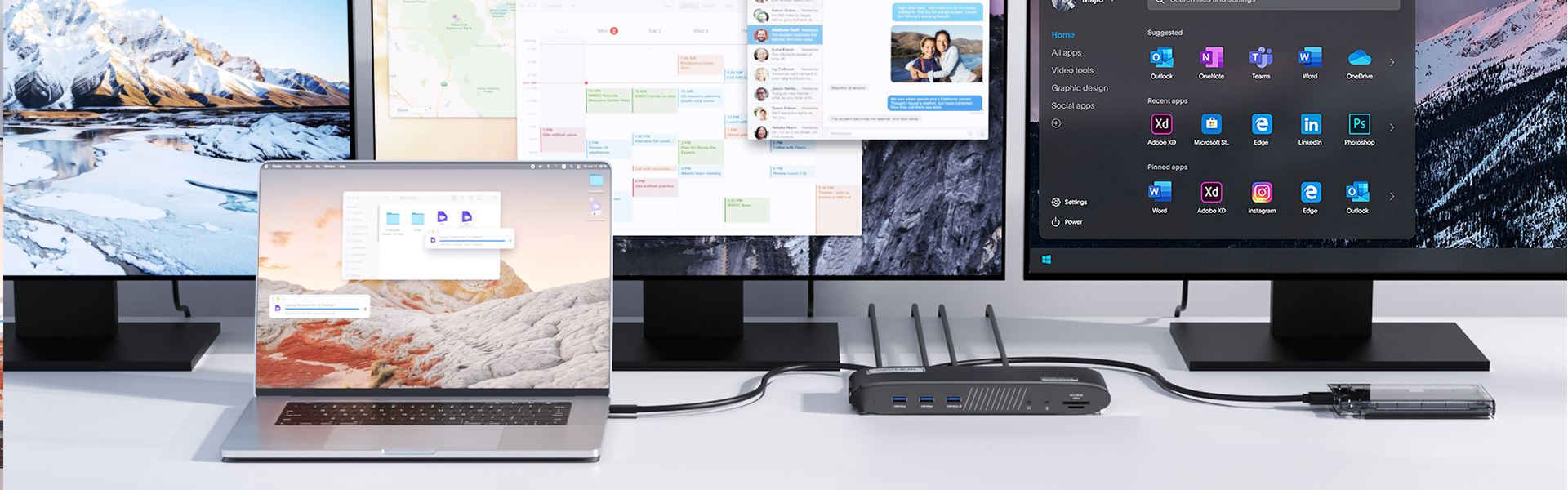

13-IN-1 Ultimate Port Expansion

Simplify workflow, stay connected, and work anytime.

4K@60Hz Single Display

Enjoy stunning 4K visual instantly, connect your monitor in a breeze.

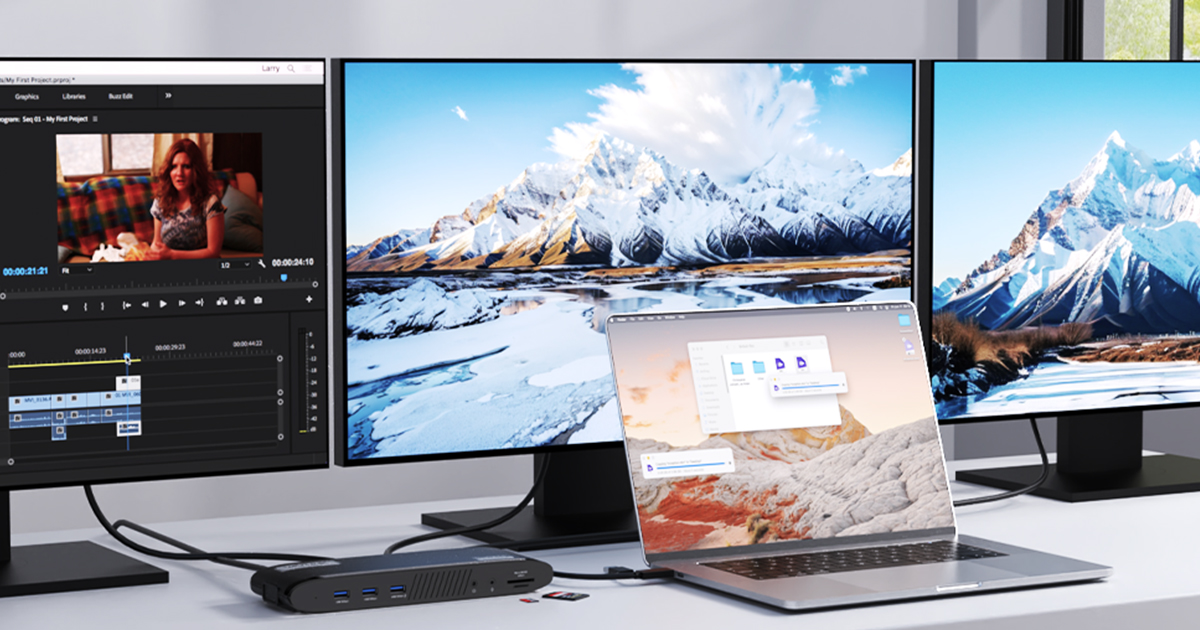

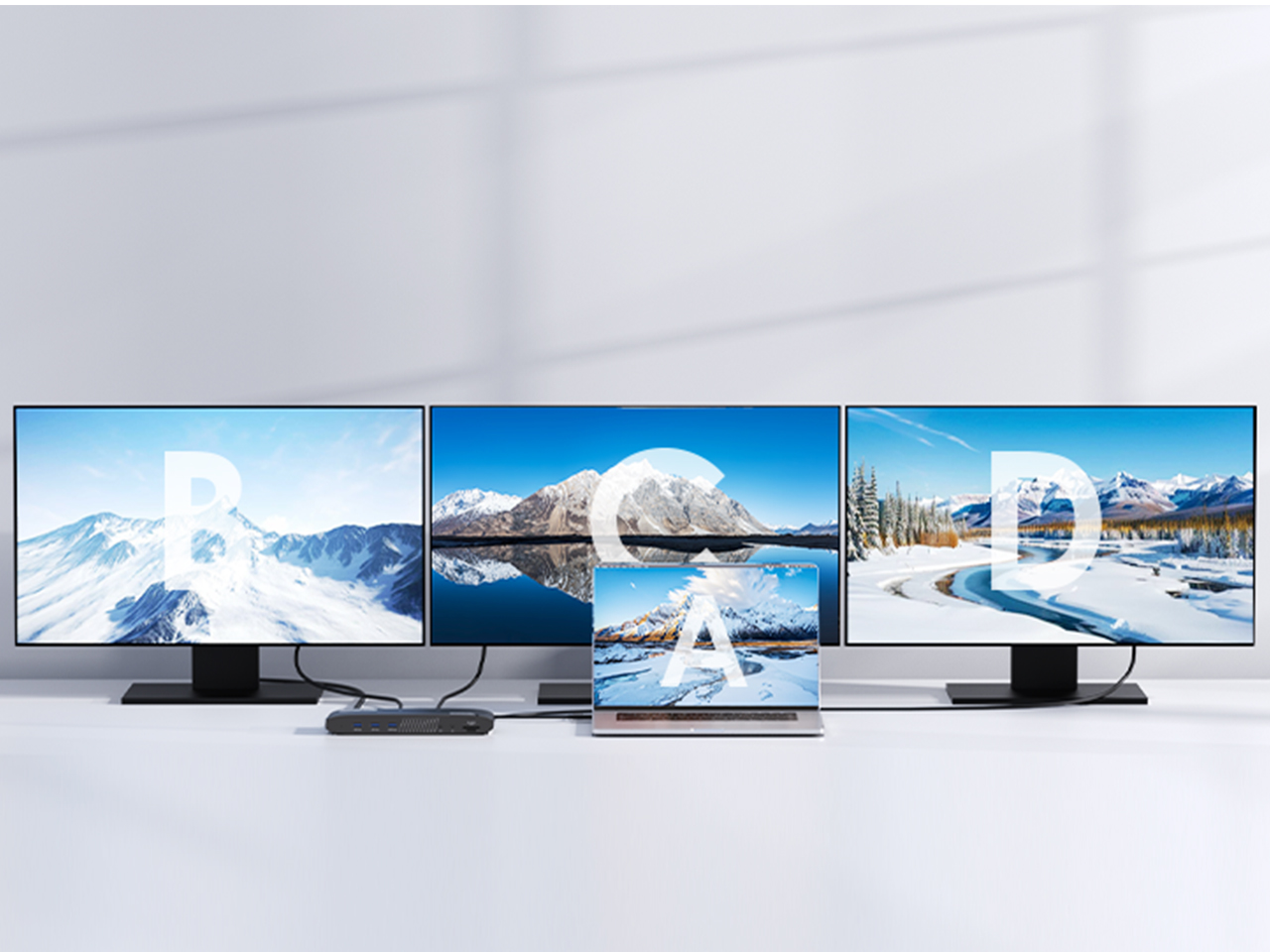

Mirror & Extend Modes

Mirror Mode syncs screens on Windows/Mac OS. Extend Mode expands desktops, supporting M1-M4 Macs for multi-screen setups.

DisplayLink DL-3900 Chipset

Works smoothly with various operating systems, ensuring seamless multi-display performance.

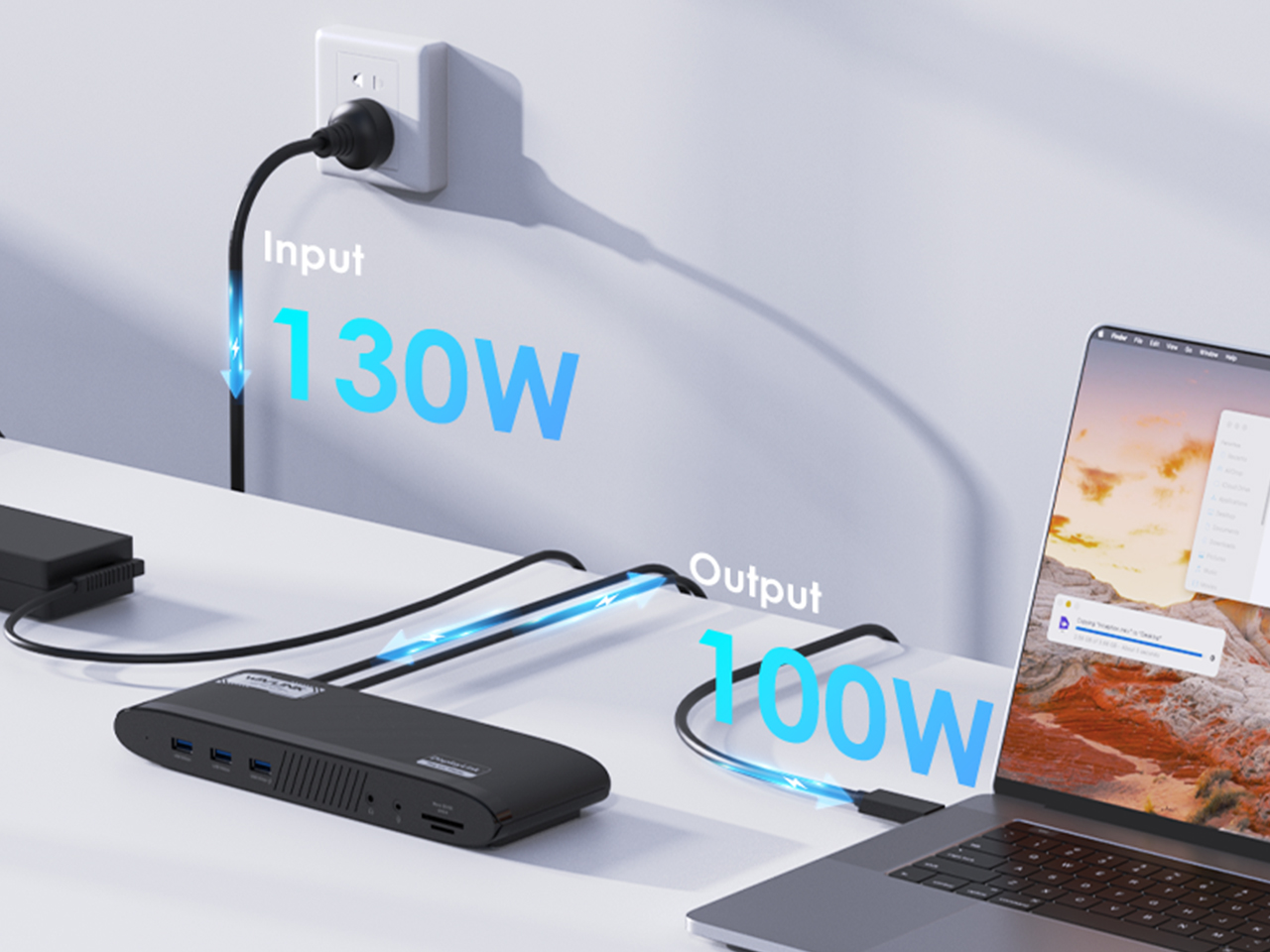

Easy Power Setup

Plug in 130W, charge your laptop with 100W USB-C. Just make sure your laptop’s Type-C can handle power delivery.

Specifications

SPECIFICATION

Hardware Functions Exterior

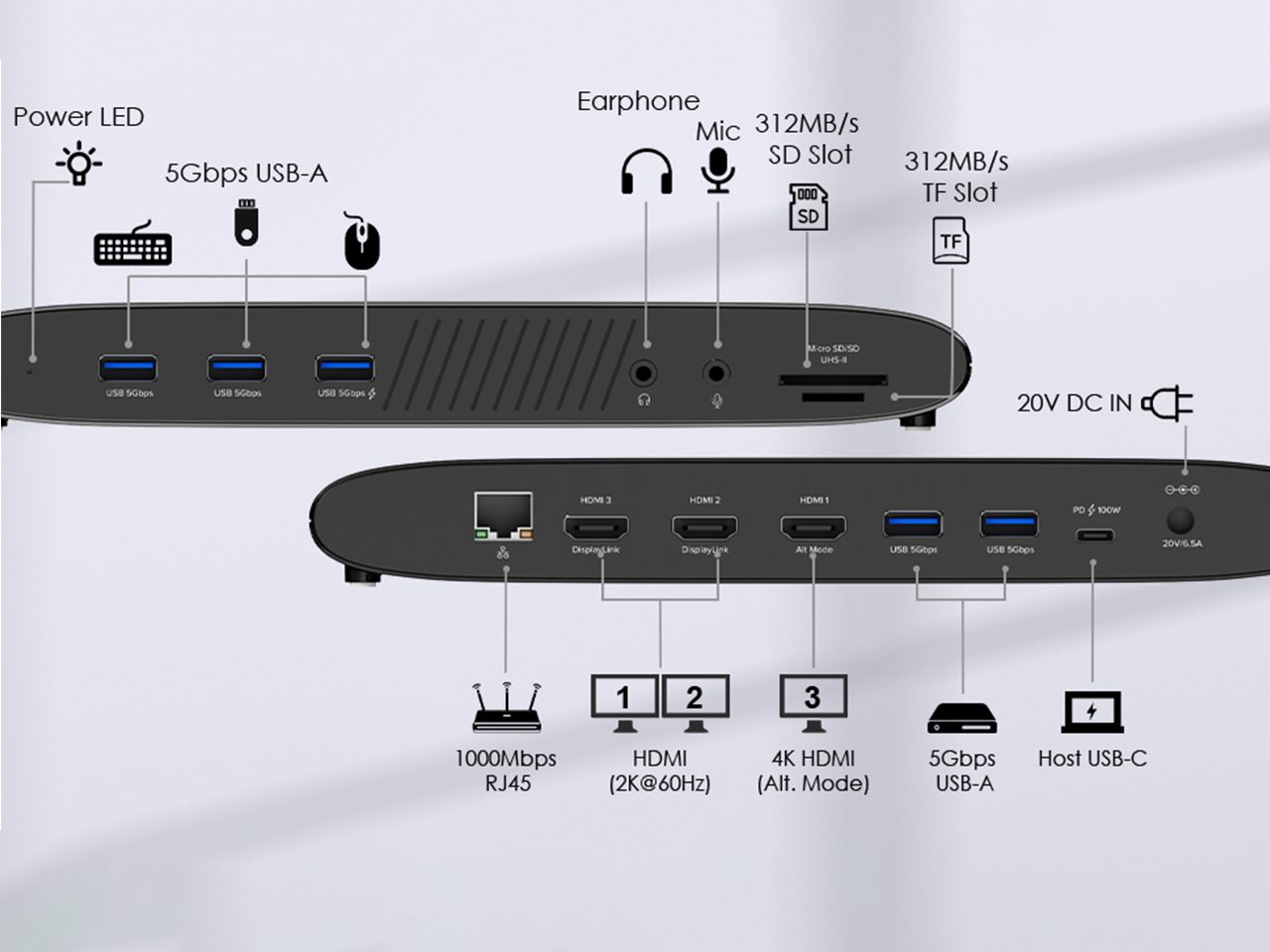

Ports DC Jack; USB-C; 3 x HDMI; 5 x USB3.0 Type-A ports; 4-pole Earphone Jack; RJ45 Jack; SD / TF Slot Working Standards 1. USB-C I/P: USB3.1 Gen2 (data, Video and Upstream Charging)
2. HDMI Alt-Mode: 4K/30Hz max.
3. HDMI DisplayLink: 2K/60Hz max.
4. USB-A Port: 5Gbps
5. USB-A Port: 5Gbps; BC1.2 Charging
6. RJ45: Gigabit Ethernet
7. SD / TF: SD V4.0
8. 4-pole Phone Jack: TRRS / Stereo		 Housing Color Black
Button NIL Data Cable Black
LED Blue Color LED Power Cable Black
Chipset DL3900 GL3510 GL3523 GL3231
Flash 32M x 2
DRAM DDR3 64Mx16 1GB
Power Supply DC20V/6.5A 130Watt Operating System Microsoft Windows 7 / 8 / 10
Apple Mac OS 10. to latest; Chrome OS
Power Plug US/EU/UK/AU or by request
Power Consumption 118Watt Full Loading Max. Pixels 3840x2560 (Alt-Mode)
Rated Volt./ Freq. / Current 100-240 V.a.c. 50/60Hz, 2A Max., CLASS II Max. Current(A) DC 6 Ampere

Driver

Version:
DL_Displaylink
System Requirements:
Windows 10/11/Mac/Linux/Android
Download:

Manual

WL-UG39PD11-Manuals

Description : WL-UG39PD11-Manuals

Post Date : 19/11/2025

Available : WL-UG39PD11

Online Reading : View

Q&A

What should I do if the video ports of the docking are not working?

Please ensure that the DisplayLink driver for the dock is installed.

For macOS: Make sure you have installed the DisplayLink Manager App and granted permission for Screen Recording.

You can download the driver here :

DisplayLink macOS Software for Downloads Section | Synaptics

What should I do if the dock is not working as expected on a Windows computer?

Please follow the steps below:

1. Disconnect the dock from your computer and unplug the power cable to fully power it off. Keep it disconnected until the final step.

2. Uninstall any DisplayLink software from Control Panel > Programs and Features (if present).

3. Download and run the DisplayLink Cleaner Tool:

DisplayLink Installation Cleaner for Windows | Synaptics

4. Restart your computer (even if not prompted).

5. Download and install the latest DisplayLink driver:

Windows Driver Downloads for Downloads Section | Synaptics



6. Reconnect the dock’s power first, then connect the dock to your computer.

If the device is not detected during installation, click “Skip” to complete the process, then restart your system again.

Why does the DisplayLink Manager App request screen recording access on my MacBook?

macOS requires users to grant Screen Recording permission for the DisplayLink driver to function properly. The DisplayLink Manager App does not send any information to Wavlink or DisplayLink/Synaptics, so there is no need to worry.

Why can’t Apple TV, Hulu, or Netflix play when the docking station is connected?

1.The docking station does not support HDCP, so protected content from services like Apple TV, Hulu, and Netflix cannot be played while the dock is connected. This is expected behavior. Please disconnect the dock when playing these videos.

2.Alternatively, you can try ：

1)  Open Google Chrome settings.

2)  Click on "Advanced" and select "System."

3)  Disable "Use hardware acceleration when available"

4)  Select "Relaunch" to activate the new settings.

How can I stop the dock from charging my laptop?

Please use the USB-C to USB-A cable to connect the dock to your laptop.

This will prevent the dock from supplying power.
