UG39DK7 USB 3.0 Aluminum Universal Docking Station

UG39DK7 USB 3.0 Aluminum Universal Docking Station

Model: WL-UG39DK7
Ean/UPC: 6955362046637

  • Build in USB 3.0 GPU certified by DisplayLink
  • HDMI and DVI video interface ports support up to 2048 x 1152 resolutions each
  • 5.1 Channel surround sound through HDMI interfa
  • Support Gigabit Ethernet
  • 6 x USB 3.0 ports compatible all USB 3.0 and USB 2.0 devices
  • Compatible with windows 7/8/8.1/10 and Mac OS up to latest version
  • Primary / Extend / Mirror Video Mode
  • Expandable up to 6 Display units

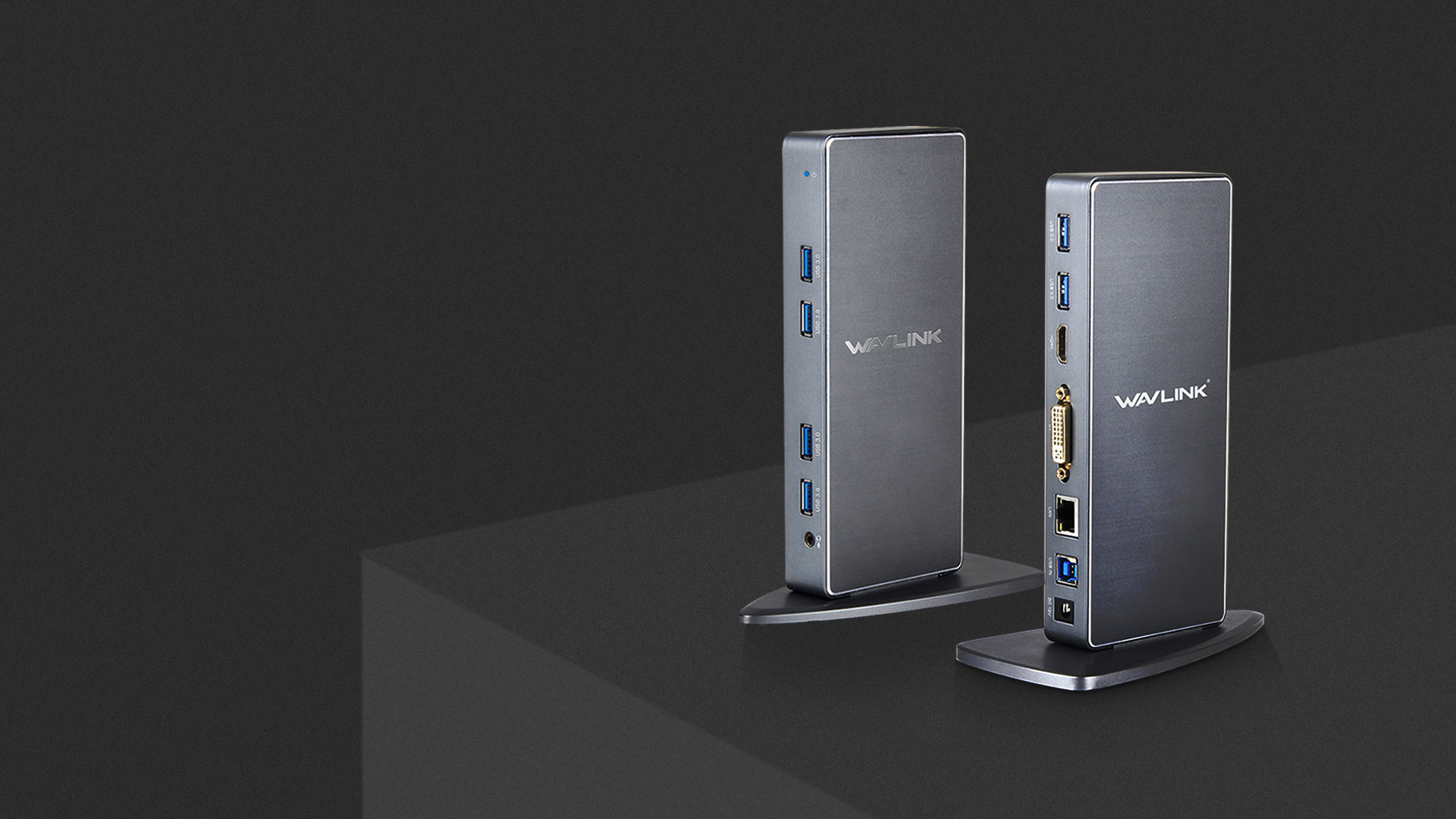

Aluminum USB 3.0 Universal Docking Station

One Dock, for Every Need

Customize for You

12 ports of the most essential connectivity give you all your needs in this vertical positioning designed dock.

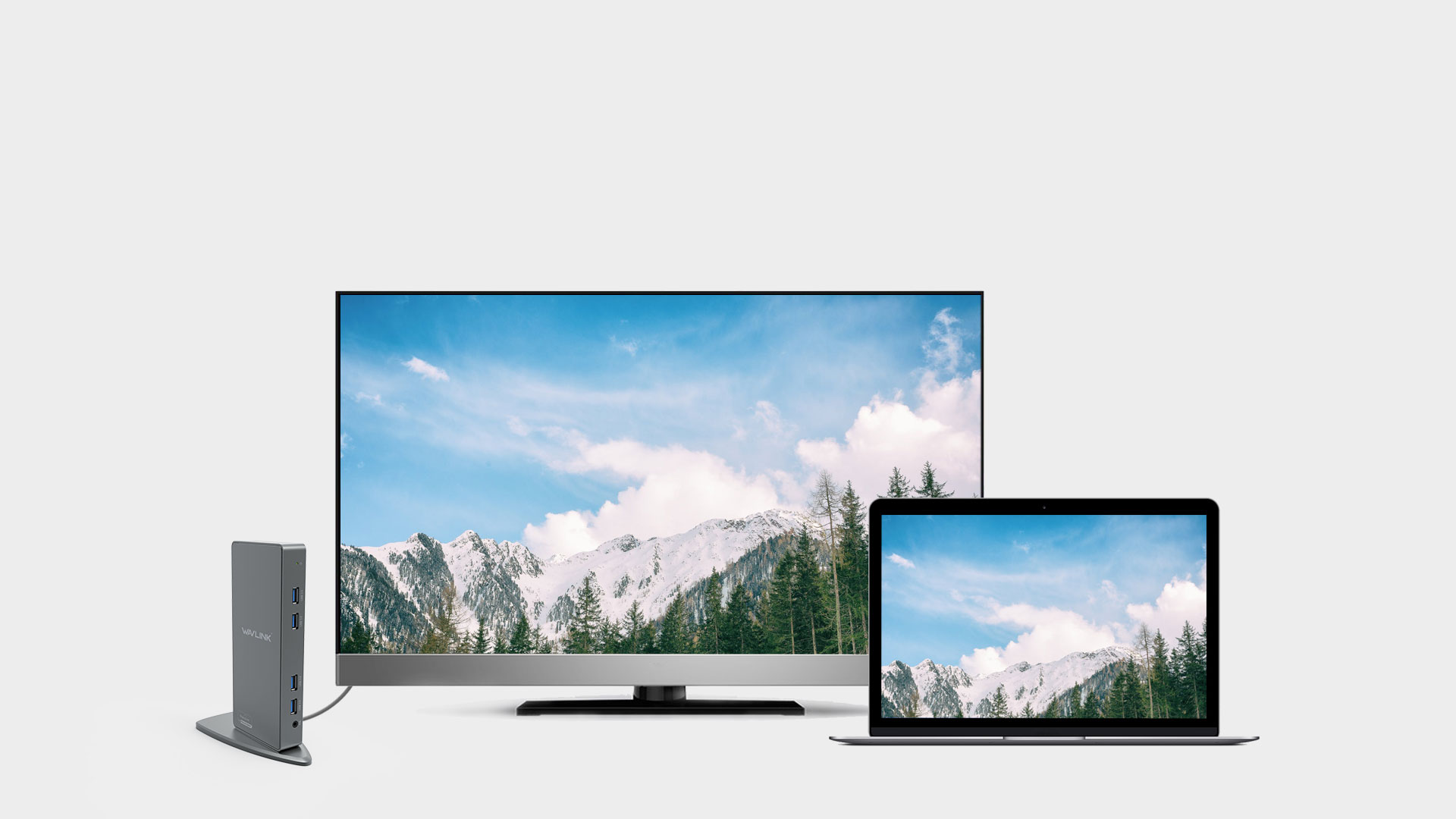

Display Flexibility

Super strong certified GPU support Full HD 2048 x 1152 on HDMI/DVI/VGA Monitor.

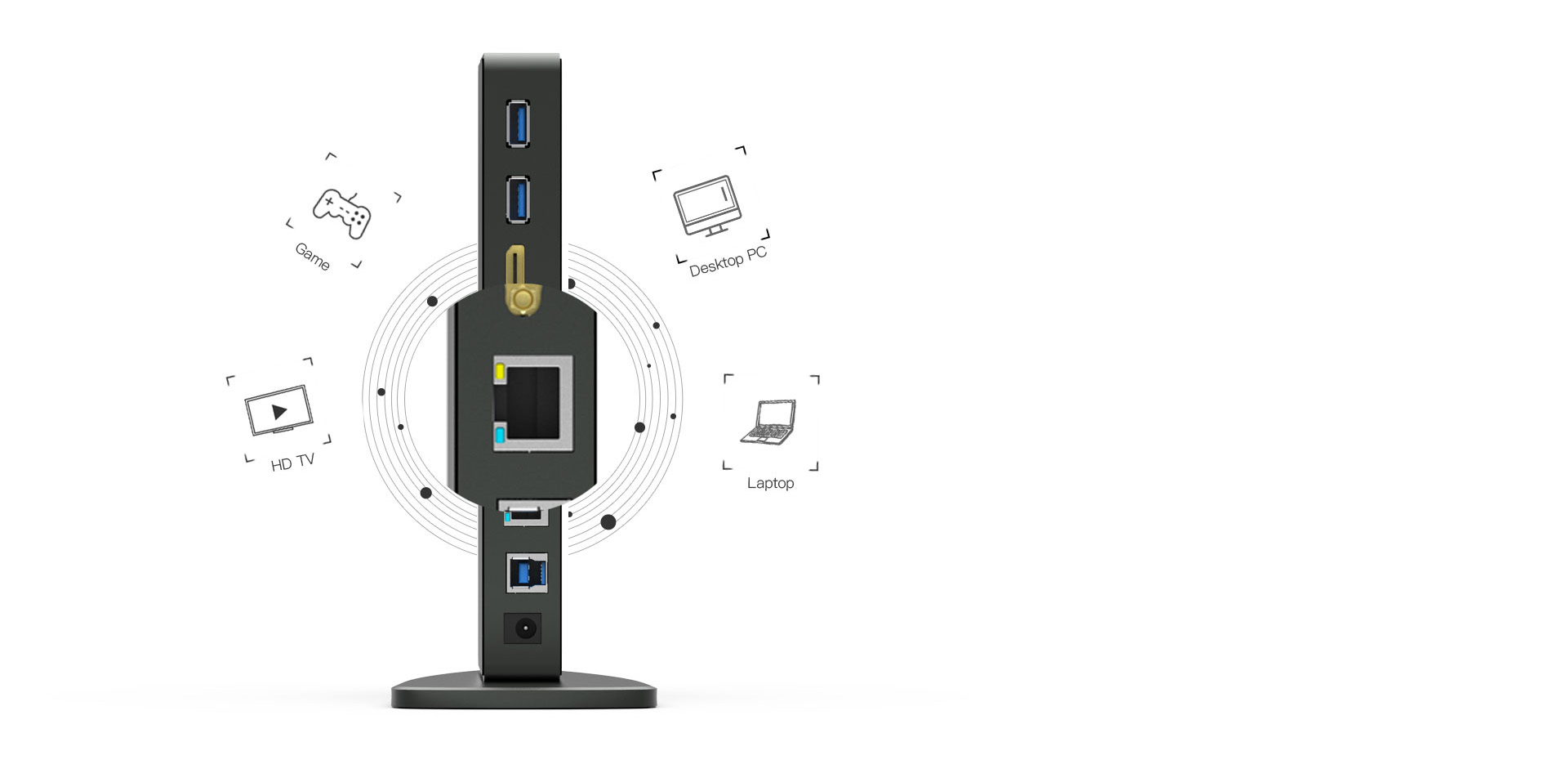

Multi-function interface introduction

Better Connection for the Better Performance, It’s perfect for anyone who wants to expand their connectivity in virtually any environment or application.

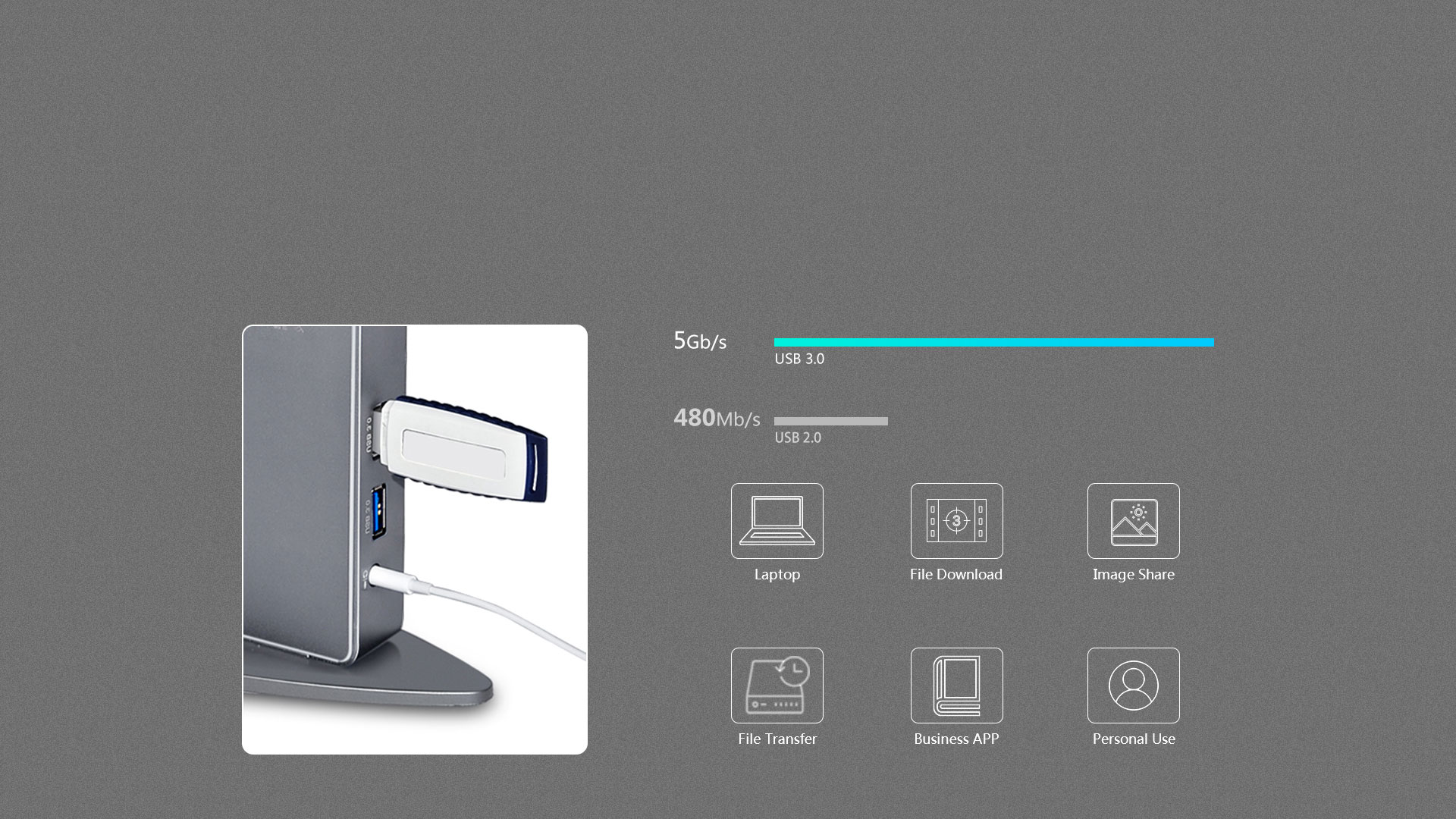

Six USB3.0 Ports

Solve the scarcity of computer USB interface, avoid the damage caused by the repeated insertion and extraction of precious original interfaces.

Blazing-fast Gigabit Ethernet

Wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of wired network connections with built-in Gigabit Ethernet port.

Two in one audio out & Mic in port

Use independent audio input to synchronize audio transmission in teleconference or any other project.

  • TECHNICAL SPECIFICATIONS
  • Model

    UG39DK7

  • Ports

    6 x USB-A

    1 x DVI or VGA (through converter)

    1 x HDMI

    1 x 4-Pole Phone Jack Port

    1 x USB-B

    1 x RJ45 Gigabit Ethernet

    1 x DC Power Jack Port

  • LED

    Blue

  • Power Supply

    DC12V / 3A

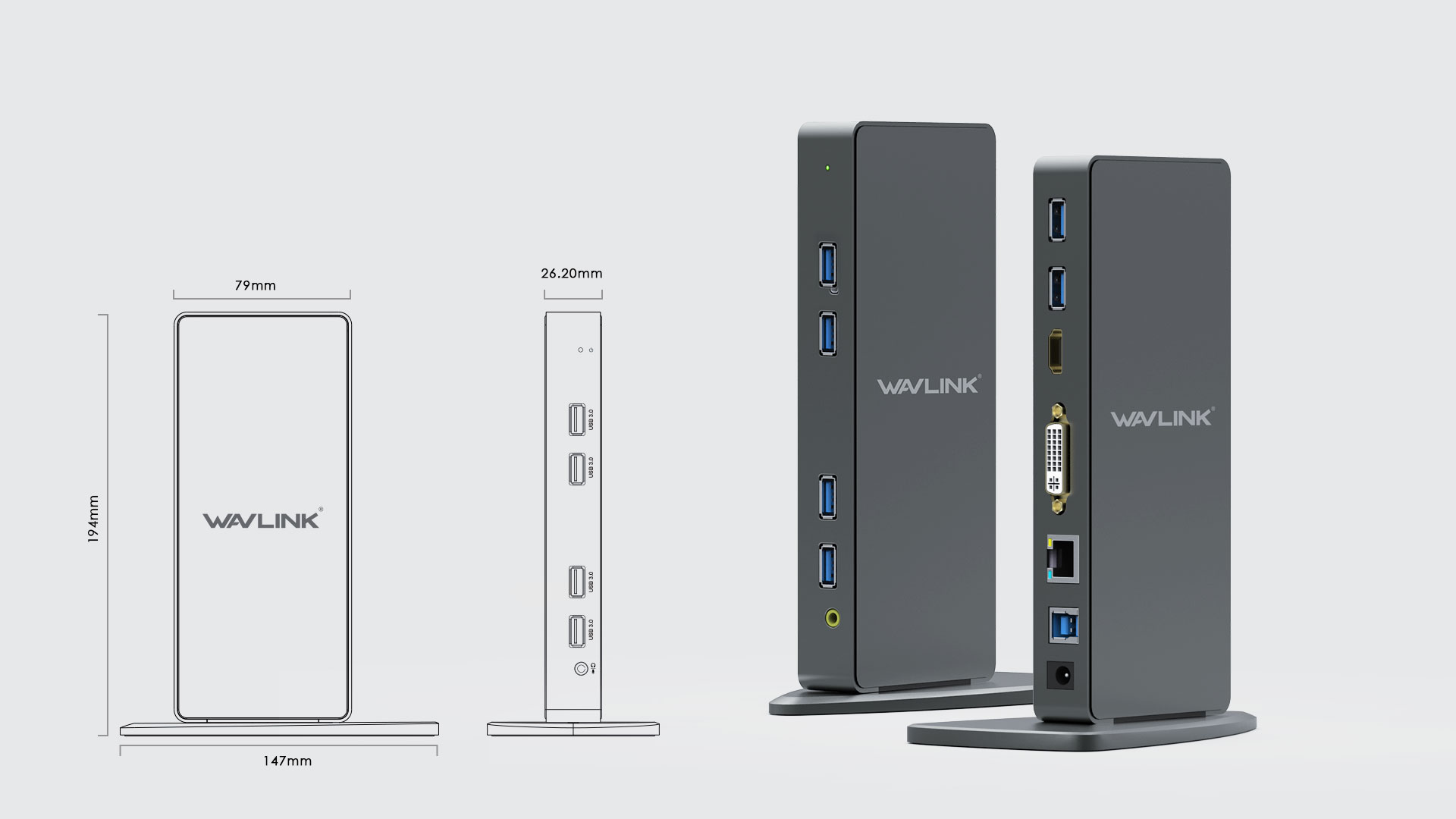

  • DIMENSIONS
  • Unit Dimensions

    194mm x 79mm x 26.20mm ( L x W x H )

  • Housing Material

    Aluminum

  • Shell Color

    Black

  • FUNCTIONS
  • Operating System Support

    Windows

    Mac OS X

  • PACKAGE
  • In The Box

    1 x USB 3.0 Universal Docking Station

    1 x SuperSpeed USB 3.0 Cable

    1 x DVI convert to VGA Adapter

    1 x DC20V Certified Power Adapter

    1 x User Manual
