WAVLINK Universal DisplayLink Triple Display Docking Station, for Mac M1-M4 & Windows, 13-in-1 with Dual 2K+4K
  • WAVLINK Universal DisplayLink Triple Display Docking Station, for Mac M1-M4 & Windows, 13-in-1 with Dual 2K+4K 1
  • WAVLINK Universal DisplayLink Triple Display Docking Station, for Mac M1-M4 & Windows, 13-in-1 with Dual 2K+4K 2
  • WAVLINK Universal DisplayLink Triple Display Docking Station, for Mac M1-M4 & Windows, 13-in-1 with Dual 2K+4K 3
  • WAVLINK Universal DisplayLink Triple Display Docking Station, for Mac M1-M4 & Windows, 13-in-1 with Dual 2K+4K 4
  • WAVLINK Universal DisplayLink Triple Display Docking Station, for Mac M1-M4 & Windows, 13-in-1 with Dual 2K+4K 5

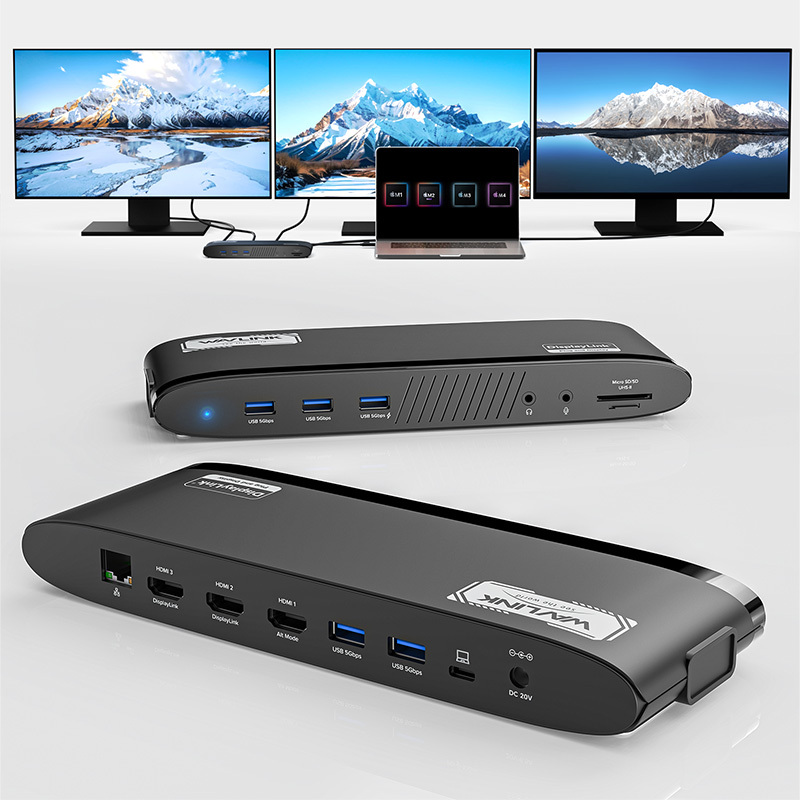

WAVLINK Universal DisplayLink Triple Display Docking Station, for Mac M1-M4 & Windows, 13-in-1 with Dual 2K+4K

Model: WL-UG39DK18

- Three HDMI ports support simultaneous video output, with one port delivering up to 4K@60Hz resolution and the other two supporting up to 2K@60Hz.
- Extend/ Mirror video modes available for seamless multitasking across multiple screens.
- Gigabit Ethernet port provides fast, reliable wired network connectivity.
- Five USB-A ports with 5Gbps transfer speed (backward compatible with USB 2.0), one port supports 7.5W downstream charging.
- 3.5mm audio out and mic in ports for easy connection to headphones, microphones.
- SD/Micro SD v4.0 card reader supports SDXC UHS-II, with transfer speeds up to 312MB/s.

  • Overview

  • Specifications

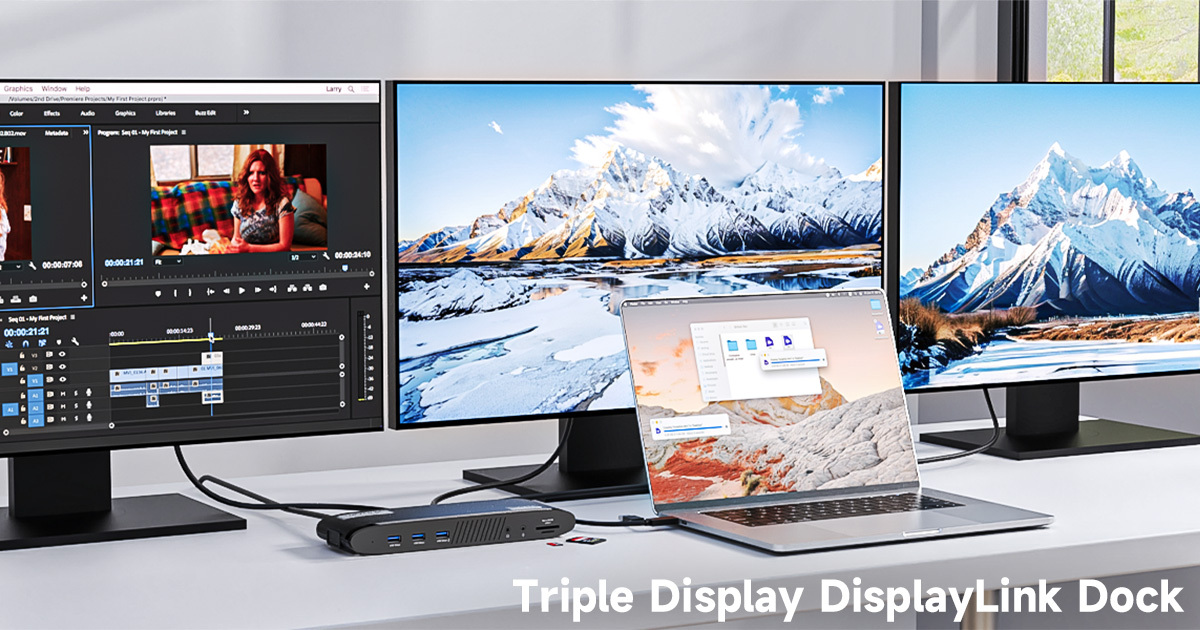

WAVLINK USB-C Triple Display Universal Docking Station
All-in-One Multi Ports, Seamlessly Empower Your Workspace

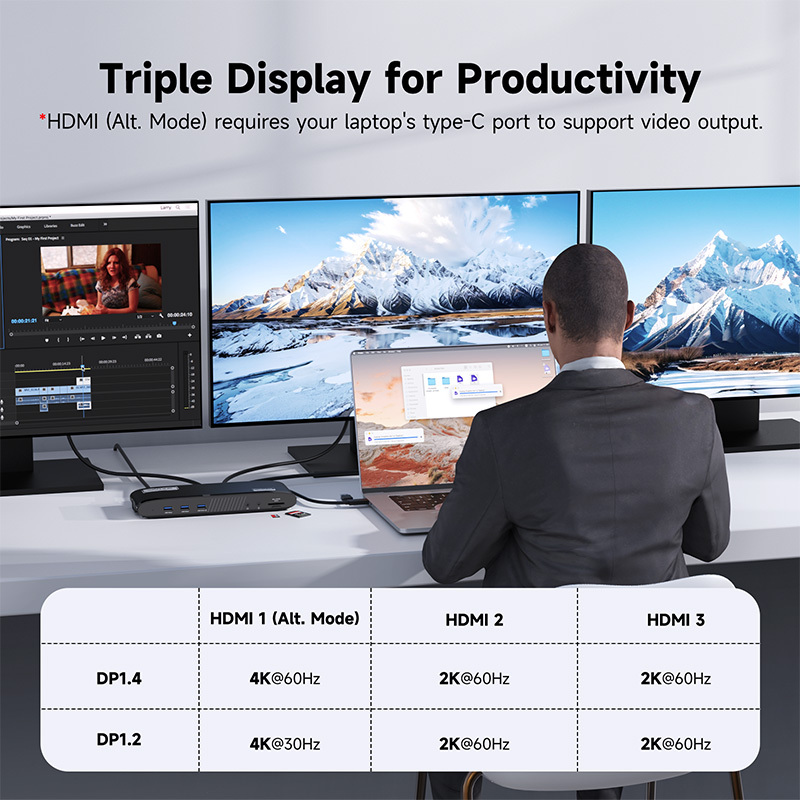

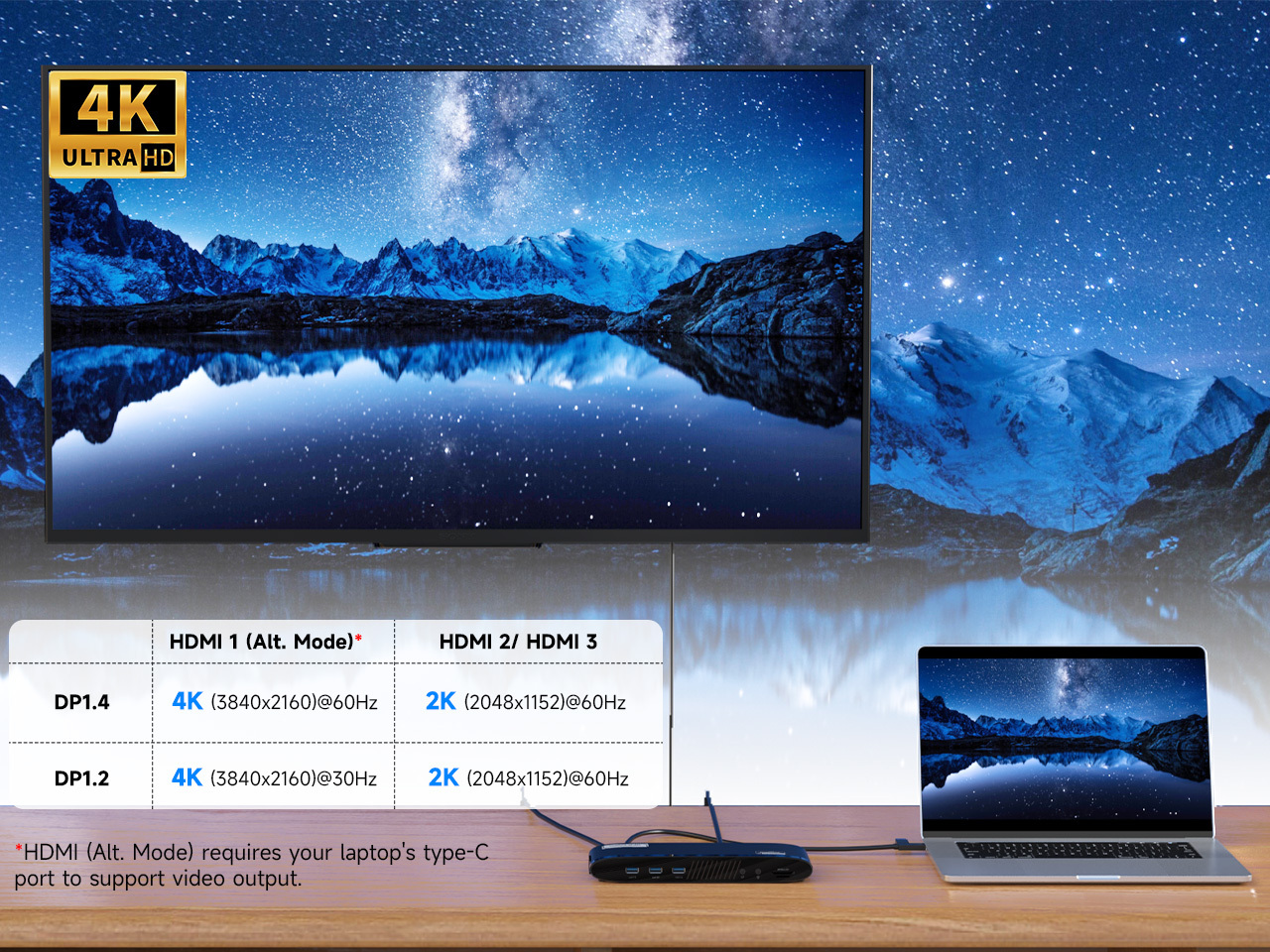

Triple Display Simultaneous Output
This docking station supports flexible display setups for various work needs. Connect one monitor to HDMI 1 (Alt. Mode) for up to 4K@60Hz, perfect for design, video editing and media playback. For multi-tasking, extend two extra monitors via HDMI 2 and HDMI 3, each outputting up to 2K@60Hz at the same time.

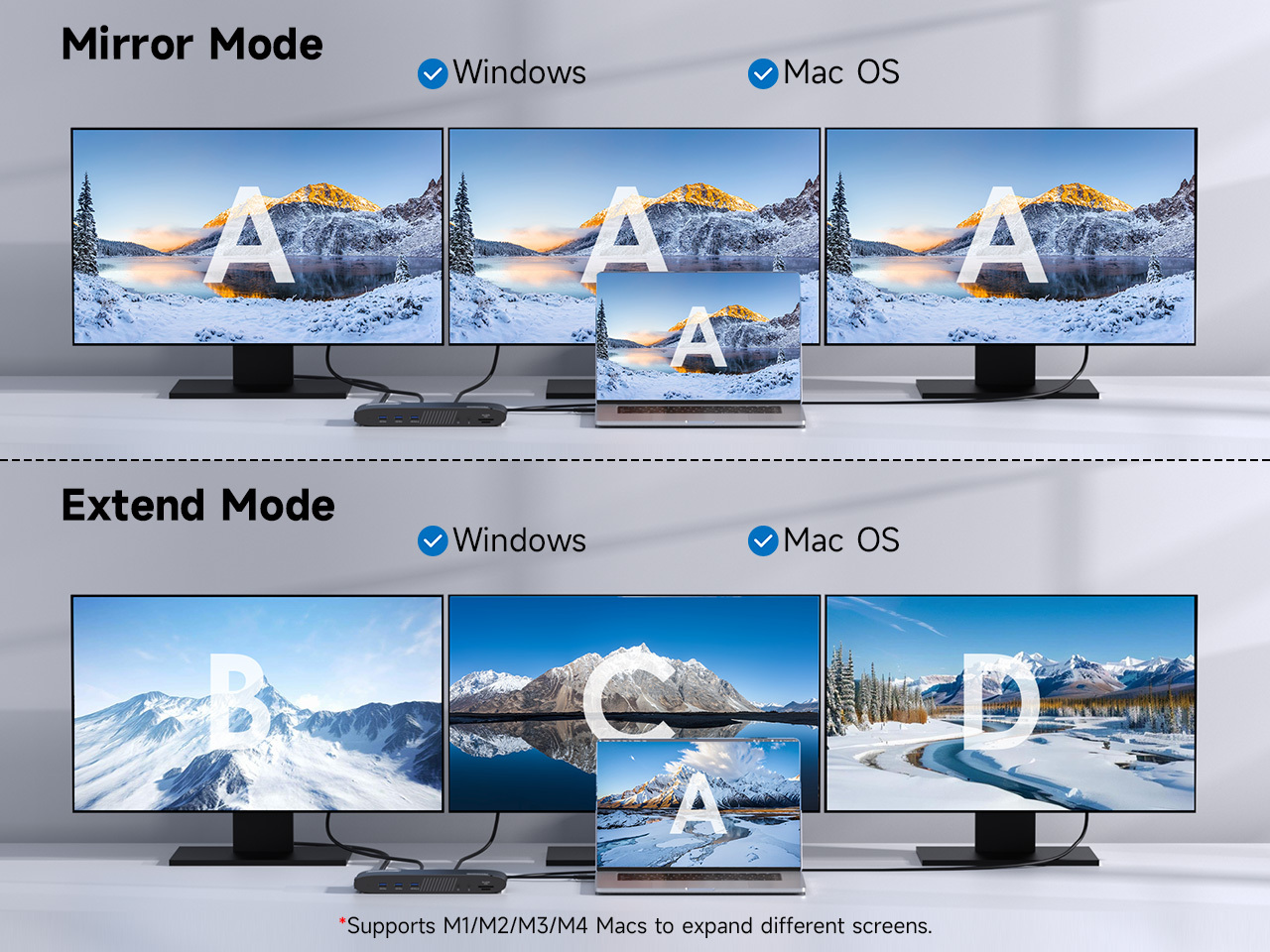

Mirror Mode & Extend Mode
Choose between Mirror Mode and Extend Mode to suit diverse work needs. Mirror Mode outputs identical content across all connected monitors for meetings and presentations, while Extend Mode enables independent displays so you can arrange separate windows on each screen for smoother multitasking. Both modes work seamlessly with Windows and Mac OS.

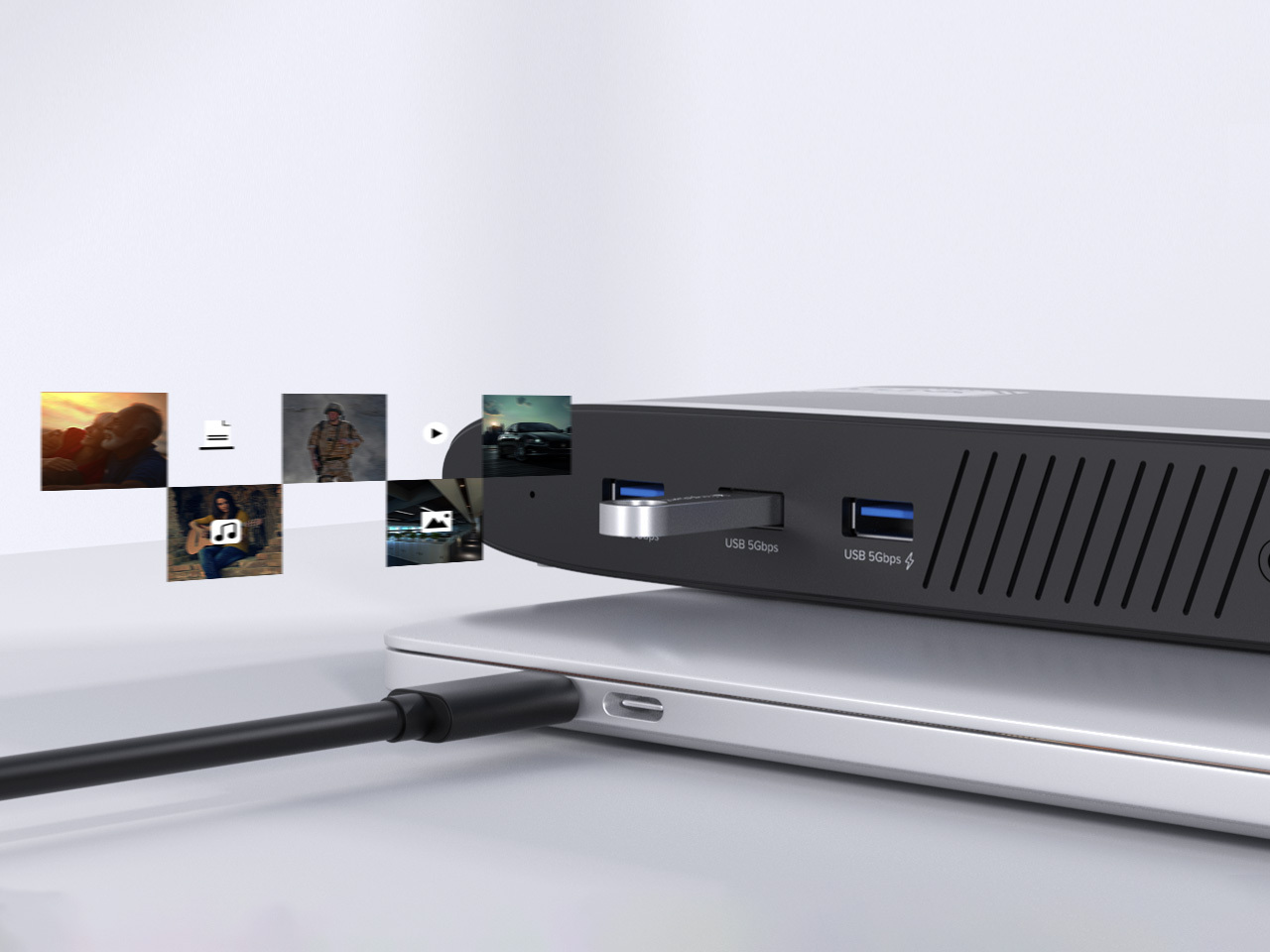

5Gbps High-Speed Data Transfer
Equipped with multiple USB-A ports supporting up to 5Gbps data transfer speed, this docking station enables quick file transmission of photos, videos and documents, and it is backward compatible with USB 2.0 devices for flexible connection of various peripherals.

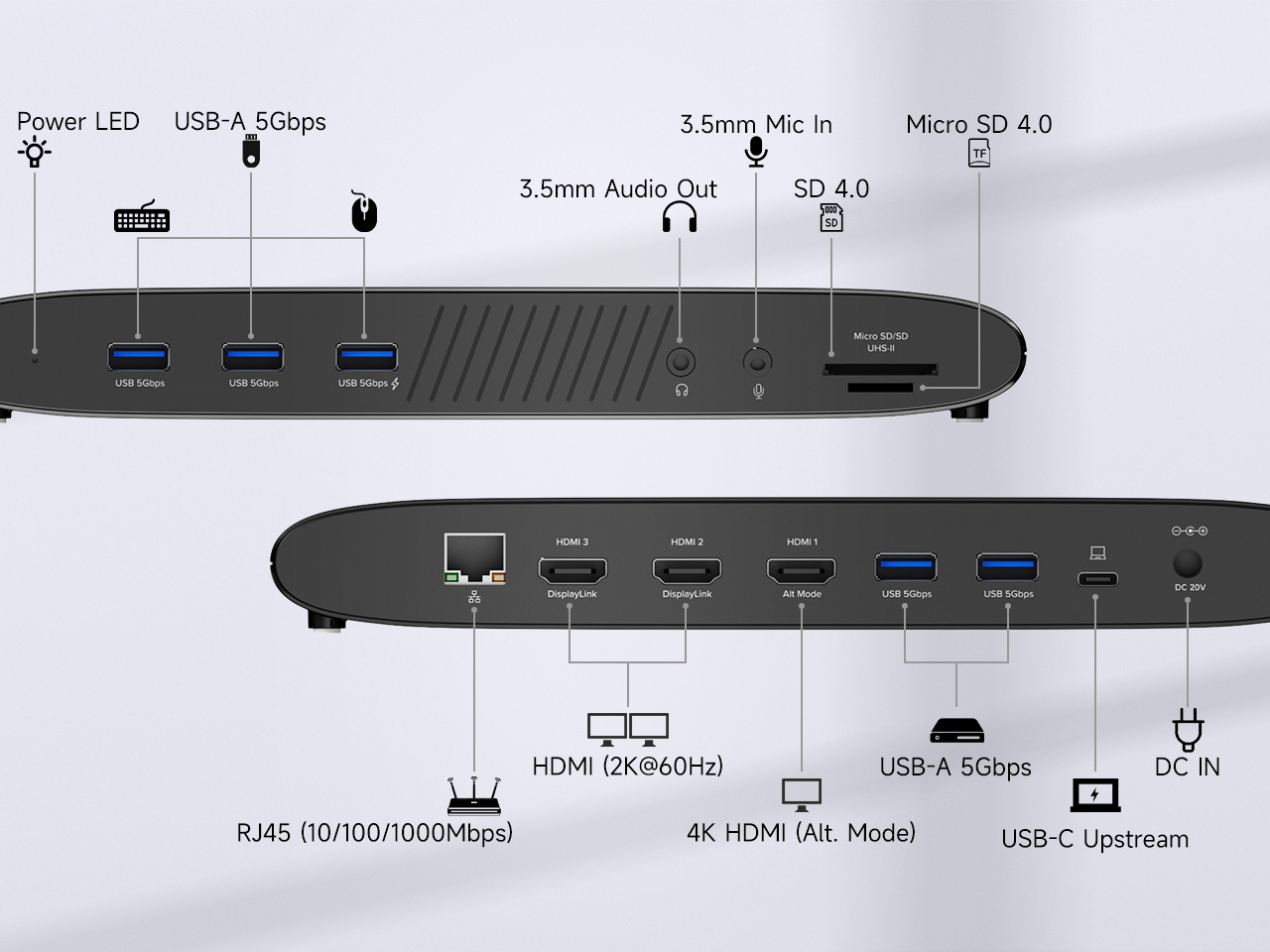

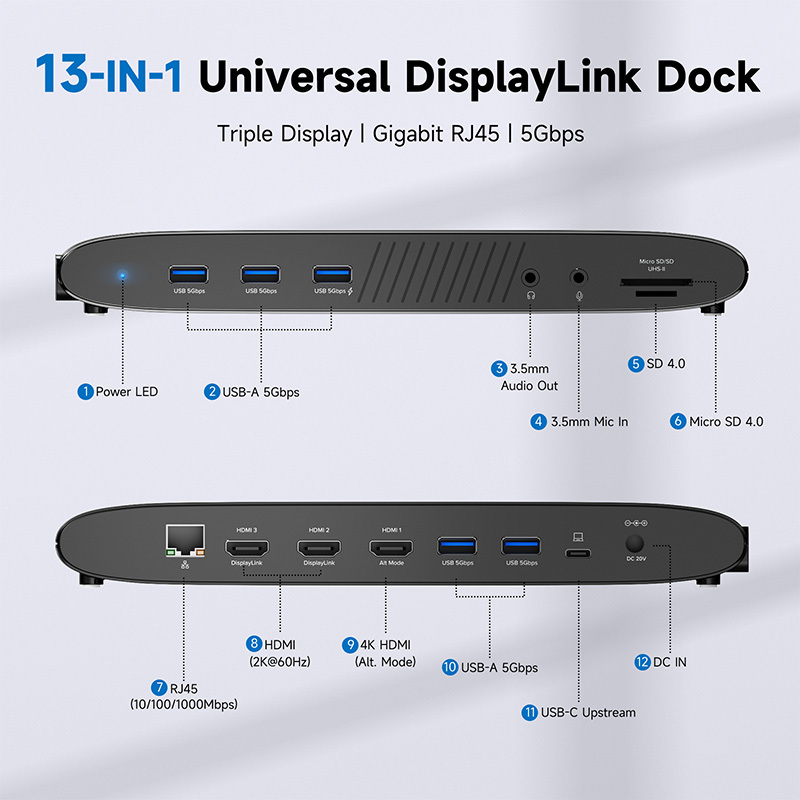

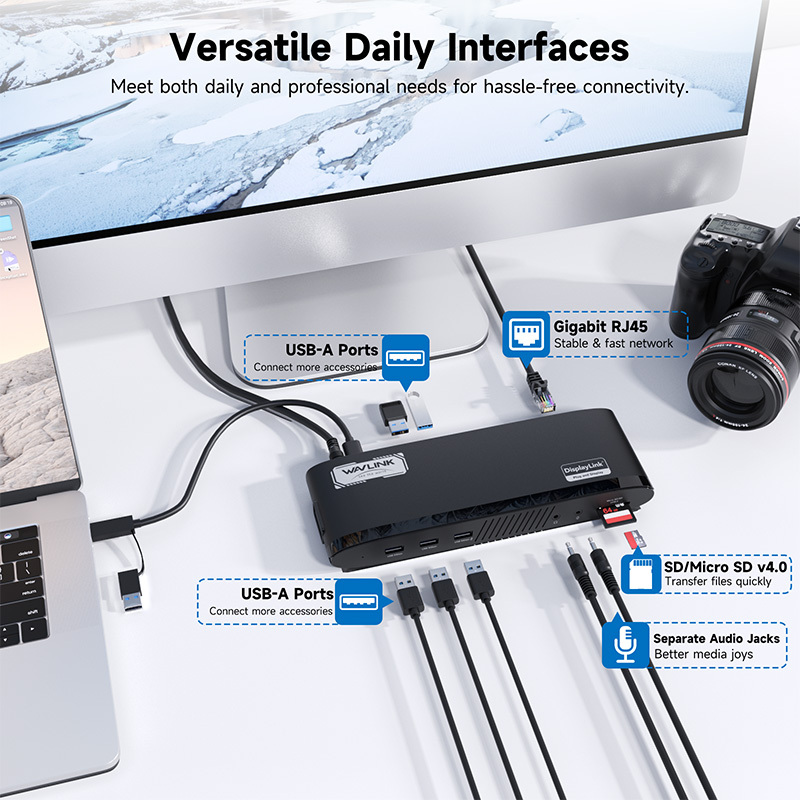

13-IN-1 Comprehensive Port Dock
The 13-in-1 docking station offers ultimate comprehensive port expansion. Packed with triple HDMI interfaces, Gigabit Ethernet, USB ports, SD card reader and audio port, it supports multi-display output, wired network, fast data transmission and more, easily building an efficient desktop workspace.

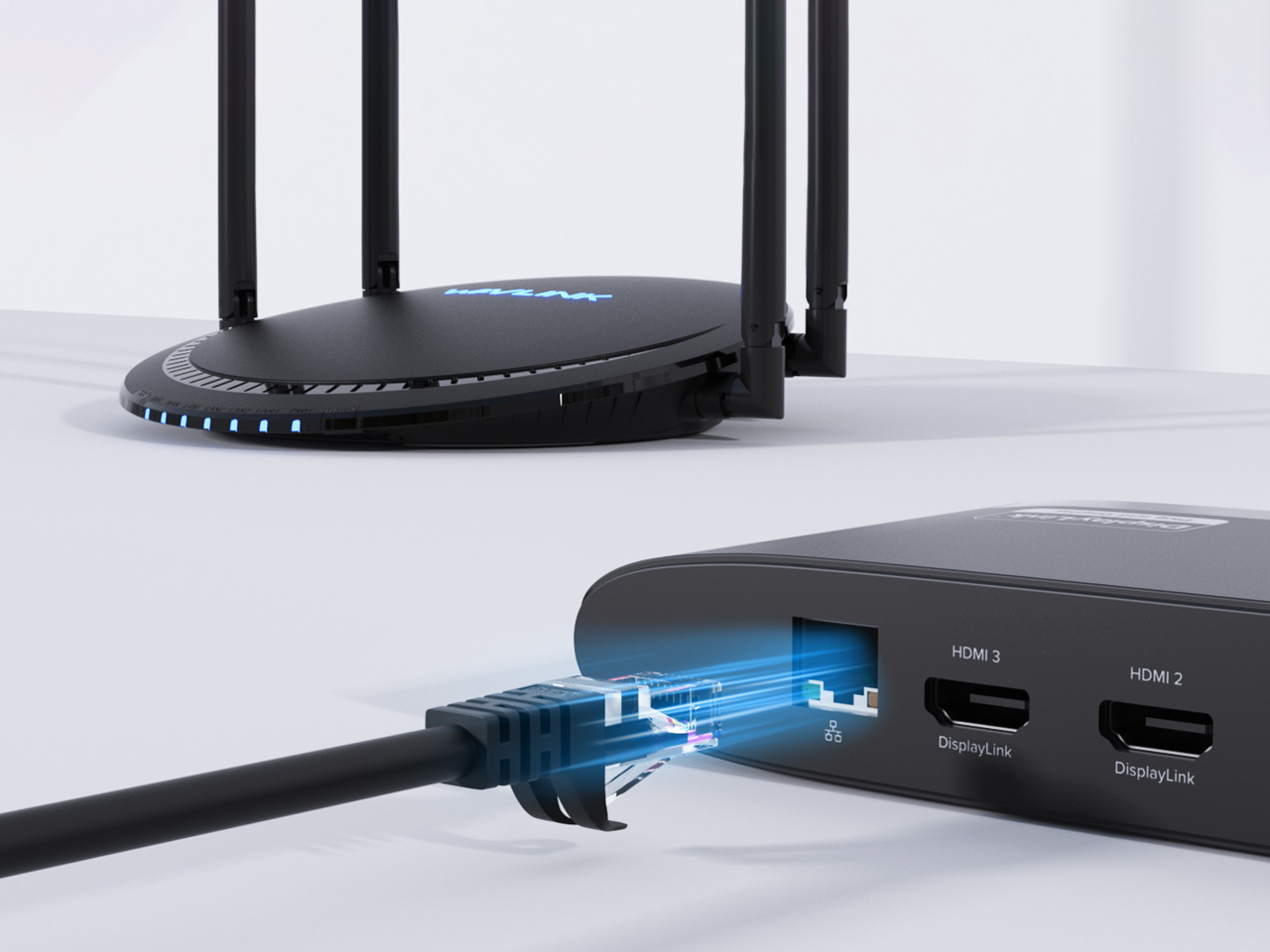

Gigabit Ethernet for Stable Wired Network
Built-in Gigabit Ethernet port supports wired speeds up to 1000Mbps for stable, low-latency network connections. It effectively solves unstable Wi-Fi issues and delivers reliable network access for online meetings, file downloads and daily office work.

Specifications

Housing Color Black
Data Cable Black
Power Cable Black
LED Blue Color LED
Ports DC Jack; USB-C; 3 x HDMI; 5 x USB3.0 Type-A ports; 4-pole Earphone Jack; RJ45 Jack; SD / TF Slot

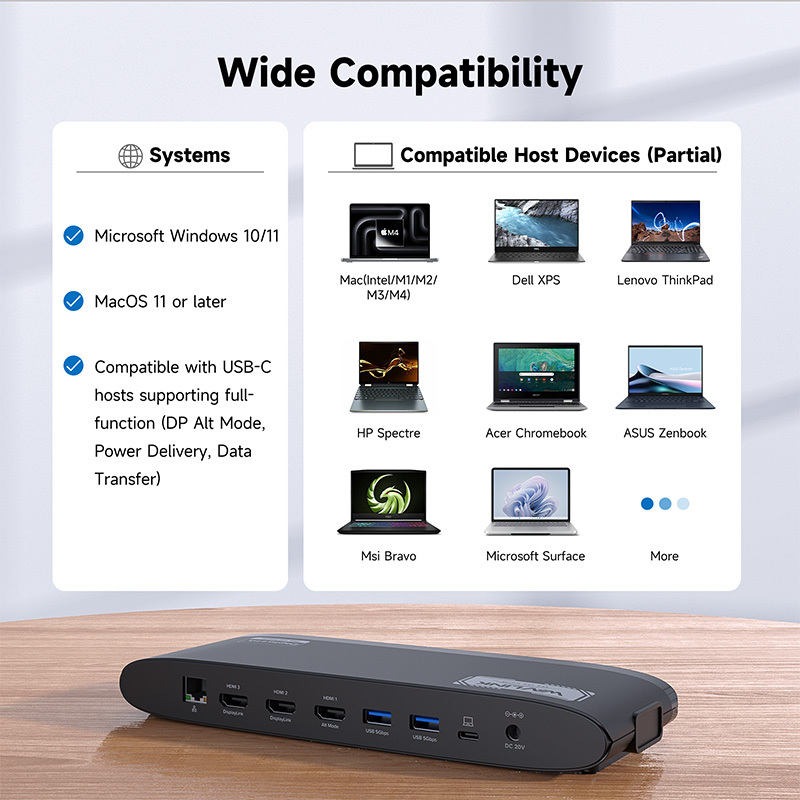

Operating System · Microsoft Windows 10/11
· MacOS 11 or later
· Compatible with USB-C hosts supporting full-function (DP Alt Mode, Power Delivery, Data Transfer)
Power Supply DC 20V/2A, 40W
Max. Pixels 3840x2560 (Alt-Mode)
Button NIL
Working Standards 1. USB-C I/P: USB3.1 Gen2 (data, Video and Upstream Charging)
2. HDMI Alt-Mode: 4K/30Hz max.
3. HDMI DisplayLink: 2K/60Hz max.
4. USB-A Port: 5Gbps
5. USB-A Port: 5Gbps; 7.5W Charging
6. RJ45: Gigabit Ethernet
7. SD / TF: SD V4.0
8. 4-pole Phone Jack: TRRS / Stereo
