UG3501H USB 3.0 to HDMI Video Graphic Adapter

Model: WL-UG3501H

  • USB3.0 or USB2.0 compatibility
  • Resolution Single Head up to 2048 x 1152
  • Primary / Extend / Mirror Video Mode
  • Expandable up to 6 Display units
  • Support DVI-I / HDMI
  • Support microphone input and earphone output

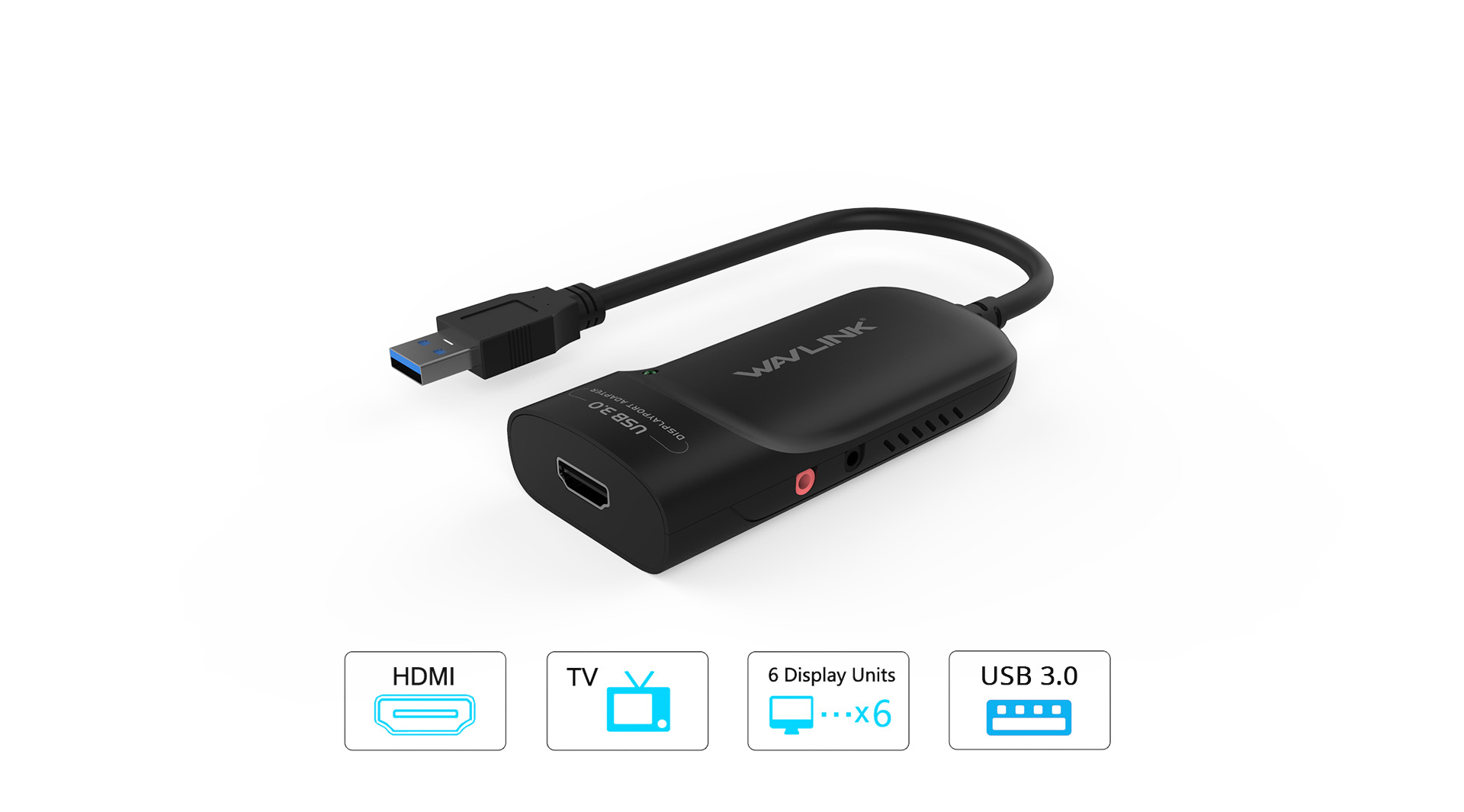

USB 3.0 to 2K HDMI Adapter

Adapter for Multiple Monitors

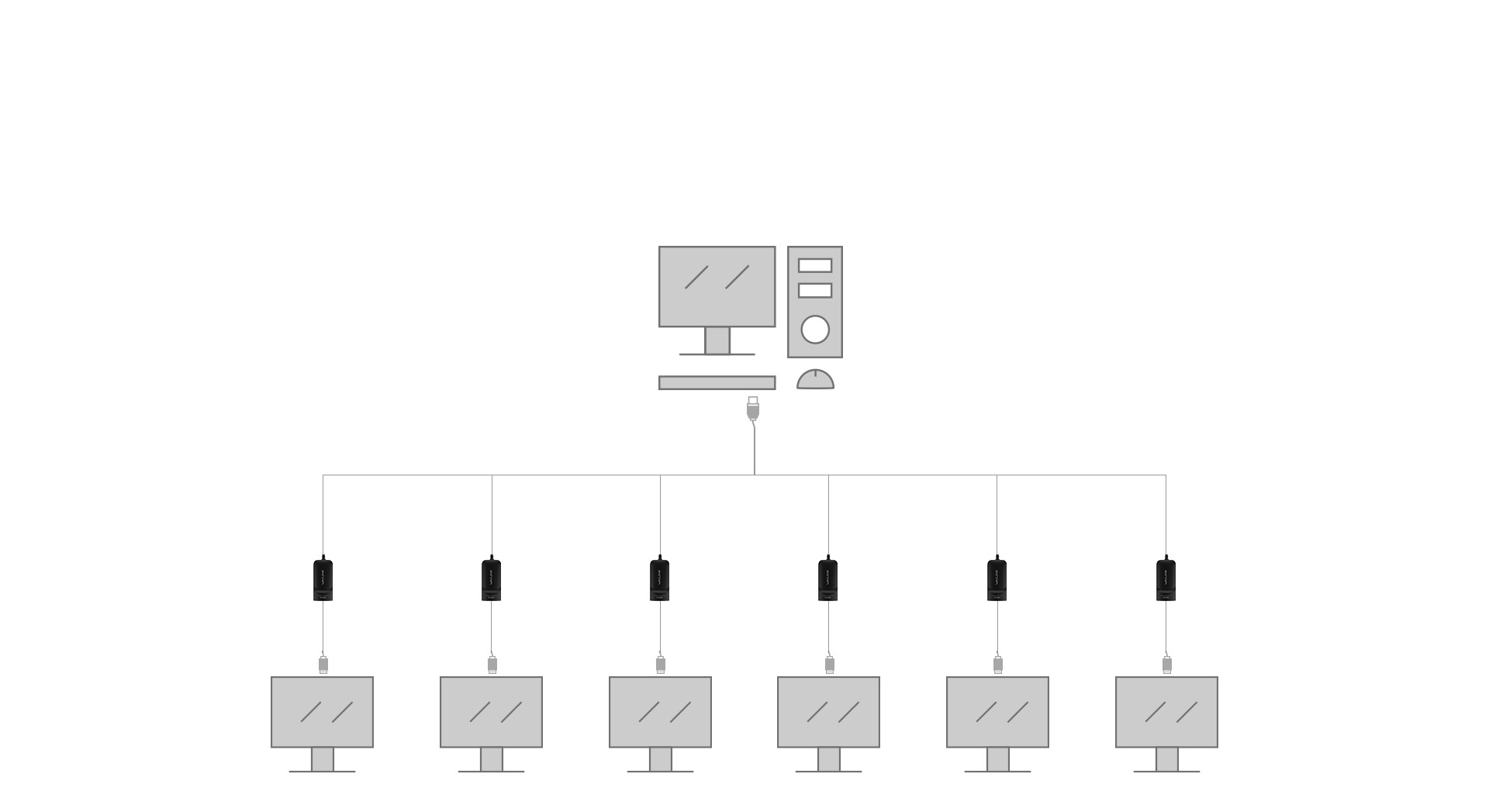

Six Screen Display

Supports up to six simultaneous displays, extending your desktop and laptop to get more horizons.

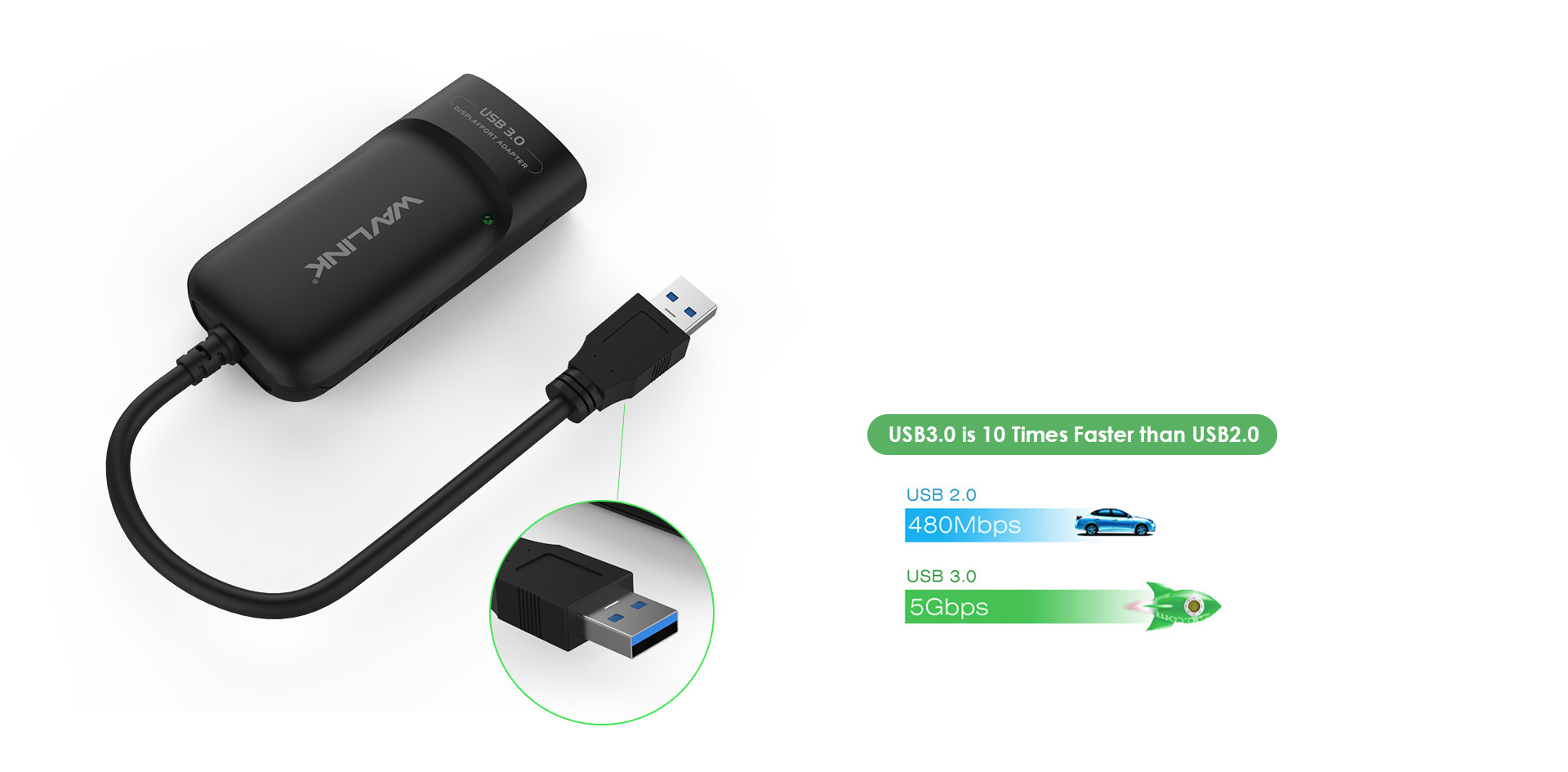

Super Speed USB 3.0

Super Speed USB 3.0 data transfer rates up to 5Gbps,delivers smooth, high-definition content to your HDMI display or projector.

2K Display Resolution

HDMI port for directly connecting a display with up to 2560x1440 resolution.

An External Multi-monitor Solution

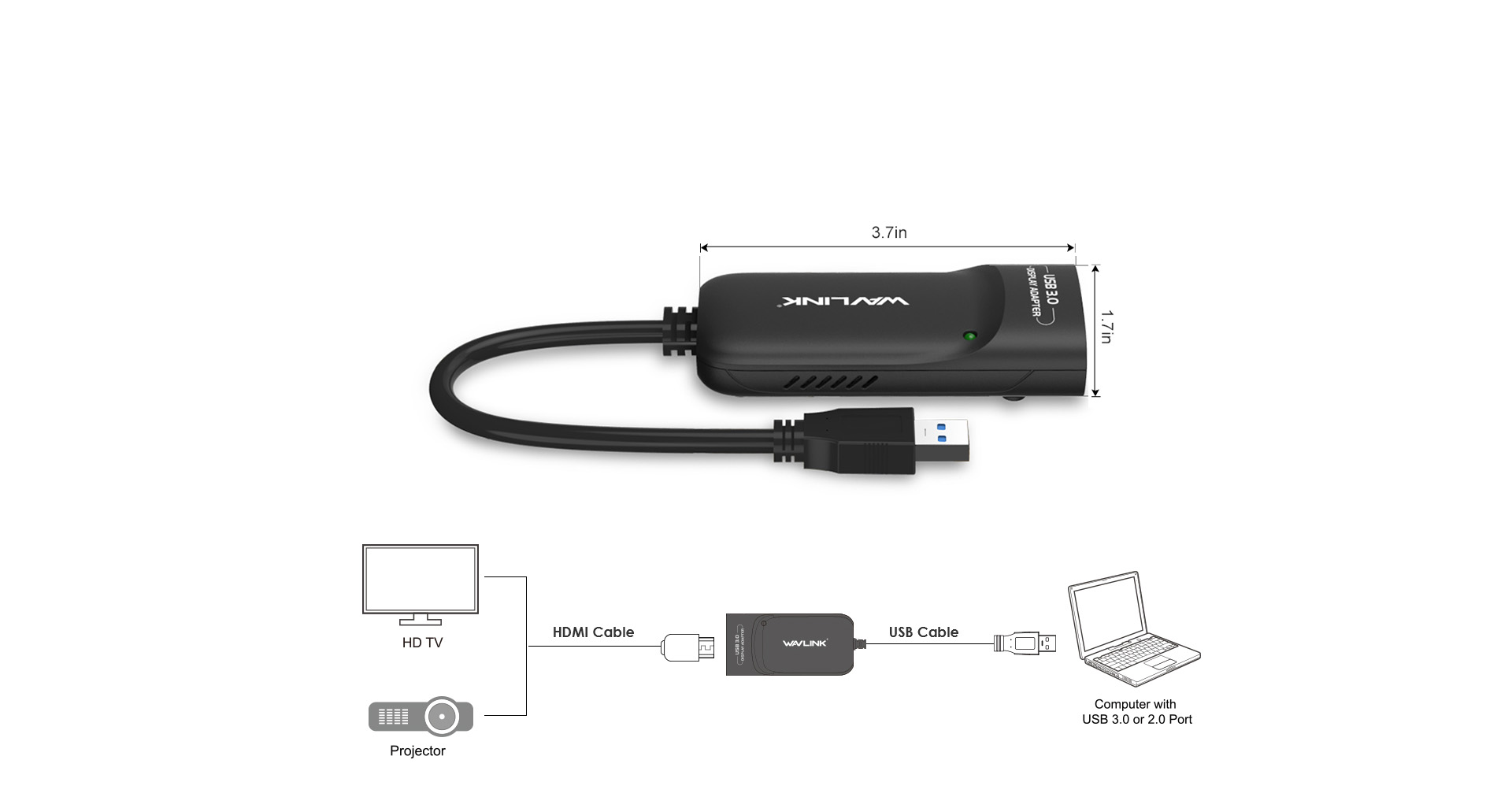

Connecting a HDMI Display Through USB Add extra HDMI monitors to your desktop computer without having to open the computer case, which is the only way to quickly expand your desktop over several monitors for laptop users.

Easily connect

A compact, lightweight solution for traveling business associates using USB 3.0-capable laptop PCs, enabling connection to a secondary display or projector.

Supports Four Display Modes

Supports four display modes including extension, synchronized, rotation and switching from main screen. HDMI cable, extensible USB connectivity to any HDMI Displays or projectors.

  • TECHNICAL SPECIFICATIONS
  • Model

    UG3501H

  • Ports

    1 x HDMI

    1 x Microphone input Jack Port

    1 x Earphone Output Jack Port

  • LED

    Power

  • Power Consumption

    1W

  • DIMENSIONS
  • Unit Dimensions

    113mm x 52mm x 22mm ( L x W x H )

  • Housing Material

    ABS

  • Shell Color

    Black

  • FUNCTIONS
  • Working Standards

    USB 3.0 5Gbps

    HDMI DVI Video

    DVI ( HDMI to DVI Adapter )

    Microphone Input and Earphone Output

  • Operating System Support

    Windows

    Mac OS X

  • PACKAGE
  • In The Box

    1 x USB 3.0 to HDMI Video Graphic Adapter

    1 x Driver CD

    1 x Quick Guide
