8-Port Gigabit Ethernet Switch
  • 8-Port Gigabit Ethernet Switch 1
  • 8-Port Gigabit Ethernet Switch 2
  • 8-Port Gigabit Ethernet Switch 3
  • 8-Port Gigabit Ethernet Switch 4
  • 8-Port Gigabit Ethernet Switch 5
  • 8-Port Gigabit Ethernet Switch 6

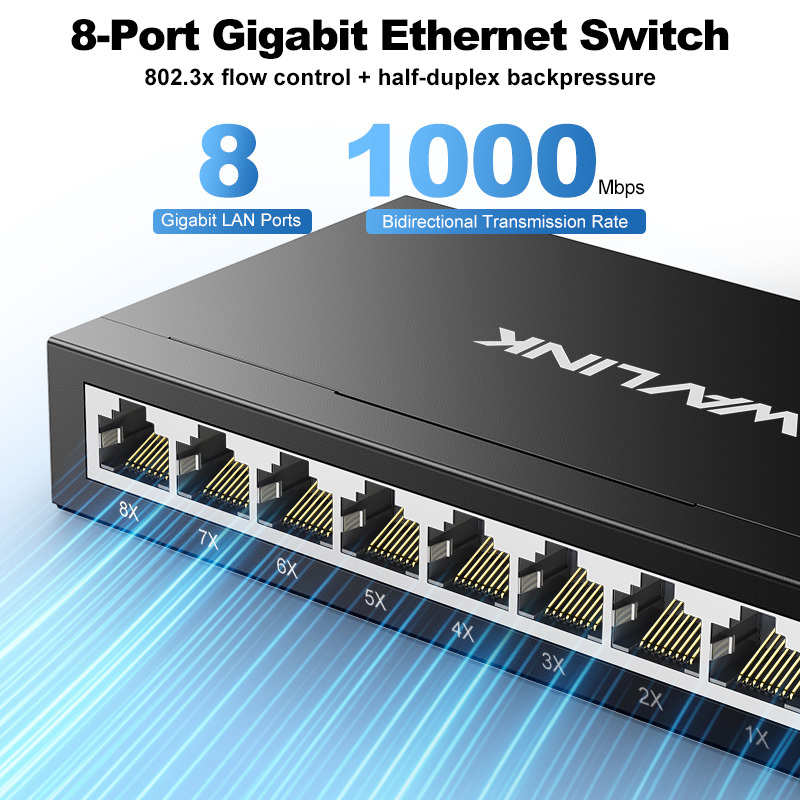

8-Port Gigabit Ethernet Switch

Model: WL-NW908G1

• 8x10/100/1000M adaptive RJ45 ports.
• Sturdy metal housing ensures superior heat dissipation and long-term durability.
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
• 16Gbps Switching Capacity.
• 9K jumbo frame improves performance of large data transfers.
• Auto-MDI/MDIX eliminates the need for crossover cables.
• Supports MAC address auto-learning and auto-aging.
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps, and 1000Mbps hardware.
• Plug-and-play design simplifies installation.

  • Overview

  • Specifications

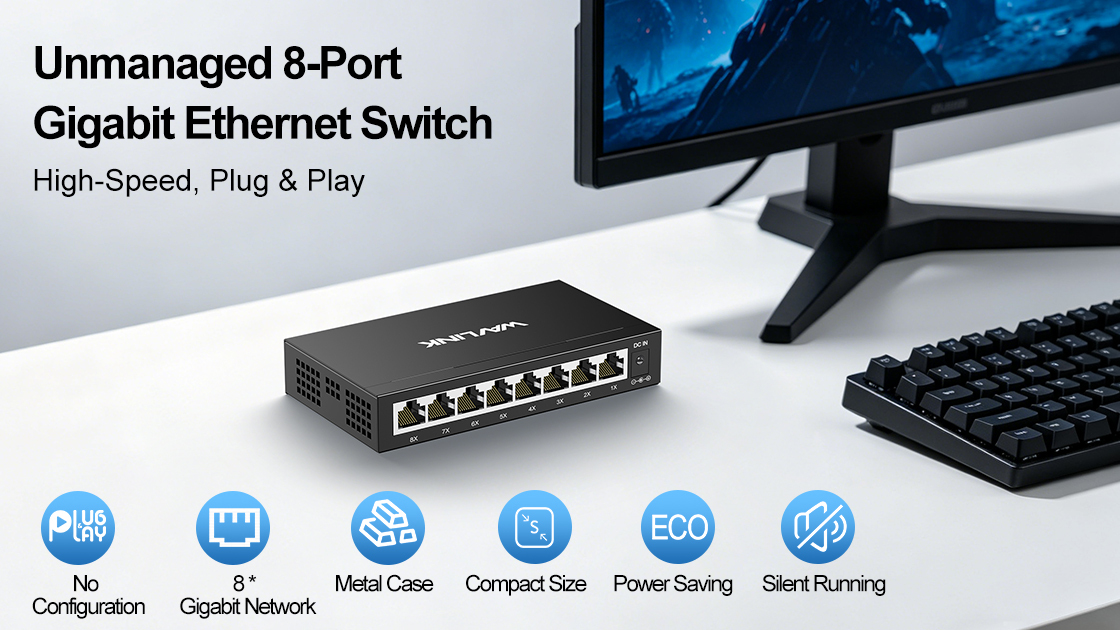

Unmanaged 8 Ports 1000Mbps Network Switch
Gigabit Speed, Metal Case, IEEE 802.3x Flow Control, 16Gbps Switching Capacity, 9K Jumbo Frame,

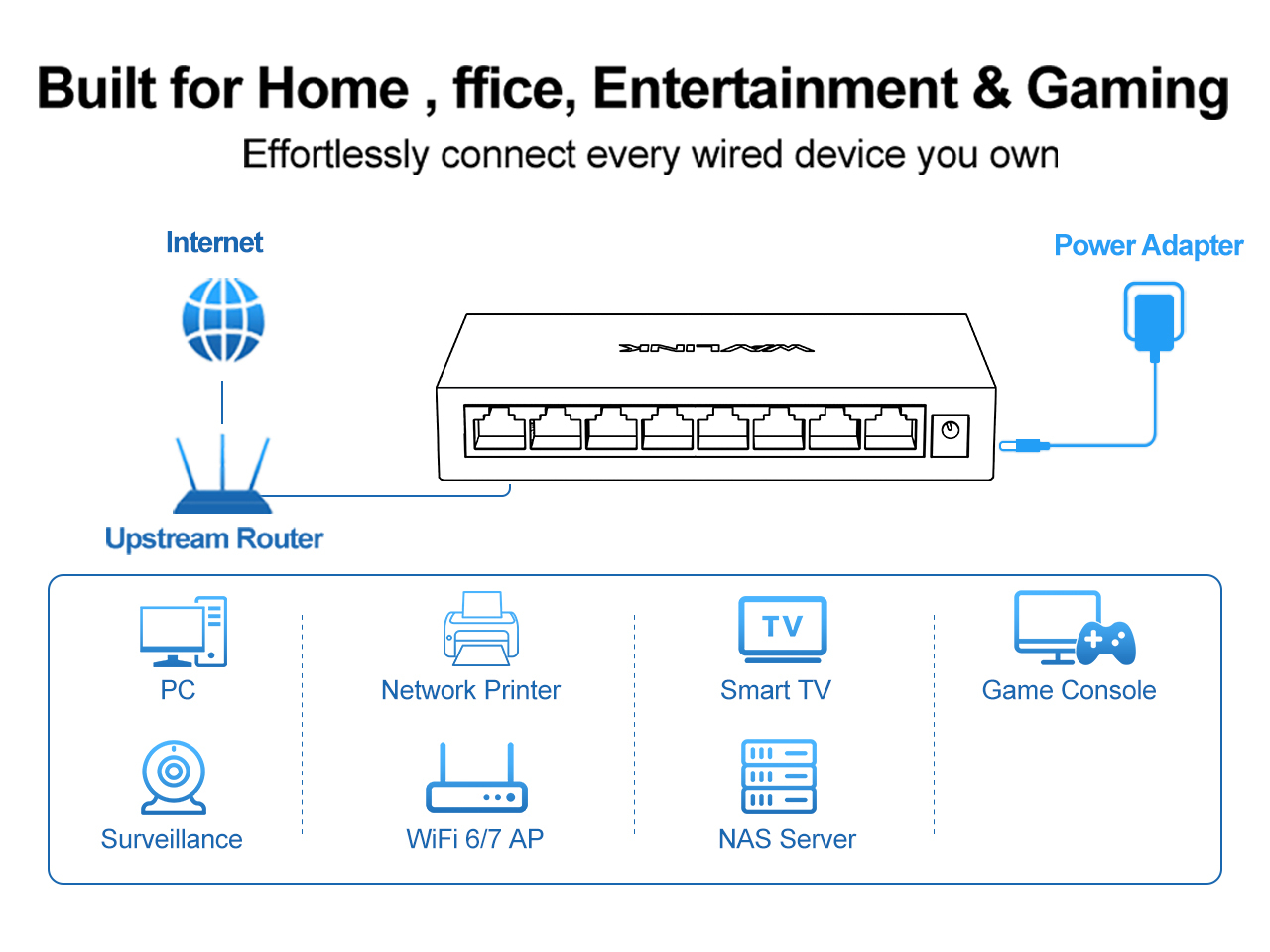

Multi-Device Connection

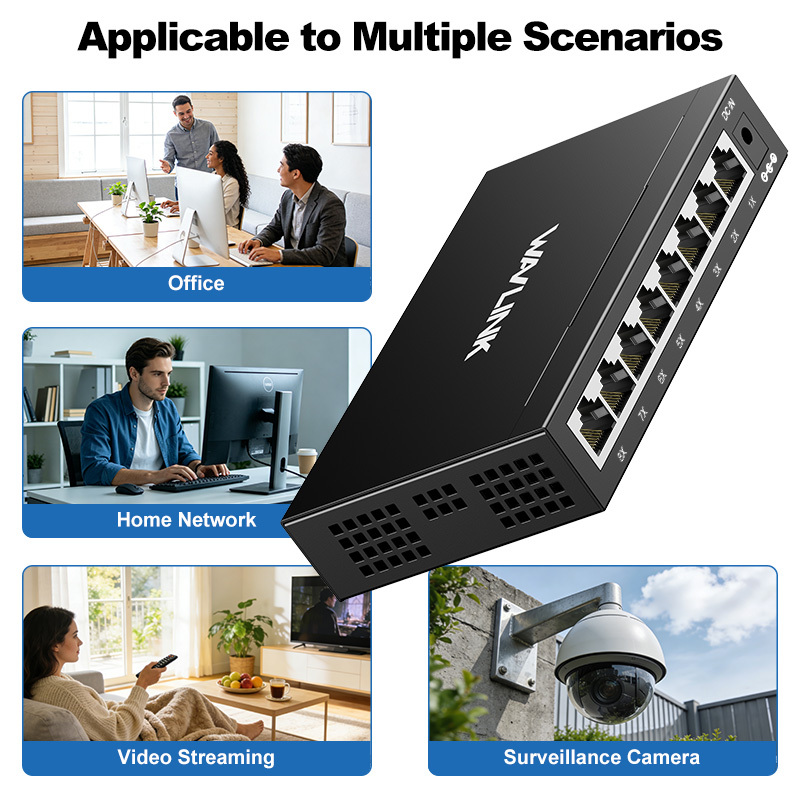

Seamlessly connecting to a router, this switch expands the router’s network ports and provides a smoother, more stable wired network connection for multiple devices, such as PCs, network printers, smart TVs, and game consoles.

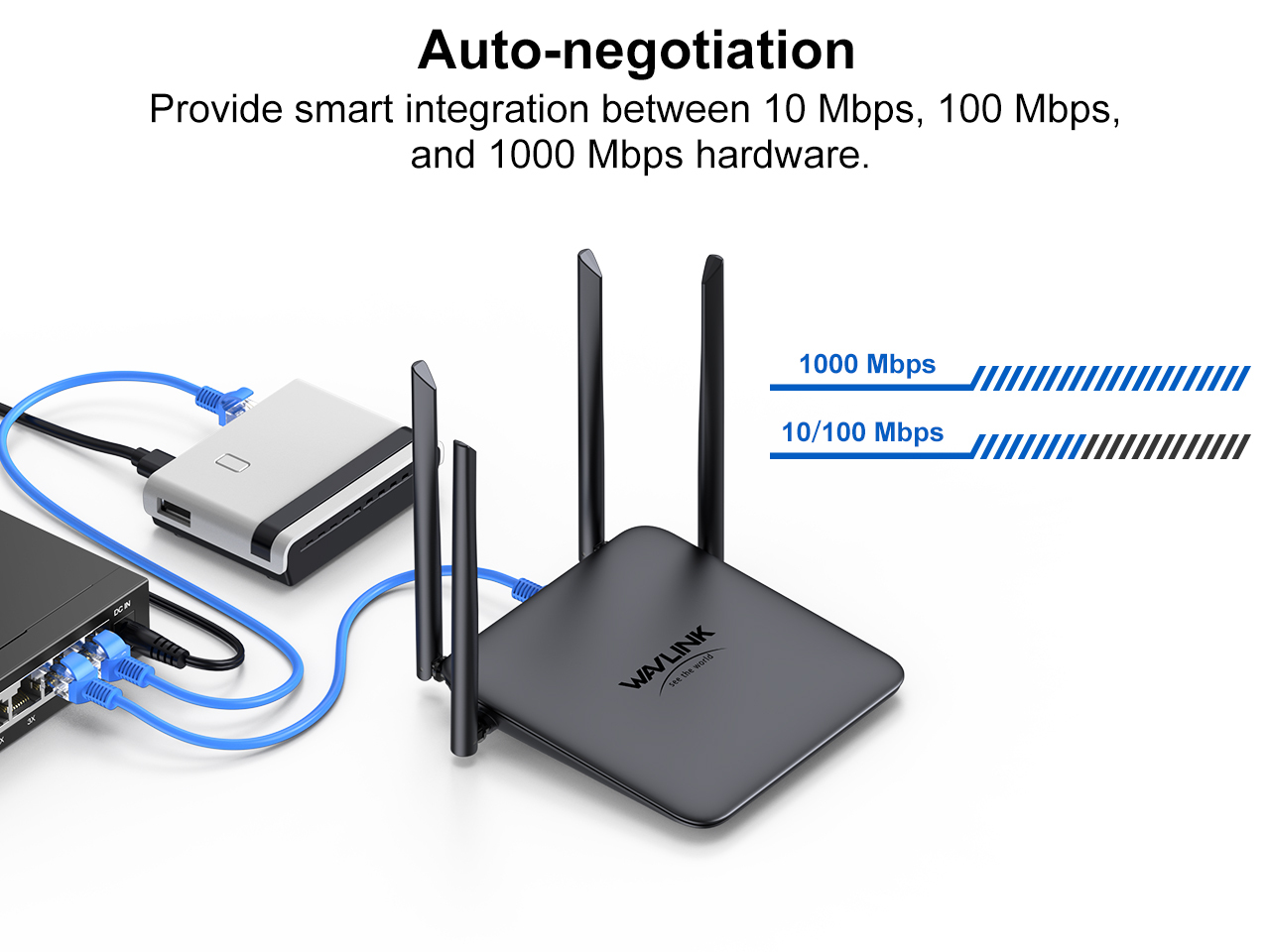

Auto-negotiation Function
Equipped with an auto-negotiation function, this Ethernet switch can reach speeds of up to 1000 Mbps while remaining backward compatible with 10/100 Mbps speeds, making it suitable for connecting a variety of both new and old devices.

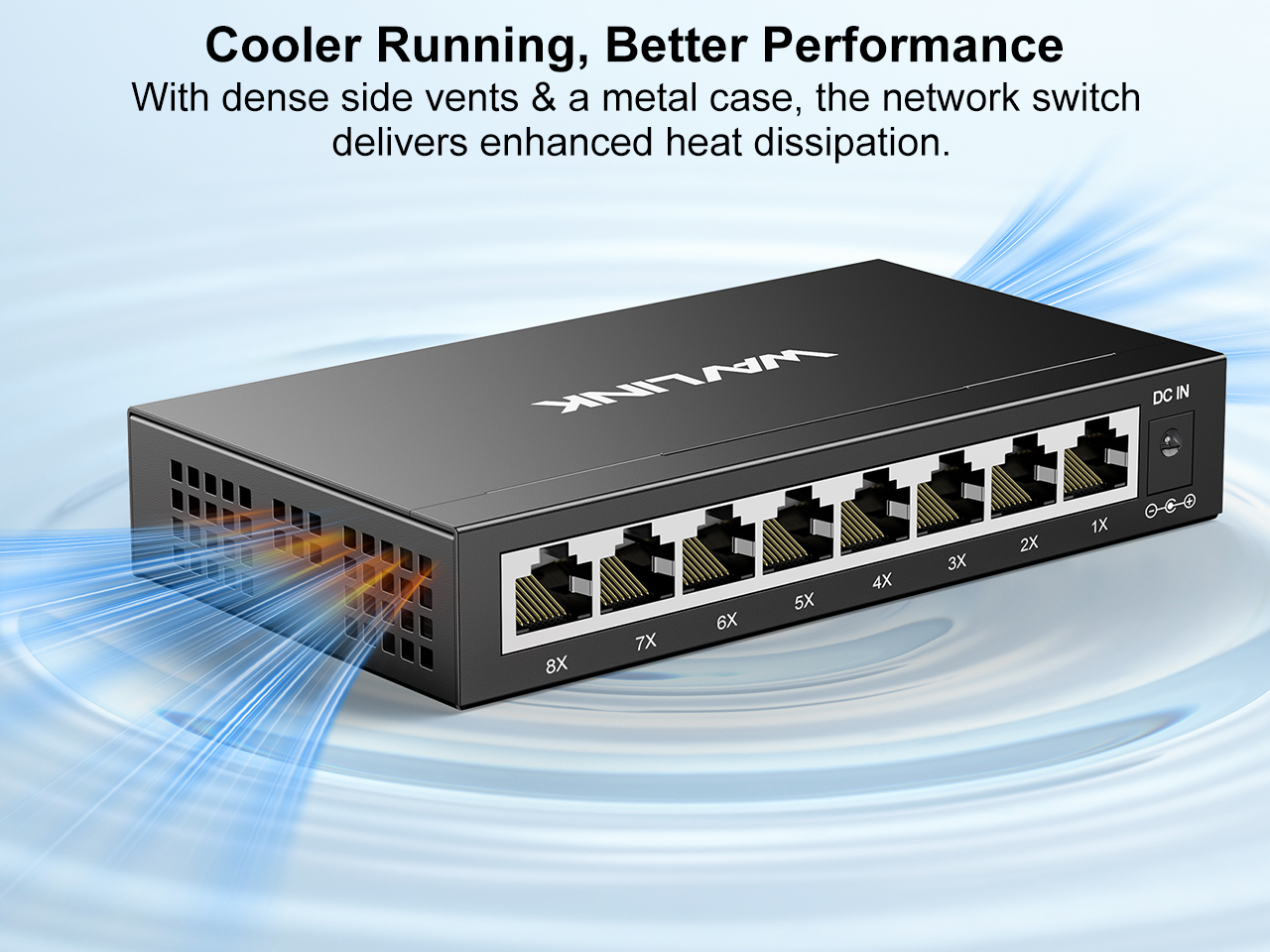

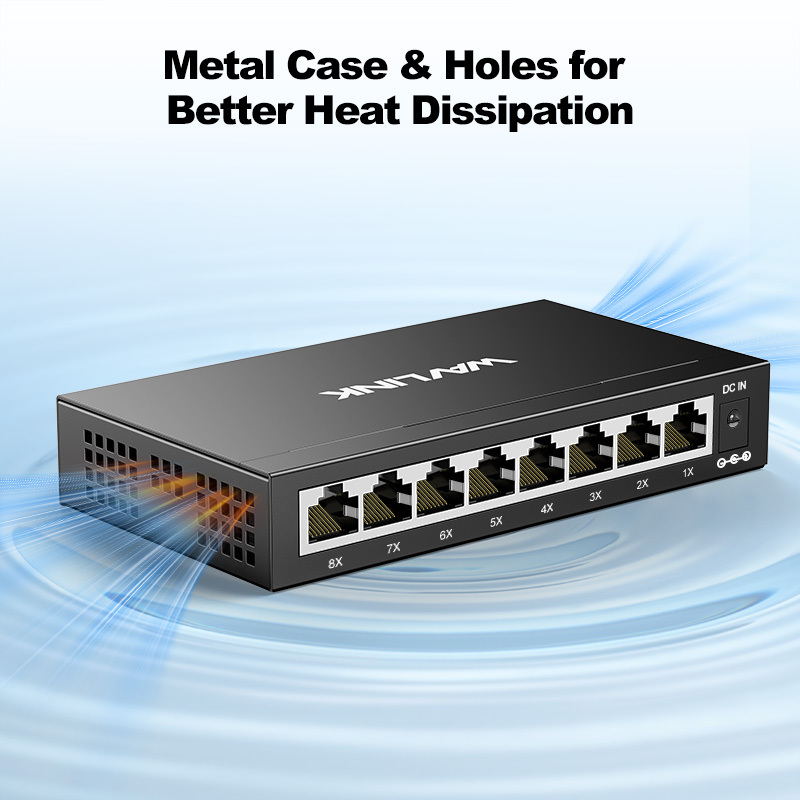

Metal Case
Built with a durable metal housing, this switch provides excellent heat dissipation for long hours of continuous operation, keeping your network stable and reliable.

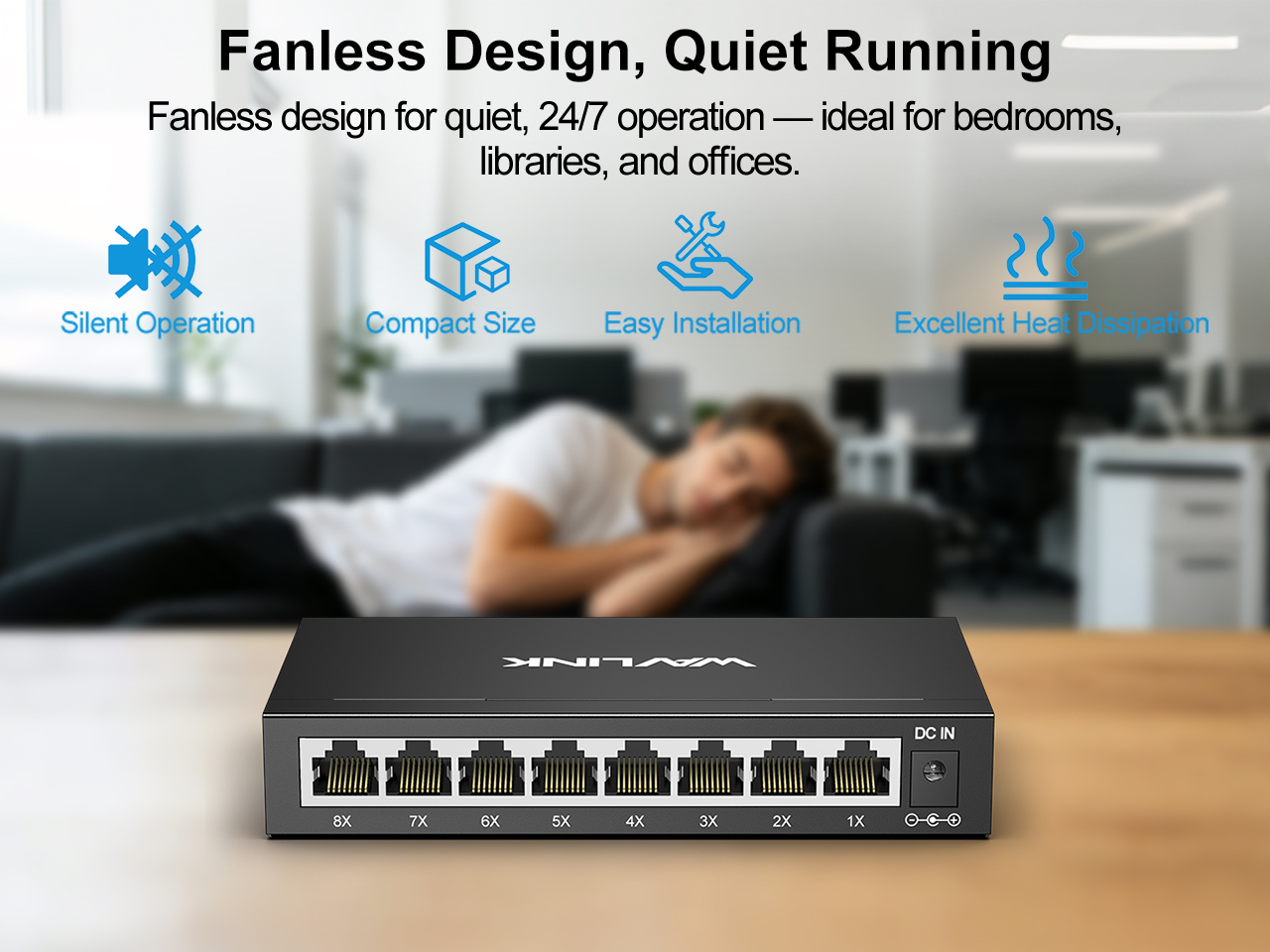

Considerate Fanless Design
Designed with silent running in mind, this switch features a fanless design, delivering low-noise operation during work, entertainment, and gaming.

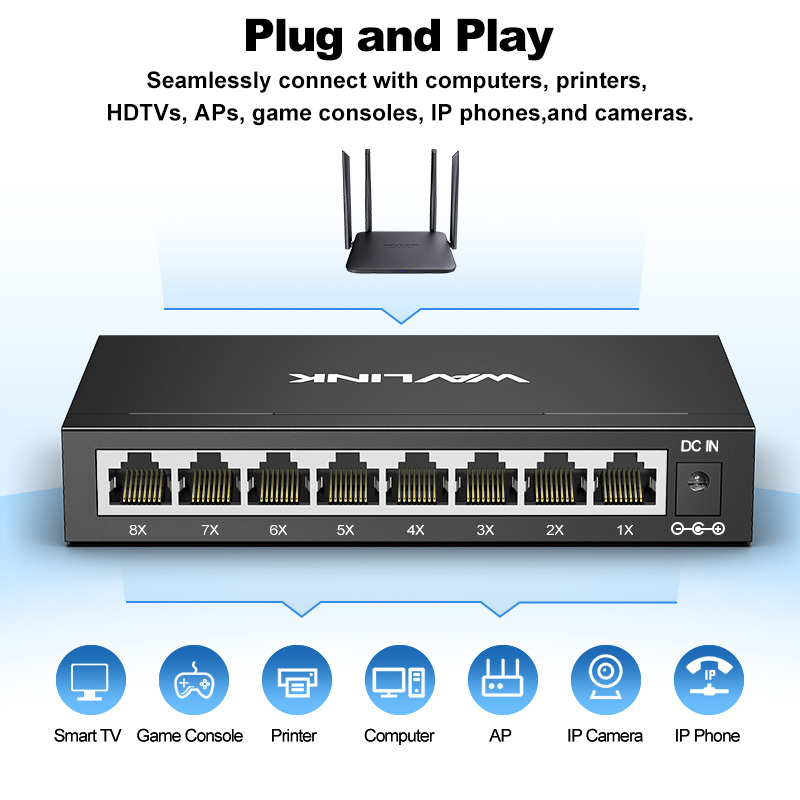

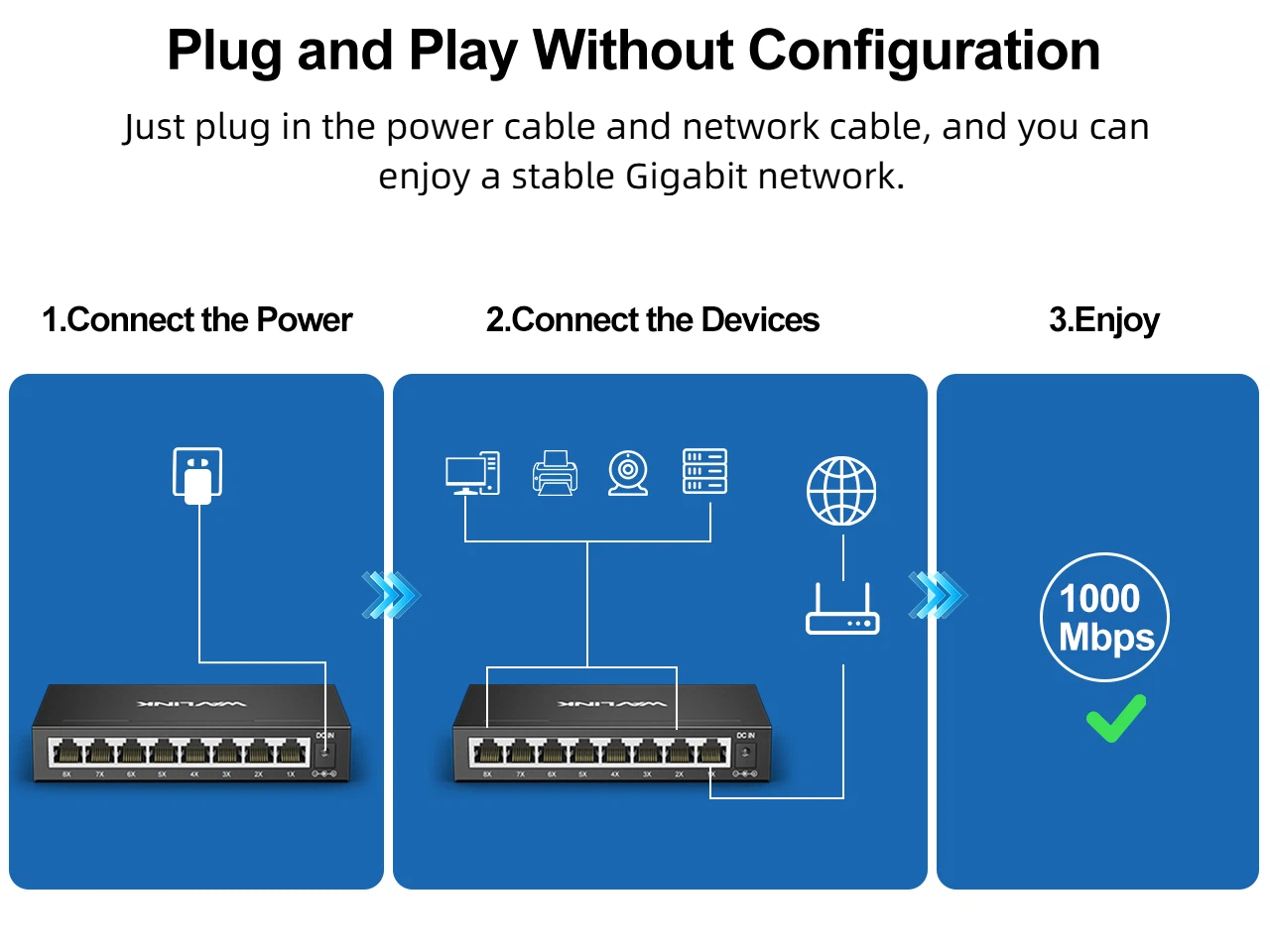

Plug-and-Play Simplicity
First, connect the power adapter to the switch. Then, use network cables to connect your router and other devices. You can now enjoy a stable, high-speed network of to 1000 Mbps.

Specifications

Hardware
Ports 8 x 10/100/1000Mbps LAN Port MAC Address Table 4K
LED 1×Power, 8×Ethernet Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Transfer Method Store-and-Forward Packet Forwarding Rate 10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
MAC Address Learning Automatically Learning Switching Capacity 16G
Power Consumption 5V/1A Network Medium Ethernet: Cat.3 UTP or Better
Fast Ethernet: Cat.5 UTP or Better
Gigabit Ethernet: Cat.5e UTP or Better
Rated Voltage/ Frequency /Current Input:100-240 Va.c. 50/60Hz
Dimensions

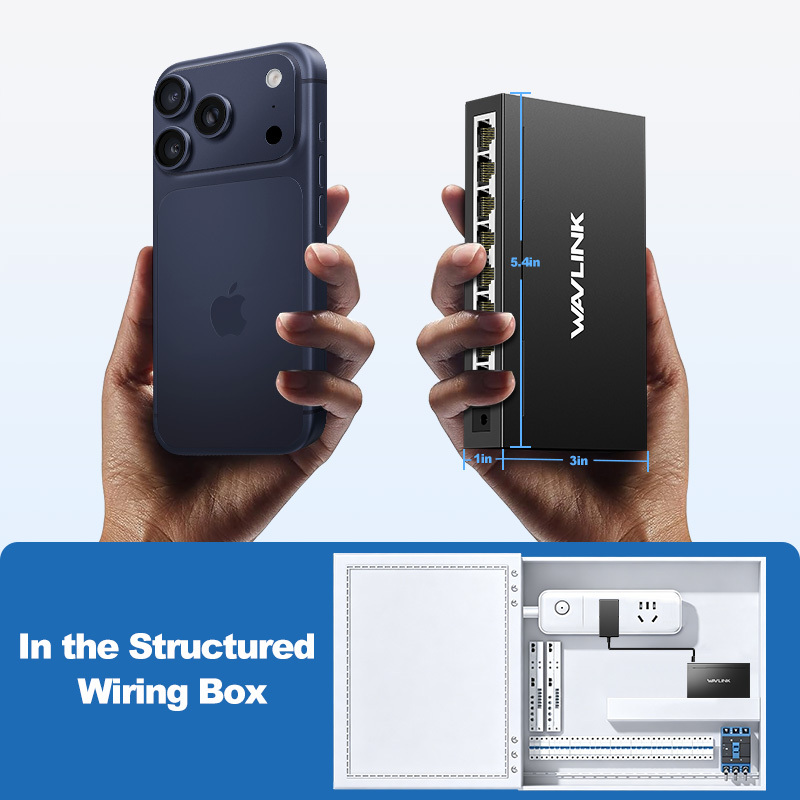

Unit Dimensions 136*74*24mm
Environmental
Operating Temperature 0℃~40℃
Storage Temperature -10~70℃
Relative Humidity(Operational) 10%~90%, Non-condensing
Relative Humidity(Storage) 10%~90%, Non-condensing
