WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation
  • WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation 1
  • WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation 2
  • WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation 3
  • WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation 4
  • WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation 5
  • WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation 6

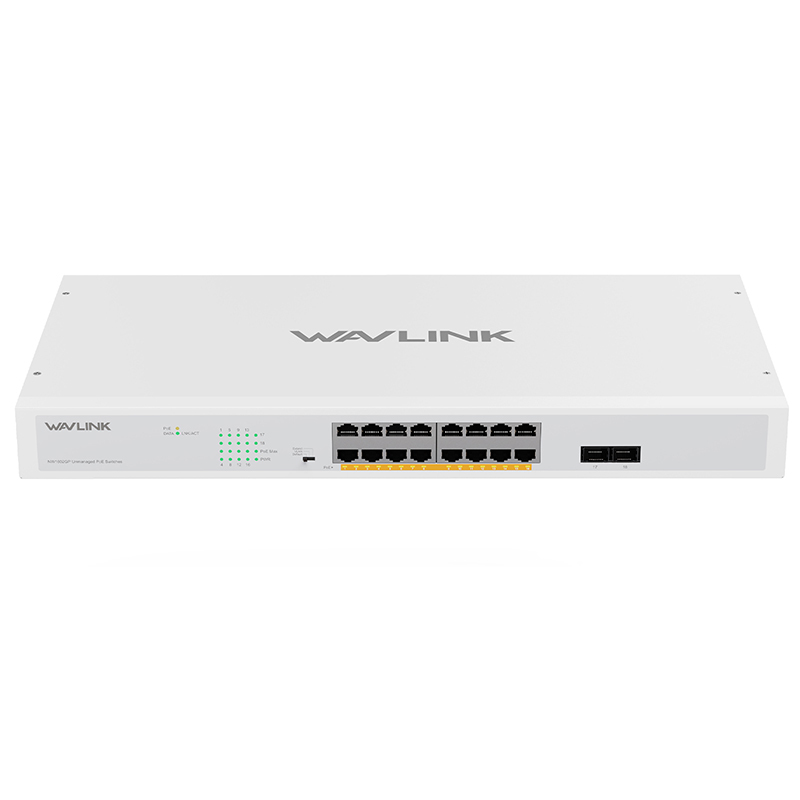

WAVLINK 18 Ports Gigabit Ethernet Switch with 16 PoE Ports, 250W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Desktop Installation

Model: WL-NW1602GP

- 16*up to 1000Mbps Ports compliant with IEEE 802.3at/af PoE standards.
- 30W Max Power Output per Port.

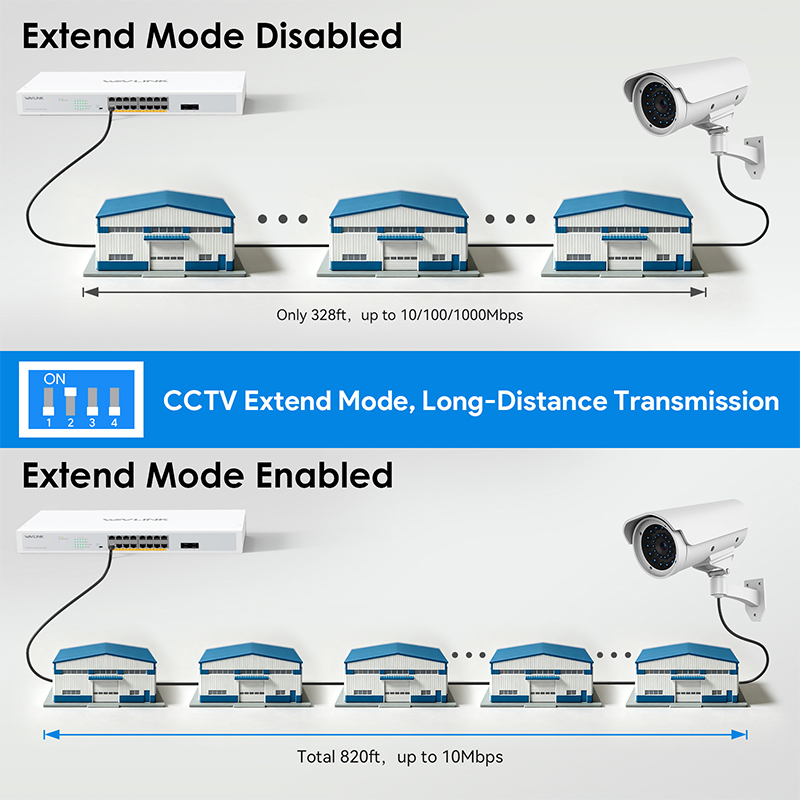

- 250m Ultra-Long Distance Data & Power Transmission

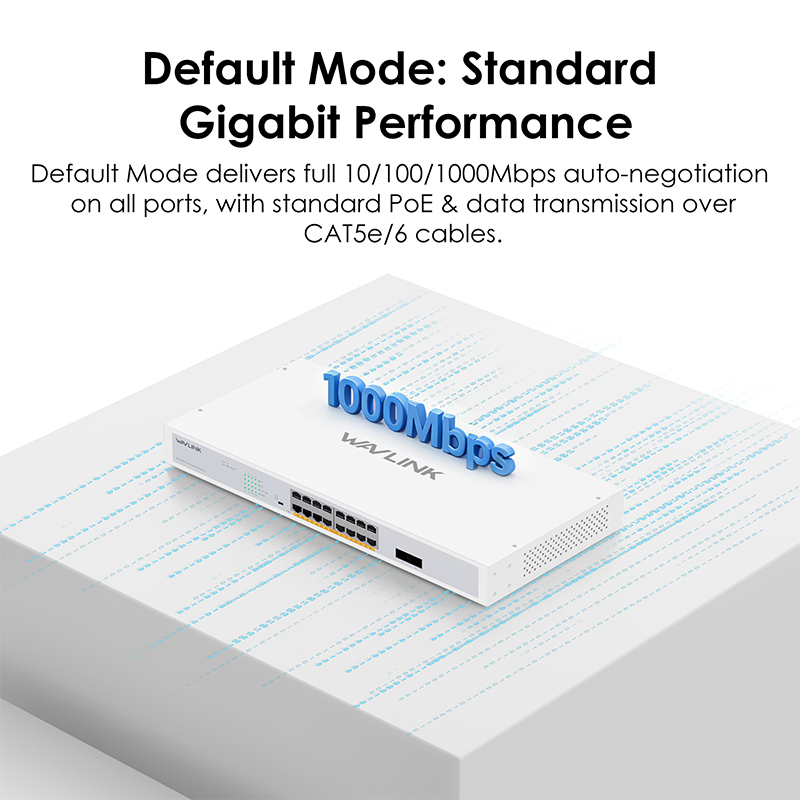

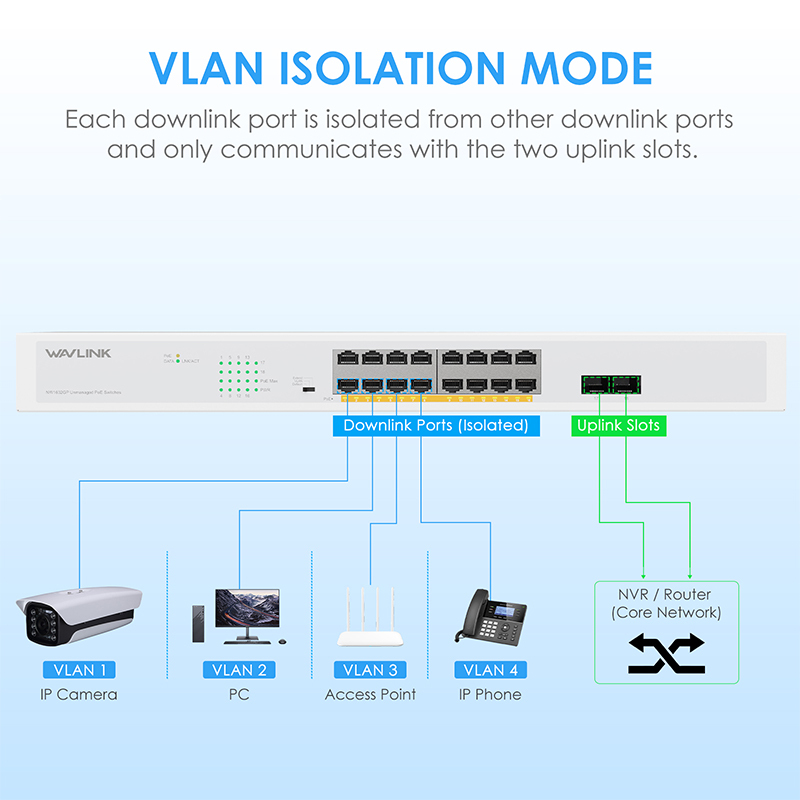

- Features three functional modes for switching: Default Mode, VLAN Mode, and Extend Mode
- Features port overload protection, short-circuit protection, and PoE port prioritisation.

  • Overview

  • Specifications

WAVLINK 18-Port Gigabit Switch with 16-Port PoE+
Safeguard network security and traffic optimization

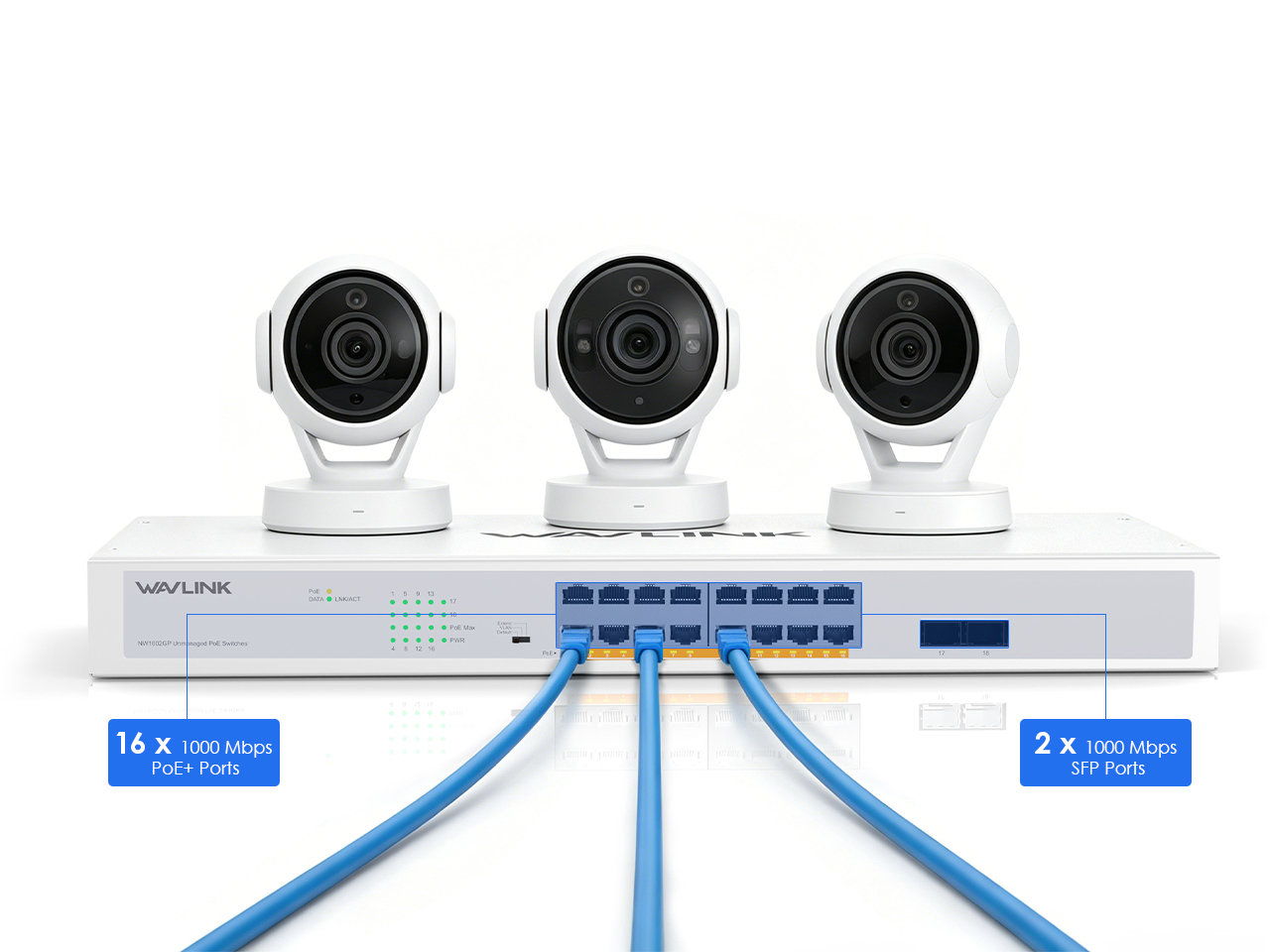

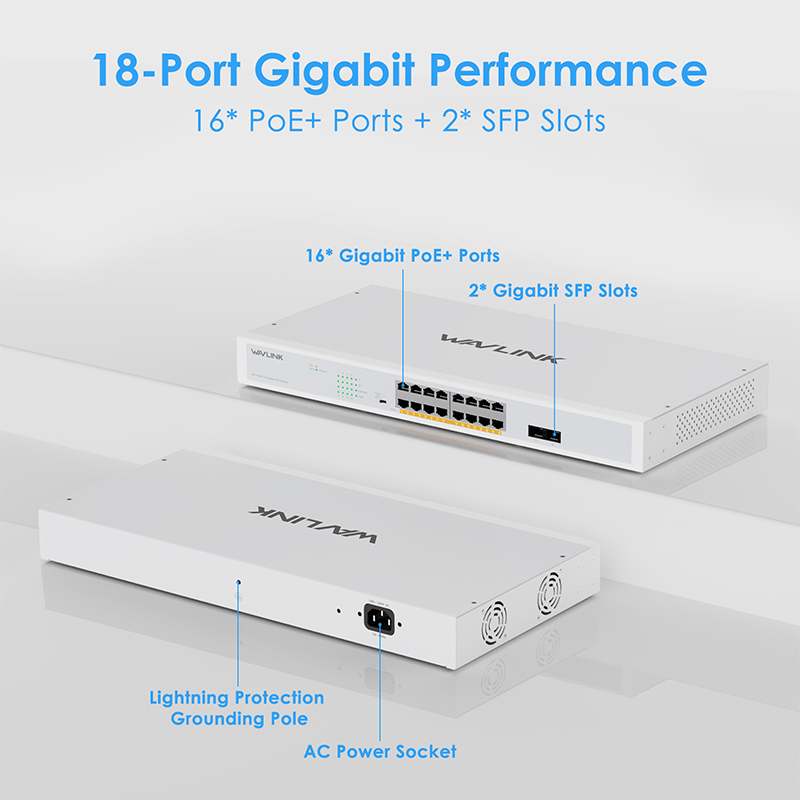

16-Port PoE+ ports + 2 gigabit uplink ports
This 18-port gigabit switch is equipped with 16 PoE+ downlink ports and 2 independent gigabit uplink ports. All 18 ports support 1000Mbps transmission speed, tailor-made for office and surveillance networking scenarios.

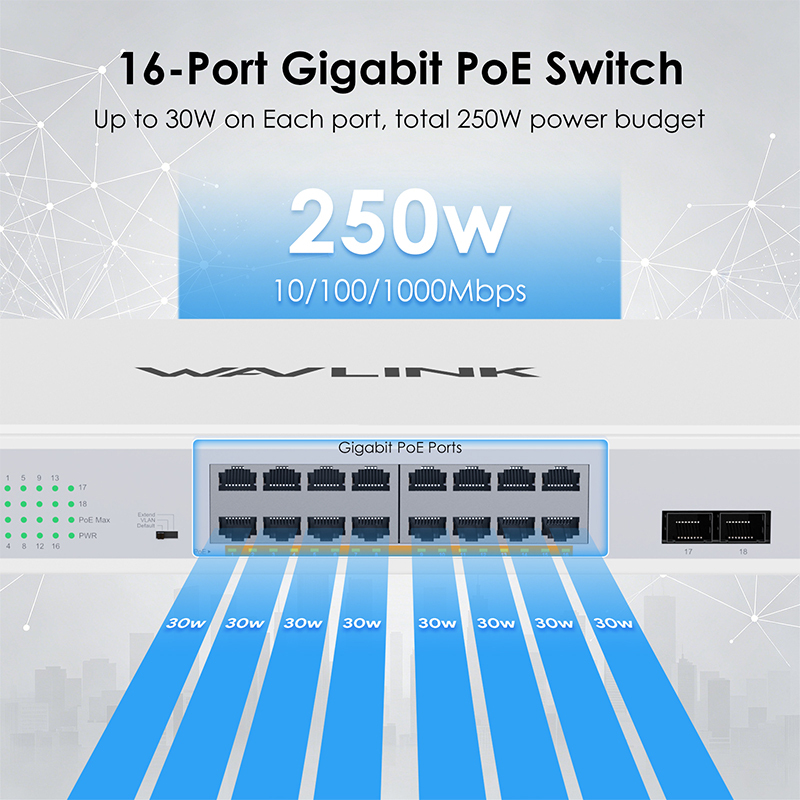

Up to 30W Each Port, Total 250W Budget

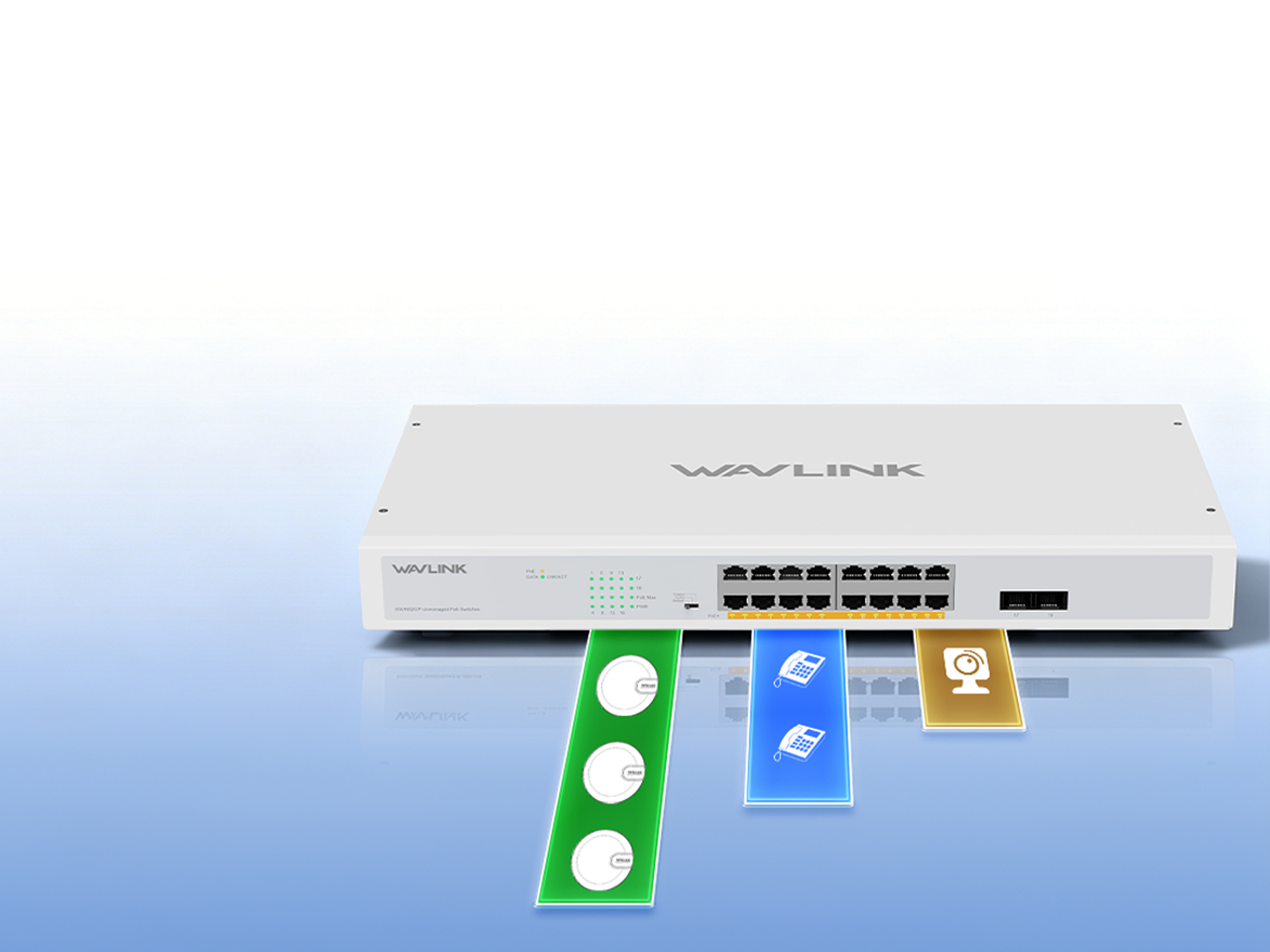

Each PoE port supplies up to 30W power, fully compliant with IEEE 802.3at PoE+ standard. The switch comes with a total 250W PoE power budget to power multiple IP cameras, WiFi APs and other PoE devices simultaneously. Built-in PoE port prioritisation ensures critical surveillance equipment gets priority power supply, avoiding unexpected device shutdown.

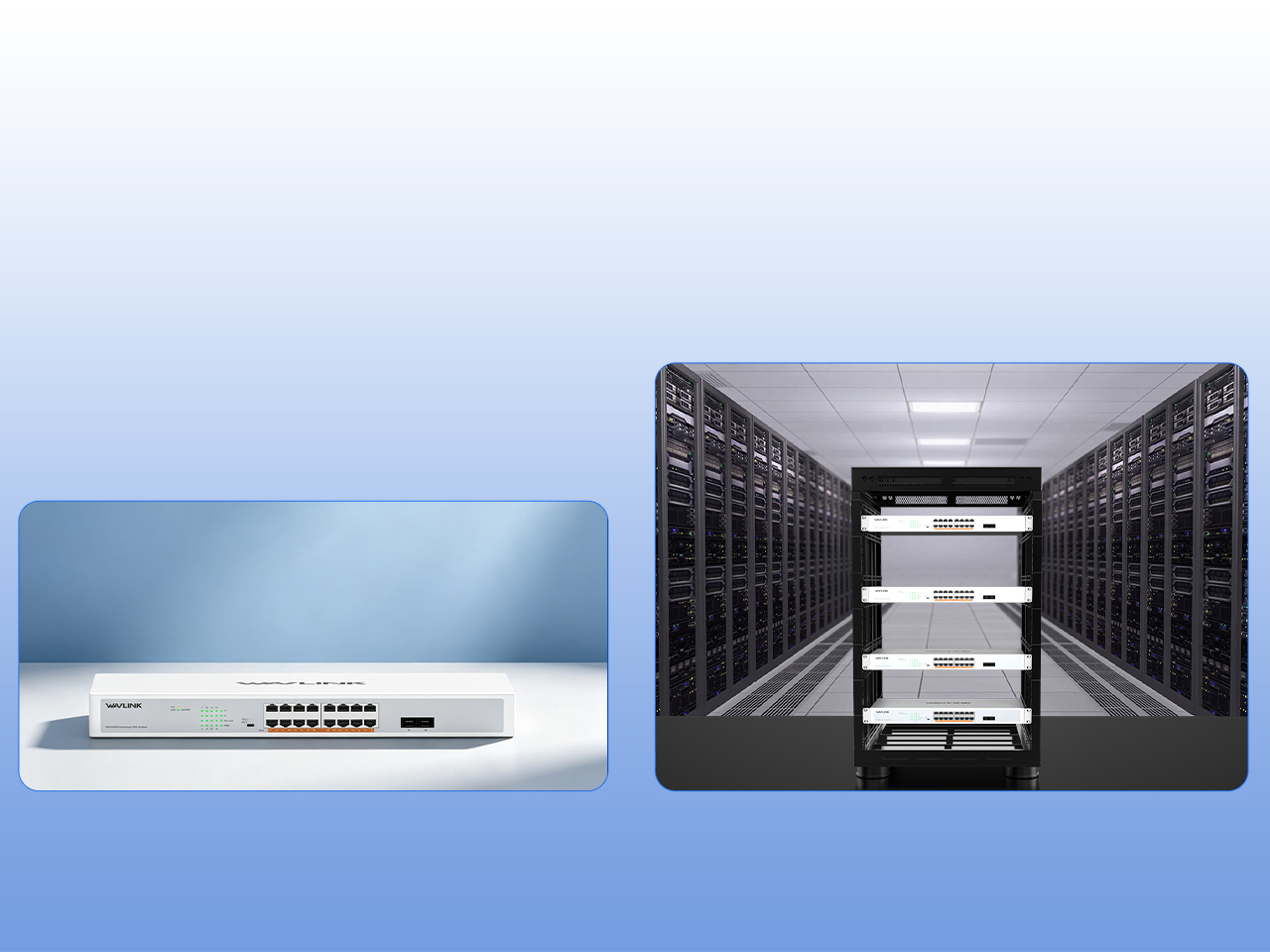

Desktop Installation and Rack Mounting
This PoE gigabit switch supports dual installation methods. You can place it directly on desks for small office use, or mount it onto standard 19-inch server racks via mounting brackets for centralized cabinet deployment, adapting to various engineering and office layout demands.

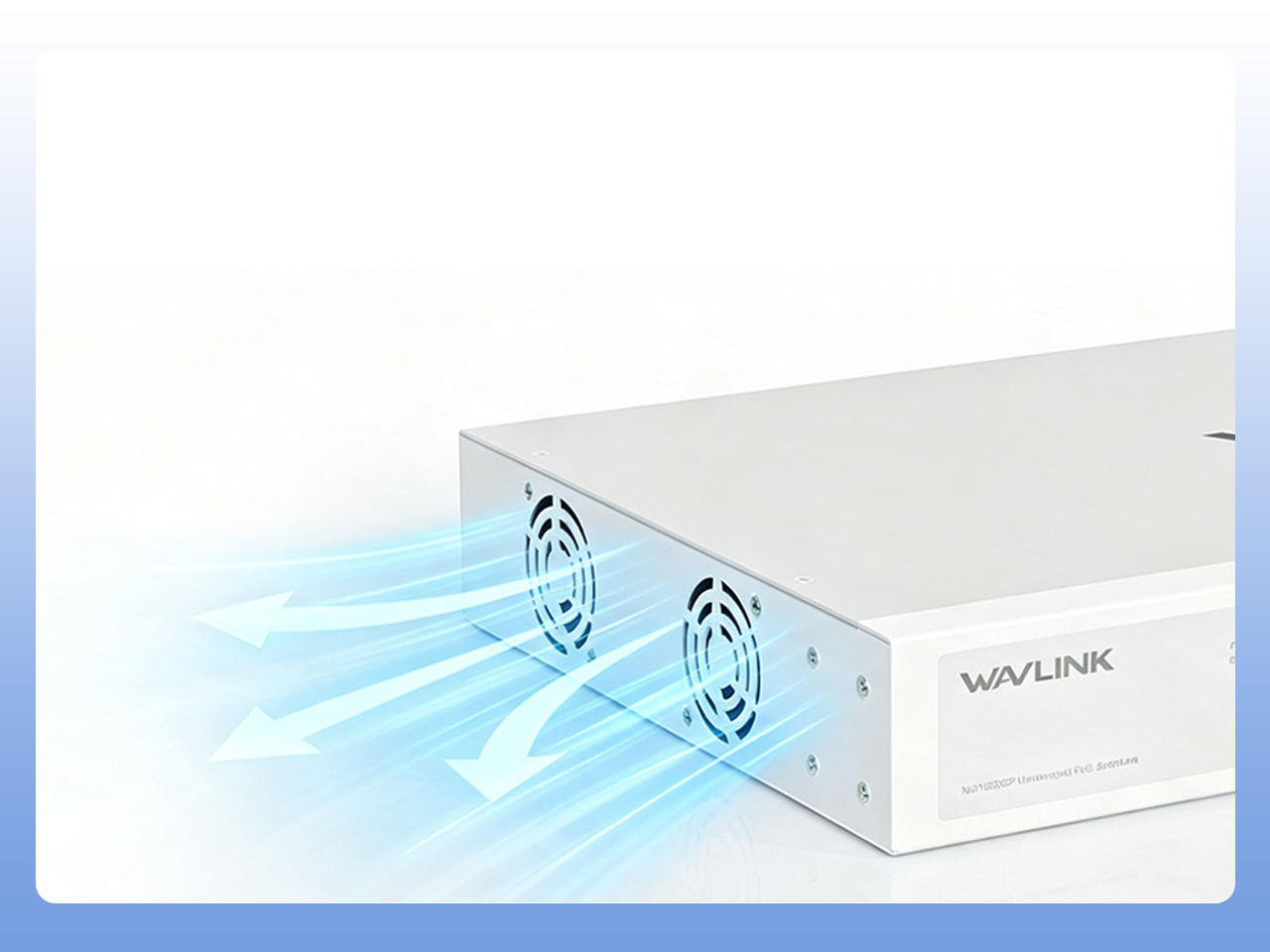

Excellent Heat Dissipation
This 18-port Gigabit switch adopts a dual cooling system consisting of a built-in cooling fan and multi-directional ventilation vents. The fan and multi-side air vents create a smooth circulating air duct for efficient heat dissipation. This high-performance cooling structure prevents overheating, speed throttling and hardware failures, supporting stable operation of surveillance and office networks.

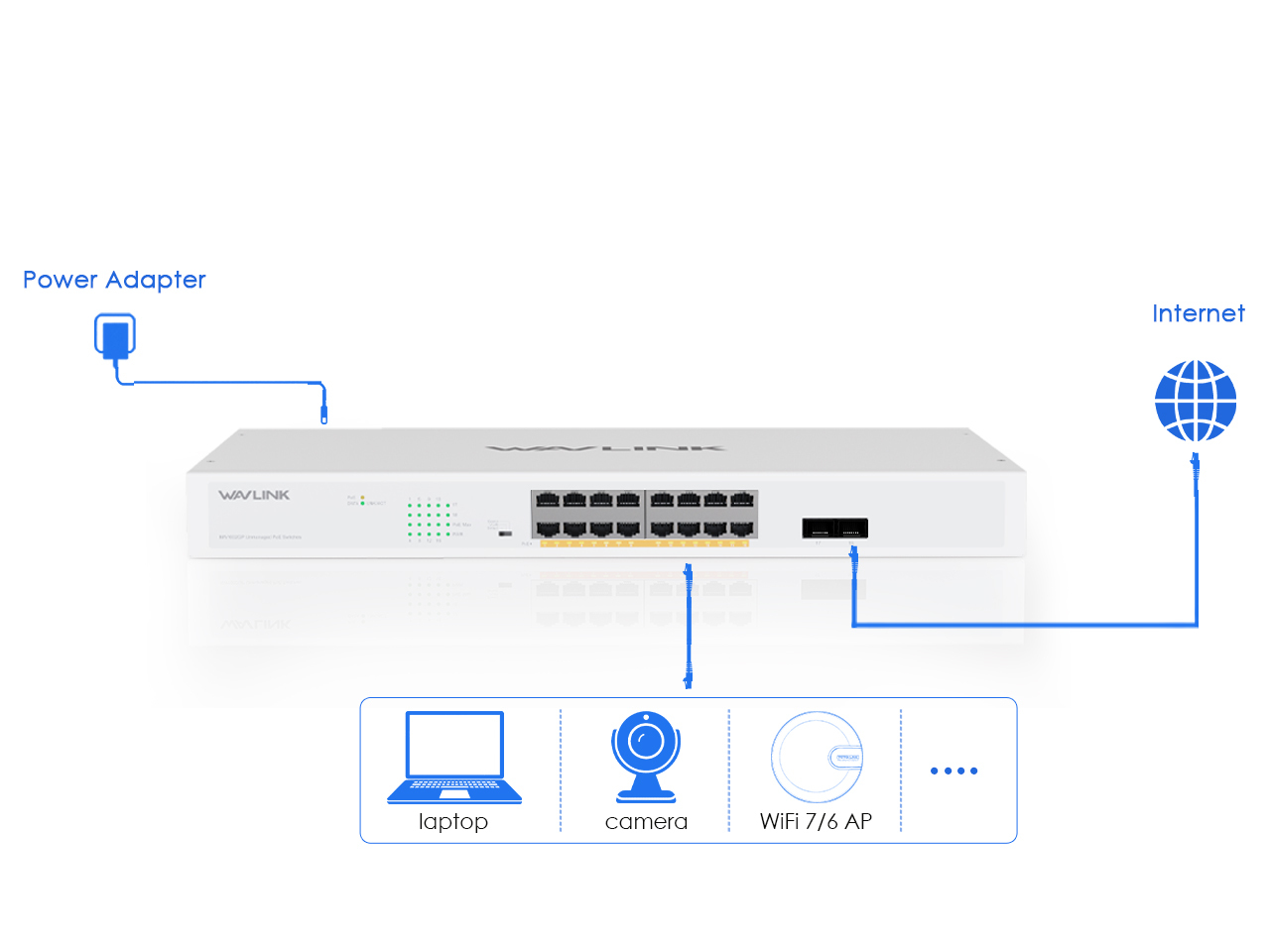

Easy Plug & Play Setup Without Complex Configuration
This Gigabit switch features plug-and-play design. No configuration or software installation is needed. Just plug in network cables to connect multiple devices online at the same time. It works well for home, office, industrial and other network scenarios to satisfy all your network connection requirements.

Specifications

Model WL-NW1602GP
Interface 16* 10/100/1000 Mbps RJ45 Ports; 2* 1000Mbps SFP Slots
PoE Port 1‑16 Up to 30W
PoE Power Budget 250W
LED 1 x PWR(Green), 1 x LINK/ACT (Green), 1 x PoE (Orange), 1x PoE Max (Green)
Mode VLAN Mode, Extend Mode, Default Mode
Product Dimensions 441.2*207.5*43.8mm / 17.37 × 8.17 × 1.72 inches
Installation Desktop Installation and Rack Mounting
In The Box 1 x Network Switch
1 x Power Cord
1 x Quick Start Guide
1 x Installation package
