WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting
  • WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting 1
  • WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting 2
  • WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting 3
  • WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting 4
  • WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting 5
  • WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting 6

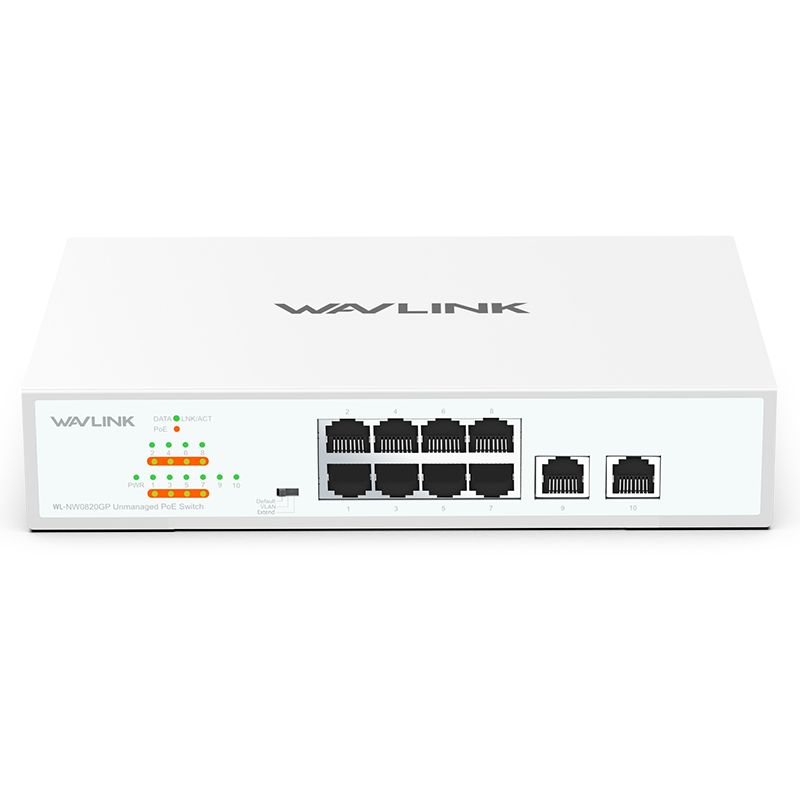

WAVLINK 10 Ports Gigabit Ethernet Switch with 8 PoE Ports, 120W Total PoE+, IEEE 802.3at/af — Plug and Play, Rack Mounting & Wall Mounting

Model: WL-NW0820GP

- 8*up to 1000Mbps Ports compliant with IEEE 802.3at/af PoE standards.
- 30W Max Power Output per Port.

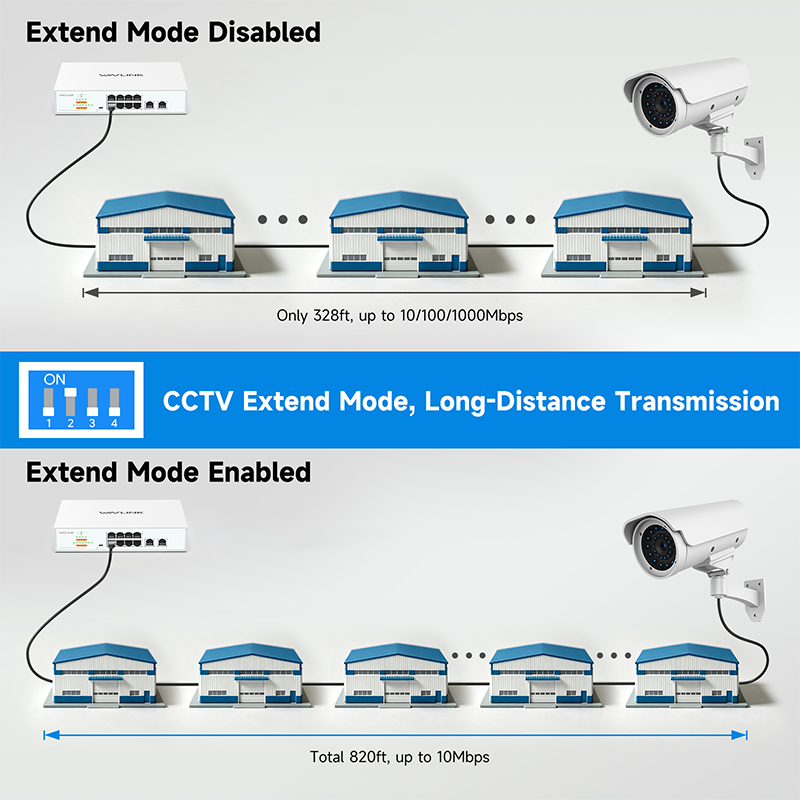

- 250m Ultra-Long Distance Data & Power Transmission

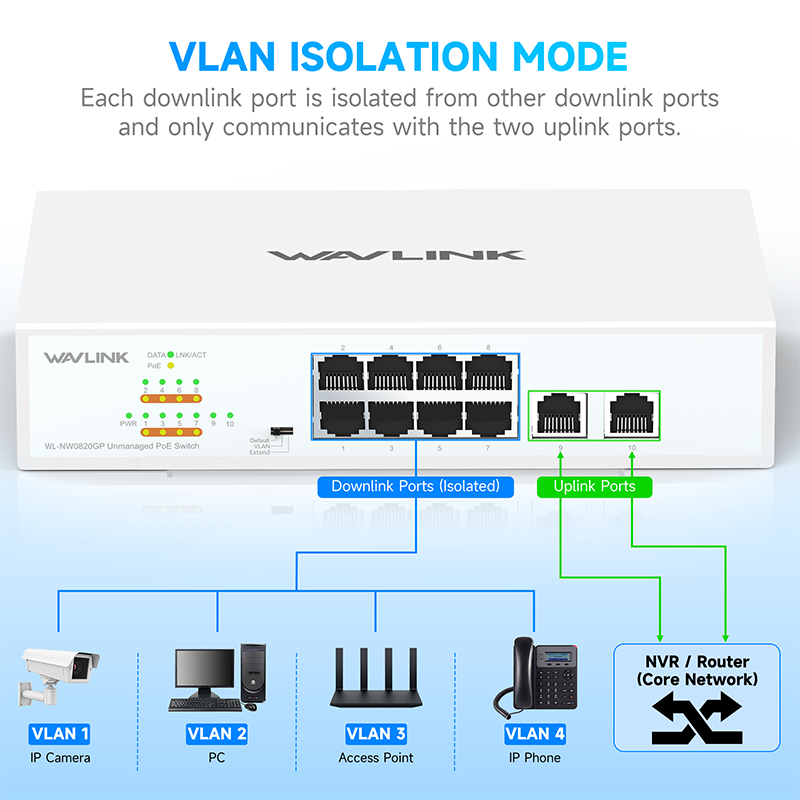

- Features three functional modes for switching: Default Mode, VLAN Mode, and Extend Mode
- Features port overload protection, short-circuit protection, and PoE port prioritisation.

  • Overview

  • Specifications

WAVLINK 10-Port Gigabit Switch with 8-Port PoE+
Safeguard network security and traffic optimization

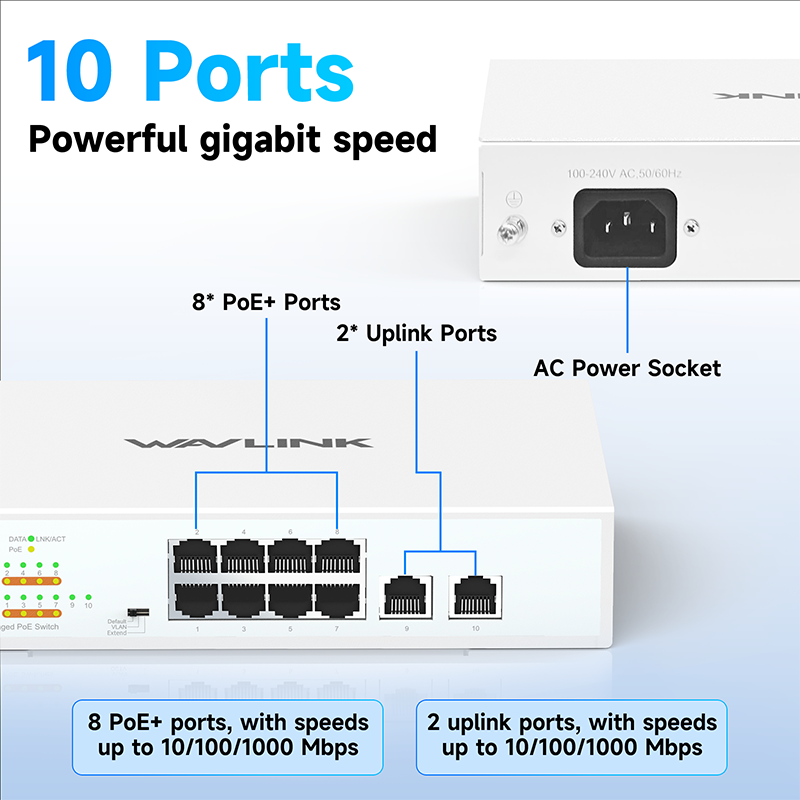

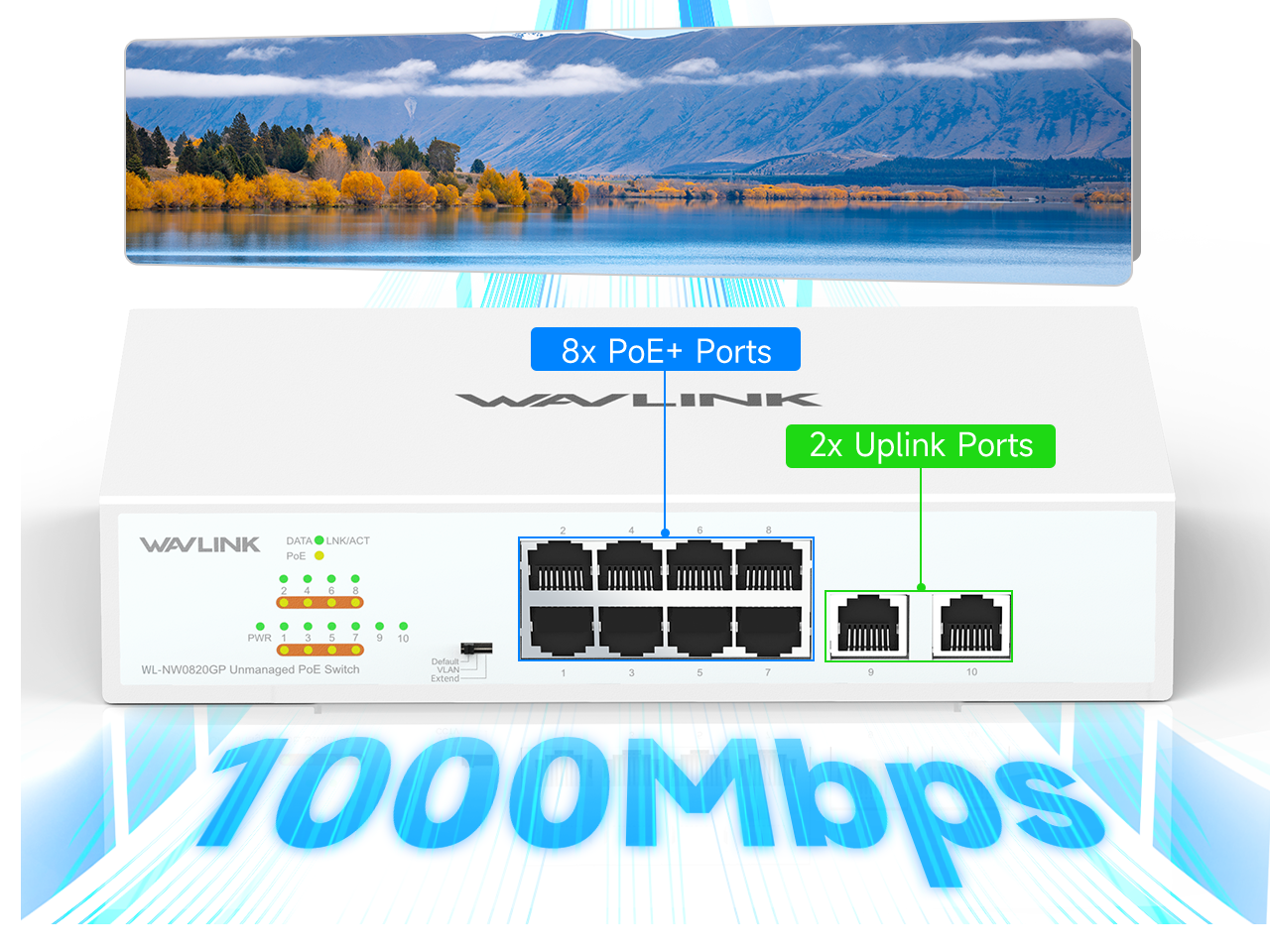

8-Port PoE+ ports + 2 gigabit uplink ports
This 10-port gigabit switch is equipped with 8 PoE+ downlink ports and 2 independent gigabit uplink ports. All 10 ports support 1000Mbps transmission speed, tailor-made for office and surveillance networking scenarios.

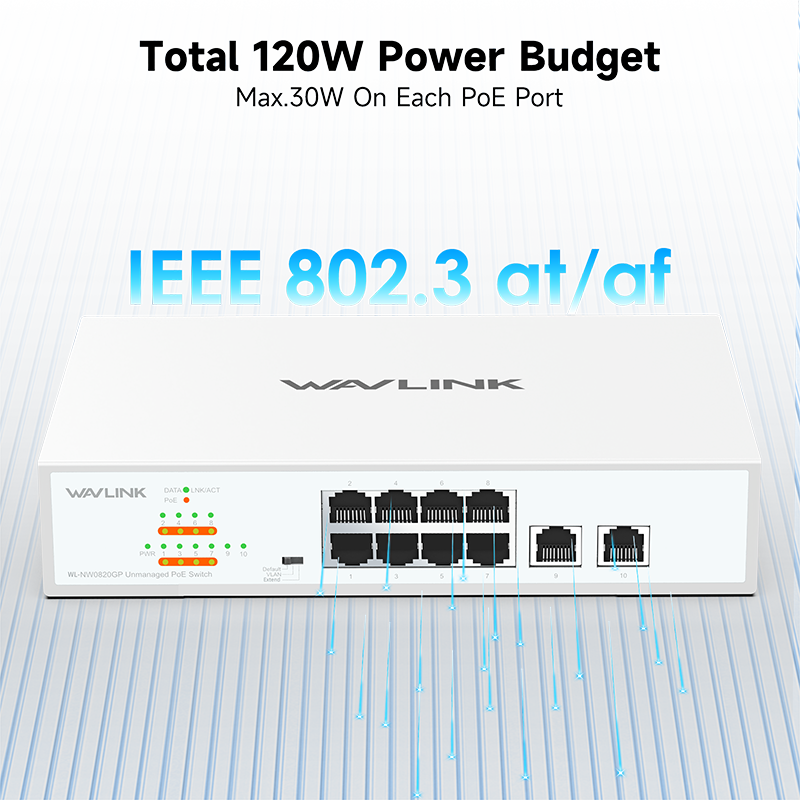

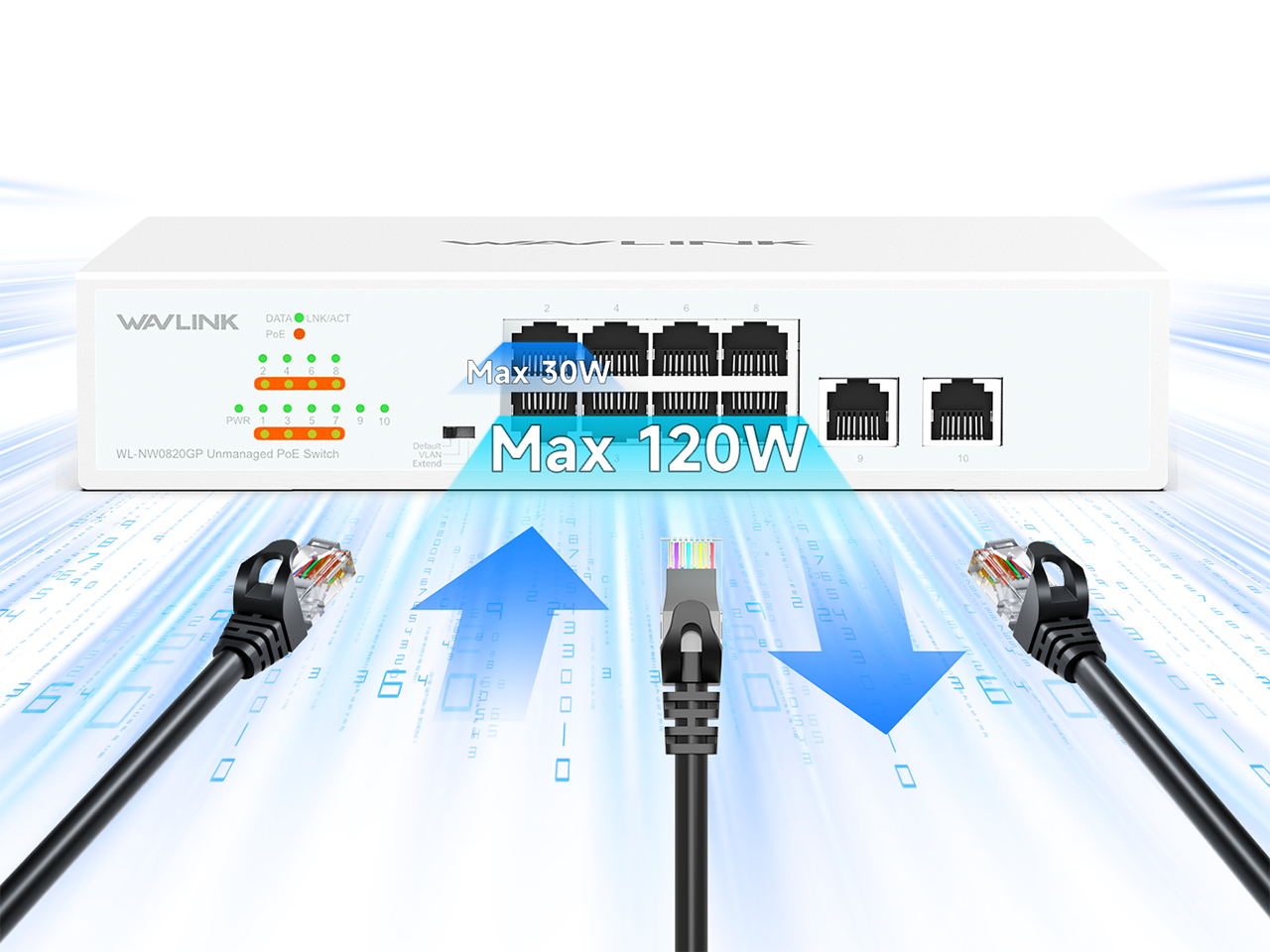

Up to 30W Each Port, Total 120W Budget
Each PoE port supplies up to 30W power, fully compliant with IEEE 802.3at PoE+ standard. The switch comes with a total 120W PoE power budget to power multiple IP cameras, WiFi APs and other PoE devices simultaneously. Built-in PoE port prioritisation ensures critical surveillance equipment gets priority power supply, avoiding unexpected device shutdown.

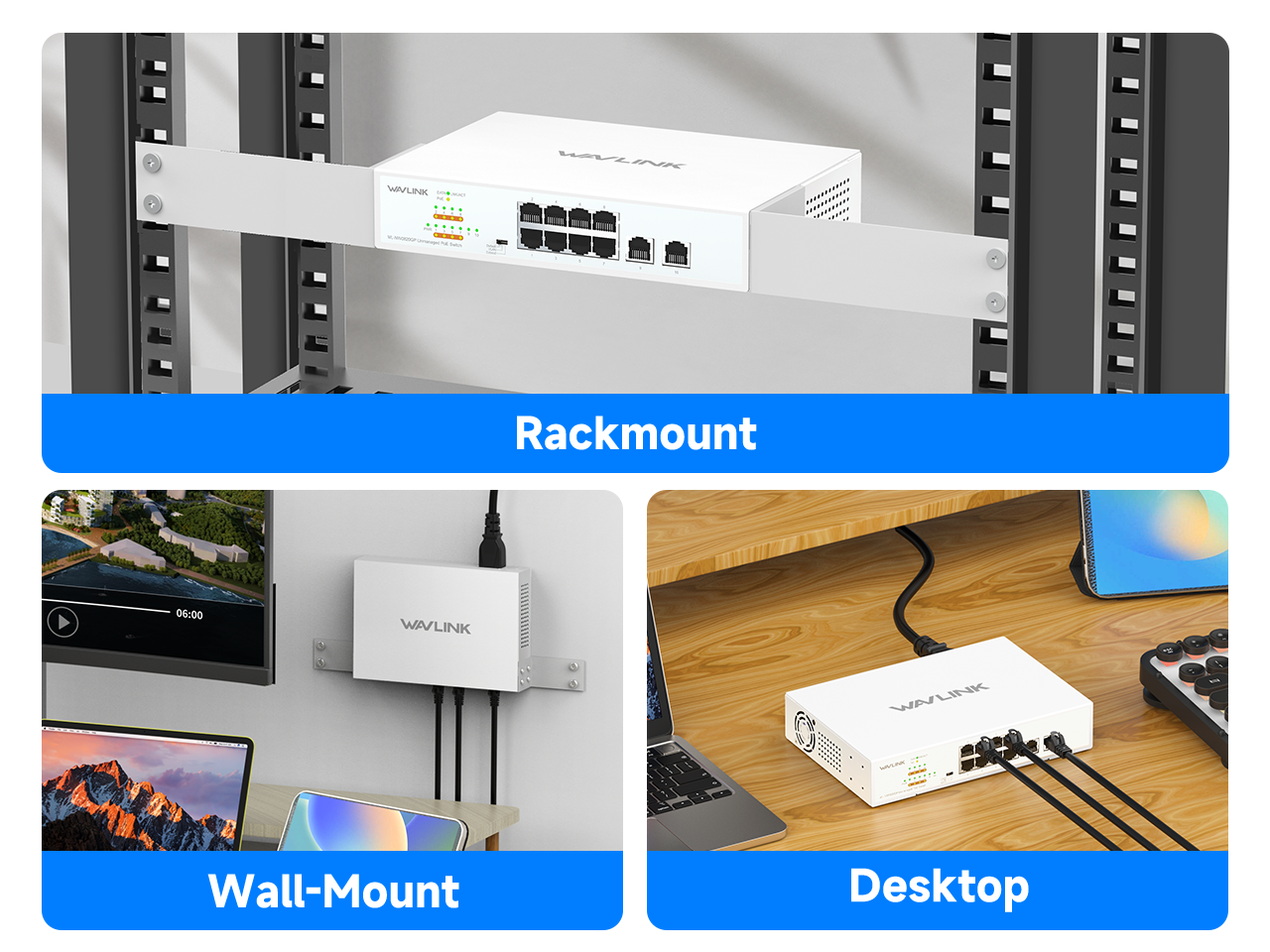

Flexible Installation for Various Scenarios
This switch supports flexible installation to adapt to various deployment needs. It can be rack-mounted inside standard network cabinets, wall-mounted on walls to save space, or simply placed on desktops. Multiple mounting options enable easy arrangement in offices, monitoring rooms, shops and other networking environments.

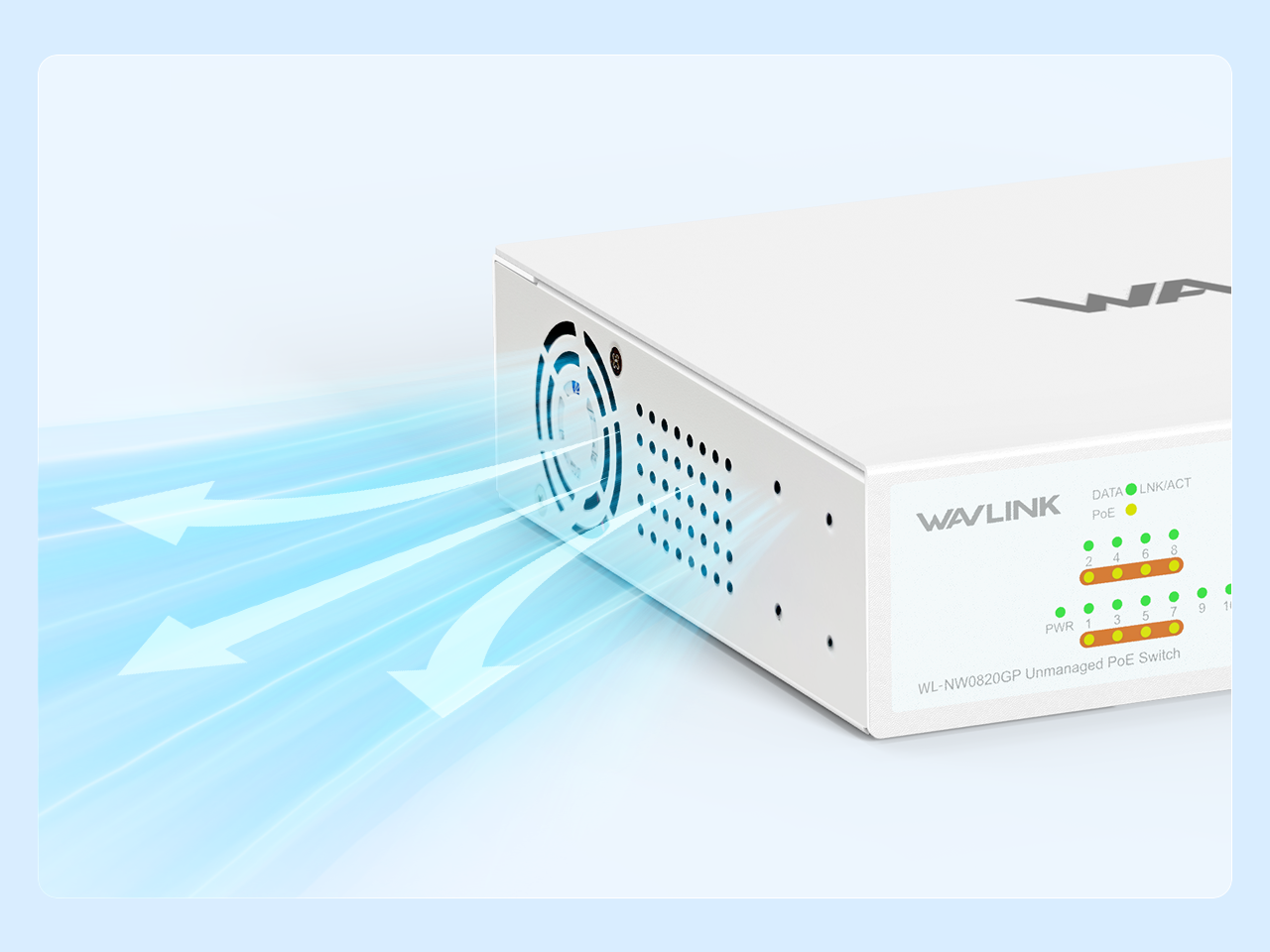

Excellent Heat Dissipation
This 10-port Gigabit switch adopts a dual cooling system consisting of a built-in cooling fan and multi-directional ventilation vents. The fan and multi-side air vents create a smooth circulating air duct for efficient heat dissipation. This high-performance cooling structure prevents overheating, speed throttling and hardware failures, supporting stable operation of surveillance and office networks.

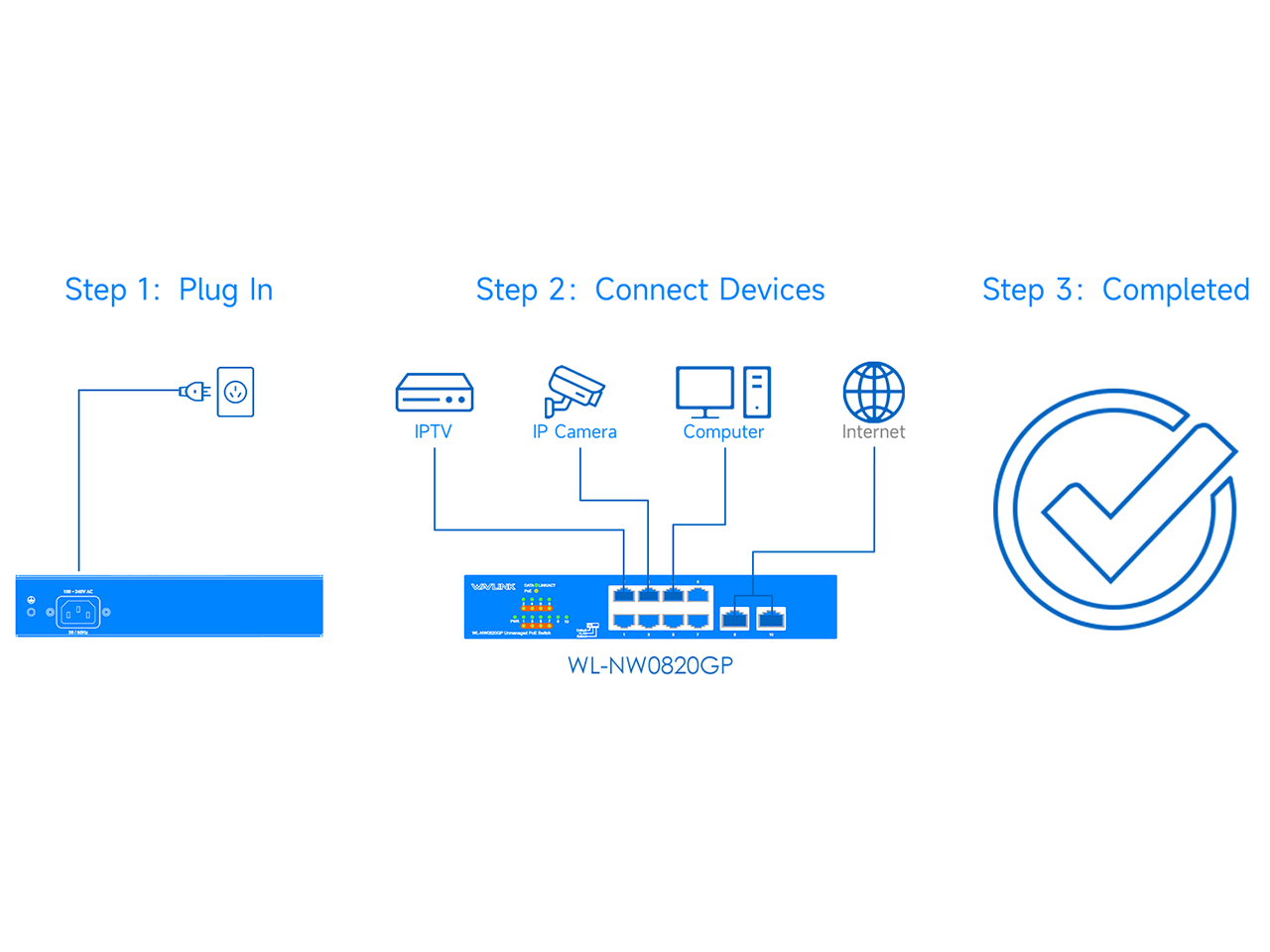

Easy Plug & Play Setup Without Complex Configuration
This Gigabit switch features plug-and-play design. No configuration or software installation is needed. Just plug in network cables to connect multiple devices online at the same time. It works well for home, office, industrial and other network scenarios to satisfy all your network connection requirements.

Specifications

Model WL‑NW0820GP
Interface 8* 10/100/1000 Mbps RJ45 Ports; 2* 1000Mbps Uplink Ports
PoE Port 1‑8 Up to 30W
PoE Power Budget 120W
LED 1 x PWR(Green), 1 x LINK/ACT (Green), 1 x PoE (Orange)
Mode VLAN Mode, Extend Mode, Default Mode
Product Dimensions 220*150*43mm / 8.66 × 5.91 × 1.69 inches
Installation Desktop Installation, Rack Mounting, Wall Mounting
In The Box 1 x Network Switch
1 x Power Cord
1 x Quick Start Guide
1 x Installation package
