WL-HG901U: WAVLINK 4K HDMI Video Capture Card, VRR Support, Plug and Play, Compatible with Multiple Systems
  • WL-HG901U: WAVLINK 4K HDMI Video Capture Card, VRR Support, Plug and Play, Compatible with Multiple Systems 1
  • WL-HG901U: WAVLINK 4K HDMI Video Capture Card, VRR Support, Plug and Play, Compatible with Multiple Systems 2
  • WL-HG901U: WAVLINK 4K HDMI Video Capture Card, VRR Support, Plug and Play, Compatible with Multiple Systems 3
  • WL-HG901U: WAVLINK 4K HDMI Video Capture Card, VRR Support, Plug and Play, Compatible with Multiple Systems 4
  • WL-HG901U: WAVLINK 4K HDMI Video Capture Card, VRR Support, Plug and Play, Compatible with Multiple Systems 5

WL-HG901U: WAVLINK 4K HDMI Video Capture Card, VRR Support, Plug and Play, Compatible with Multiple Systems

Model: WL-HG901U

-Support Max 4K@60Hz Video Input with 1 x HDMI 2.0 IN Port.

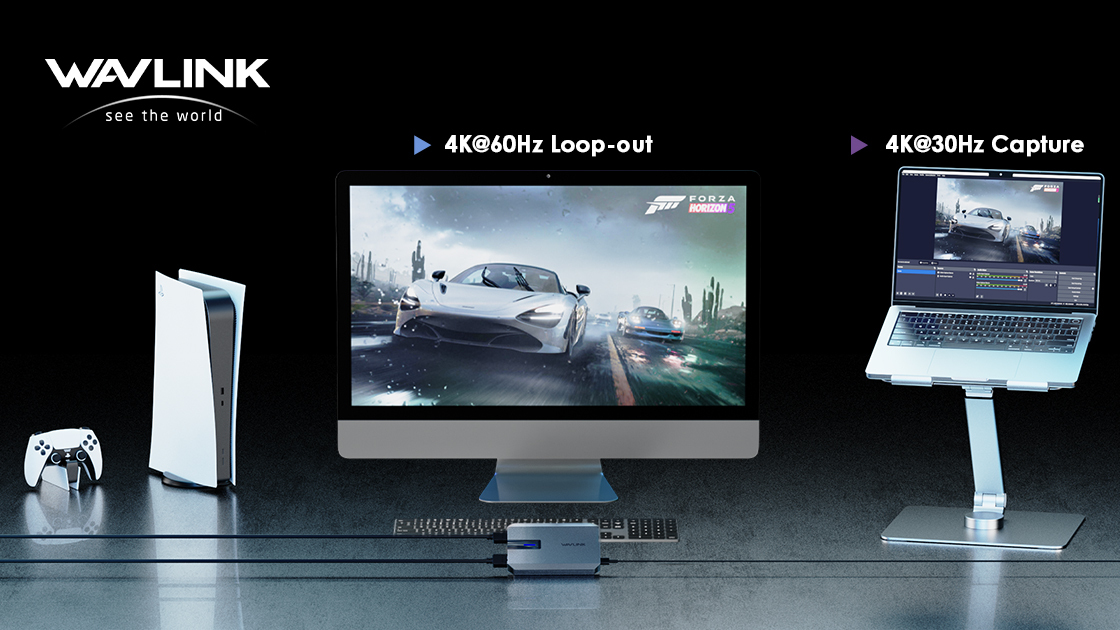

-Support Video Passthrough with 1 x HDMI 2.0 OUT Port.
-Support Max 4K@30Hz Capture.
-Support third-party software like OBS to capture and stream your videos from various input sources like game consoles, cameras and so on.
-Support USB 3.0 Type-C port for UVC/UAC and compatible with USB 2.0 interface.
-Support UVC Output Format: YUY2/NV12.

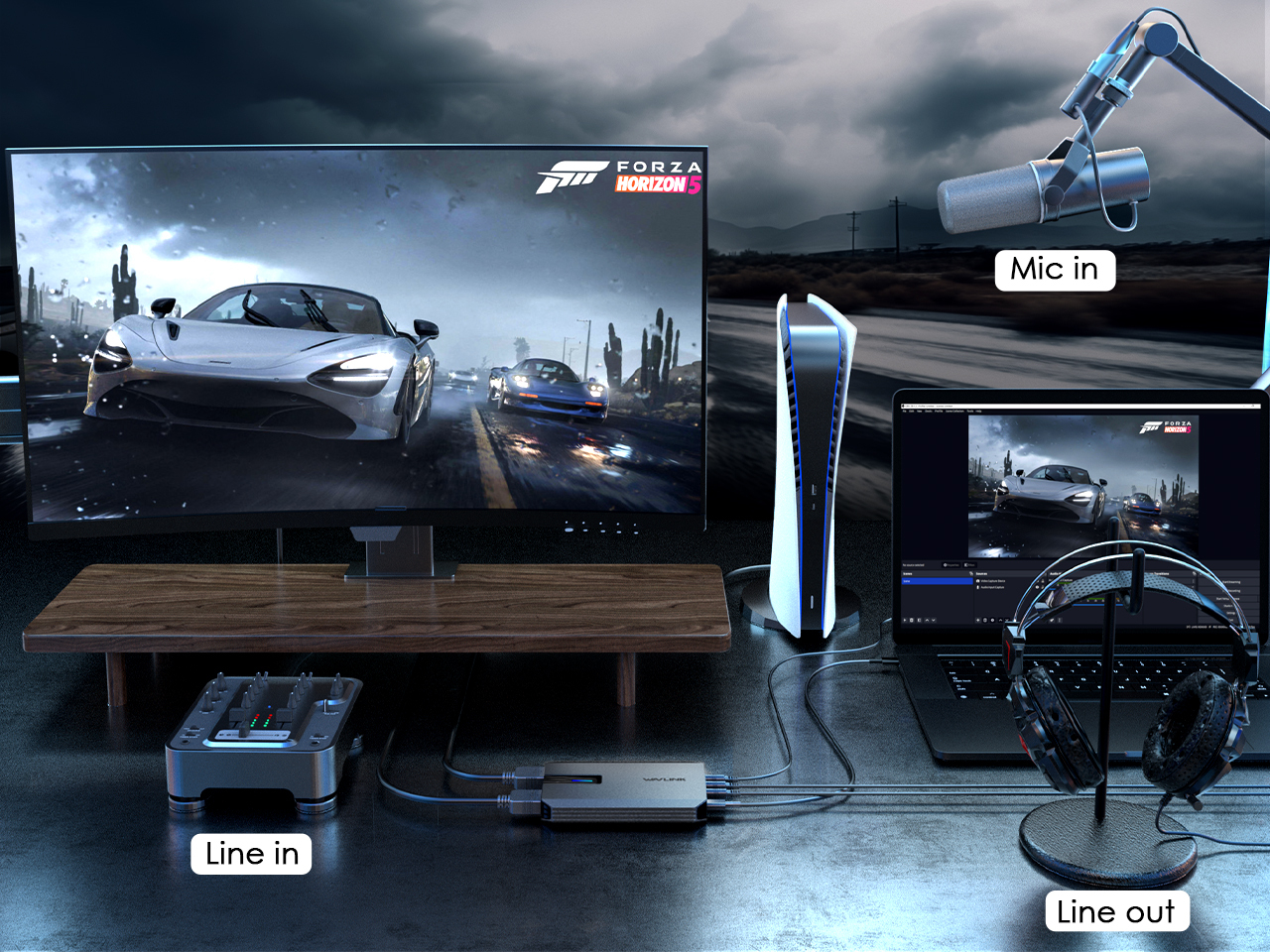

-Support 3.5 mm Line In and 3.5mm MIC for external audio input.
-Support 3.5 mm Line Out for external audio output.
-Compatible with multiple operating systems such as Mac, Windows, Linux, Android and so on.
-Support UVC1.0/1.1/ 1.5. UAC 1.0.
-Support HDR10 to SDR conversion.

  • Overview

  • Specifications

WAVLINK HDMI Video Grabber for Live/Gaming Streaming
Ultra-Low Latency for Smooth Experience

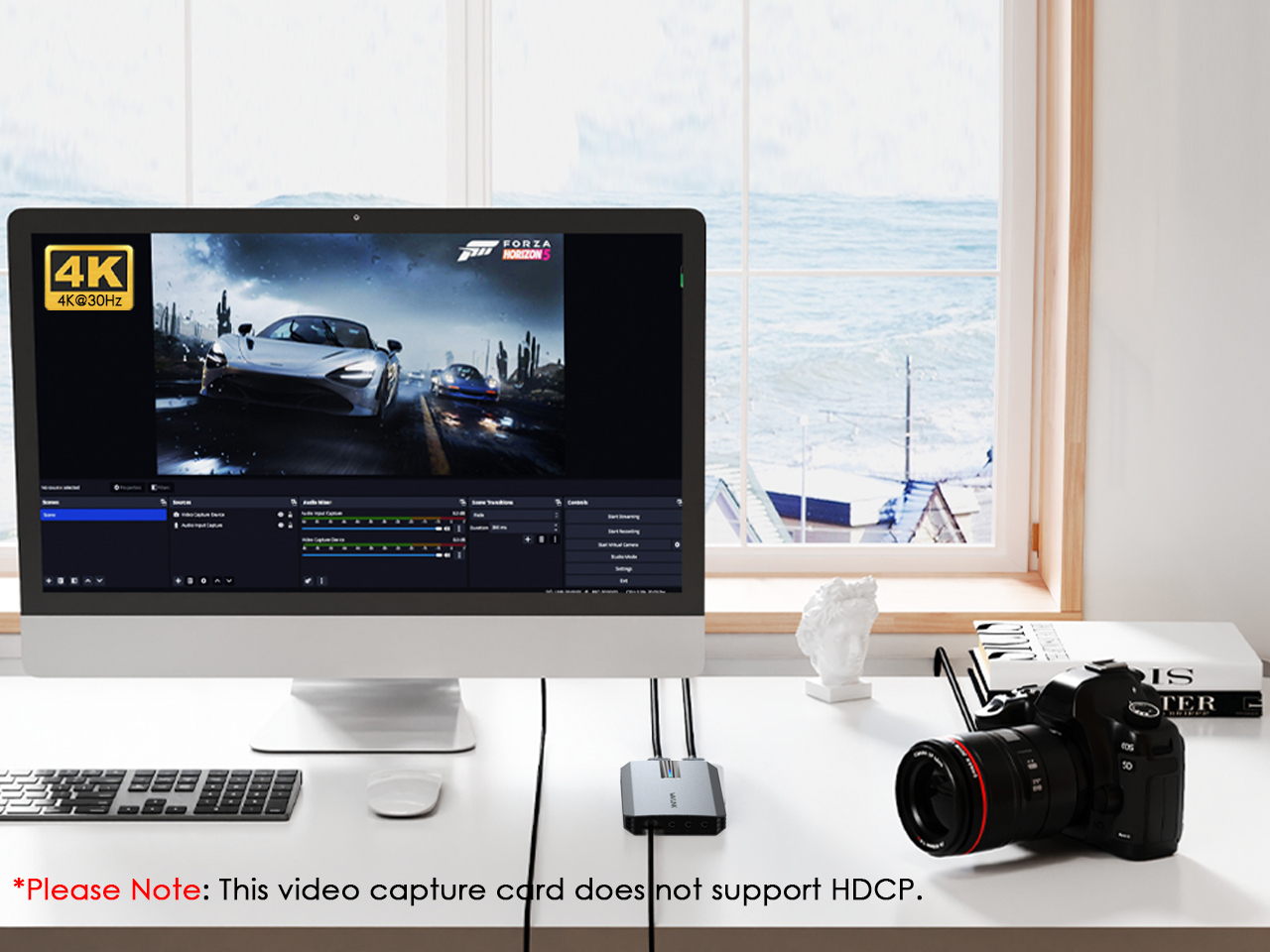

4K@30Hz Video Capture
Capture outstanding video footage at up to 4K@30Hz. Allows you to record stunning visuals with precise clarity, a high level of detail and lifelike motion.
Superior Audio Capture
Perfect for adding commentary, music or interviews to your live streaming sessions, meetings, or video recordings.

Unparalleled Compatibility

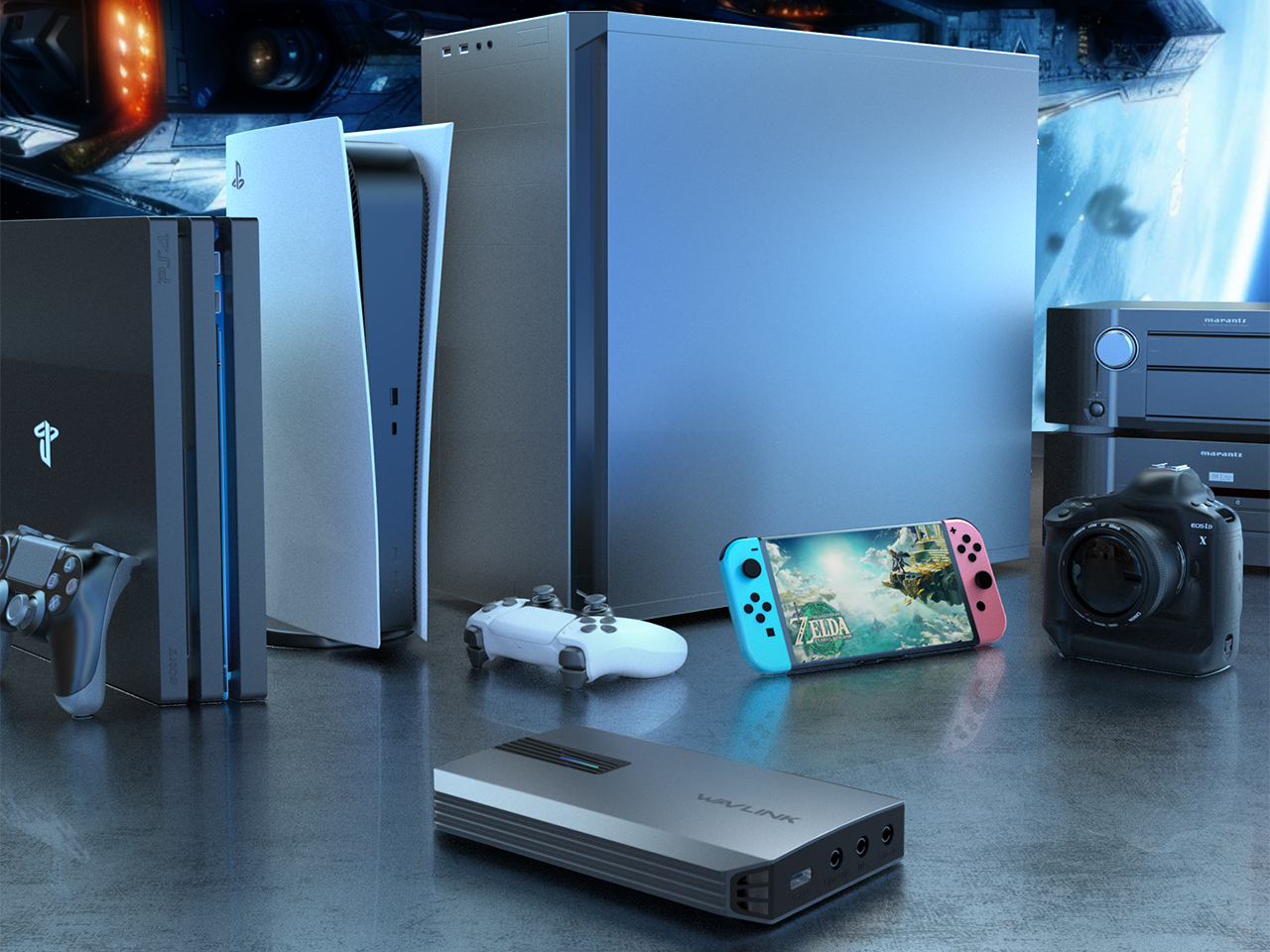

Compatible with various operating systems and works seamlessly with third-party software. Allowing you to unleash your creativity to capture or stream HD games or other HD video sources.

Plug and Play
Enjoy the hassle-free plug-and-play setup without any driver installation. Equipped with a USB-A to USB-C adapter, it supports both USB-A and USB-C devices.

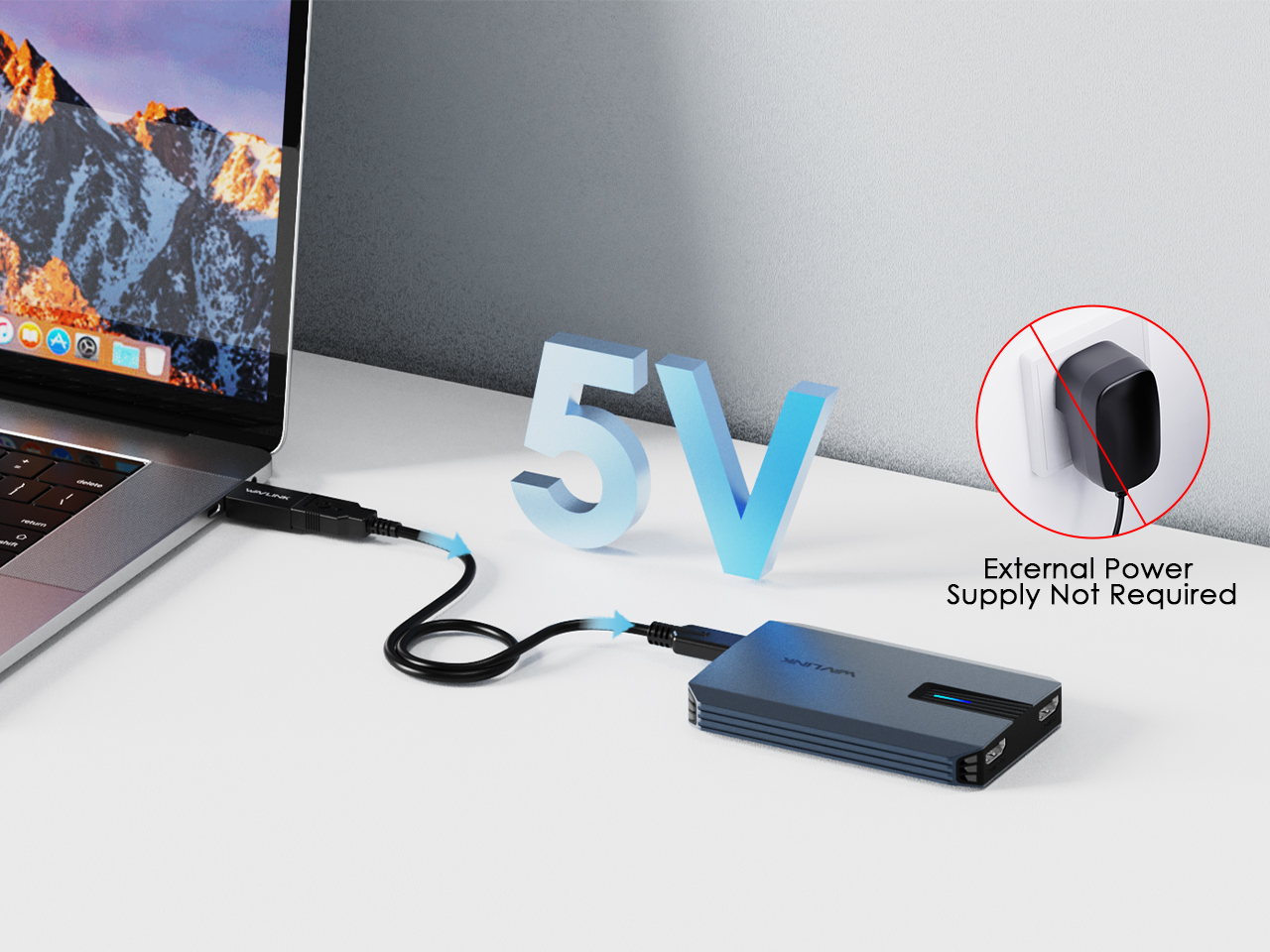

5V Computer Powered
Allows the device to be powered directly through your computer's USB port; it eliminates the need for an external power supply, ensures hassle-free operation and reduces cable clutter.

Specifications

Host Connection Interface USB-C Port

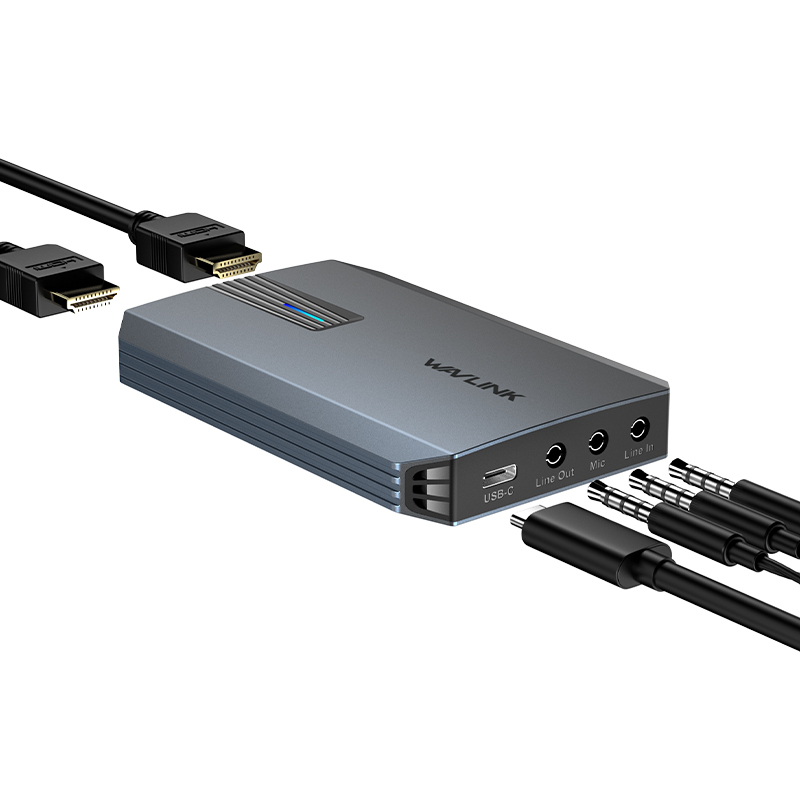

Ports 1*HDMI IN、1*HDMI OUT、1* USB-C、1*3.5mm Line in、1*3.5mm Line Out、1*3.5mm Mic

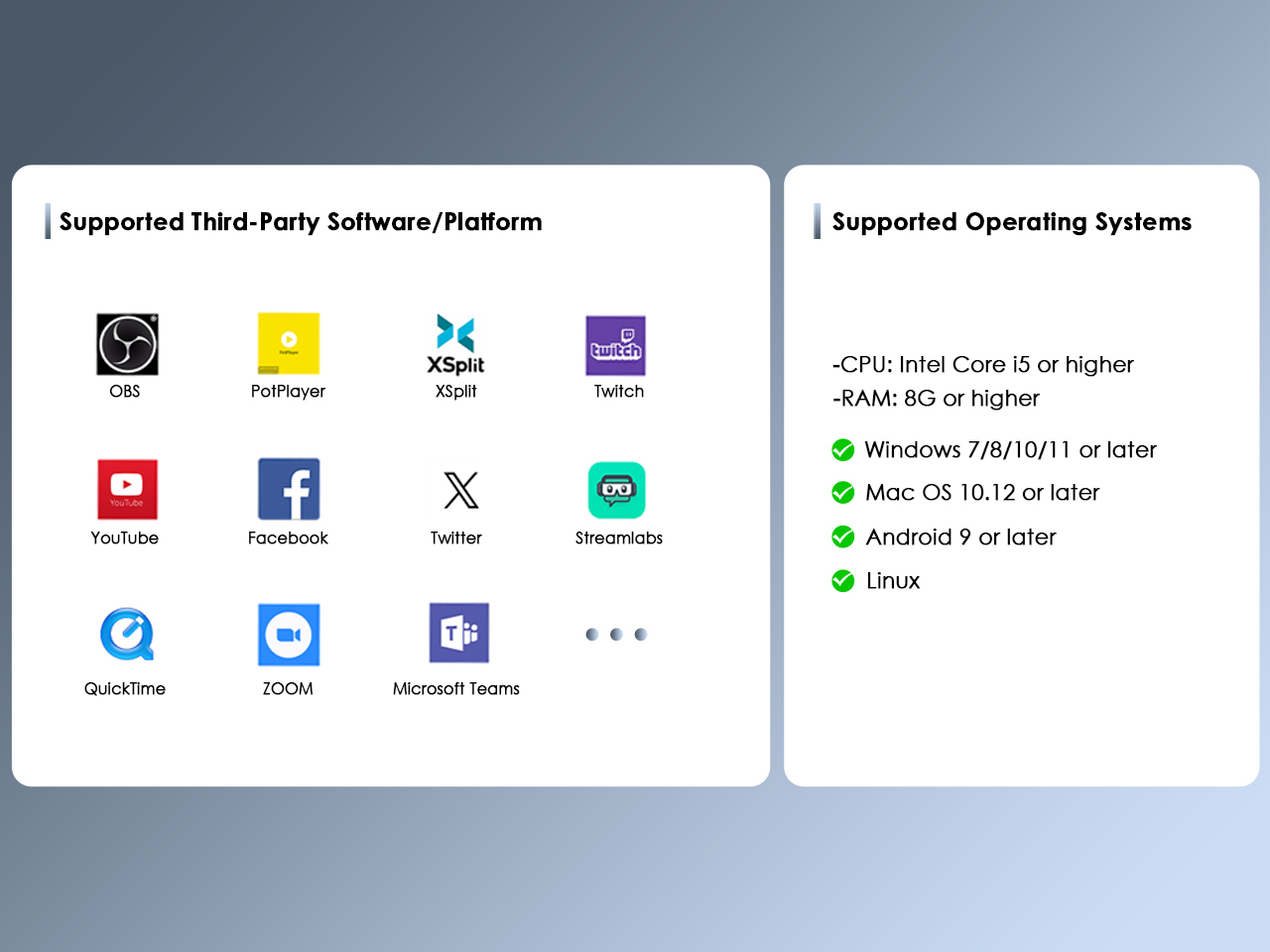

Third-Party Software Supported OBS, vMix, QuickTime, Zoom, VLC, Wirecast, PotPlayer, XSplit and more
Power Supply DC 5V/2A; AC 100-240V, 50/60Hz
Resolution Max 4K@60Hz Input
Max 4K@30Hz Capture
Operating Systems CPU: Intel Core i5 or higher
RAM: 8G or higher
Windows 7/8/10/11 or later
Mac OS 10.12 or later
Android 9 or later
Linux
In the Box 1x4K@60Hz HDMI Grabber G2 PRO
1xHDMI Cable
1xUSB-A to USB-C Cable
1xUSB-A to USB-C Converter
1x Quick Start Guide
