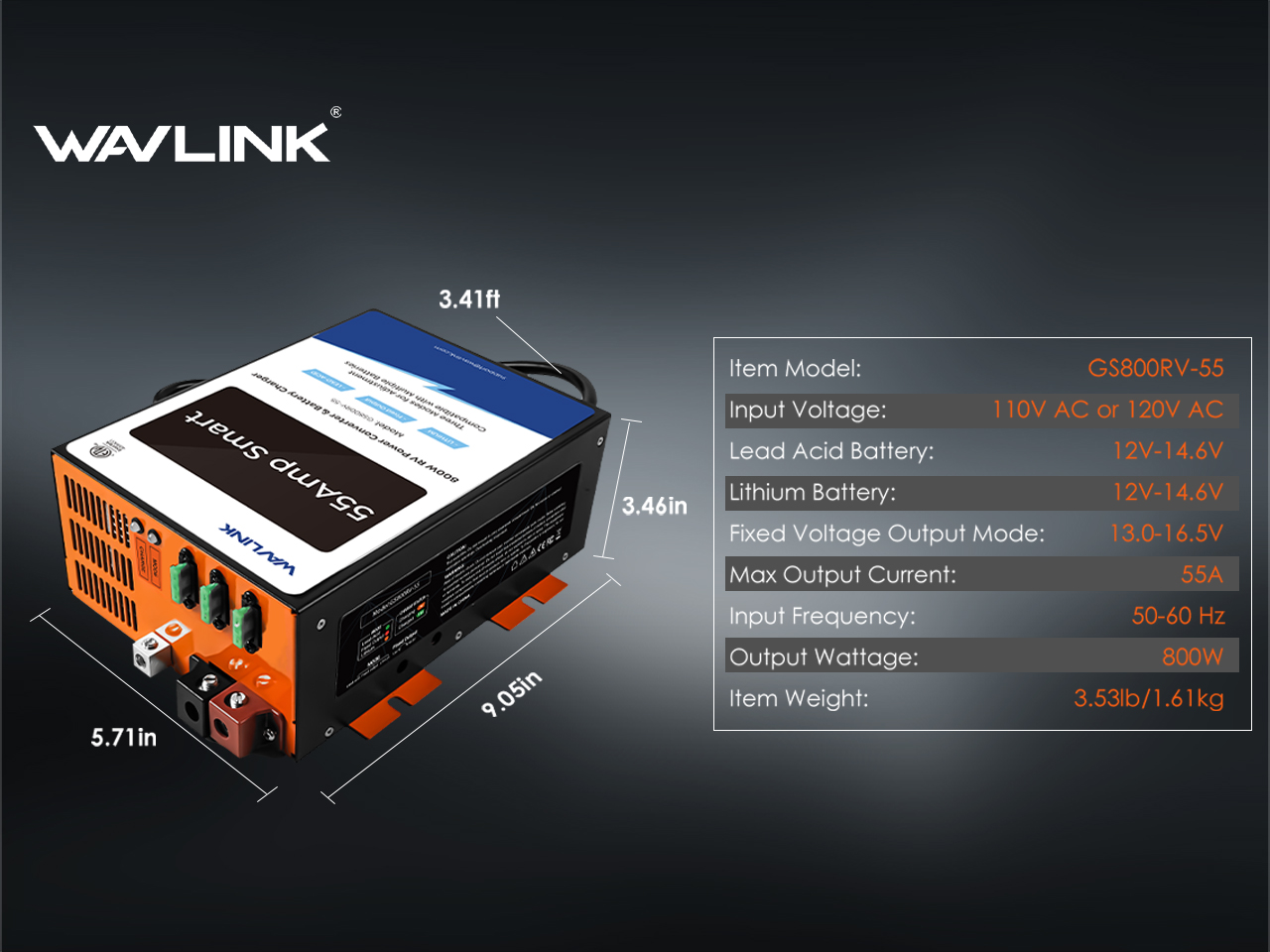

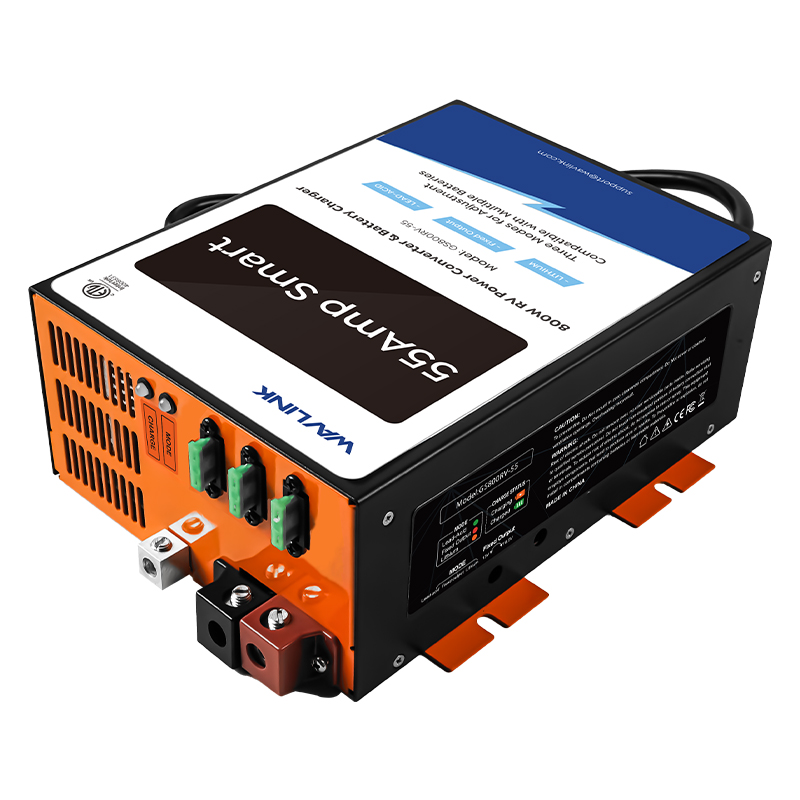

Model: WL-GS800RV-55

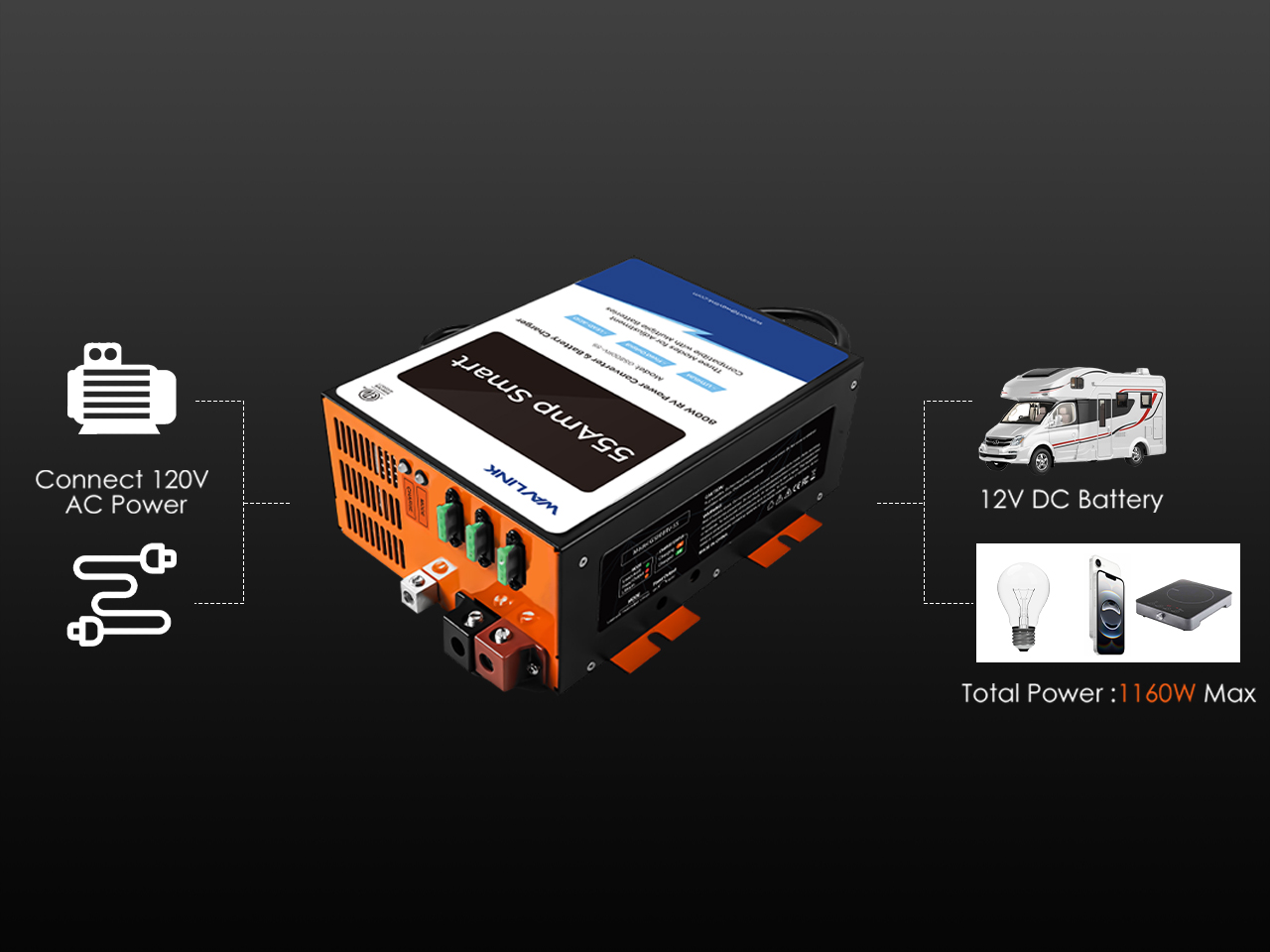

| Input Voltage | 110V AC or 120V AC | |

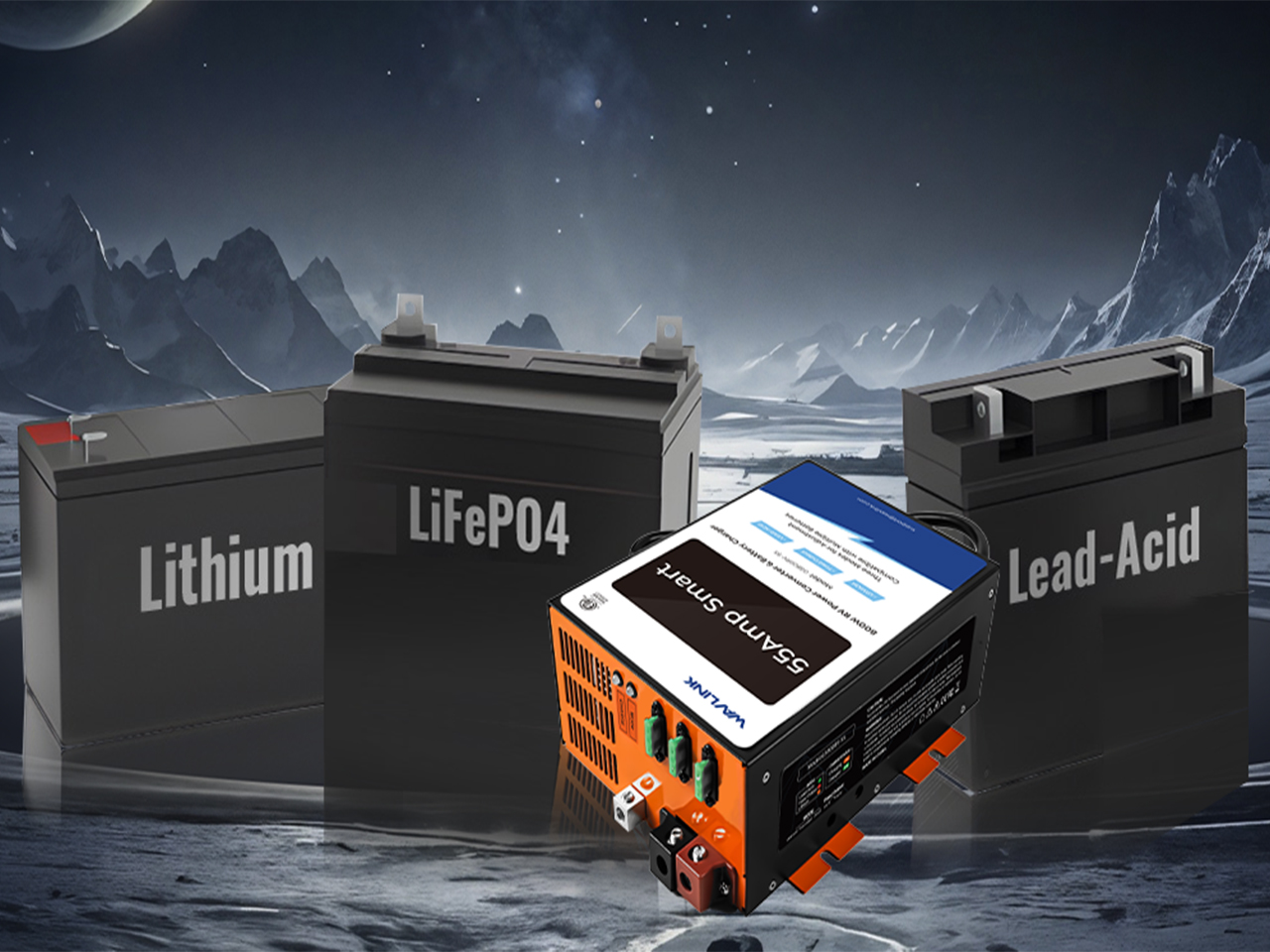

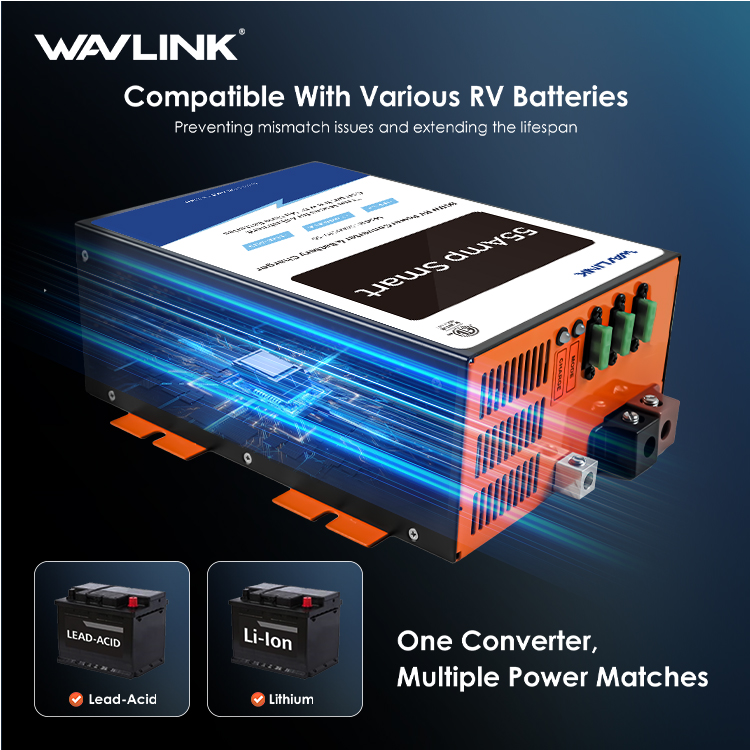

| Output Voltage | Lead-acid Battery Mode: 12V - 14.6V Lithium Battery Mode: 12V - 14.6V Fixed Voltage Output Mode: 13.0V - 16.5V |
|
| Max Output Current | 55A | |
| Input Frequency | 50 - 60 Hz | |
| Output Wattage | Less than 800W | |
| Item Weight | 3.53 lb / 1.61 kg | |

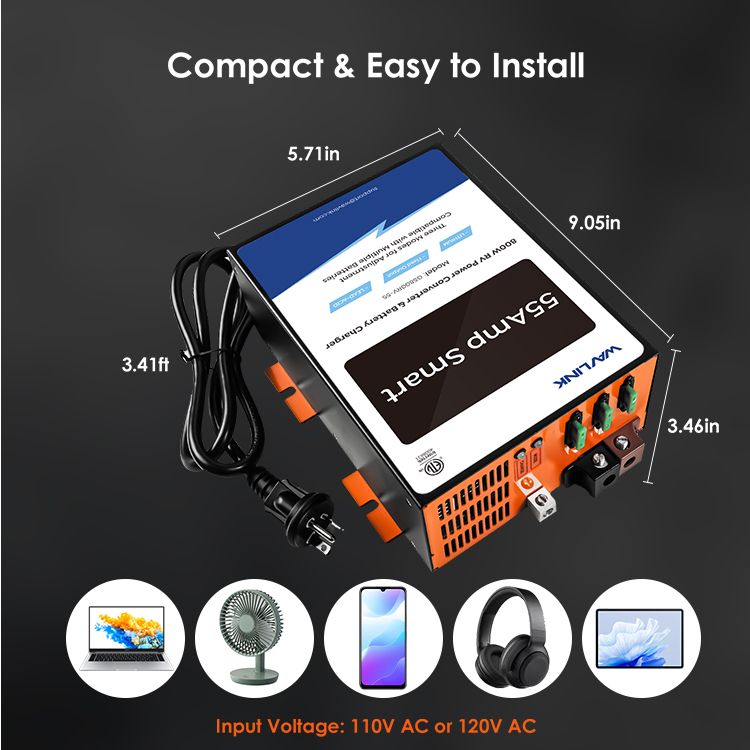

| Product Dimensions | 23 cm × 14.5 cm × 8.8 cm (9.05 in × 5.71 in × 3.46 in) |
|
| Cord Length | 1.03 m / 3.41 ft | |
| Indicator Status Explanation | ||
| Indicator | Light Color | Status Meaning |
| LED1 | Green | Output power is working normally or charging has ended. |
| Orange | Charging is in progress. | |
| LED2 | Green | Operating in Lead-acid battery charging mode. |
| Red | Operating in Fixed voltage output mode. | |
| Orange | Operating in Lithium battery charging mode. | |
