Dual-Bay Hard Drive Enclosure
  • Dual-Bay Hard Drive Enclosure 1
  • Dual-Bay Hard Drive Enclosure 2
  • Dual-Bay Hard Drive Enclosure 3
  • Dual-Bay Hard Drive Enclosure 4
  • Dual-Bay Hard Drive Enclosure 5

Dual-Bay Hard Drive Enclosure

RapidFire H2R

Model: RapidFire H2R

  • One USB-C upstream transfers speed up to 10Gbps and is compatible with USB 3.2/3.1/2.0 computers.
  • Dual 3.5" SATA bays for massive storage capacity expansion.
  • RAID 0/1/Large/Normal mode for the data of backup, read and write, and other different needs.
  • Supports multi-disk daisy-chaining, creating a multi-disk, multi-device, multi-task workstation.

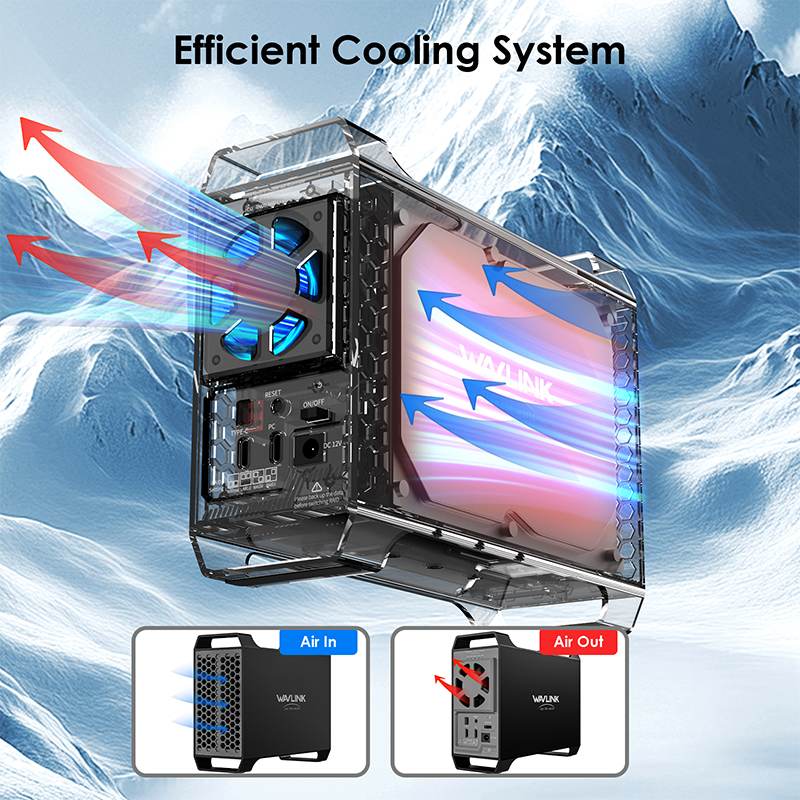

  • Thickened aluminum panel, low-noise temperature-controlled fan, and honeycomb ventilation holes for efficient heat dissipation.

  • Overview

  • Specifications

Dual Bay USB-C 3.5 SATA HDD Enclosure
2x22TB Capacity/10Gbps Data Transfer/ 4 RAID Modes/ Daisy-Chaining Workstation
Ultimate Storage Versatility
Manage your images with SATA HDD Enclosure
Featuring two SATA 6Gbit/s bays, the enclosure supports both 3.5'' and 2.5'' hard drives and SSDs.
Effortlessly expand your storage capacity up to 2x22TB, ensuring you have ample space for all your critical data, multimedia projects, and extensive game libraries.
Note: For 2.5'' hard drives, additional 2.5'' to 3.5'' mounting brackets are required(Not included).
Blazing Fast Data Transfer
Manage your images with SATA HDD Enclosure
xperience unparalleled data transfer speeds with the USB 3.2 Type-C port, capable of reaching up to 10Gbps. Seamlessly handle massive files and high-volume data transfers with exceptional efficiency and speed, perfect for both professional and personal use.


4 RAID Modes
The enclosure offers 4 Raid modes to meet your various needs, whether you want to back up data, transfer files swiftly, read and write on two HDDs simultaneously, or expand storage capacity.


Hot-Swappable
Swapping hard disks without shutting down the host, which saves significant time, lowers the risk of system and data disruption, and enhances the flexibility and convenience of hard disk utilization.


Wide Compatibility
The product is compatible with a wide range of operating systems, including Windows, Mac OS, Chrome OS, Linux, Android, iOS, Harmony OS, and iPad OS. Host devices require a USB-C or USB-A port and support connections with computers, phones, and tablets. It can accommodate 3.5-inch and 2.5-inch SATA HDDs/SSDs; when using a 2.5-inch hard drive, an additional 2.5-inch to 3.5-inch mounting bracket is required (not included with the product).

Specifications

Item Name

WAVLINK Dual-Bay USB-C 3.5” SATA HDD Enclosure

Model

RapidFire H2R

Support

3.5 inch SATA Ⅰ/Ⅱ/Ⅲ HDD

Interface

Type-C

Material

Aluminum Alloy+ABS

Size

183.8X142.8X65.5MM

System

Windows/macOS/Linux

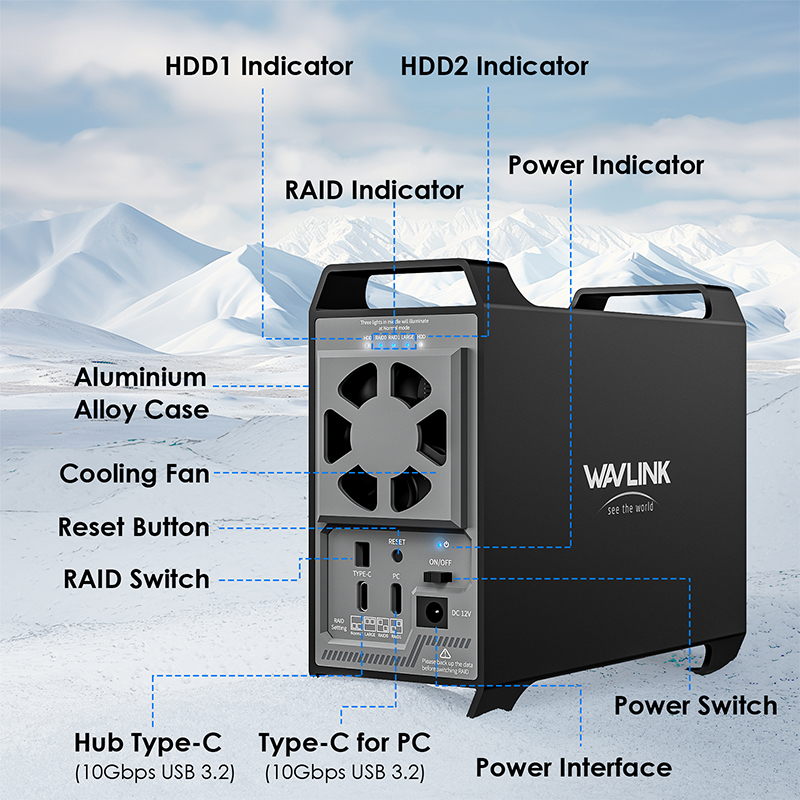

Indicator Light

- The RAID indicator light and power light: solid blue when powered on.

- Disk character: Insert the hard disk; the white light is solid on. The white light is flashing during write and read.

Function

- Reading & Writing Hard Drive: Support RAID0/RAID1/Normal/LARGE mode.

- The product's Type-C interface supports multiple RAID hard drive enclosures of the same model in series, supporting up to 3 units in series at the same time.

- Temperature-controlled fan: When an internal temperature around 32°C is detected, the fan automatically starts working. After operating continuously for three minutes, it will recheck the temperature. If the temperature has dropped, the fan turns off; if the temperature remains around 32°C or higher, the fan continues to operate and will recheck again after another three minutes.
