BlitzDockM
Model: WL-UTD62M
Storage.
Display. Power.
— More Than Just a Dock.
Thunderbolt™ 5 Docking Station with 15 Ports(Including a M.2 Slot)
Model: BlitzDock™(WL-UTD62M)
*15 ports include host port and downstream ports.
Next-Gen Speed. Ultimate Expansion.

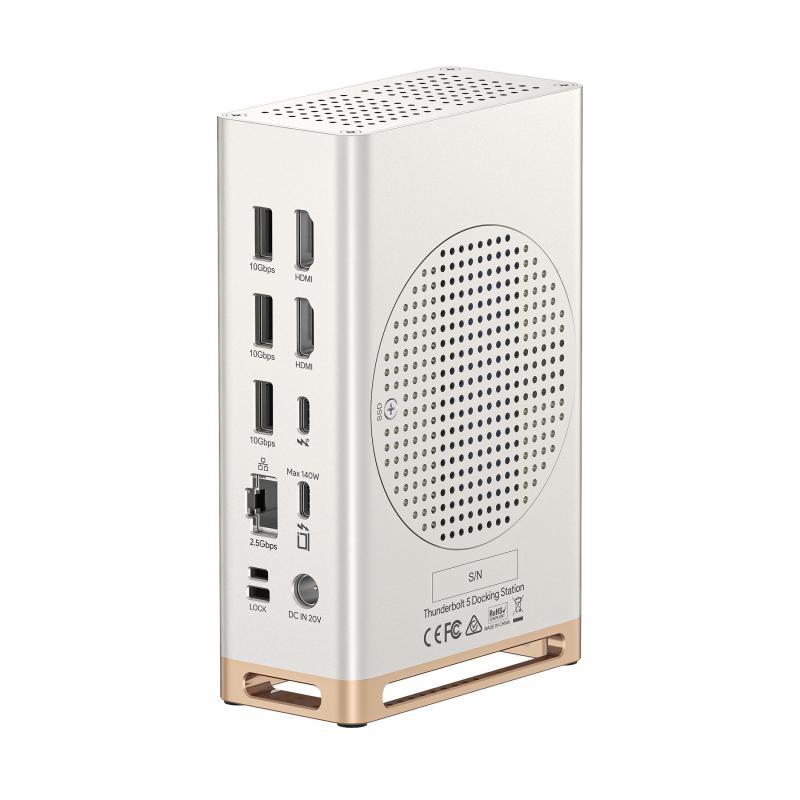

WAVLINK Thunderbolt™ 5 15-in-1 M.2 Ultra Docking Station (Intel® Certified)
Officially Intel-certified, the WAVLINK Thunderbolt 5 Ultra Dock transforms a single port into a powerhouse workstation. Delivering up to 120Gbps of bandwidth, it lets you transfer a 150GB file in just 25 seconds, drive dual 8K or quad 4K displays, and expand your storage with a built-in PCIe 4.0 M.2 NVMe slot. Packed with 2.5Gb Ethernet and 15 total ports, it’s built for modern creators, gamers, and pros who demand zero compromises.

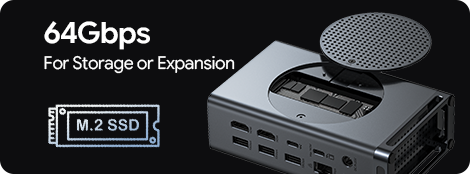

Expand Your Storage. Directly from the Dock.
Seamlessly expand your storage without extra cable clutter. The built-in M.2 slot supports PCIe 4.0 NVMe SSDs (2230, 2242, 2260, and 2280 form factors) with read/write speeds up to 6,200MB/s and 5,900MB/s. Whether you’re editing 8K video, moving massive files, or loading library games, enjoy desktop-class drive performance directly from your dock.
0MB/s
SEQ. READ
0MB/s
SEQ. WRITE
0Gbps
PCIE 4.0 x 4

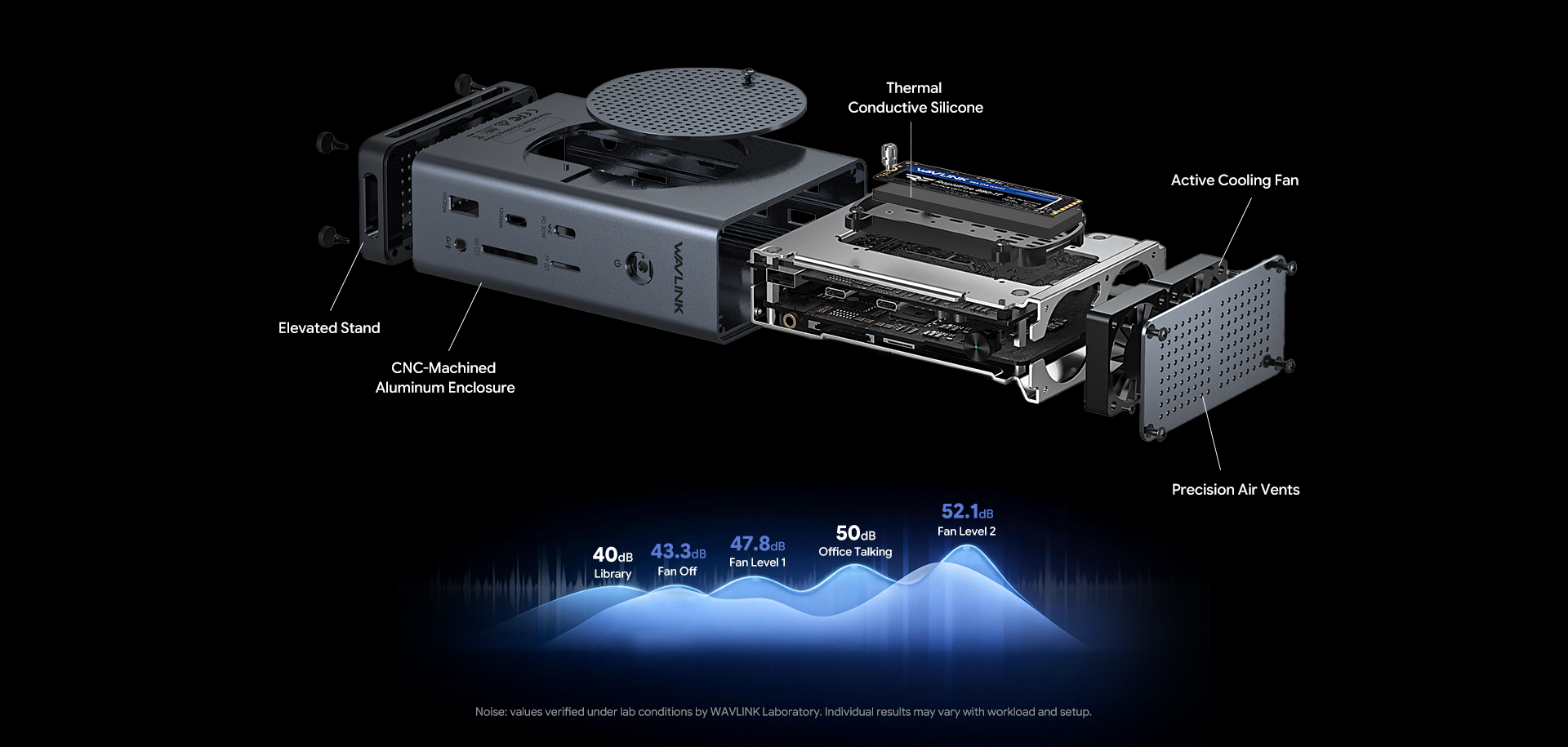

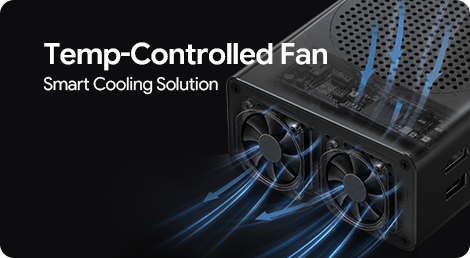

Stay Cool, Stay Powerful, Stay Quiet.
High-speed PCIe 4.0 SSDs generate massive heat, triggering thermal throttling that slashes your speeds right in the middle of a task.
Our smart cooling system solves this at the hardware level. Built with a CNC-machined aluminum enclosure, a high-conductivity thermal silicone pad, precision air vents, and an elevated stand, it dissipates heat instantly. This allows your drive to sustain real-world speeds up to 6,200 MB/s during demanding 8K video editing or heavy AI compute.
The best part? It does all this without disturbing your workflow. The active cooling fans stay silent under light loads, and even at full speed, they top out at 52.1dB—comparable to normal office conversation. In other words, you’ll barely notice them.

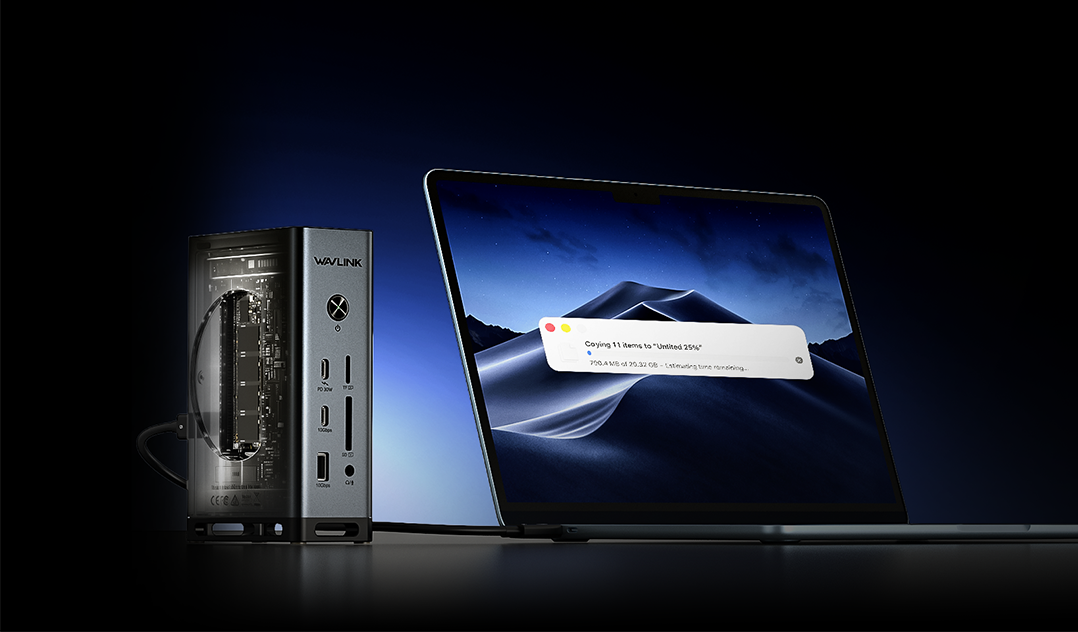

Next-Gen Performance: 120Gbps Total Bandwidth.

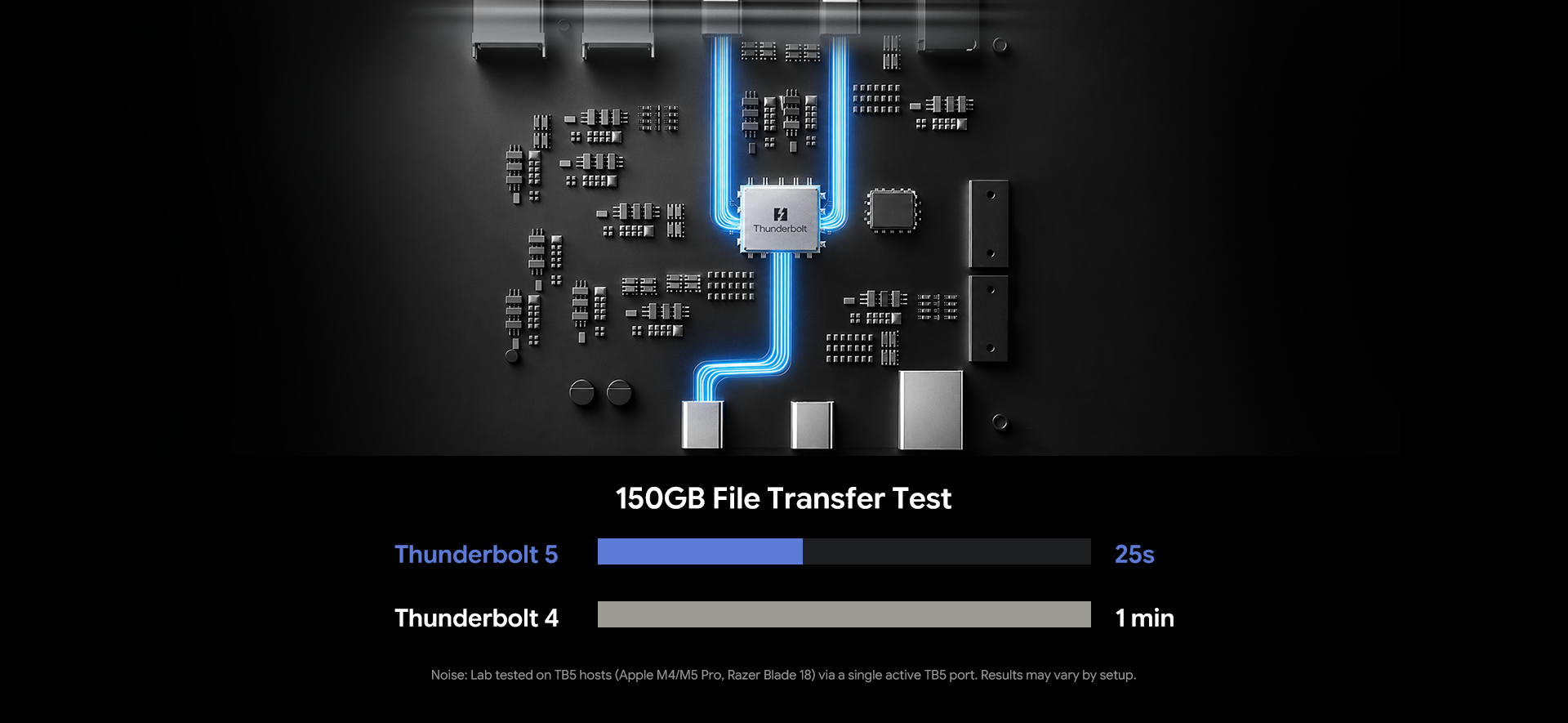

Unleash a massive 120Gbps of total bandwidth, featuring data speeds up to 80Gbps—double the throughput of Thunderbolt 4. Built to breeze through heavy display workflows and massive file transfers. In our lab, a 150GB project transferred faster than it takes to cool down your morning coffee.
Total Power Mastery，Zero Workflow Interruption.
With up to 140W host charging, your laptop stays fully powered through the most demanding sessions—no low-battery warnings, no power anxiety, just pure, uninterrupted creative flow. Need to fuel your external gear? Dual Thunderbolt ports deliver dedicated 15W and 30W output, keeping your phone, tablet, or high-speed accessories charged and ready without drawing from your main system.
*Note: The dock requires the included 180W power adapter connected to its DC input to work.
Ports Ready, Work Steady
Connect everything you need at top speed. Transfer large files in seconds, join crystal-clear calls, and keep your workflow moving — without hunting for dongles or swapping cables. With 10Gbps USB ports, 2.5Gb Ethernet, a 312MB/s card reader, and more, this dock handles the heavy lifting so you don’t have to think about it.
0Gbps
4XUSB-A+USB-C
0Gbps
RJ-45
0MB/s
SD & TF
0mm
Audio

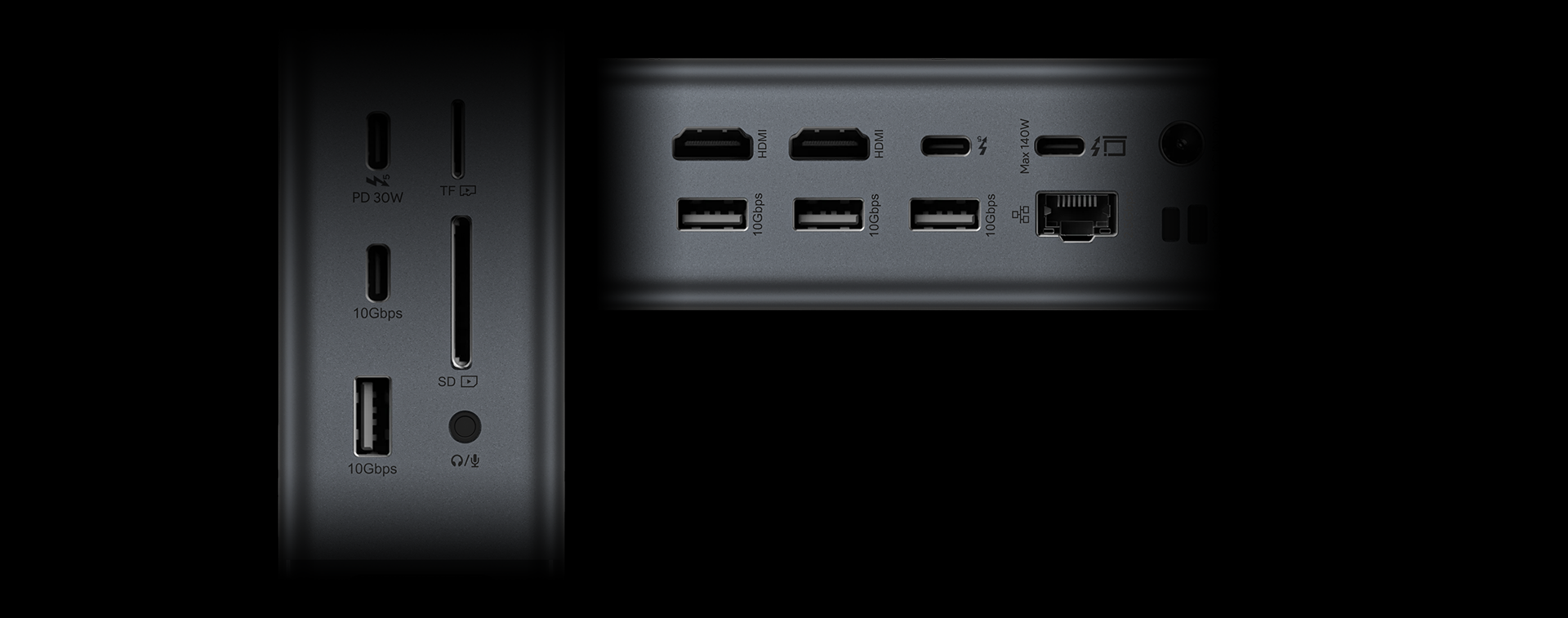

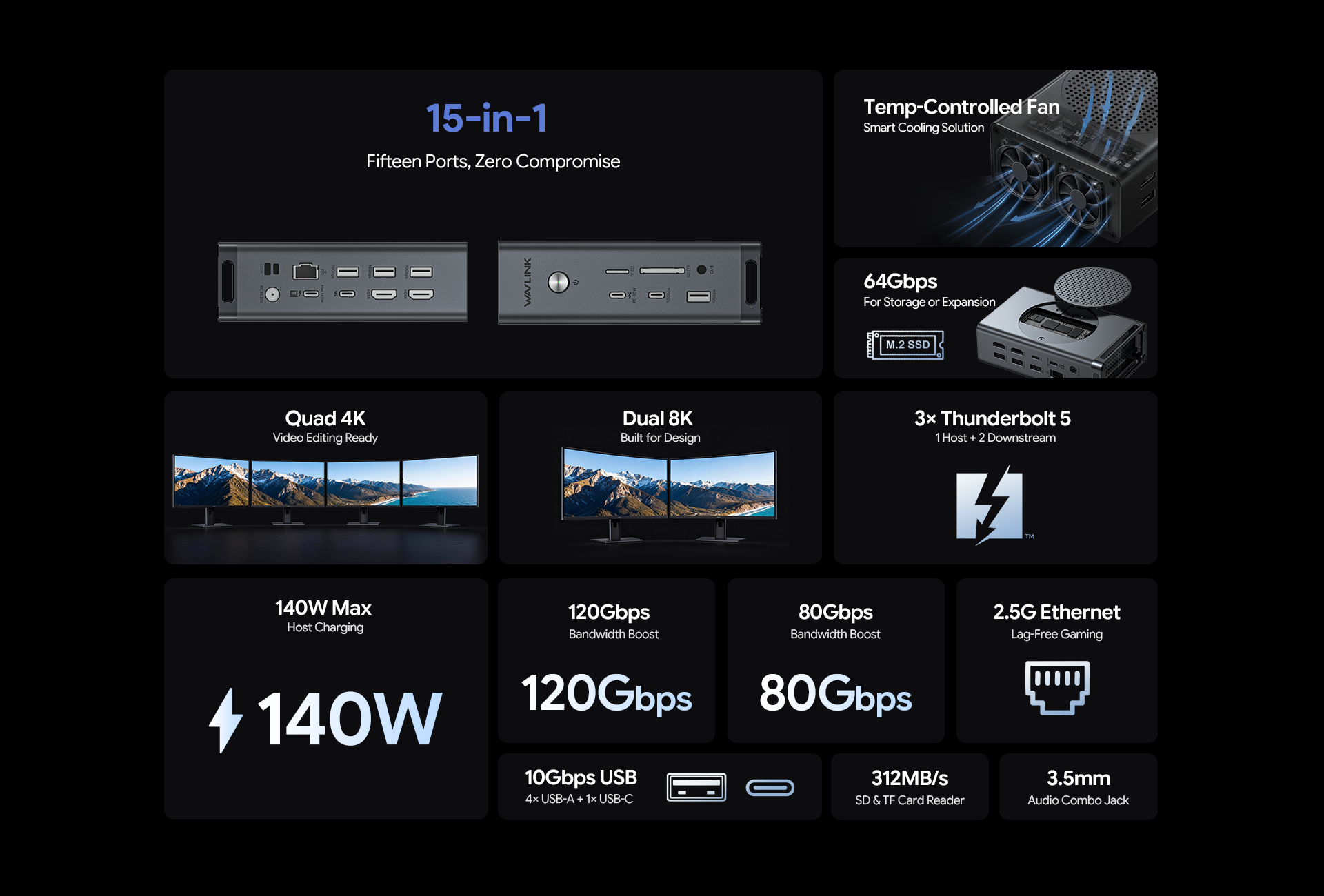

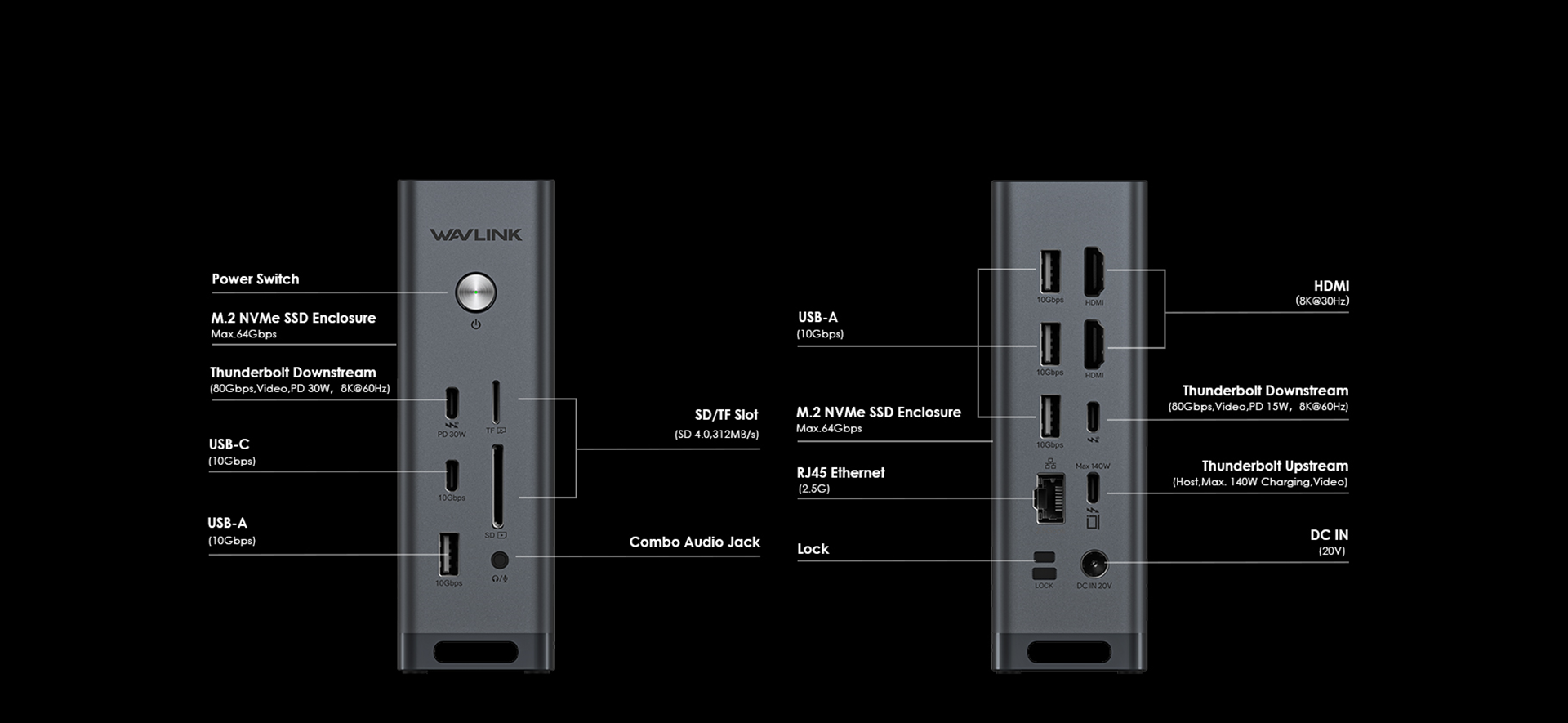

PORTS

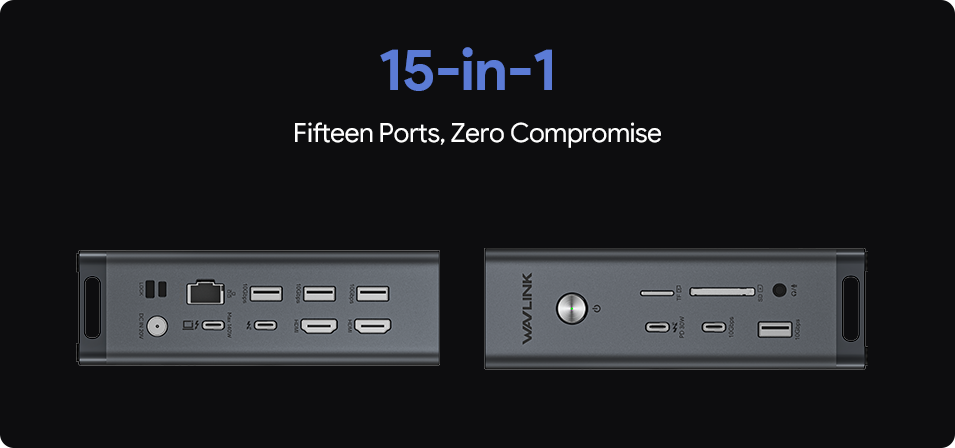

Every Port You Need

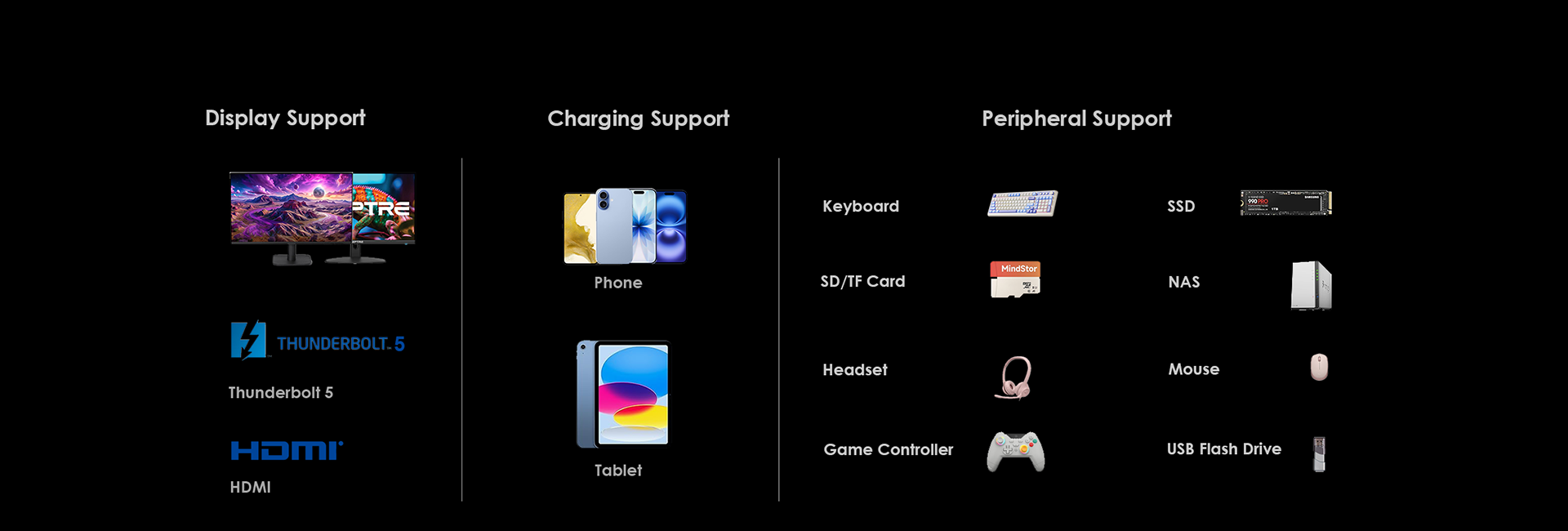

CONNECTIVITY

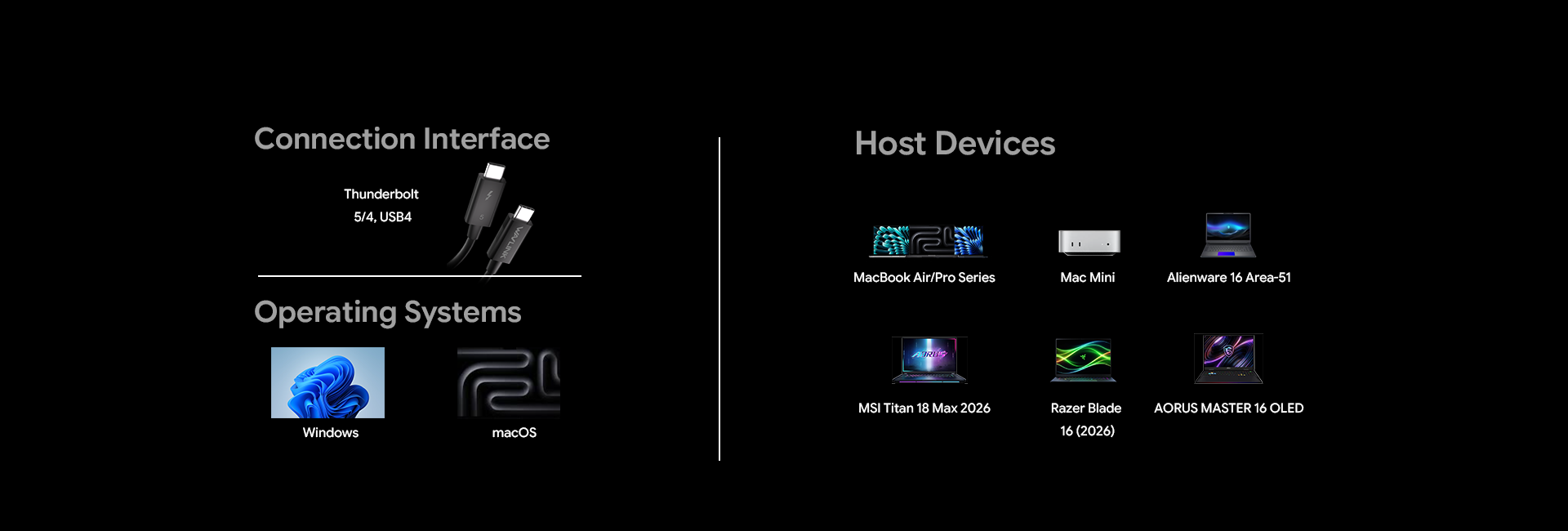

One Dock, All Your Devices.
| Connect The Host To | 1m Thunderbolt 5 cable |
| Plug & Play | No driver required |
| Computers | Thunderbolt 5/4, USB4, USB3.0 computers |
| Operating Systems | Windows 11 or later, macOS 11 or later |

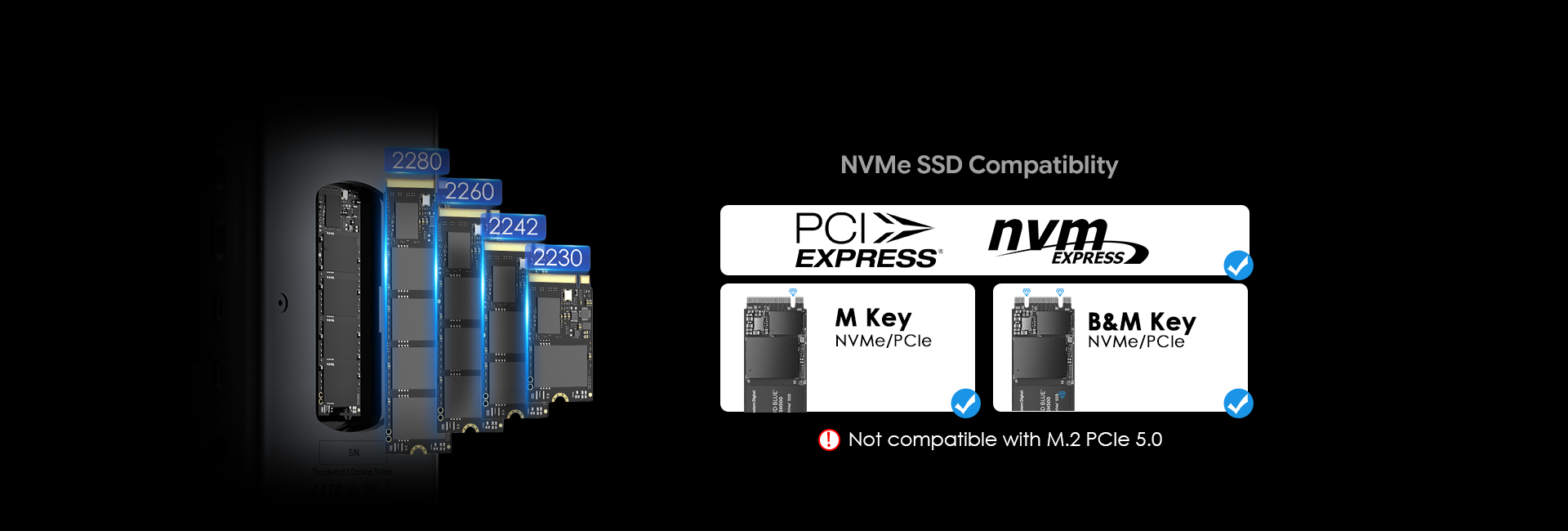

| SSD Key Type | Supports M-Key, B&M Key PCIe NVMe M.2 SSDs only. PCIe AHCI SSDs are not supported. |
| M.2 Form Factor | 2230 / 2242 / 2260 / 2280 |
| Port | Thunderbolt 5 UFP ×1 (Upstream), Thunderbolt 5 DFP ×2 (Downstream), HDMI 2.1 ×2, USB 3.1 Type-A (10 Gbps) ×4, USB-C(10 Gbps) ×1 2.5 Gbps RJ45 ×1, SD 4.0 ×1, 3.5 mm Audio ×1, M.2 Slot ×1 |
| LED | Power LED ×1 |
| Material | Aluminum Alloy |
| Operating Environment | Operating Temperature: 0°C to 40°C Storage Temperature: 0°C to 70°C Operating Humidity: 30% to 80% RH (non-condensing) Storage Humidity: 10% to 90% RH (non-condensing) |

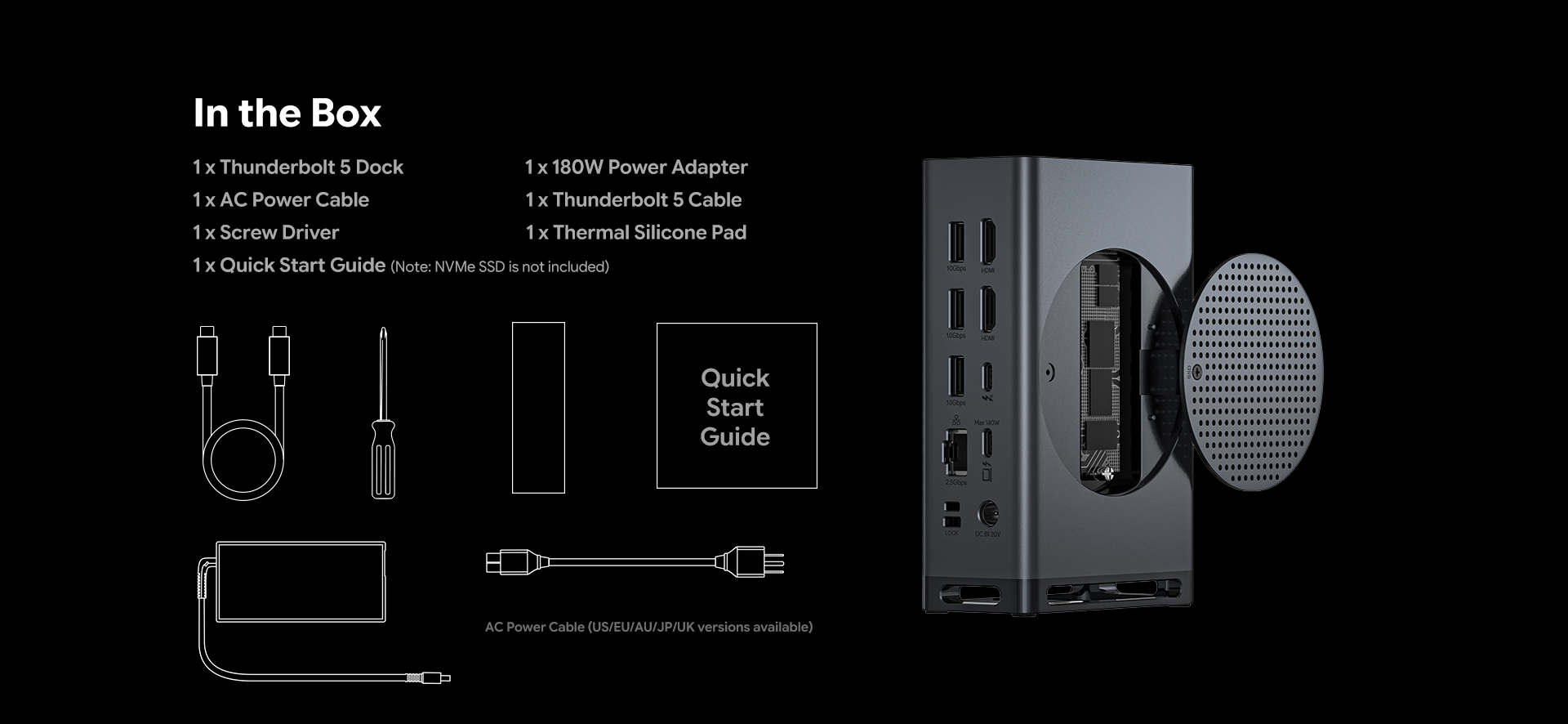

| In the Box | Thunderbolt 5 Dock ×1 180W Power Adapter ×1 AC Power Cable ×1 Thunderbolt 5 Cable ×1 Screw Driver ×1 Thermal Silicone Pad ×1 Quick Start Guide ×1 (Note: NVMe SSD is not included) |
